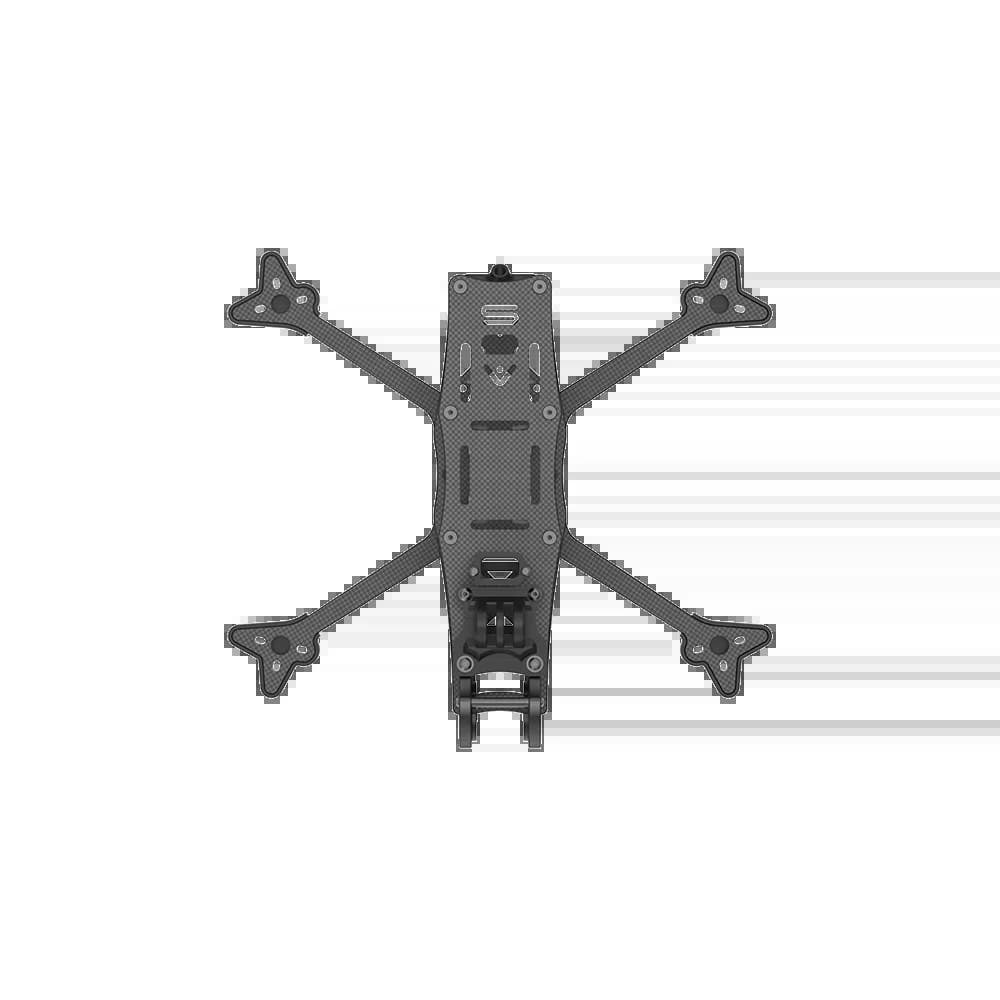

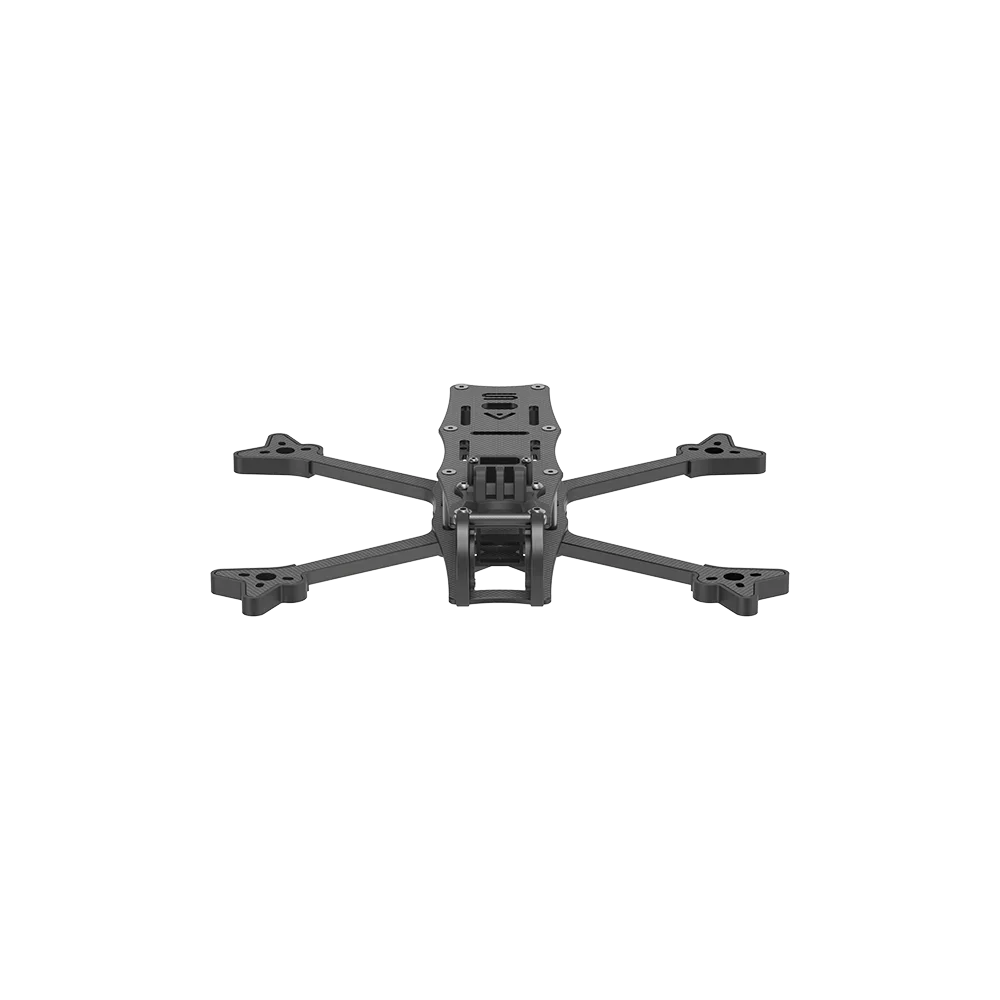

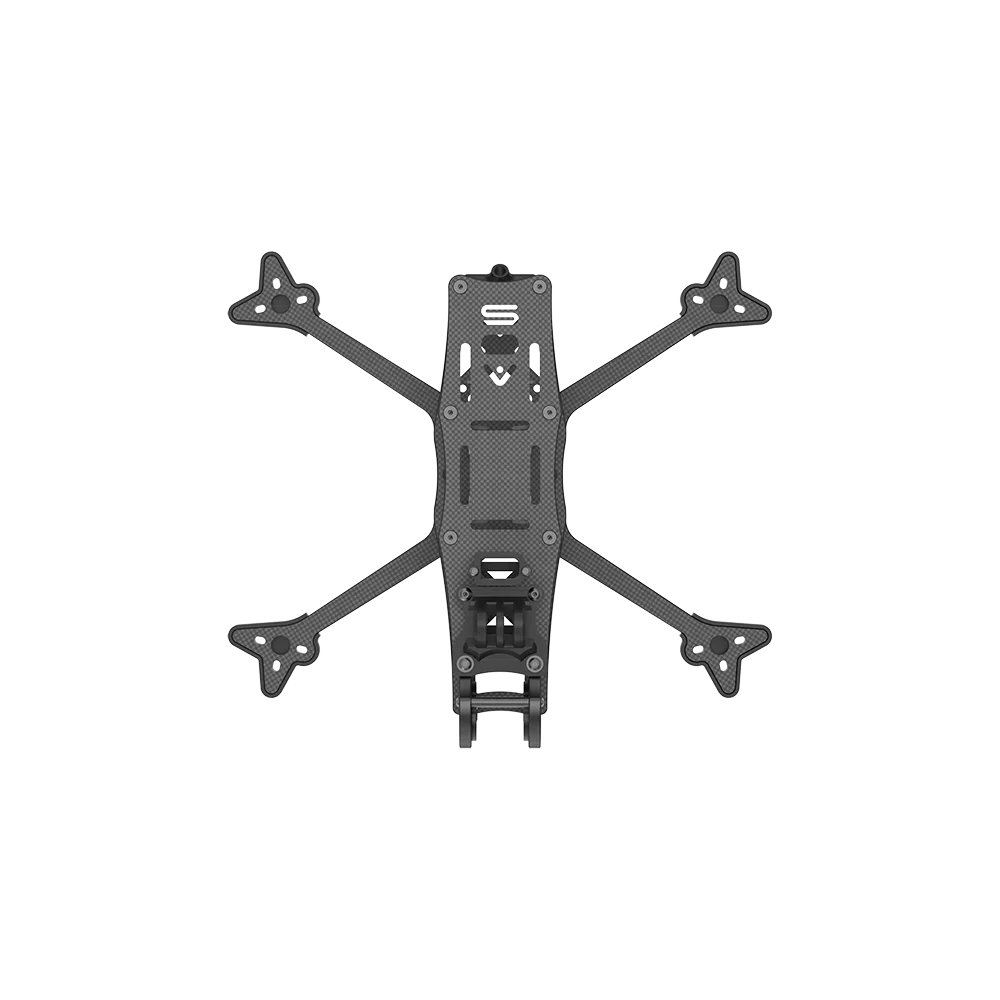

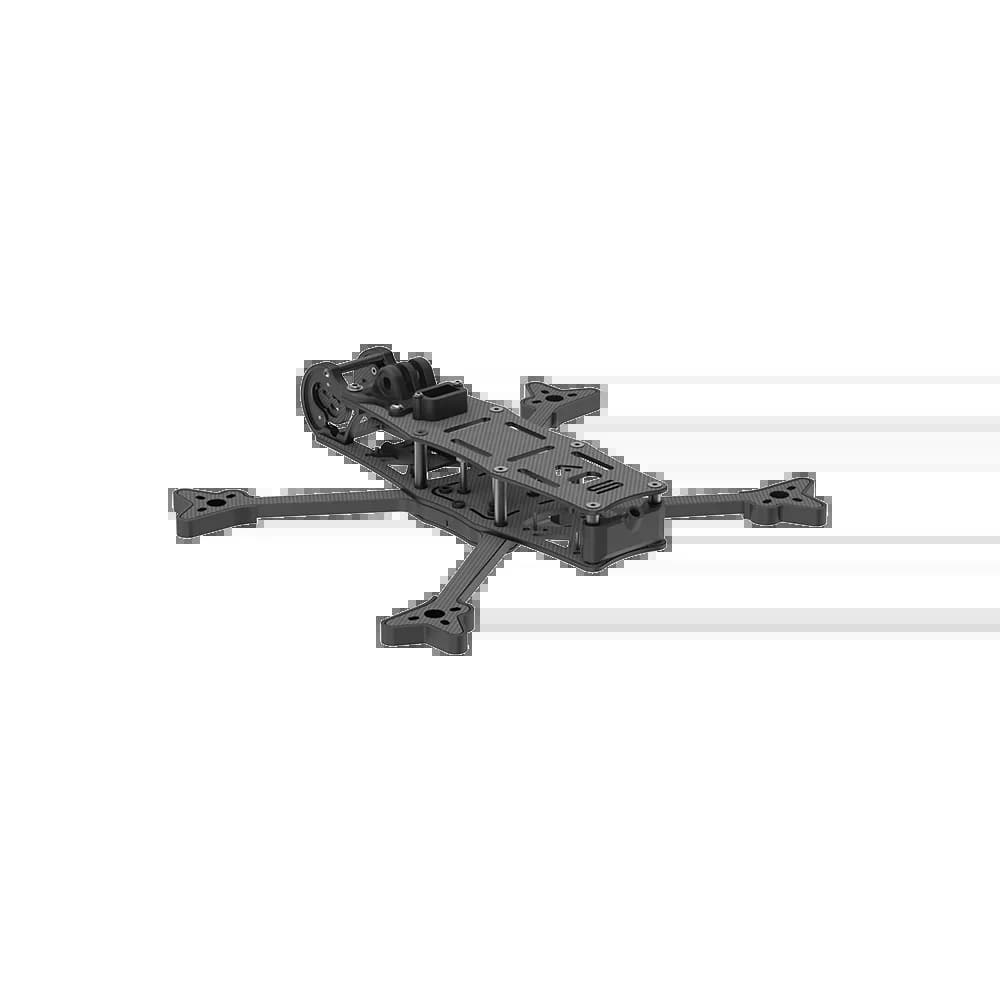

iflight AOS 5 V5.1 O4 Version FPV Frame Kit with 6mm arm for FPV
Description
iflight AOS 5 V5.1 O4 Version FPV Frame Kit with 6mm arm for FPV ============================================================ Description Discover the future of 5" FPV with the AOS 5 V5, engineered to revolutionize your freestyle experience. Designed with cutting-edge patent pending technology and premium materials. V5.1 upgrades interlocking arm geometry and adds a central spine, reinforcing arms and stiffening the FC mount. Specifications Product Name: AOS 5 V5.1 Frame Kit Frame wheelbase: 228mm Frame Dimension: L180*W140*H34 mm Arm Thickness: 6mm Top Plate Thickness: 2mm Bottom Plate Thickness: 2mm Upper Plate Thickness: 2.5mm Max Flight Stack Height: 20mm Max VTX Height: 20mm Flight Stack Mounting: 20*20 Φ3mm / 30.5*30.5 Φ3mm VTX Mounting: 20*20 ⌀2mm / 25.5*25.5 Φ2mm/30.5*30.5 Φ3mm Motor Mounting: 19x19-φ3mm/16x16-φ3mm Weight: 165±5g Compatible: DJI O3 air unit/ Vista HD system/ BLITZ Whoop 1.6W VTX/DJI O4 Air Unit Pro Packing List 1 x AOS 5 V5.1 Frame Kit 1 x TPU Parts 1 x Screw Bag 2 x Battery Strap 2 x Battery pads Tolerance Note Due to manufacturing processes, the thickness of our products may have a standard manufacturing tolerance of ±0.2mm. The size of the hole may have a standard manufacturing tolerance of ±0.1mm. Shipping Note The frame will be shipped as separate components. Assembly is required by the user. Images on the page are for display purposes only. Compatibility Note Before purchase, please confirm the installation dimensions of your flight controller, ESC, VTX, and other accessories to ensure compatibility with the frame. TECHNICAL SPECIFICATIONS • Weight: 165±5g • Compatible: DJI O3 air unit/ Vista HD system/ BLITZ Whoop 1.6W VTX/DJI O4 Air Unit Pro AVAILABLE OPTIONS Frame PRODUCT INFORMATION Brand: iFlight Category: Drone Frame Kit Wholesale Price: US $113.29 ————————————————————————————————————————
Specifications
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Brand Name | IFLIGHT |
| Origin | Mainland China |
| Drones Accessories Type | Body shell |
Product Details
Description
Specifications
Product Name: AOS 5 V5.1 Frame Kit
Frame wheelbase: 228mm
Frame Dimension: L180*W140*H34 mm
Arm Thickness: 6mm
Top Plate Thickness: 2mm
Bottom Plate Thickness: 2mm
Upper Plate Thickness: 2.5mm
Max Flight Stack Height: 20mm
Max VTX Height: 20mm
Flight Stack Mounting: 20*20 Φ3mm / 30.5*30.5 Φ3mm
VTX Mounting: 20*20 ⌀2mm / 25.5*25.5 Φ2mm/30.5*30.5 Φ3mm
Motor Mounting: 19x19-φ3mm/16x16-φ3mm
Weight: 165±5g
Compatible: DJI O3 air unit/ Vista HD system/ BLITZ Whoop 1.6W VTX/DJI O4 Air Unit Pro
Packing List
1 x AOS 5 V5.1 Frame Kit
1 x TPU Parts
1 x Screw Bag
2 x Battery Strap
2 x Battery pads
Note
Tolerance Note
Due to manufacturing processes, the thickness of our products may have a standard manufacturing tolerance of ±0.2mm. The size of the hole may have a standard manufacturing tolerance of ±0.1mm.
Shipping Note
The frame will be shipped as separate components. Assembly is required by the user. Images on the page are for display purposes only.
Compatibility Note
Before purchase, please confirm the installation dimensions of your flight controller, ESC, VTX, and other accessories to ensure compatibility with the frame.
