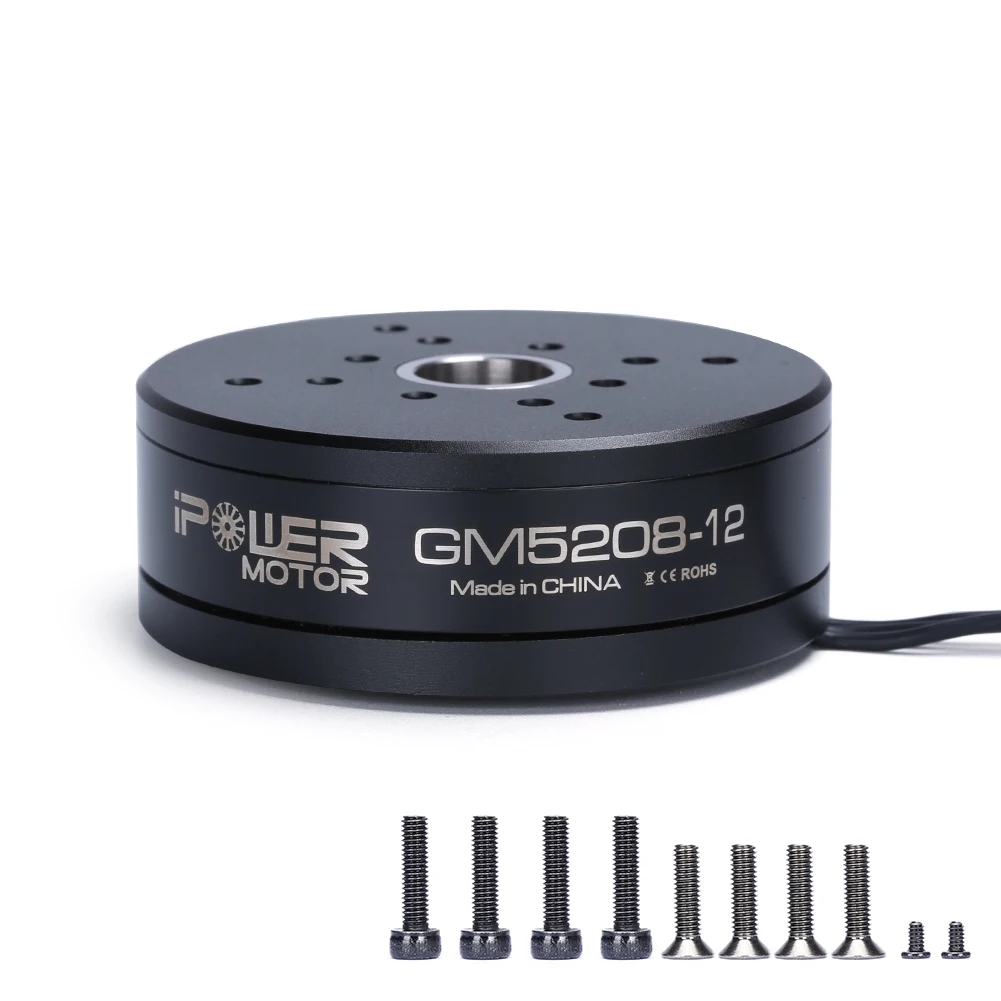

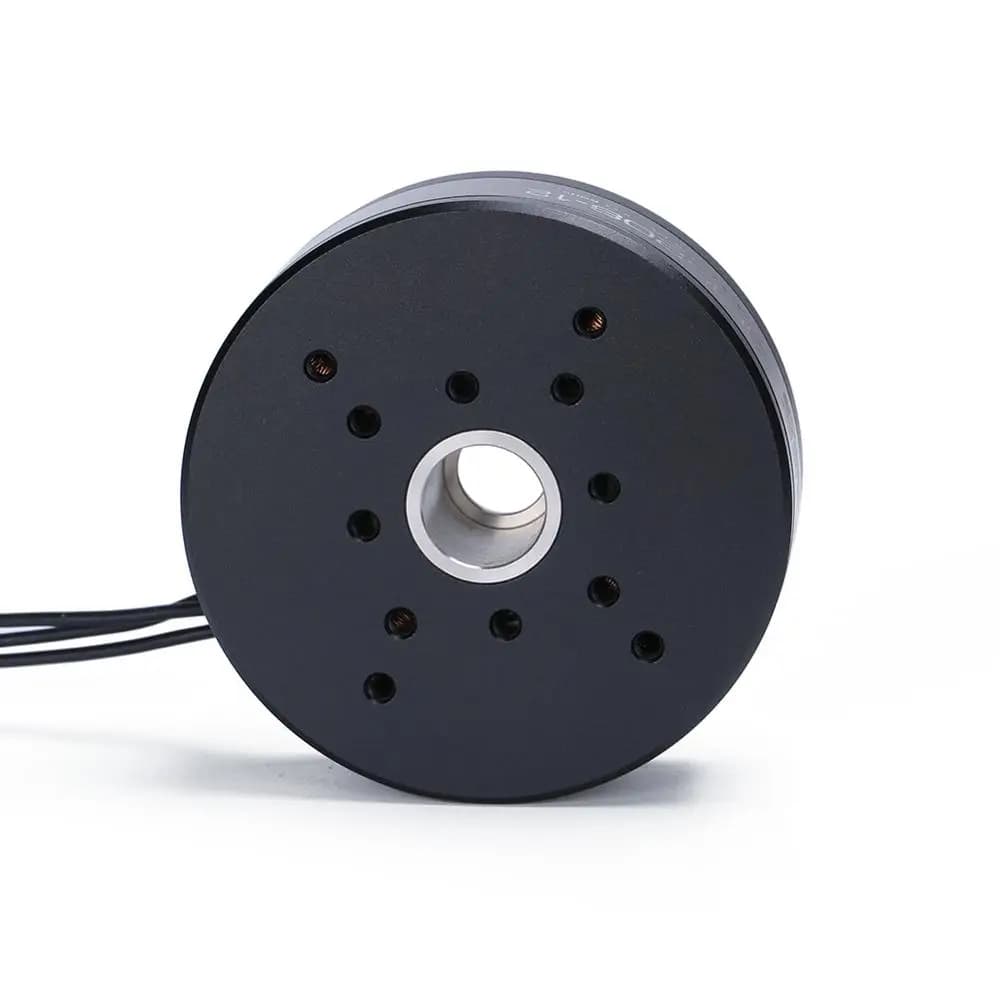

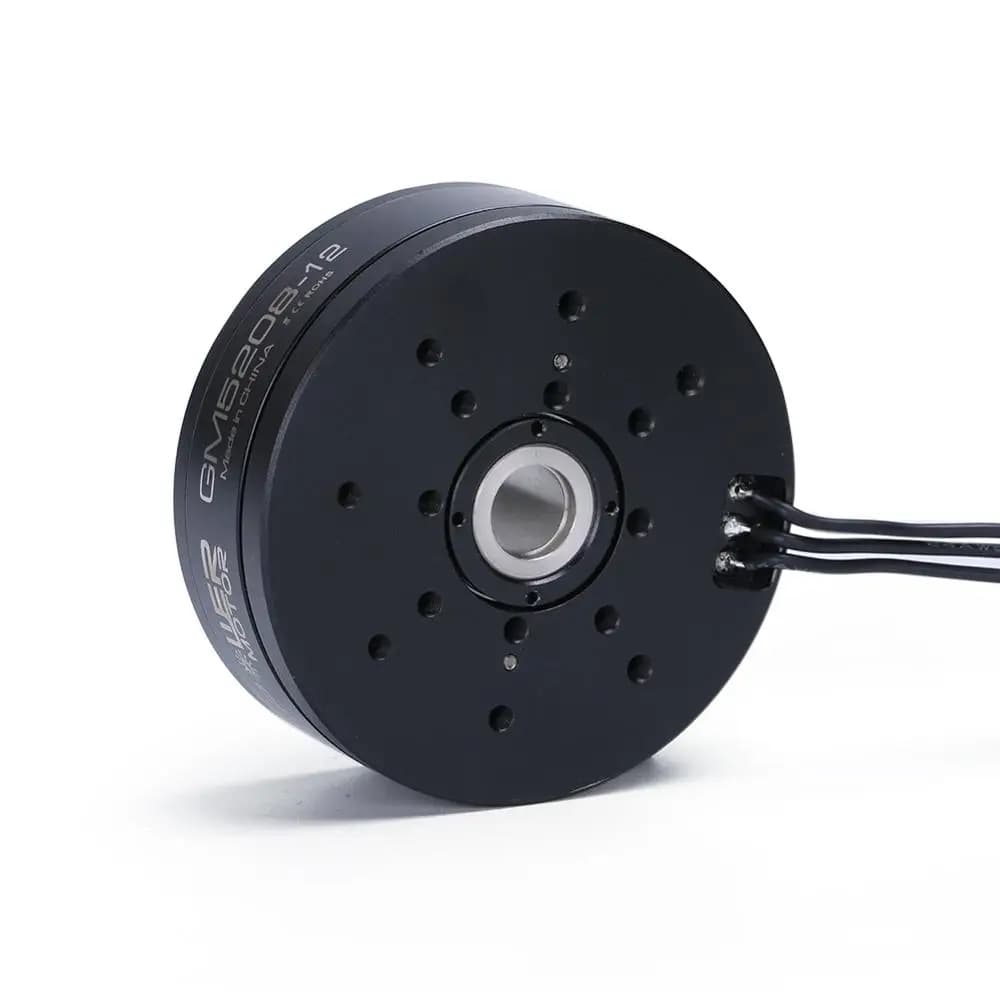

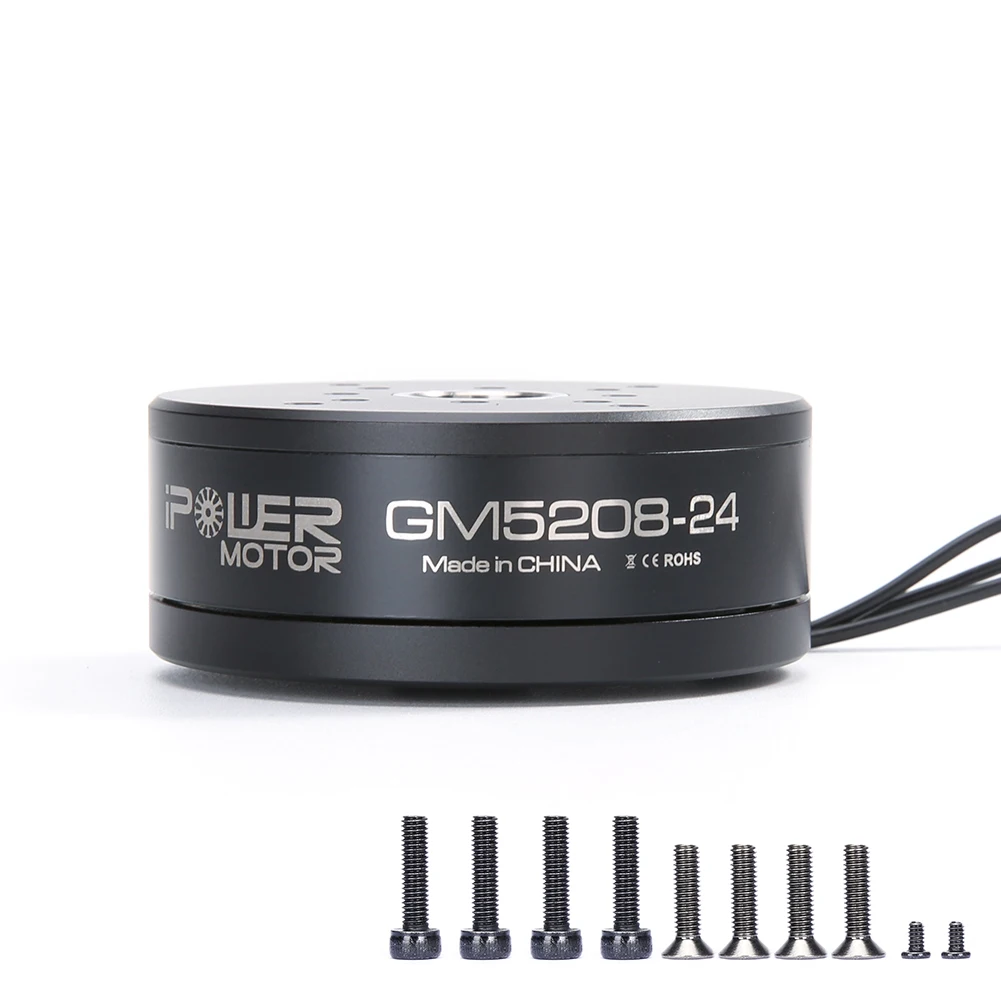

iFlight iPower GM5208-12 GM5208-24 Brushless Gimbal Motor 12.6mm Shaft UAV pod

Description

iFlight iPower GM5208-12 GM5208-24 Brushless Gimbal Motor 12.6mm Shaft UAV pod ============================================================ Description The GM52 series motor by iPower Motors is the ultimate brushless gimbal motor for DSLR / CANON 5D MARKII, MARKIII Cameras. This motor is designed for large-scale multi-rotor platforms looking to lift Red Epic & DSLR sized gear – 4KG/cm Torque. The principle of the camera stabilization using brushless direct drive motors, In fact, gimbal based on BLDC motors is very similar to regular gimbal based on hobby servo. GM5208-12 Specification: Model: GM5208 Motor Out Diameter: 63±0.05mm Motor Height: 22.7±0.2mm Hollow Shaft(OD): 15-0.008/-0.012 mm Hollow Shaft(ID): 12+0.05/0 mm Wire Length: 610±3mm Cable AWG: #24 Motor Weight: 195±0.5g Wire plug: 2.5mm dupont connector No-load current: 20V No-load volts: 0.09±0.1 A No-load Rpm: 456~504 RPM Load current: 20V Load volts: 1A Load torque(g): 1800-2500 Motor internal resistance: 15.2Ω±5%Resistance varies with temperature High voltage test: DC500V 10mA @1sec Rotor housing runout: ≤0.1mm Steering (axle extension): clockwise High-low temperature test: High temperature: Keep at 60 for 100 hours, and the motor can work normally after 24 hours at room temperature Low temperature: Keep at -20 for 100 hours, and the motor can work normally after 24 hours at room temperature Maximum power: ≤40W Working current: 3-5S Working temperature: -20~60;10~90%RH GM5208-24 Specification: Model: GM5208-24 Motor Out Diameter: 59.5±0.05mm Motor Height: 31.2±0.2mm Hollow Shaft(OD): 15-0.008/-0.012 mm Hollow Shaft(ID): 12.6+0.05/0 mm Wire Length: 610±3mm Cable AWG: #24 Motor Weight: 204±0.5g Wire plug: 2.5mm dupont connector No-load current: 20V No-load volts: 0.09±0.1 A No-load Rpm: 396~436 RPM Load current: 20V Load volts: 1A Load torque(g): 1800-2500 Motor internal resistance: 13.7Ω±5%Resistance varies with temperature High voltage test: DC500V 10mA @1sec Rotor housing runout: ≤0.1mm Steering (axle extension): clockwise High-low temperature test: High temperature: Keep at 60 for 100 hours, and the motor can work normally after 24 hours at room temperature Low temperature: Keep at -20 for 100 hours, and the motor can work normally after 24 hours at room temperature Maximum power: ≤40W Working current: 3-5S Working temperature: -20~60;10~90%RH Package included: GM5208-12 Gimbal Motor: 1XGM5208 gimbal motor GM5208-24 Gimbal Motor: 1 x GM5208-24 gimbal motor 1 x Screw bag GM5208-12 Gimbal Motor w/Encoder: 1 x iPower GM5208-12 Gimbal Motor 1 x AS5048A Encoder with aluminum case TECHNICAL SPECIFICATIONS • Model: GM5208 • Model: GM5208-24 AVAILABLE OPTIONS GM5208-12 w Encoder 2pcs GM5208-12 2pcs GM5208-24 2pcs 12 w Encoder GM5208-12 Gimbal GM5208-24 Gimbal PRODUCT INFORMATION Brand: iFlight Category: Brushless Motor Wholesale Price: US $31.31 - $118.66 ————————————————————————————————————————
