Устройство защиты от разряда литиевой батареи Vifly StoreSafe 2S-6S для безопасного хранения, защита батареи при пересечении дронов
Description

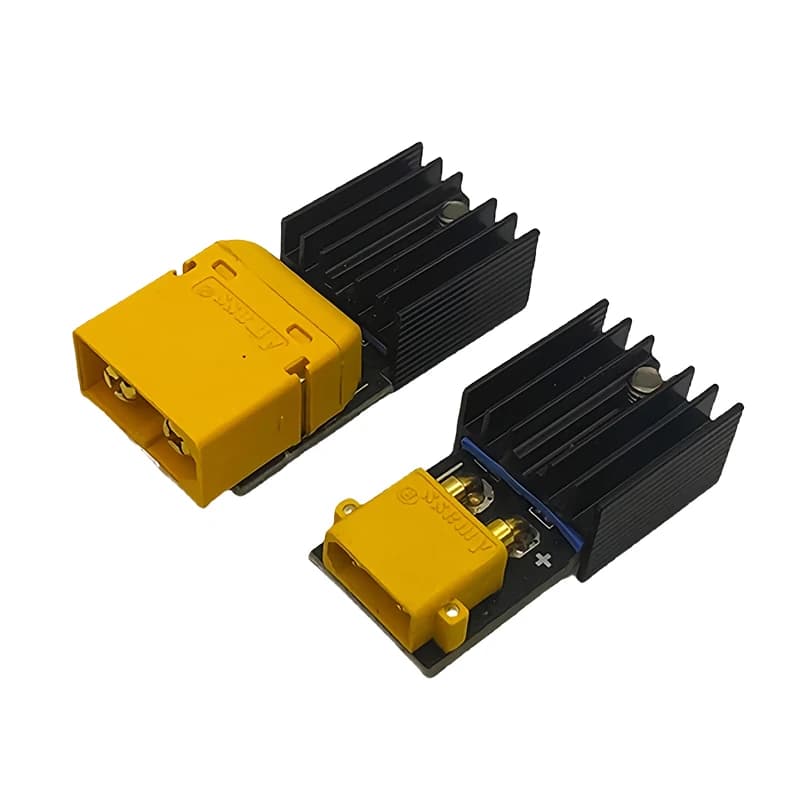

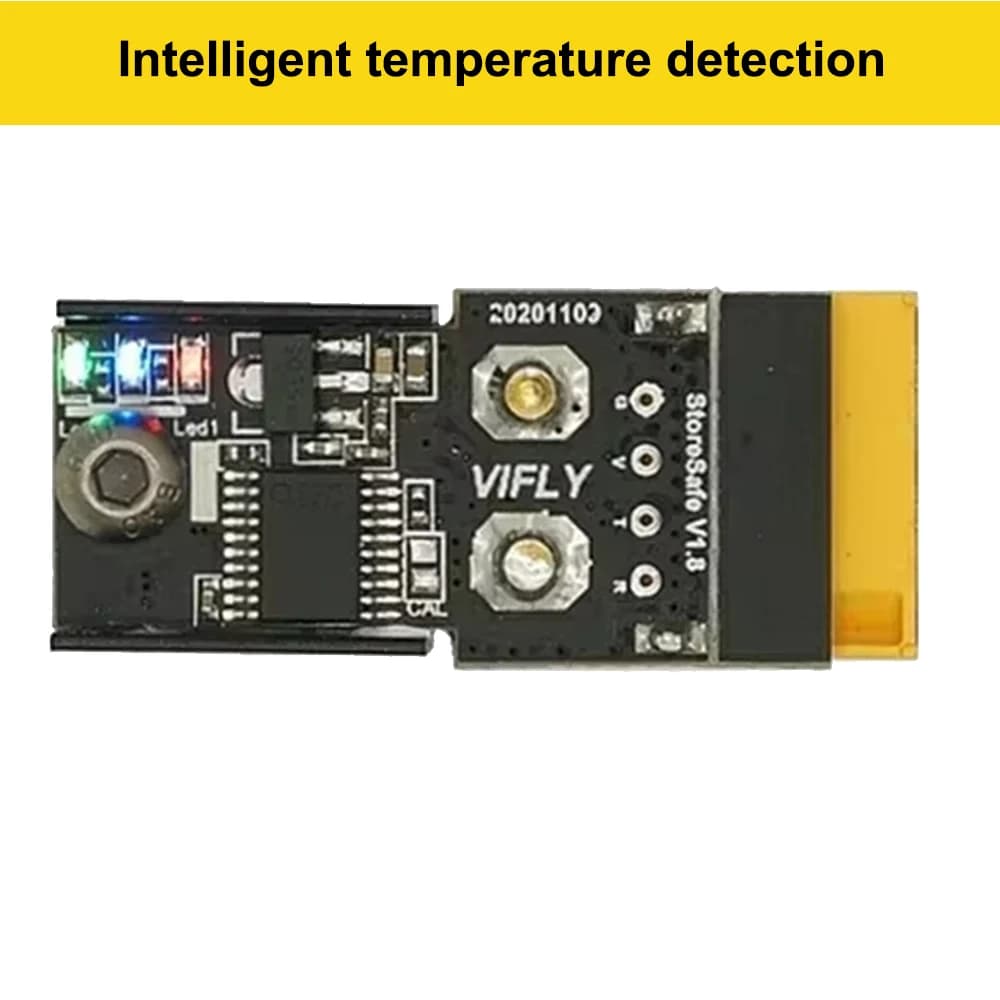

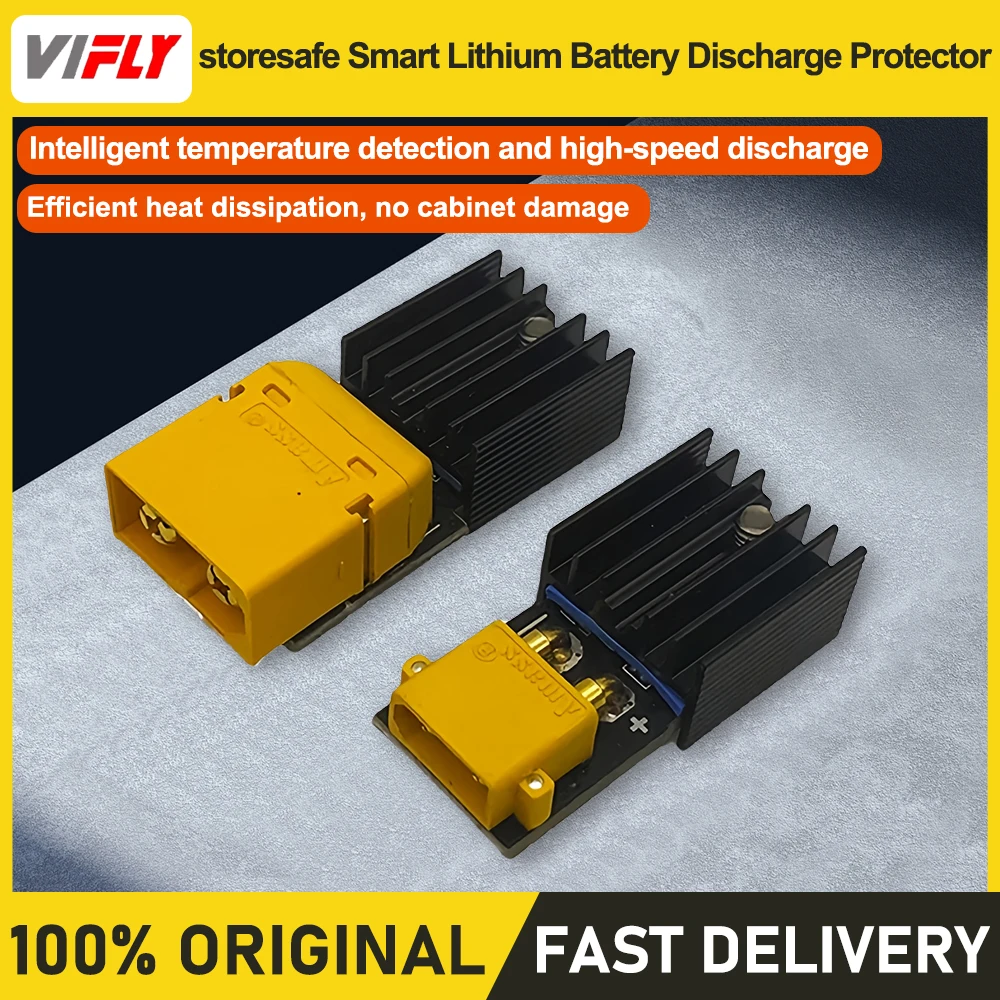

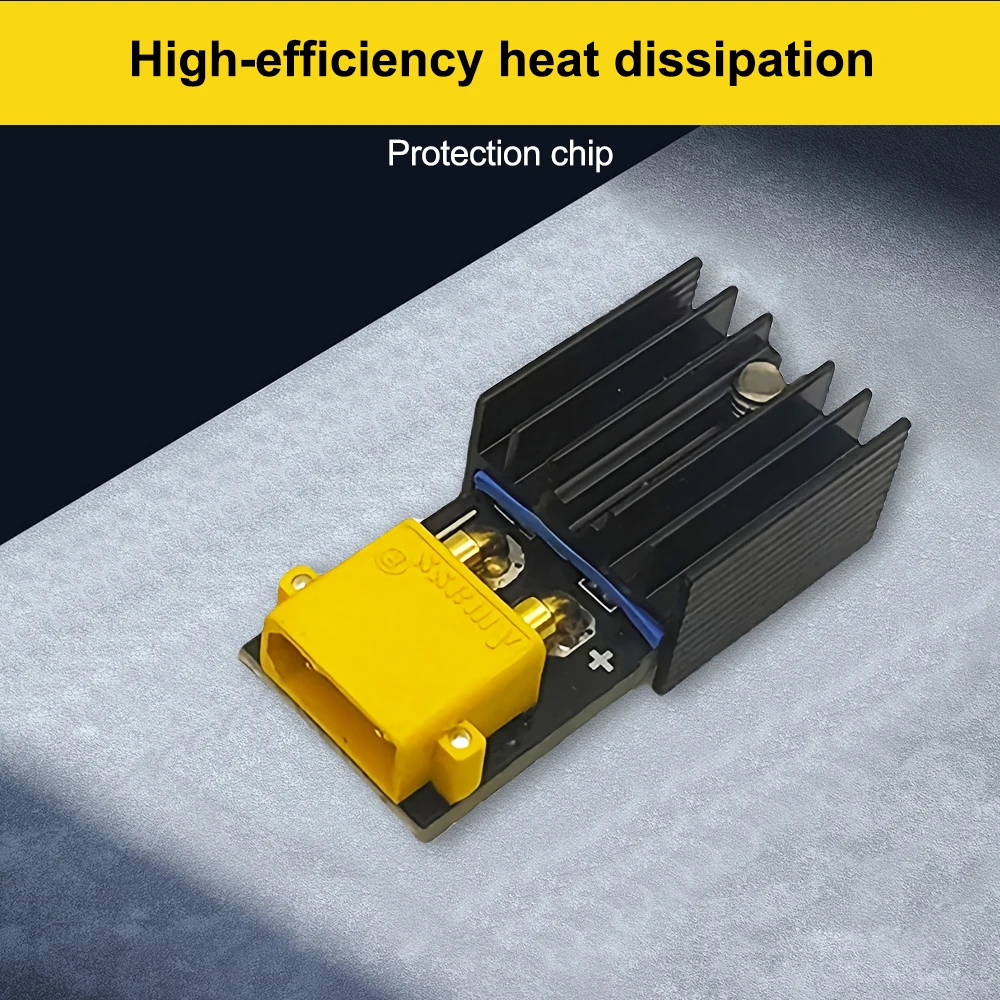

VIFLY StoreSafe is a smart lipo battery discharger that can intelligently discharge your battery to storage voltage.With built-in advanced algorithm and the temperature sensor, it can keep the highest discharge rate in an appropriate temperature range.The heatsink would effectively dissipate the heat to prevent the discharger from overheating
1. XT60/XT30 Input
2. Red LED
3. Blue LED
4. Green LED
StoreSafe would recognize the battery type automatically and indicate it with different LED lights.
Note: When the LED status does not match the above table, please stop using StoreSafe immediately and contact us.
Operation
Before using StoreSafe, please make sure that the voltage of each battery cell is higher than
3.95V
.
After plugging in the battery, the LED that indicates the status will flash for about 5 seconds and then enter the discharging state. If the LED status not indicates correctly, please disconnect the battery immediately.
The StoreSafe will stop discharging when your battery reaches storage voltage (3.85V±0.08V / cell) and then goes into an ultra-low leakage current (<10uA)
Specs
Working Voltage 7.9 - 26V(2S-6S)
Discharging Power 1W
Turn-off Current < 10uA
Storage Voltage 3.85V±0.08V / cell
Connector XT60 / XT30
Weight 8g(XT60) / 5g(XT30)
Size (L x W x H) 37 x 16 x 10 mm(XT60) / 32 x 15 x 10 mm(XT30)
Specifications
| Option | Values |
|---|---|
| High-concerned chemical |
|
| Is Electric |
|
| Is it battery/power supply |
|
| Is it charger/adapter |
|
| Is Batteries Included |
|
| Material |
|
| Origin |
|
| Recommend Age |
|
| Use |
|
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| Material | Composite Material |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
Product Details
VIFLY StoreSafe is a smart lipo battery discharger that can intelligently discharge your battery to storage voltage.With built-in advanced algorithm and the temperature sensor, it can keep the highest discharge rate in an appropriate temperature range.The heatsink would effectively dissipate the heat to prevent the discharger from overheating
1. XT60/XT30 Input
2. Red LED
3. Blue LED
4. Green LED
StoreSafe would recognize the battery type automatically and indicate it with different LED lights.
Note: When the LED status does not match the above table, please stop using StoreSafe immediately and contact us.
Operation
After plugging in the battery, the LED that indicates the status will flash for about 5 seconds and then enter the discharging state. If the LED status not indicates correctly, please disconnect the battery immediately.
The StoreSafe will stop discharging when your battery reaches storage voltage (3.85V±0.08V / cell) and then goes into an ultra-low leakage current (<10uA)
Specs
Working Voltage 7.9 - 26V(2S-6S)
Discharging Power 1W
Turn-off Current < 10uA
Storage Voltage 3.85V±0.08V / cell
Connector XT60 / XT30
Weight 8g(XT60) / 5g(XT30)
Size (L x W x H) 37 x 16 x 10 mm(XT60) / 32 x 15 x 10 mm(XT30)
