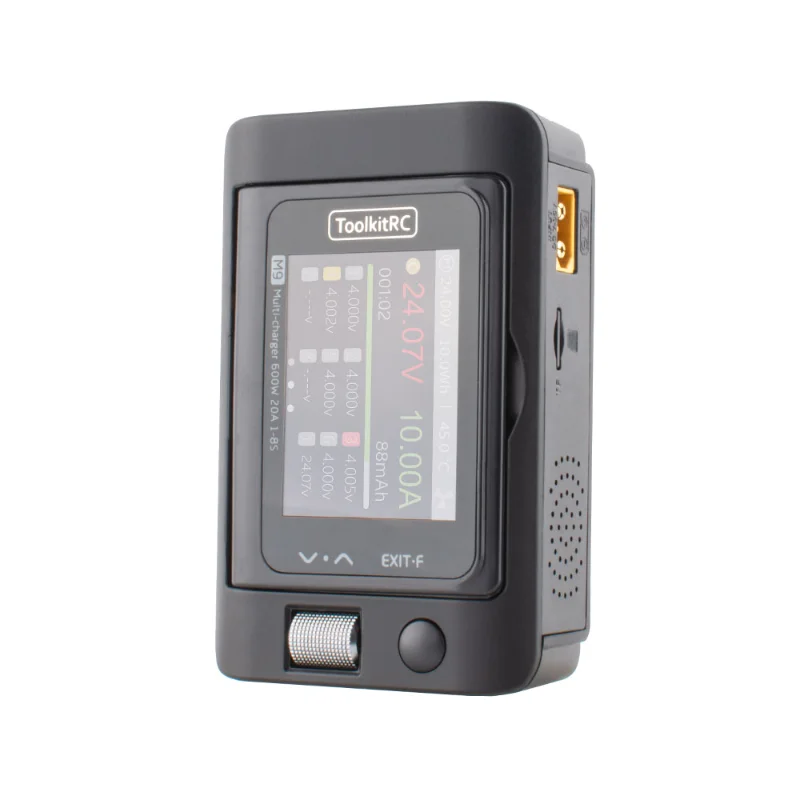

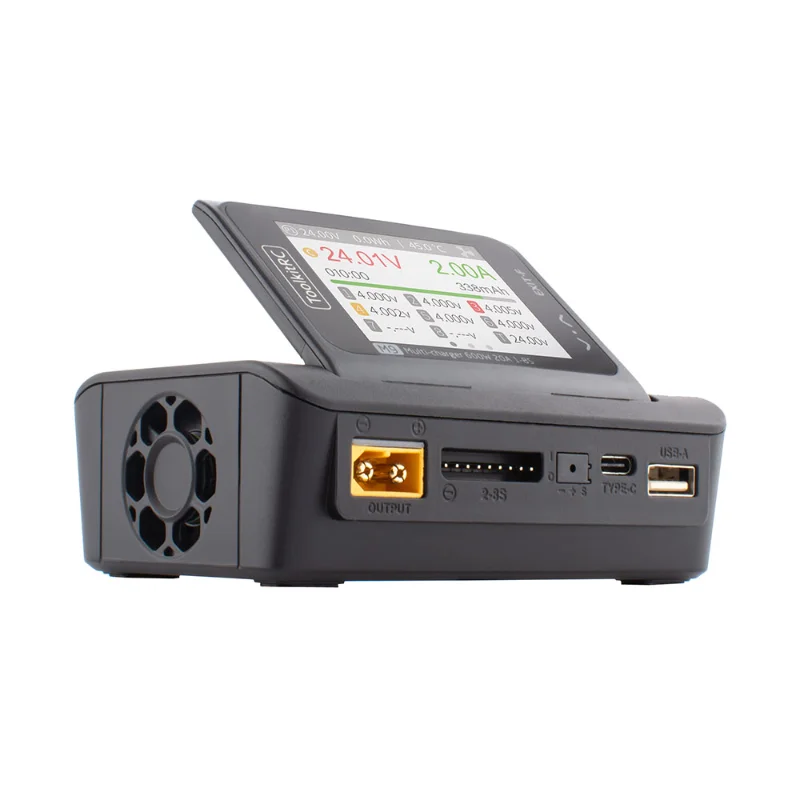

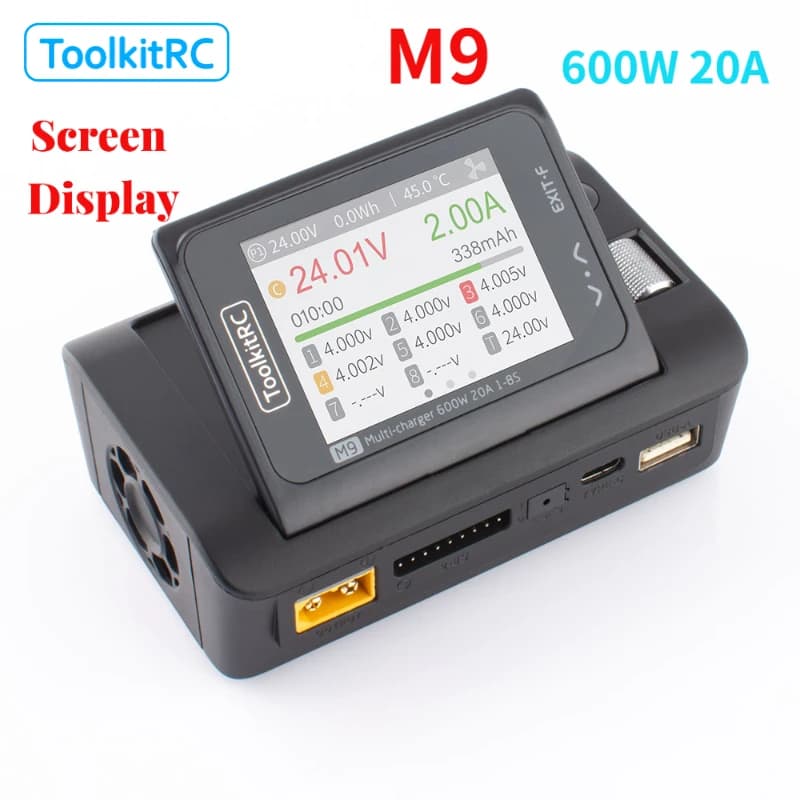

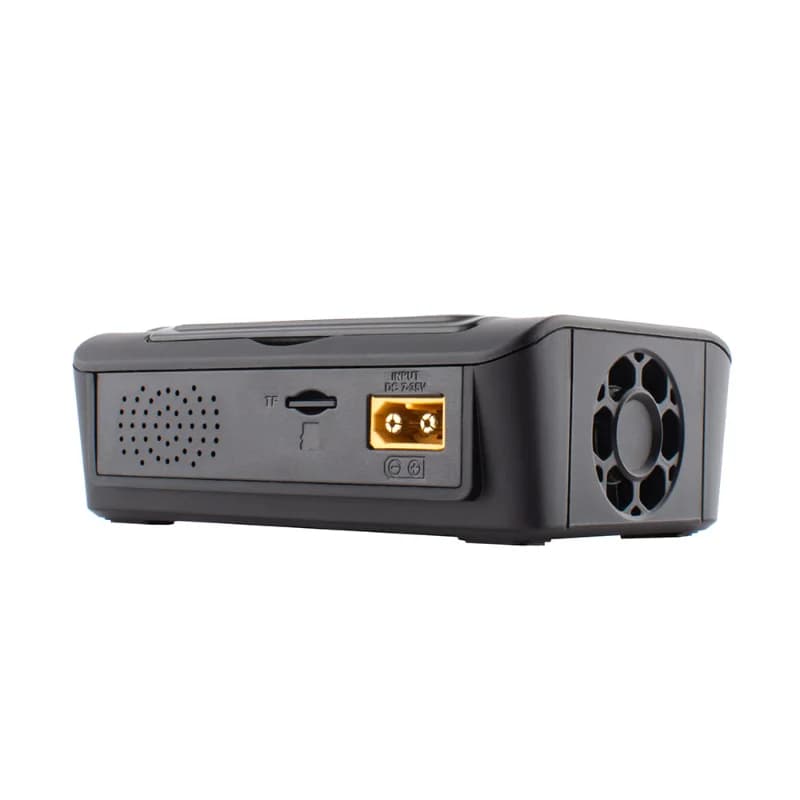

ToolkitRC M9 Lipo LiFe Battery Charger 600W 20A Smart USB Fast Charging with Audio Function for 1-8S RC Model Batteries
1 orders (reference)
Description
ToolkitRC M9 Lipo LiFe Battery Charger 600W 20A Smart USB Fast Charging with Audio Function for 1-8S RC Model Batteries ============================================================ M9 SPEC Measurer PWM：880-2200us @ 20-400Hz PPM：880-2200us * 8CH @ 20-50Hz SBUS：880-2200us * 16CH @ 20-100Hz voltage：1.0-5.0V @ 1-8S Internal resistance：0.1 mR-99R @ 1-8S ESC：600W @ 20A Charger input voltage：7.0-35.0V @MAX 25A battery type：Lipo LiHV LiFe Lion LTO@1-8S NiMh @1-20S Pb @1-10S balance current：1000mA @ 4.2V charging power：600W @MAX 20A discharge power：600W @MAX 20A Recycle mode 20W@3A Normal mode USB：65W@5.0-20.0V or Upgrade by USB-A Output PWM:500-2500us @ 20-1000Hz PPM:880-2200us * 8CH @ 20-50Hz SBUS:880-2200us * 16CH @ 20-100Hz power supply:1.0-35.0V @1.0-20A mode:CC CV Overcurrent response:<5ms General Product size：108*71*36mm product weight：235g packing size：135*81*44mm packaging weight：330g LCD：IPS 2.4 inch LCD 320*240 TECHNICAL SPECIFICATIONS • USB：65W@5.0-20.0V or Upgrade by USB-A • voltage：1.0-5.0V @ 1-8S AVAILABLE OPTIONS ToolkitRc M9 PRODUCT INFORMATION Brand: ToolkitRC Category: Battery Charger Wholesale Price: US $82.23 ————————————————————————————————————————
Specifications
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Quantity | 1 pcs |
| Is it battery/power supply | N |
| Is it charger/adapter | Y |
| Is Batteries Included | No |
| Size | 120*70*40mm |
| Plastic Type | ABS |
| Model Number | M9 |
| For Vehicle Type | Cars |
| Remote Control Peripherals/Devices | Battery Charging Units |
| Material | Plastic |
| Brand Name | ToolKitRc |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
| Certification | CE,FCC,RoHS |
Product Details
M9 SPEC
Measurer
PWM：880-2200us @ 20-400Hz
PPM：880-2200us * 8CH @ 20-50Hz
SBUS：880-2200us * 16CH @ 20-100Hz
voltage：1.0-5.0V @ 1-8S
Internal resistance：0.1 mR-99R @ 1-8S
ESC：600W @ 20A
Charger
input voltage：7.0-35.0V @MAX 25A
battery type：Lipo LiHV LiFe Lion LTO@1-8S NiMh @1-20S Pb @1-10S
balance current：1000mA @ 4.2V
charging power：600W @MAX 20A
discharge power：600W @MAX 20A Recycle mode 20W@3A Normal mode
USB：65W@5.0-20.0V or Upgrade by USB-A
Output
PWM:500-2500us @ 20-1000Hz
PPM:880-2200us * 8CH @ 20-50Hz
SBUS:880-2200us * 16CH @ 20-100Hz
power supply:1.0-35.0V @1.0-20A mode:CC CV
Overcurrent response:<5ms
General
Product size：108*71*36mm
product weight：235g
packing size：135*81*44mm
packaging weight：330g
LCD：IPS 2.4 inch LCD 320*240
