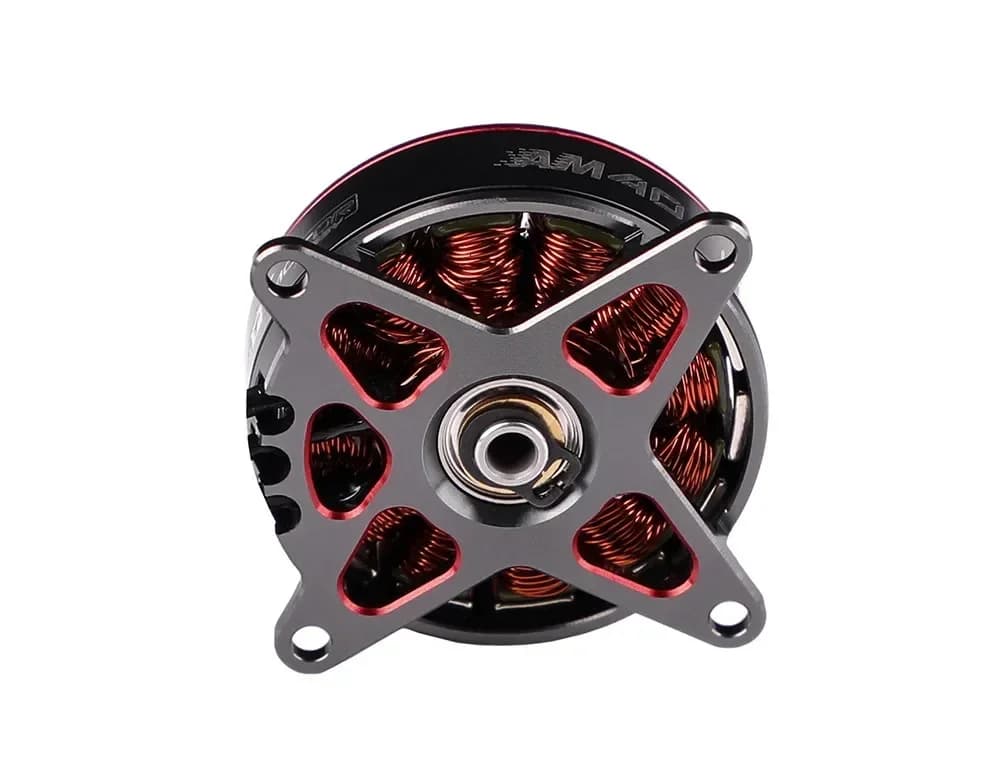

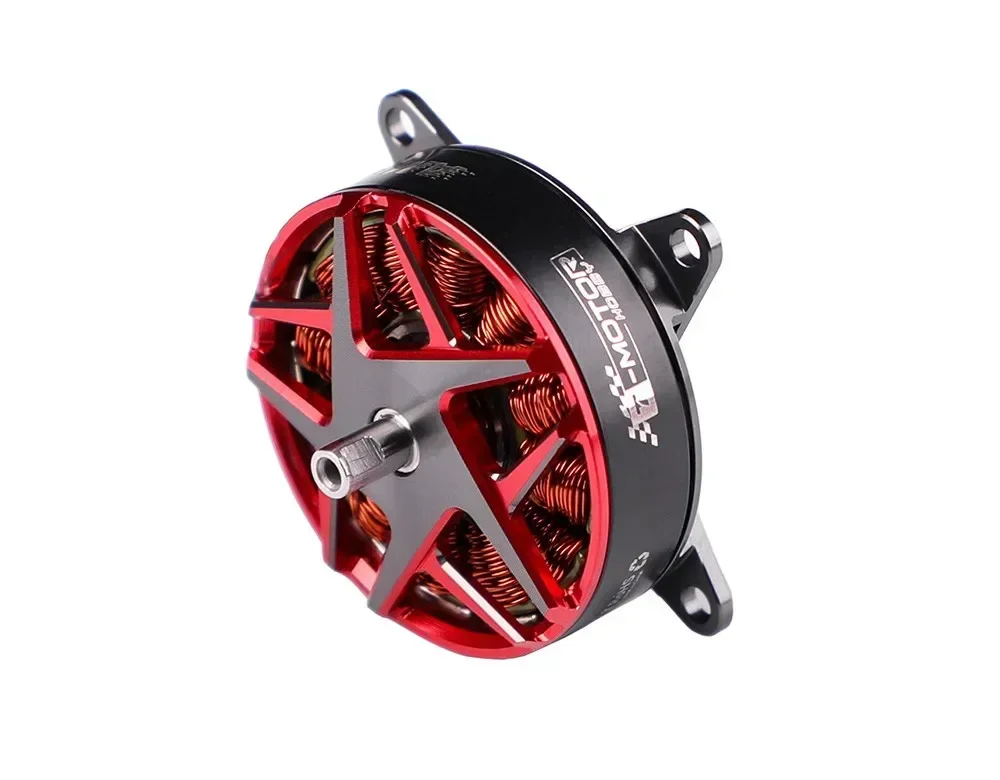

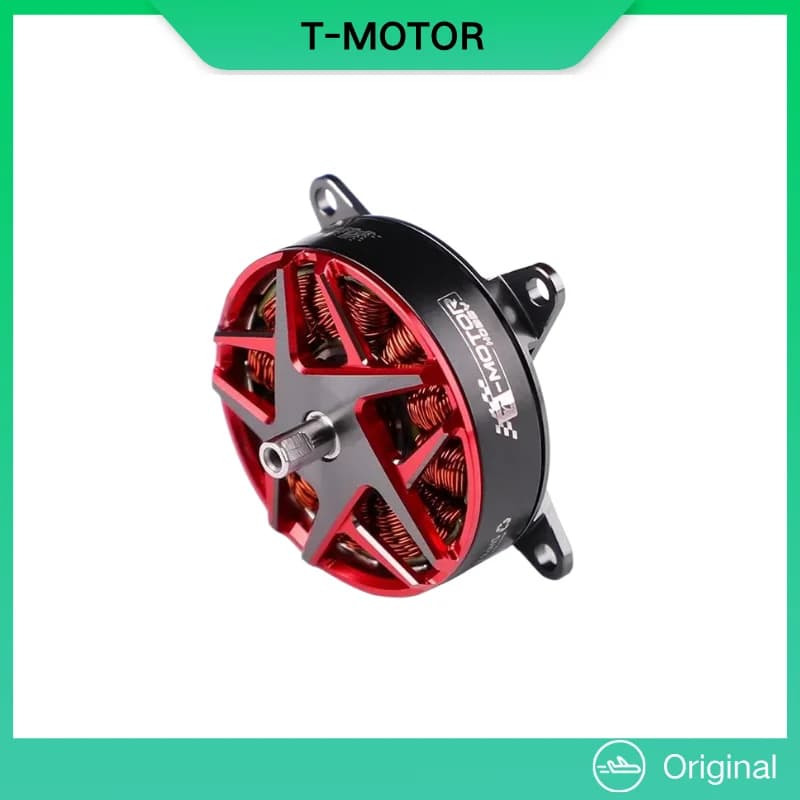

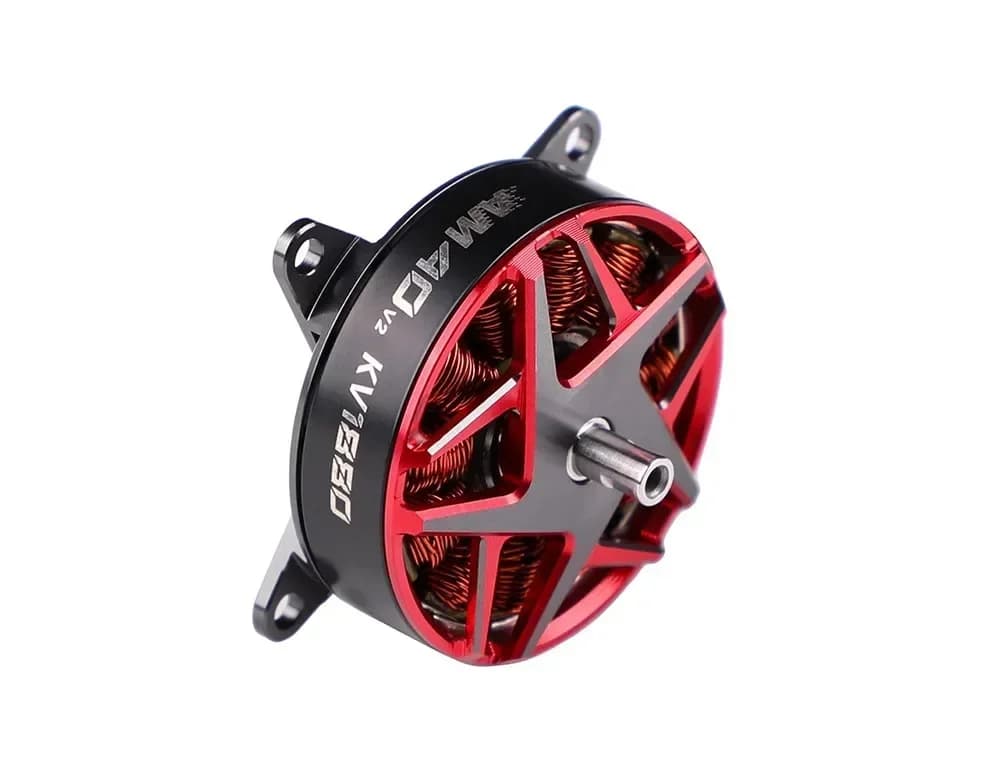

T-MOTOR AM40 V2 3D/4D KV1550/KV1880 F3P 2-3S Brushless Motor for RC Fixed-Wing Airplane Drone
94 orders (reference)
Description
T-MOTOR AM40 V2 3D/4D KV1550/KV1880 F3P 2-3S Brushless Motor for RC Fixed-Wing Airplane Drone ============================================================ T-MOTOR AM40 V2 3D/4D KV1550/KV1880 F3P 2-3S Brushless Motor for RC Fixed-Wing Airplane Drone Description: Brand: T-Motor Model: AM40 V2 Item: 3D/4D Motor KV: 1550KV/1880KV (Optional) Motor size: φ28*18.7mm Lead specification: enameled wire 40mm Shaft diameter: IN: 4mm No-load current (10V): 0.88A Maximum power (180s): 215W Weight (including wire): 25.3g Internal resistance between phases: 135mΩ Slot pole: 12N14P Working rated voltage (Lipo): 2-3S Maximum current (180s): 19A Package Included: 1PCS x T-MOTOR AM40 V2 3D/4D Motor TECHNICAL SPECIFICATIONS • Model: AM40 V2 • KV: 1550KV/1880KV (Optional) AVAILABLE OPTIONS 1PCS 3D 1550KV 1PCS 3D 1880KV 1PCS 4D 1550KV 1PCS 4D 1880KV PRODUCT INFORMATION Brand: T-MOTOR Category: Brushless Motor Wholesale Price: US $27.21 ————————————————————————————————————————
Specifications
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Quantity | 1 pcs |
| Wheelbase | Bottom Plate |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| Size | AS SHOW |
| Technical parameters | KV1100 |
| Model Number | T-MOTOR AM40 V2 |
| For Vehicle Type | Airplanes |
| Tool Supplies | Assembly Category |
| Four-wheel Drive Attributes | Assemblage |
| Remote Control Peripherals/Devices | Remote Controller |
| Upgrade Parts/Accessories | Motor |
| RC Parts & Accs | Motor |
| Material | Composite Material |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
Product Details
T-MOTOR AM40 V2 3D/4D KV1550/KV1880 F3P 2-3S Brushless Motor for RC Fixed-Wing Airplane Drone
Description:
Brand: T-Motor
Model: AM40 V2
Item: 3D/4D Motor
KV: 1550KV/1880KV (Optional)
Motor size: φ28*18.7mm
Lead specification: enameled wire 40mm
Shaft diameter: IN: 4mm
No-load current (10V): 0.88A
Maximum power (180s): 215W
Weight (including wire): 25.3g
Internal resistance between phases: 135mΩ
Slot pole: 12N14P
Working rated voltage (Lipo): 2-3S
Maximum current (180s): 19A
Package Included:
1PCS x T-MOTOR AM40 V2 3D/4D Motor
