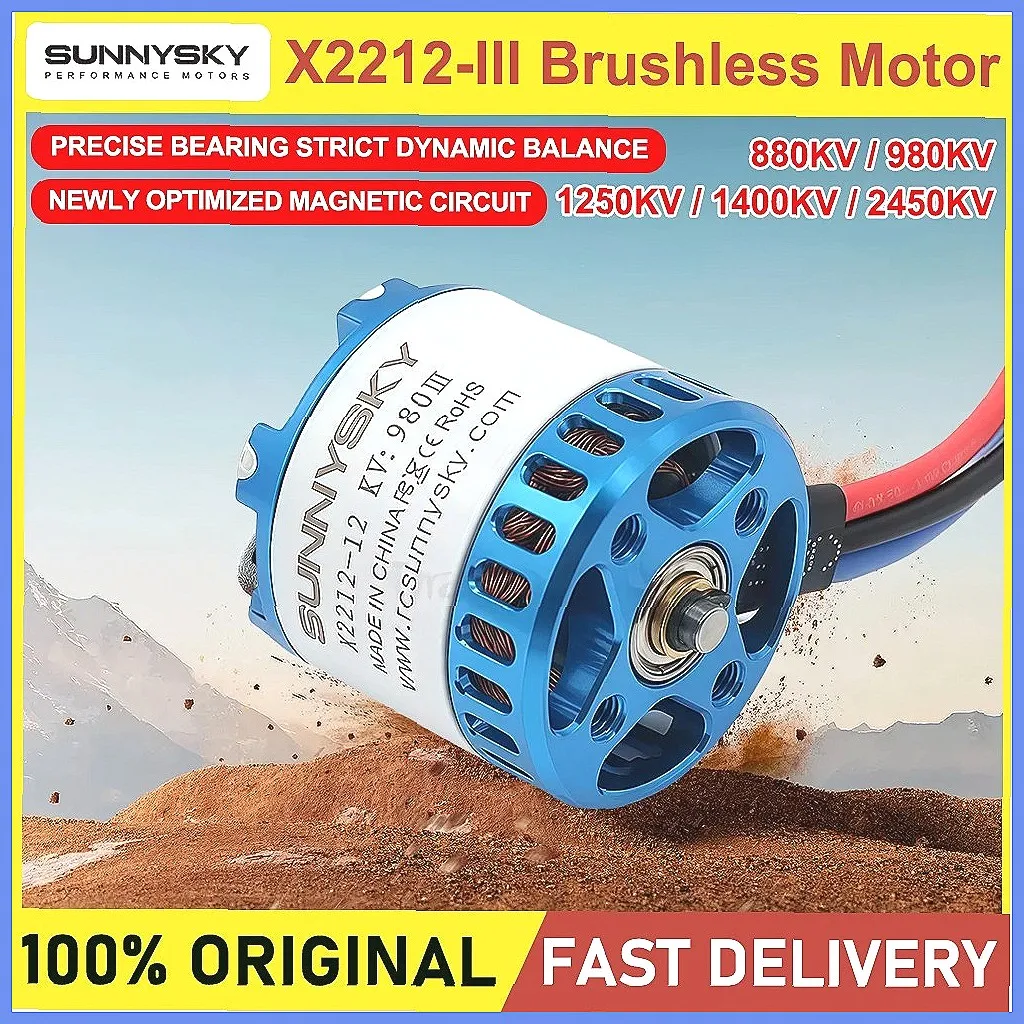

SUNNYSKY X2212 Brushless Motor 980KV/1250KV/1400KV/2450KV for RC Airplane Drone with Original Box
Description
SUNNYSKY X2212 Brushless Motor 980KV/1250KV/1400KV/2450KV for RC Airplane Drone with Original Box ============================================================ SUNNYSKY X2212-III 980KV 1250KV 1400KV 2450KV Motor with Original Box for RC Model Motor model/KV value X2212-III/ KV1250 X2212-III/ KV1400 Number of slot poles 12N14P 12N14P Interphase internal resistance Motor size Motor length：30mm Motor length：30mm Shaft diameter 3.175mm 3.175mm Silicone wire specifications 20AWG 100mm 20AWG 100mm Weight (including line) rated voltage（Lipo） no-load current 0.8A/10V 1A/10V maximum continuous power Maximum continuous current 35A/30S 37A/30s Suggest using electric adjustment 30-40A 30-40A Recommended propellers APC9047 APC9060 APC8060 APC7060 APC9047 APC9045 APC8038 APC7060 APC8060 AVAILABLE OPTIONS 1PC 1400KV 1PC 980KV 1PC 2450KV 1PC 1250KV PRODUCT INFORMATION Brand: SunnySky Category: Brushless Motor Wholesale Price: US $34.95 ————————————————————————————————————————
Specifications
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Electronic | No |
| DIY Supplies | Electrical |
| Origin | Mainland China |
Product Details

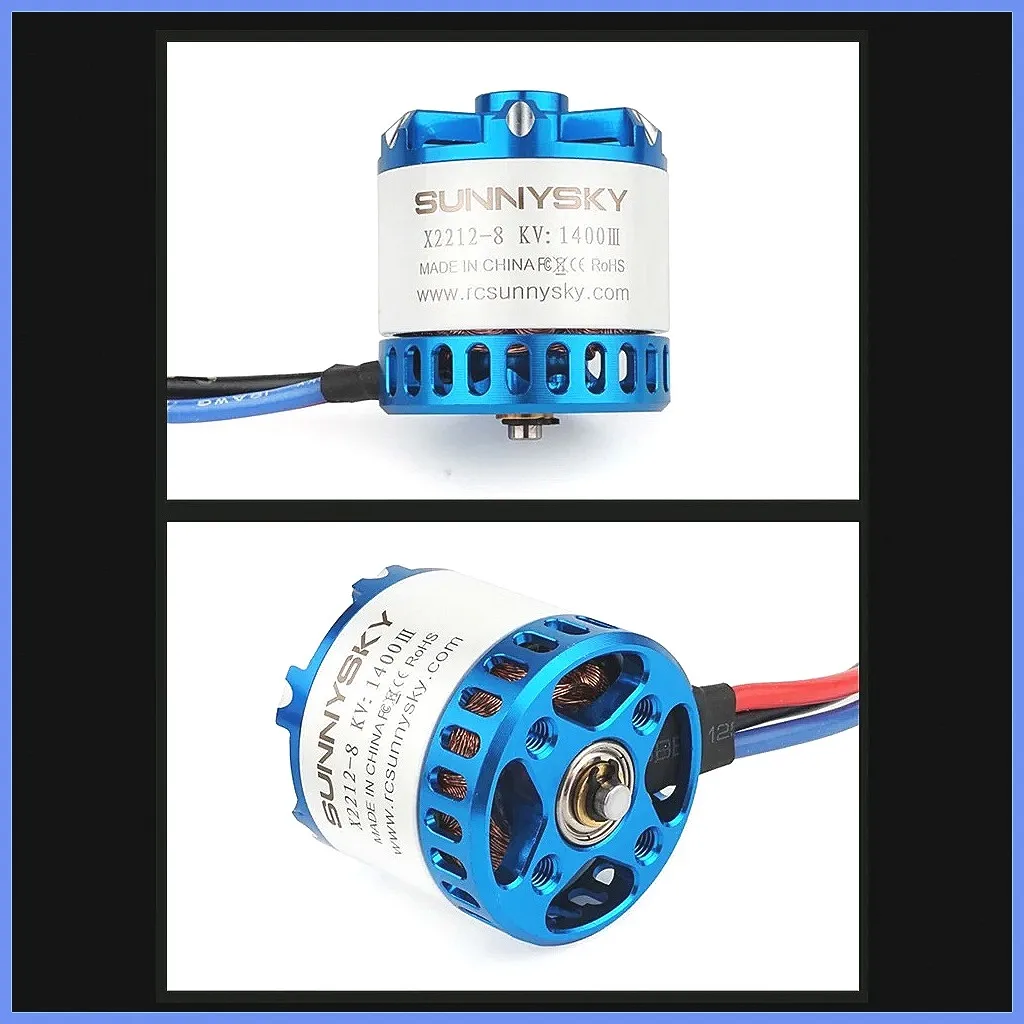

SUNNYSKY X2212-III 980KV 1250KV 1400KV 2450KV Motor with Original Box for RC Model
|
Motor model/KV value |
X2212-III/ KV1250 |
X2212-III/ KV1400 |
|
Number of slot poles |
12N14P |
12N14P |
|
Interphase internal resistance |
54mΩ |
43mΩ |
|
Motor size |
Motor length：30mm |
Motor length：30mm |
|
Shaft diameter |
3.175mm |
3.175mm |
|
Silicone wire specifications |
20AWG 100mm |
20AWG 100mm |
|
Weight (including line) |
59g |
57g |
|
rated voltage（Lipo） |
3-4S |
3-4S |
|
no-load current |
0.8A/10V |
1A/10V |
|
maximum continuous power |
518W |
560W |
|
Maximum continuous current |
35A/30S |
37A/30s |
|
Suggest using electric adjustment |
30-40A |
30-40A |
|
Recommended propellers |
APC9047 APC9060 APC8060 APC7060 |
APC9047 APC9045 APC8038 APC7060 APC8060 |
