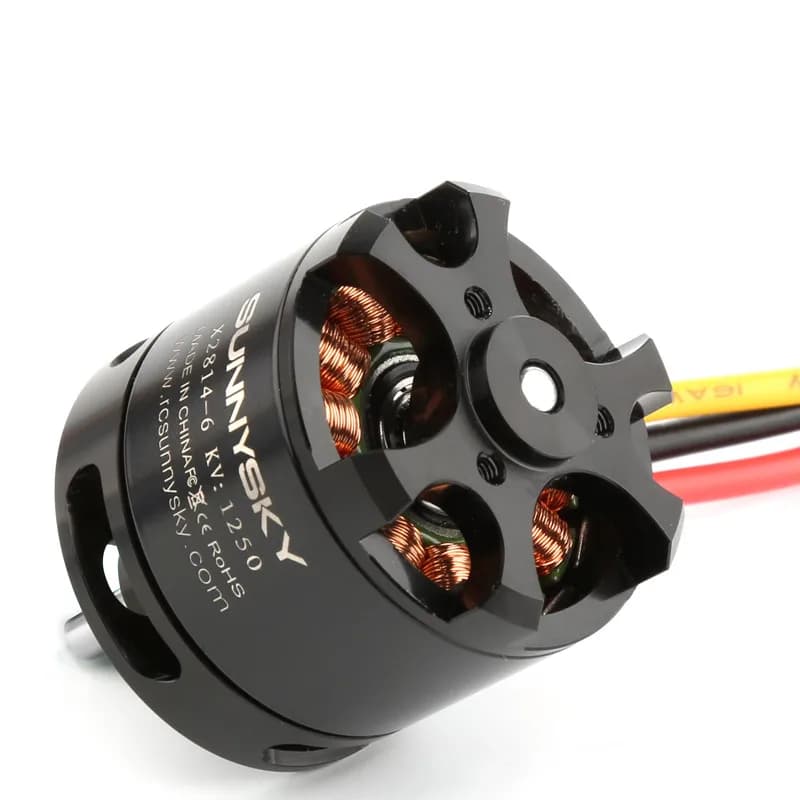

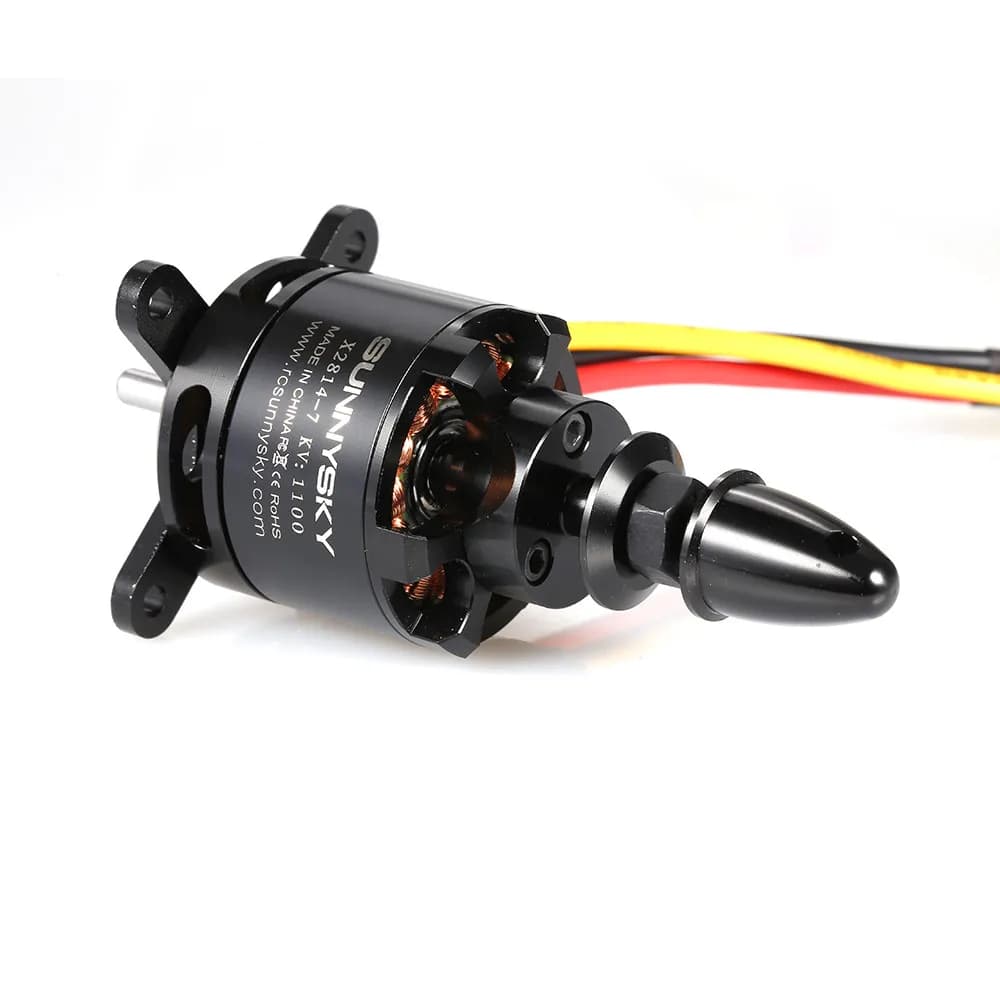

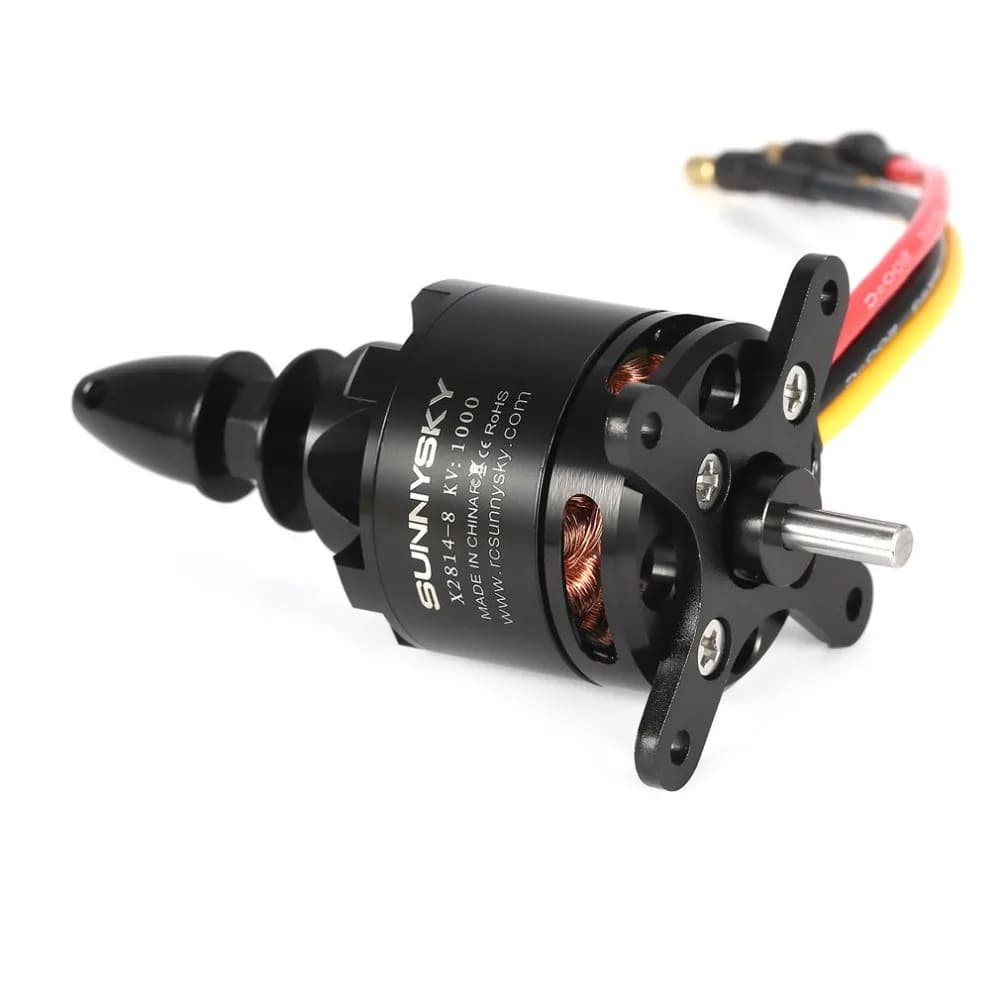

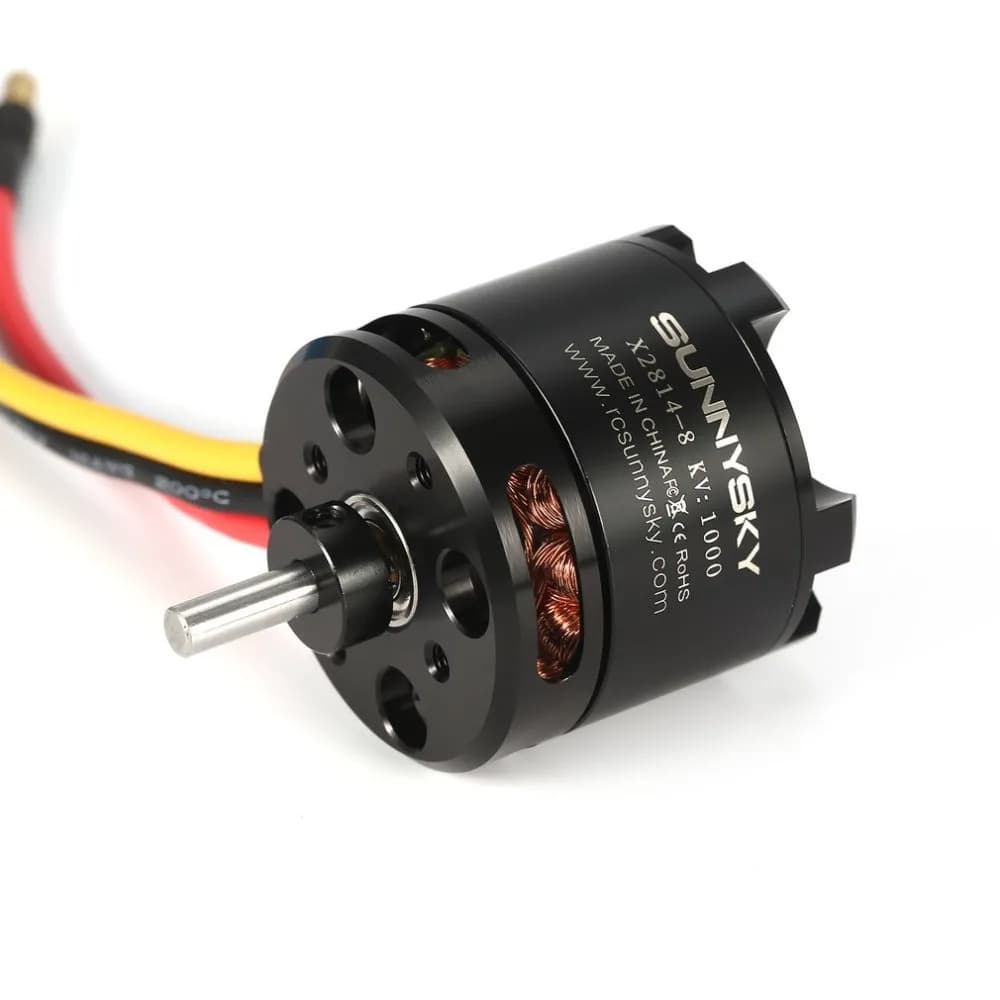

1PC Original SUNNYSKY X2814 900KV 1000KV 1100KV 1250KV External Rotor Brushless Motor for RC 3D fixed-wing Aircraft Airplanes
157 orders (reference)
Description
1PC Original SUNNYSKY X2814 900KV 1000KV 1100KV 1250KV External Rotor Brushless Motor for RC 3D fixed-wing Aircraft Airplanes ============================================================ Item: SUNNYSKY X2814 KV900 KV1000 KV1100 KV1250 Motor Parameters: Material: Copper+Metal Color: Black KV value: KV900, KV1000, KV1100, KV1250 Number of slots: 12N14P Interphase internal resistance: 52Milliohm, 38Milliohm, 32Milliohm, 25Milliohm Motor size: Diameter 35x36mm Axis Diameter: 4mm Specification of Silicone Wire for Motor: 16AWG 100mm Motor weight (including wire): 108g Working rated voltage (Lipo): 3-4S No-load current: 0.7A/10V, 1A/10V, 1.5A/10V, 2.1A/10V Maximum continuous power: 570W, 600W, 600W, 880W Maximum continuous current: 40A/30S, 40A/30S, 40A/30S, 55A/15S Recommended use of electric regulation: 40A, 45A, 50A, 70A Recommended propeller specifications: APC11x5.5, APC11x7, APC11x8, APC13x6.5, APC13x8 For KV900 APC11x5.5, APC12x6, APC12x8, APC13x6.5 For KV1000 APC9x6, APC10x5, APC11x5.5, APC11x7 For KV1100 APC8060, APC9060 For KV1250 The motor factory has welded 3.5 banana heads, ready to use. Package Included: X2814 KV900 or KV1000 or KV1100 or KV1250Motor x1 Bag of Accessories x1 TECHNICAL SPECIFICATIONS • Material: Copper+Metal AVAILABLE OPTIONS X2814 KV900 1PC X2814 KV1000 1PC X2814 KV1100 1PC X2814 KV1250 1PC PRODUCT INFORMATION Brand: SunnySky Category: Brushless Motor Wholesale Price: US $23.50 ————————————————————————————————————————
Specifications
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Quantity | 1 pcs |
| Wheelbase | Screws |
| Is it battery/power supply | N |
| Is Batteries Included | No |
| Is it charger/adapter | N |
| Technical parameters | value 2 |
| Model Number | X2814 |
| For Vehicle Type | Airplanes |
| Tool Supplies | Assembled class |
| Four-wheel Drive Attributes | Motors |
| Remote Control Peripherals/Devices | Motor |
| Upgrade Parts/Accessories | Lithium Battery |
| RC Parts & Accs | Motors |
| Material | Metal |
| Brand Name | NoEnName_Null |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
Product Details
Item:SUNNYSKYX2814 KV900 KV1000 KV1100 KV1250Motor
Parameters:
Material: Copper+Metal
Color: Black
KV value: KV900, KV1000, KV1100, KV1250
Number of slots: 12N14P
Interphase internal resistance: 52Milliohm, 38Milliohm, 32Milliohm, 25Milliohm
Motor size: Diameter 35x36mm
Axis Diameter: 4mm
Specification of Silicone Wire for Motor: 16AWG 100mm
Motor weight (including wire): 108g
Working rated voltage (Lipo): 3-4S
No-load current: 0.7A/10V, 1A/10V, 1.5A/10V, 2.1A/10V
Maximum continuous power: 570W, 600W, 600W, 880W
Maximum continuous current: 40A/30S, 40A/30S, 40A/30S, 55A/15S
Recommended use of electric regulation: 40A, 45A, 50A, 70A
Recommended propeller specifications:
APC11x5.5,APC11x7, APC11x8, APC13x6.5, APC13x8 For KV900
APC11x5.5,APC12x6, APC12x8, APC13x6.5 For KV1000
APC9x6,APC10x5, APC11x5.5, APC11x7 For KV1100
APC8060, APC9060 For KV1250
NOTE:
The motor factory has welded 3.5 banana heads, ready to use.

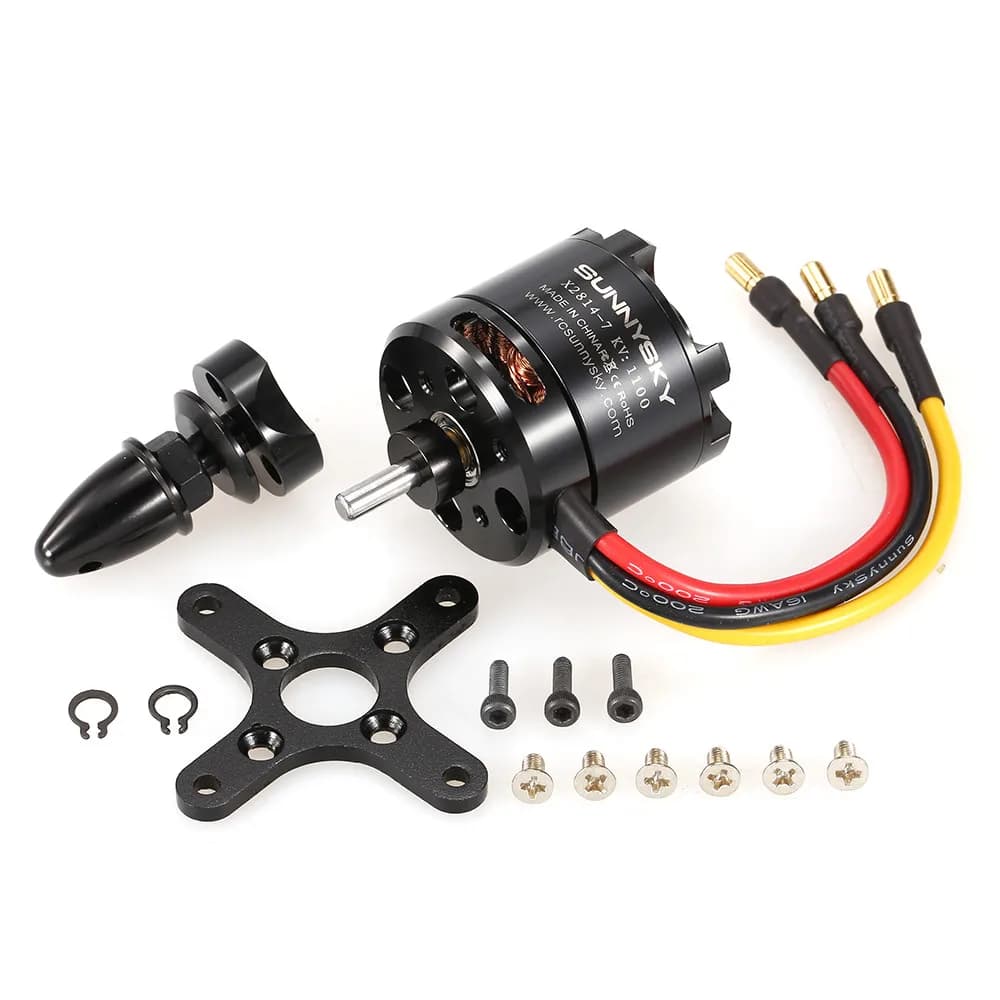

Package Included:
X2814 KV900orKV1000orKV1100orKV1250Motor x1
Bag of Accessories x1
