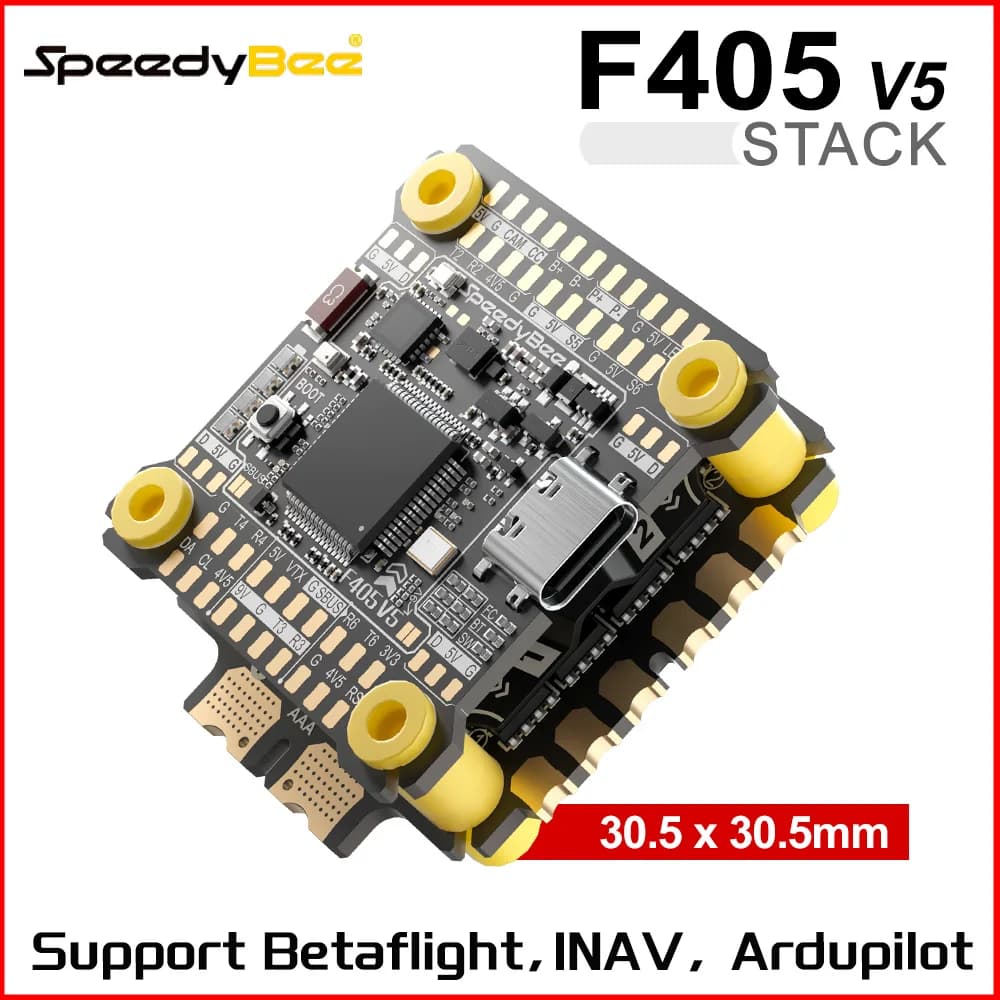

SpeedyBee F405 V5 Stack F405 V5 FC 32-Bit 55A 4in1 ESC 3-6S LiPo 30.5x30.5mm 16MB ICM42688P Gyro For RC FPV Racing Drone

Reference price:

US $34.55

1-10 pcs$33(-3%)

10-100 pcs$32(-7%)

100+ pcs$30(-12%)

24 orders (reference)

Description

SpeedyBee F405 V5 Stack F405 V5 FC 32-Bit 55A 4in1 ESC 3-6S LiPo 30.5x30.5mm 16MB ICM42688P Gyro For RC FPV Racing Drone ============================================================ SpeedyBee F405 V5 Stack F405 V5 FC 32BIT 55A 4in1 ESC 3-6S LiPo 30.5x30.5mm 16MB ICM42688P Gyro For RC FPV Racing Drone Support Betaflight INAV Ardupilot Features: 1. Onboard lCM-42688 Gyroscope,Featuring Upgraded Noise Reduction,Independent high-PSRR LDO effectively isolates power noise. 2. STM32F405 Main Controller Stable performance with multi-platform system support. 3. Onboard FLASH chip128 Mbit capacity (16 MB) for higher compatibility, eliminates SD card compatibility issues. 4. Main frequency up to 168MHz and 1MB of built-in flash storage. 5. 16MB built-in Blackbox storage with multi-platform;firmware support,Ready to use with no compatibility issues. 6. Wireless Tuning 2.0,Supports X4 MeteorLED Strips(Controllable via Betaflight) 7. Equipped with oX32 Firmware,Compatible with small-pitch propellers, enhancing flight stabilityand cornering performance 8. The high-performance DC-DC design handles peaks up to 42V,9V Output for VTX,10-Pin Design,design with dual-battery input for enhanced safety redundancy. 9. Diverse Features: X4 colorful meteor-style arm LEDs,multicolor battery LEDs, wirelesstuning, firmware updates, and wireless unbricking. 10. Optional Smart Voltage Tester +Short-Circuit Protection ToolAlso includes soldering practice board,USB extension, pad extension, buzzer,and other useful tools(*Deluxe version only) 11. Support Betaflight,INAV, Ardupilot. 12. Wireless Tuning 2.0 Next-generation Bluetoothsolution with rich featuresand improved transmissionper formance Description: F405 V5 Flight Stack,onboard lCM-42688 Gyroscope,Featuring Upgraded Noise Reduction, Main frequency up to 168MHz and 1MB of built-in flash storage.Wireless Tuning 2.0 Next-generation Bluetoothsolution with rich featuresand improved transmissionper formance,Support Betaflight,INAV, Ardupilot. F405 V5 FC Specifications: Product Name: F405 V5 Flight Controller MCU: STM32F405 IMU (Gyro): ICM42688P USB Port Type: Type-C Barometer: SPA06-003 OSD Chip: AT7456E Full-featured Bluetooth Tuning: Supported. Connect va SpeedyBee App for FC firmware tlashing and parameter tuning Wireless FC Firmware Upgrade: Supported D.l Air Unit Connection: Supports 6-pin direct plug-in or solder connection Blackbox: built-in 16MB storage chip Input Voltage: 3-6S LiPo battery Independent 5V BEC Output: 9 groups (4x +5V pads on front, 1x BZ+ buzzer pad, and 4x +5V pads at the cornersfor external LEDs). Total output current: 1.5A. Independent 9V BEC Output: 2 groups (1x 9V pad on front, 1x 9V output in a connector on the back). Total outputcurrent:3A.Supports PlNlO remote on/off control. MCU & Gyro Power: Independent LDO 3.3V Output: 1 group (1x 3.3V pad on front) 4.5V Output: 3 groups ESC Signal: M1-M4 pads and 10-pin connector on the back Servo Signal: S5-S6 pads on the front ESC Telemetry input: Supported (UART5) Betafight Camera Tuning Pad: Supported (CC pad on front) I2C: Supported (GPS connector + pads) RSSl Pads: Supported SmartPort: Not supported Supported FC Firmware: Betafight, INAV, Ardupilot Firmware Target Name: SPEEDYBEEF405V5 Factory Firmware Version: Betafight 4.5.2 Configurator Version:Betafight 10.10.0 Mounting Holes: 30.5 x 30.5mm (M4mm) Dimensions: side opening39mm (L)x 39mm (W) x 4.9mm (H) Weight: 8 1g 55A ESC Specifications: Product Name: OX32 55A 4-in.1 ESC Default Firmware: OX32 Continuous Current: 55A (per channel)/220A (4-in-1) Maximum Current: 70A (per channel)/ 280A (4-in-1) TVS Protective Diode: Yes (built-in) External Capacitor: 1000yF Solid Capacitor ESC/Motor Protocol: DSHOT300/600 Input Voltage: 3-6S LiPo Power Output: VBAT Current Sensor: Supported ESC Telemetry: Supported Mounting Holes: 30.5 x30.5mm (@4mm),side opening Dimensions: 40.9mm(L)x 44.9mm (W)x 8.0mm (H) (incl. heatsink) Weight: 19.1g Package contents: 1*F405 V5 Flight Stack On

Select options

Variant

Quantity

View cart Get a Quote

Attribute

Value

High-concerned chemical

None

Is Electric

No Battery

Is it battery/power supply

Is it charger/adapter

Is Batteries Included

Material

Origin

Mainland China

Recommend Age

14+y

Use

Vehicles & Remote Control Toys

Product Details

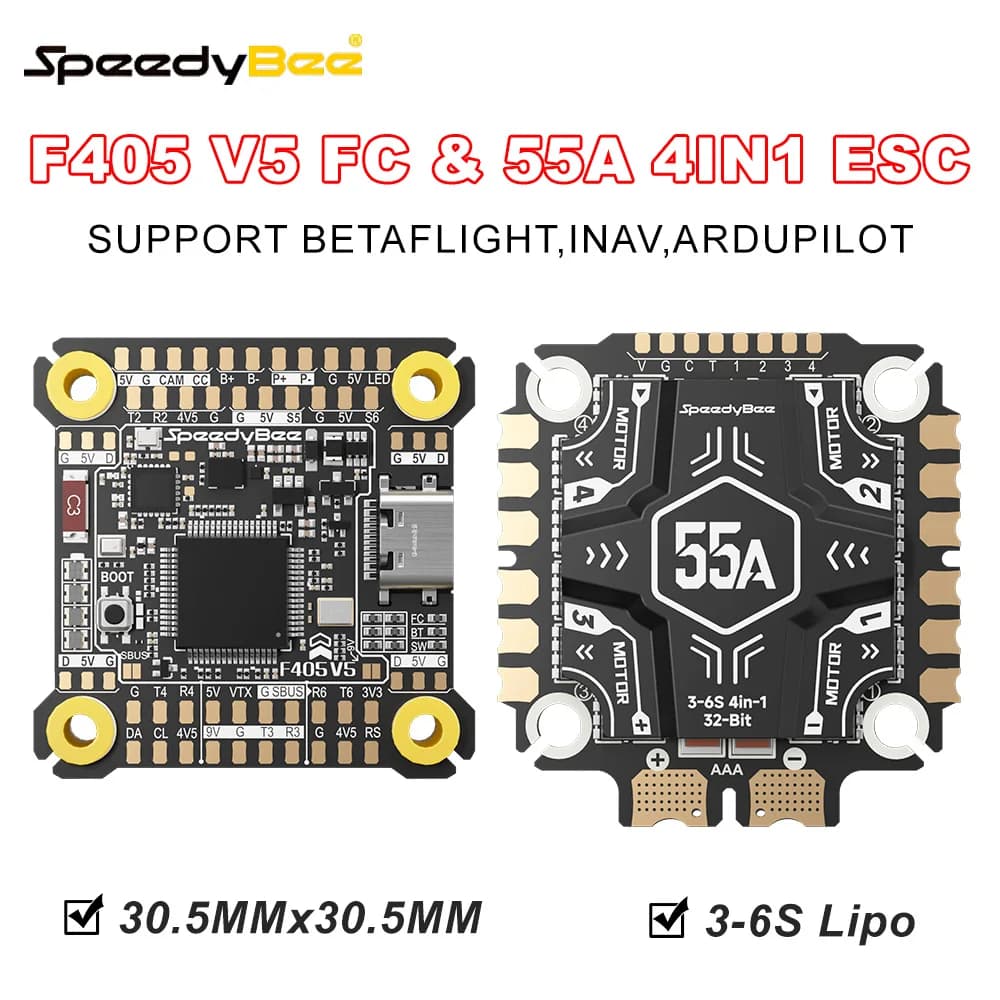

SpeedyBee F405 V5 Stack F405 V5 FC 32BIT 55A 4in1 ESC 3-6S LiPo 30.5x30.5mm 16MB ICM42688P Gyro For RC FPV Racing Drone Support Betaflight INAV Ardupilot

Features:

1. Onboard lCM-42688 Gyroscope,Featuring Upgraded Noise Reduction,Independent high-PSRR LDO effectively isolates power noise.

2. STM32F405 Main Controller Stable performance with multi-platform system support.

3. Onboard FLASH chip128 Mbit capacity (16 MB) for higher compatibility, eliminates SD card compatibility issues.

4. Main frequency up to 168MHz and 1MB of built-in flash storage.

5. 16MB built-in Blackbox storage with multi-platform;firmware support,Ready to use with no compatibility issues.

6. Wireless Tuning 2.0,Supports X4 MeteorLED Strips(Controllable via Betaflight)

7. Equipped with oX32 Firmware,Compatible with small-pitch propellers, enhancing flight stabilityand cornering performance

8. The high-performance DC-DC design handles peaks up to 42V,9V Output for VTX,10-Pin Design,design with dual-battery input for enhanced safety redundancy.

9. Diverse Features: X4 colorful meteor-style arm LEDs,multicolor battery LEDs, wirelesstuning, firmware updates, and wireless unbricking.

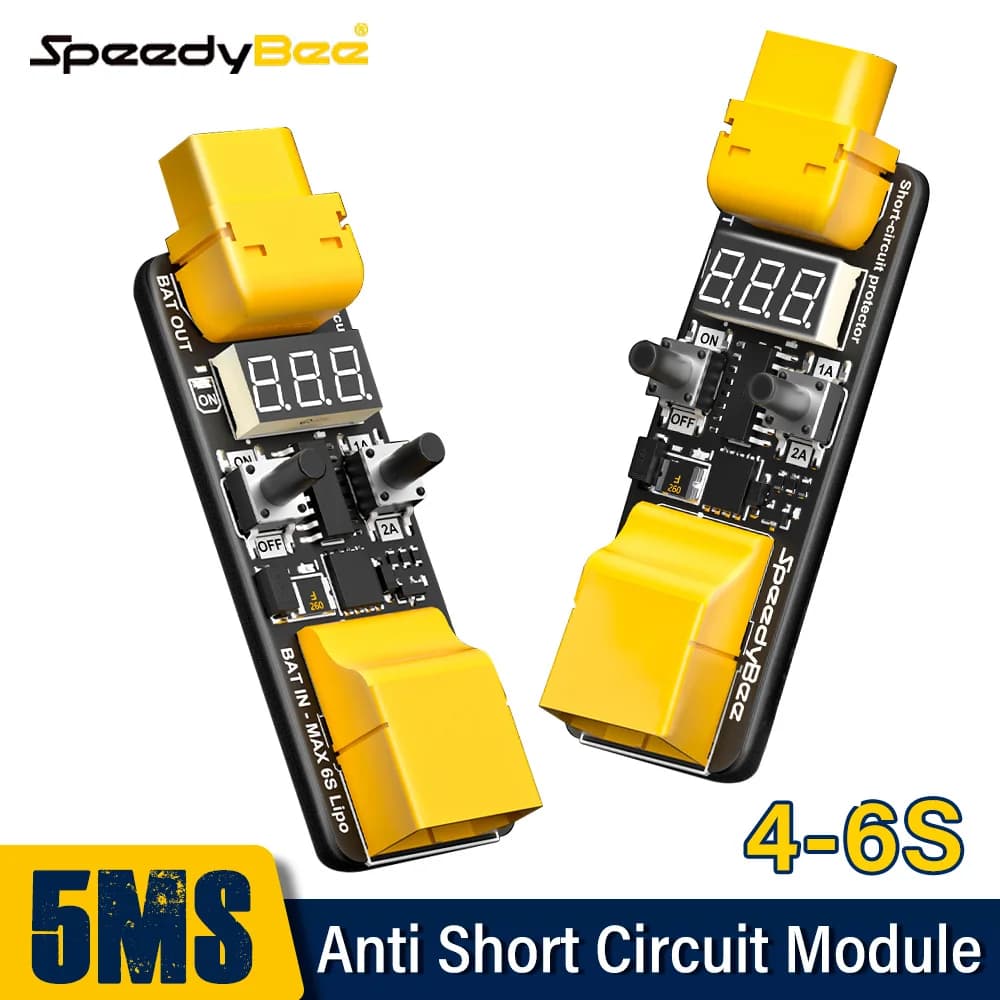

10. Optional Smart Voltage Tester +Short-Circuit Protection ToolAlso includes soldering practice board,USB extension, pad extension, buzzer,and other useful tools(*Deluxe version only)

11. Support Betaflight,INAV, Ardupilot.

12. Wireless Tuning 2.0 Next-generation Bluetoothsolution with rich featuresand improved transmissionper formance

Description:

F405 V5 Flight Stack,onboard lCM-42688 Gyroscope,Featuring Upgraded Noise Reduction, Main frequency up to 168MHz and 1MB of built-in flash storage.Wireless Tuning 2.0 Next-generation Bluetoothsolution with rich featuresand improved transmissionper formance,Support Betaflight,INAV, Ardupilot.

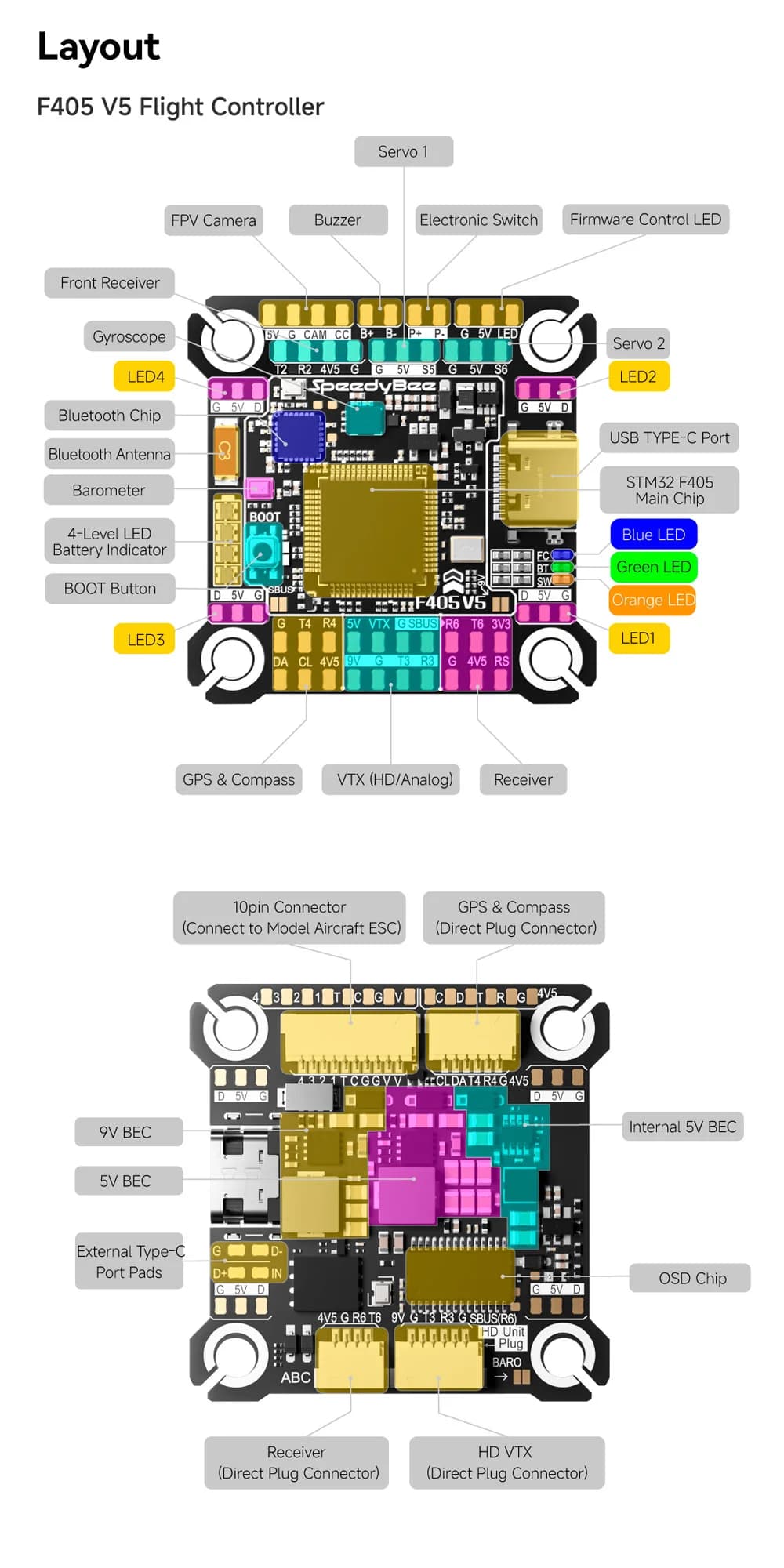

F405 V5 FC Specifications:

Product Name: F405 V5 Flight Controller

MCU: STM32F405

IMU (Gyro): ICM42688P

USB Port Type: Type-C

Barometer: SPA06-003

OSD Chip: AT7456E

Full-featured Bluetooth Tuning: Supported. Connect va SpeedyBee App for FC firmware tlashing and parameter tuning

Wireless FC Firmware Upgrade: Supported

D.l Air Unit Connection: Supports 6-pin direct plug-in or solder connection

Blackbox: built-in

16MB storage chip

Input Voltage: 3-6S LiPo battery

Independent 5V BEC Output: 9 groups (4x +5V pads on front, 1x BZ+ buzzer pad, and 4x +5V pads at the cornersfor external LEDs). Total output current: 1.5A.

Independent 9V BEC Output: 2 groups (1x 9V pad on front, 1x 9V output in a connector on the back). Total outputcurrent:3A.Supports PlNlO remote on/off control.

MCU & Gyro Power: Independent LDO

3.3V Output: 1 group (1x 3.3V pad on front)

4.5V Output: 3 groups

ESC Signal: M1-M4 pads and 10-pin connector on the back

Servo Signal: S5-S6 pads on the front

ESC Telemetry input: Supported (UART5)

Betafight Camera Tuning Pad: Supported (CC pad on front)

I2C: Supported (GPS connector + pads)

RSSl Pads: Supported

SmartPort: Not supported

Supported FC Firmware: Betafight, INAV, Ardupilot

Firmware Target Name: SPEEDYBEEF405V5

Factory Firmware Version: Betafight 4.5.2

Configurator Version:Betafight 10.10.0

Mounting Holes: 30.5 x 30.5mm (M4mm)

Dimensions: side opening39mm (L)x 39mm (W) x 4.9mm (H)

Weight: 8 1g

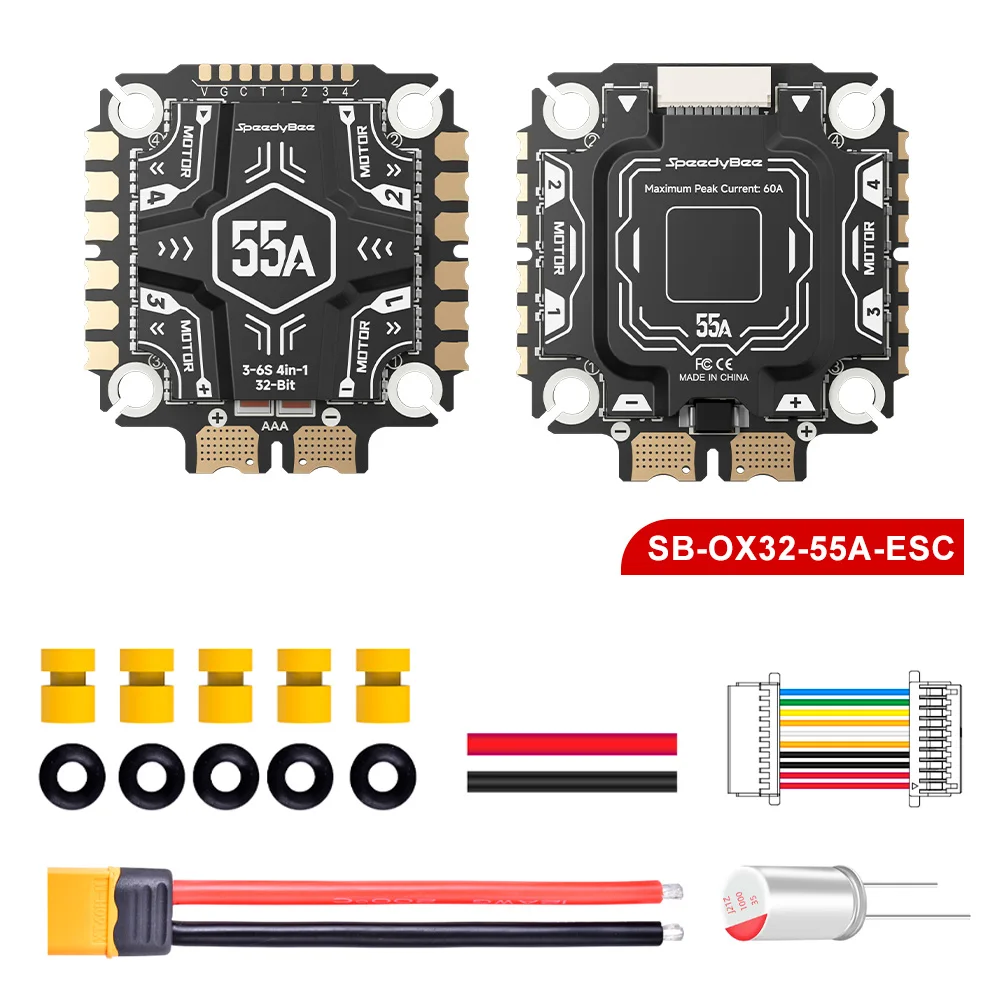

55A ESC Specifications:

Product Name: OX32 55A 4-in.1 ESC

Default Firmware: OX32

Continuous Current: 55A (per channel)/220A (4-in-1)

Maximum Current: 70A (per channel)/ 280A (4-in-1)

TVS Protective Diode: Yes (built-in)

External Capacitor: 1000yF Solid Capacitor

ESC/Motor Protocol: DSHOT300/600

Input Voltage: 3-6S LiPo

Power Output: VBAT

Current Sensor: Supported

ESC Telemetry: Supported

Mounting Holes: 30.5 x30.5mm (@4mm),side opening

Dimensions: 40.9mm(L)x 44.9mm (W)x 8.0mm (H) (incl. heatsink)

Weight: 19.1g

Package contents:

1*F405 V5 Flight Stack

Note:

Only the above package content, other products are not included.
