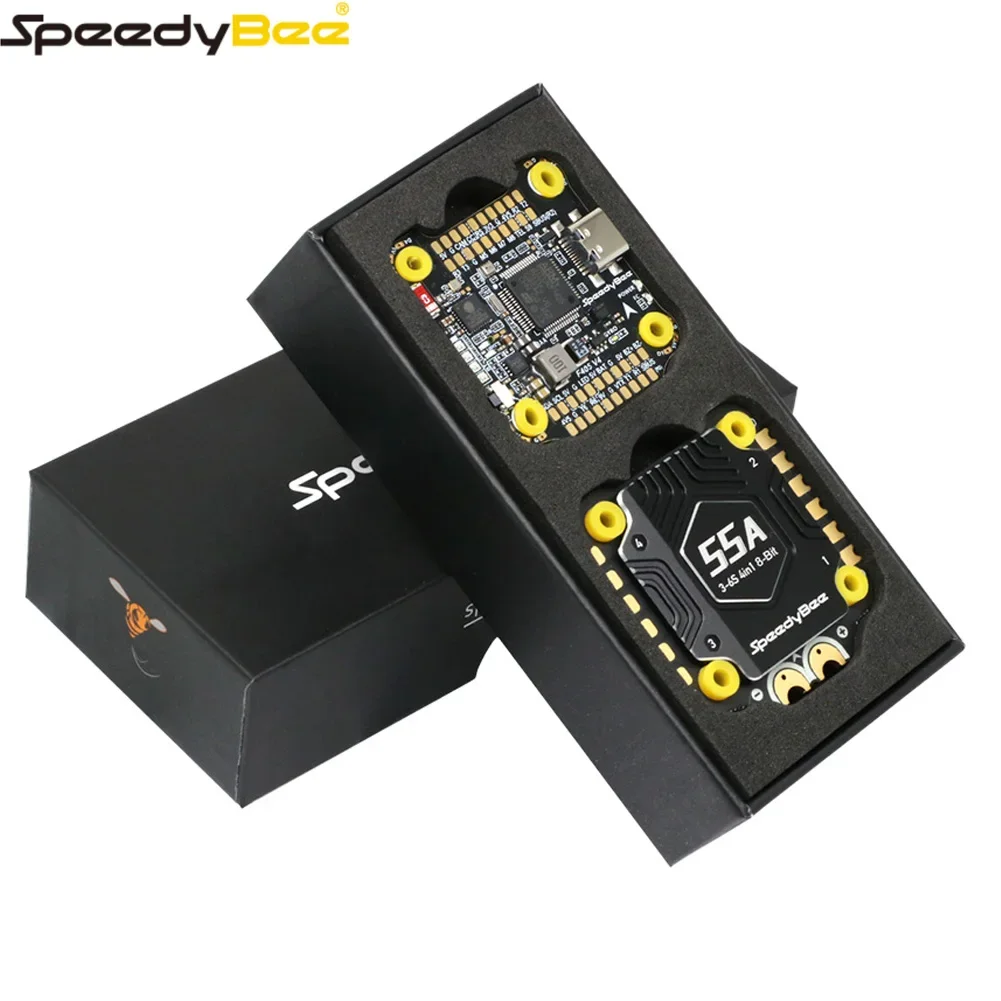

Для Speedybee F405 V4 Stack BLS 55A 4-в-1 ESC и FC RC iNAV Betaflight Настройка Bluetooth 3-6S FPV 5-8-дюймовая рамка Детали дрона
439 orders (reference)
Description
contact me
Order at a discounted price:
Contact information: <zhongrain@foxmail.com>
Order at a discounted price:http://www.aoyuehk.com/
Dear customer,
Hope this email finds you well! As a valued customer on AliExpress, we sincerely appreciate your continuous support and trust in our products.
At AOYUET (HK) Electronics Stroe, our top priority is to meet your shopping needs and provide you with an excellent experience.
To better serve you, we would love to know if you have any upcoming requirements or product interests.
Whether it’s a specific item you’re looking for, a particular category you’d like to explore, or any suggestions for improvement,
please feel free to share them with us directly.
Your feedback is invaluable to us and will help us tailor our offerings to better suit your preferences.
If there’s anything we can assist you with, you can simply reply to this email.
We’re here to respond promptly and ensure your shopping journey with us is seamless and satisfying.
Thank you again for choosing us. We look forward to serving you and fulfilling your needs in the best way possible.
Product Name

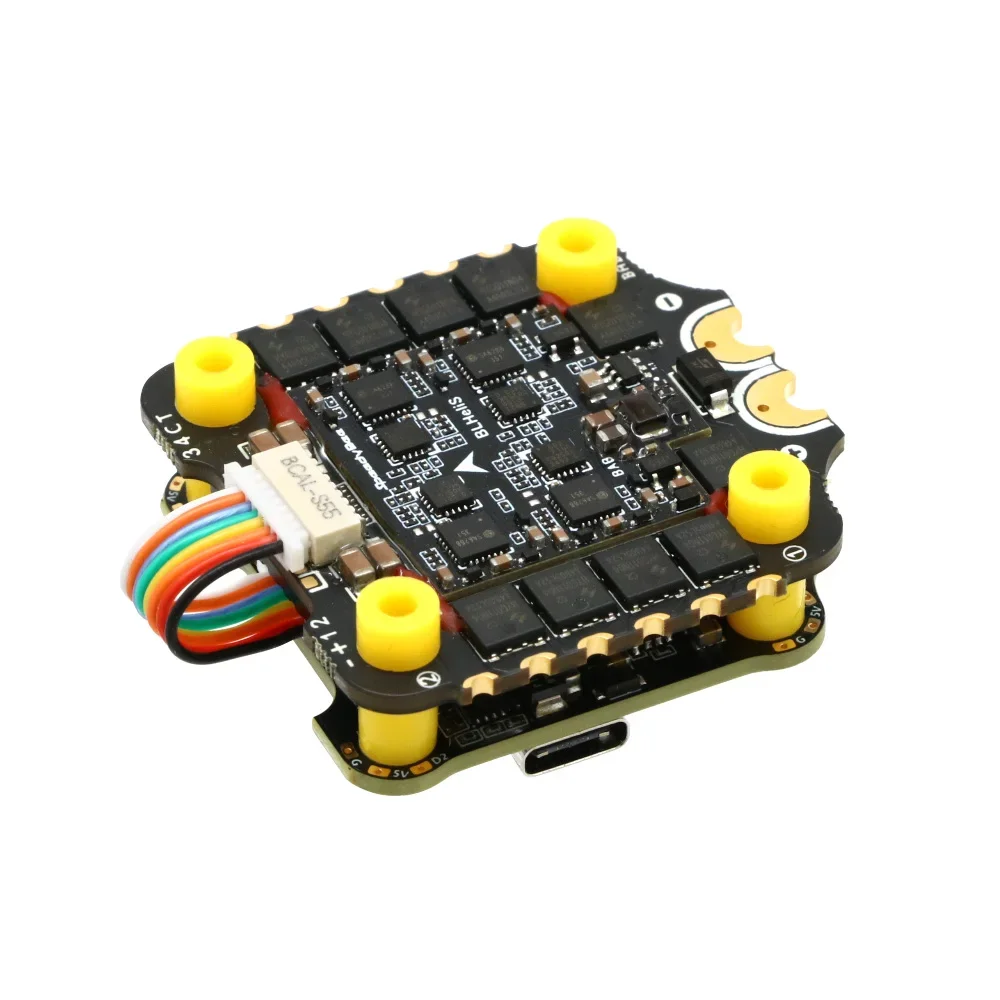

SpeedyBee BLS 55A 30x30 4-in-1 ESC
Firmware
BLHeli_S J-H-40
PC Configurator Download Link
https://esc-configurator.com/
Continuous Current
55A * 4
Burst Current
70(10 seconds)
TVS Protective diode
Yes
External Capacitor
1000uF Low ESR Capacitor(In the package)
ESC Protocol
DSHOT300/600
Power Input
3-6S LiPo
Power Output
VBAT
Current Sensor
Support (Scale=400 Offset=0)
ESC Telemetry
Not supported
Mounting
30.5 x 30.5mm( 4mm hole diameter)
Dimension
45.6(L) * 44(W) *8mm(H)
Weight
23.5g

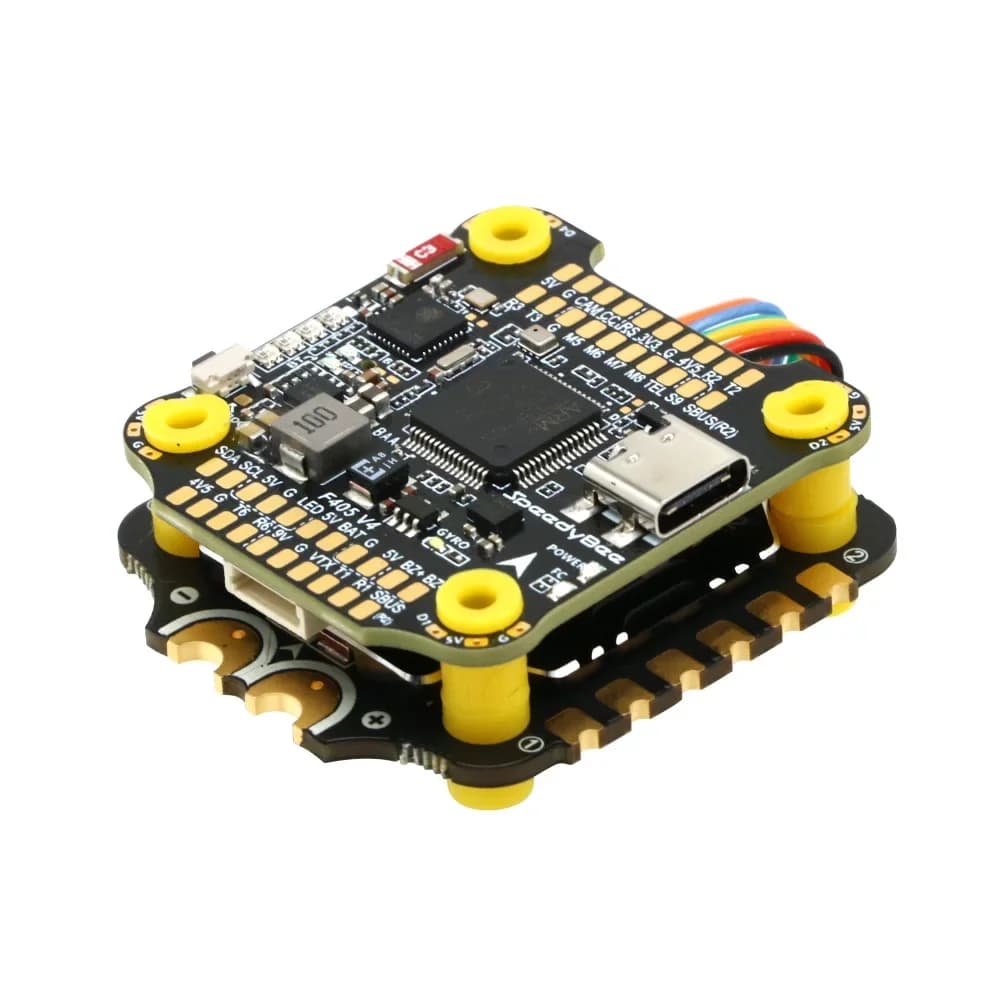

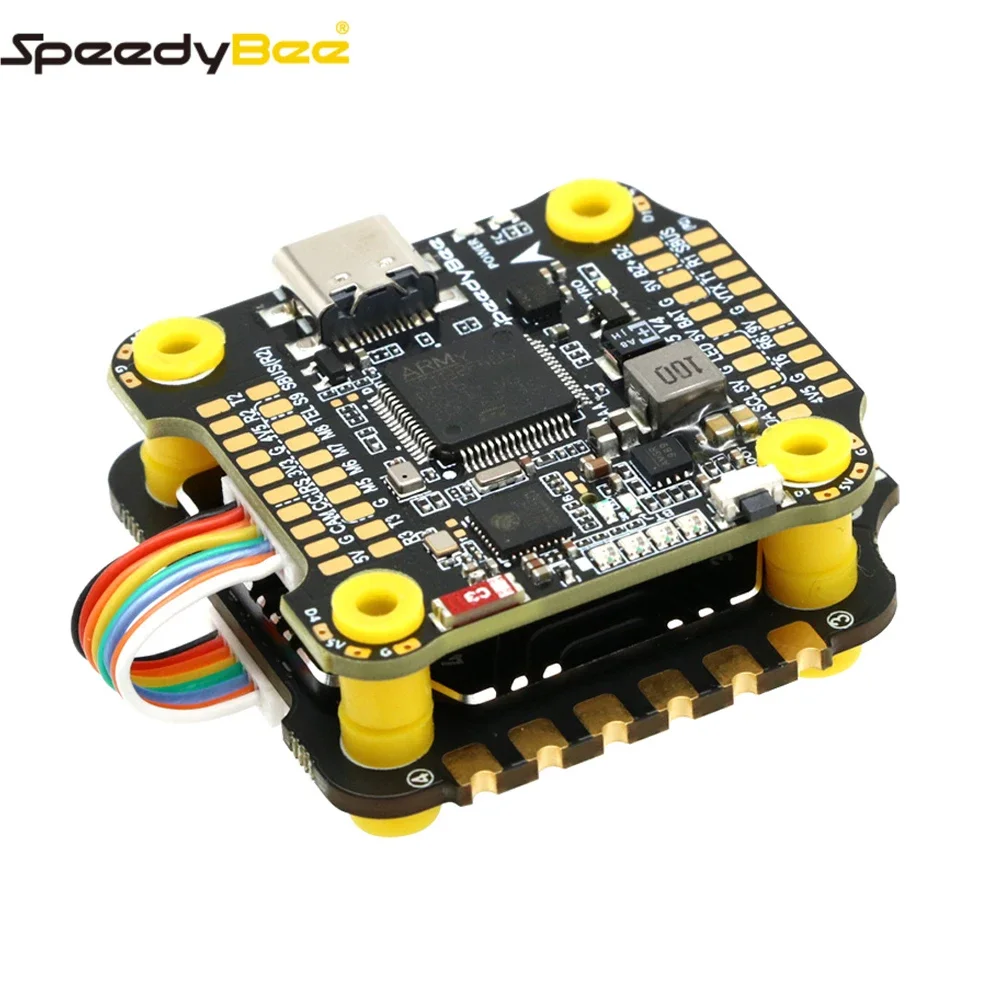

SpeedyBee F405 V4 30x30 Flight Controller
MCU
STM32F405
IMU(Gyro)
ICM42688P
USB Port Type
Type-C
Barometer
Built-in
OSD Chip
AT7456E chip
BLE Bluetooth
Supported. Used for Flight Controller configuration (MSP should be enabled with Baud rate 115200 on UART4)
WIFI
DJI Air Unit Connection Way
Two ways supported: 6-pin connector or direct soldering.
6-pin DJI Air Unit Plug
Supported. Completely compatible with DJI O3/RunCam Link/Caddx Vista/DJI Air Unit V1, no wire is needed to be changed.
Blackbox MicroSD Card Slot
*Betaflight firmware requires the type of the microSD card to be either Standard (SDSC) or High capacity (SDHC) under 32GB, so extended capacity cards (SDXC) are not supported(Many high-speed U3 cards are SDXC). Also the microSD card MUST be formatted with the FAT16 or FAT32 (recommended) format, you could use any SD card less than 32GB, but the Betaflight can only recognize 4GB maximum. We suggest you use this 3rd party formatting tool and choose 'Overwrite format' then format your card. Also check out here for the recommended SD cards or buy the tested cards from our store.
Current Sensor Input
Supported. For SpeedyBee BLS 55A ESC, please set scale = 400 and Offset = 0.
3S - 6S Lipo(Through G, BAT pins/pads from the 8-pin connector or 8-pads on the bottom side)
5V Output
9 groups of 5V output, four +5V pads and 1 BZ+ pad( used for Buzzer) on front side, and 4x LED 5V pads. The total current load is 3A.
9V Output
2 groups of 9V output, one +9V pad on front side and other included in a connector on bottom side. The total current load is 3A.
3.3V Output
Supported. Designed for 3.3V-input receivers. Up to 500mA current load.
4.5V Output
Supported. Designed for receiver and GPS module even when the FC is powered through the USB port. Up to 1A current load.
ESC Signal
M1 - M4 on bottom side and M5-M8 on front side.
UART
6 sets(UART1, UART2, UART3, UART4(Dedicated for Bluetooth connection)), UART5(Dedicated for ESC telemetry),UART6
UART R5(UART5)
I2C
Supported. SDA & SCL pads on front side. Used for magnetometer, sonar, etc.
Traditional Betaflight LED Pad
Supported. 5V, G and LED pads on bottom of the front side. Used for WS2812 LED controlled by Betaflight firmware.
Buzzer
BZ+ and BZ- pad used for 5V Buzzer
BOOT Button
Supported.
[A]. Press and hold BOOT button and power the FC on at the same time will force the FC to enter DFU mode, this is for firmware flashing when the FC gets bricked.
[B]. When the FC is powered on and in standby mode, the BOOT button can be used to controller the LED strips connected to LED1-LED4 connectors on the bottom side. By default, short-press the BOOT button to cycle the LED displaying mode. Long-press the BOOT button to switch between SpeedyBee-LED mode and BF-LED mode. Under BF-LED mode, all the LED1-LED4 strips will be controlled by Betaflight firmware.
RSSI Input
Supported. Named as RS on the front side.
Smart Port / F.Port
Supported Flight Controller Firmware
BetaFlight(Default), INAV
Firmware Target Name
SPEEDYBEEF405V4
41.6(L) x 39.4(W) x 7.8(H)mm
10.5g
