SKYZONE VTX 1,2G 2,5W 56CH Видеопередатчик высокой мощности TX1225 с корпусом ЧПУ Поддержка 5G для FPV дальних радиоуправляемых дронов с фиксированным крылом
From US $216.77 - 234.57
Est. US $216.77 - 234.57 / unit (1-9 pcs)
$201 @ 10+ pcs$190 @ 100+ pcs
7 orders (reference)
Description
The TX1125 is powerful VTX which have 2.5W output, the new CNC case and fan can dispath the heat quickly , LED segment make the VTX easy to set and check the BAND/CH/POWER,its also support X Band(5G Hz) and Low Band.
Features:
1, Support X Band(5G Hz) and Low Band
2,CNC Case dan Fan to dispatch heat
3, 25/800/1600/2500mW adjustable power output
4, 9-26V Wide Range Voltage input
5, LED Segment Display, easy to check status of the VTX
6, Button/IRC control, fast to change the CH and Power
Notice！：You can only choose one of the Button mode andthe IRC mode. If you use the button mode, you need to turn off the IRC protocol in BF. The LED segment displays the
BAND/CH and power in sequence in the button mode, and the frequency and power at IRC mode.
Вариант
Выбранная ценаUSD 64.60
Specifications
| Option | Values |
|---|---|
| High-concerned chemical |
|
| Is Electric |
|
| Quantity |
|
| Is it battery/power supply |
|
| Is it charger/adapter |
|
| Is Batteries Included |
|
| Size |
|
| Technical parameters |
|
| Model Number |
|
| For Vehicle Type |
|
| Tool Supplies |
|
| Remote Control Peripherals/Devices |
|
| Upgrade Parts/Accessories |
|
| RC Parts & Accs |
|
| Material |
|
| Brand Name |
|
| Origin |
|
| Recommend Age |
|
| Use |
|
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Quantity | 1 pcs |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| Size | Screws |
| Technical parameters | value 2 |
| Model Number | 5.8G 2.5W VTX |
| For Vehicle Type | Airplanes |
| Tool Supplies | Assembly Category |
| Remote Control Peripherals/Devices | Remote Controller |
| Upgrade Parts/Accessories | 5.8G VTX Video Transmitter |
| RC Parts & Accs | Transmitters |
| Material | Composite Material |
| Brand Name | Skyzone |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
Product Details

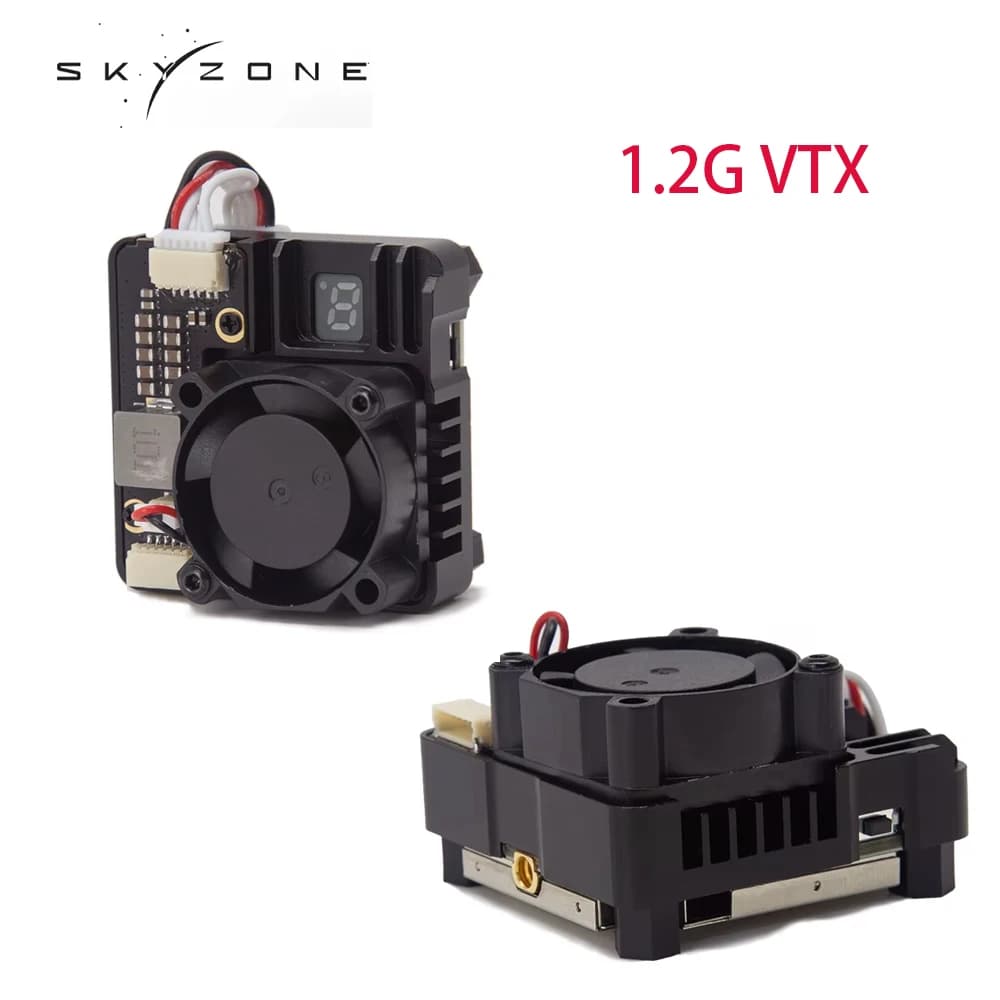

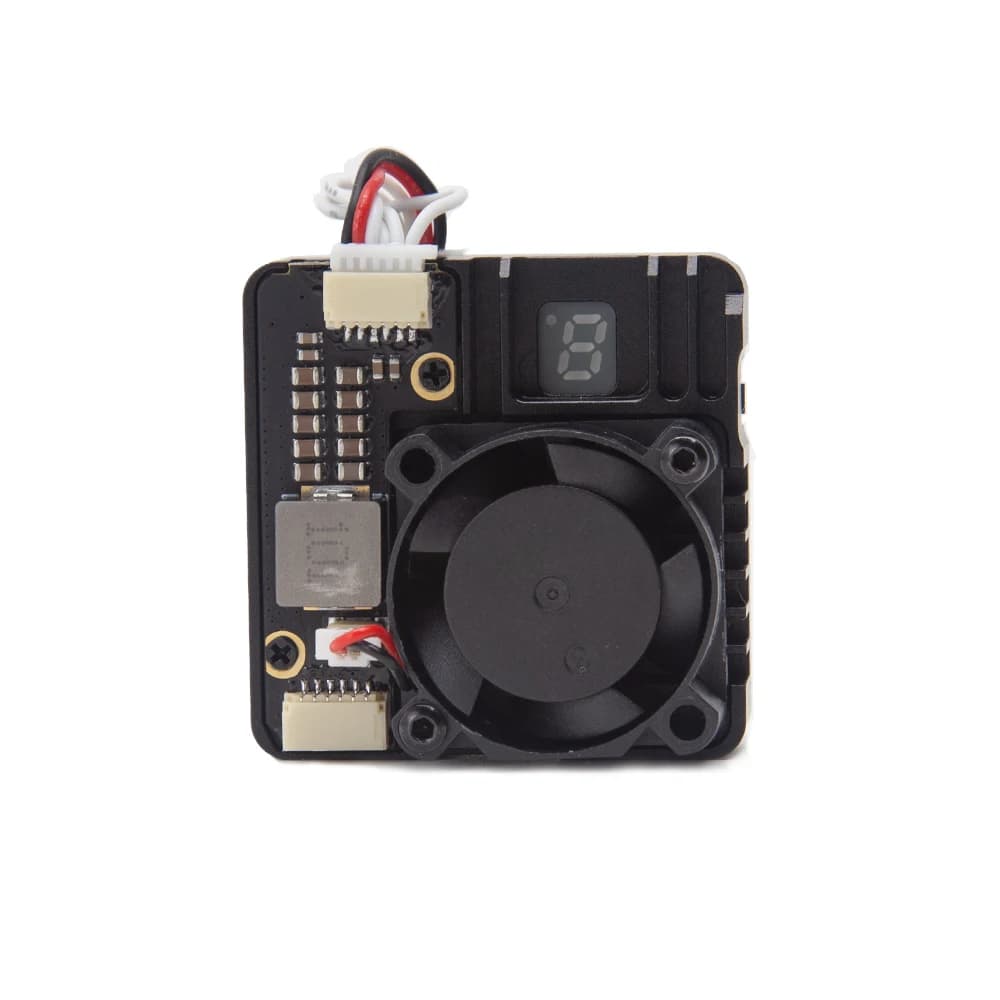

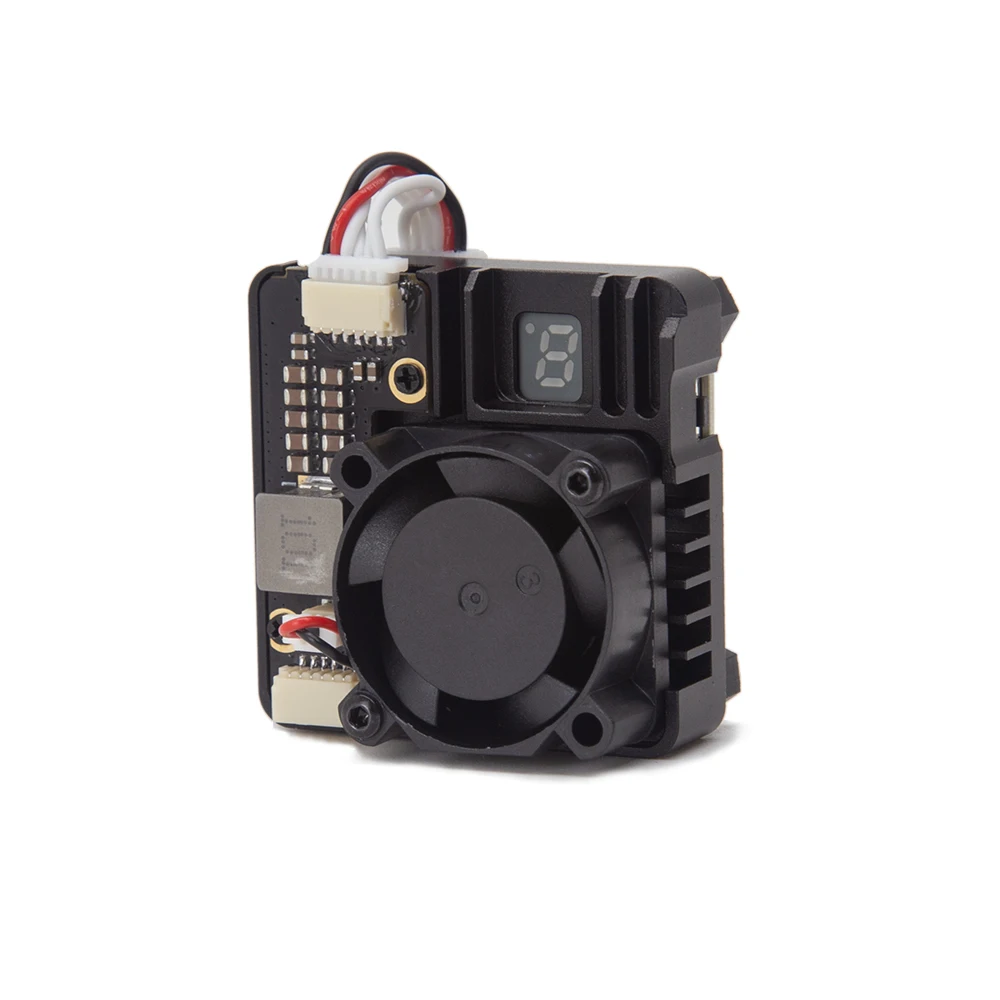

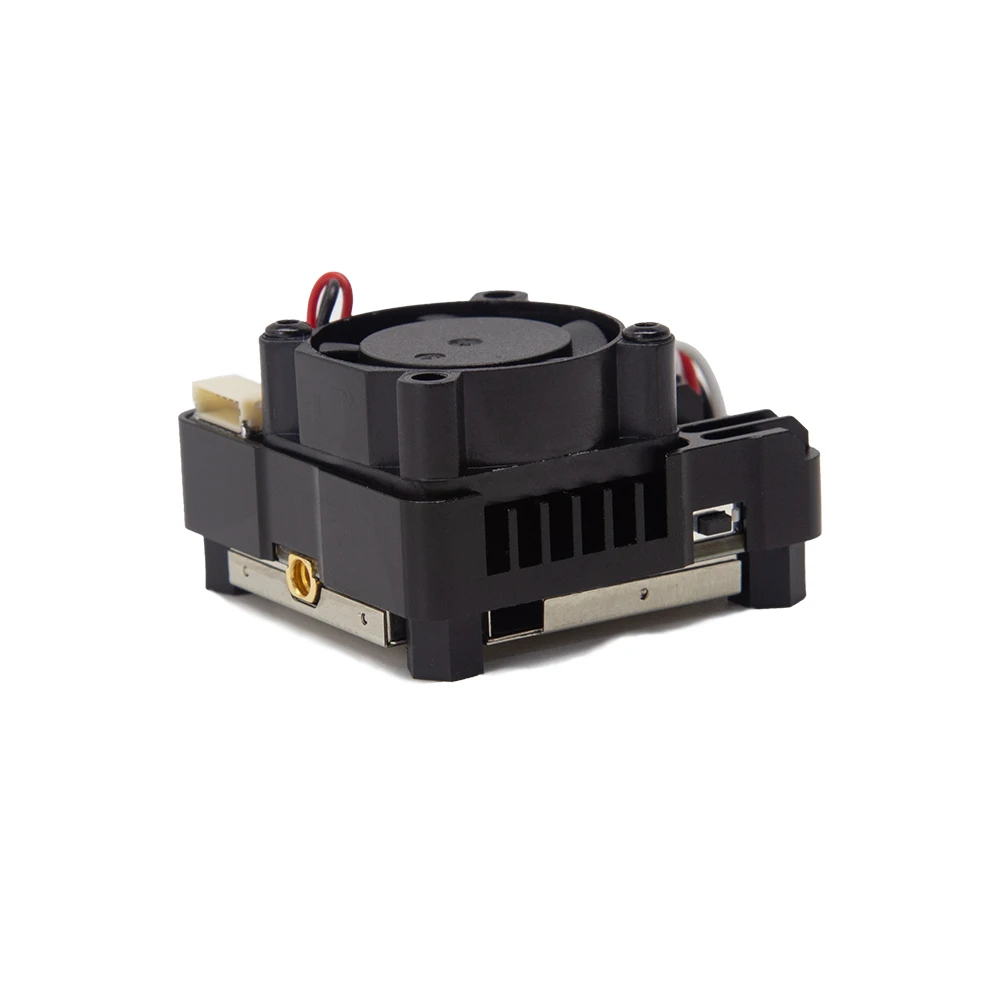

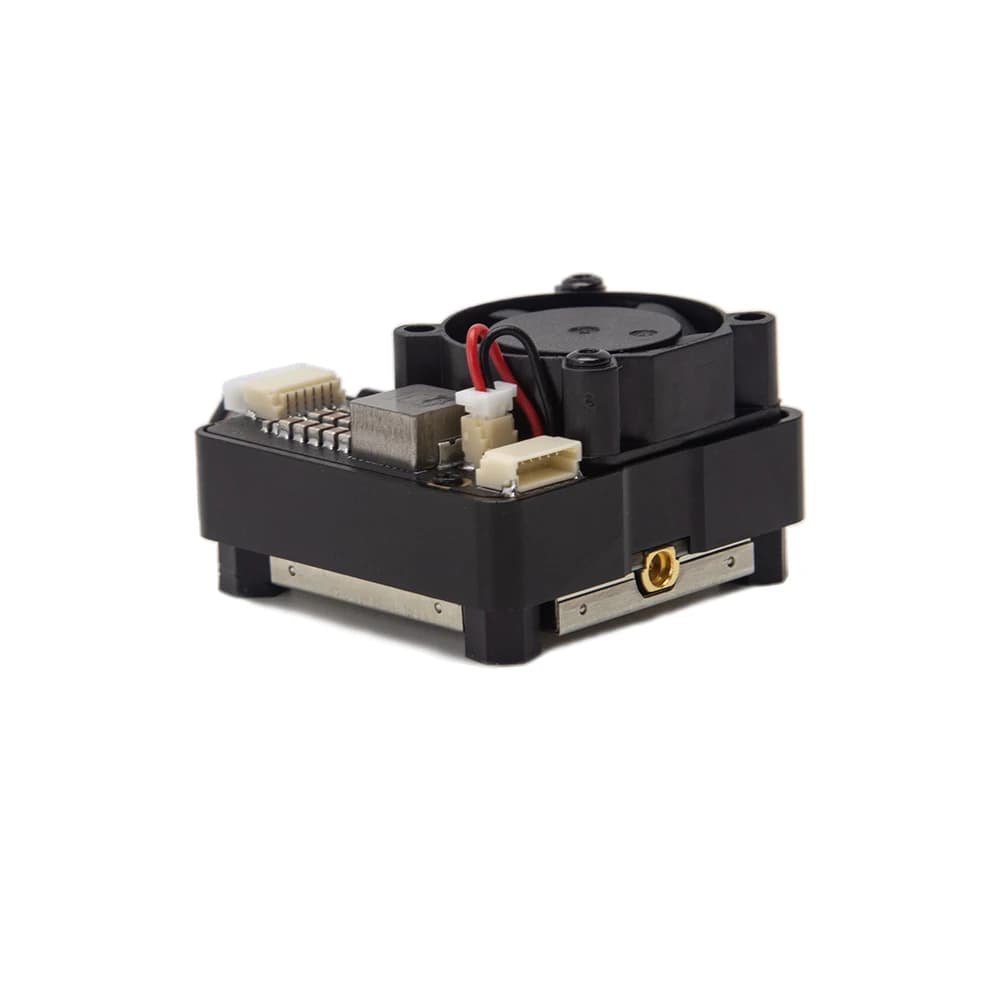

SKYZONE VTX 1.2G 2.5W 56CH High Power TX2501 Video Transmitter with CNC shell Support 5G for FPV Long Range Fixed-wing Drones analog signal
The TX1125 is powerful VTX which have 2.5W output, the new CNC case and fan can dispath the heat quickly , LED segment make the VTX easy to set and check the BAND/CH/POWER,its also support X Band(5G Hz) and Low Band.
Features:
1, Support X Band(5G Hz) and Low Band
2,CNC Case dan Fan to dispatch heat
3, 25/800/1600/2500mW adjustable power output
4, 9-26V Wide Range Voltage input
5, LED Segment Display, easy to check status of the VTX
6, Button/IRC control, fast to change the CH and Power
Notice！：You can only choose one of the Button mode andthe IRC mode. If you use the button mode, you need to turn off the IRC protocol in BF. The LED segment displays the
BAND/CH and power in sequence in the button mode, and the frequency and power at IRC mode.
