Radiomaster ER5A V2.0 5CH 2.4GH ExpressLRS External Antenna PWM Receiver For RC Car
20 orders (reference)
Description
Radiomaster ER5A V2.0 5CH 2.4GH ExpressLRS External Antenna PWM Receiver For RC Car ============================================================ ER5A V2 receiver is based on the high-performance, revolutionary ExpressLRS system, featuring high reliability, highly flexible configuration, ultra-fast response speeds, and an ultra-long receiving range, bringing with it a brand-new usage experience. The ER5A V2 ELRS receiver can drive up to 5 servos and has built-in receiver voltage telemetry and battery telemetry with the ability to automatically detect which voltage input to use. It is designed for aircraft applications. Feature Based on the Revolutionary ExpressLRS System High performance, high reliability,flexible configuration, fast response speed and ultra-long range Support 5 PWM Channels Automatically detects voltage telemetry of external battery voltage or receiver battery /ESC BEC voltage Built-in a TCXO (temperature compensated crystal oscillator), ensures stable and accurate performance in any environment Optimized ground up PCB design Supports Wi-Fi updates and WEBUI configuration Compact size, easy to install. Perfect for aircraft applications. Specifications Item: ER5A V2 2.4GHz ELRS PWM Receiver Power supply: DC 4.5-8.4V Antenna type: High-sensitivity antenna Wireless Protocol: ELRS 3.3.0 pre-installed Channels: 5 Telemetry Voltage Detection Range: DC 4.0 - 35V RF Telemetry: Yes Telemetry Power: 10mw Weight: 6.7 grams Size: 37.0 * 19.3 * 13.0mm Firmware: Device Category: RadioMaster 2.4 GHz / Device: RadioMaster ER5A 2.4GHz PWM RX Package Including 1 * ER5A V2 2.4GHz ELRS PWM Receiver 1 * Voltage telemetry wire 1 * User Card TECHNICAL SPECIFICATIONS • Weight: 6.7 grams • Size: 37.0 * 19.3 * 13.0mm • Firmware: AVAILABLE OPTIONS ER5A V2.0 PRODUCT INFORMATION Brand: RadioMaster Category: Radio Receiver Wholesale Price: US $25.16 ————————————————————————————————————————
Specifications
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Quantity | 1 pcs |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| Size | ER5A V2.0 |
| Technical parameters | KV1100 |
| Model Number | ER5A V2.0 |
| For Vehicle Type | Cars |
| Tool Supplies | Battery |
| Four-wheel Drive Attributes | Battery |
| Remote Control Peripherals/Devices | Remote Controller |
| Upgrade Parts/Accessories | Adapter |
| RC Parts & Accs | RECEIVERS |
| Material | Composite Material |
| Brand Name | RADIOMASTER |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
Product Details
ER5A V2 receiver is based on the high-performance, revolutionary ExpressLRS system, featuring high reliability,
highly flexible configuration, ultra-fast response speeds, and an ultra-long receiving range, bringing with it a brand-new usage experience.
The ER5A V2 ELRS receiver can drive up to 5 servos and has built-in receiver voltage telemetry and battery telemetry
with the ability to automatically detect which voltage input to use. It is designed for aircraft applications.
Feature
Based on the Revolutionary ExpressLRS System
High performance, high reliability,flexible configuration, fast response speed and ultra-long range
Support 5 PWM Channels
Automatically detects voltage telemetry of external battery voltage or receiver battery /ESC BEC voltage
Built-in a TCXO (temperature compensated crystal oscillator), ensures stable and accurate performance in any environment
Optimized ground up PCB design
Supports Wi-Fi updates and WEBUI configuration
Compact size, easy to install. Perfect foraircraft applications.
Specifications
Item: ER5A V2 2.4GHz ELRS PWM Receiver
Power supply: DC 4.5-8.4V

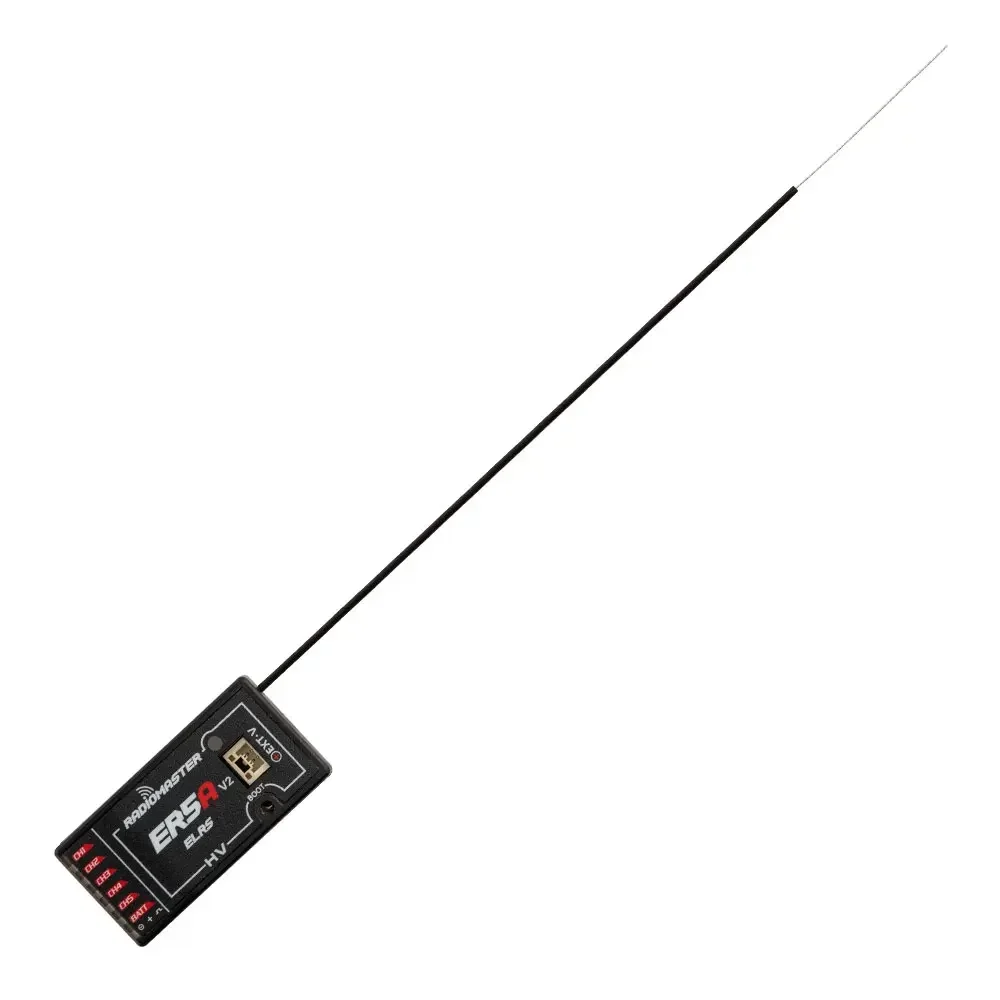

Antenna type: High-sensitivity antenna
Wireless Protocol: ELRS 3.3.0 pre-installed
Channels: 5
Telemetry Voltage Detection Range: DC 4.0 - 35V
RF Telemetry: Yes
Telemetry Power: 10mw

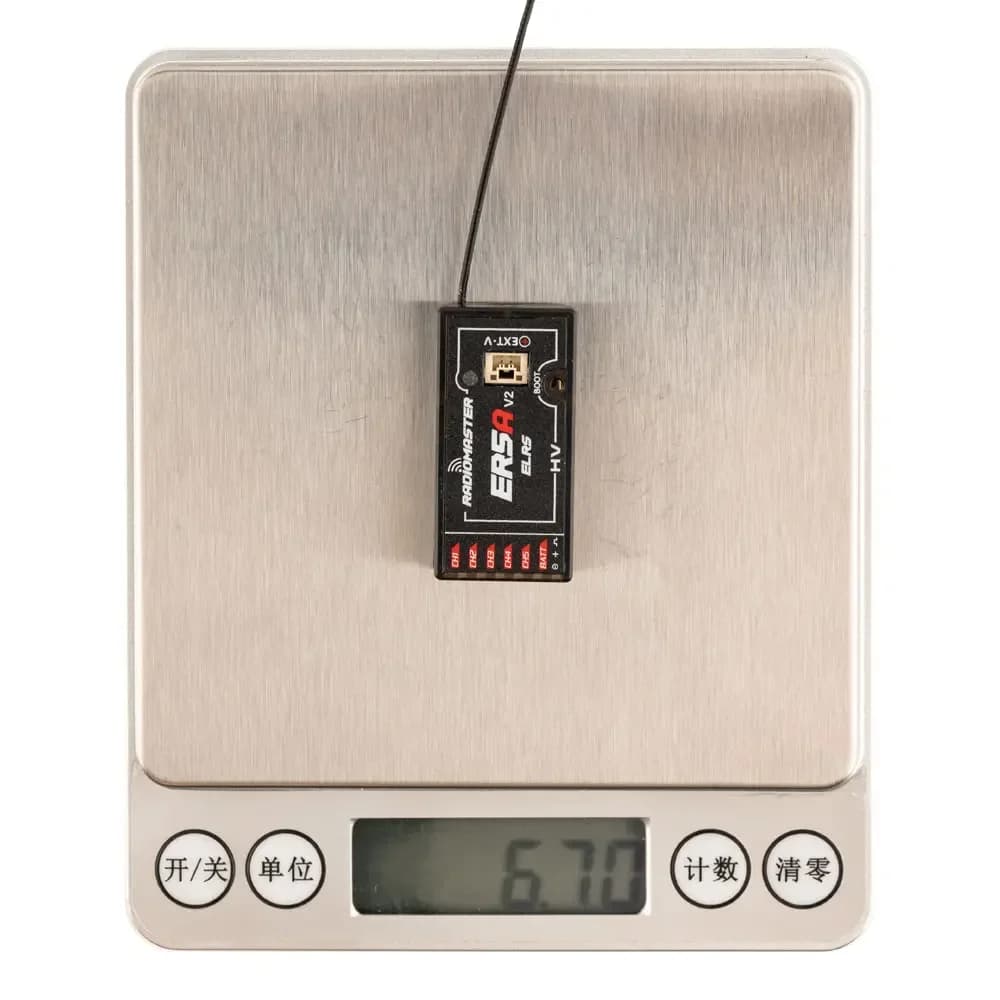

Weight: 6.7 grams
Size: 37.0 * 19.3 * 13.0mm
Firmware:
Device Category: RadioMaster 2.4 GHz / Device: RadioMaster ER5A 2.4GHz PWM RX

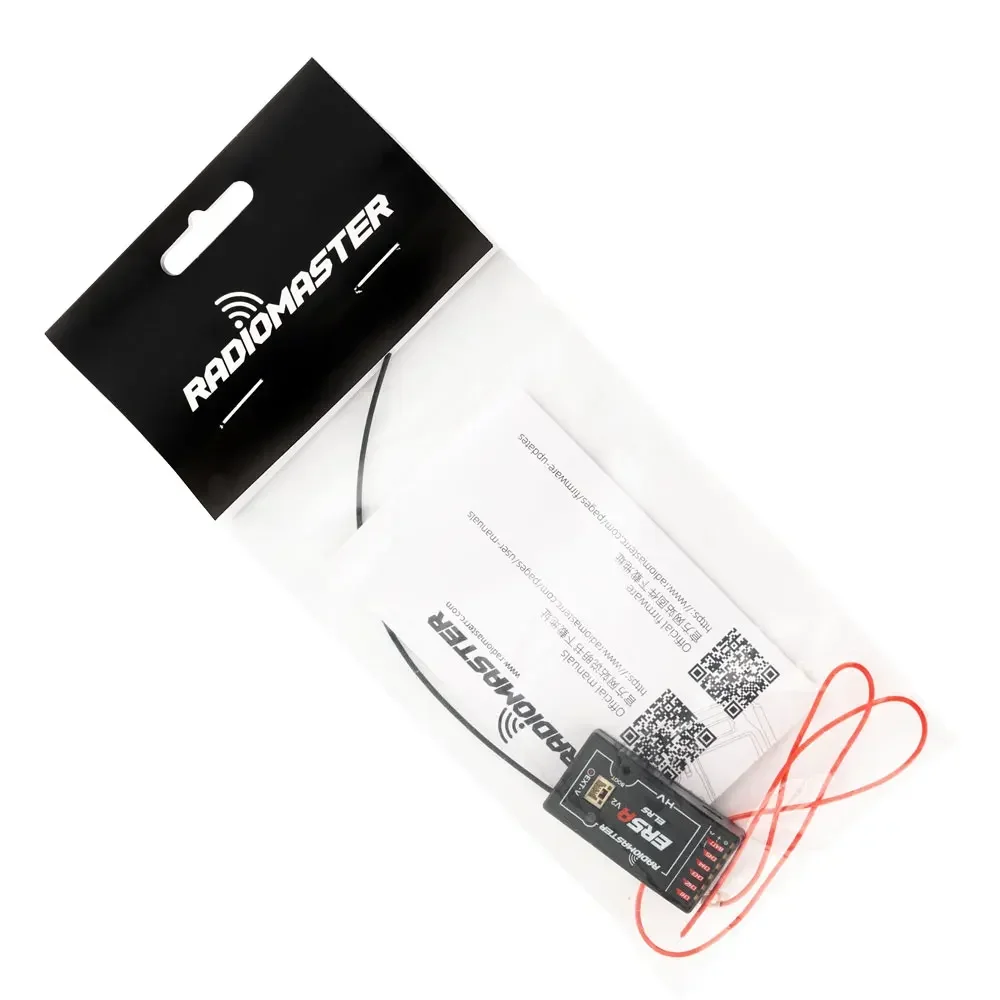

Package Including
1 * ER5A V2 2.4GHz ELRS PWM Receiver

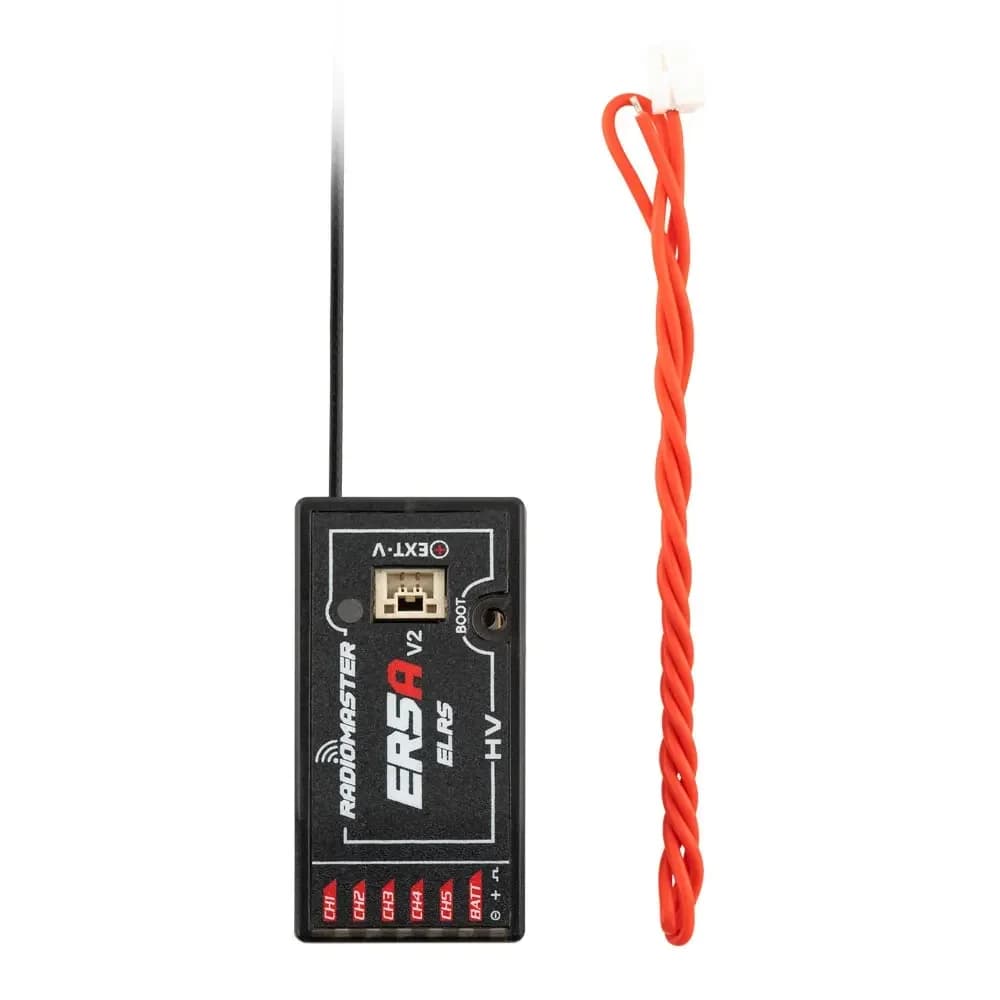

1 * Voltage telemetry wire
1 * User Card
