RadioMaster Boxer Radio Controller Dual-Band Dual 1W Gemini Xrossband ExpressLRS Transmitters EDGETX Open System 100% Original
500 orders (reference)
Description
RadioMaster Boxer Radio Controller Dual-Band Dual 1W Gemini Xrossband ExpressLRS Transmitters EDGETX Open System 100% Original ============================================================ Notes: CC2500 (standard) Version supports all CC2500 protocols 4in1 (standard) Version supports all MPM protocols ELRS (standard) is pre-installed witn ExpressLRS ISM FW (Max power is hardware dependnant) CC2500 LBT Version (Europe) is limited to LBT compliant protocols FrSKY X/X2 LBT & HoTT LBT 4in1 LBT Version (Europe) is limited to LBT compliant protocols FrSKY X/X2 LBT, HoTT LBT and DSMX ELRS LBT (Europe) Version is pre-installed with ExpressLRS CE EU domain LBT FW (Limited to 100mw power output) Specifications: Item: BOXER Radio Size: 235*178*77mm Weight: 532.5g Frequency: 2.400GHz-2.480GHz BOXER ELRS VERSION: Internal RF Options: ELRS 2.4GHz Supported protocols: Module dependent Cooling fan: Built in (ELRS version) BOXER 4IN1 VERSION: Internal RF Options: 4-in-1 multi-protocol Supported protocols: Module dependent BOXER CC2500 VERSION： Internal RF Options: CC2500 multi-protocol Supported protocols: Module dependent Voltage Range: 6.6-8.4V DC Radio Firmware: EdgeTX (Transmitter) / Multi-Module (RF module) Channels: Max 16 channels (Receiver dependent) Battery: 7.4V 2-cell Lithium-Polymer / Two 3.7V 18650 Lithium-Ion cells (batteries not included) Display: 128*64 Monochrome LCD display Gimbal: High precision 4.0 Hall gimbals as standard (AG01 Optional) External module: JR / FrSKY / Crossfire compatible Upgrade Method: USB / SD card & EdgeTX Companion PC software Package 1 * BOXER Radio 1 * Signature Carry Case 1 * T Antenna 1 * USB-C Cable 1 * Gimbal Protector 1 * 1.5mm Allen Key 2 * M4*4 Screws 4 * Low Tension Springs 1 * Stickers 1 * Manual 1 * 18650 Battery tray (Batteries not included) TECHNICAL SPECIFICATIONS • Size: 235*178*77mm • Weight: 532.5g • Battery: 7.4V 2-cell Lithium-Polymer / Two 3.7V 18650 Lithium-Ion cells (batteries not included) • Frequency: 2.400GHz-2.480GHz AVAILABLE OPTIONS China Mainland ELRS M2 FCC ELRS M2 6200mah ELRS M2 LBT 4IN1 M2 FCC 4IN1 M2 6200mah 4IN1 M2 LBT CC2500 M2 FCC CC2500 M2 6200mah CC2500 M2 LBT PRODUCT INFORMATION Brand: RadioMaster Category: TX / RF Module Wholesale Price: US $159.47 ————————————————————————————————————————
Specifications
| Attribute | Value |
|---|---|
| Wireless Communication | RF |
| Battery Included | No |
| High-concerned chemical | None |
| Package | Yes |
| Weight | 532.5g |
| Model Number | BOXER |
| Brand Name | RADIOMASTER |
| Origin | Mainland China |
| Drones Accessories Type | Remote Control |
| Certification | CE,FCC |
Product Details
Notes:
CC2500 (standard) Version supports all CC2500 protocols
4in1 (standard) Version supports all MPM protocols
ELRS (standard) is pre-installed witn ExpressLRS ISM FW (Max power is hardware dependnant)
----
CC2500 LBT Version (Europe) is limited to LBT compliant protocols FrSKY X/X2 LBT & HoTT LBT
4in1 LBT Version (Europe) is limited to LBT compliant protocols FrSKY X/X2 LBT, HoTT LBT and DSMX
ELRS LBT (Europe) Version is pre-installed with ExpressLRS CE EU domain LBT FW (Limited to 100mw power output)
Specifications:

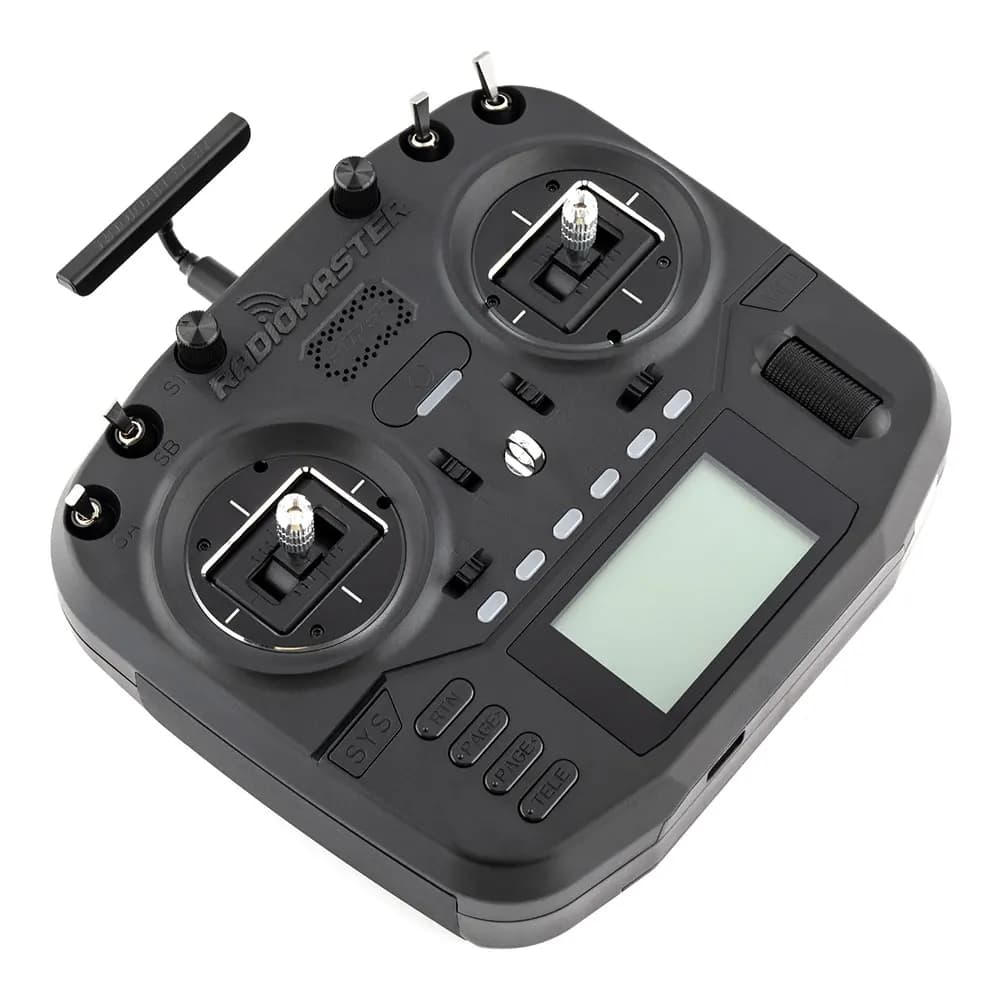

Item: BOXER Radio
Size: 235*178*77mm
Weight: 532.5g
Frequency: 2.400GHz-2.480GHz
BOXER ELRS VERSION:
Internal RF Options: ELRS 2.4GHz
Supported protocols: Module dependent
Cooling fan: Built in (ELRS version)
BOXER 4IN1 VERSION:
Internal RF Options: 4-in-1 multi-protocol
Supported protocols: Module dependent
BOXER CC2500 VERSION：
Internal RF Options: CC2500 multi-protocol
Supported protocols: Module dependent
Voltage Range: 6.6-8.4V DC
Radio Firmware: EdgeTX (Transmitter) / Multi-Module (RF module)
Channels: Max 16 channels (Receiver dependent)

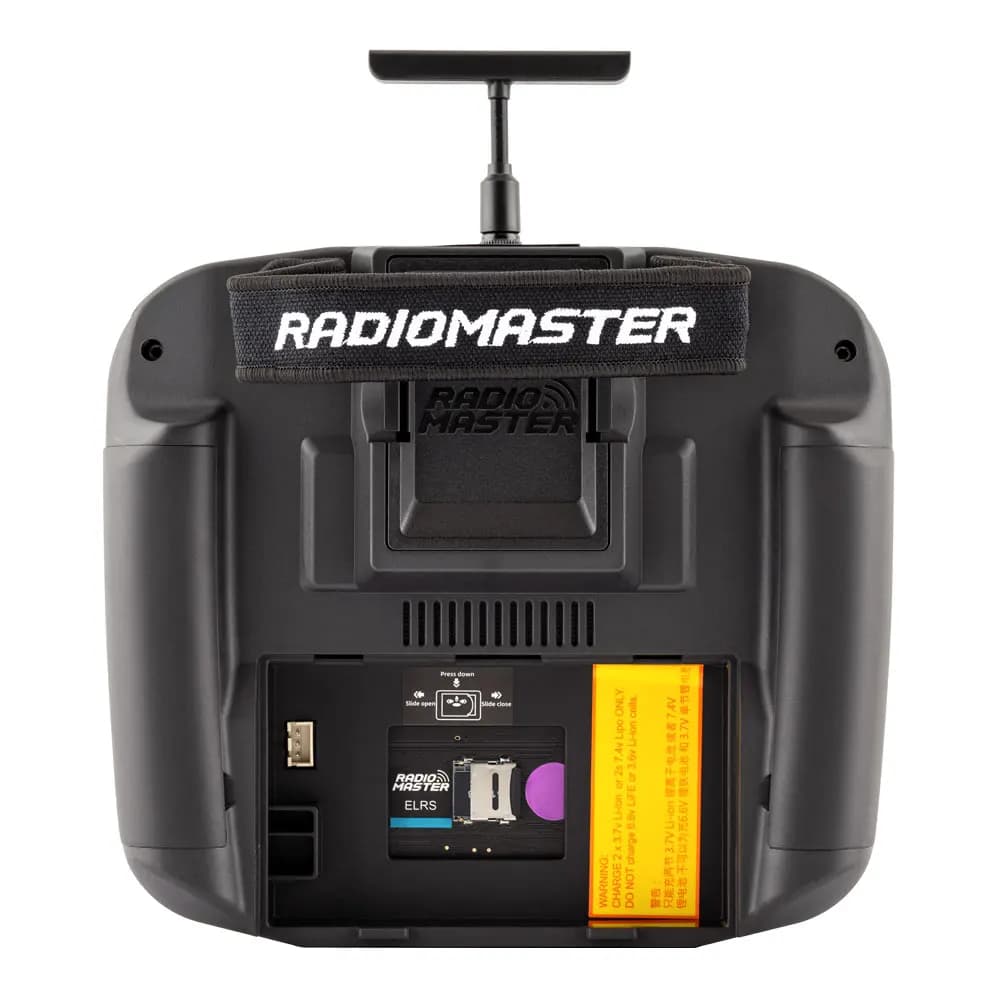

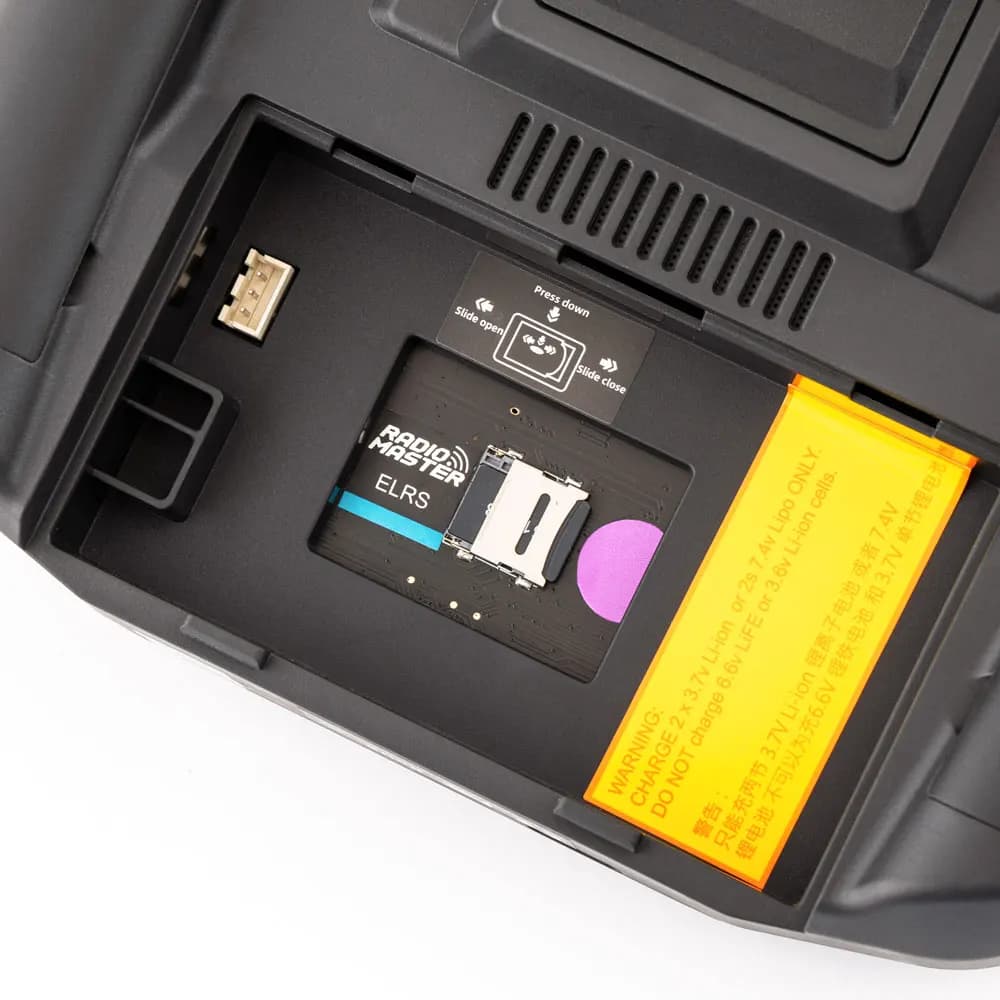

Battery: 7.4V 2-cell Lithium-Polymer / Two 3.7V 18650 Lithium-Ion cells (batteries not included)
Display: 128*64 Monochrome LCD display
Gimbal: High precision 4.0 Hall gimbals as standard (AG01 Optional)
External module: JR / FrSKY / Crossfire compatible
Upgrade Method: USB / SD card & EdgeTX Companion PC software

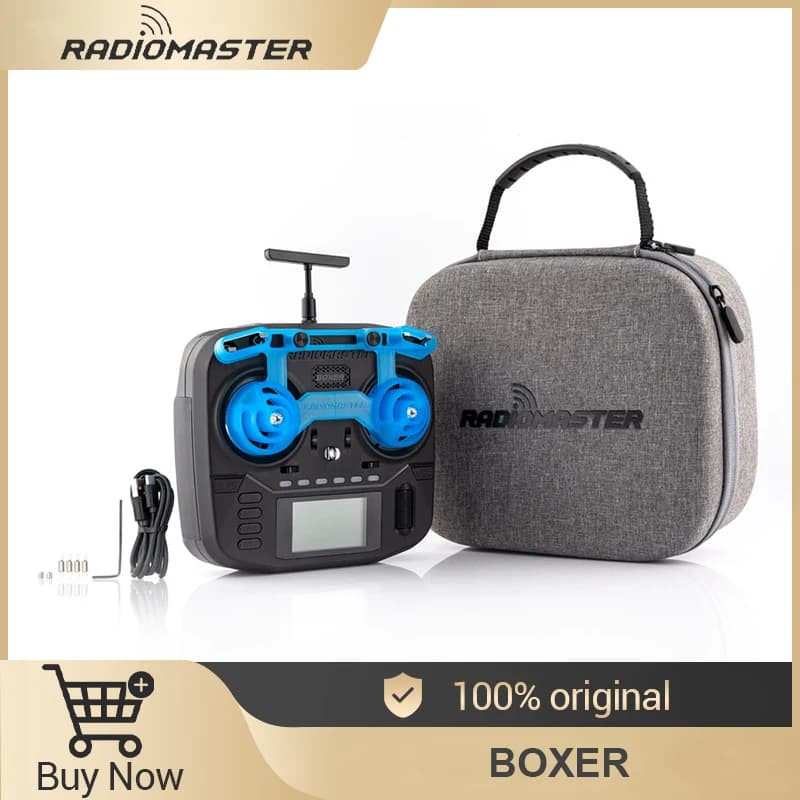

Package
1 * BOXER Radio
1 * Signature Carry Case

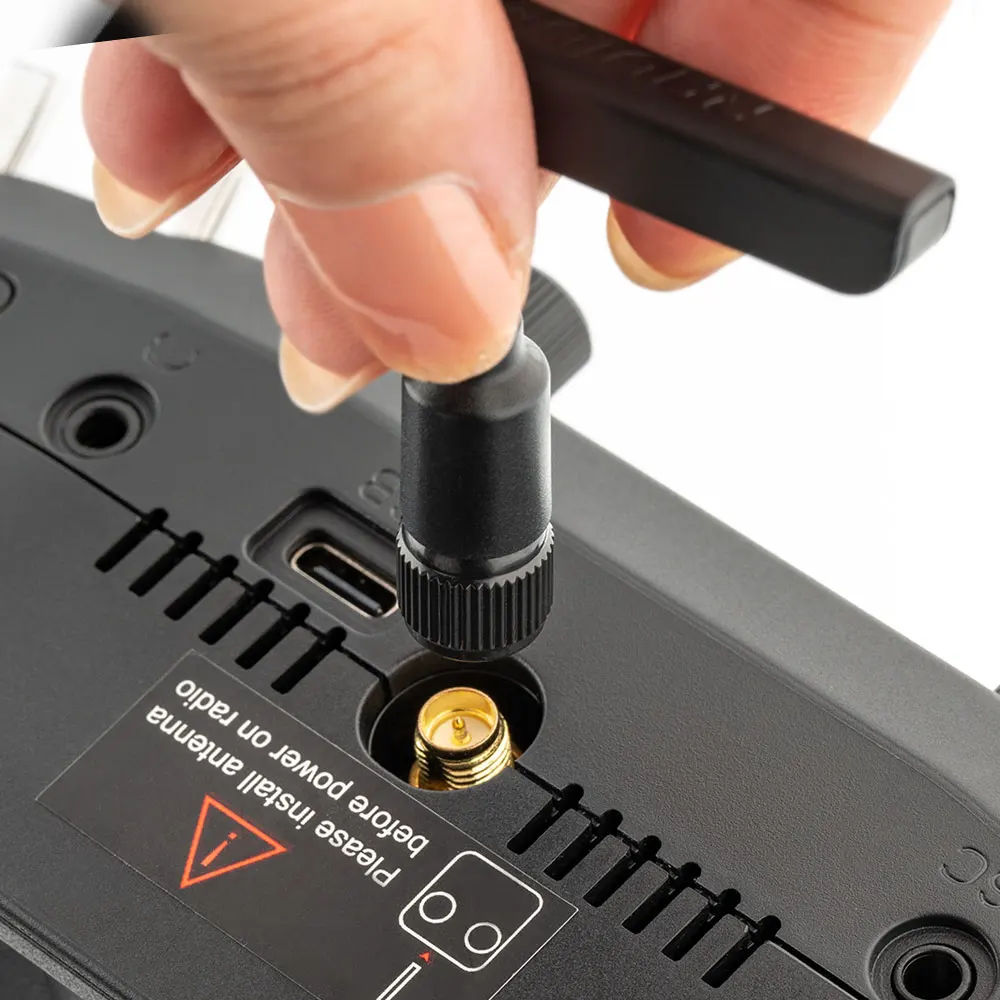

1 * T Antenna
1 * USB-C Cable
1 * Gimbal Protector
1 * 1.5mm Allen Key
2 * M4*4 Screws
4 * Low Tension Springs
1 * Stickers
1 * Manual
1 * 18650 Battery tray (Batteries not included)
