Holybro PM06 15019 14S Power Module 2S-14S Input Voltage 60A Rated Current for Pixhawk 4 (Mini) Durandal Pix32 RC FPV Drone

Description

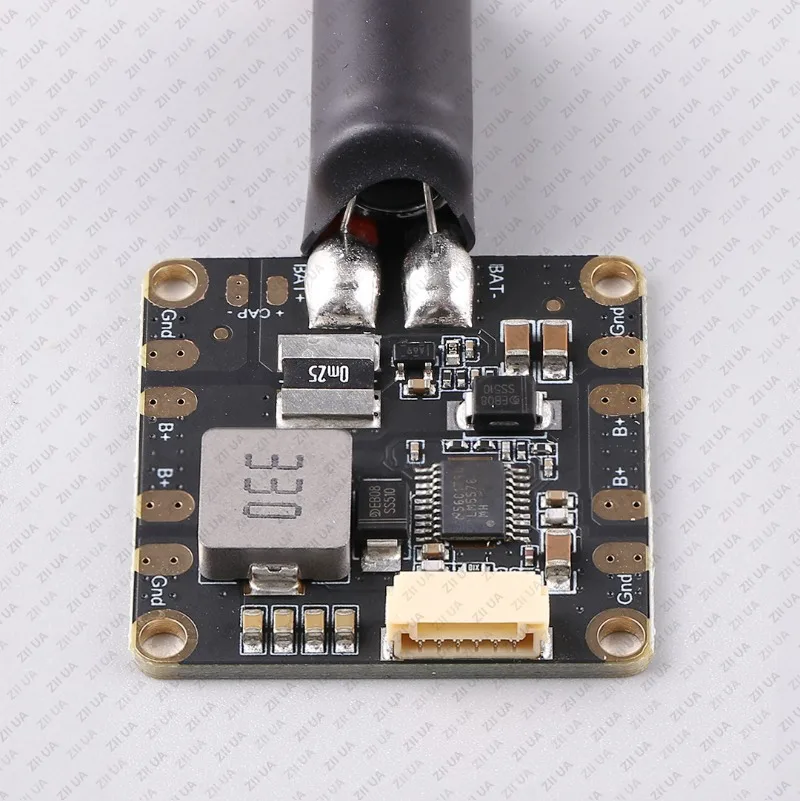

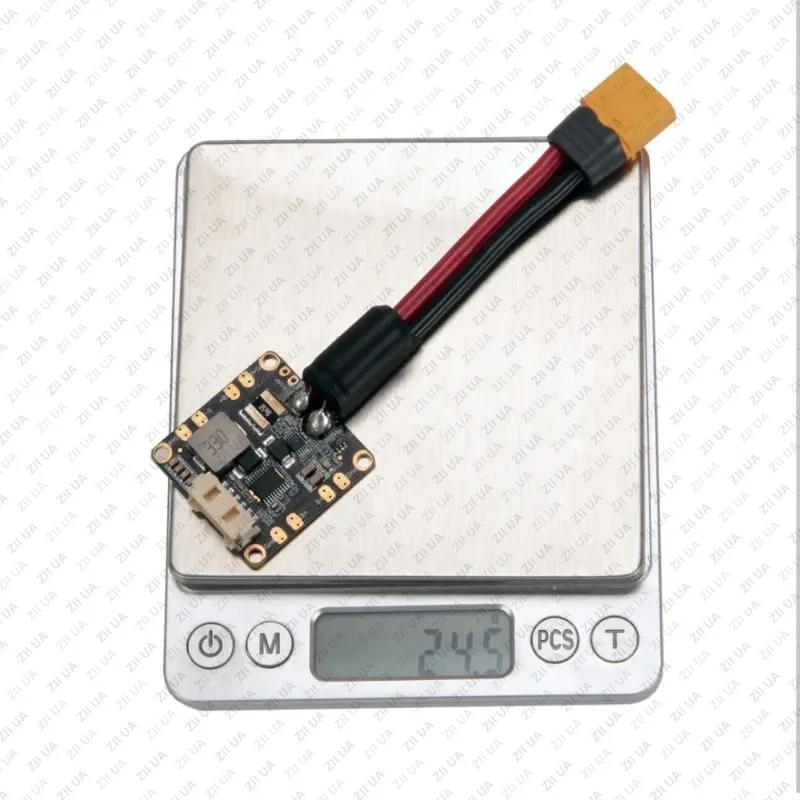

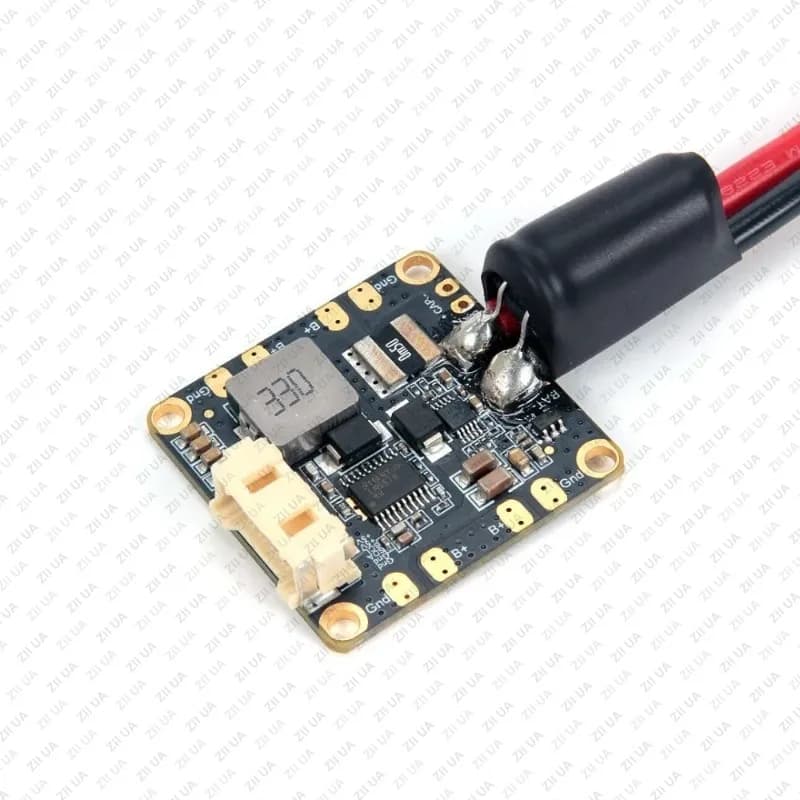

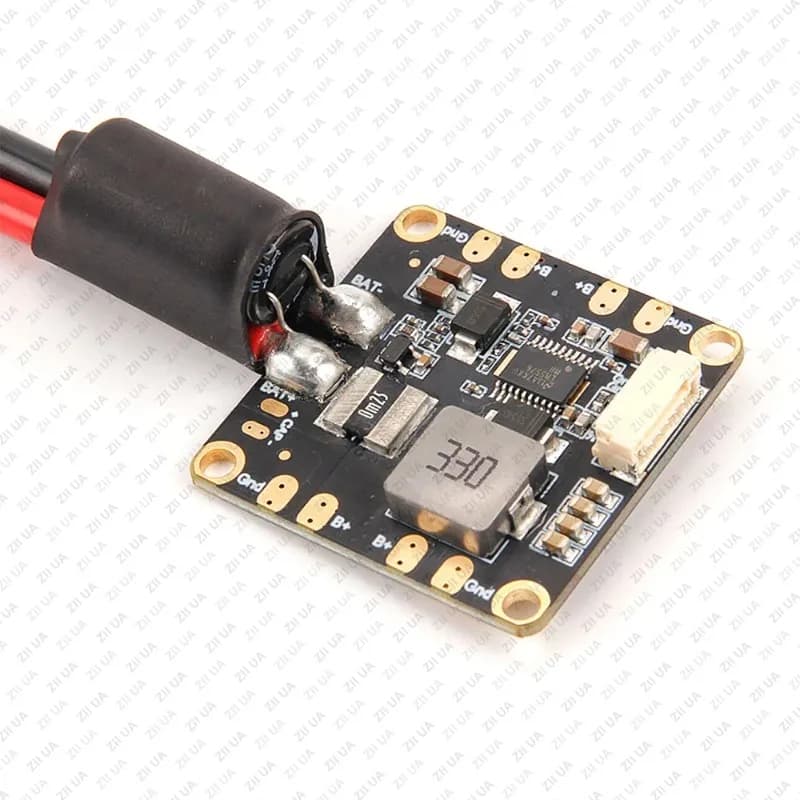

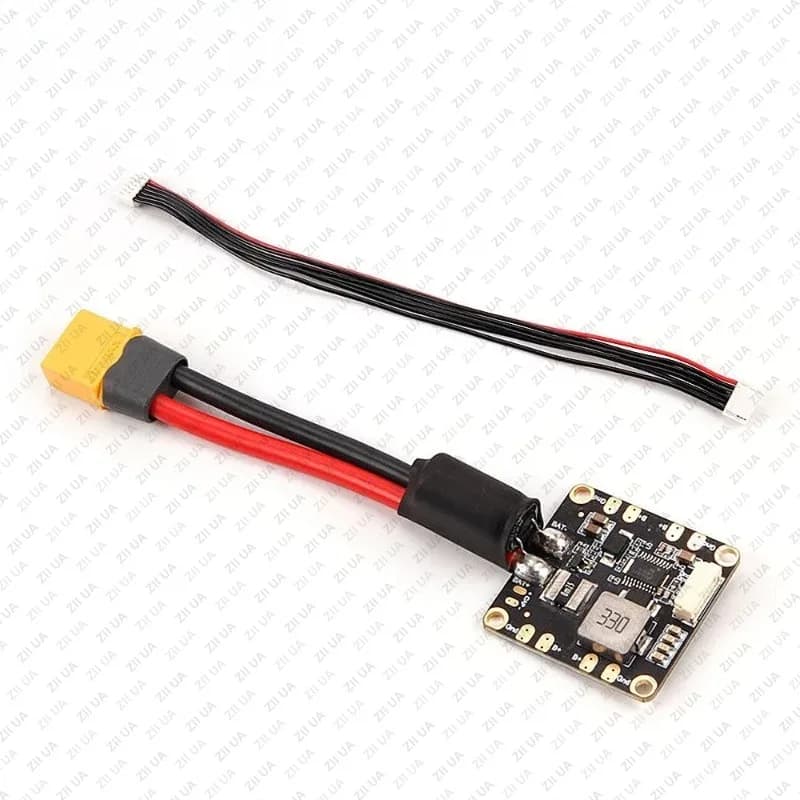

Holybro PM06 15019 14S Power Module 2S-14S Input Voltage 60A Rated Current for Pixhawk 4 (Mini) Durandal Pix32 RC FPV Drone ============================================================ Holybro PM06 / PM06D 14S Power Module 2S-14S Input voltage 60A Rated Current For Pixhawk 4 (Mini) Durandal Pix32 RC FPV Drone PM06 -14S Power Module: This PM06 Power Module supplies clean 5.2V to flight controller from the battery and provides current consumption and battery voltage measurements via analog signal through a 6 Pin JST-GH cable, along with integrated power distribution for 4 ESCs. It comes with pre-soldered wires, capacitor, and XT60 connector. Specifications: Input voltage (10S version): 2S-10S Input voltage (14S version): 2S-14S PCB Cont. Current Rating: 70A PCB Burst Current Rating: 120A (<60 Sec) Output: DC 5.2V & 3A Max Ouput Max Power : 18W Voltage Divider: 18.182 Amperes per Volt: 36.364 Please Note: The XT60 Plug and 12AWG wire that are pre-soldered on the board is rating for 30A continuous current and 60A burst current (< 60 Seconds). If a higher current is being used, the plug type and wire size should be changed accordingly. You can refer to this chart for reference. This PM02 Power Module uses analog data output and is not compatible to the Pixhawk 5X & 6X (Requires a digital PM like PM02D). Mechanical Specification: Dimensions: 35x35x5mm Mounting hole: 30.5mm*30.5mm Weight: 24g Pin Map: Setup guide for PX4 & Ardupilot can be found in the Holybro Doc here. Package Includes 1x PM06 board 1x 80mm XT60 connector wire (installed) 1x Electrolytic capacito: 220uF 63V(installed) 1x JST GH 6pin cable 1x JST SH 6pin cable PM06D-14S Power Module: PM06D is supported by PX4. For Ardupilot, it is supported in Ardupilot latest/master FW, or version 4.4 and later. - This PM uses I2C digital signal data output and is not compatible with flight controller that uses analog PM such as the Pixhawk 6C & Mini, Pixhawk4 & Mini, pix32 v5, or Durandal flight controllers. PM06D provides regulated power supply for your Pixhawk® 5X & 6X from the battery, as well as current consumption and battery voltage measurements, all through a 6pin cable. It has built-in power distribution, allowing you power your ESC and FC with the same board. The on-board switching regulator outputs 5.2V and a maximum of 3A from LiPo batteries up to 14S. The Power Module comes completely assembled with a XT60 connector and a capacitor. The Molex 2.00mm pitch CLIK-Mate Wire-to-Board connector is rated for 3.0A current per contact. Specification Input voltage: 2S- 14S PCB Cont. Current Rating: 70A PCB Burst Current Rating: 120A (<60 Sec) Max current sensing: 327A Voltage and current monitor with I2C compatible interface Connector Outputs: 5.2V and 3A max Weight: 24.5g Current Rating: The PM06D comes with XT60 plugs with 14 AWG silicone wires rated for 30A continuous current and 60A burst current (<1 minute). If a higher current is needed, the plug type and wire size should be changed accordingly. You can refer to this chart as reference. PX4 Parameter Setup: If you are using the PM06D 14S version, you must set SENS_EN_INA228to enable . Package Includes: 1x PM06D Power Module 1x 6pin 2.00mm pitch cable TECHNICAL SPECIFICATIONS • Weight: 24g • Weight: 24.5g • Output: DC 5.2V & 3A Max • Package Includes: AVAILABLE OPTIONS PM06-14S PRODUCT INFORMATION Brand: Holybro Category: FPV Drone Wholesale Price: US $43.28 ————————————————————————————————————————
