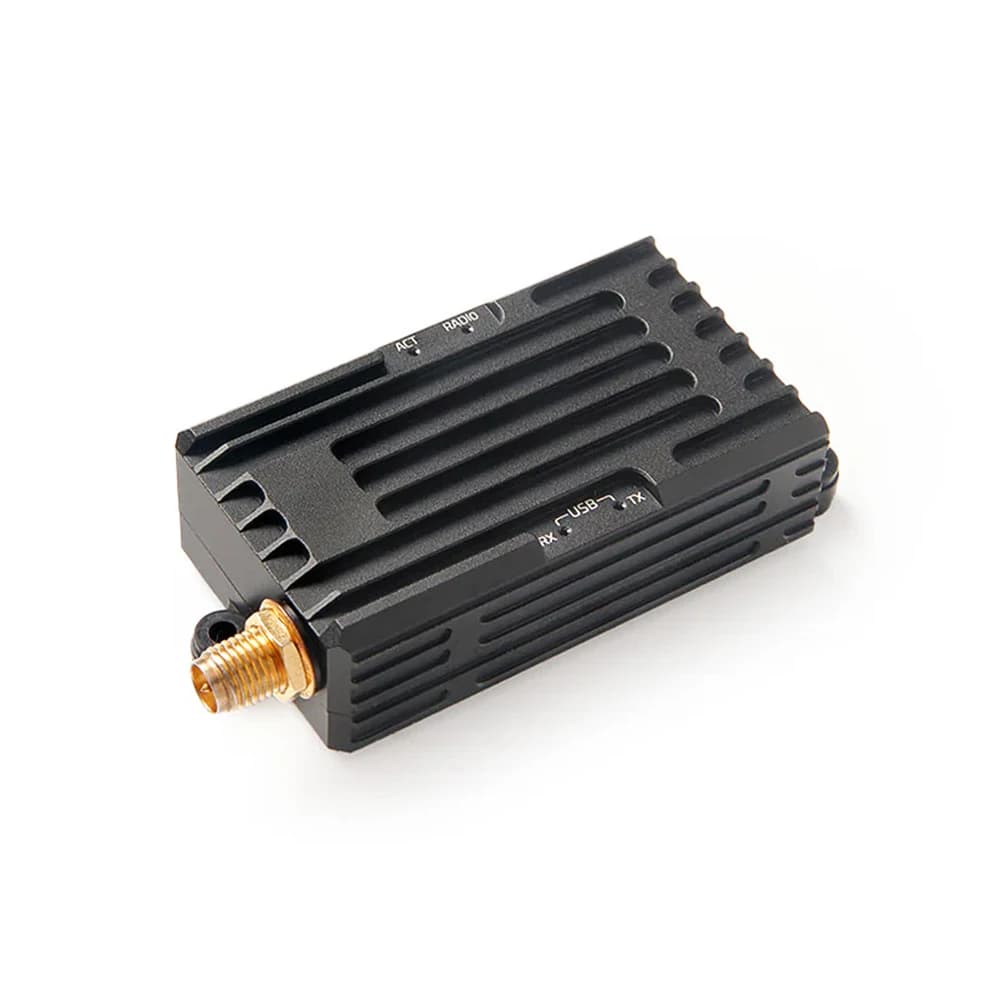

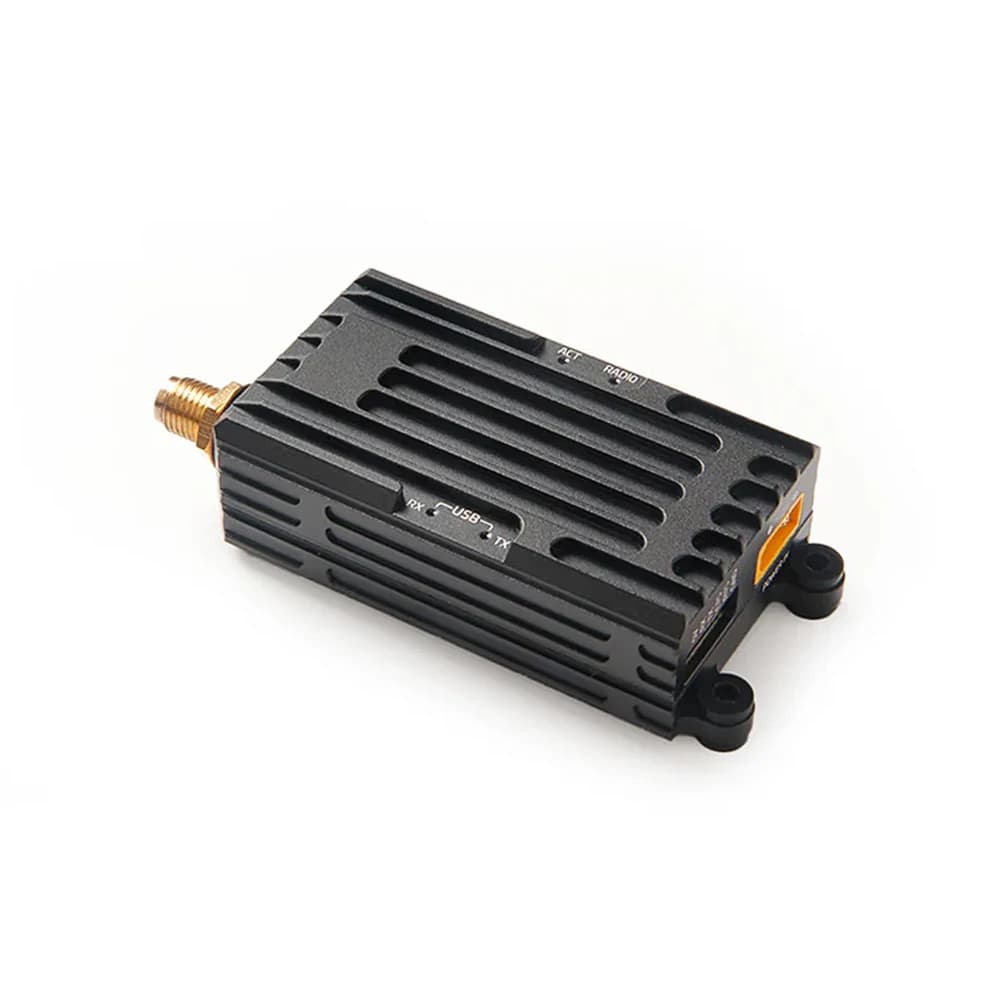

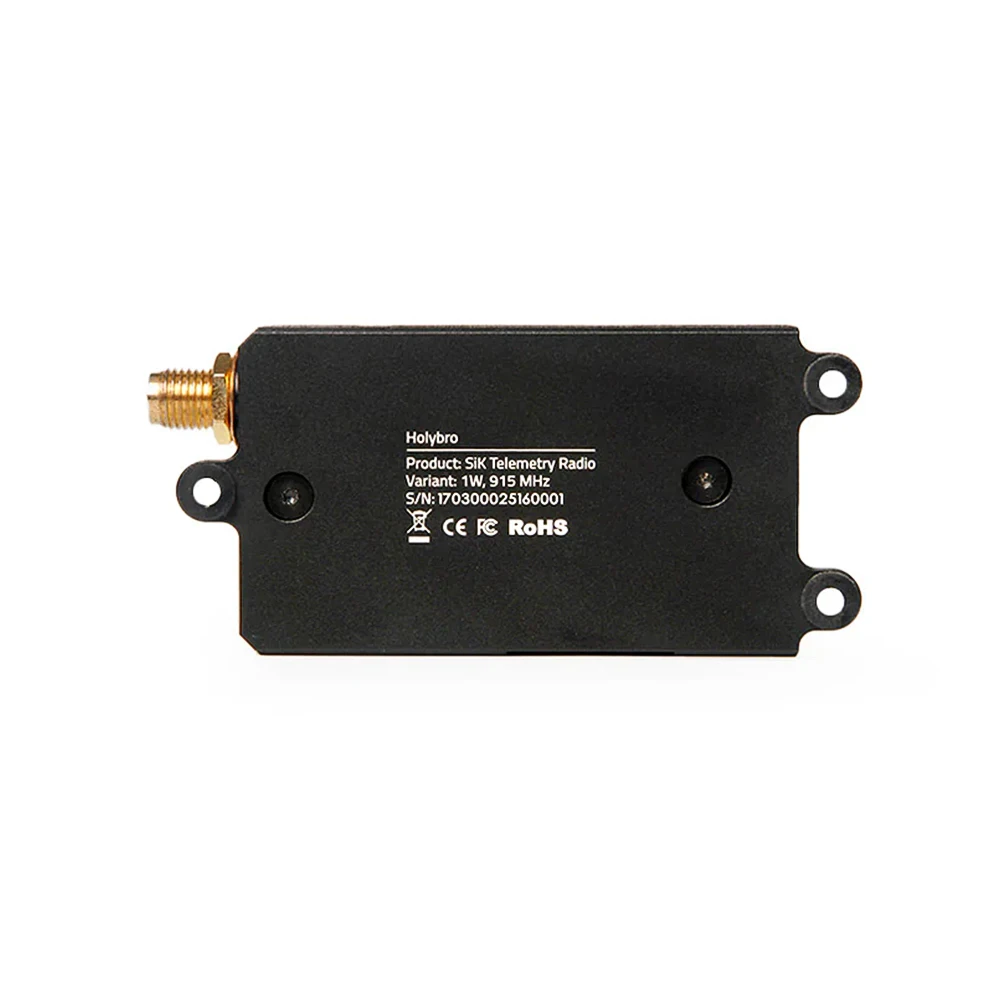

Телеметрическая радиостанция Holybro SiK - большой радиус действия, 1 Вт, 915 МГц, совместимая с прошивкой SIK с открытым исходным кодом Pixhawk Standard FC для RC FPV Drone
1 orders (reference)
Description
Overview
This Holybro SiK Long Range Telemetry Radio is a small, light, and inexpensive open-source radio platform with a maximum 50 kilometres range (outdoors, line-of-sight range).
This radio is plug-and-play, ready for all Pixhawk Standard and other similar flight controllers, providing the easiest way to set up a telemetry connection between your controller and a ground station. It uses open-source firmware that has been specially designed to work well with MAVLink packets and to be integrated with the Mission Planner, Ardupilot, QGroundControl, and PX4.
The radios are available in 915 MHz or 433 MHz versions. Please purchase the model that is appropriate for your country/region.
FCC ID: 2BNF8-HT051WRF915 (100mW, 915.06~927.04MHz)
Features
Open-source SIK firmware
Plug-n-play for Pixhawk Standard Flight Controllers
1W maximum RF output
The Easiest way to connect your controller and Ground Station
Interchangeable air and ground radio
6-position JST-GH connector
Manual:
Telemetry-Radio-V3-Quick-Start-Guide
Some Tips:
https://ardupilot.org/copter/docs/common-configuring-a-telemetry-radio-using-mission-planner.html
Specifications
| Option | Values |
|---|---|
| High-concerned chemical |
|
| Is Electric |
|
| Quantity |
|
| Wheelbase |
|
| Is it battery/power supply |
|
| Is it charger/adapter |
|
| Is Batteries Included |
|
| Size |
|
| Technical parameters |
|
| Model Number |
|
| For Vehicle Type |
|
| Tool Supplies |
|
| Four-wheel Drive Attributes |
|
| Remote Control Peripherals/Devices |
|
| Upgrade Parts/Accessories |
|
| RC Parts & Accs |
|
| Material |
|
| Origin |
|
| Recommend Age |
|
| Use |
|
| Certification |
|
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Quantity | 1 pcs |
| Wheelbase | Bottom Plate |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| Size | NA |
| Technical parameters | KV1100 |
| Model Number | Holybro SiK Telemetry Radio - Long Range |
| For Vehicle Type | Airplanes |
| Tool Supplies | Assembled class |
| Four-wheel Drive Attributes | Assemblage |
| Remote Control Peripherals/Devices | Remote Controller |
| Upgrade Parts/Accessories | SiK Telemetry Radio - Long Range |
| RC Parts & Accs | 1W 915MHz |
| Material | Composite Material |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
| Certification | CE |
Product Details
Overview
-
This Holybro SiK Long Range Telemetry Radio is a small, light, and inexpensive open-source radio platform with a maximum 50 kilometres range (outdoors, line-of-sight range).
-
This radio is plug-and-play, ready for all Pixhawk Standard and other similar flight controllers, providing the easiest way to set up a telemetry connection between your controller and a ground station. It uses open-source firmware that has been specially designed to work well with MAVLink packets and to be integrated with the Mission Planner, Ardupilot, QGroundControl, and PX4.
-
The radios are available in 915 MHz or 433 MHz versions. Please purchase the model that is appropriate for your country/region.
-
FCC ID: 2BNF8-HT051WRF915 (100mW, 915.06~927.04MHz)
-
Plug-n-play for Pixhawk Standard Flight Controllers
-
1W maximum RF output
-
The Easiest way to connect your controller and Ground Station
-
Interchangeable air and ground radio
-
6-position JST-GH connector
Specifications
|
SiK Telemetry Radio Long Range |
|||
|
Max RF Power |
20 dBm |
27 dBm |
30 dBm |
|
Receive sensitivity |
-121 dbm @2kbps RF Data Rate, -105 dbm @64kbps RF Data Rate |
||
|
Antenna Gain |
2dBi |
5dBi |
|
|
RF Data Rates |
2, 4, 8, 16, 32, 64(default), 96, 128, 192, 250 kbps |
||
|
Serial Interface Data Rate |
1.2, 2.4, 4.8, 9.6, 19.2, 38.4, 57.6(default), 115.2 kbps |
||
|
Frequency Band |
902MHz - 928MHz or 414MHz - 460MHz |
||
|
Interference Immunity |
Frequency Hopping Spread Spectrum (FHSS) Configurable duty cycle |
||
|
Address Options |
Network ID: 0 –255 |
||
|
Channels |
Up to 50 Frequency Hopping Channels |
||
|
Supported Network Topologies |
Point-to-point |
||
|
Configuration Method |
MissionPlanner or AT Commands |
||
|
Data Framing |
Standard or MAVLink protocol framing |
||
|
Error correction |
Corrects up to 25% of bit errors with open-source SIK firmware |
||
|
Serial Data Connector & Interface |
6-pin JST-GH connector, 3.3V-TTL |
||
|
USB |
Micro-USB |
Type-C |
|
|
SMA Connector |
RP-SMA female |
||
|
Power Connector |
NA |
XT30 |
|
|
Operating Temperature |
-40~85°C |
||
|
Dimension |
28 x 53 x 10.7mm (without antenna) |
66.5 x 32 x 16.5mm (without antenna) |
|
|
Weight |
23.5g w/ antenna |
67g w/ antenna |
|
|
Input Voltage (DC) |
5V |
7~28V |
|
-
2-way full-duplex communication through adaptive TDM UART interface
-
Transparent serial link
-
MAVLink protocol framing
-
Built in FT230X/FT231 USB to BASIC UART conversion IC
-
Supply voltage: 7~28V DC via XT30
-
Transmit current: 12V/400mA at 30 dBm
-
Receive current: 12V/30mA
-
Serial interface: 3.3 V UART
-
Single 1W
-

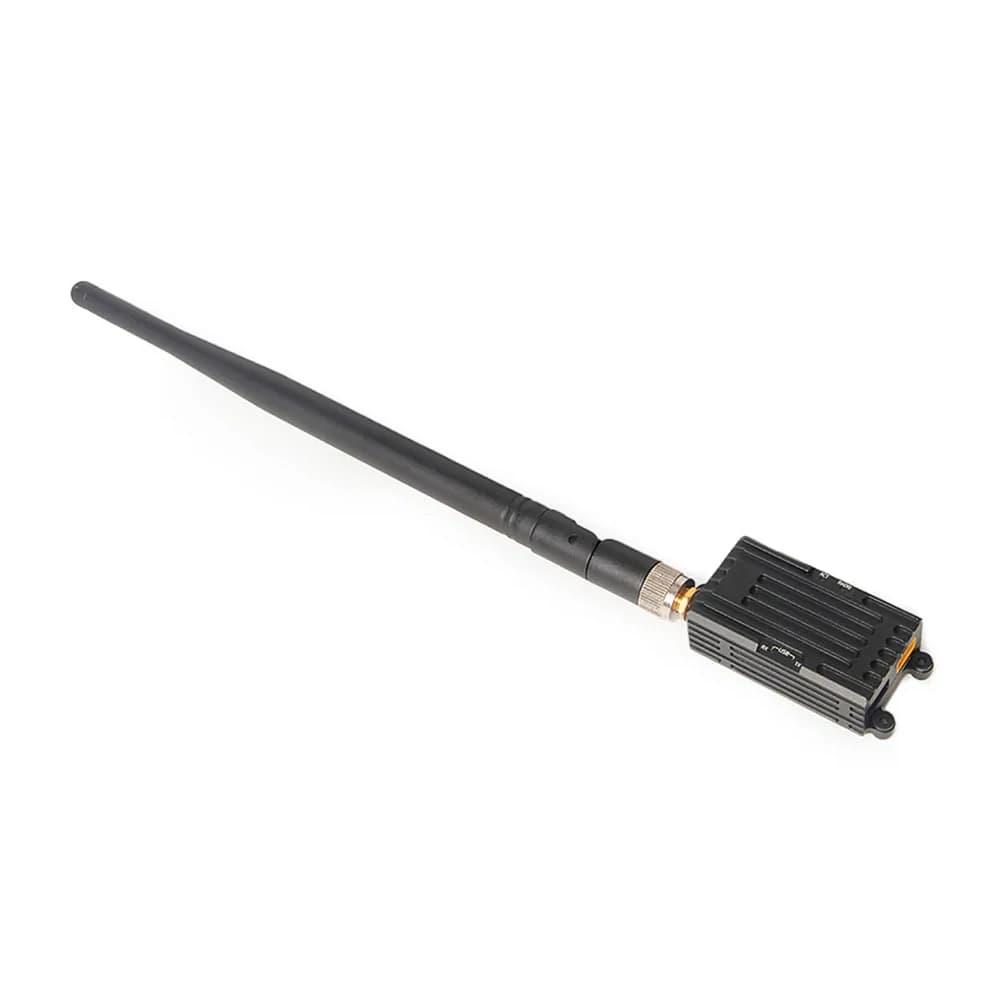

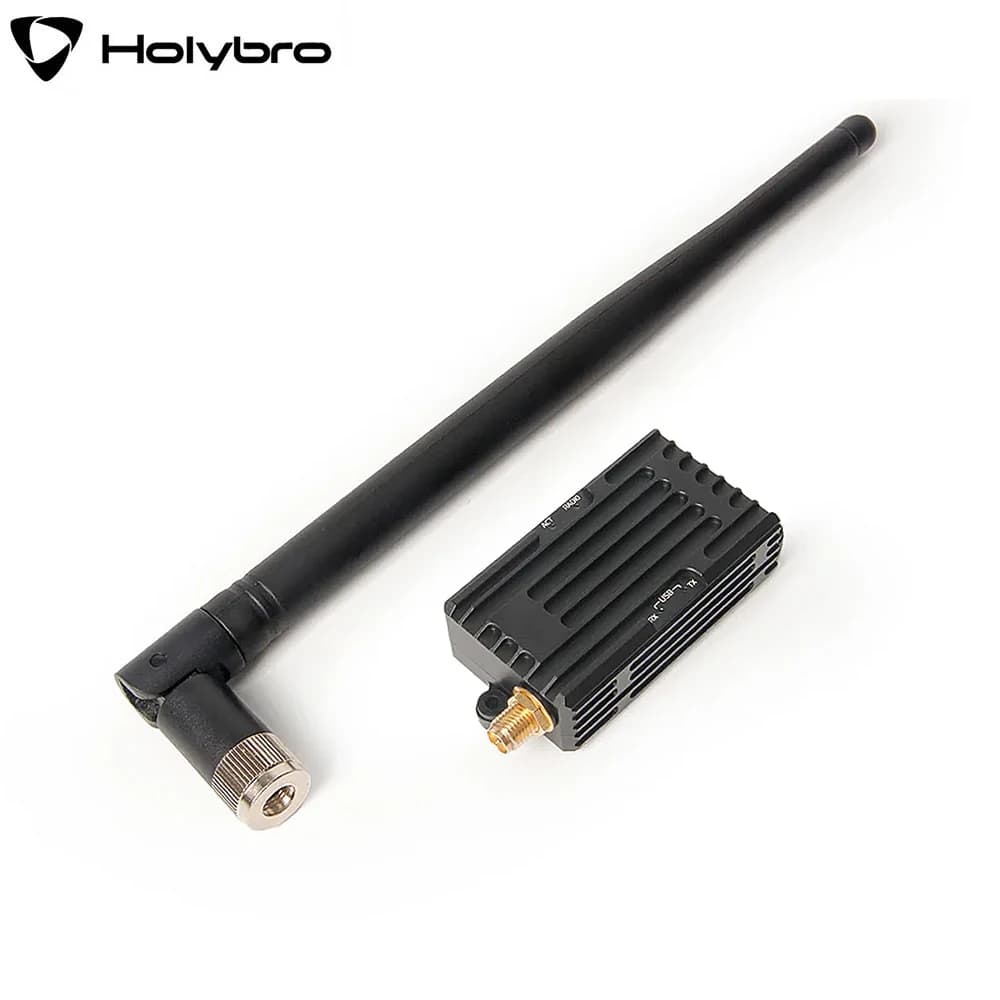

1W Radio modules with antennas *1
-
High-gain omnidirectional antenna *1
-
Male Type-C to male Type-C USB cable *1
-
Male XT30 to female XT30 adapter cable *1
-
Male XT30 to female XT60 adapter cable *1
-
JST-GH-6P to JST-GH-6P cable *1 (for Pixhawk Standard FC)
-
Rubber damping grommet *3
-
-
Pair 1W
-
1W Radio modules with antennas *2
-
High-gain omnidirectional antenna *2
-
Male Type-C to male Type-C USB cable *1
-
Male XT30 to female XT30 adapter cable *1
-
Male XT30 to female XT60 adapter cable *1
-
JST-GH-6P to JST-GH-6P cable *1 (for Pixhawk Standard FC)
-
Rubber damping grommet *3
-
Telemetry-Radio-V3-Quick-Start-Guide
Some Tips:
https://ardupilot.org/copter/docs/common-configuring-a-telemetry-radio-using-mission-planner.html
