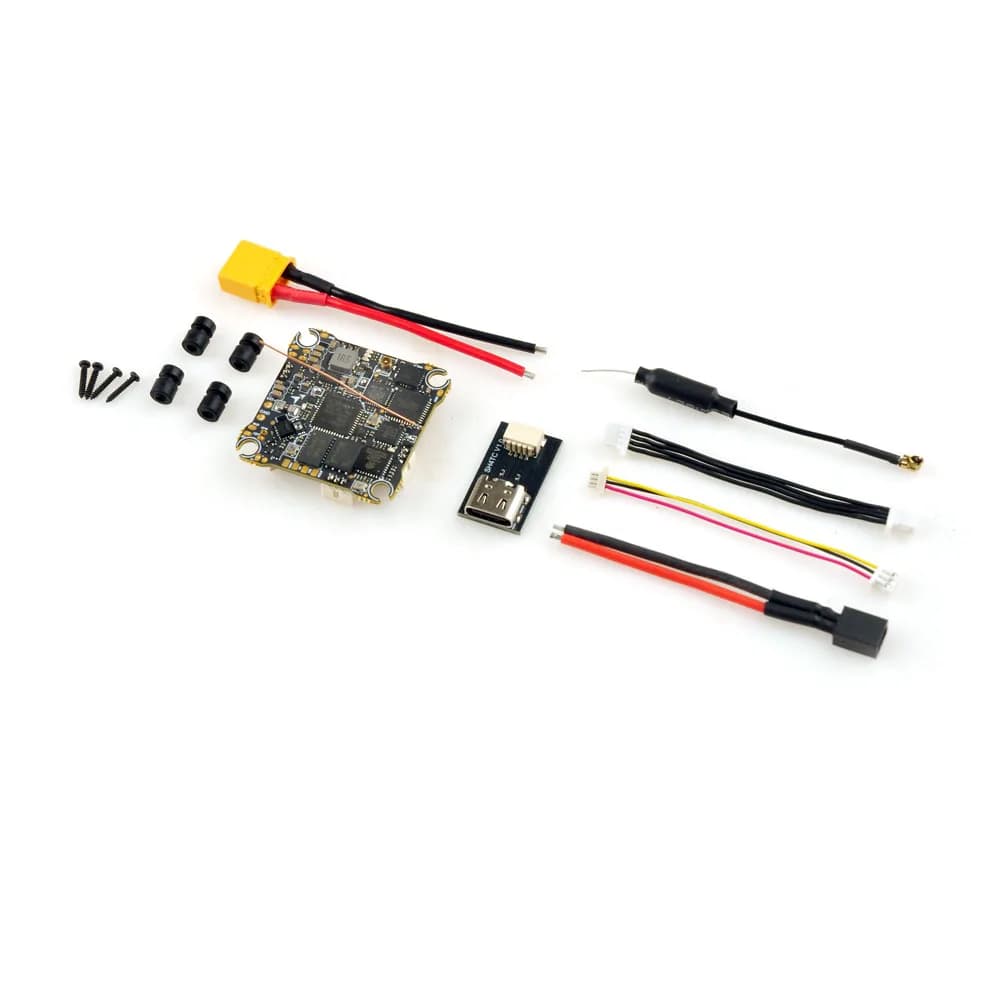

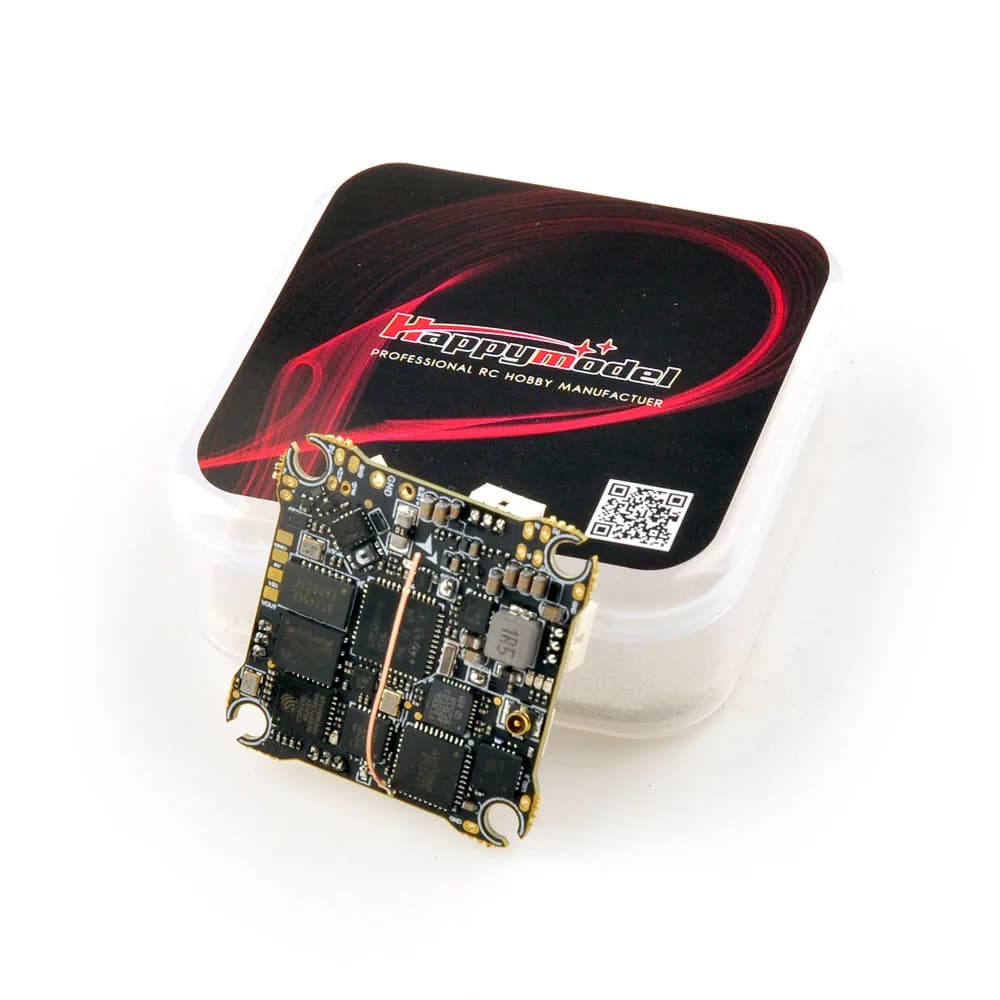

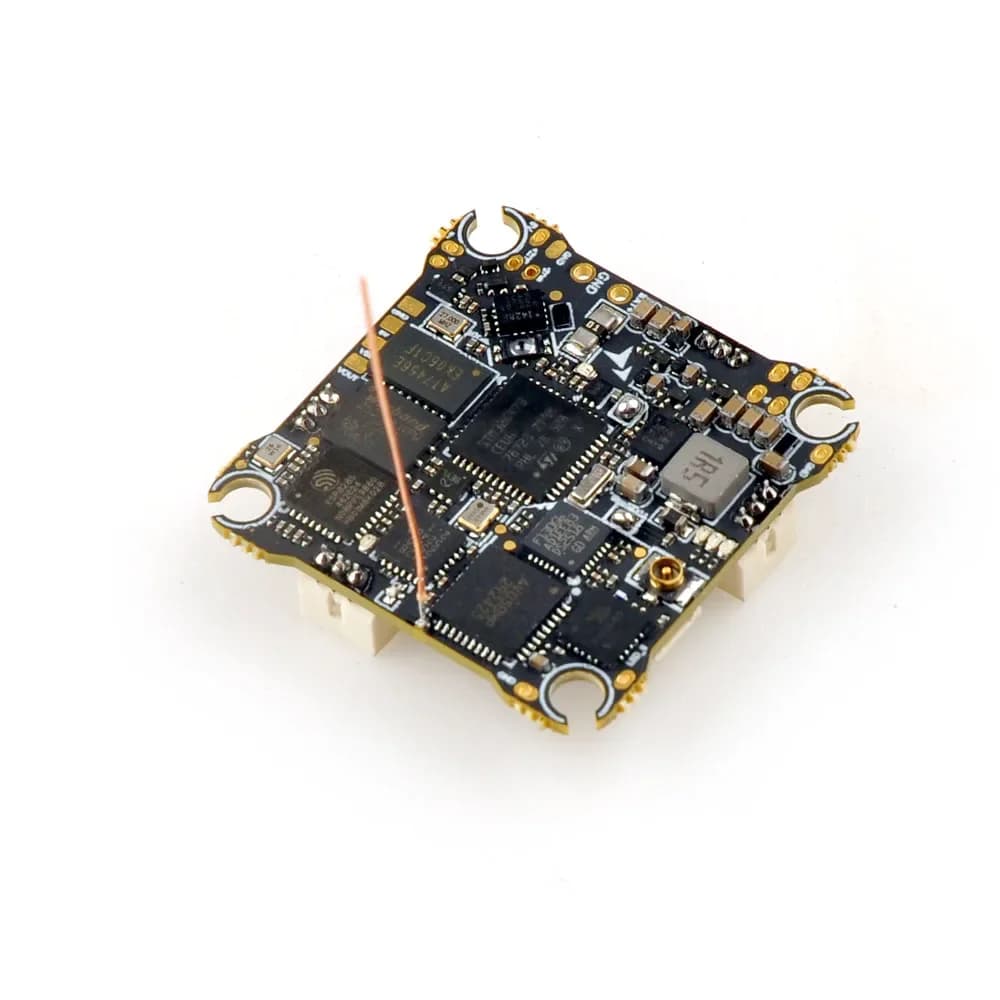

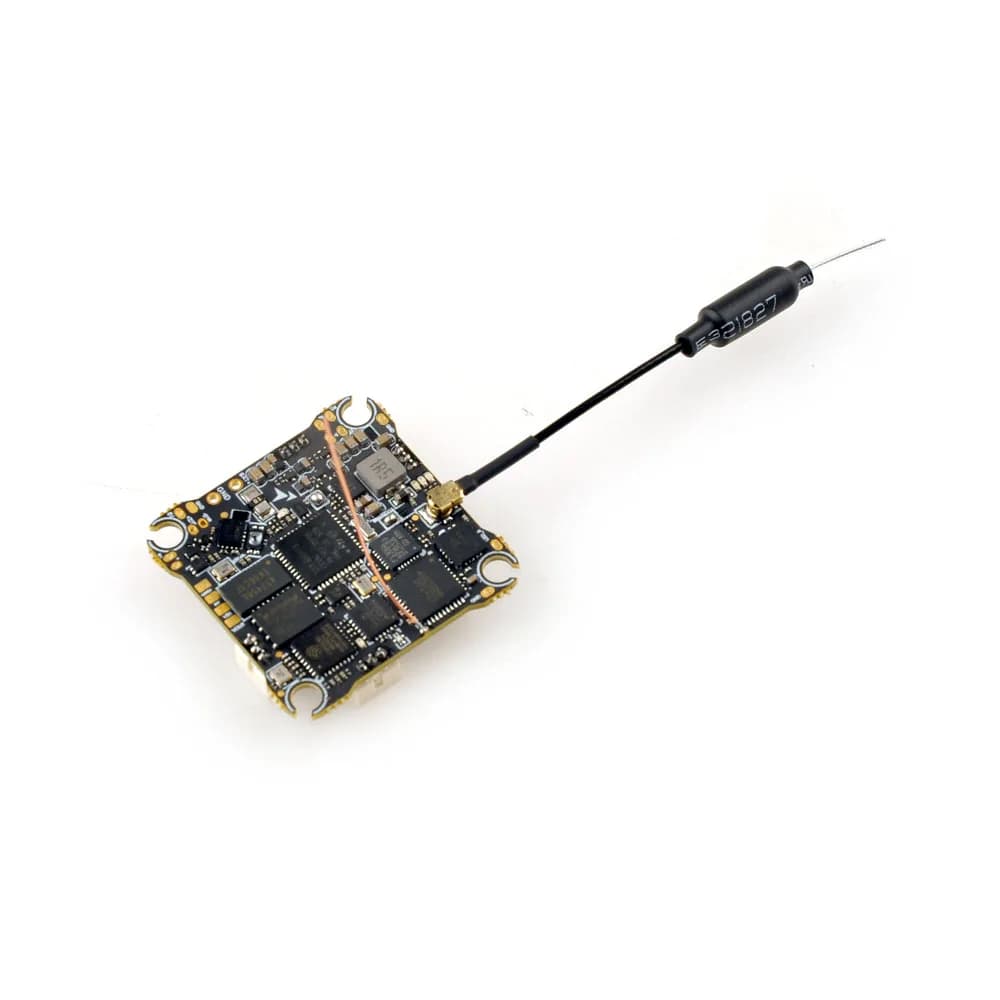

HappyModel X14 ELRS 5in1 AIO Flight Controller for Mobula8 UART ELRS V3

Description

HappyModel X14 ELRS 5in1 AIO Flight Controller for Mobula8 UART ELRS V3 ============================================================ X14 ELRS flight controller is the updated version for X12ELRS PRO, this flight controller is based on STM32G473 MCU, provide more UARTs, built-in 12A 4-IN-1 ESC and Serial ELRS receiver, also comes with OPENVTX max power up to 400mw. It’s a good option for 75mm/85mm 2S whoops building. MCU: STM32G473CEU6 Gyro: ICM42688P Blackbox memory: 16MB Sensor: Voltage & Current BEC: 5V, Max. 2A UART: UART 1, UART 2, UART 3 (For RX), UART 4(For VTX) BetaFlight OSD: AT7456ELAH Camera plug: 0.8mm 3pin ESC: 12A continuous OPENVTX: 5.8GHz 48 channels, Max. 400mW FC firmware target: CRAZYBEEG473 USB port: SH1.0-4Pin Battery connector: XT30 or A30 Mounting hole size: 5mm x 25.5mm Weight: 83g without power pigtail and VTX antenna Power input: 1-2S Lipo input Current: 12A continuous, 15A peak ESC firmware: V0.19 48KHz Bluejay Firmware target: Z_H_30_48KHz Digital signal protocol: DShot300, DShot600 OPENVTX Firmware Support firmware upgrade by openvtx configurator Output power: PIT/10/25/100/400 Frequency: 5.8GHz 48 channels, with Raceband: 5658~5917MHz Channel SEL: SmartAudio2.1 Modulation type: FM Operating temperature: -10℃~+80℃ Antenna port: IPEX1/U.FL RECEIVER Serial ExpressLRS 2.4GHz Antenna: Enameled copper wire 31mm length Firmware target: HappyModel EP1/EP2 2.4GHz RX Telemetry output Power: <12dBm Compatible with ExpressLRS V3.x.x TX Module ExpressLRS firmware version 3.0.1 Support flash firmware by WIFI Bind method is the same like all ExpressLRS 2.4GHz receivers Noted : Visit https://app.betaflight.com and click “select your device” then choose can’t find my USB device, then connect comport and betaflight configurator to do configuration setting. Default dump file for Mobula8 with X14 ELRS AIO flight controller : Dump file for Mobula8 UART ELRS V3 TECHNICAL SPECIFICATIONS • MCU: STM32G473CEU6 • Gyro: ICM42688P • Sensor: Voltage & Current • Weight: 83g without power pigtail and VTX antenna • Current: 12A continuous, 15A peak • Frequency: 5.8GHz 48 channels, with Raceband: 5658~5917MHz • UART: UART 1, UART 2, UART 3 (For RX), UART 4(For VTX) • Antenna: Enameled copper wire 31mm length AVAILABLE OPTIONS Black Gray Blue Red PRODUCT INFORMATION Brand: HappyModel Category: FPV Drone Wholesale Price: US $63.70 ————————————————————————————————————————
