Happymodel X14 ELRS 5-IN-1 AIO Flight Controller Built-in 2.4G UART ELRS V3.0 and 400mw OPENVTX
26 orders (reference)
Description
Happymodel X14 ELRS 5-IN-1 AIO Flight Controller Built-in 2.4G UART ELRS V3.0 and 400mw OPENVTX ============================================================ Happymodel X14 ELRS 5-IN-1 AIO Flight Controller Built-in 2.4G UART ELRS X14 ELRS flight controller is the updated version for X12ELRS PRO, this flight controller is based on STM32G473 MCU, provide more UARTs, built-in 12A 4-IN-1 ESC and Serial ELRS receiver, also comes with OPENVTX max power up to 400mw. It's a good option for 75mm/85mm 2S whoops building. - MCU: STM32G473CEU6; - Gyro: ICM42688P; - Blackbox memory: 16MB; - Sensor: Voltage & Current; - BEC: 5V, Max. 2A; - UART: UART 1, UART 2, UART 3 (For RX), UART 4(For VTX); - BetaFlight OSD: AT7456ELAH; - Camera plug: 0.8mm 3pin; - ESC: 12A continuous; - OPENVTX: 5.8GHz 48 channels, Max. 400mW; - FC firmware target: CRAZYBEEG473; - USB port: SH1.0-4Pin; - Battery connector: XT30 or A30; - Mounting hole size: 5mm*25.5mm; - Weight: 83g without power pigtail and VTX antenna; - Power input: 1-2S Lipo input; - Current: 12A continuous, 15A peak; - ESC firmware: V0.19 48KHz Bluejay; - Firmware target: Z_H_30_48KHz; - Digital signal protocol: DShot300, DShot600; - OPENVTX Firmware; - Support firmware upgrade by openvtx configurator; - Output power: PIT/10/25/100/400; - Frequency: 5.8GHz 48 channels, with Raceband: 5658~5917MHz; - Channel SEL: SmartAudio2.1; - Modulation type: FM; - Operating temperature: -10℃~+80℃; - Antenna port: IPEX1/U.FL; Receiver: - Serial ExpressLRS 2.4GHz; - Antenna: Enameled copper wire 31mm length; - Firmware target: HappyModel EP1/EP2 2.4GHz RX; - Telemetry output Power: <12dBm; - Compatible with ExpressLRS V3.x.x TX Module; - ExpressLRS firmware version 3.0.1; - Support flash firmware by WIFI; - Bind method is the same like all ExpressLRS 2.4GHz receivers; AVAILABLE OPTIONS X14 ELRS 5-IN-1 AIO PRODUCT INFORMATION Brand: HappyModel Category: Flight Controller / ESC Stack Wholesale Price: US $93.76 ————————————————————————————————————————
Specifications
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| Size | 400mw OPENVTX |
| Model Number | X14 ELRS 5-IN-1 AIO |
| For Vehicle Type | Airplanes |
| Tool Supplies | Battery |
| Four-wheel Drive Attributes | Assemblage |
| Remote Control Peripherals/Devices | RECEIVERS |
| Upgrade Parts/Accessories | 2.4G Elrs |
| RC Parts & Accs | Flight Controller |
| Material | Composite Material |
| Brand Name | U-Angel-1988 |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
Product Details

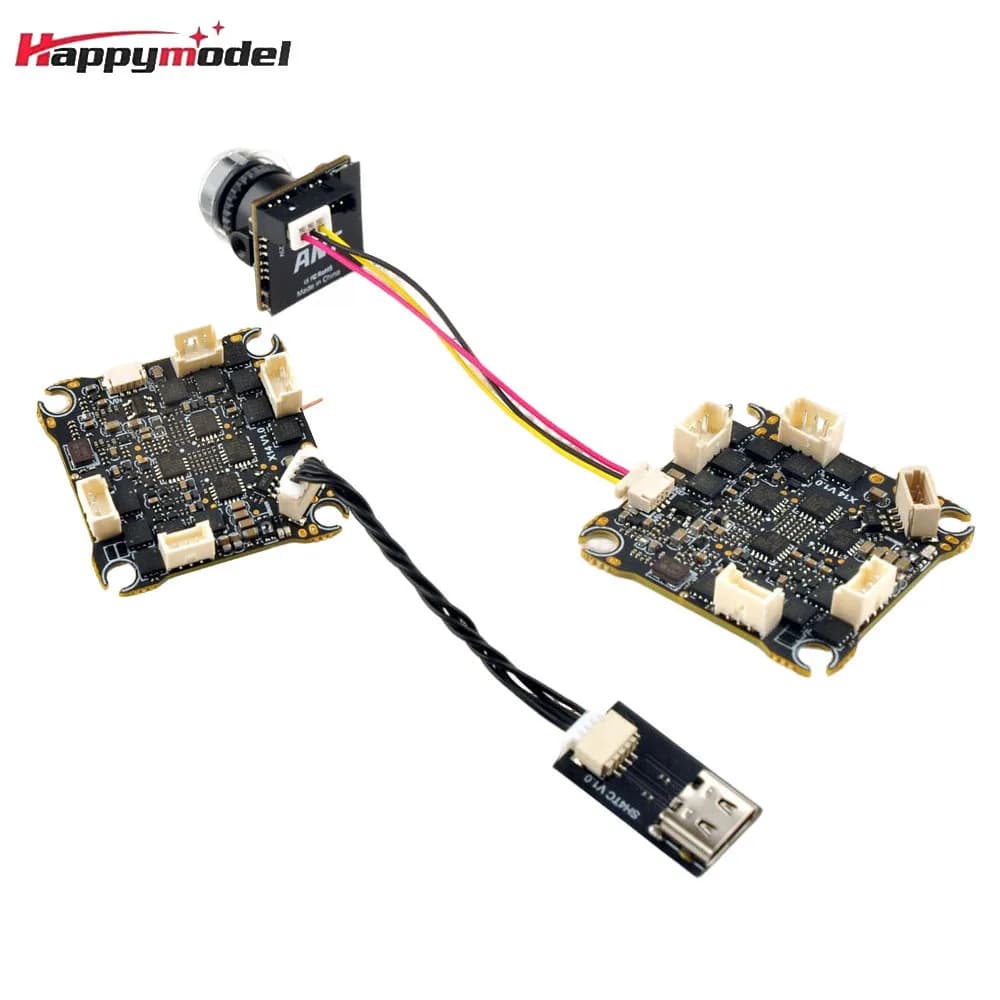

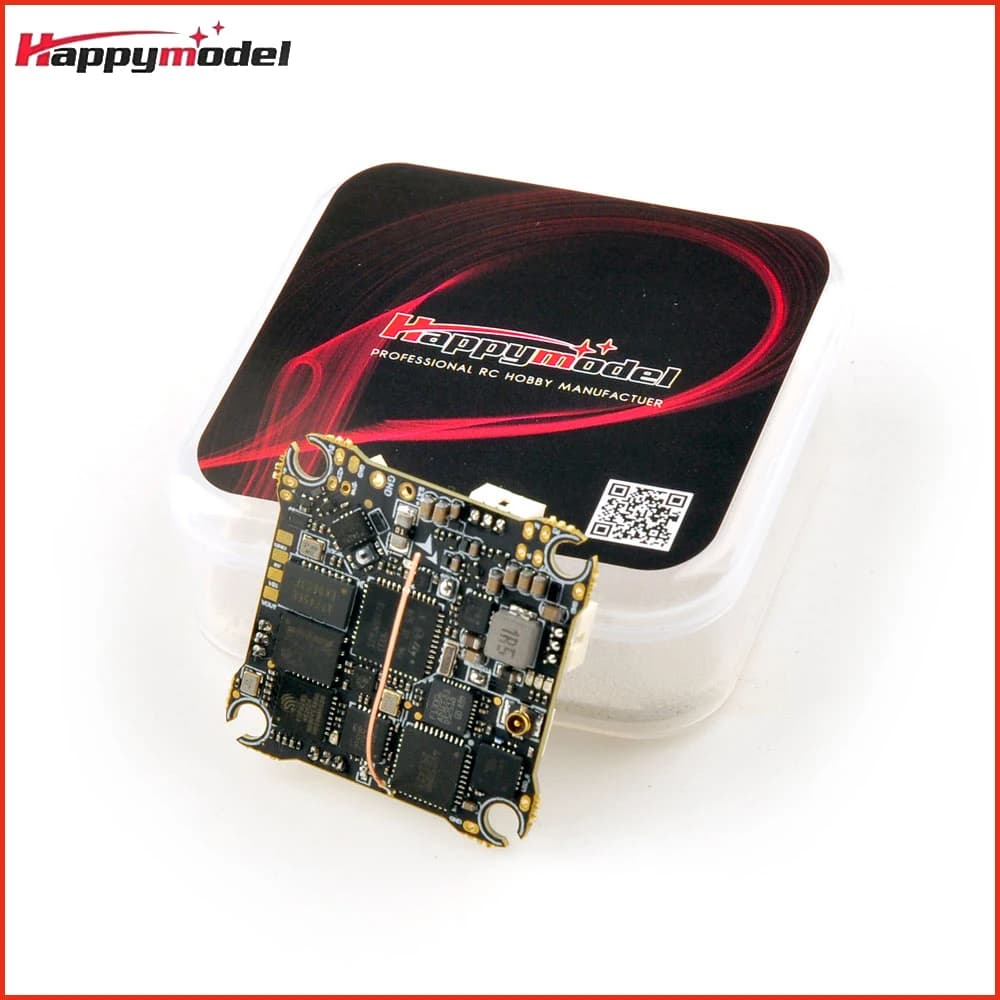

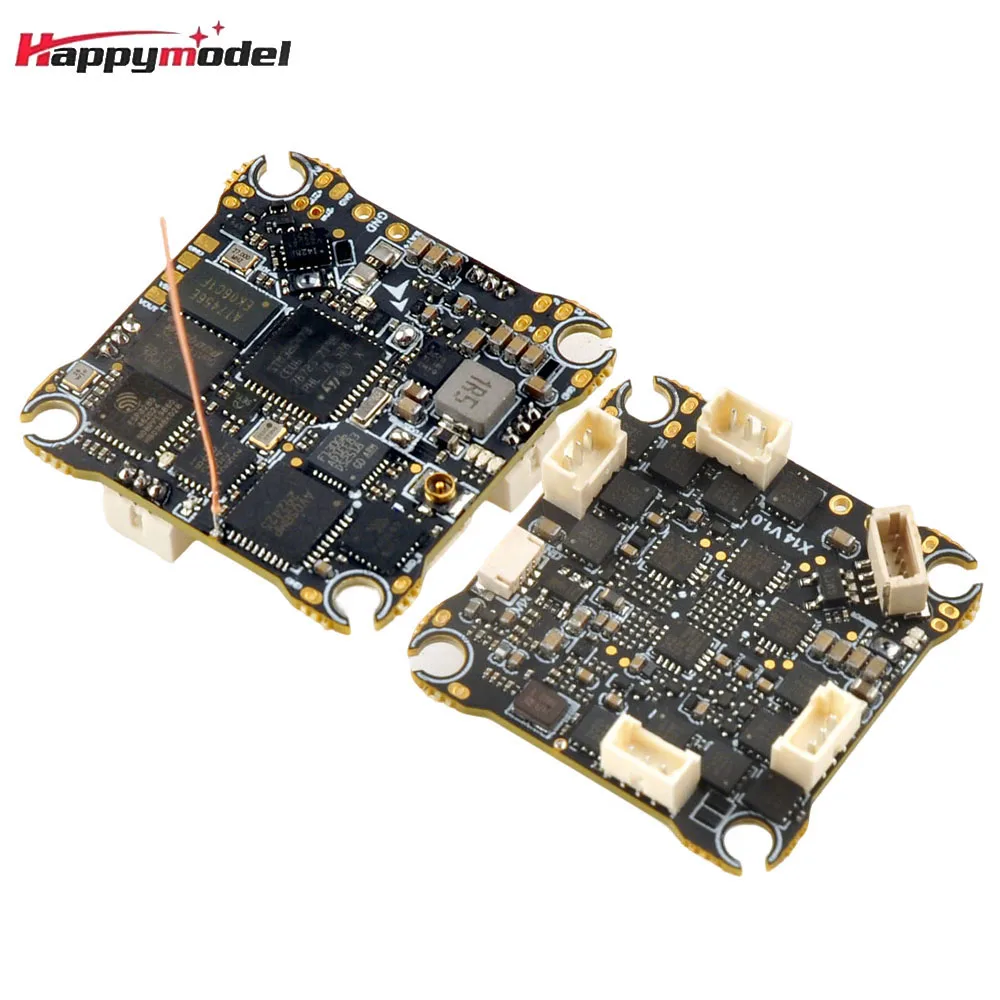

Happymodel X14 ELRS 5-IN-1 AIO Flight Controller Built-in 2.4G UART ELRS
X14 ELRS flight controller is the updated version for X12ELRS PRO, this flight controller is based on STM32G473 MCU, provide more UARTs, built-in 12A 4-IN-1 ESC and Serial ELRS receiver, also comes with OPENVTX max power up to 400mw. It's a good option for 75mm/85mm 2S whoops building.
FC
- MCU: STM32G473CEU6;
- Gyro: ICM42688P;
- Blackbox memory: 16MB;
- Sensor: Voltage & Current;
- BEC: 5V, Max. 2A;
- UART: UART 1, UART 2, UART 3 (For RX), UART 4(For VTX);
- BetaFlight OSD: AT7456ELAH;
- Camera plug: 0.8mm 3pin;
- ESC: 12A continuous;
- OPENVTX: 5.8GHz 48 channels, Max. 400mW;
- FC firmware target: CRAZYBEEG473;
- USB port: SH1.0-4Pin;
- Battery connector: XT30 or A30;
- Mounting hole size: 5mm*25.5mm;
- Weight: 83g without power pigtail and VTX antenna;
ESC
- Power input: 1-2S Lipo input;
- Current: 12A continuous, 15A peak;
- ESC firmware: V0.19 48KHz Bluejay;
- Firmware target: Z_H_30_48KHz;
- Digital signal protocol: DShot300, DShot600;
Vtx:
- OPENVTX Firmware;
- Support firmware upgrade by openvtx configurator;
- Output power: PIT/10/25/100/400;
- Frequency: 5.8GHz 48 channels, with Raceband: 5658~5917MHz;
- Channel SEL: SmartAudio2.1;
- Modulation type: FM;
- Operating temperature: -10℃~+80℃;

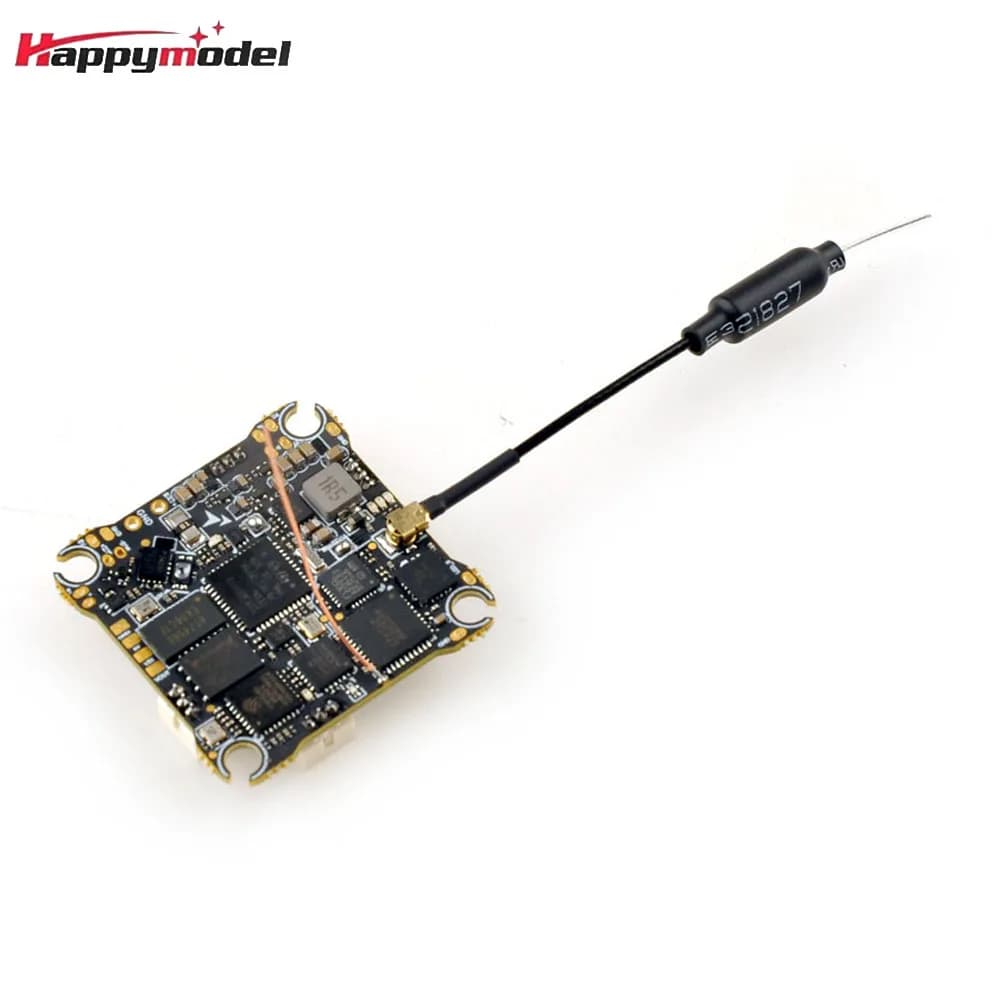

- Antenna port: IPEX1/U.FL;
Receiver:
- Serial ExpressLRS 2.4GHz;
- Antenna: Enameled copper wire 31mm length;
- Firmware target: HappyModel EP1/EP2 2.4GHz RX;
- Telemetry output Power: <12dBm;
- Compatible with ExpressLRS V3.x.x TX Module;
- ExpressLRS firmware version 3.0.1;
- Support flash firmware by WIFI;
- Bind method is the same like all ExpressLRS 2.4GHz receivers;
