HGLRC Zeus Nano VTX 5.8G 40CH 350mW
38 orders (reference)
Description
HGLRC Zeus Nano VTX 5.8G 40CH 350mW =================================== Product name: Zeus nano VTX Built-in microphone Support voltage: DC 5V PIT@75mA 25mW@180mA/16dBm 100mW@280mA/21.5dBm 200mW@330mA/24.5dBm 350mW@400mA/27.5dBm Antenna interface: ipex Output power: PIT/25/100/200/350mW Standard 40 channels. A/B/E/F/R frequency group Mounting hole: 16X16/25.5X25.5mm.M2 20X20mm.M3 Size: 18.6mm x 13.6mm x 6mm Weight: 2.4g Product List: 1 x Zeus nano VTX 1 x ipex interface copper tube antenna 1 x ipex to SMA adapter 6 x video transmission cable TECHNICAL SPECIFICATIONS • Size: 18.6mm x 13.6mm x 6mm • Weight: 2.4g AVAILABLE OPTIONS 1PC PRODUCT INFORMATION Brand: HGLRC Category: FPV Camera & Video Transmitter Wholesale Price: US $23.49 ————————————————————————————————————————
Specifications
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Plastic Type | PC |
| Model Number | Zeus Nano |
| For Vehicle Type | Helicopters |
| Tool Supplies | other |
| Four-wheel Drive Attributes | other |
| Remote Control Peripherals/Devices | RECEIVERS |
| Upgrade Parts/Accessories | other |
| RC Parts & Accs | Radio Systems |
| Material | Plastic |
| Brand Name | HGLRC |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
Product Details

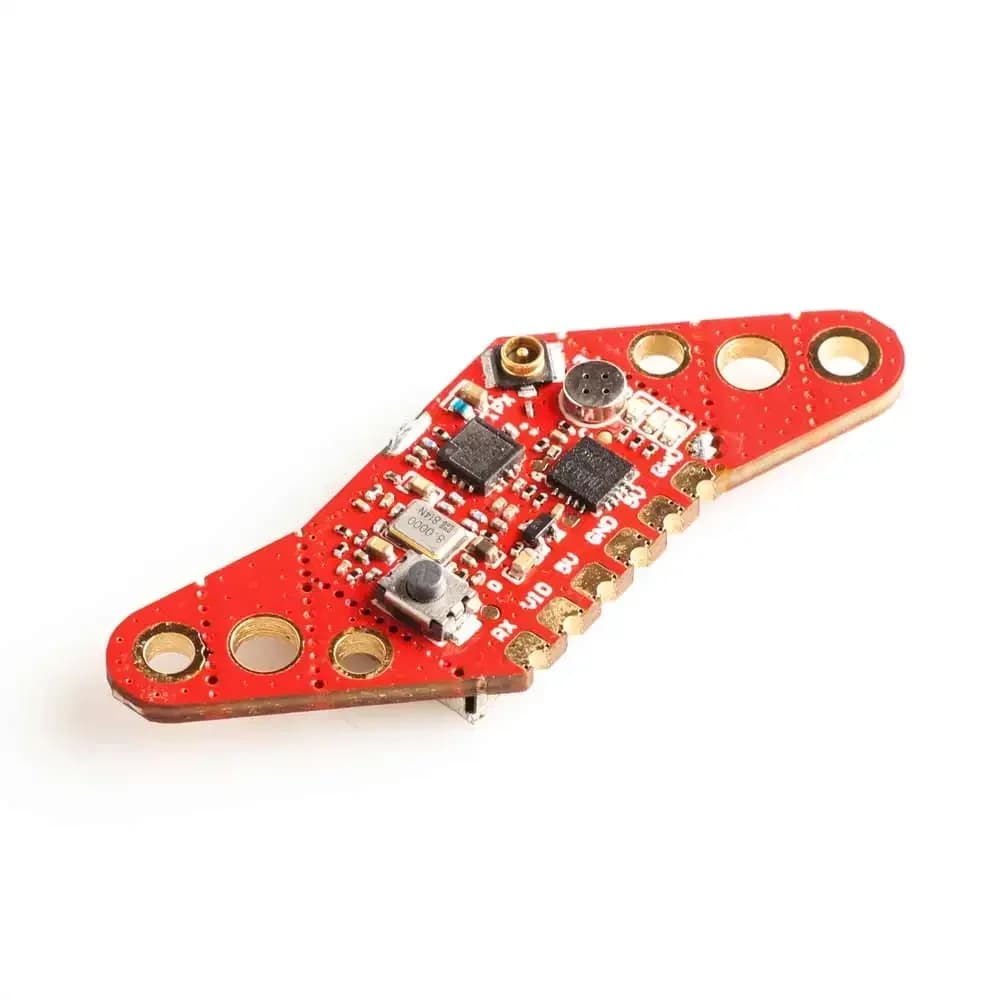

Product name: Zeus nano VTX
Built-in microphone
Support voltage: DC 5V
PIT@75mA
25mW@180mA/16dBm
100mW@280mA/21.5dBm
200mW@330mA/24.5dBm
350mW@400mA/27.5dBm
Antenna interface: ipex
Output power: PIT/25/100/200/350mW
Standard 40 channels. A/B/E/F/R frequency group

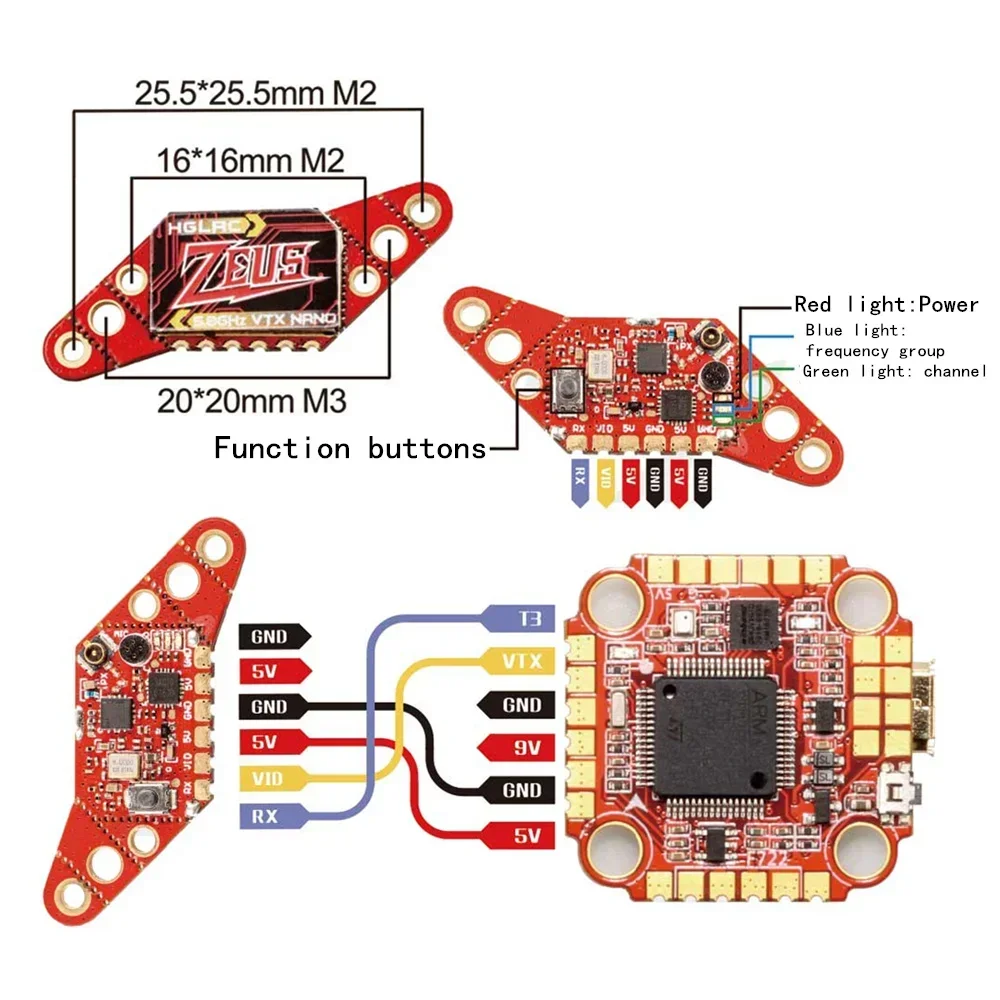

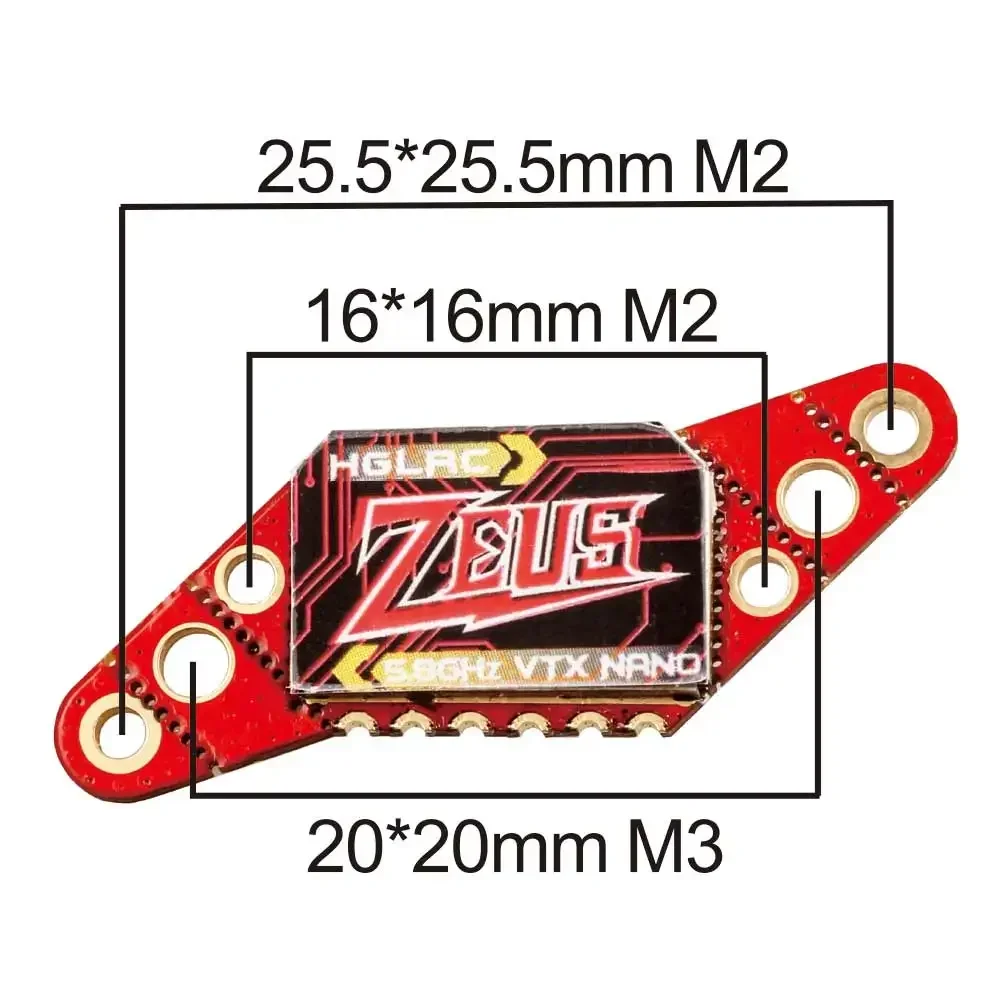

Mounting hole: 16X16/25.5X25.5mm.M2
20X20mm.M3
Size: 18.6mm x 13.6mm x 6mm
Weight: 2.4g
Product List:
1 x Zeus nano VTX
1 x ipex interface copper tube antenna
1 x ipex to SMA adapter
6 x video transmission cable
