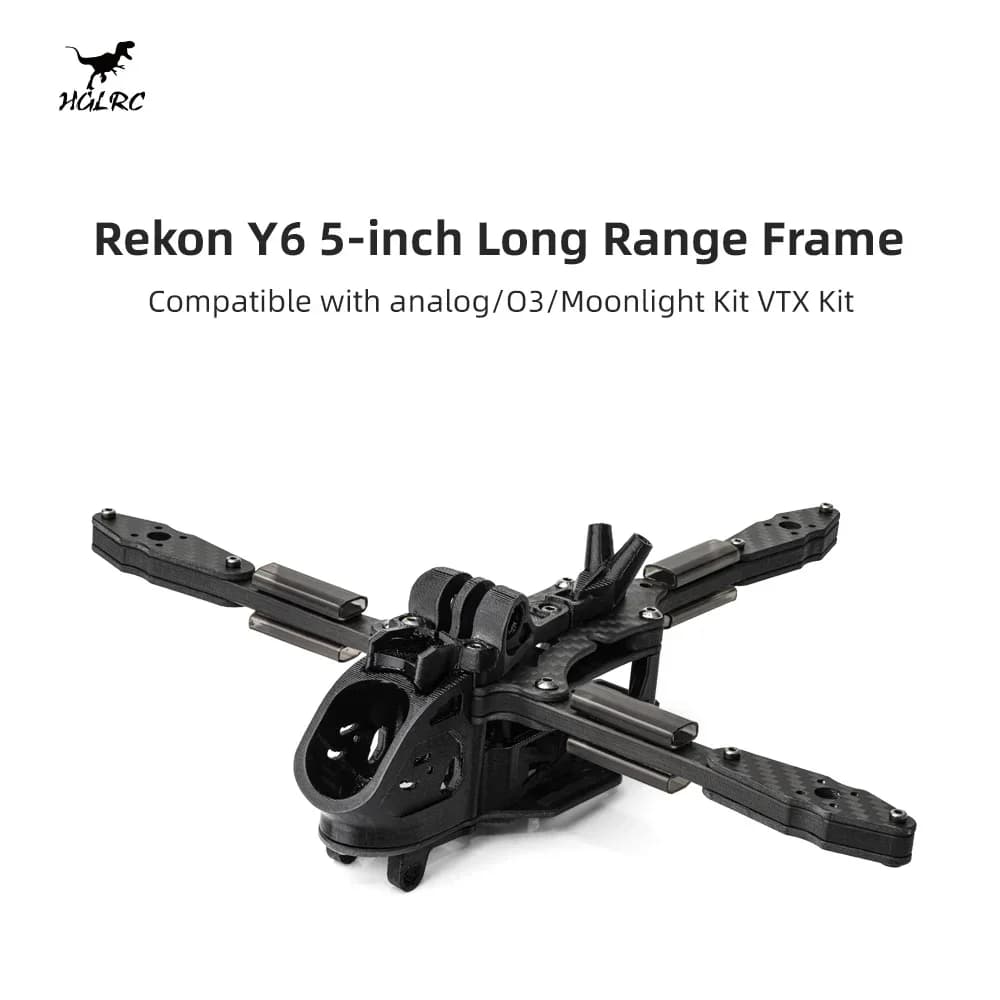

HGLRC Rekon Y6 5inch Frame Kits - for Analog/O3/O4/Moonlight

Description

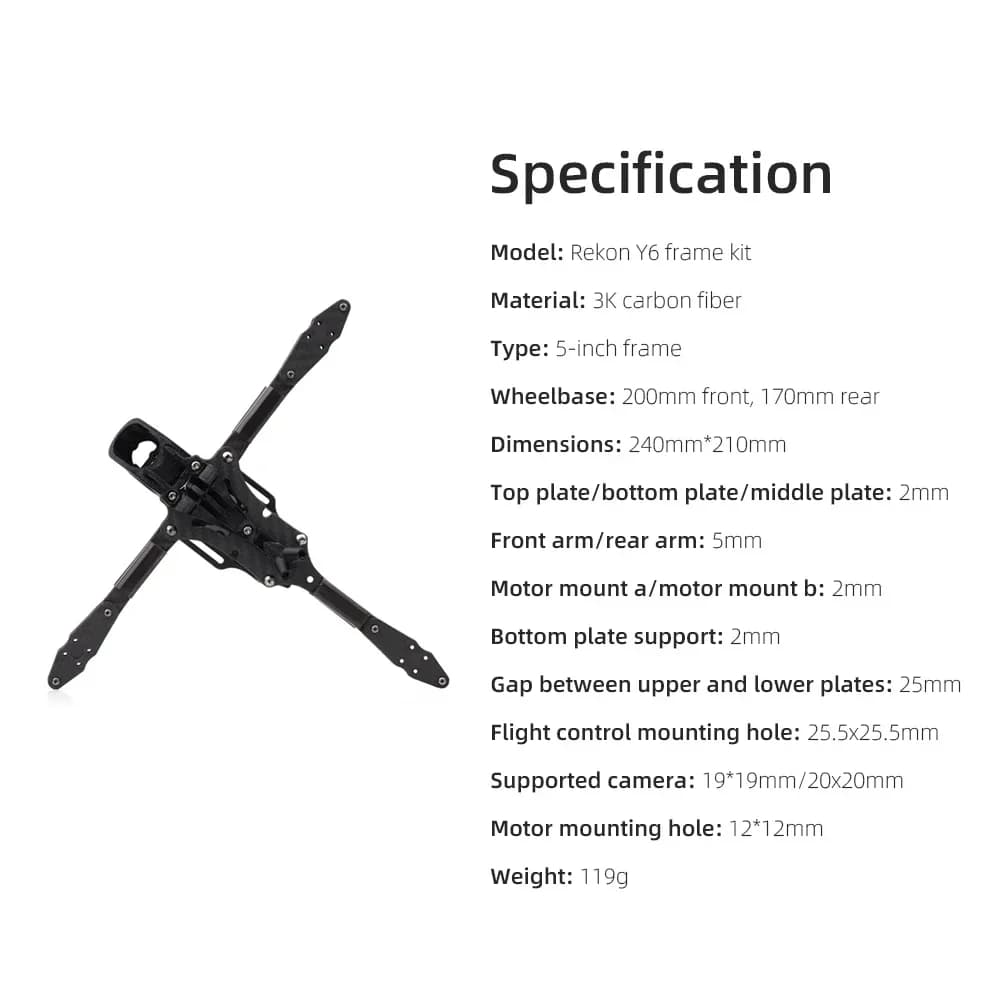

HGLRC Rekon Y6 5inch Frame Kits - for Analog/O3/O4/Moonlight ============================================================ Selling point: * Offers a 50% increase in propeller area compared to a standard 5" quadcopter to carry full-sized action camera, while maintaining a compact design. * Fixed power connector: avoids instability caused by shaking of the connector during flight, making the flight more stable * Reserve the side antenna Mount: you can change the antenna installation position by yourself, or install a dual-antenna receiver to effectively solve the signal dead zone *Unobstructed Camera Views: Propellers are designed to stay out of the action camera's view, enabling clear, unimpeded video capture *Equipped with M100mini GPS holder: It can be equipped with M100mini GPS, which is compact and exquisite and has stable flight. product name:Rekon model:Rekon Y6 Frame kit Material:3K Carbon fiber Type:5 inch Wheelbase:front200mm,after170mm Top plate thickness:2mm Bottom plate thickness:2mm Middle plate thickness:2mm Front arm:5mm Rear arm:5mm Motor fixing seat a:2mm Motor fixing seat b:2mm Bottom plate support:2mm Top and middle plate space:25mm Flight controller mounting hole:25.5x25.5mm Camera mount:19*19mm/20x20mm Motor mounting hole:12*12mm Weight:119g Shipping list: 1x 2mm top plate 1x 2mm base plate 1x 2mm mid plate 2x 6mm front arm 1x 6mm rear arm 3x 2mm Motor fixing amount a 3x 2mm Motor fixing amount b 1x 2mm Bottom plate support 4x M3*25mm black Reticulate pattern aluminum post 4x M3*10 Screws 3xM3*22 Screws 3x M3*14 Screws 3x M3*8 Screws 4x M3*6 Screws 11x M2*10 Screws 4x M2*7 Screws 31x M2*4 Screws 3xM2*3 Screws 3x M5*20 Screws 1x M5 self-locking nuts(red) 5x M2 self-locking nuts 2xM2Stainless steel nut 2x Rekon battery straps 20x250mm 1x Battery Anti-slip pad 1x Typec Male adapter 1x Y6 frame adjustment port Typec female connector 1x Connection line for parameter adjustment port 1x TPU black GoPro holder mount 1x TPU black GPS Fixed seat 1x TPU black XT60+Receiver fixing parts 1x TPU black Simulated version hood 1x TPU black Simulated image flyer antenna base 1x TPU black Bottom receiver antenna fixing buckle 1x TPU black Side receiver antenna fixing base 1x TPU black Bottom plate support protective pad 1x TPU black O3 hood 1x TPU black HD image transmission dual antenna base Recommended parts:(not included) Flight control: SPECTER F722 40A 4S-6S 6 in 1 AIO Motor:2004 Camera:19X19mm/20x20mm Propeller:5 inches battery:18650 6S 1P 3000mAh TECHNICAL SPECIFICATIONS • model:Rekon Y6 Frame kit • Weight:119g • battery:18650 6S 1P 3000mAh • Camera:19X19mm/20x20mm • Material:3K Carbon fiber AVAILABLE OPTIONS 5" Carbon Black Blue Purple Red PRODUCT INFORMATION Brand: HGLRC Category: Drone Frame Kit Wholesale Price: US $46.49 ————————————————————————————————————————
