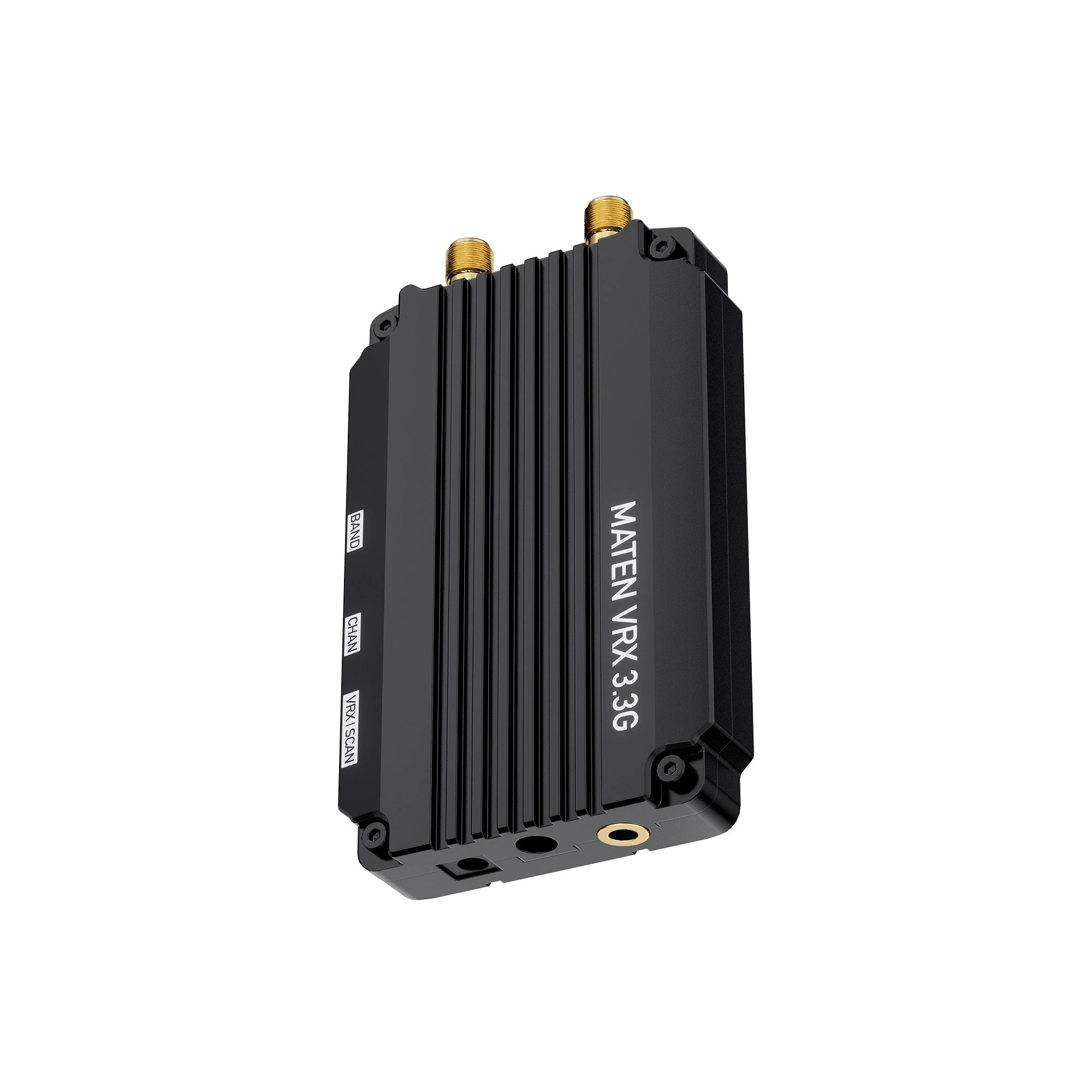

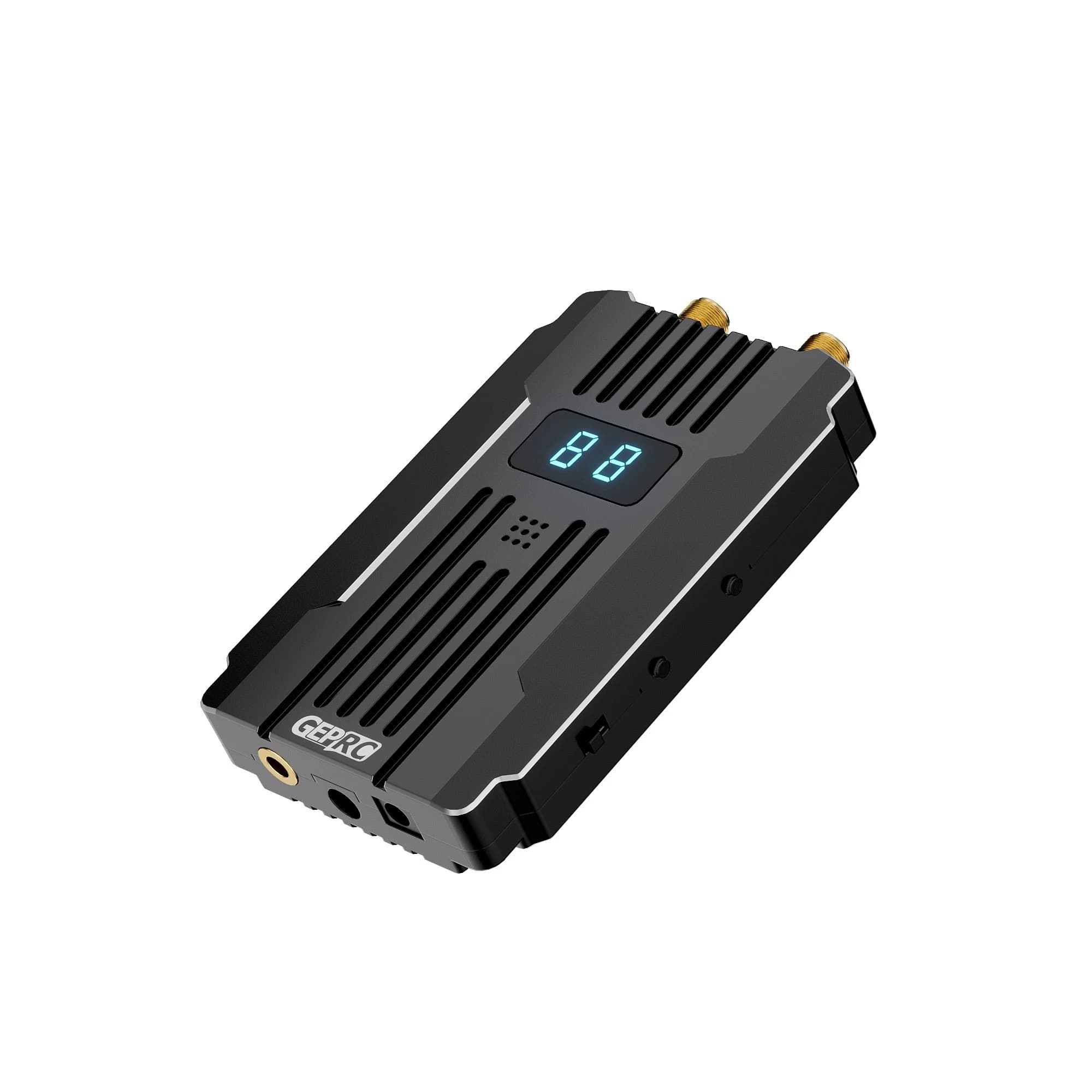

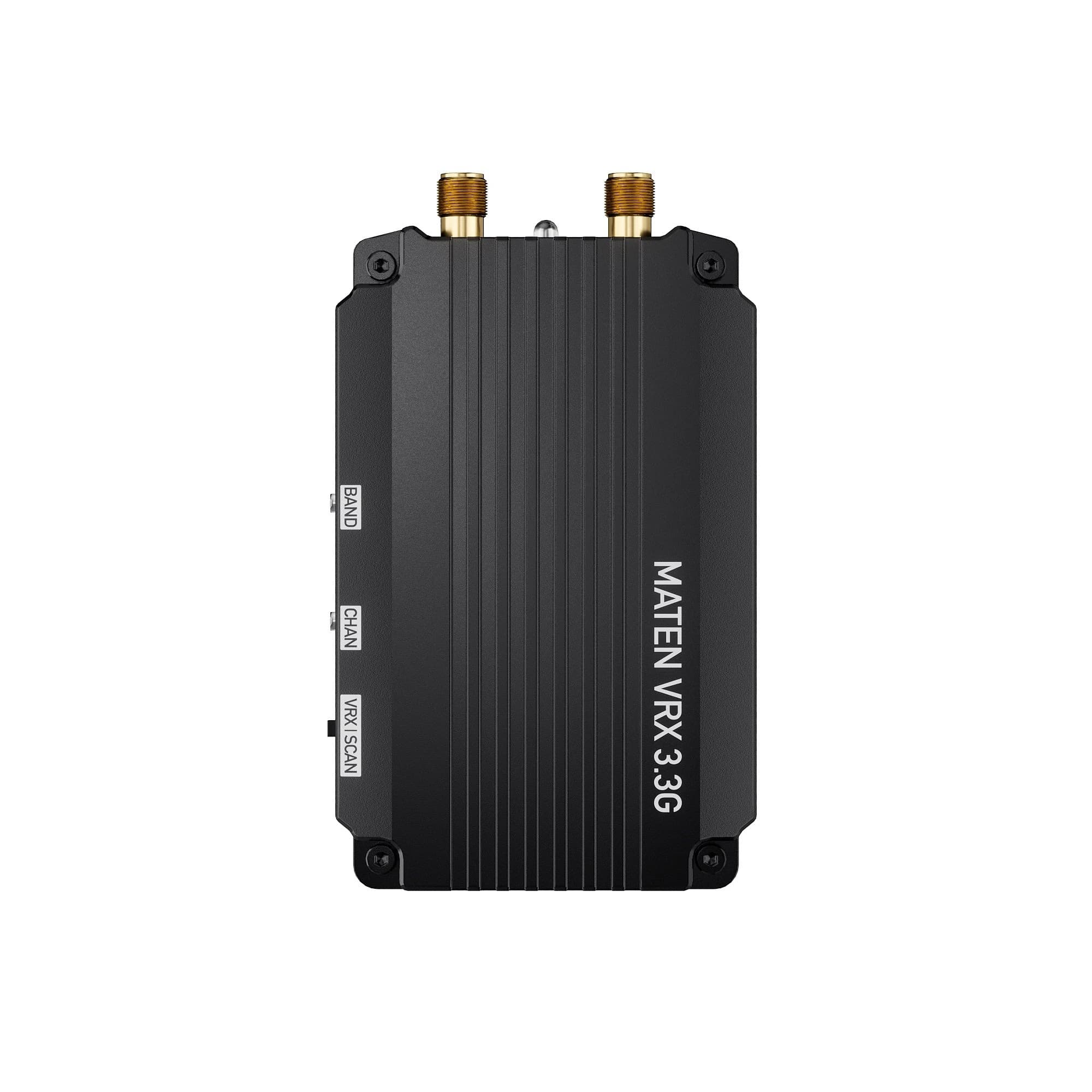

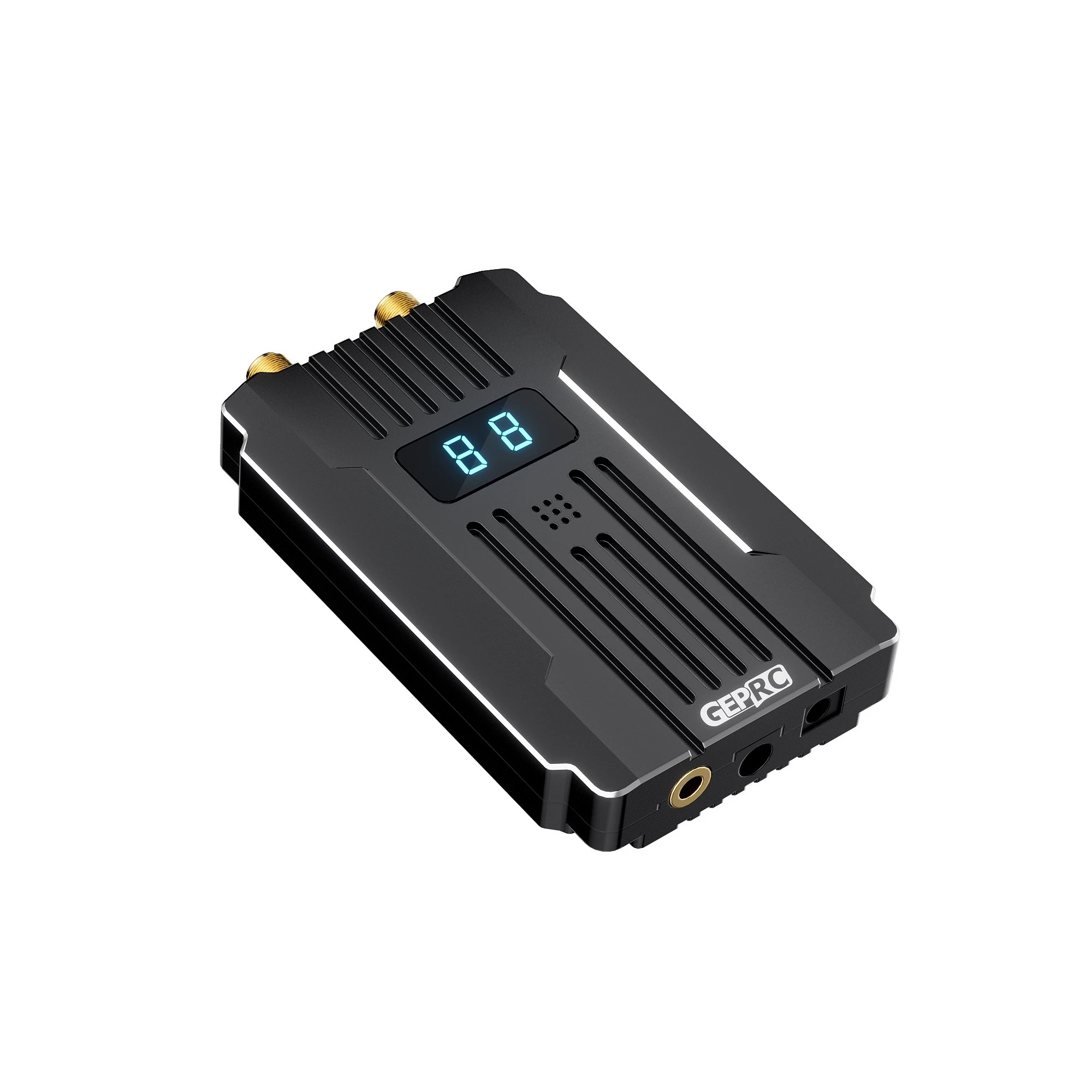

GEPRC MATEN 3.3G VRX Receiver Built-in 3.3G Signal Alarmer High Sensitivity Long Range Video RX Module For FPV Racing Drone

Description

GEPRC MATEN 3.3G VRX Receiver Built-in 3.3G Signal Alarmer High Sensitivity Long Range Video RX Module For FPV Racing Drone ============================================================ GEPRC Component — professional-grade component for FPV drone applications. Specifications Model: GEPRC MATEN 3.3G VRX with 3.3G Signal Alarmer Dimension: 52.3×87.5×14.7mm Frequency: 3083-3480MHz Channels: 40CH Input Voltage: DC12-36V(3-8S Battery) Antenna Connector: SMA Sensitivity: -98dBm Modes: VRX Mode, SCAN Mode Video Connector: 3.5mm coaxial Power Input: DC3.5mm/1.35mm Mounting Hole: 1/4 threaded hole Weight: 69g Frequency Bands A:3083,3114,3145,3176,3207,3238,3269,3300 B:3215,3235,3255,3275,3295,3315,3335,3355 C:3170,3190,3210,3230,3250,3270,3290,3310 D:3320,3345,3370,3395,3420,3445,3470,3495 E:3310,3330,3355,3380,3405,3430,3455,3480 Instructions VRX Mode: Switch to SCAN mode,press the BAND button to cycle through frequency bands, and the CHAN button to change channels. Hold either button to activate auto-scan, which will lock onto the channel with the strongest signal. SCAN Mode: Switch to SCAN mode to automatically scan all available channels. The strongest signal will be displayed, and a beeper will sound, increasing in speed as the signal strength increases. Includes 1 x MATEN 3.3G VRX with 3.3G Signal Alarmer 1 x Power supply cable 1 x Video signal cable 1 x User manual TECHNICAL SPECIFICATIONS • Model: GEPRC MATEN 3.3G VRX with 3.3G Signal Alarmer • Dimension: 52.3×87.5×14.7mm • Weight: 69g • Frequency: 3083-3480MHz AVAILABLE OPTIONS Black Gray PRODUCT INFORMATION Brand: GEPRC Category: Radio Receiver Wholesale Price: US $120.39 ————————————————————————————————————————
