GEPRC MATEN 3.3G VRX with 3.3G Signal Alarmer 40CH 3.3GHz Video Receiver for FPV Long Range Drone
Description
GEPRC MATEN 3.3G VRX with 3.3G Signal Alarmer 40CH 3.3GHz Video Receiver for FPV Long Range Drone ============================================================ GEPRC Component — professional-grade component for FPV drone applications. GEPRC MATEN 3.3G VRX with 3.3G Signal Alarmer 40CH 3.3GHz Video Receiver for FPV Long Range Drone Specifications Model: GEPRC MATEN 3.3G VRX with 3.3G Signal Alarmer Dimension: 52.3×87.5×14.7mm Frequency: 3083-3480MHz Channels: 40CH Input Voltage: DC12-36V(3-8S Battery) Antenna Connector: SMA Sensitivity: -98dBm Modes: VRX Mode, SCAN Mode Video Connector: 3.5mm coaxial Power Input: DC3.5mm/1.35mm Mounting Hole: 1/4 threaded hole Weight: 69g Frequency Bands A:3083,3114,3145,3176,3207,3238,3269,3300 B:3215,3235,3255,3275,3295,3315,3335,3355 C:3170,3190,3210,3230,3250,3270,3290,3310 D:3320,3345,3370,3395,3420,3445,3470,3495 E:3310,3330,3355,3380,3405,3430,3455,3480 Instructions VRX Mode: Switch to SCAN mode,press the BAND button to cycle through frequency bands, and the CHAN button to change channels. Hold either button to activate auto-scan, which will lock onto the channel with the strongest signal. SCAN Mode: Switch to SCAN mode to automatically scan all available channels. The strongest signal will be displayed, and a beeper will sound, increasing in speed as the signal strength increases. Includes 1 x MATEN 3.3G VRX with 3.3G Signal Alarmer 1 x Power supply cable 1 x Video signal cable 1 x User manual TECHNICAL SPECIFICATIONS • Dimension: 52.3×87.5×14.7mm • Weight: 69g • Frequency: 3083-3480MHz AVAILABLE OPTIONS Black Gray PRODUCT INFORMATION Brand: GEPRC Category: Radio Receiver Wholesale Price: US $139.10 ————————————————————————————————————————
Specifications
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| For Vehicle Type | Helicopters |
| Material | Composite Material |
| Brand Name | GEPRC |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
Product Details

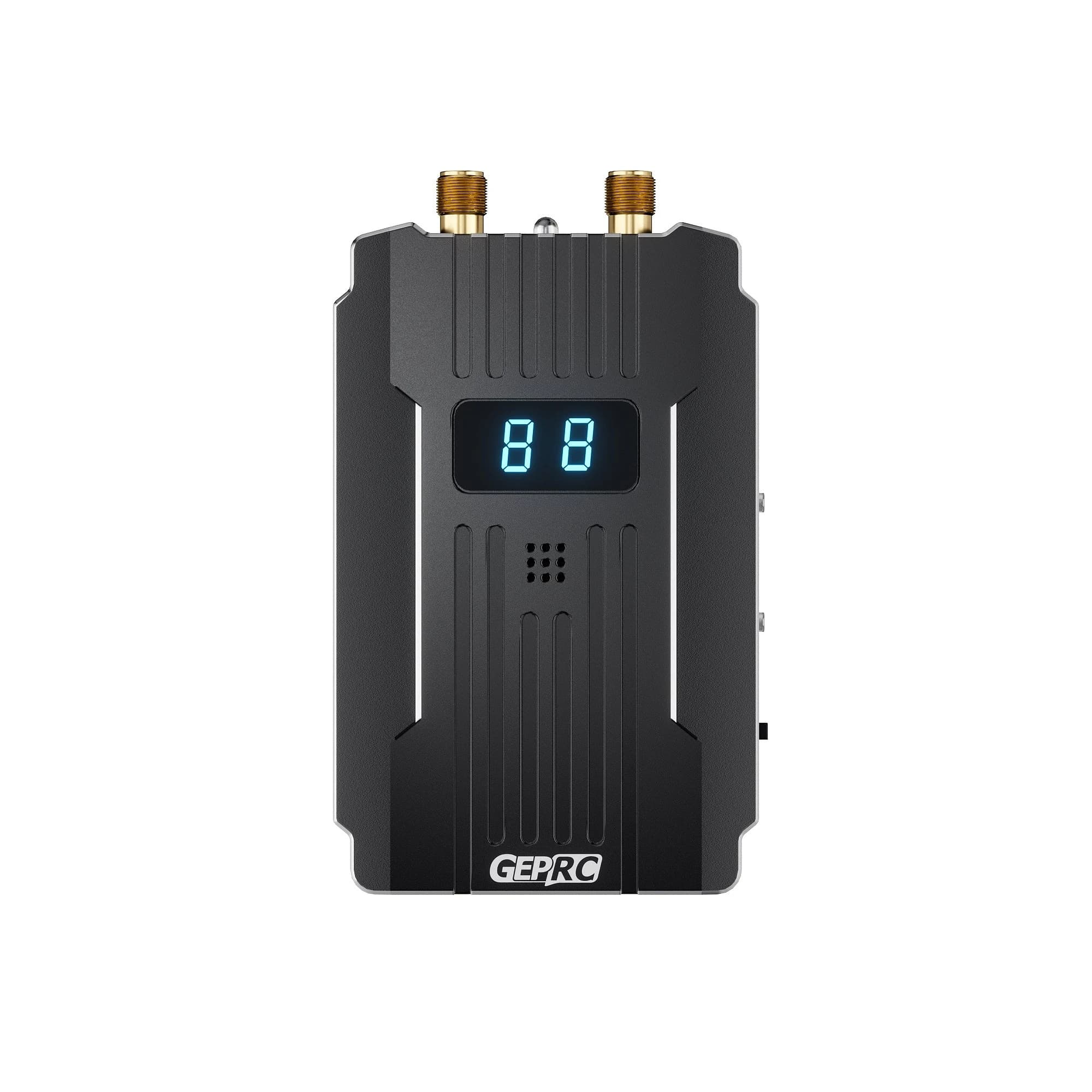

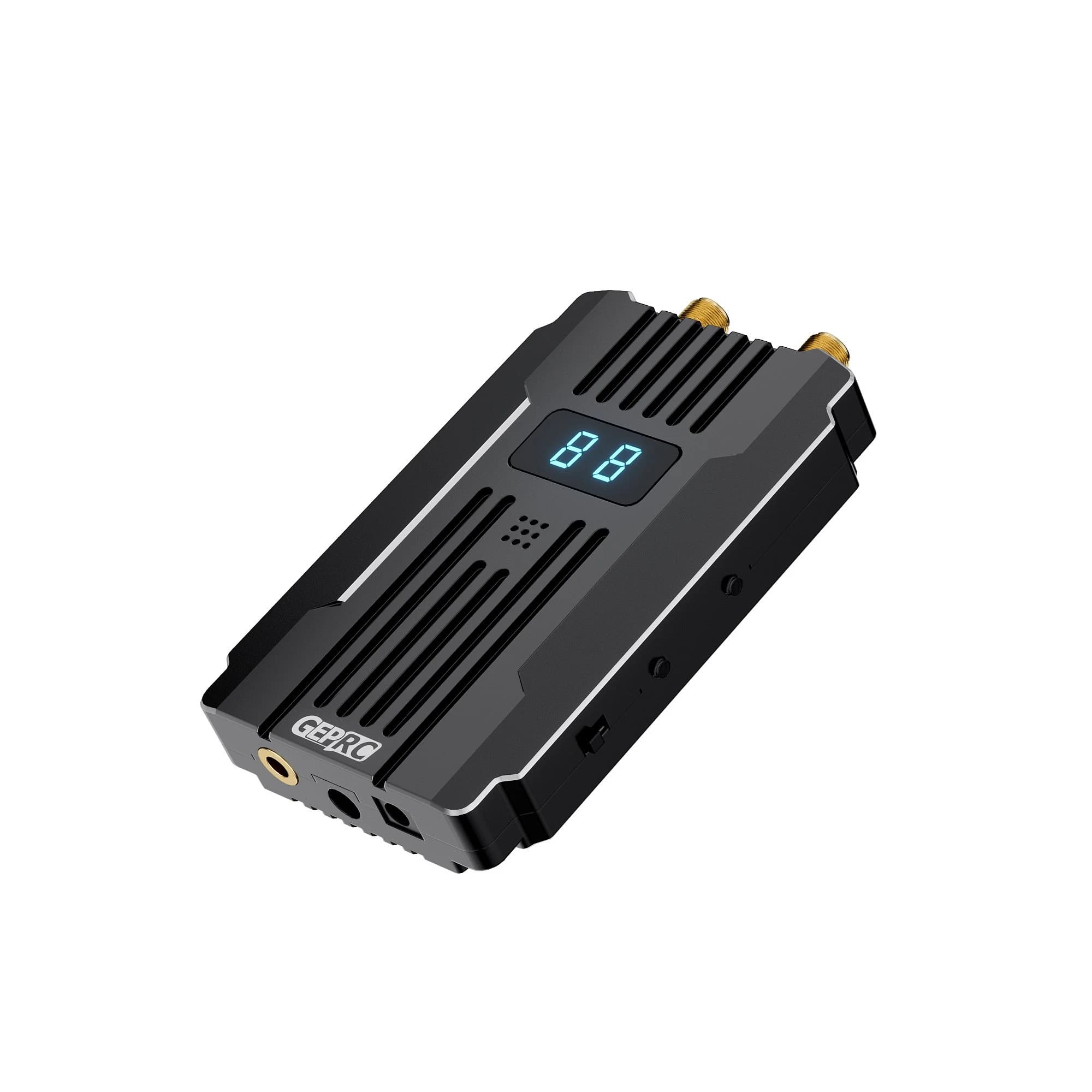

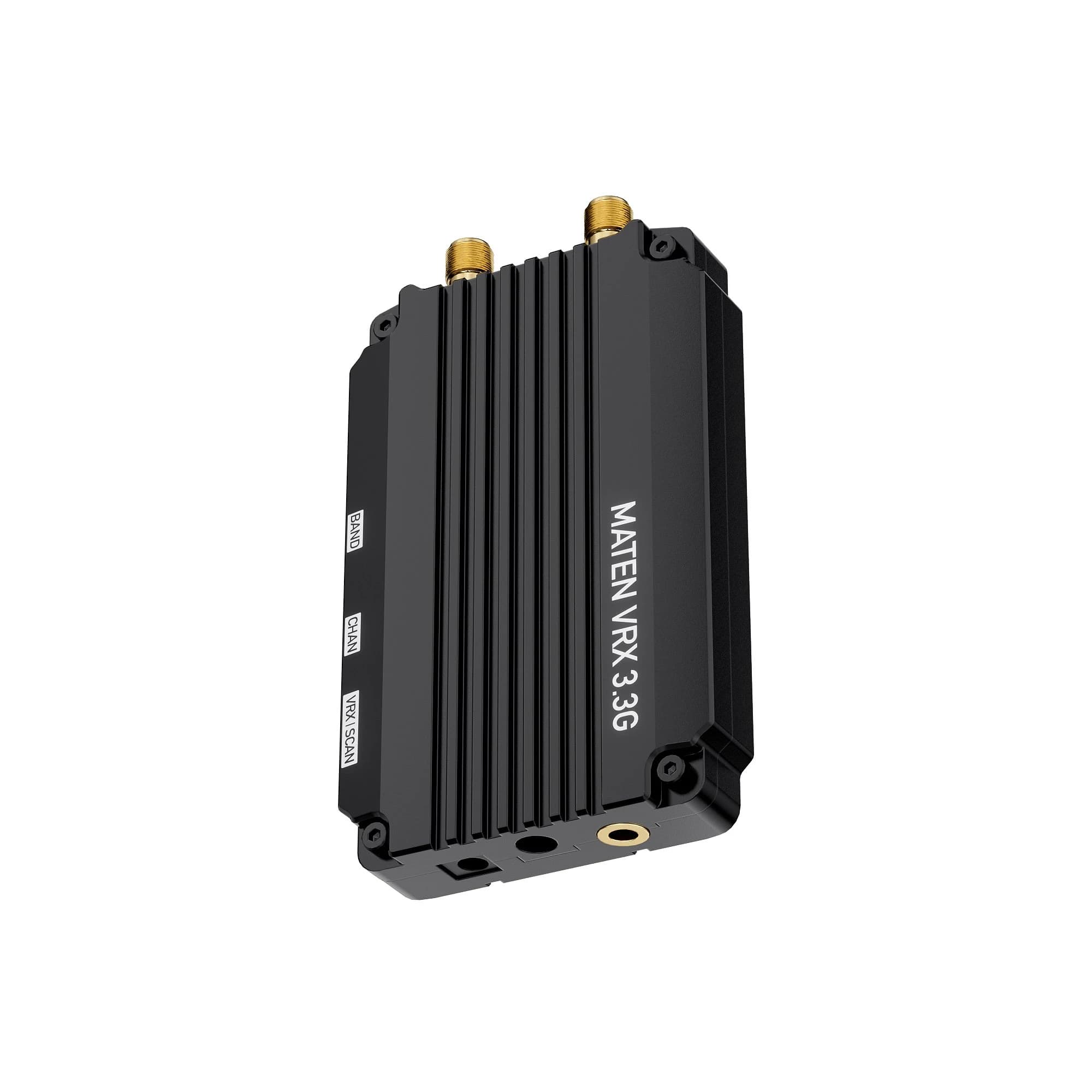

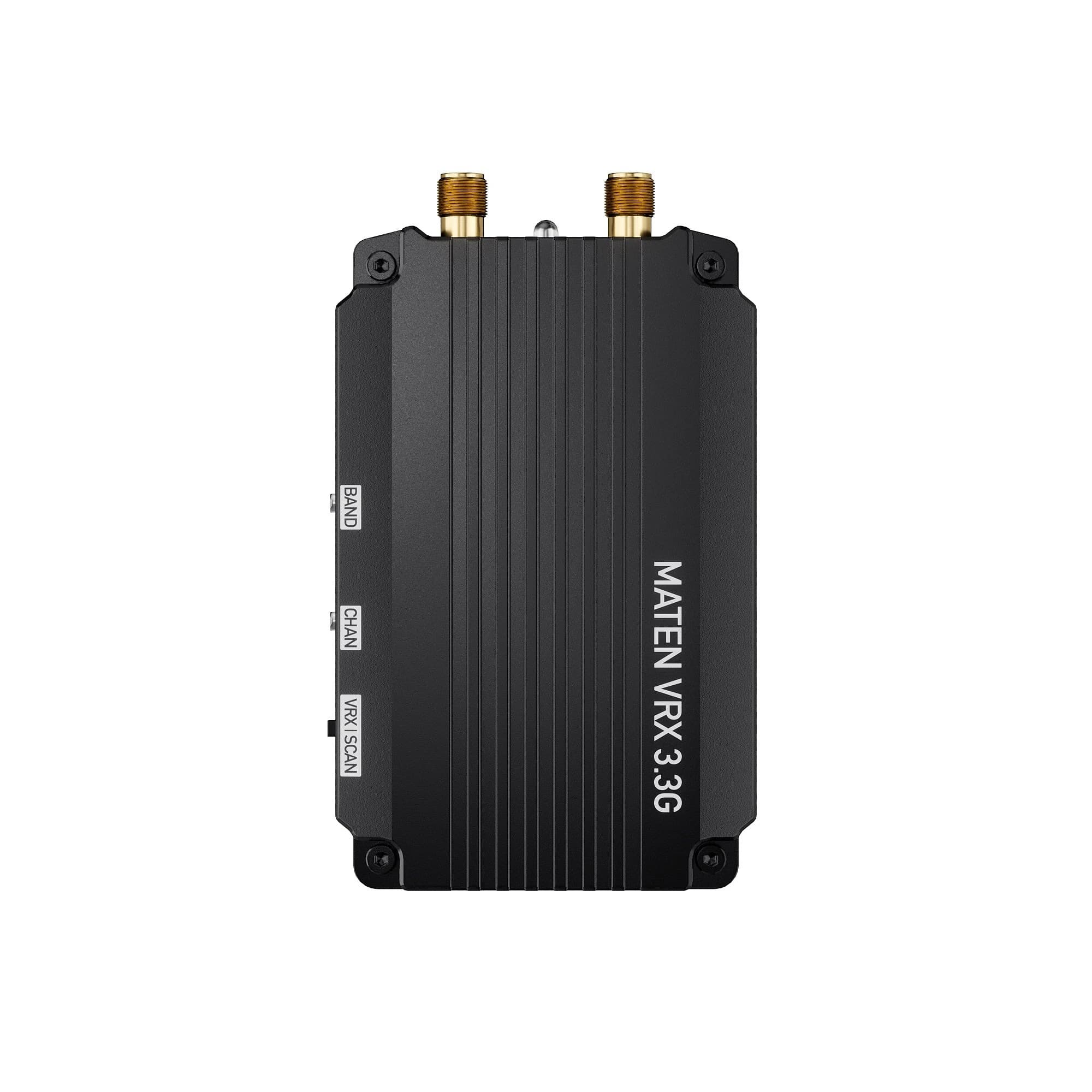

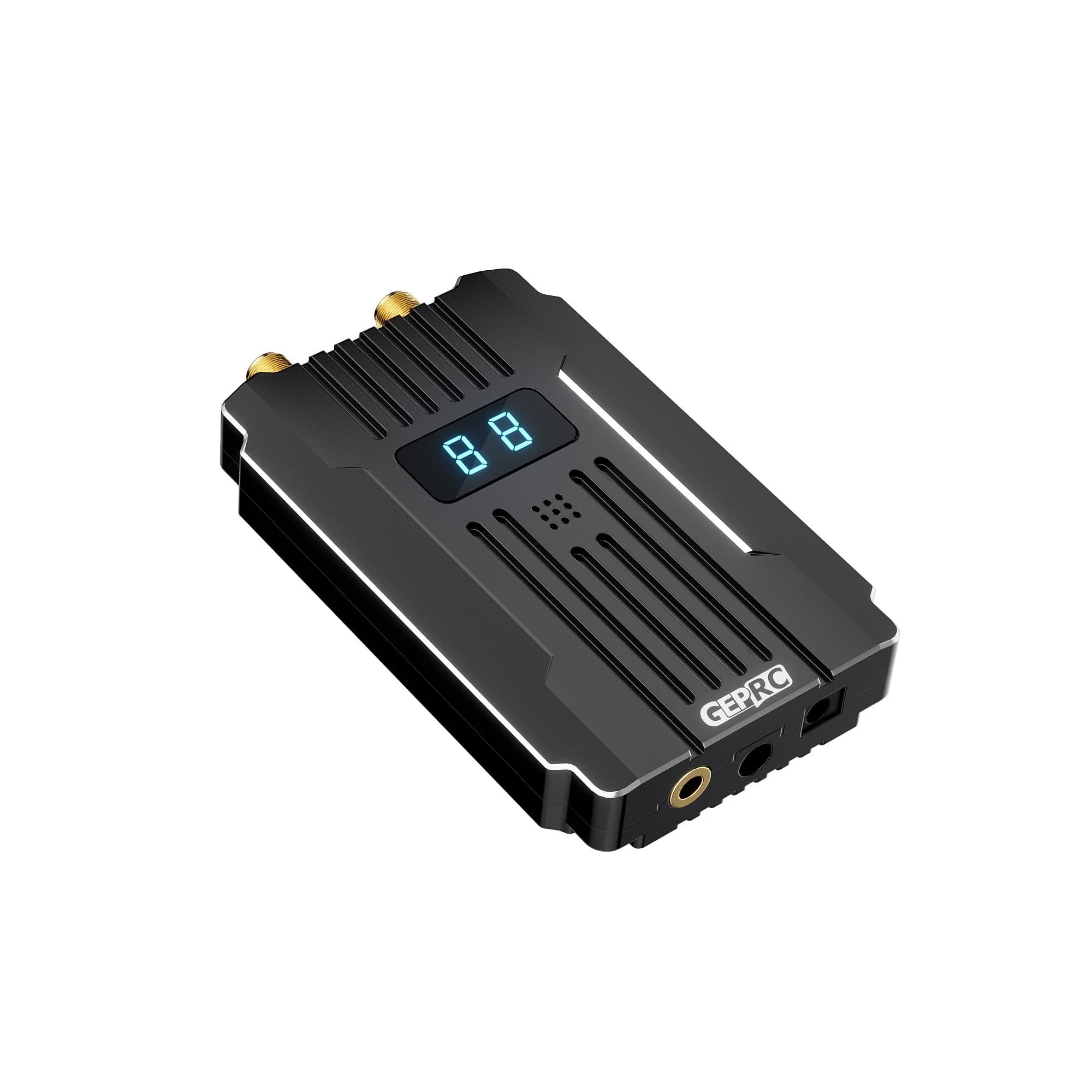

GEPRC MATEN 3.3G VRX with 3.3G Signal Alarmer 40CH 3.3GHz Video Receiver for FPV Long Range Drone
Specifications
- Model: GEPRC MATEN 3.3G VRX with 3.3G Signal Alarmer
- Dimension: 52.3×87.5×14.7mm
- Frequency: 3083-3480MHz
- Channels: 40CH
- Input Voltage: DC12-36V(3-8S Battery)
- Antenna Connector: SMA
- Sensitivity: -98dBm
- Modes: VRX Mode, SCAN Mode
- Video Connector: 3.5mm coaxial
- Power Input: DC3.5mm/1.35mm
- Mounting Hole: 1/4 threaded hole
- Weight: 69g
Frequency Bands
A:3083,3114,3145,3176,3207,3238,3269,3300
B:3215,3235,3255,3275,3295,3315,3335,3355
C:3170,3190,3210,3230,3250,3270,3290,3310
D:3320,3345,3370,3395,3420,3445,3470,3495
E:3310,3330,3355,3380,3405,3430,3455,3480
Instructions
VRX Mode: Switch to SCAN mode,press the BAND button to cycle through frequency bands, and the CHAN button to change channels. Hold either button to activate auto-scan, which will lock onto the channel with the strongest signal.
SCAN Mode: Switch to SCAN mode to automatically scan all available channels. The strongest signal will be displayed, and a beeper will sound, increasing in speed as the signal strength increases.
Includes
1 x MATEN 3.3G VRX with 3.3G Signal Alarmer
1 x Power supply cable
1 x Video signal cable
1 x User manual
