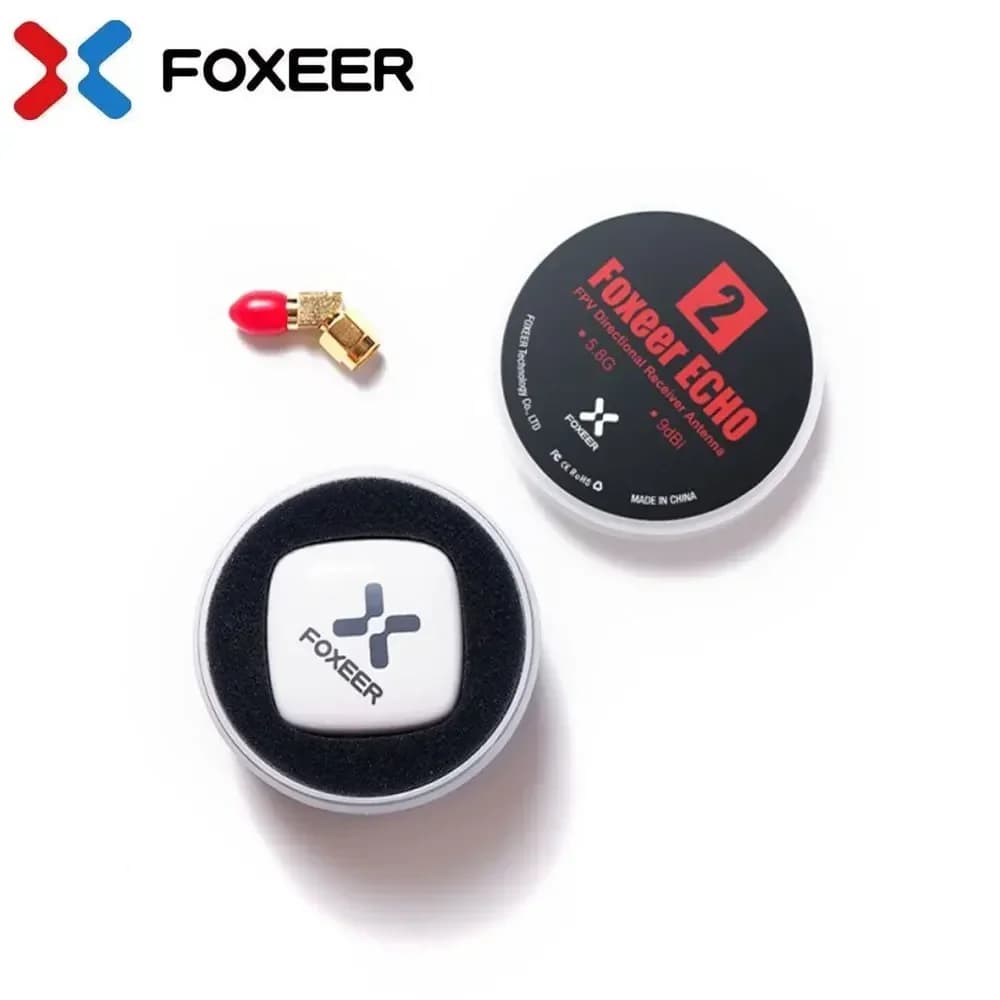

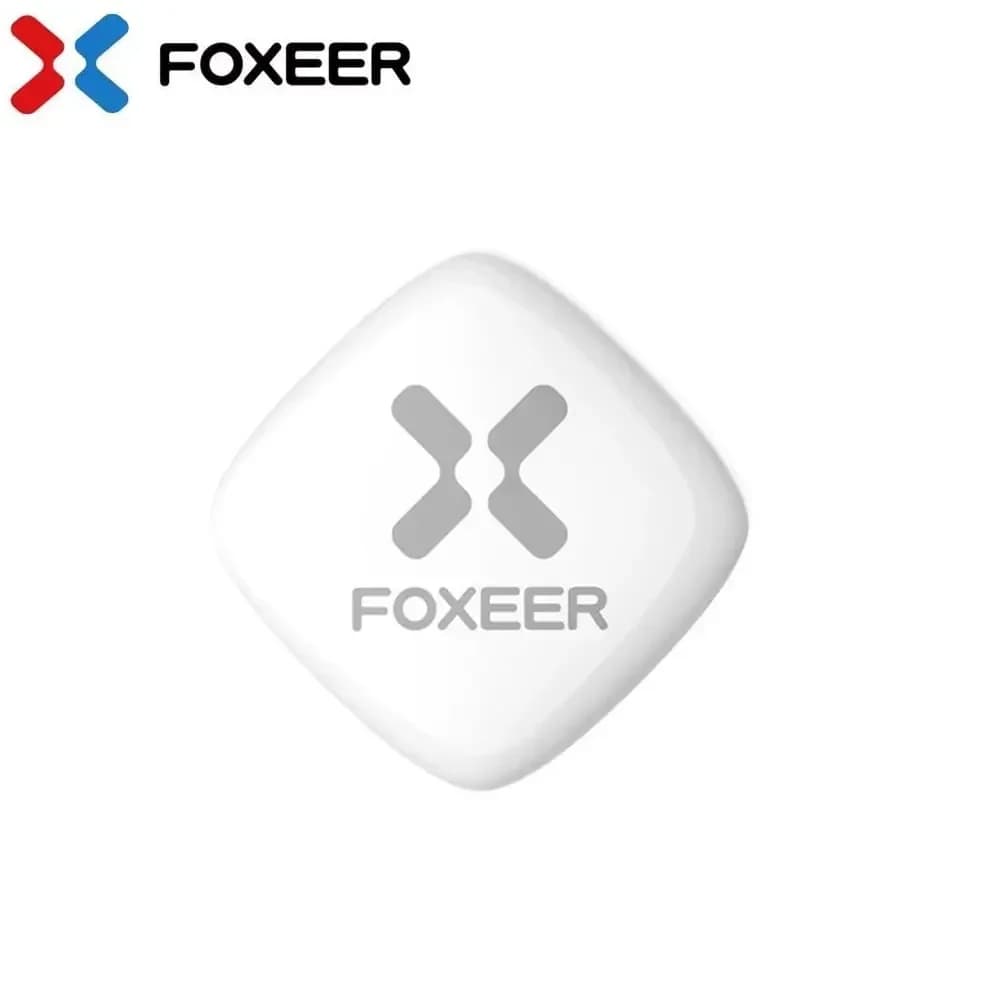

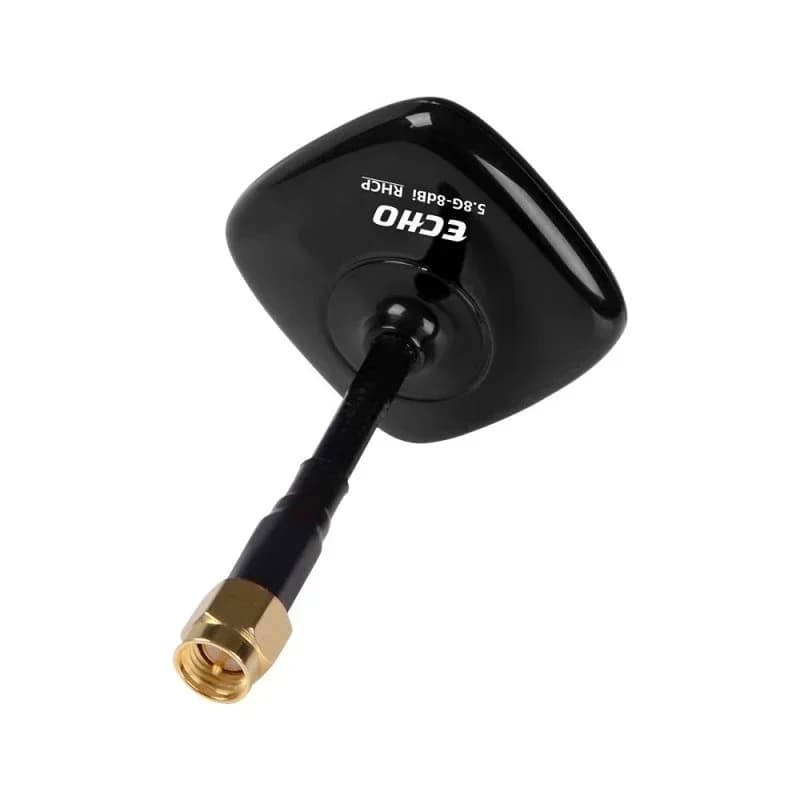

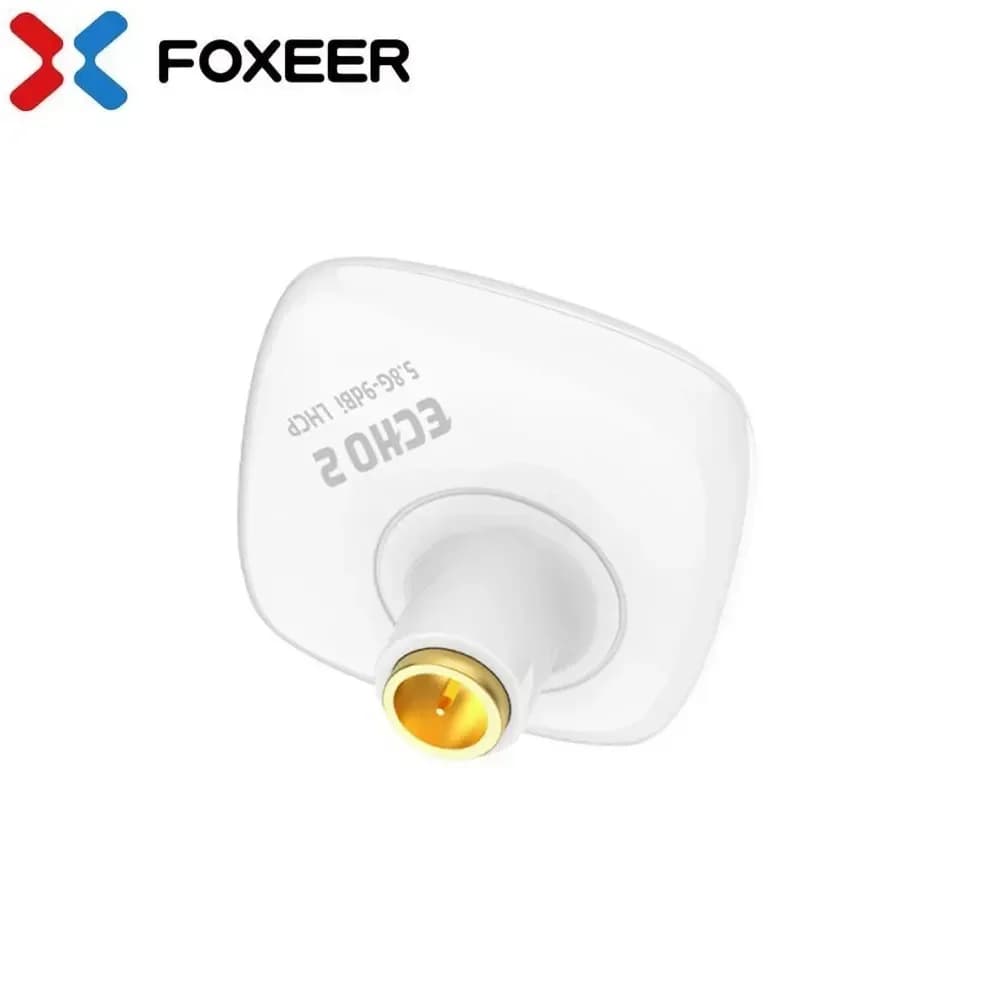

Foxeer Echo V2 2 5.8GHz 9dBi Patch Antenna LHCP RHCP for RC Airplane FPV Racing Freestyle Drones VTX VRX Goggles Monitor
54 orders (reference)
Description
Foxeer Echo V2 2 5.8GHz 9dBi Patch Antenna LHCP RHCP for RC Airplane FPV Racing Freestyle Drones VTX VRX Goggles Monitor ============================================================ Specification: Shell material: Imported PC+ABS Weight: 8g Antenna length: 21.7mm Center frequency: 5.8 GHz Gain : 8dBi Radiation direction angle: 84.7 degree Bandwidth: 500 MHz (5.5 – 6.0GHz) Matching: VSWR < 1.25 (at center frequency) Impedance: 50Ω Axial ratio: < 3 Center frequency: 5600~5950MHz Radiation efficiency: 98% Polarization: RHCP/LHCP Connector:SMA Color: White/Red Packing list: 1pcs* Foxeer ECHO 2 5.8G 9dBi patch antenna TECHNICAL SPECIFICATIONS • Weight: 8g • Connector:SMA • Gain : 8dBi • Impedance: 50Ω AVAILABLE OPTIONS White LHCP White RHCP Black SMA RHCP Black SMA LHCP Black RP-SMA RHCP Black RP-SMA LHCP PRODUCT INFORMATION Brand: Foxeer Category: FPV Goggles Wholesale Price: US $18.54 ————————————————————————————————————————
Specifications
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Quantity | 1 pcs |
| Wheelbase | Screws |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| Size | 21.7mm x8x5mm |
| Technical parameters | KV1100 |
| Model Number | Foxeer Echo 2 5.8GHz 9dBi Patch Antenna |
| For Vehicle Type | Airplanes |
| Tool Supplies | Assembly Category |
| Four-wheel Drive Attributes | Assemblage |
| Remote Control Peripherals/Devices | FPV Antenna |
| Upgrade Parts/Accessories | FPV Antenna |
| RC Parts & Accs | Antennas |
| Material | Composite Material |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
Product Details
Shell material: Imported PC+ABS
Weight: 8g
Antenna length: 21.7mm
Center frequency: 5.8 GHz
Gain : 8dBi
Radiation direction angle: 84.7 degree
Bandwidth: 500 MHz (5.5 – 6.0GHz)
Matching: VSWR < 1.25 (at center frequency)
Impedance: 50Ω
Axial ratio: < 3
Center frequency: 5600~5950MHz
Radiation efficiency: 98%
Polarization: RHCP/LHCP
Connector:SMA
Color: White/Red
Packing list:
1pcs* Foxeer ECHO 2 5.8G 9dBi patch antenna
