Foxeer 5,8G Reaper Extreme V2 2,5 Вт 72 канала Pitmode 25 мВт 200 мВт 500 мВт 1,5 Вт 2,5 Вт Регулируемый FPV VTX 2-8S 20X20 мм для FPV дальнего действия
75 orders (reference)
Description
Band
CH1
CH2
CH3
CH4
CH5
CH6
CH7
CH8
Band A
5865
5845
5825
5805
5785
5765
5745
5725
Band B
5733
5752
5771
5790
5809
5828
5847
5866
Band E
5705
5685
5665
5645
5885
5905
5925
5945
Band F
5740
5760
5780
5800
5820
5840
5860
5880
Band R
5658
5695
5732
5769
5806
5843
5917
Band H
5653
5693
5773
5813
5853
5893
5933
Band L
5333
5373
5413
5453
5493
5533
5573
5613
Band U
5325
5348
5366
5384
5402
5420
5438
5456
Band O
5474
5492
5510
5528
5546
5564
5582
5600
Unlock the frequencies and power levels
Long press the "KEY" button until the Red LED (PWR) is constant on, off, then on again, release the button unlock the all frequencies and power levels, flashed Red LED means in unlocked status, constant Red LED means in locked status.
PIT Mode On/Off
Double-click the "KEY" button to turn on/off the PIT Mode. Red LED (PWR) off means PIT mode on; Red LED (PWR) on means PIT mode off。In PIT mode, VTx outpout extreme low power.
Note:
If tramp cable is connected, button will not work, can not adjust frequency and power, controller will take over.
BetaFlight only can accept 64 channels at most, so the O band is removed from the frequency table default.
Specifications
| Option | Values |
|---|---|
| High-concerned chemical |
|
| Is Electric |
|
| Quantity |
|
| Wheelbase |
|
| Is it battery/power supply |
|
| Is it charger/adapter |
|
| Is Batteries Included |
|
| Size |
|
| Technical parameters |
|
| Model Number |
|
| For Vehicle Type |
|
| Tool Supplies |
|
| Four-wheel Drive Attributes |
|
| Remote Control Peripherals/Devices |
|
| Upgrade Parts/Accessories |
|
| RC Parts & Accs |
|
| Material |
|
| Brand Name |
|
| Origin |
|
| Recommend Age |
|
| Use |
|
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Quantity | 1 pcs |
| Wheelbase | Screws |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| Size | 36*27.5*8mm |
| Technical parameters | value 2 |
| Model Number | Reaper Extreme |
| For Vehicle Type | Airplanes |
| Tool Supplies | Assembly Category |
| Four-wheel Drive Attributes | Assemblage |
| Remote Control Peripherals/Devices | Other |
| Upgrade Parts/Accessories | 2.5W 72CH VTX |
| RC Parts & Accs | Radio Systems |
| Material | Metal |
| Brand Name | U-Angel-1988 |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
Product Details
Name | Reaper Extreme V2 |
Input Voltage | 9~36V |
Output Voltage | 5V |
Channels | 72CH |
Power | 25mW/200mW/500mW/1.5W/2.5W, red light flash 1/2/3/4/5 times correspondingly |
Pit | Double click to enter |
Weight | 13g |
Mounting Hole | 20*20mm M2 2.8mm depth |
Size | 36*27.5*8mm |
Consumption | 1.2A/9V |

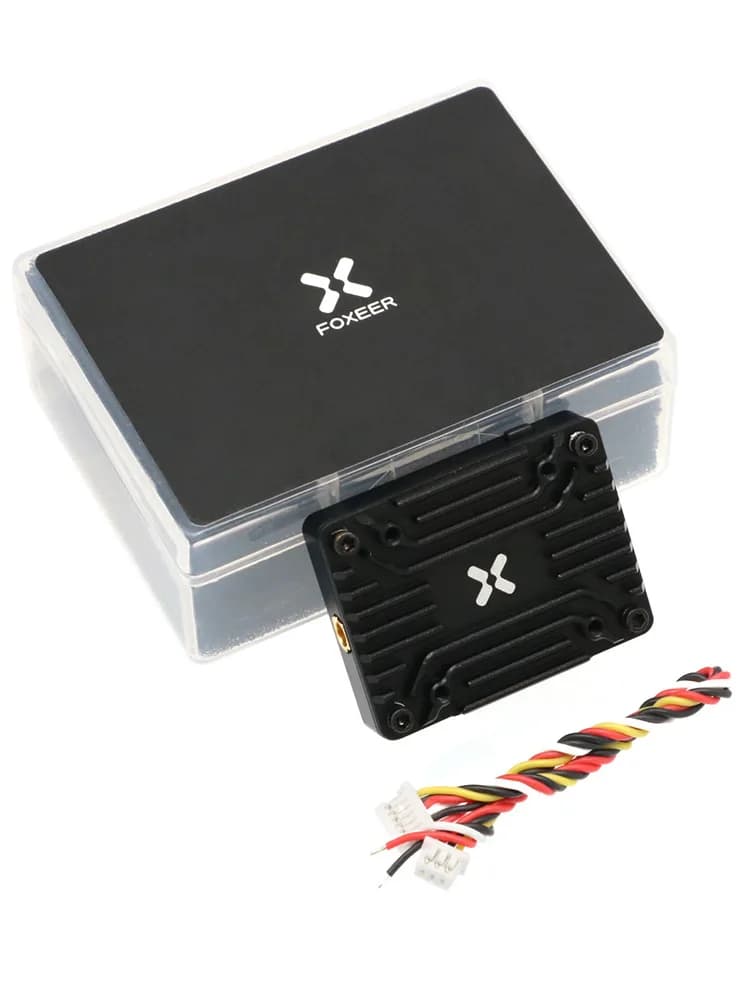

Package Includes | 1 x VTx; 1 x silicon cable; |
Band | CH1 | CH2 | CH3 | CH4 | CH5 | CH6 | CH7 | CH8 |
Band A | 5865 | 5845 | 5825 | 5805 | 5785 | 5765 | 5745 | 5725 |
Band B | 5733 | 5752 | 5771 | 5790 | 5809 | 5828 | 5847 | 5866 |
Band E | 5705 | 5685 | 5665 | 5645 | 5885 | 5905 | 5925 | 5945 |
Band F | 5740 | 5760 | 5780 | 5800 | 5820 | 5840 | 5860 | 5880 |
Band R | 5658 | 5695 | 5732 | 5769 | 5806 | 5843 | 5880 | 5917 |
Band H | 5653 | 5693 | 5733 | 5773 | 5813 | 5853 | 5893 | 5933 |
Band L | 5333 | 5373 | 5413 | 5453 | 5493 | 5533 | 5573 | 5613 |
Band U | 5325 | 5348 | 5366 | 5384 | 5402 | 5420 | 5438 | 5456 |
Band O | 5474 | 5492 | 5510 | 5528 | 5546 | 5564 | 5582 | 5600 |
Unlock the frequencies and power levels
Long press the "KEY" button until the Red LED (PWR) is constant on, off, then on again, release the button unlock the all frequencies and power levels, flashed Red LED means in unlocked status, constant Red LED means in locked status.
PIT Mode On/Off
Double-click the "KEY" button to turn on/off the PIT Mode. Red LED (PWR) off means PIT mode on; Red LED (PWR) on means PIT mode off。In PIT mode, VTx outpout extreme low power.
Note:
If tramp cable is connected, button will not work, can not adjust frequency and power, controller will take over.
BetaFlight only can accept 64 channels at most, so the O band is removed from the frequency table default.
