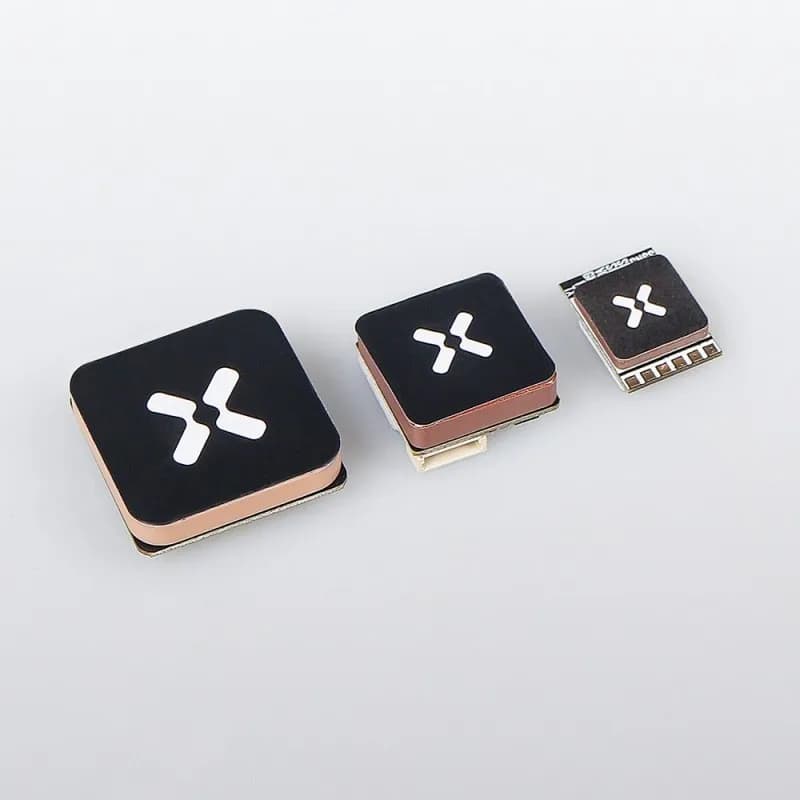

Foxeer M10Q-250 / M10Q-180 / M10Q-120 M10 Dual Protocol GPS Module Built-in QMC5883 Ceramic Antenna for FPV Long Range Drone
49 orders (reference)
Description
Foxeer M10Q-250 / M10Q-180 / M10Q-120 M10 Dual Protocol GPS Module Built-in QMC5883 Ceramic Antenna for FPV Long Range Drone ============================================================ Both GPS modules have the same functional configuration, except for the weight and size. Chip M10(10th Generation Chip) Frequency GPS L1GLONASS L1BDS B1GALILEO ESBAS L1QZSS L1 Input Voltage 5V Antenna Ceramic Antenna Channel 72 Compass QMC5883 Baud Rate 115200bps Protocol Dual NMEA/UBX Output Frequency 1Hz-10Hz,10Hz default Speed Accuracy 0.05m/s Horizontal Positioning Accuracy 2D ACC1.5m(outdoor) Receiver Sensitivity Trace -166dBm; Capture -160dBm Dynamic Characteristics Height 50000m; Speed 500m/s; Acceleration 4G Operating Temperature -40C-+85C Storage temperature -40C-+105C Weight 7.5g / 12g Size 18*18*8mm(M10Q-180) / 25*25*8mm(M10Q-250) M10(10th Generation Chip) Frequency GPS L1GLONASS L1BDS B1GALILEO ESBAS L1QZSS L1 Input Voltage Antenna Ceramic Antenna Channel Battery Bilid-in Compass QMC5883 Baud Rate 115200bps Protocol Dual NMEA/UBLOX Output Frequency 1Hz-10Hz,10Hz default Speed Accuracy 0.05m/s Horizontal Positioning Accuracy 2D ACC1.5m(outdoor) Receiver Sensitivity Trace -166dBm; Capture -160dBm Dynamic Characteristics Height 50000m; Speed 500m/s; Acceleration 4G Operating Temperature -40C-+85C Storage temperature -40C-+105C Weight 12.5*17*5mm AVAILABLE OPTIONS 1PC M10Q-180 1PC M10Q-250 1PC M10Q-120 PRODUCT INFORMATION Brand: Foxeer Category: FPV Drone Wholesale Price: US $31.21 ————————————————————————————————————————
Specifications
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| For Vehicle Type | trucks |
| Material | Composite Material |
| Brand Name | Foxeer |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
Product Details
Both GPS modules have the same functional configuration, except for the weight and size.
Chip M10(10th Generation Chip)
Frequency GPS L1GLONASS L1BDS B1GALILEO ESBAS L1QZSS L1
Input Voltage 5V
Antenna Ceramic Antenna
Channel 72
Compass QMC5883
Baud Rate 115200bps
Protocol Dual NMEA/UBX
Output Frequency 1Hz-10Hz,10Hz default
Speed Accuracy 0.05m/s
Horizontal Positioning Accuracy 2D ACC1.5m(outdoor)
Receiver Sensitivity Trace -166dBm; Capture -160dBm
Dynamic Characteristics Height 50000m; Speed 500m/s; Acceleration 4G
Operating Temperature -40C-+85C
Storage temperature -40C-+105C
Weight 7.5g / 12g
Size 18*18*8mm(M10Q-180) / 25*25*8mm(M10Q-250)
Chip | M10(10th Generation Chip) |
Frequency | GPS L1GLONASS L1BDS B1GALILEO ESBAS L1QZSS L1 |
Input Voltage | 5V |
Antenna | Ceramic Antenna |
Channel | 72 |
Battery | Bilid-in |
Compass | QMC5883 |
Baud Rate | 115200bps |
Protocol | Dual NMEA/UBLOX |
Output Frequency | 1Hz-10Hz,10Hz default |
Speed Accuracy | 0.05m/s |
Horizontal Positioning Accuracy | 2D ACC1.5m(outdoor) |
Receiver Sensitivity | Trace -166dBm; Capture -160dBm |
Dynamic Characteristics | Height 50000m; Speed 500m/s; Acceleration 4G |
Operating Temperature | -40C-+85C |
Storage temperature | -40C-+105C |
Weight | 2.7g |
Size | 12.5*17*5mm |
