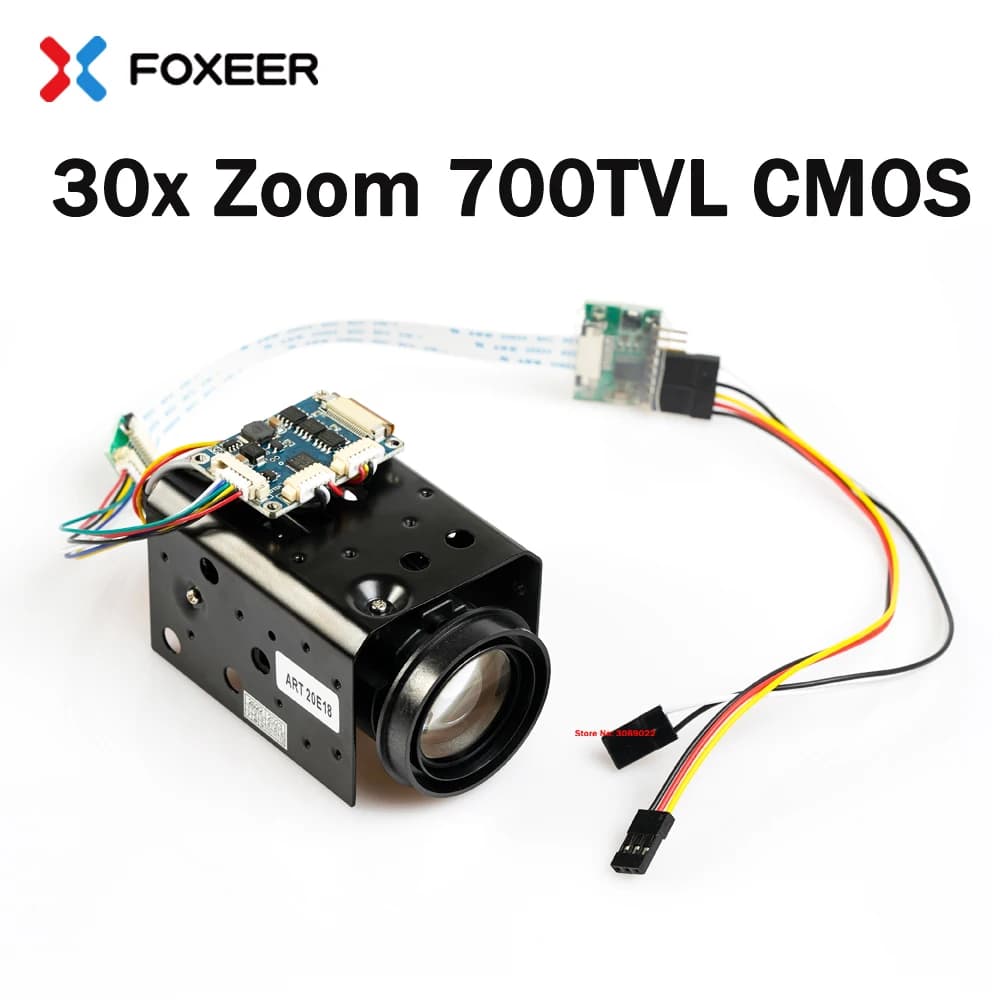

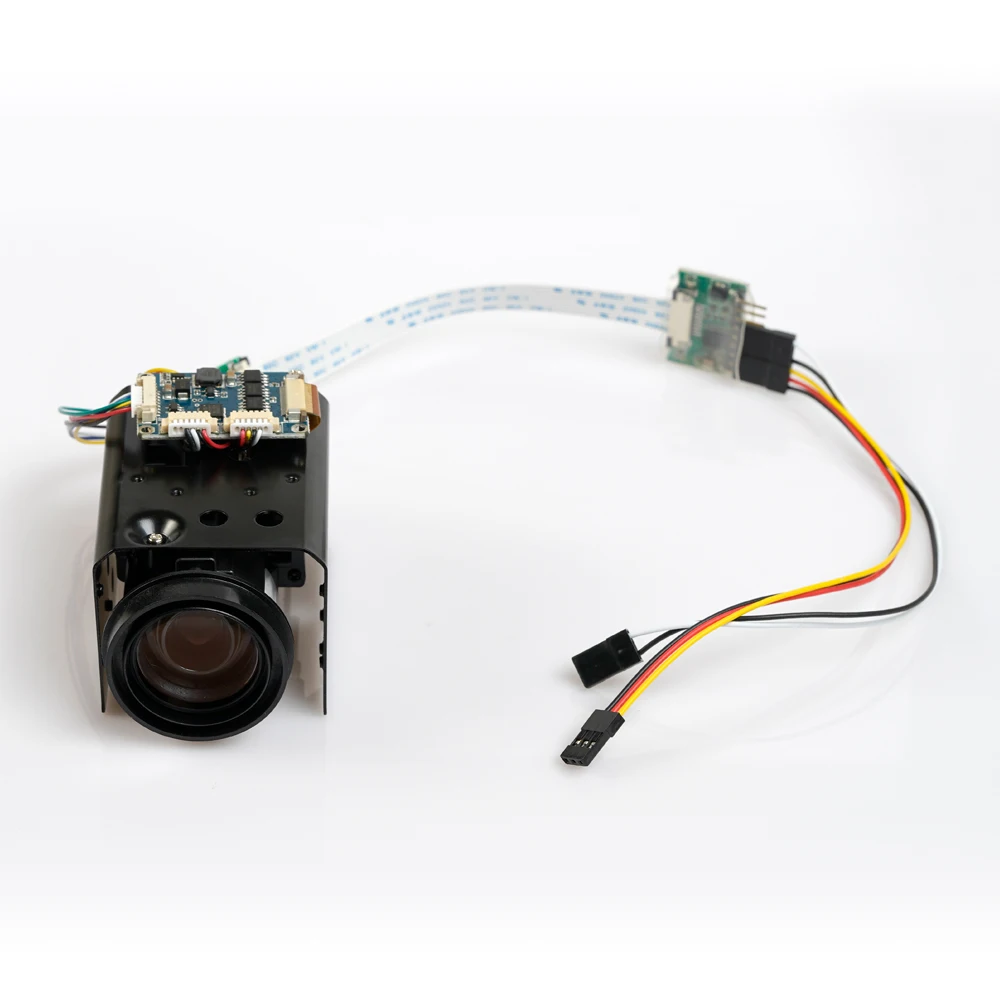

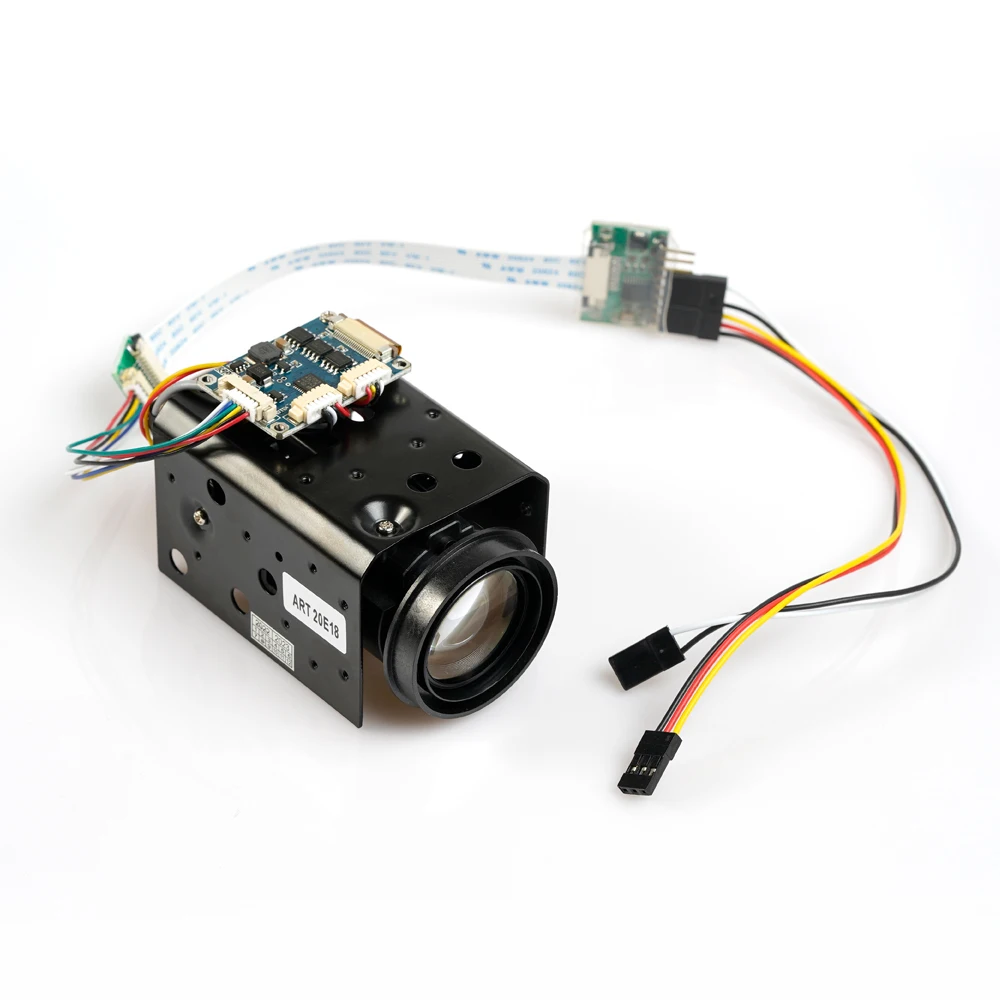

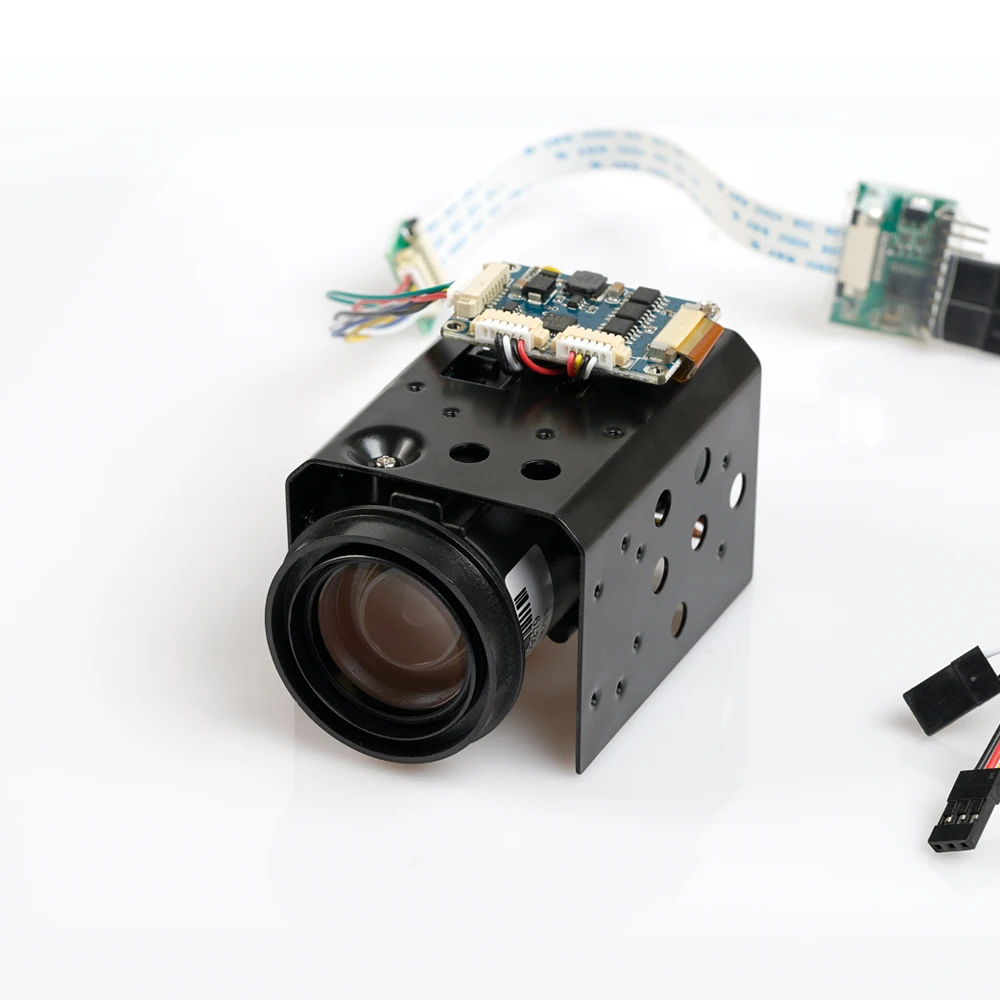

Foxeer 30-кратный зум 700TVL CMOS-камера ШИМ-управление AHD/CVI/CVBS 10-кратный зум для радиоуправляемого мультикоптера самолета с неподвижным крылом DIY детали
12 orders (reference)
Description
Attention: Do not reset the cam, it will turn to AHD mode
700TVL 10X zoom camera specialized for FPV, adopt CMOS image sensor and Effio DSP, have good WDR function, low illumination is up to 0.001Lux at B/W mode, PWM signal control zoom.

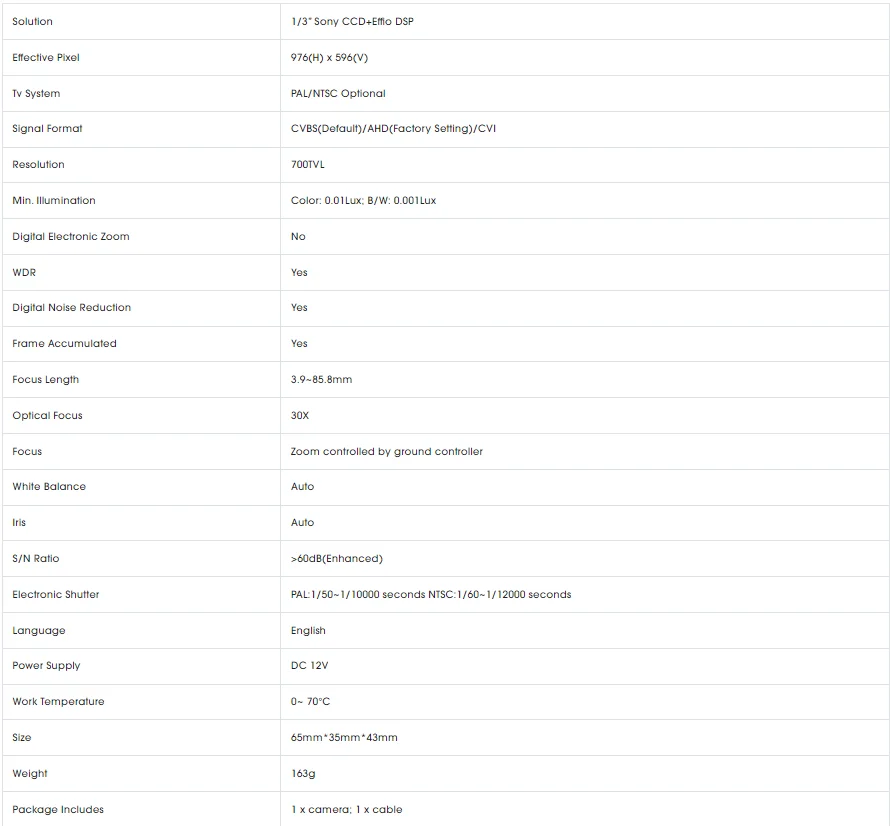

Solution 1/3" Sony CCD+Effio DSP
Effective Pixel 976(H) x 596(V)
Tv System PAL/NTSC Optional
Resolution 700TVL
Min. Illumination Color: 0.01Lux; B/W: 0.001Lux
Digital Electronic Zoom No
WDR Yes
Digital Noise Reduction Yes
Frame Accumulated Yes
Focus Length 3.9~85.8mm
Optical Focus 30X
Focus Zoom controlled by ground controller
White Balance Auto
Iris Auto
S/N Ratio >60dB(Enhanced)
Electronic Shutter PAL:1/50~1/10000 seconds NTSC:1/60~1/12000 seconds
Language English
Power Supply DC 12V
Work Temperature 0~ 70°C
Size 65mm*35mm*43mm
Weight 163g
Package Includes 1 x camera; 1 x cable
Manual download：https://download.foxeer.com/30_ZOOM_10_ZOOM_CAMERA_USER_MANUAL.pdf
Specifications
| Option | Values |
|---|---|
| High-concerned chemical |
|
| Is Electric |
|
| Quantity |
|
| Is it battery/power supply |
|
| Is it charger/adapter |
|
| Is Batteries Included |
|
| For Vehicle Type |
|
| Material |
|
| Brand Name |
|
| Origin |
|
| Recommend Age |
|
| Use |
|
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Quantity | 1 pcs |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| For Vehicle Type | Airplanes |
| Material | Composite Material |
| Brand Name | Foxeer |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
Product Details
Attention: Do not reset the cam, it will turn to AHD mode
700TVL 10X zoom camera specialized for FPV, adopt CMOS image sensor and Effio DSP, have good WDR function, low illumination is up to 0.001Lux at B/W mode, PWM signal control zoom.
Solution 1/3" Sony CCD+Effio DSP
Effective Pixel 976(H) x 596(V)
Tv System PAL/NTSC Optional
Resolution 700TVL
Min. Illumination Color: 0.01Lux; B/W: 0.001Lux
Digital Electronic Zoom No
WDR Yes
Digital Noise Reduction Yes
Frame Accumulated Yes
Focus Length 3.9~85.8mm
Optical Focus 30X
Focus Zoom controlled by ground controller
White Balance Auto
Iris Auto
S/N Ratio >60dB(Enhanced)
Electronic Shutter PAL:1/50~1/10000 seconds NTSC:1/60~1/12000 seconds
Language English
Power Supply DC 12V
Work Temperature 0~ 70°C
Size 65mm*35mm*43mm
Weight 163g
Package Includes 1 x camera; 1 x cable
Manual download：https://download.foxeer.com/30_ZOOM_10_ZOOM_CAMERA_USER_MANUAL.pdf
