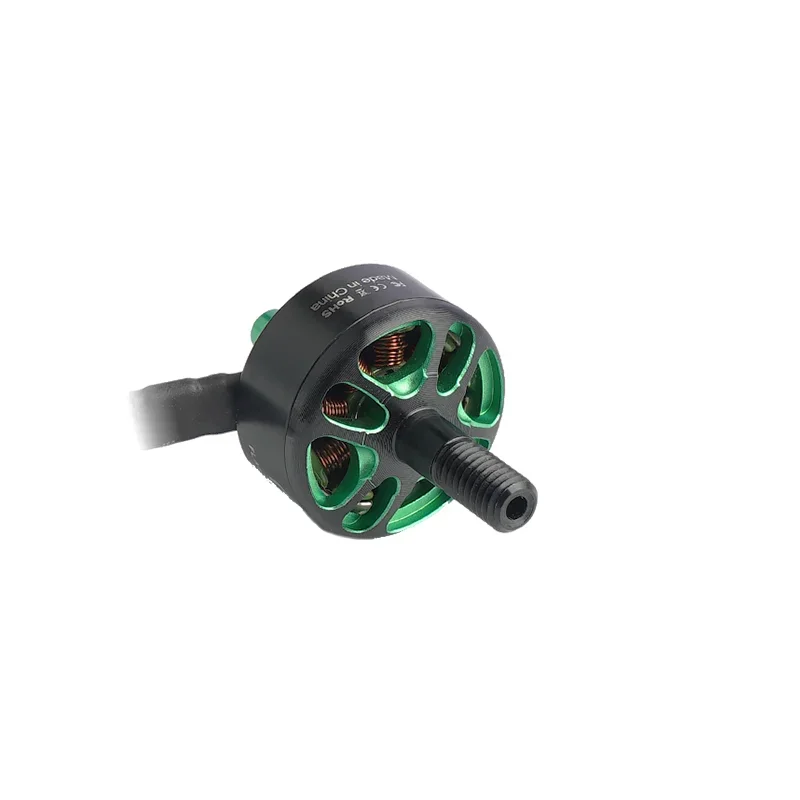

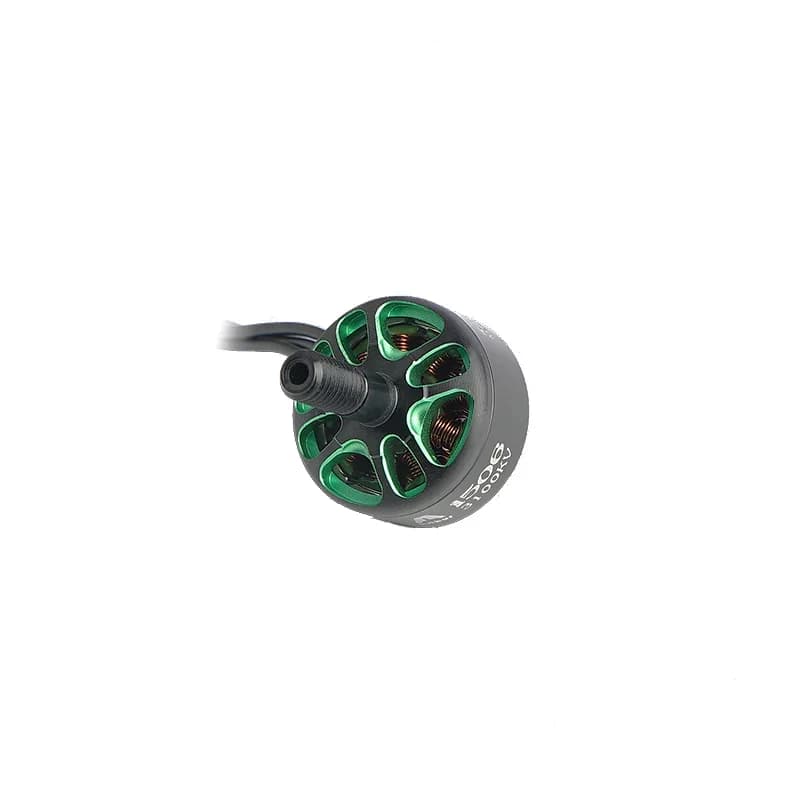

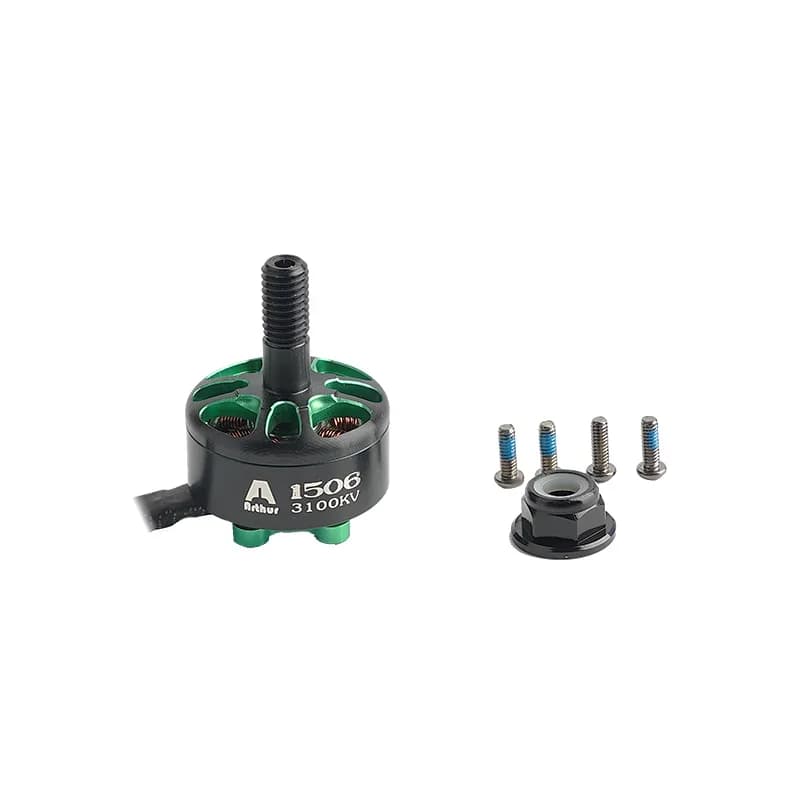

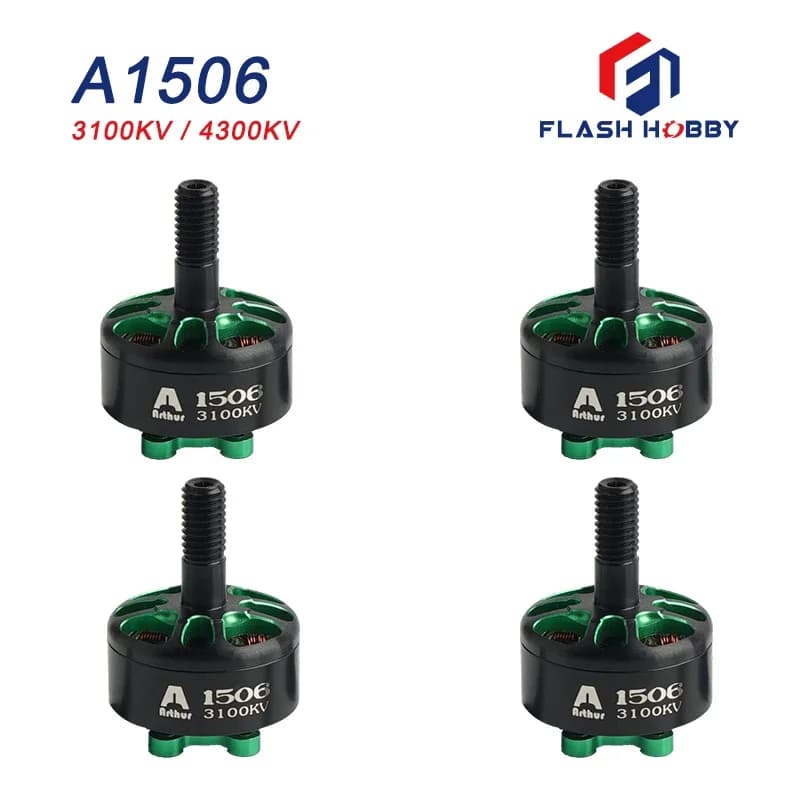

4Pcs/Lot FlashHobby Arthur Series A1506 1506 3100KV 4300KV Brushless Motor Mini RC Motor For FPV Racing RC Multicopter Part
35 orders (reference)
Description
4Pcs/Lot FlashHobby Arthur Series A1506 1506 3100KV 4300KV Brushless Motor Mini RC Motor For FPV Racing RC Multicopter Part ============================================================ 4pcs/Lot FlashHobby Arthur Series A1506 3100KV 4300KV Brushless Motor Mini RC Motor For FPV Racing RC Multicopter Part Item Name:A1506 Feature: 1.NMB Bearing 2.Arc Magnet 3.7075-T6 Aluminum bell 4.Double color design 5.0.15mm silicon steel sheet from Kawasaki,Japan Weight: 15.5g (including the cables) Motor Size: 18.0x 27.2mm Shaft Diameter: 1.5mm Stator Diameter:1.5mm Stator Height:6mm Prop Mount Shaft Dia: M5 Motor Mount: 12*12mm(M2*4) Configuration: 9N12P Motor Cable: 26#AWG 115mm KV Value: 3100KV, 4300KV or customed KV Recommend: 3~4 inch prop application A1506-3100KV Motor Specification Max pull:615g Volts:22V(6S) Suggested ESC: 10A~20A Maximum Power:375W Suggested Prop: 3 inch prop A1506-4300KV Motor Specification Max pull:482g Volts:15V(4S) Suggested ESC: 10A~20A Maximum Power:280W Suggested Prop: 3 inch prop TECHNICAL SPECIFICATIONS • Weight: 15.5g (including the cables) AVAILABLE OPTIONS 1pc 3100kv 1pc 4300kv 4pcs 3100KV 4PCS 4300KV PRODUCT INFORMATION Brand: FlashHobby Category: Brushless Motor Wholesale Price: US $17.05 ————————————————————————————————————————
Specifications
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Quantity | 1 pcs |
| Wheelbase | Screws |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| Size | 18.0x 27.2mm |
| Model Number | A1506 |
| For Vehicle Type | Airplanes |
| Tool Supplies | Battery |
| Four-wheel Drive Attributes | Assemblage |
| Remote Control Peripherals/Devices | Remote Controller |
| Upgrade Parts/Accessories | Frame |
| RC Parts & Accs | Motors |
| Material | Metal |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
| Brand Name | FLASHHOBBY |
Product Details
4pcs/Lot FlashHobby Arthur Series A1506 3100KV 4300KV Brushless Motor Mini RC Motor For FPV Racing RC Multicopter Part
Item Name:A1506
Feature:
1.NMB Bearing
2.Arc Magnet
3.7075-T6 Aluminum bell
4.Double color design
5.0.15mm silicon steel sheet from Kawasaki,Japan

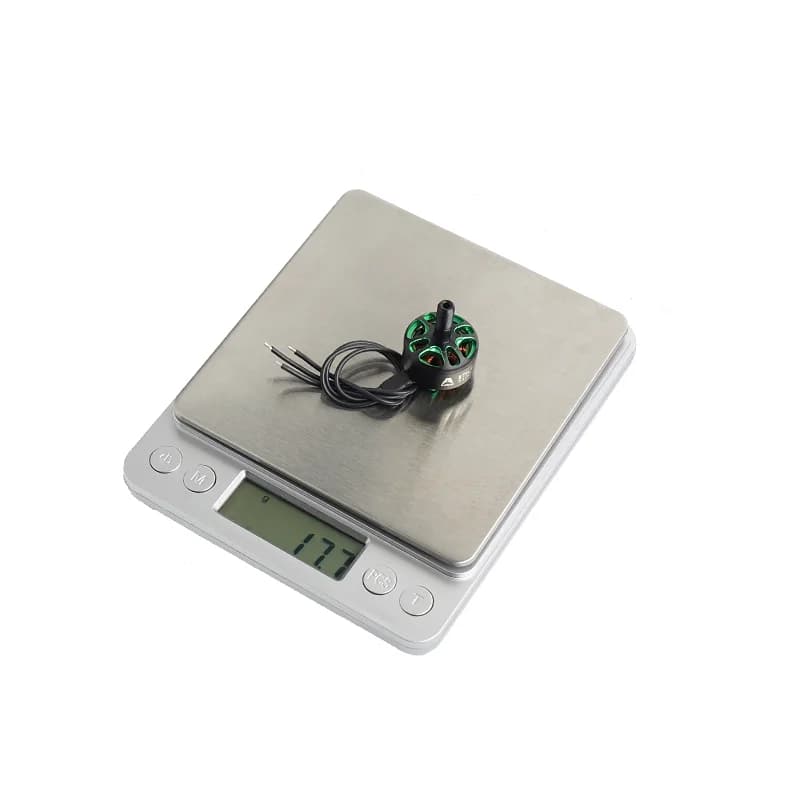

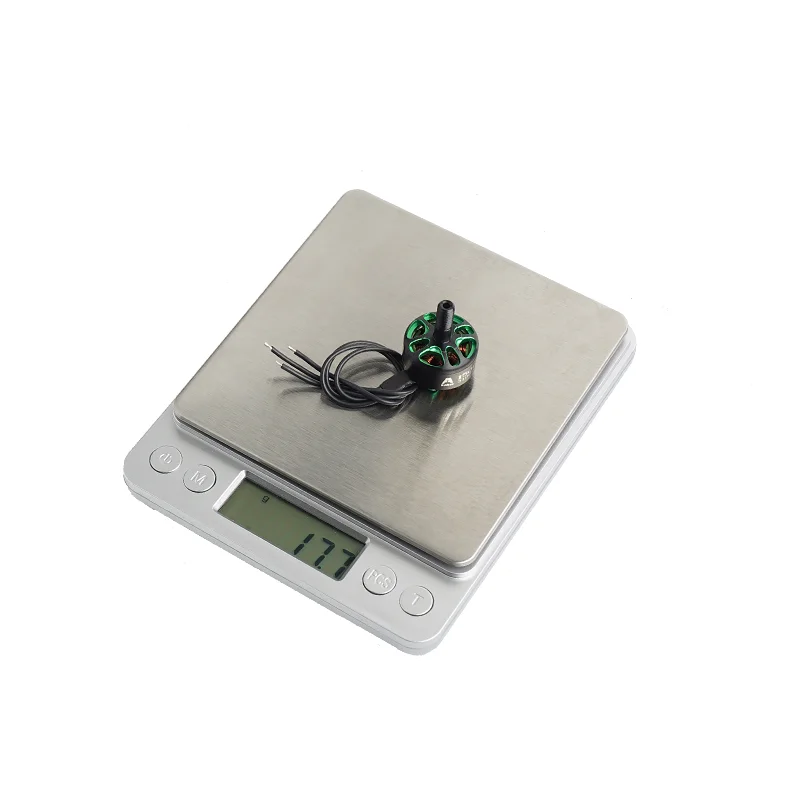

Weight: 15.5g (including the cables)
Motor Size: 18.0x 27.2mm
Shaft Diameter: 1.5mm
Stator Diameter:1.5mm
Stator Height:6mm
Prop Mount Shaft Dia: M5
Motor Mount: 12*12mm(M2*4)
Configuration: 9N12P
Motor Cable: 26#AWG 115mm
KV Value: 3100KV, 4300KV or customed KV
Recommend: 3~4 inch prop application
A1506-3100KV Motor Specification
Max pull:615g
Volts:22V(6S)
Suggested ESC: 10A~20A
Maximum Power:375W
Suggested Prop: 3 inch prop
A1506-4300KV Motor Specification
Max pull:482g
Volts:15V(4S)
Suggested ESC: 10A~20A
Maximum Power:280W
Suggested Prop: 3 inch prop
