Flashhobby D2836EVO 2836 2217 750KV 850KV 1100KV 1450KV RC Brushless Motor for UAV Aircraft Multicopters RC Plane Helicopter
19 orders (reference)
Description
Flashhobby D2836EVO 2836 2217 750KV 850KV 1100KV 1450KV RC Brushless Motor for UAV Aircraft Multicopters RC Plane Helicopter ============================================================ FLASHHOBBY D2836EVO(2217) RC Brushless Motor for UAV Aircraft Multicopters RC Plane Helicopter Features: 48H Level Magnet Precision Balanced Rotor Test 14P12N High Torque Motor Design CNC 6061-T6 Aluminum Bell High RPM Imported(NSK/NMB) Bearing High Temperature Resistant Copper Wire Winding Weight: 88.6g(Including wires) Motor Size: 28 x36mm Shaft Size: 4.0*53.0mm Motor Mount: 16*19mm(M3*4) Configuration: 12N14P KV Value: 750KV, 850KV,1100KV,1450KV or customed KV Working Temperature Range:-0℃~+80℃ Control Method:Use ESC And Adjust PWM signal For Control,PWM Adjustment Range 900- 2100US Motor Type: Outrunner Brushless Motor,Three-phase Motor KV: 750KV Max watts: 194.9W Max Current: 11.95A No Load current: 0.74A Resistance: 124mΩ Battery: 3-4S Lipo Suggested Prop: 9 inch prop KV: 850KV Max watts: 244.5W Max Current: 15.11A No Load current: 0.92A Resistance: 97.4mΩ Battery: 3-4S Lipo Suggested Prop: 10 inch prop KV: 1100KV Max watts: 462.7W Max Current: 30.3A No Load current: 1.37A Resistance: 57.9mΩ Battery: 3-4S Lipo Suggested Prop: 9 inch prop KV: 1450KV Max watts: 739.6W Max Current: 48.69A No Load current: 2.24A Resistance: 33.5mΩ Battery: 3-4S Lipo Suggested Prop: 9 inch prop TECHNICAL SPECIFICATIONS • Weight: 88.6g(Including wires) • Battery: 3-4S Lipo • Motor Type: Outrunner Brushless Motor,Three-phase Motor • KV: 750KV • KV: 850KV • KV: 1100KV • KV: 1450KV AVAILABLE OPTIONS 750KV 850KV 1100KV 1450KV PRODUCT INFORMATION Brand: FlashHobby Category: Brushless Motor Wholesale Price: US $27.50 ————————————————————————————————————————
Specifications
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Wheelbase | Screws |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| Model Number | D2836EVO |
| For Vehicle Type | Airplanes |
| Tool Supplies | Battery |
| Four-wheel Drive Attributes | Motors |
| Remote Control Peripherals/Devices | Motor |
| Upgrade Parts/Accessories | Frame |
| RC Parts & Accs | Motors |
| Material | Metal |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
| Brand Name | FLASHHOBBY |
| Weight: | 88.6g(Including wires) |
| Motor Size: | 28 x36mm |
| Shaft Size: | 4.0*53.0mm |
| Motor Mount: | 16*19mm(M3*4) |
| Configuration: | 12N14P |
| KV Value: | 750KV, 850KV,1100KV,1450KV |
Product Details

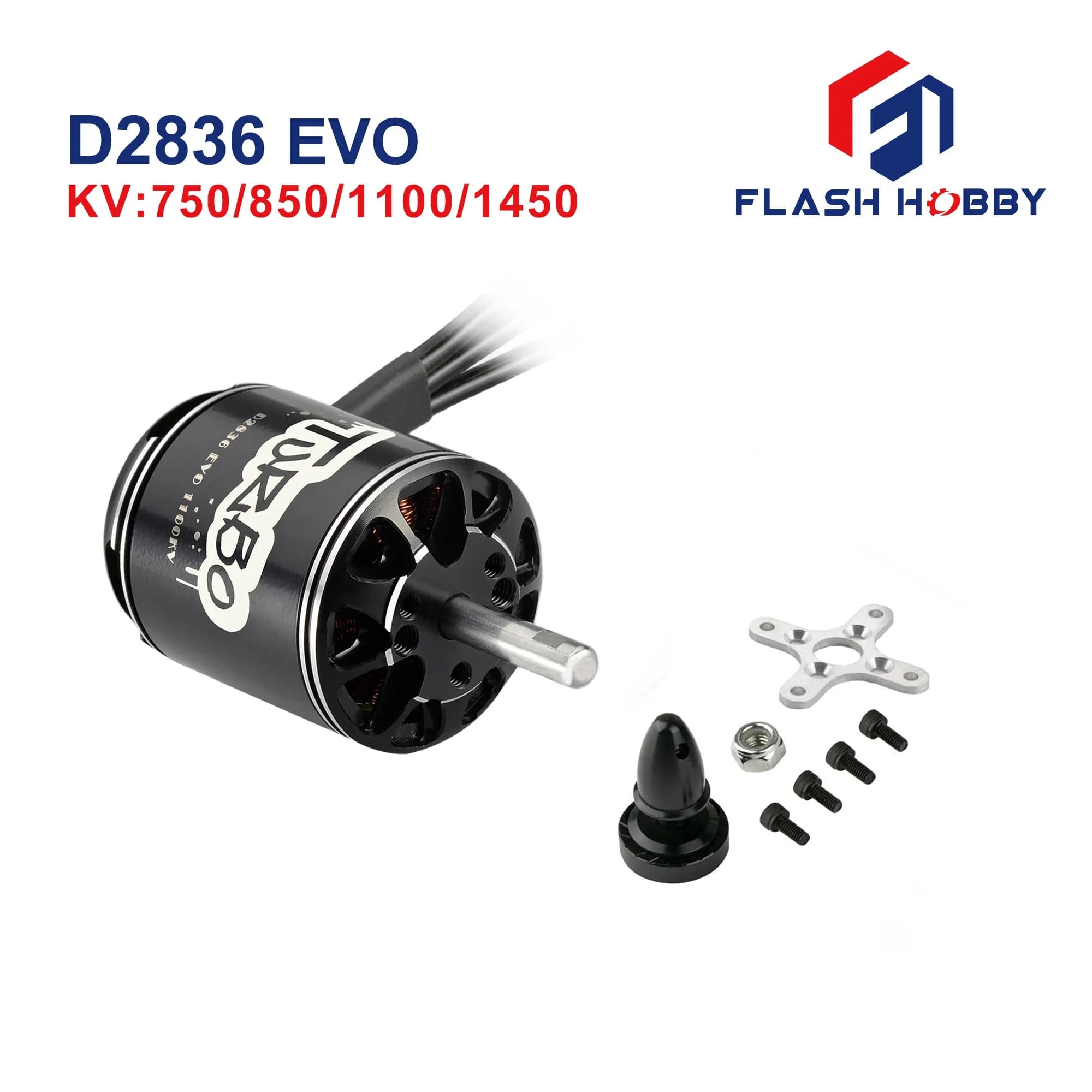

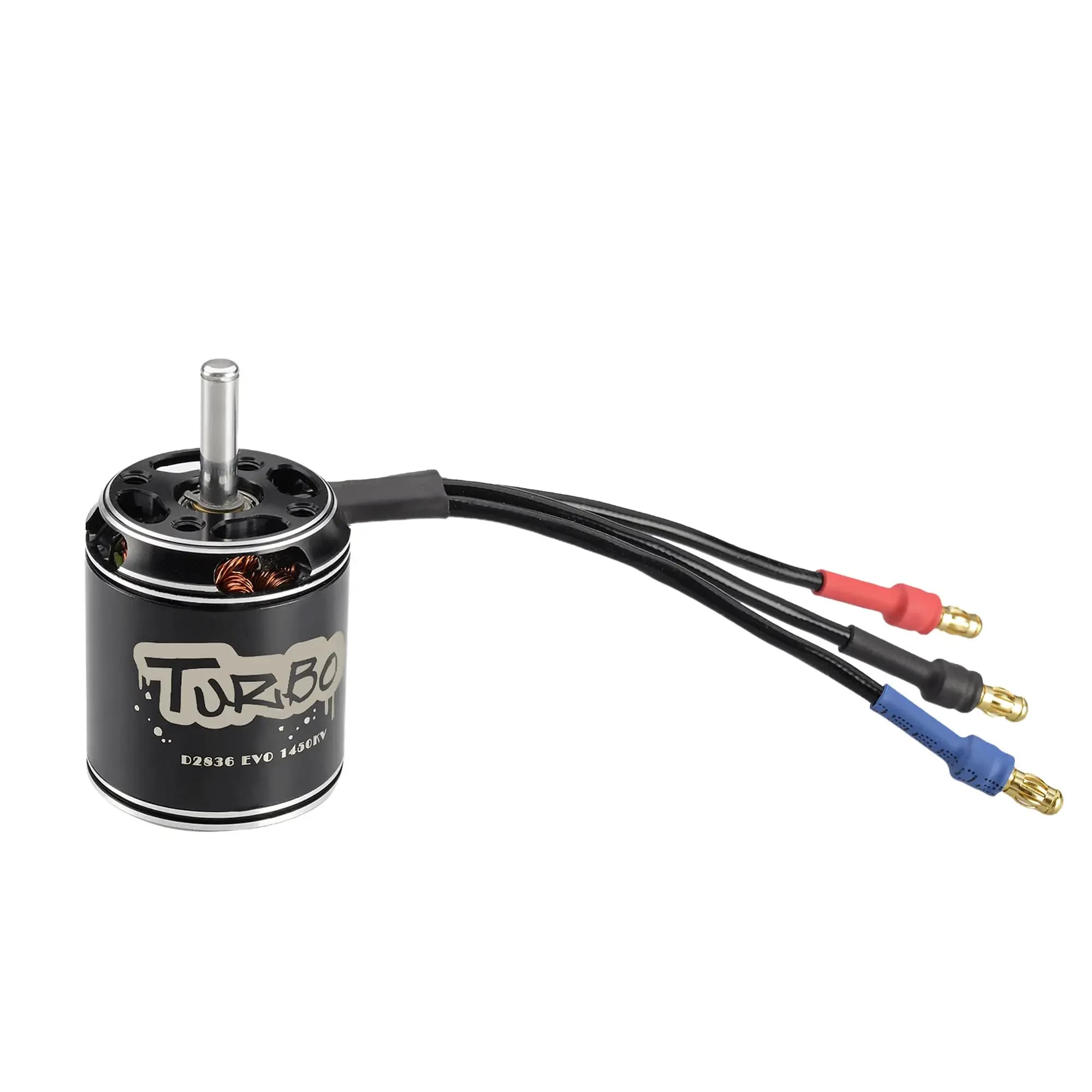

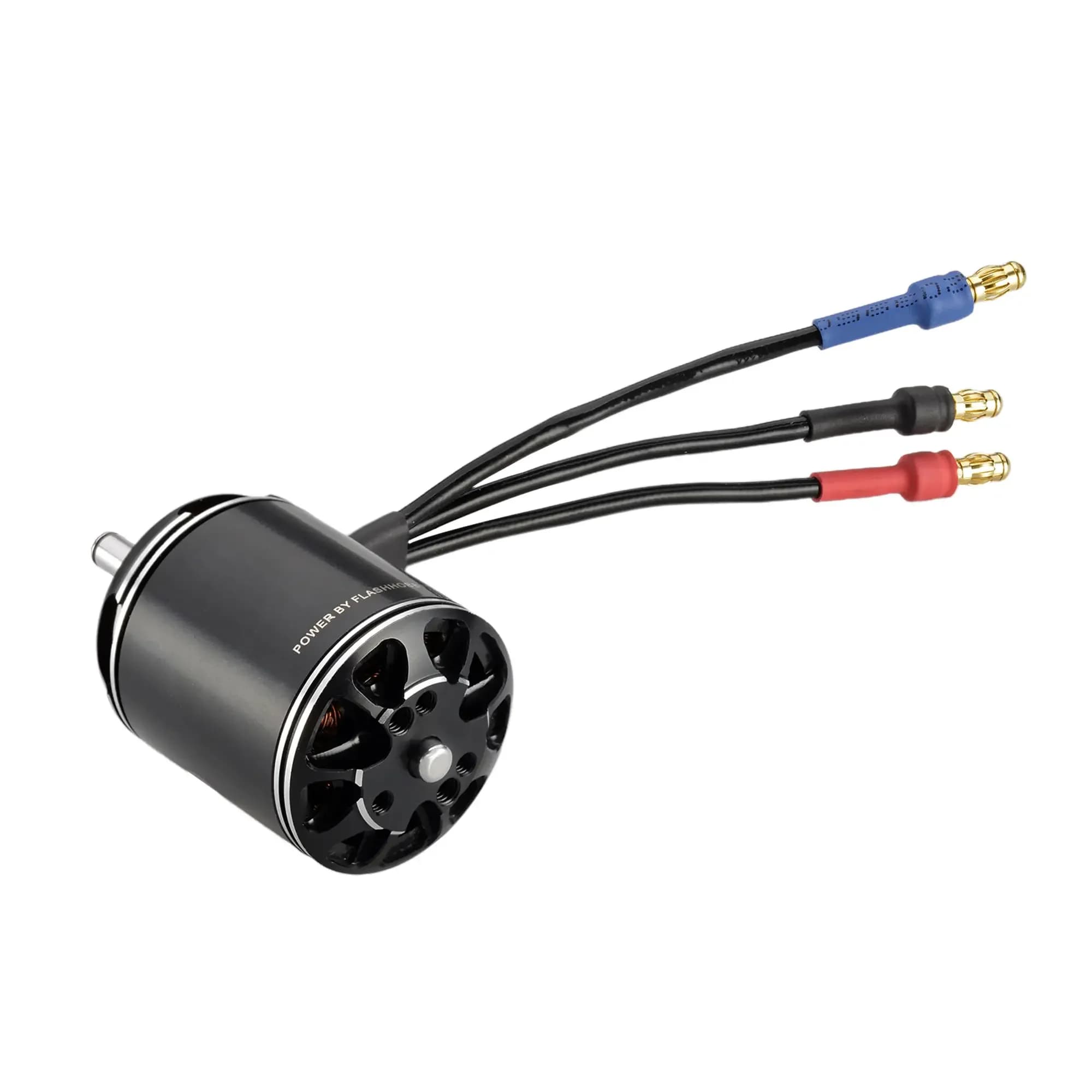

FLASHHOBBY D2836EVO(2217) RC Brushless Motor for UAV Aircraft Multicopters RC Plane Helicopter
Features:
48H Level Magnet
Precision Balanced Rotor Test
14P12N High Torque Motor Design
CNC 6061-T6 Aluminum Bell
High RPM Imported(NSK/NMB) Bearing
High Temperature Resistant Copper Wire Winding

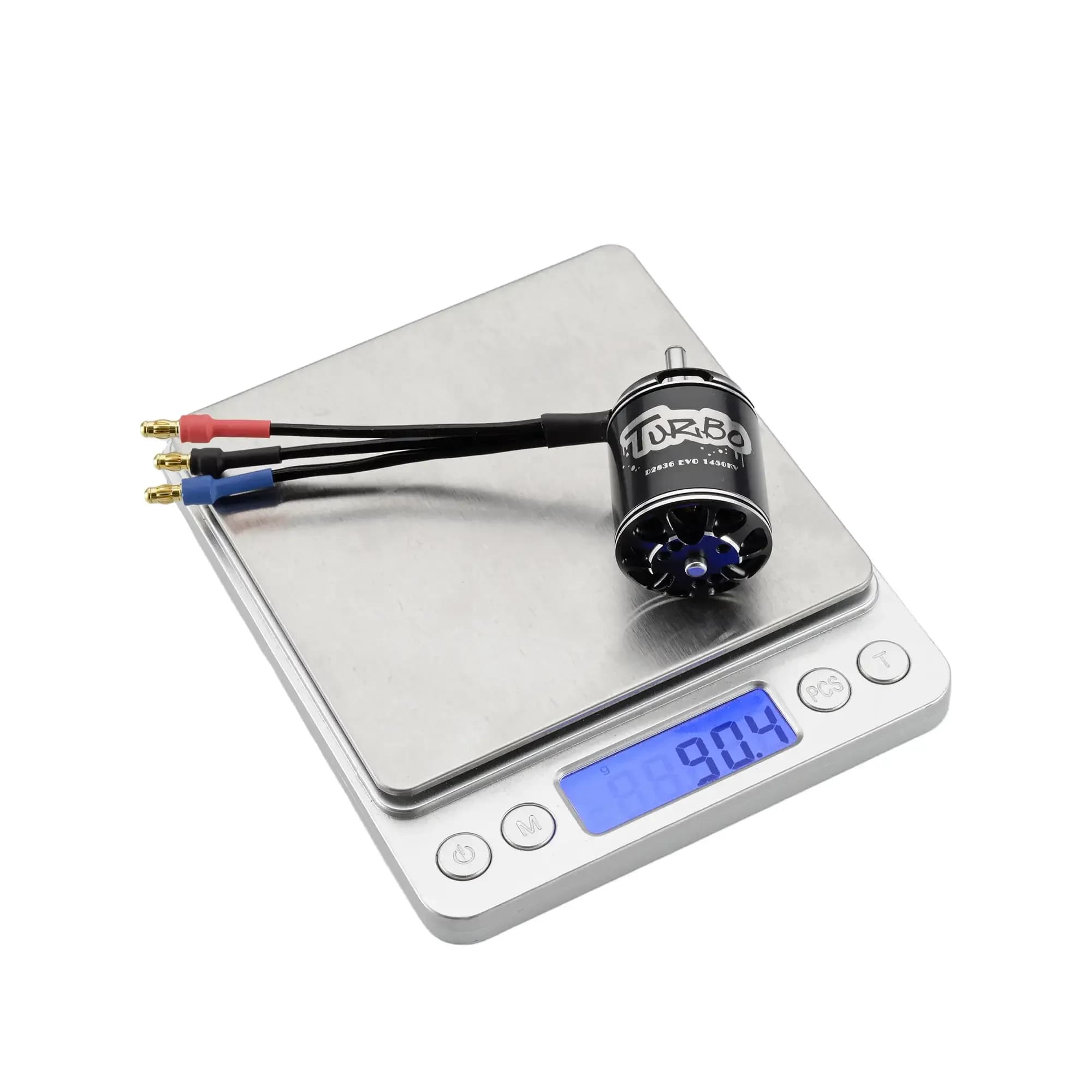

Weight: 88.6g(Including wires)
Motor Size: 28 x36mm
Shaft Size: 4.0*53.0mm
Motor Mount: 16*19mm(M3*4)
Configuration: 12N14P
KV Value: 750KV, 850KV,1100KV,1450KV or customed KV
Working Temperature Range:-0℃~+80℃
Control Method:Use ESC And Adjust PWM signal For Control,PWM Adjustment Range 900- 2100US
Motor Type: Outrunner Brushless Motor,Three-phase Motor
KV: 750KV
Max watts: 194.9W
Max Current: 11.95A
No Load current: 0.74A
Resistance: 124mΩ
Battery: 3-4S Lipo
Suggested Prop: 9 inch prop
KV: 850KV
Max watts: 244.5W
Max Current: 15.11A
No Load current: 0.92A
Resistance: 97.4mΩ
Battery: 3-4S Lipo
Suggested Prop: 10 inch prop
KV: 1100KV
Max watts: 462.7W
Max Current: 30.3A
No Load current: 1.37A
Resistance: 57.9mΩ
Battery: 3-4S Lipo
Suggested Prop: 9 inch prop
KV: 1450KV
Max watts: 739.6W
Max Current: 48.69A
No Load current: 2.24A
Resistance: 33.5mΩ
Battery: 3-4S Lipo
Suggested Prop: 9 inch prop
