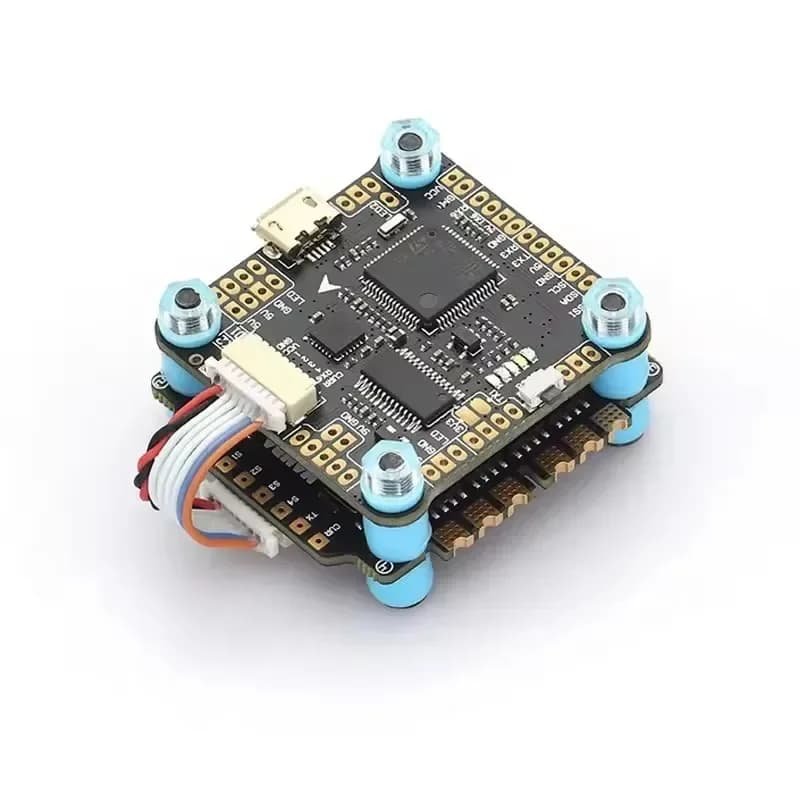

Original DIATONE MAMBA F405 MK2 V2 ICM42688-P Flight Controller W/ BLHeli_S F40/F55_BLS 4in1 ESC Dshot 300-1200 for RC FPV Drone

Description

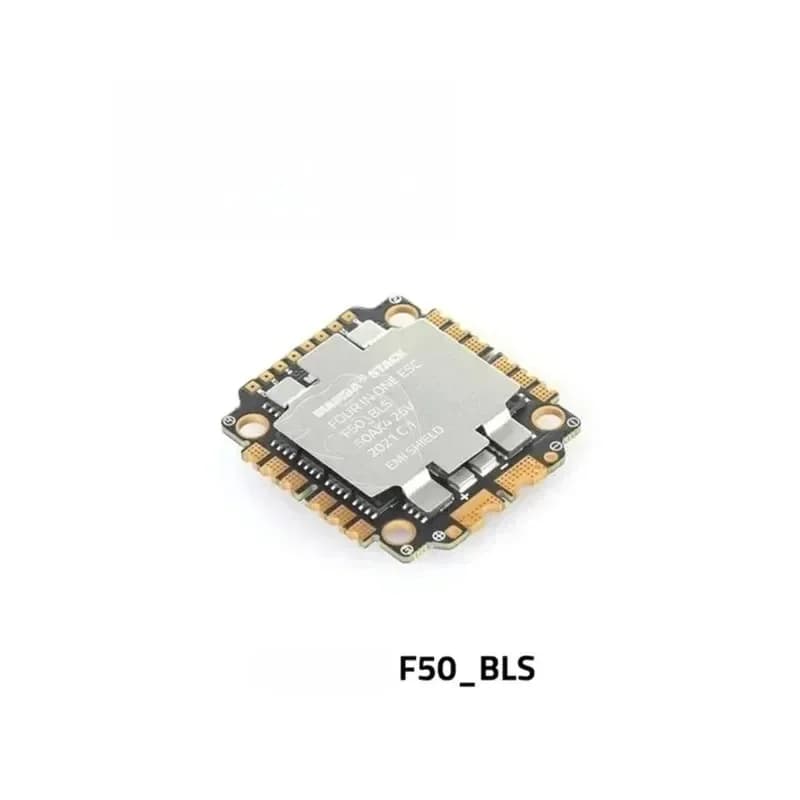

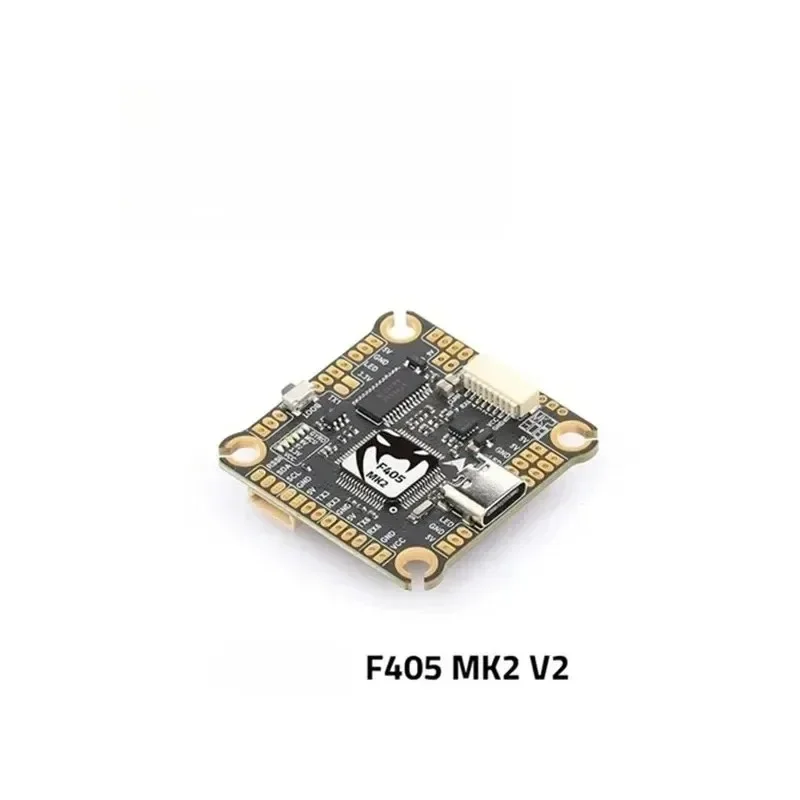

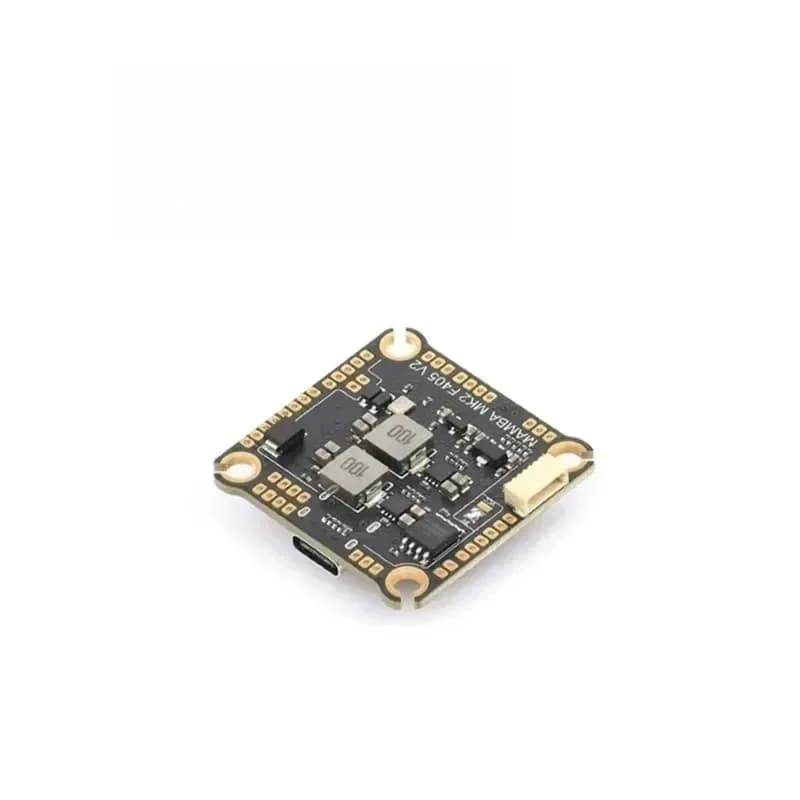

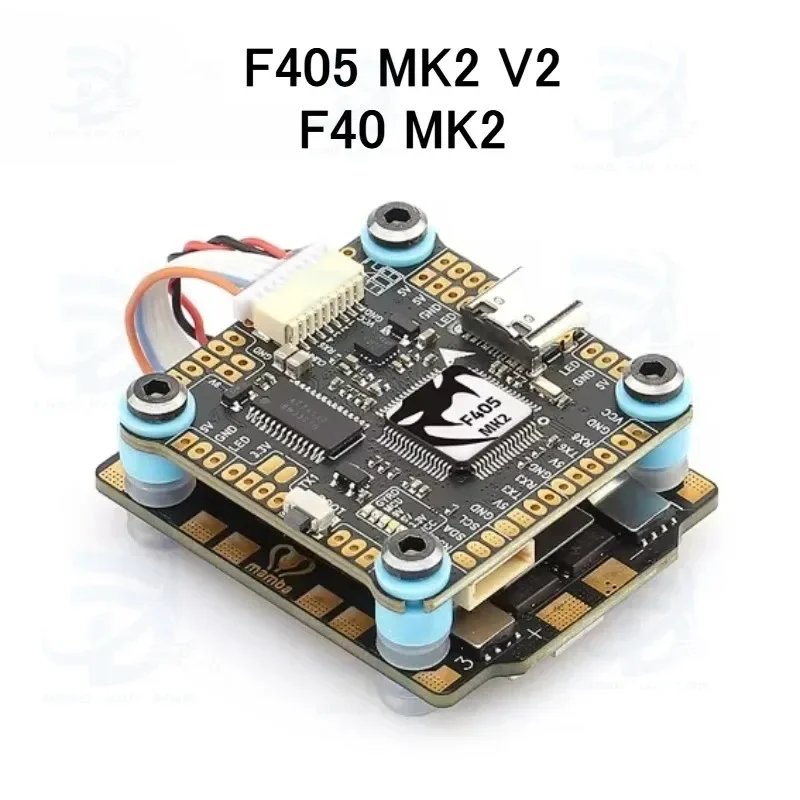

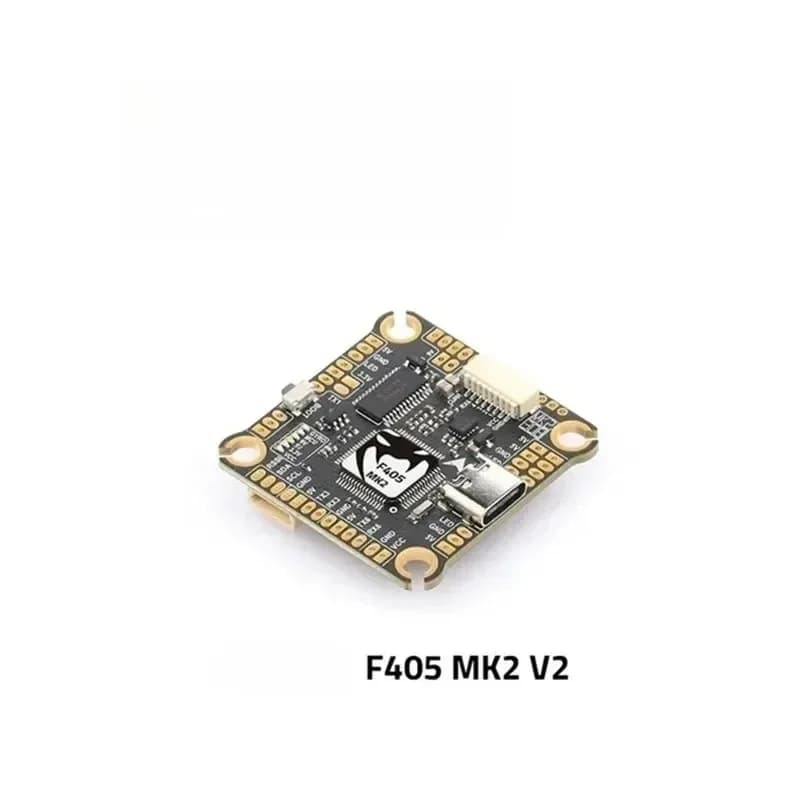

Original DIATONE MAMBA F405 MK2 V2 ICM42688-P Flight Controller W/ BLHeli_S F40/F55_BLS 4in1 ESC Dshot 300-1200 for RC FPV Drone ============================================================ Description MAMBA F405MK2 V2 Flight Controller ICM42688P MCU: 168MHz STM32F405 GYRO: ICM-42688-P Target：FURYF4OSD OSD: Yes Blacbox: 16M Flash Memory Barometer: No Uarts: 3 Set I2C: Yes F.Port: No RSSI: Yes Buzzer Pad: Yes CURR Pad: Yes ESC Signal: 4 Set ESC Soft: Dshot300/600 ESC Telemetry: Yes Power Led: Yes LED Controller:BF LED AIR UNIT Port: Yes WIFI: No VTX Switch: No Receiver Protection: Yes BEC Protection: Yes TVS Protection: Yes BEC:3.3V 0.5A& 5V 3A& 9V 3A Input: 3~6S Lipo (12.6~25.2V) Mounting size: 30.5mm/M3 ESC Specifications MAMBA F40MK2 Input voltage: 3~6S Lipo (12.6V~25.2V) Continue current:40A×4 Burst current 50A (10S) BEC: No Target：BLHeli_S CH40 SOFT: Dshot300/600 TVS Protection: No MOUNTING: 30.5mm/M3 MAMBA F50_BLS Input voltage: 3~6S Lipo (12.6V~25.2V) Continue current:50A×4 Burst current 50A (10S) BEC: No Target：BLHeli_S CH40 SOFT: Dshot300/600 TVS Protection: No MOUNTING: 30.5mm/M3 TECHNICAL SPECIFICATIONS • MCU: 168MHz STM32F405 • GYRO: ICM-42688-P • OSD: Yes • Barometer: No • MOUNTING: 30.5mm/M3 • I2C: Yes • Input: 3~6S Lipo (12.6~25.2V) AVAILABLE OPTIONS F405MK2 FC 40A Stack Only FC 42688 F405MK2 FC 55A Stack Only F55A BLS ESC Only F40A BLS ESC PRODUCT INFORMATION Brand: Diatone Category: FPV Drone Wholesale Price: US $46.62 ————————————————————————————————————————
