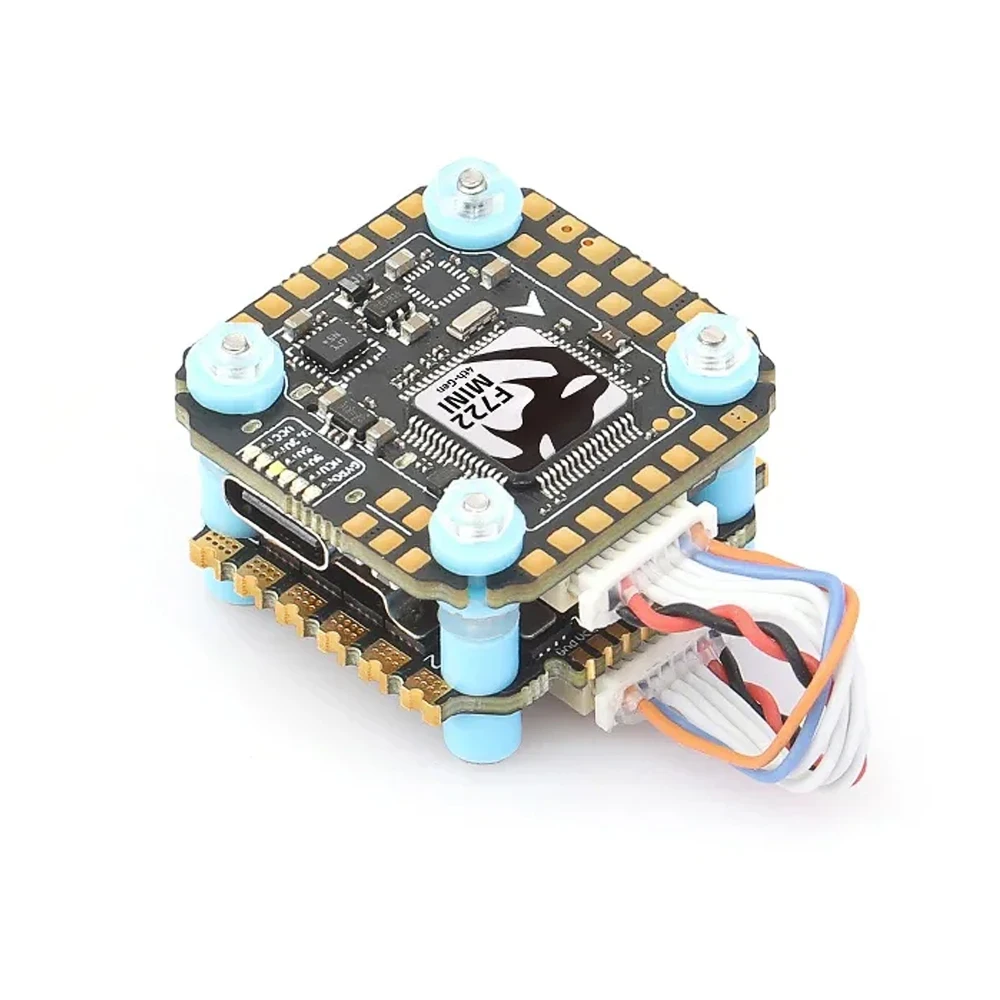

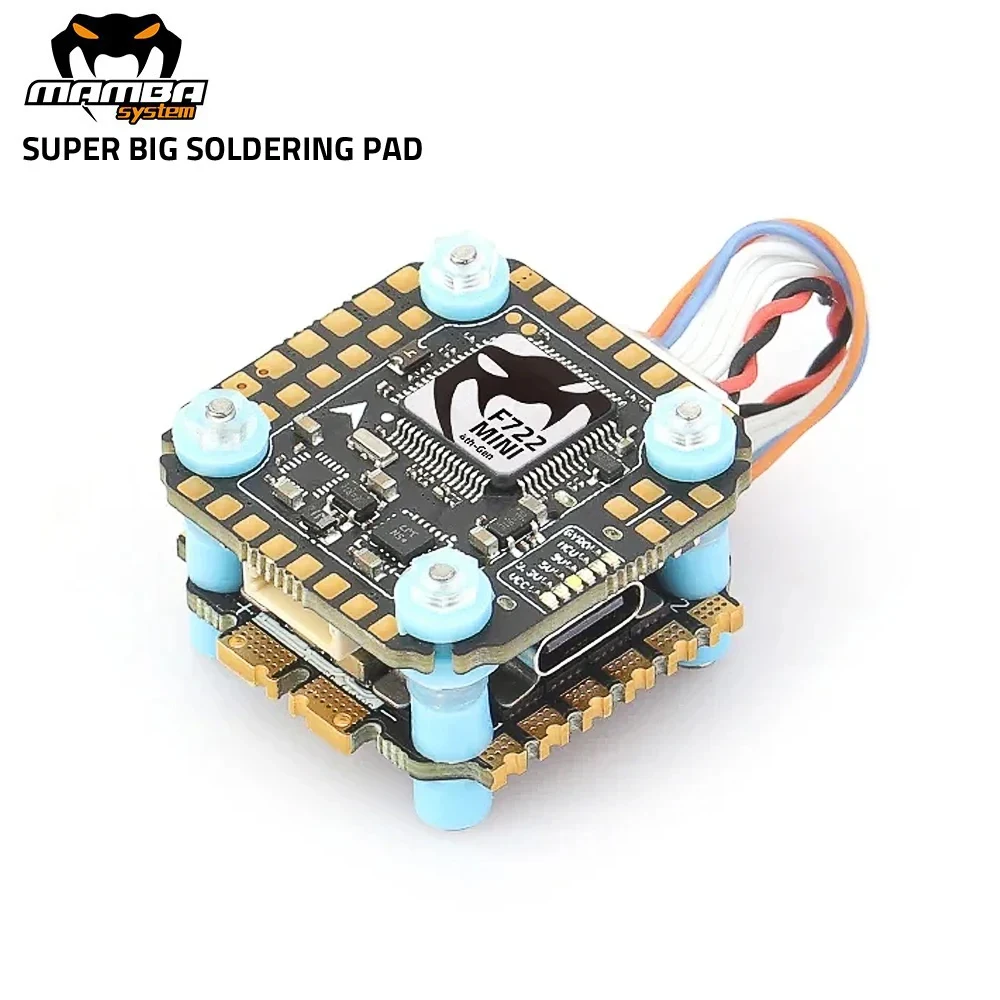

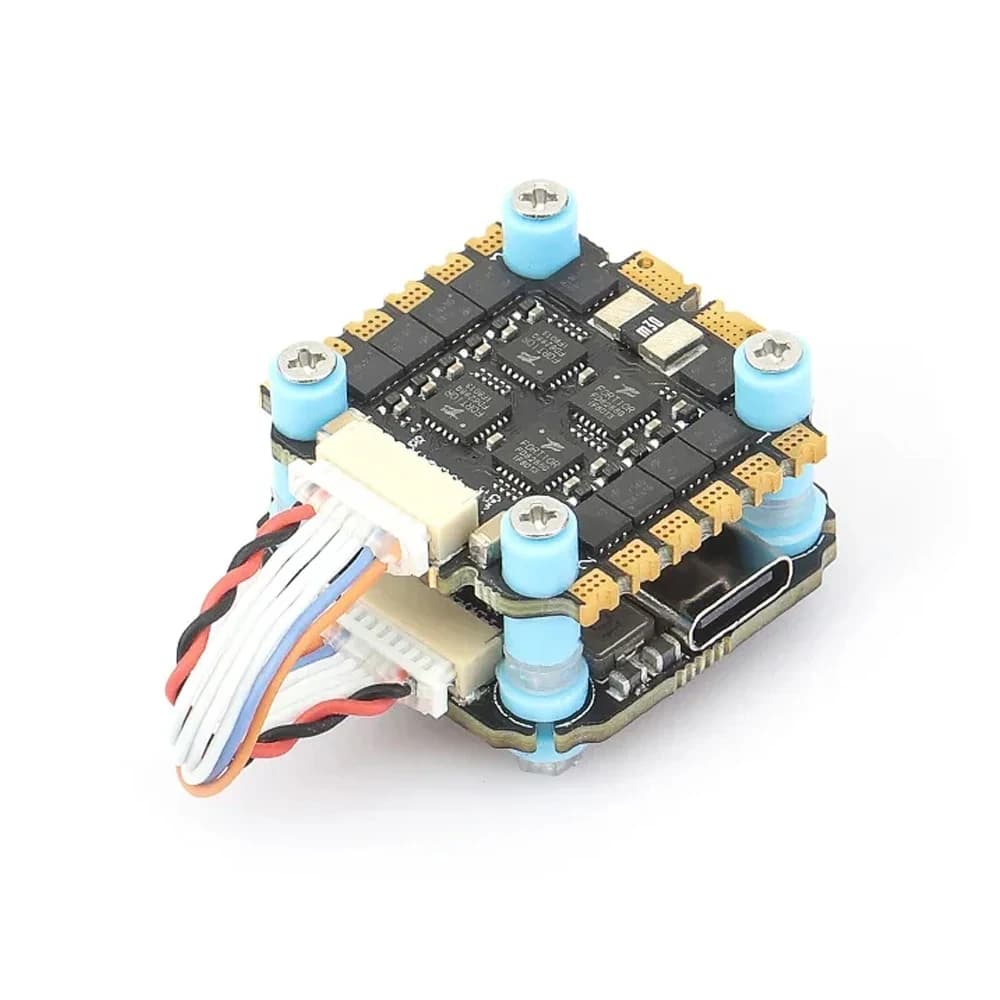

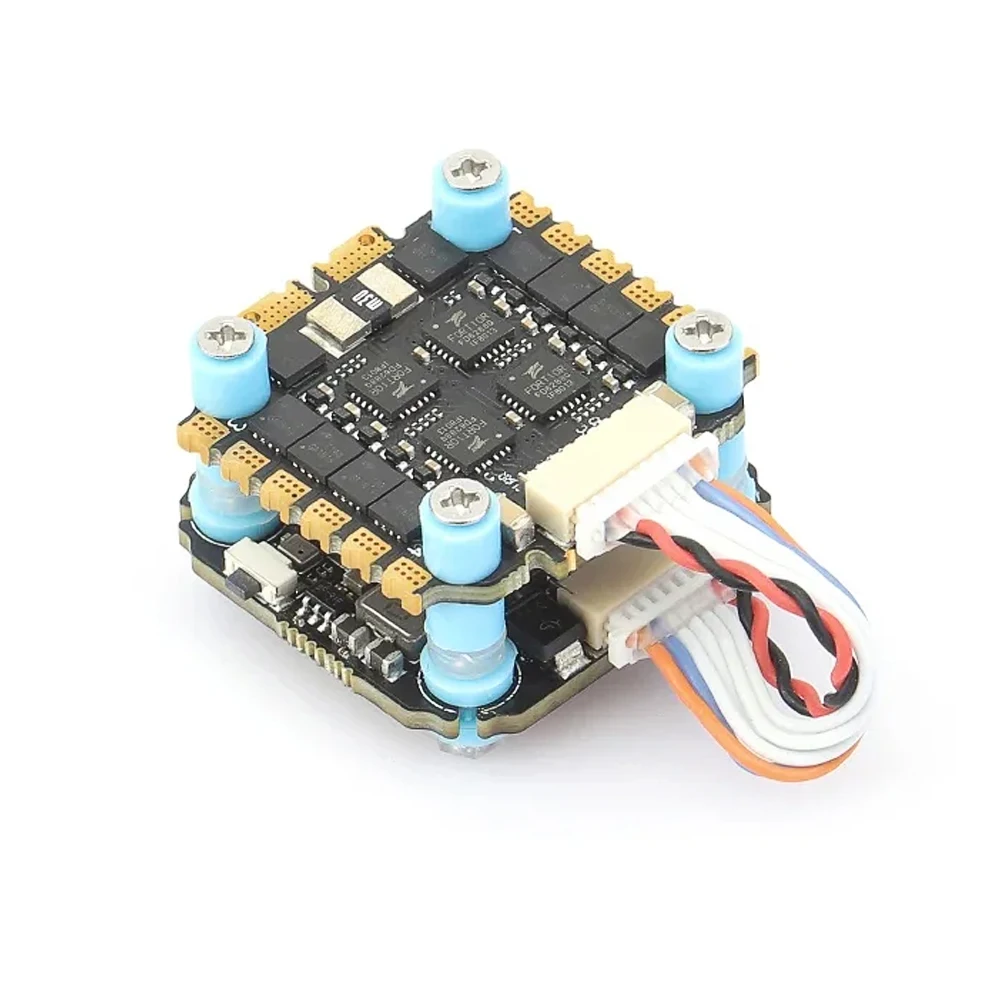

DIATONE MAMBA MK4 F722 MINI OSD Flight Controller W/ BLHeli_32 F40_128K ESC Dshot300/600/1200 3-6S for RC FPV Racing Drone Parts
2 orders (reference)
Description
DIATONE MAMBA MK4 F722 MINI OSD Flight Controller W/ BLHeli_32 F40_128K ESC Dshot300/600/1200 3-6S for RC FPV Racing Drone Parts ============================================================ DIATONE MAMBA MK4 F722 MINI OSD Flight Controller W/ BLHeli_32 F40 _128K ESC Dshot300/600/1200 3-6S for RC FPV Racing Drone MAMBA MK4 F722 MINI MCU: 216MHz STM32F722 GYRO: ICM42688P OSD: Yes Black box: 16M Flash Memory Barometer: SPL06 Number of serial ports: 6Set I2C: Yes F.Port: Yes RSSI: No Buzzer: Yes Galvanometer: Yes ESC signal: 8 Set ESC program: Dshot300/600/1200 ESC kickback: Yes Flight control status indicator: Yes LED control switch: BF LED Air terminal interface: Yes WIFI: No Video transmission power control: Yes Receiver Short Circuit Protection: Yes TVS power protection: Yes BEC: 3.3V 0.5A & 5V 2.5A & 9V 2A Input voltage: 3~6S Lipo (12.6~25.2V) Mounting hole: 20mm, M2/M3 MAMBA F40_128K_MINI Input voltage: 3~6S Lipo (12.6V~25.2V) Rated current: 40A×4 Peak current: 45A (10S) BEC: No Firmware: BLHeli_32 MAMBA F40_128K_MINI Program: Dshot300/600/1200 PWM: 24~128K TVS power protection: Yes Mounting hole: 20mm, M2/M3 Package Included: 1x MAMBA MK4 F722MINI FC 1x MAMBA F40_128K_MINI(optional) High Frequency 470uF/35V ×1 8pin sh1.0 ×2 AIR UNIT sh1.0 ×2 16AWG 60mm × 2 AMASS Original XT60 TECHNICAL SPECIFICATIONS • MCU: 216MHz STM32F722 • GYRO: ICM42688P • OSD: Yes • Barometer: SPL06 • Firmware: BLHeli_32 MAMBA F40_128K_MINI • I2C: Yes AVAILABLE OPTIONS F722MINI F40 128K F722 MINI FC F40 128K MINI ESC PRODUCT INFORMATION Brand: Diatone Category: FPV Drone Wholesale Price: US $39.26 ————————————————————————————————————————
Specifications
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Quantity | 1 pcs |
| Wheelbase | Bottom Plate |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| Size | NA |
| Technical parameters | KV1100 |
| Model Number | MAMBA MK4 F722 MINI Flight Controller |
| For Vehicle Type | Airplanes |
| Tool Supplies | Assembled class |
| Four-wheel Drive Attributes | Assemblage |
| Remote Control Peripherals/Devices | Remote Controller |
| Upgrade Parts/Accessories | MK4 F722 MINI Flight Controller |
| RC Parts & Accs | MINI Flight Controller |
| Material | Composite Material |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
| Certification | CE |
Product Details
- MCU: 216MHz STM32F722
- GYRO: ICM42688P
- OSD: Yes
- Black box: 16M Flash Memory
- Barometer: SPL06
- Number of serial ports: 6Set
- I2C: Yes
- F.Port: Yes
- RSSI: No
- Buzzer: Yes
- Galvanometer: Yes
- ESC signal: 8 Set
- ESC program: Dshot300/600/1200
- ESC kickback: Yes
- Flight control status indicator: Yes
- LED control switch: BF LED
- Air terminal interface: Yes
- WIFI: No
- Video transmission power control: Yes
- Receiver Short Circuit Protection: Yes
- TVS power protection: Yes
- BEC: 3.3V 0.5A & 5V 2.5A & 9V 2A
- Input voltage: 3~6S Lipo (12.6~25.2V)
- Mounting hole: 20mm, M2/M3
- Input voltage: 3~6S Lipo (12.6V~25.2V)
- Rated current: 40A×4
- Peak current: 45A (10S)
- BEC: No
- Firmware: BLHeli_32 MAMBA F40_128K_MINI
- Program: Dshot300/600/1200
- PWM: 24~128K
- TVS power protection: Yes
- Mounting hole: 20mm, M2/M3
- 1x MAMBA MK4 F722MINI FC
- 1x MAMBA F40_128K_MINI(optional)
- High Frequency 470uF/35V ×1
- 8pin sh1.0 ×2
- AIR UNIT sh1.0 ×2
- 16AWG 60mm × 2
- AMASS Original XT60
