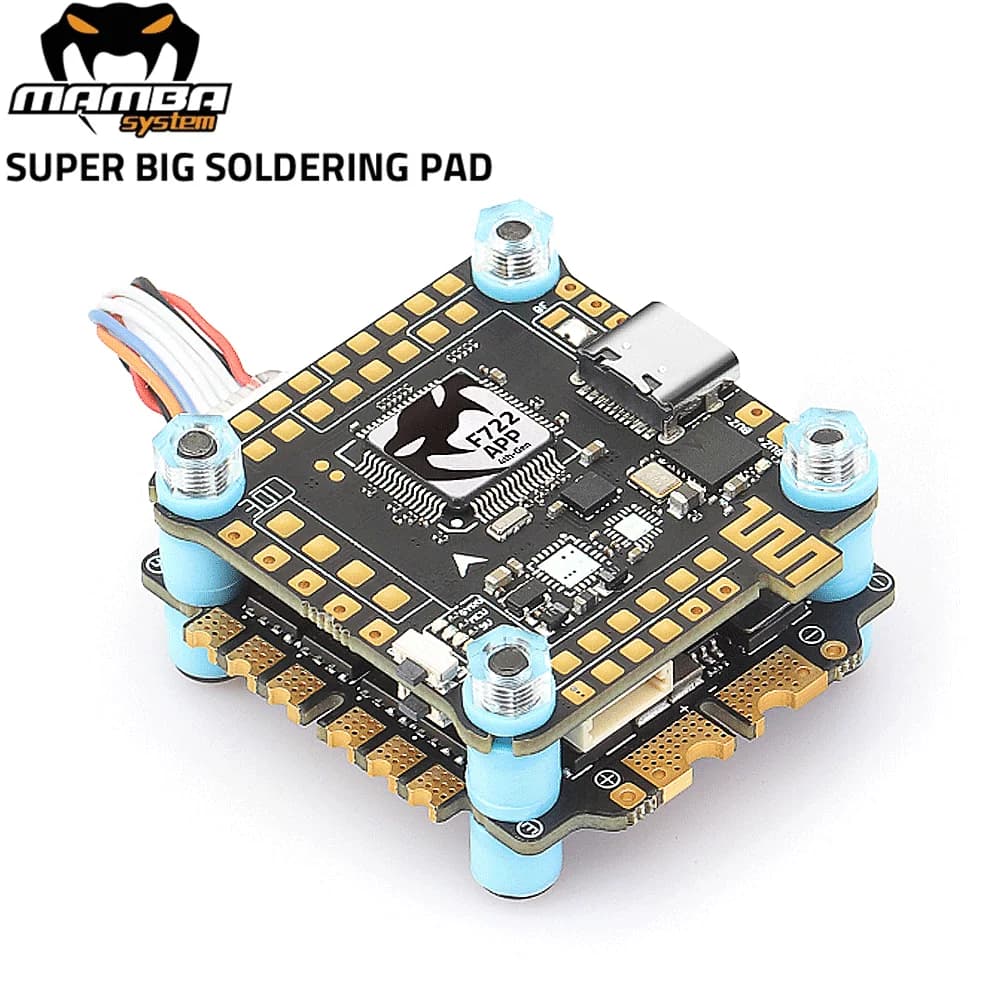

DIATONE MAMBA MK4 F722 Flight Controller ICM42688P W/ AM32 F55 / F65_128K 4in1 ESC Dshot 300/600/1200 for RC FPV Racing Drone
147 orders (reference)
Description
DIATONE MAMBA MK4 F722 Flight Controller ICM42688P W/ AM32 F55 / F65_128K 4in1 ESC Dshot 300/600/1200 for RC FPV Racing Drone ============================================================ DIATONE MAMBA MK4 F722 Flight Controller ICM42688P W/ AM32 F55 / F65_128K 4in1 ESC Dshot 300/600/1200 for RC FPV Racing Drone MAMBA MK4 F722 (ICM42688P) MCU: 216MHz STM32F722 GYRO: ICM42688P OSD: Yes Black box: 16M Flash Memory Barometer: SPL06 Number of serial ports: 6 Set I2C: Yes F.Port: Yes RSSI: No Buzzer: Yes Galvanometer: Yes ESC signal: 8 Set ESC program: Dshot300/600/1200 ESC return port: Yes Flight control power indicator: Yes LED control switch: BF LED/MB LED Air terminal interface: Yes Video transmission power control: Yes Receiver Short Circuit Protection: Yes TVS power protection: Yes BEC: 3.3V 0.5A & 5V 3A & 9V 3A Input voltage: 3~6S Lipo (12.6~25.2V) Mounting hole: 30.5mm, M3 Accessories: High -frequency filter capacitance 1000uf/35V × 1 8Pin SH1.0 Flying Control Electrocontonal Connection × 2 AMASS XT60 power plug × 1 MAMBA AM32 F55_128K Working voltage: 4 ~ 6S Lipo (16.8V ~ 25.2V) Work current: 55A × 4 Peak current: 65A (10S) BEC output: NO Firmware: AM32 MABA F55_128K Agreement: DSHOT300/600/1200 PWM: 24 ~ 128K TVS Power Protection: Yes Installation size: 30.5mm/m3 Accessories: High -frequency filter capacitance 1000uf/35V × 1 8Pin SH1.0 Flying Control Electrocontonal Connection × 2 AMASS XT60 power plug × 1 MAMBA AM32 F65_128K Working voltage: 4 ~ 6S Lipo (16.8V ~ 25.2V) Work current: 65A × 4 Peak current: 75A (10S) BEC output: NO Firmware: AM32 MABA F65_128K Agreement: DSHOT300/600/1200 PWM: 24 ~ 128K TVS Power Protection: Yes Installation size: 30.5mm/m3 Accessories: High -frequency filter capacitance 1000uf/35V × 1 8Pin SH1.0 Flying Control Electrocontonal Connection × 2 AMASS XT60 power plug × 1 TECHNICAL SPECIFICATIONS • MCU: 216MHz STM32F722 • GYRO: ICM42688P • OSD: Yes • Barometer: SPL06 • Firmware: AM32 MABA F55_128K • Firmware: AM32 MABA F65_128K • I2C: Yes AVAILABLE OPTIONS MK4 F722 FC F55 128K ESC F65 128K ESC MK4 F722 F55 128K MK4 F722 F65 128K PRODUCT INFORMATION Brand: Diatone Category: FPV Drone Wholesale Price: US $47.01 ————————————————————————————————————————
Specifications
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Quantity | 1 pcs |
| Wheelbase | Bottom Plate |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| Size | NA |
| Technical parameters | KV1100 |
| Model Number | MAMBA MK4 F722APP ICM42688P |
| For Vehicle Type | Airplanes |
| Tool Supplies | Assembled class |
| Four-wheel Drive Attributes | Assemblage |
| Remote Control Peripherals/Devices | Remote Controller |
| Upgrade Parts/Accessories | Flight Stack |
| RC Parts & Accs | MAMBA MK4 F722 APP ICM42688P |
| Material | Composite Material |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
| Certification | CE |
Product Details

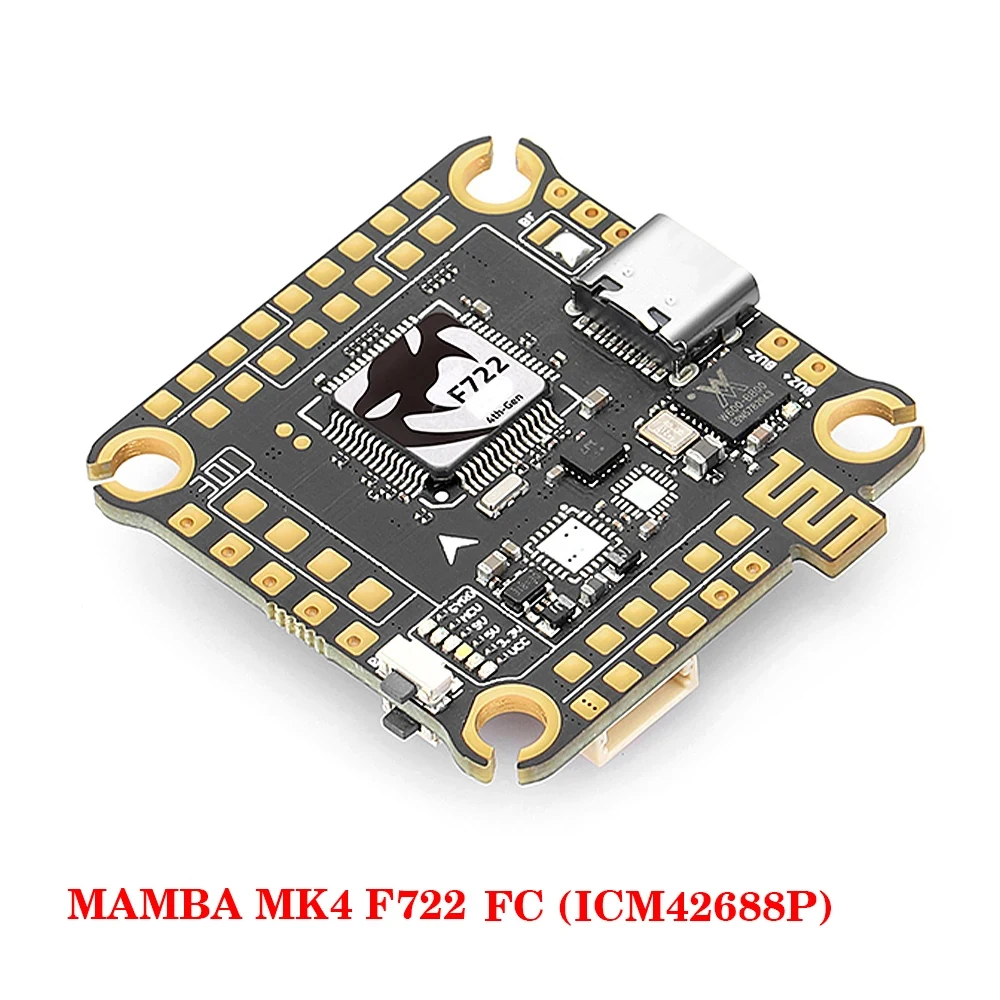

MAMBA MK4 F722 (ICM42688P)
-
MCU: 216MHz STM32F722
-
GYRO: ICM42688P
-
OSD: Yes
-
Black box: 16M Flash Memory
-
Barometer: SPL06
-
Number of serial ports: 6 Set
-
I2C: Yes
-
F.Port: Yes
-
RSSI: No
-
Buzzer: Yes
-
Galvanometer: Yes
-
ESC signal: 8 Set
-
ESC program: Dshot300/600/1200
-
ESC return port: Yes
-
Flight control power indicator: Yes
-
LED control switch: BF LED/MB LED
-
Air terminal interface: Yes
-
Video transmission power control: Yes
-
Receiver Short Circuit Protection: Yes
-
TVS power protection: Yes
-
BEC: 3.3V 0.5A & 5V 3A & 9V 3A
-
Input voltage: 3~6S Lipo (12.6~25.2V)
-
Mounting hole: 30.5mm, M3
-
High -frequency filter capacitance 1000uf/35V × 1
-
8Pin SH1.0 Flying Control Electrocontonal Connection × 2
-
AMASS XT60 power plug × 1

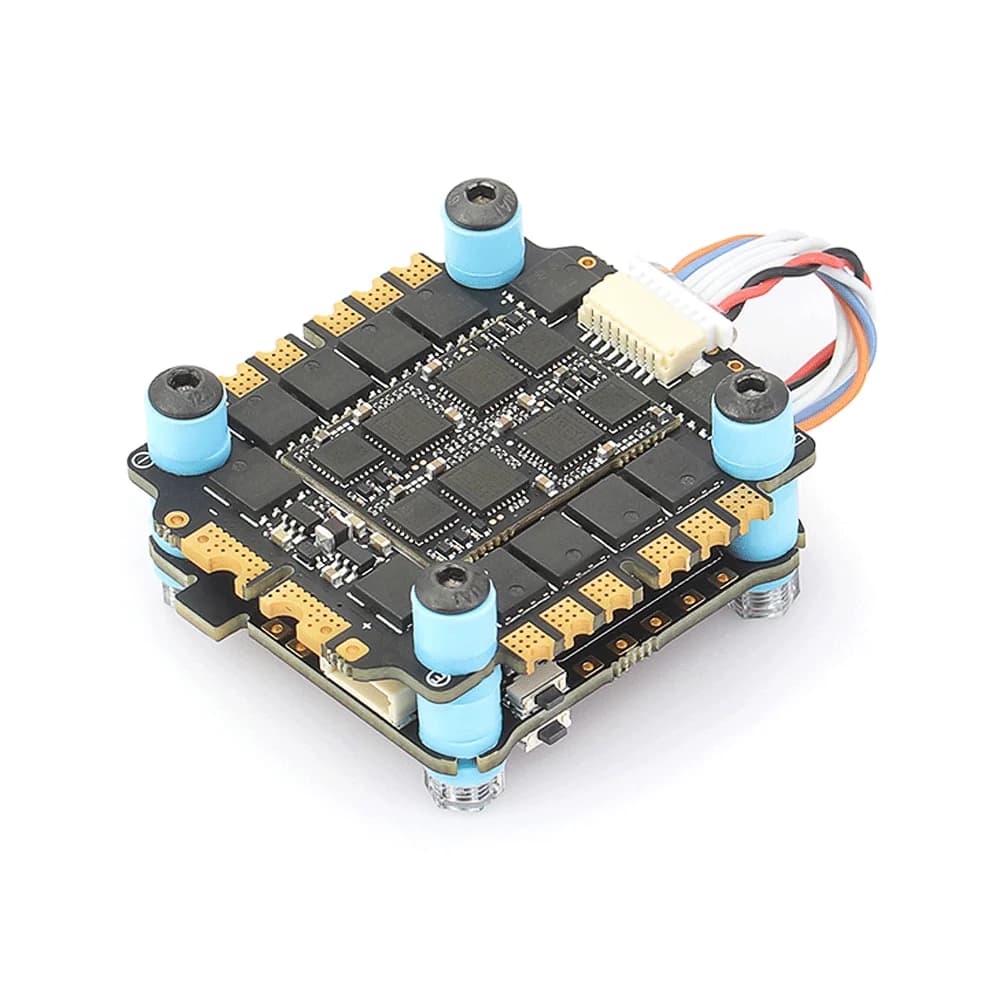

MAMBA AM32 F55_128K
-
Working voltage: 4 ~ 6S Lipo (16.8V ~ 25.2V)
-
Work current: 55A × 4
-
Peak current: 65A (10S)
-
BEC output: NO
-
Firmware: AM32 MABA F55_128K
-
Agreement: DSHOT300/600/1200
-
PWM: 24 ~ 128K
-
TVS Power Protection: Yes
-
Installation size: 30.5mm/m3
Accessories:
-
High -frequency filter capacitance 1000uf/35V × 1
-
8Pin SH1.0 Flying Control Electrocontonal Connection × 2
-
AMASS XT60 power plug × 1

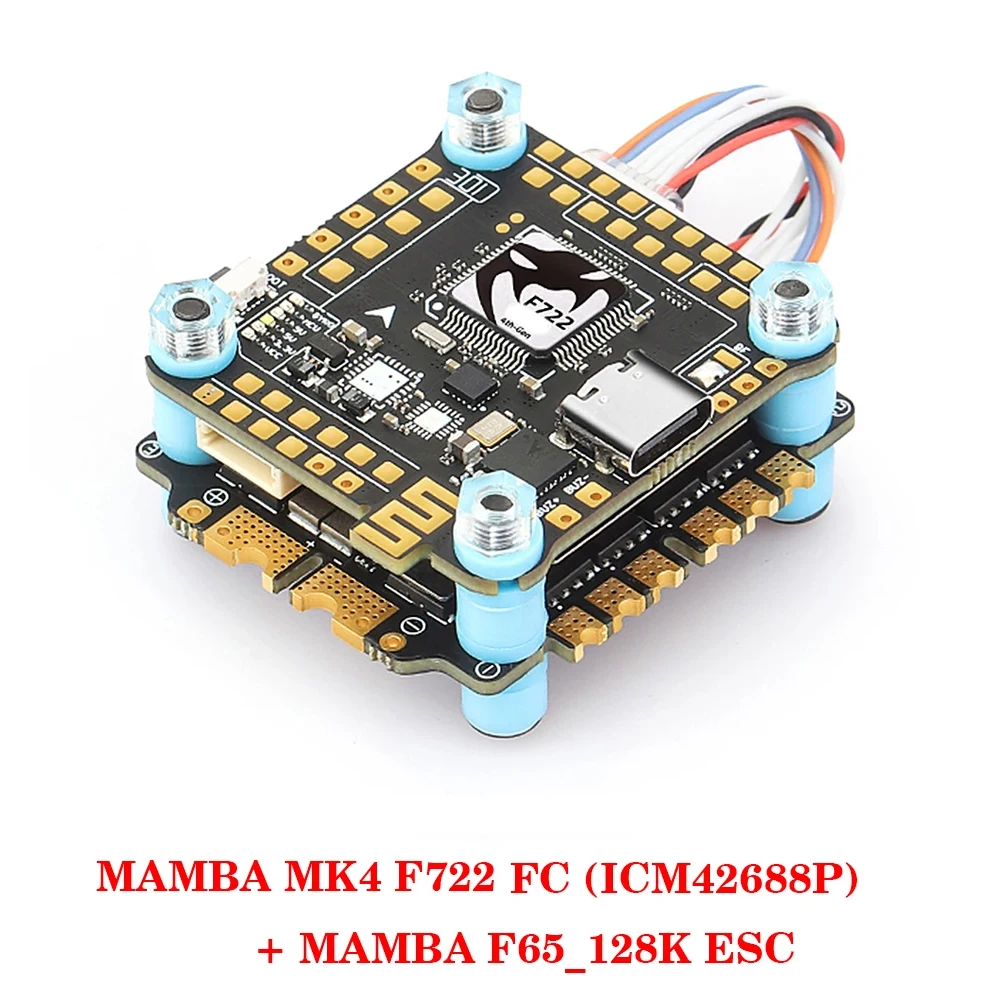

MAMBA AM32 F65_128K
-
Working voltage: 4 ~ 6S Lipo (16.8V ~ 25.2V)
-
Work current: 65A × 4
-
Peak current: 75A (10S)
-
BEC output: NO
-
Firmware: AM32 MABA F65_128K
-
Agreement: DSHOT300/600/1200
-
PWM: 24 ~ 128K
-
TVS Power Protection: Yes
-
Installation size: 30.5mm/m3
Accessories:
-
High -frequency filter capacitance 1000uf/35V × 1
-
8Pin SH1.0 Flying Control Electrocontonal Connection × 2
-
AMASS XT60 power plug × 1
=
