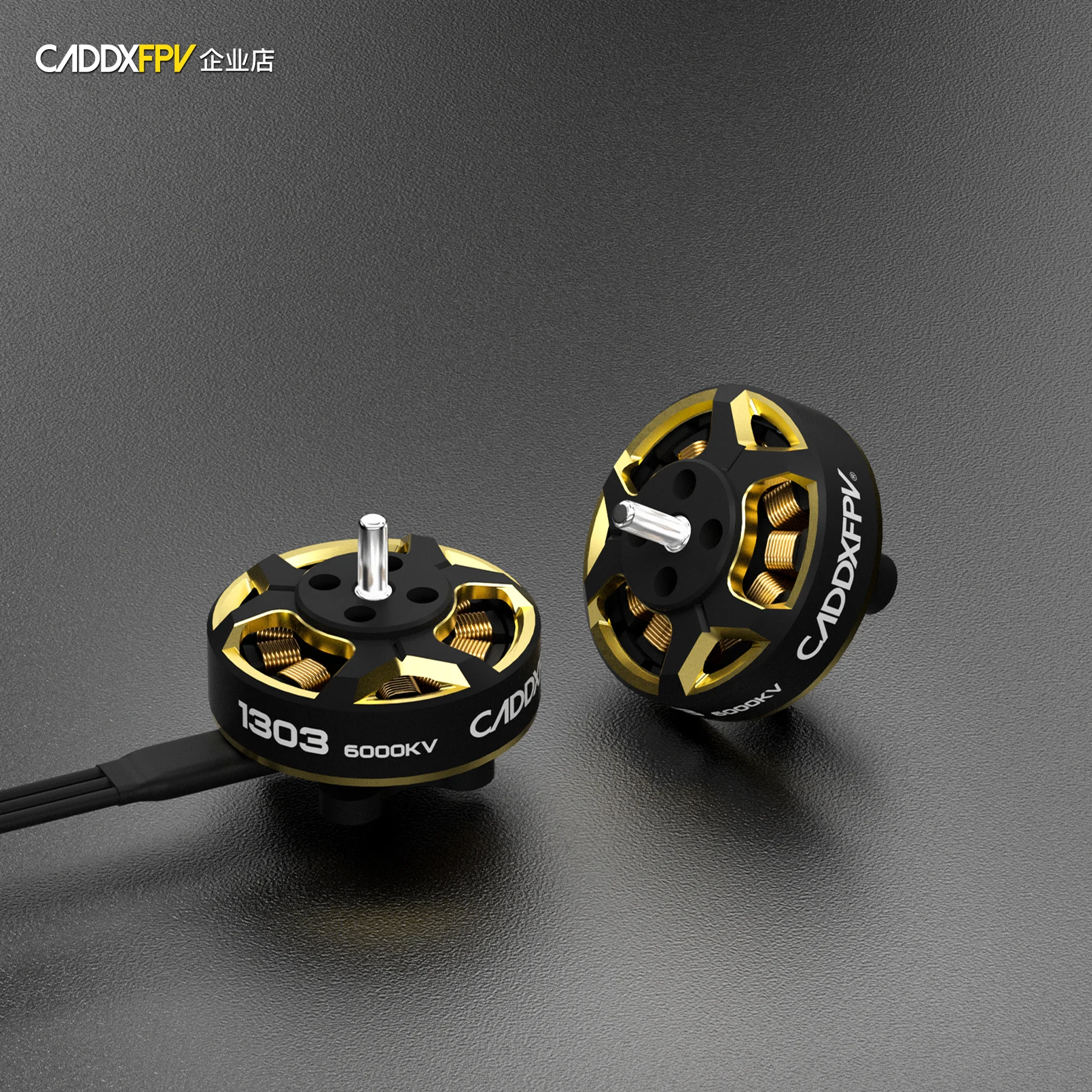

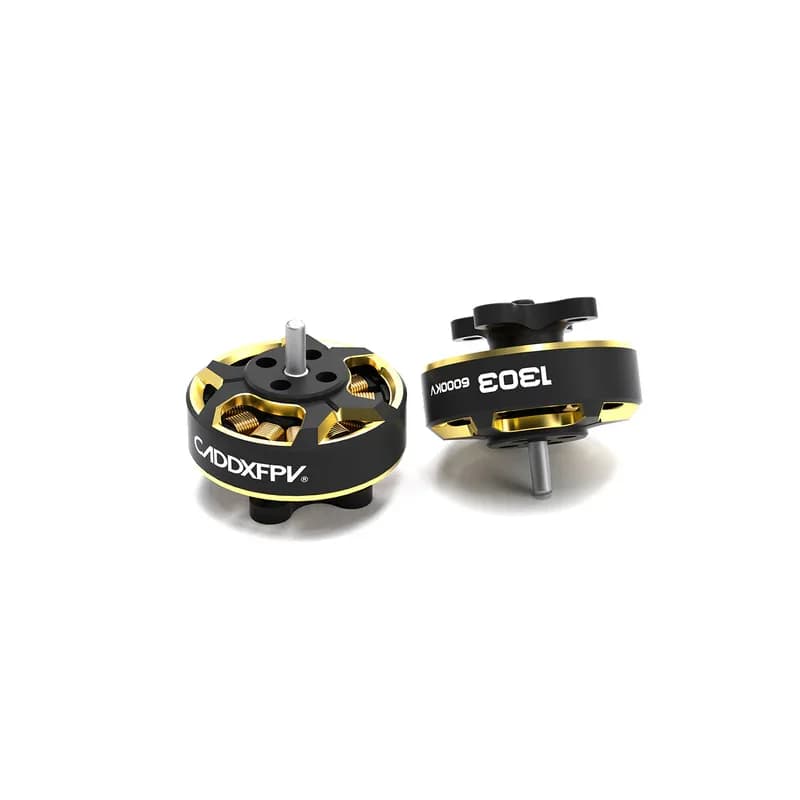

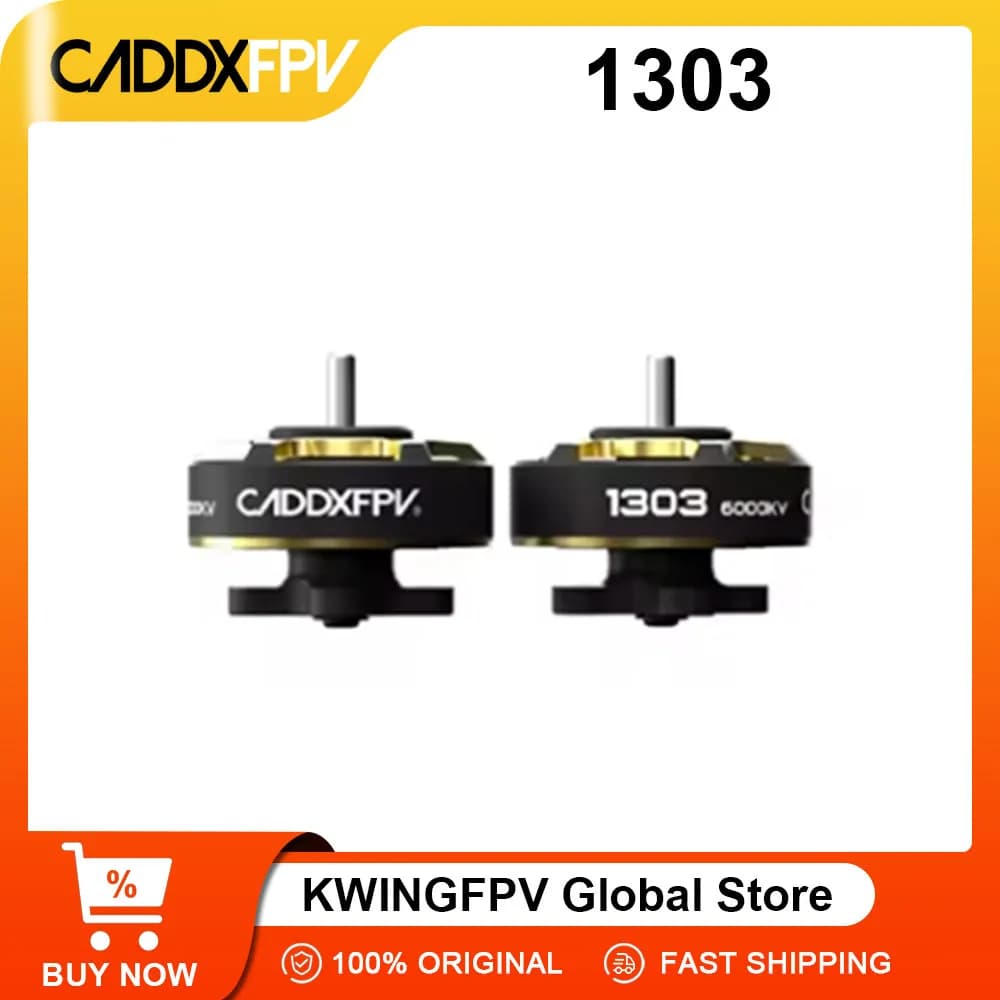

CADDX 1303 6000KV Brushless Motors For Racing Drone Gofilm 20 1PCS For Gofilm 20 2inch FPV Drones DIY Parts CADDXFPV
28 orders (reference)
Description
CADDX 1303 6000KV Brushless Motors For Racing Drone Gofilm 20 1PCS For Gofilm 20 2inch FPV Drones DIY Parts CADDXFPV ============================================================ Feature: The CADDXFPV 1303 motor is a perfect candidate for a lightweight 2S to 4S setup. It can be built using regular one-piece injection molding to run 2-inch props on. And take it to the next level with our Gofilm 20 Brushless Whoop Quadcopter. CADDXFPV T2-2-3 3-Blade Propellers 1.3mm Shaft will be the best match with CADDXFPV 1303 Brushless Motors, which forms a highly efficient power system, guaranteeing powerful flight capabilities and reduced noise levels. Perfectly match with Super F405HD ELRS AIO, this motor will bring pilots a powerful flight experience. Specifications Model 1303 6000KV Brushless Motors KV 6000 Configu-ration 12N14P Stator Diamter 13mm stator Length 3.2mm Shaft Diameter 1.5mm Dimension(Dia.*Len) Ф 16.5*10.1mm Weight(g) 5.6(5cm wire) Idle current(5)@5V(A) 0.7 No.of Cells(Lipo) 2~4S Max ContinuousPower(W)3s 250 internal Resistance 166mΩ Max Current(3S) 16.9A Max.Effciency Current (2-5A)>85% AVAILABLE OPTIONS WHITE PRODUCT INFORMATION Brand: Caddx Category: Brushless Motor Wholesale Price: US $22.92 ————————————————————————————————————————
Specifications
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Quantity | 1 pcs |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| Size | 1303 |
| Four-wheel Drive Attributes | Motors |
| Remote Control Peripherals/Devices | Motor |
| RC Parts & Accs | Motors |
| Material | Metal |
| Brand Name | CADDXFPV |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
Product Details
Feature:
The CADDXFPV 1303 motor is a perfect candidate for a lightweight 2S to 4S setup. It can be built using regular one-piece injection molding to run 2-inch props on. And take it to the next level with our Gofilm 20 Brushless Whoop Quadcopter.
CADDXFPV T2-2-3 3-Blade Propellers 1.3mm Shaft will be the best match with CADDXFPV 1303 Brushless Motors, which forms a highly efficient power system, guaranteeing powerful flight capabilities and reduced noise levels.
Perfectly match with Super F405HD ELRS AIO, this motor will bring pilots a powerful flight experience.
Specifications
Model 1303 6000KV Brushless Motors
KV 6000
Configu-ration 12N14P
Stator Diamter 13mm
stator Length 3.2mm
Shaft Diameter 1.5mm
Motor
Dimension(Dia.*Len) Ф 16.5*10.1mm
Weight(g) 5.6(5cm wire)
Idle current(5)@5V(A) 0.7
No.of Cells(Lipo) 2~4S
Max ContinuousPower(W)3s 250
internal Resistance 166mΩ
Max Current(3S) 16.9A
Max.Effciency Current (2-5A)>85%
