HV PM power module introduction:

HV_PM Power module high voltage ammeter

supports 60V voltage input and provides 5V/5A to

power the flight controller. Voltage detection accuracy: ±0.1V, current detection accuracy: ±0.2A

HV PM power module features:

1 --Support higher input voltages.

2 --Supports higher power port output currents.

3 --Max detection current

Hold more high input voltage: 10v-60v (3s ~ 14s battery)

More accurate current and voltage detection: Voltage detection accuracy: + - 0.1v; Current detection accuracy: + - 0.2aA

Support higher power port output current: 5A

Maximum (detection) current: 60A

Function:

Provide 5V voltage output and maximum 5A current to fly control power supply

Detection of the current voltage output analog signal to the flight control

Detection of the current system output analog signal to the flight control

Because PIX flight control ADC maximum detection voltage of 3.3, so the maximum can only support 60A current detection.

Its use is very simple, 6P signal line into the flight control POWER connector

Ground station settings:

Use USB or digital connection to the ground station

Initial Setup >> Optional Hardware >> Battery Detector

Select monitor: 4; Sensor 0; APM version 4; Fill in divider ratio 18; fill amperes per volt: 24

Manual calibration voltage:

Because the PM module is an analog sensor device, there may be some differences

You can calibrate the parameters for better accuracy

Pre-calibration preparation:

1: Multimeter or BB ring (calibration voltage use)

Calibration voltage steps:

1: Use battery power, and connect to the ground station

2: Use the multimeter or BB to measure the current battery voltage

3: Select the sensor version is 0, in the measured battery voltage input current measured voltage filled into the box, click the mouse or click the TAB button, the ground station will automatically calculate a partial pressure ratio coefficient and automatically save the write Flight control

Product List

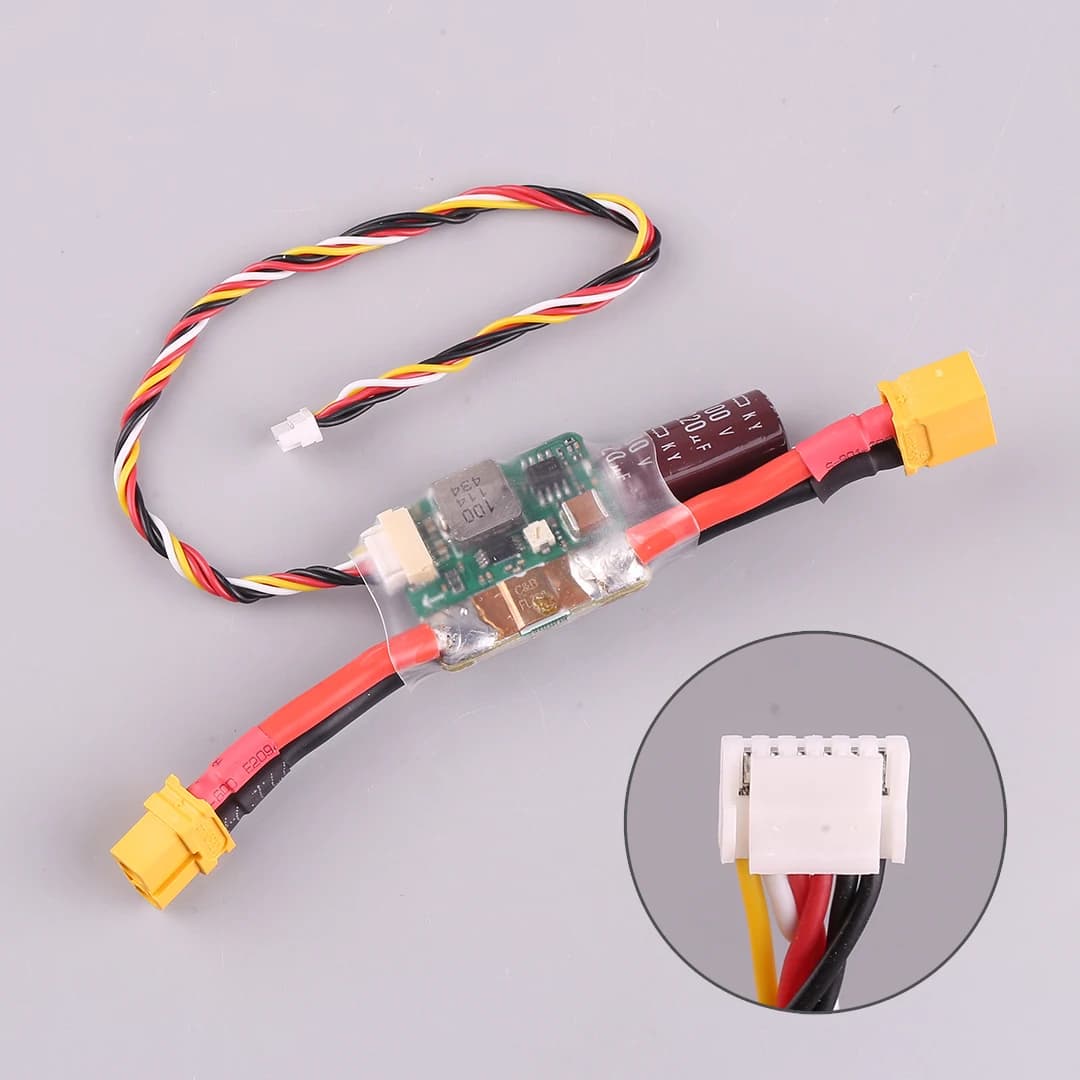

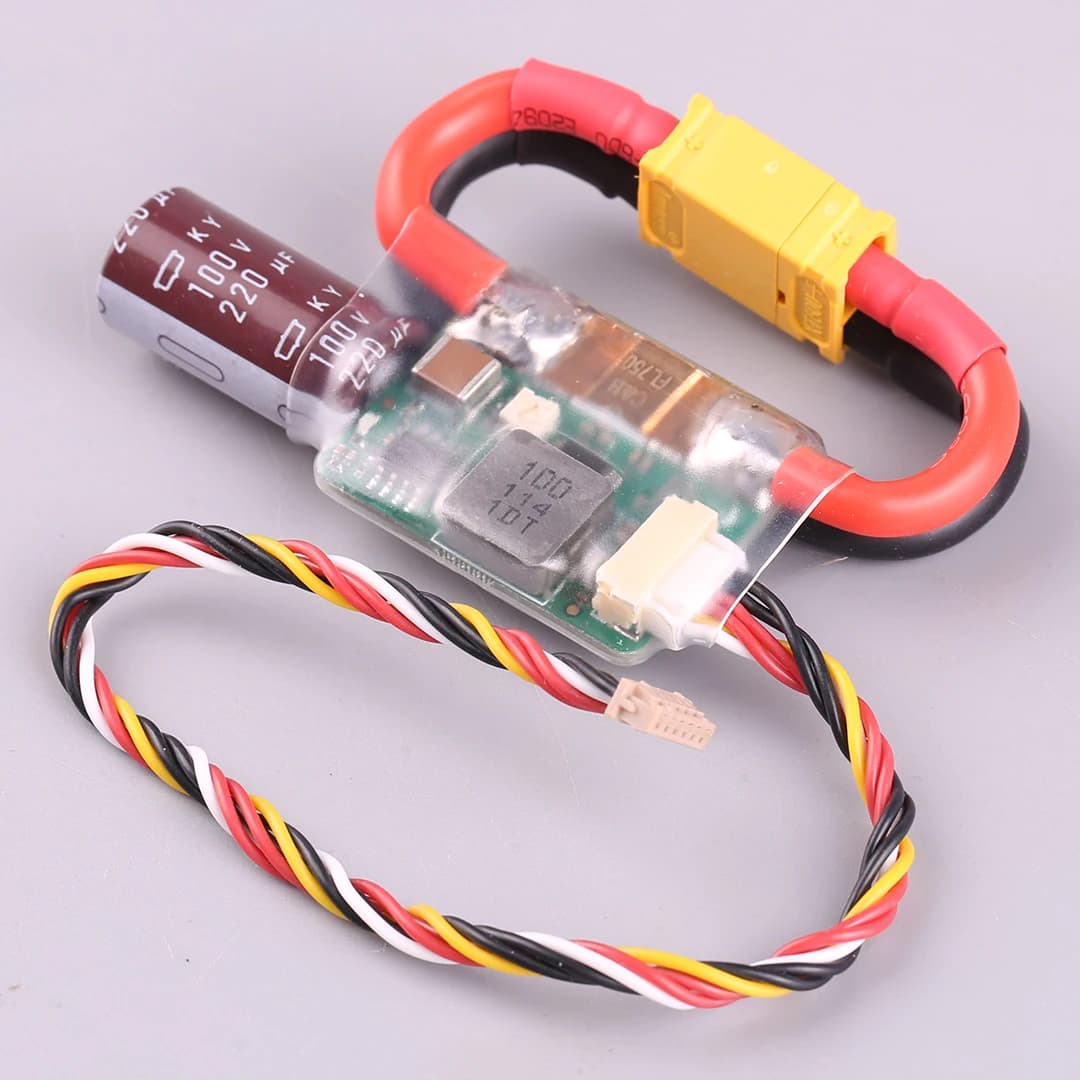

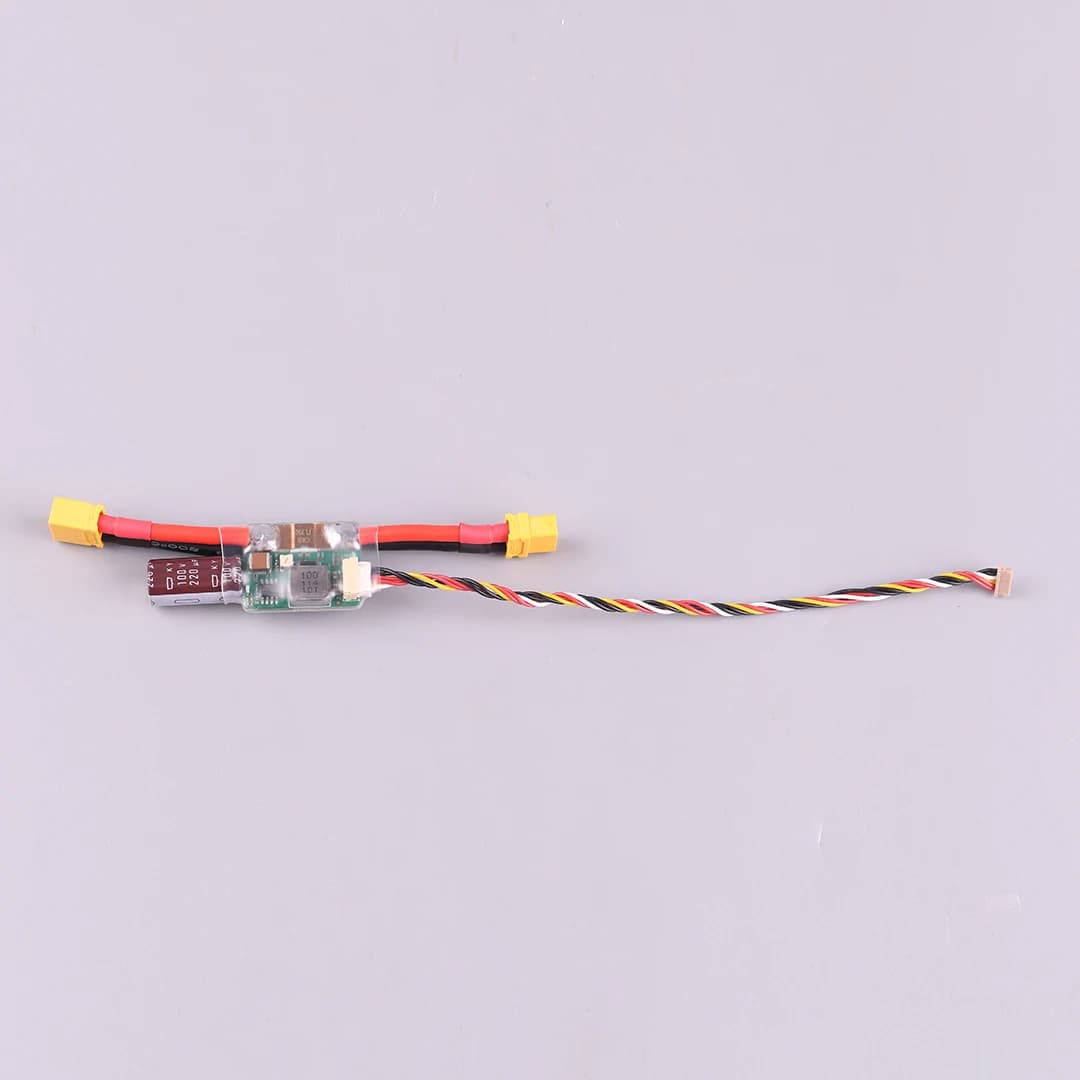

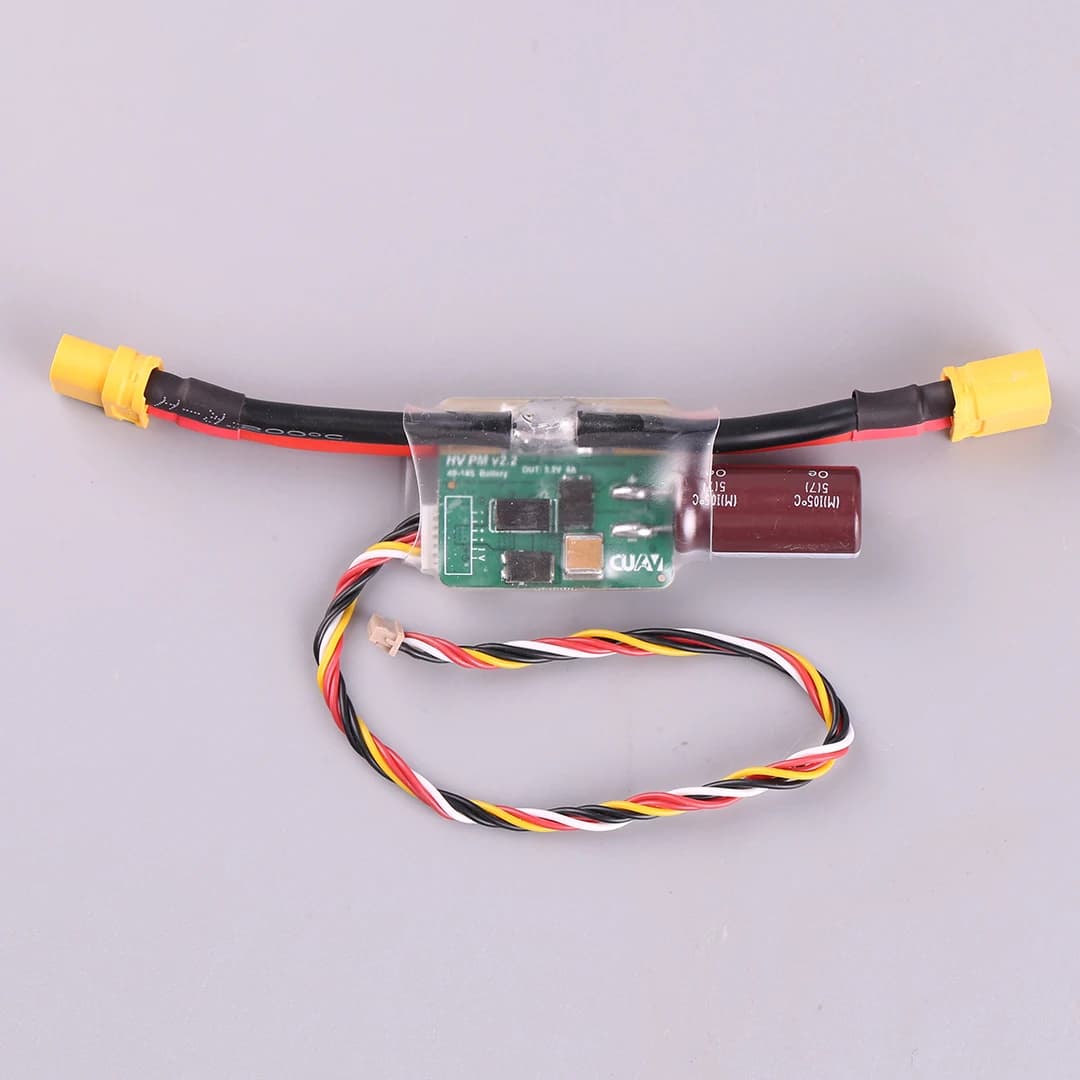

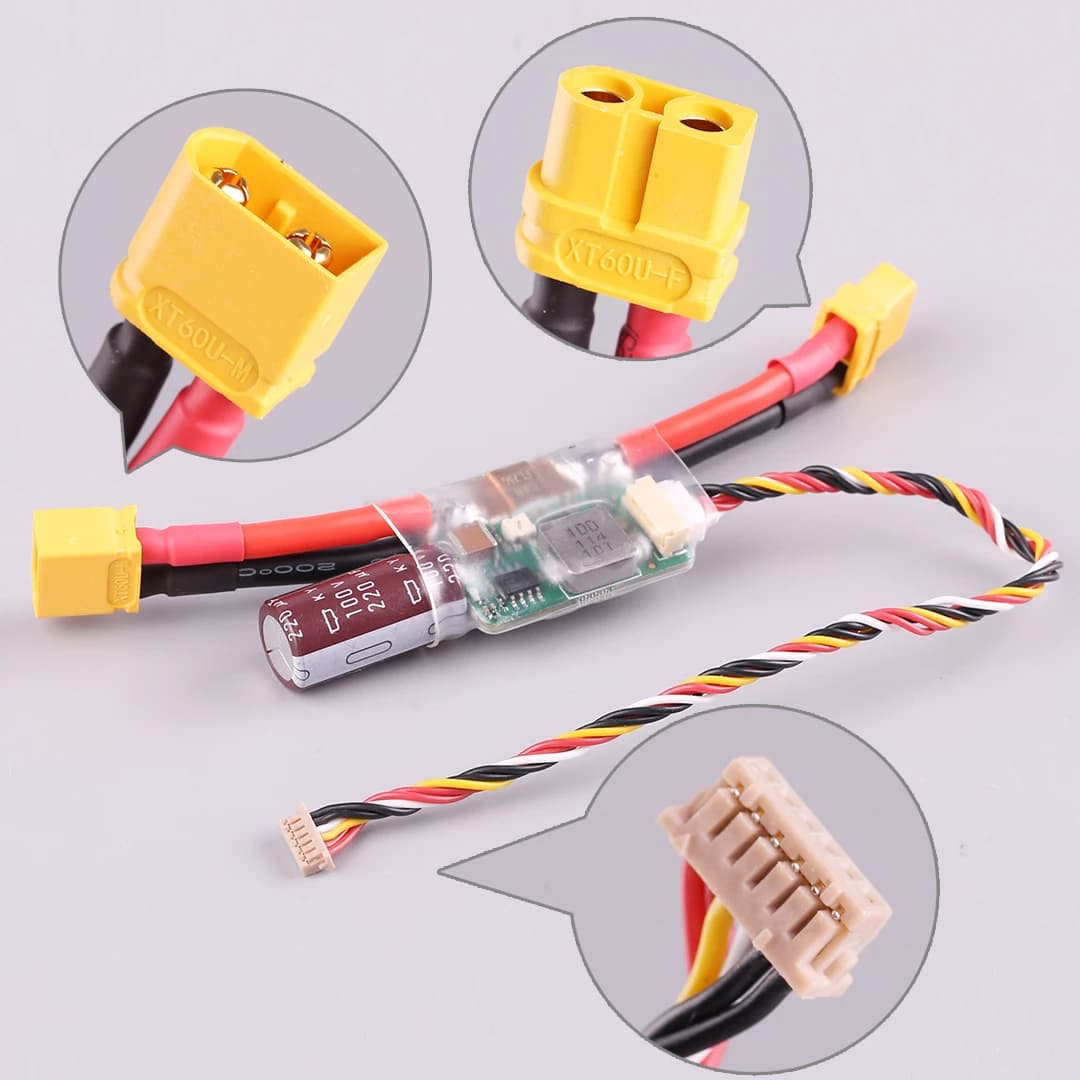

HV-PM power module (welded XT60 wire connector) * 1 unit

1 data cable

Packaging bag * 1 piece
