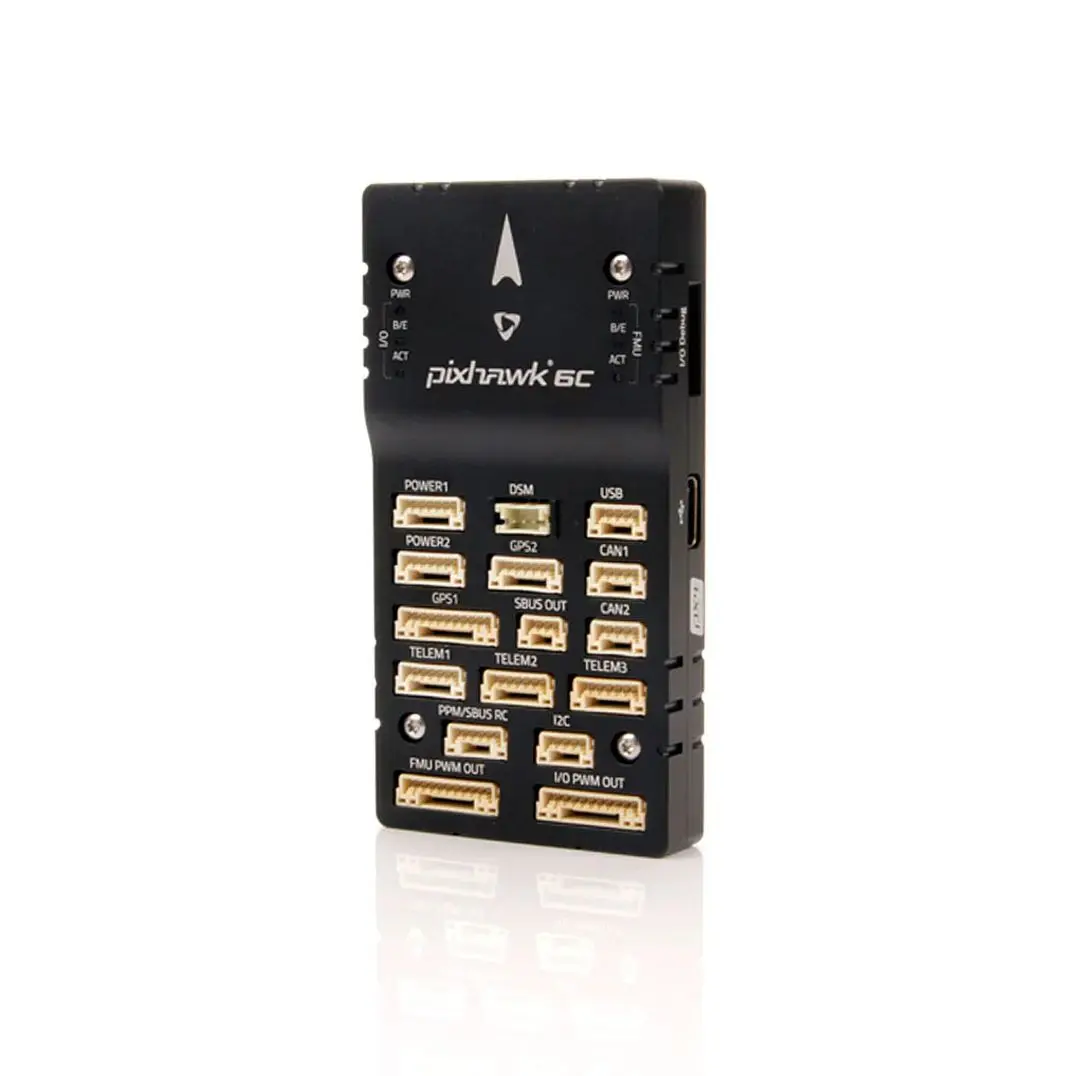

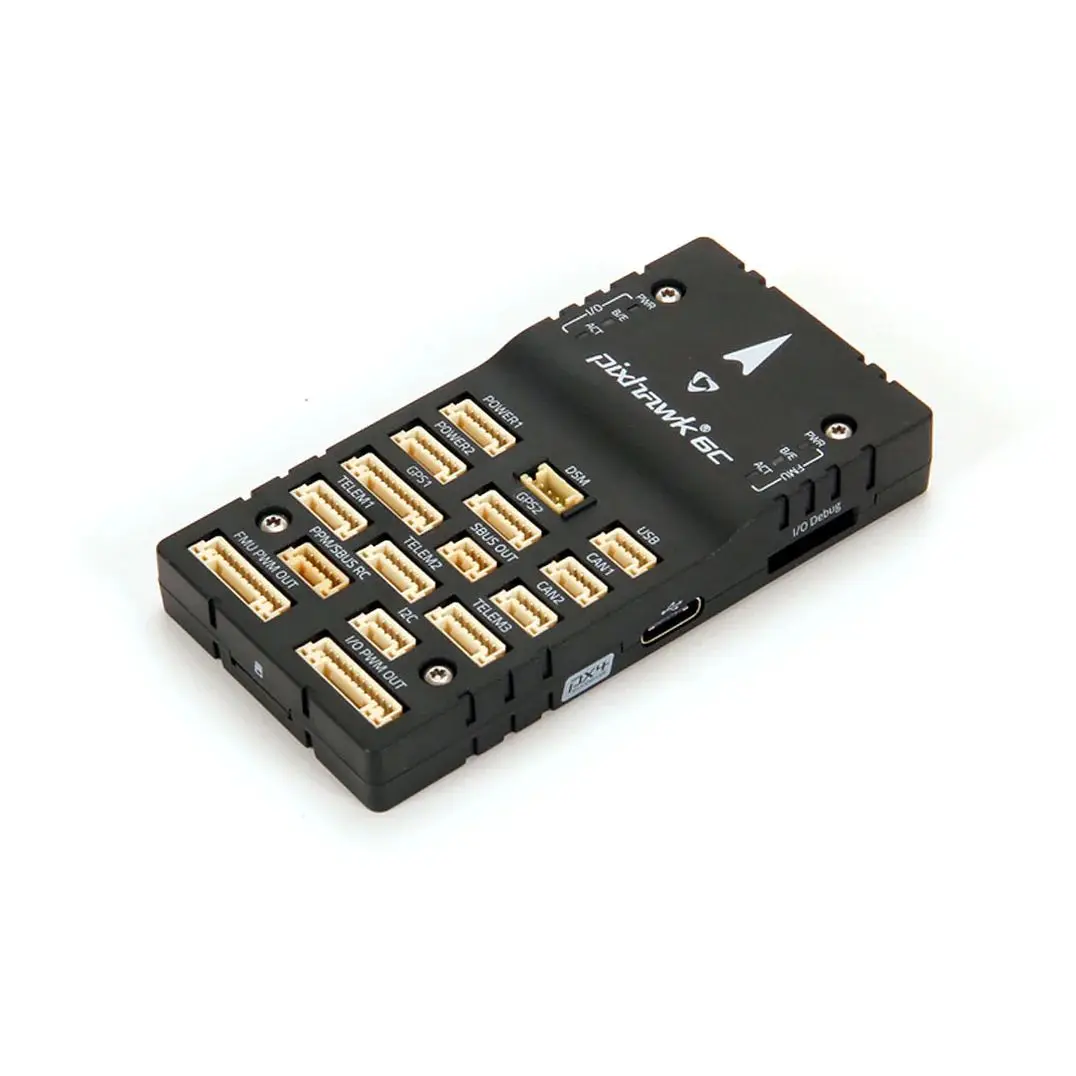

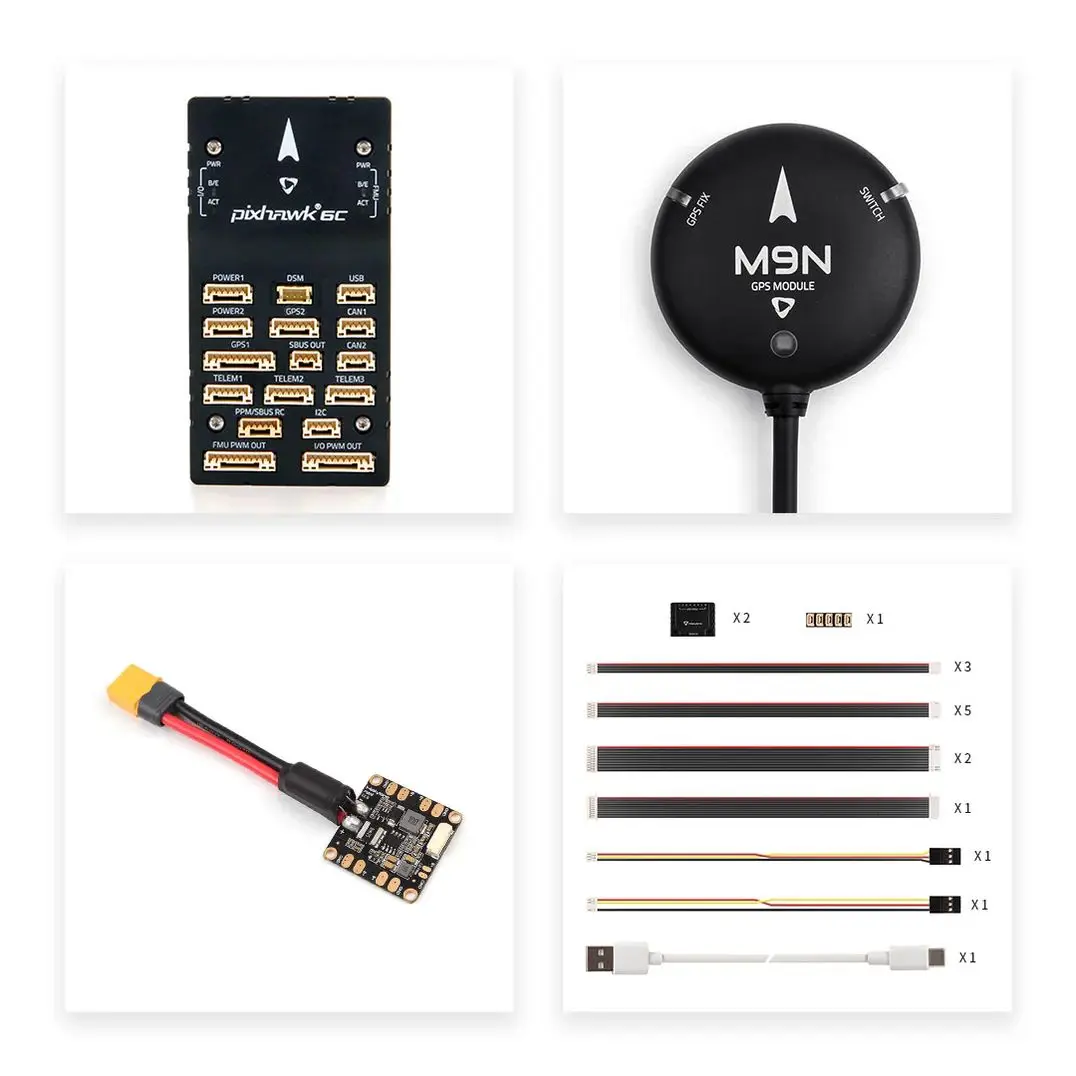

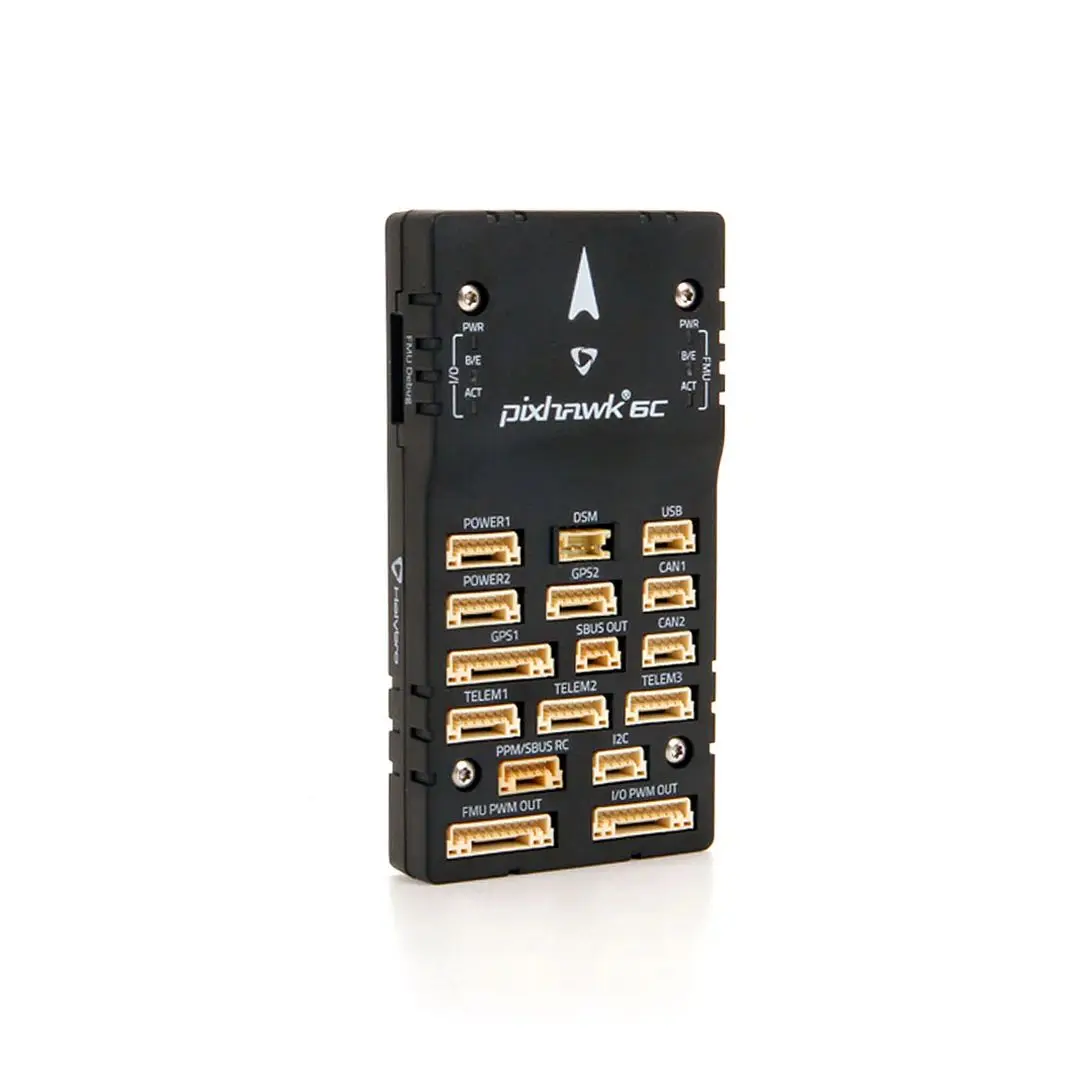

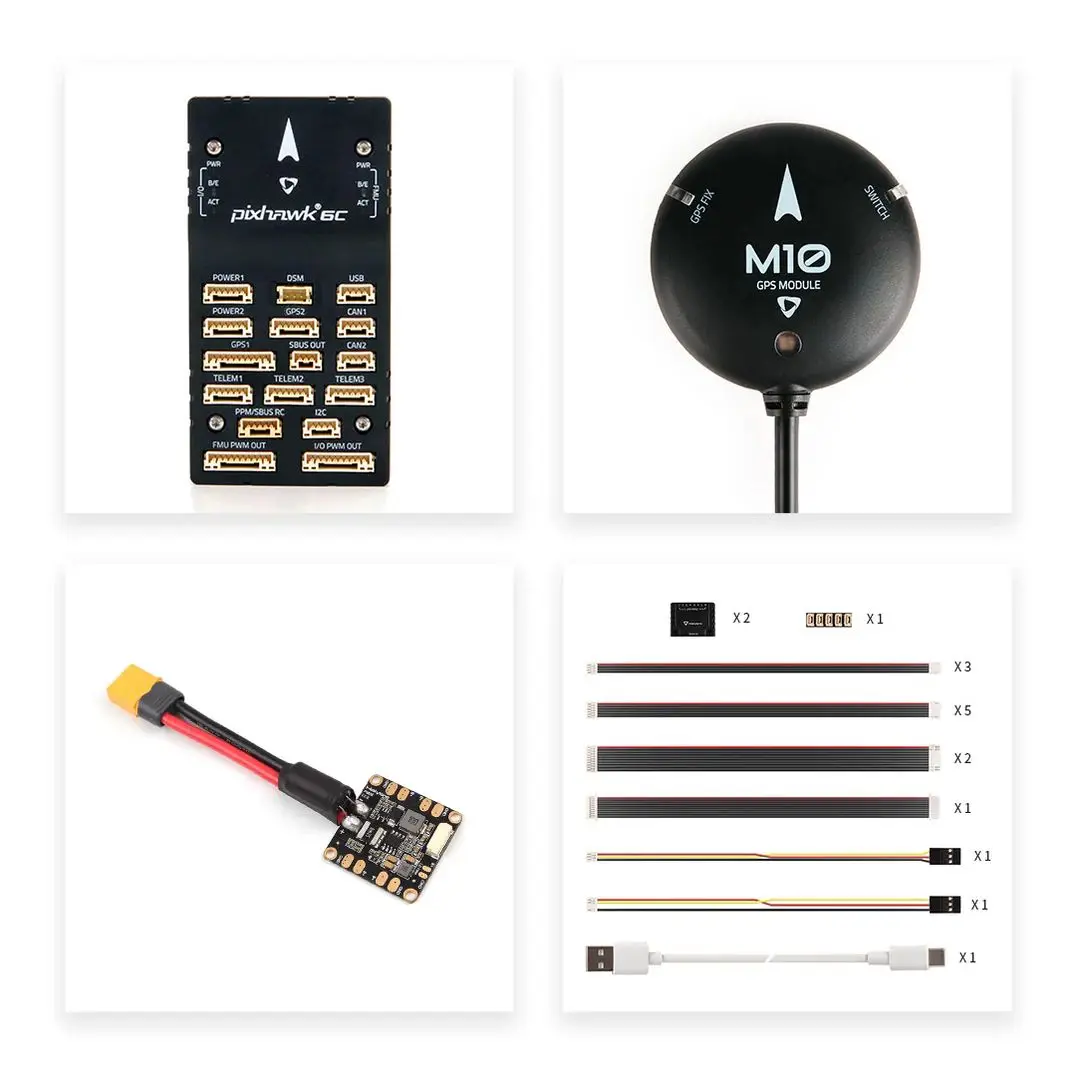

Limi Holybro Pixhawk 6C

Description

Limi Holybro Pixhawk 6C ======================= Limi Holybro Pixhawk 6C The Pixhawk® 6C is the latest update to the successful family of Pixhawk® flight controllers, based on the Pixhawk® FMUv6C Open Standard and Connector Standard. It comes with PX4 Autopilot® pre-installed. Inside the Pixhawk® 6C, you can find an STMicroelectronics® based STM32H743, paired with sensor technology from Bosch® & InvenSense®, giving you flexibility and reliability for controlling any autonomous vehicle, suitable for both academic and commercial applications. The Pixhawk® 6C's H7 microcontroller contain the Arm® Cortex®-M7 core running up to 480 MHz, has 2MB flash memory and 1MB RAM. Thanks to the updated processing power, developers can be more productive and efficient with their development work, allowing for complex algorithms and models. The FMUv6C open standard includes high-performance, low-noise IMUs on board, designed to be cost effective while having IMU redundancy. A vibration isolation System to filter out high-frequency vibration and reduce noise to ensure accurate readings, allowing vehicles to reach better overall flight performances. The Pixhawk® 6C is perfect for developers at corporate research labs, startups, academics (research, professors, students), and commercial application. Key Design Points: High performance H7 Processor with clock speed up to 480 MHz New cost-effective design with low-profile form factor Redundant inertial measurement unit (IMU) from Bosch® & InvenSense® Newly designed integrated vibration isolation system to filter out high frequency vibration and reduce noise to ensure accurate readings IMUs are temperature-controlled by onboard heating resistors, allowing optimum working temperature of IMUs Specification FMU Processor: STM32H743 32 Bit Arm® Cortex®-M7, 480MHz, 2MB memory, 1MB SRAM IO Processor: STM32F103 32 Bit Arm® Cortex®-M3, 72MHz, 64KB SRAM On-board sensors Accel/Gyro: ICM-42688-P Accel/Gyro: BMI055 Mag: IST8310 Barometer: MS5611 Voltage Ratings: Max input voltage: 6V USB Power Input: 4.75~5.25V Servo Rail Input: 0~36V Current Ratings: Telem1 Max output current limiter: 1.5A All other port combined output current limiter: 1.5A Dimensions 84.8 * 44 * 12.4 mm Weight (Aluminum Case) Weight (Plastic Case) TECHNICAL SPECIFICATIONS • Barometer: MS5611 AVAILABLE OPTIONS Color PRODUCT INFORMATION Brand: Holybro Category: Flight Controller / ESC Stack Wholesale Price: US $236.05 - $380.90 ————————————————————————————————————————
