Radiomaster RP4TD ExpressLRS 2.4ghz Nano Receiver Built in WIFI TCXO
Description
Radiomaster RP4TD ExpressLRS 2.4ghz Nano Receiver Built in WIFI TCXO ============================================================ Note:Available with standard ISM or EU LBT FW. EU LBT FW required for use with Radios and Modules with EU LBT FW Installed. FCC is Standard version LBT is EU LBT Version Featuring dual-channel 2.4GHz radios, the RP4TD excels in signal sensitivity, signal-to-noise ratio, and overall performance due to its optimized circuit design. The reliable DCDC power supply circuit ensures lower operating temperatures during extended usage. Additionally, the dual TCXO contributes to the utmost frequency stability and makes the RP4TD a leader in its class. RP4TD features built in WIFI so you can wirelessly upgrade firmware configure the Receiver via the built-in WebUI with your PC or mobile phone. Suitable for drones and fixed-wing models, the receiver can be installed virtually any application that requires a serial receiver. Dual TCXO (temperature compensated crystal oscillator) The TCXO ensures high stability and accuracy in frequency control, compensating for temperature variations. This results in consistent and reliable signal reception, even in extreme temperature conditions. It also reduces frequency drift over time, providing long-term frequency stability and preventing signal degradation. Two TCXO offer better advantages in true diversity receivers. Features Gemini mode compatible Reliable DCDC Power supply circuit Class leading SNR and RSSI performance Optimized PCB design for better heat dissipation Upgraded antenna with greater durability and performance UART pads for extended applications Dual TCXO (temperature compensated crystal oscillator) Specifications Item: RP4TD ExpressLRS 2.4GHz Diversity Receiver Type: ISM MCU: ESP32 RF Chip: SX1281 x 2 Antenna: 65mm 2.4GHz T Antenna x 2 Frequency Range: 2.4GHz Maximum receive refresh rate: 500Hz / F1000Hz Working voltage: 5V Weight: 1.4g(without antenna) Dimension: 23.7*16.3*4.0mm Firmware Version: ExpressLRS V3.3.0 pre-installed FW Target: RadioMaster RP4TD 2400 RX Bus interface: CRSF Extend interface : UART Package Includes 1 * RP4TD ExpressLRS 2.4GHz Diversity Receiver 1 * CRSF wire 3 * Heat-Shrinkable Tube 2 * 65mm 2.4GHz T Antenna (Installed on receiver) 1 * User Manual TECHNICAL SPECIFICATIONS • MCU: ESP32 • Weight: 1.4g(without antenna) • Dimension: 23.7*16.3*4.0mm • Antenna: 65mm 2.4GHz T Antenna x 2 AVAILABLE OPTIONS RP4TD FCC RP4TD LBT PRODUCT INFORMATION Brand: RadioMaster Category: Radio Receiver Wholesale Price: US $33.35 - $48.36 ————————————————————————————————————————
Specifications
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Brand Name | RADIOMASTER |
| Origin | Mainland China |
| Upgrade Parts/Accessories | Adapter |
| Material | Composite Material |
| Remote Control Peripherals/Devices | RECEIVERS |
| Model Number | Radiomaster RP4TD |
| Use | Vehicles & Remote Control Toys |
| Tool Supplies | Battery |
| Technical parameters | KV1100 |
| Four-wheel Drive Attributes | Assemblage |
| Recommend Age | 14+y |
| RC Parts & Accs | RECEIVERS |
| For Vehicle Type | Airplanes |
Product Details
Note:Available with standard ISM or EU LBT FW. EU LBT FW required for use with Radios and Modules with EU LBT FW Installed.
FCC is Standard version
LBT is EU LBT Version
Featuring dual-channel 2.4GHz radios, the RP4TD excels in signal sensitivity, signal-to-noise ratio, and overall performance due to its optimized circuit design. The reliable DCDC power supply circuit ensures lower operating temperatures during extended usage. Additionally, the dual TCXO contributes to the utmost frequency stability and makes the RP4TD a leader in its class.
RP4TD features built in WIFI so you can wirelessly upgrade firmware configure the Receiver via the built-in WebUI with your PC or mobile phone.
Suitable for drones and fixed-wing models, the receiver can be installed virtually any application that requires a serial receiver.
Dual TCXO (temperature compensated crystal oscillator)
The TCXO ensures high stability and accuracy in frequency control, compensating for temperature variations. This results in consistent and reliable signal reception, even in extreme temperature conditions. It also reduces frequency drift over time, providing long-term frequency stability and preventing signal degradation. Two TCXO offer better advantages in true diversity receivers.
Features
Gemini mode compatible
Reliable DCDC Power supply circuit
Class leading SNR and RSSI performance
Optimized PCB design for better heat dissipation
Upgraded antenna with greater durability and performance
UART pads for extended applications
Dual TCXO (temperature compensated crystal oscillator)
Specifications

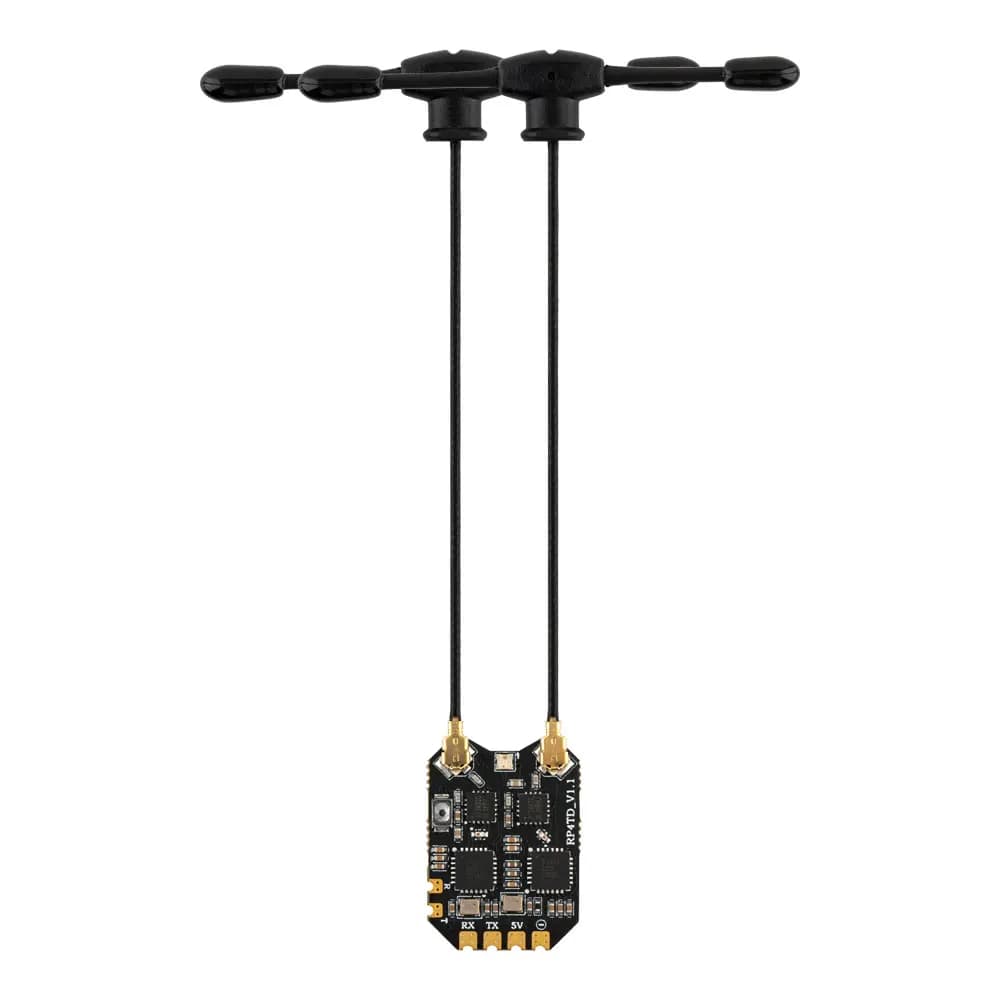

Item: RP4TD ExpressLRS 2.4GHz Diversity Receiver
Type: ISM
MCU: ESP32
RF Chip: SX1281 x 2

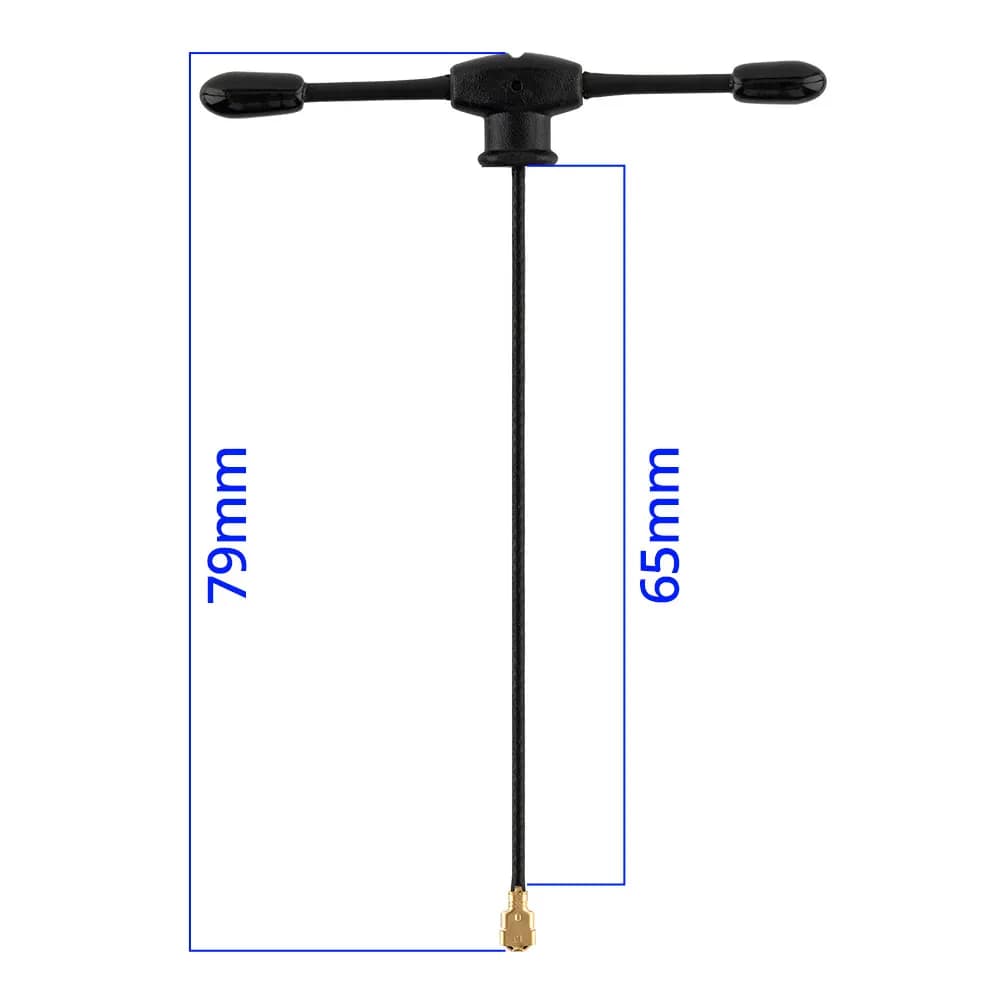

Antenna: 65mm 2.4GHz T Antenna x 2
Frequency Range: 2.4GHz
Maximum receive refresh rate: 500Hz / F1000Hz
Working voltage: 5V
Weight: 1.4g(without antenna)

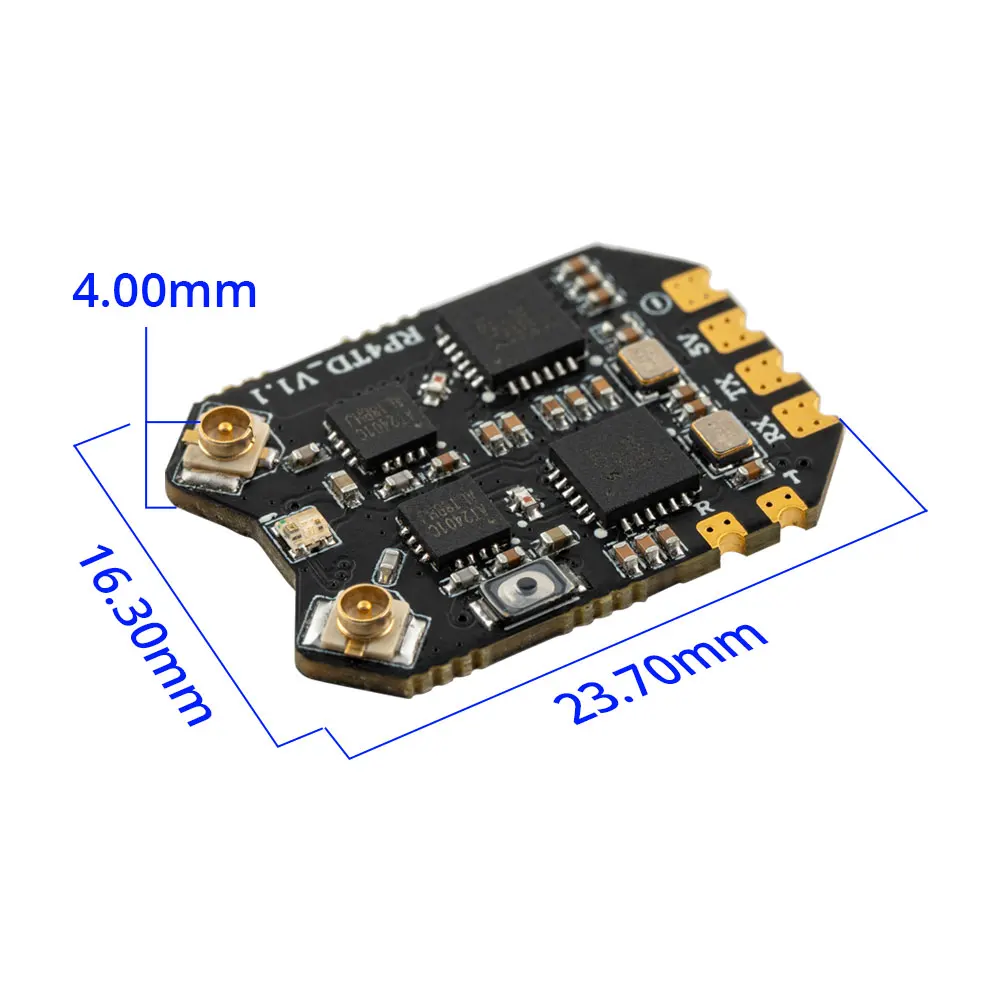

Dimension: 23.7*16.3*4.0mm
Firmware Version: ExpressLRS V3.3.0 pre-installed
FW Target: RadioMaster RP4TD 2400 RX
Bus interface: CRSF
Extend interface : UART

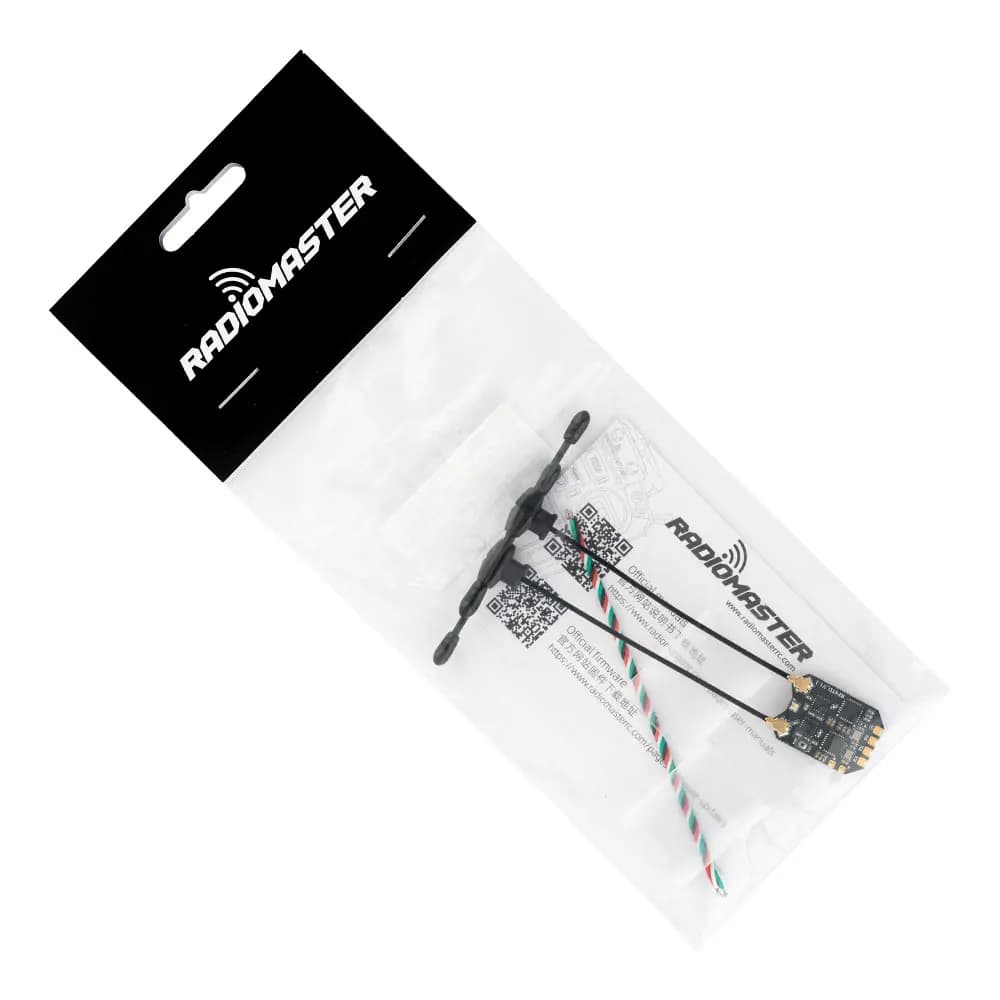

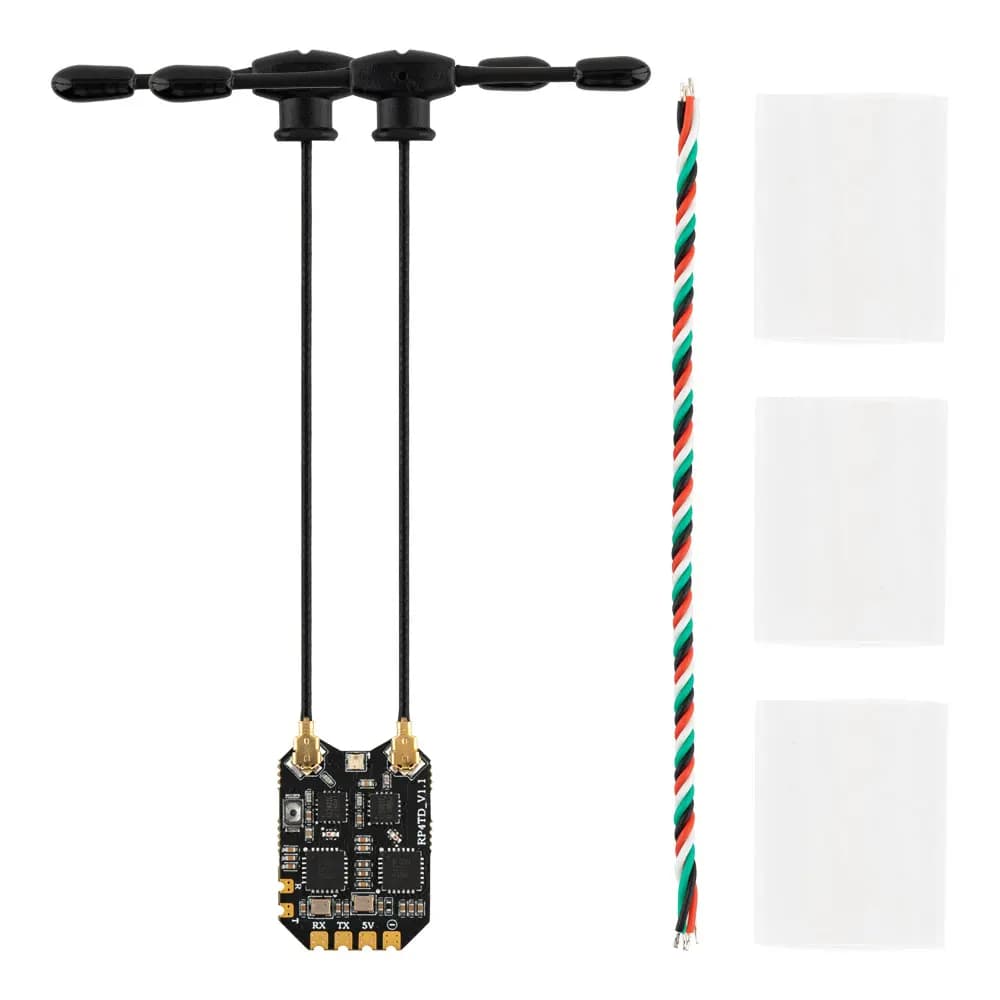

Package Includes
1 * RP4TD ExpressLRS 2.4GHz Diversity Receiver
1 * CRSF wire
3 * Heat-Shrinkable Tube
2 * 65mm 2.4GHz T Antenna (Installed on receiver)
1 * User Manual
