HGLRC Zeus nano VTX 350mW FPV 5.8G 2.4g 40CH Built-in Microphone 16/20/25.5mm Hole For RC FPV Transmitter VTX Multicopter
Description
HGLRC Zeus nano VTX 350mW FPV 5.8G 2.4g 40CH Built-in Microphone 16/20/25.5mm Hole For RC FPV Transmitter VTX Multicopter ============================================================ HGLRC FPV Camera & VTX — professional-grade component for FPV drone applications. Item: HGLRC Zeus nano VTX 350mW FPV 5.8G Parameters: Product name: Zeus nano VTX Built-in microphone Support voltage: DC 5V PIT@75mA 25mW@180mA/16dBm Antenna interface: ipex Output power: PIT/25/100/200/350mW Standard 40 channels. A/B/E/F/R frequency group Mounting hole: 16X16/25.5X25.5mm.M2 20X20mm.M3 Size: 18.6mm x 13.6mm x 6mm Weight: 2.4g Package Included: 1 x Zeus nano VTX 1 x ipex interface copper tube antenna 1 x ipex to SMA adapter 6 x video transmission cable Option 2 : with UFL RHCP antenna TECHNICAL SPECIFICATIONS • Size: 18.6mm x 13.6mm x 6mm • Weight: 2.4g AVAILABLE OPTIONS HGLRC Zeus nano VTX PRODUCT INFORMATION Brand: HGLRC Category: FPV Camera & Video Transmitter Wholesale Price: US $21.56 - $29.85 ————————————————————————————————————————
Specifications
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Wheelbase | Bottom Plate |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| Technical parameters | value 2 |
| For Vehicle Type | Airplanes |
| Tool Supplies | Battery |
| Four-wheel Drive Attributes | Motors |
| Remote Control Peripherals/Devices | Remote Controller |
| Upgrade Parts/Accessories | Adapter |
| RC Parts & Accs | Radio Systems |
| Material | Composite Material |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
Product Details

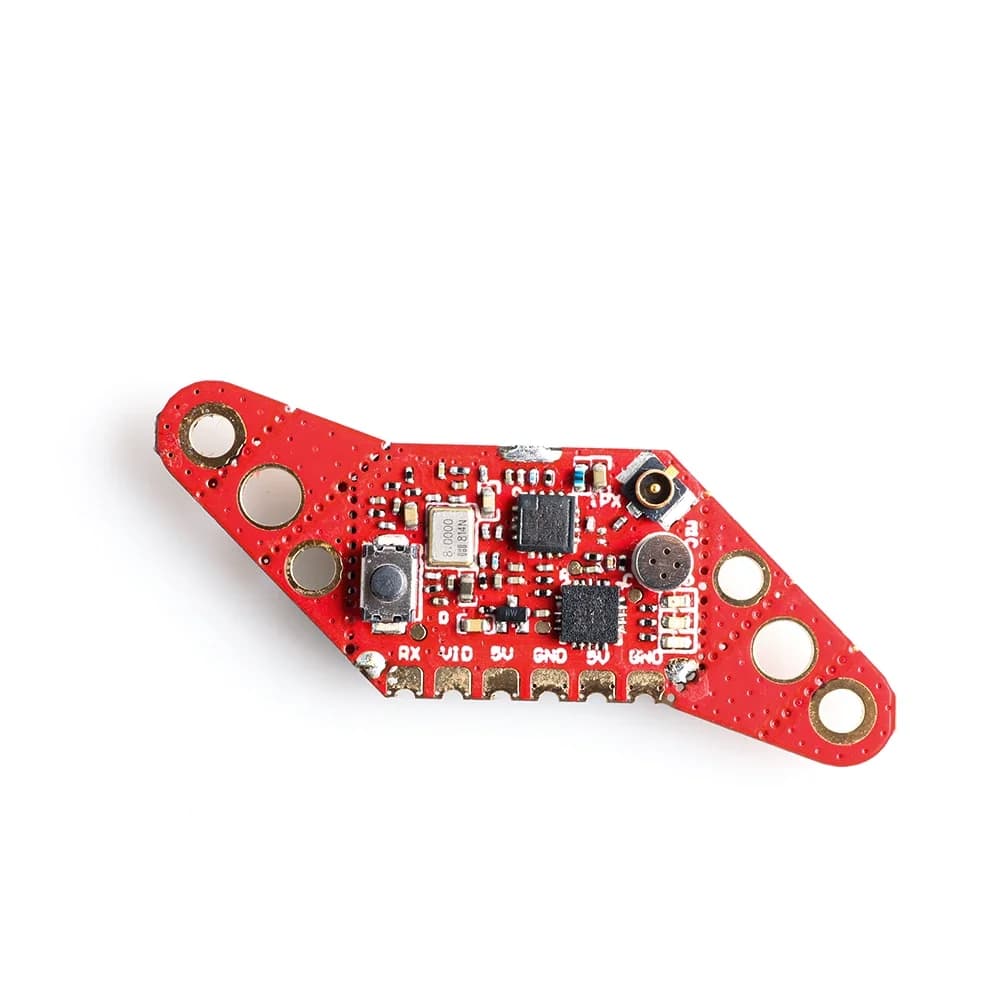

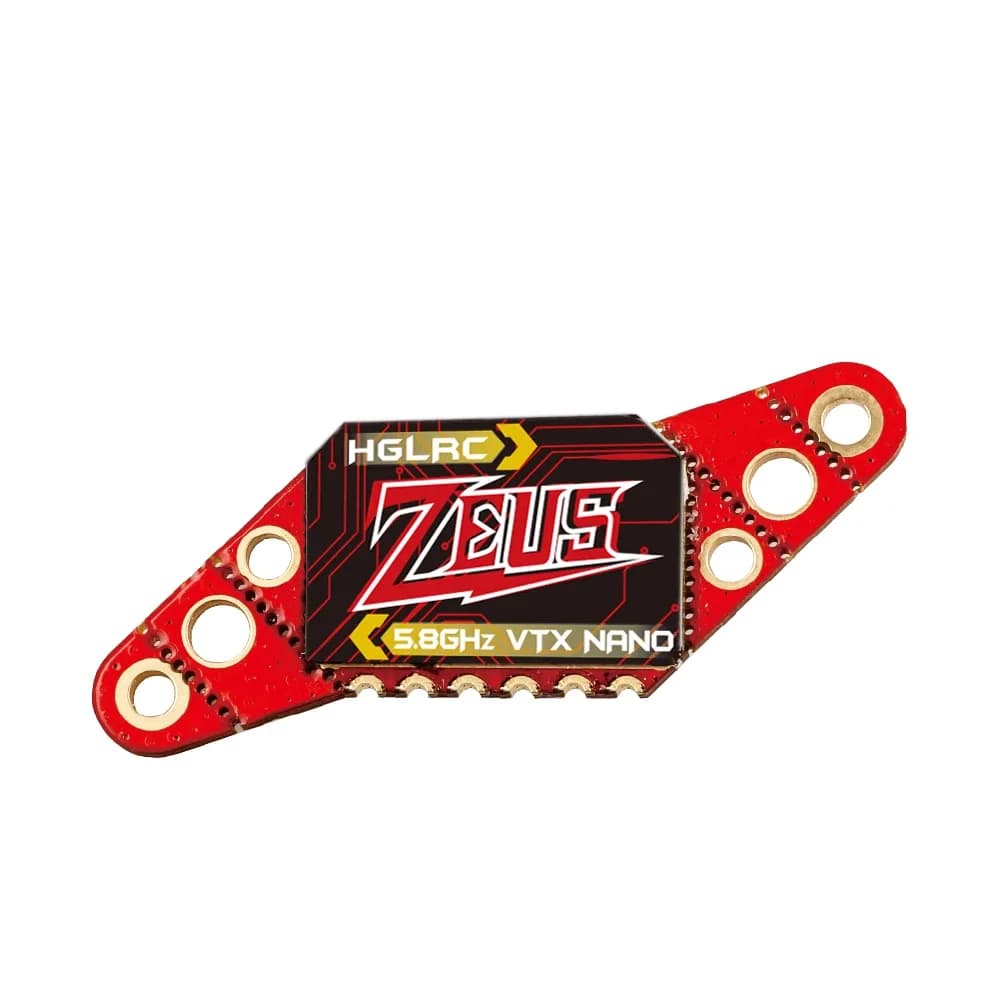

Item: HGLRC Zeus nano VTX 350mW FPV 5.8G
Parameters:
Product name: Zeus nano VTX
Built-in microphone
Support voltage: DC 5V
PIT@75mA
25mW@180mA/16dBm
100mW@280mA/21.5dBm
200mW@330mA/24.5dBm
350mW@400mA/27.5dBm
Antenna interface: ipex
Output power: PIT/25/100/200/350mW

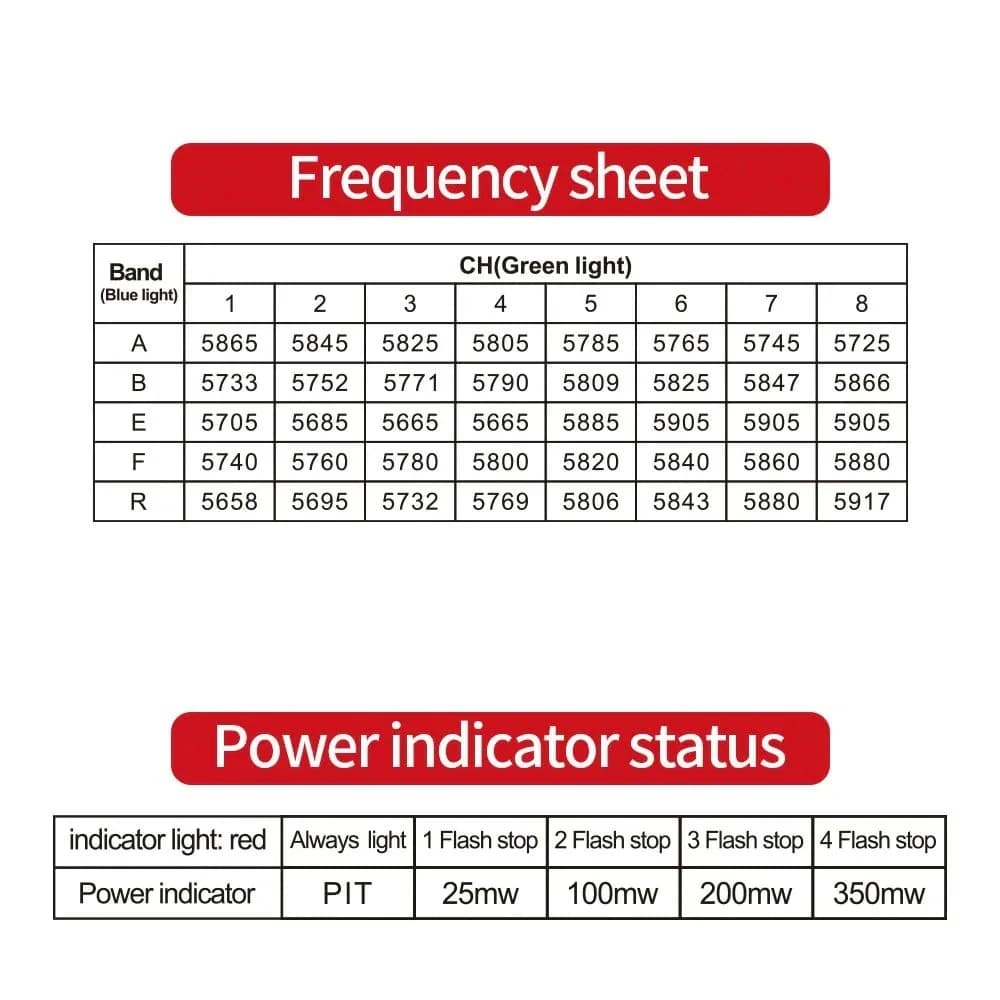

Standard 40 channels. A/B/E/F/R frequency group

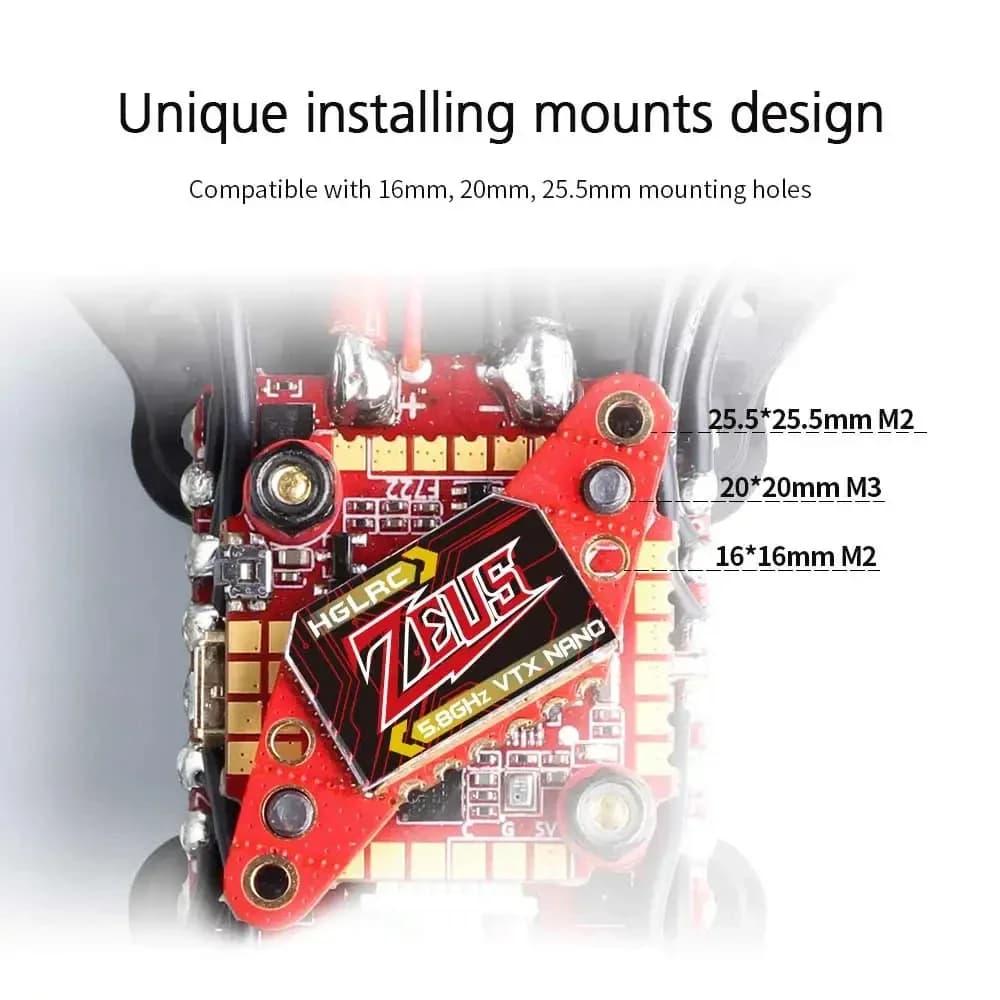

Mounting hole: 16X16/25.5X25.5mm.M2
20X20mm.M3
Size: 18.6mm x 13.6mm x 6mm
Weight: 2.4g
Package Included:
1 x Zeus nano VTX
1 x ipex interface copper tube antenna
1 x ipex to SMA adapter
6 x video transmission cable
Option 2 : with UFL RHCP antenna
