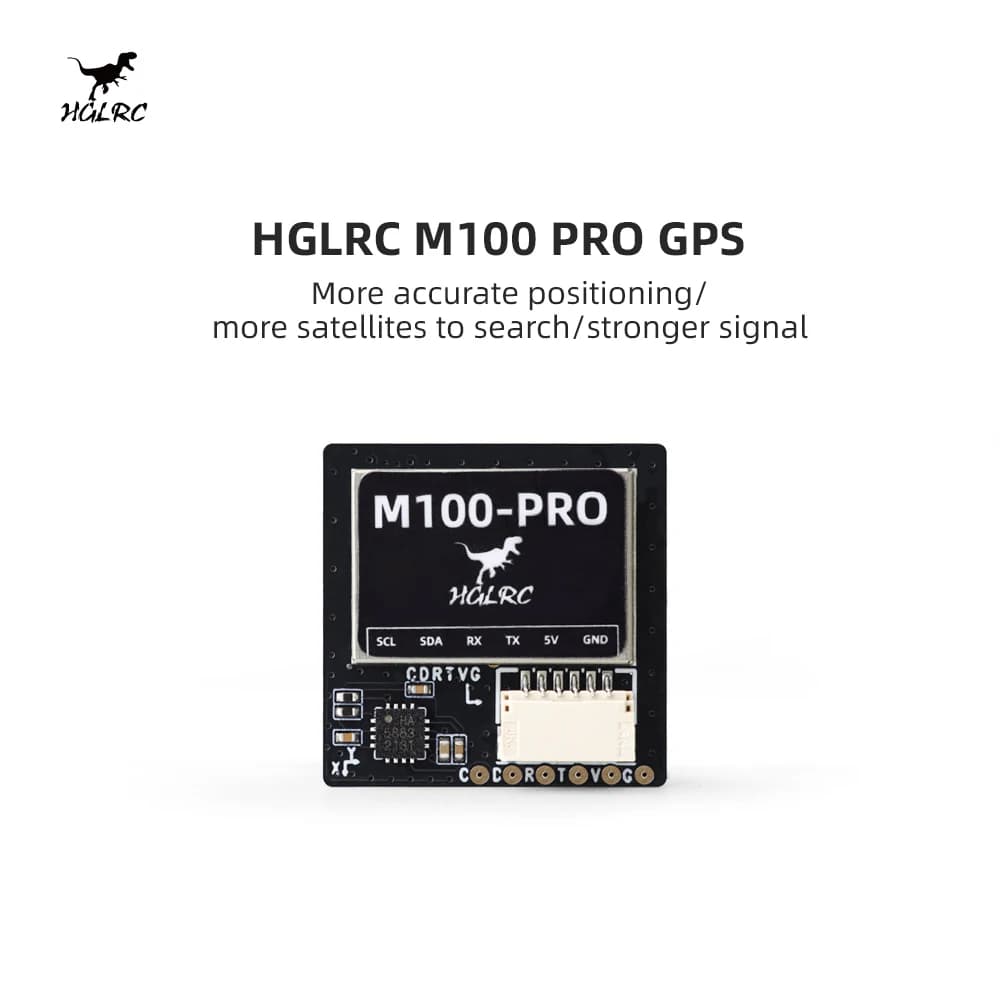

HGLRC M100 PRO GPS Chip B101 10th Generation Protocol Chip QMC5883L Compass for FPV Racing Freestyle Drones
Description
HGLRC M100 PRO GPS Chip B101 10th Generation Protocol Chip QMC5883L Compass for FPV Racing Freestyle Drones ============================================================ Features: Adopting the new 10th generation chip, the number of satellite searches is 50+ QMC5883L compass, more accurate pointing The receiving channel is expanded to 120ch, and the satellites can search more and faster into the chip. Five-mode positioning, strong and stable signal to protect you. Product parameters: Chip: B101 (10th generation chip) Receiving channel: 120 Baud rate: 115200 Protocol: UBX Antenna: ceramic antenna Output frequency: 10Hz Frequency: GPS L1, GLONASS G1, BDS B1, GALILEO E1, QZSS L1, SBAS L1, IRNSS Power input: 3.6-5.5V Weight: 7.9g Acceleration 4G Speed: 500m/s Size: 21.2×21.2×8.2mm Operating temperature: -40℃~+85℃ Storage temperature: -40℃~+105℃ Product List HGLRC M100 PRO GPS x 1 Heat shrink tube (φ18mm x 25mm) x 1 HGLRC sticker x 1 HGLRC manual x 1 SH1.0-6pin cable x 1 TECHNICAL SPECIFICATIONS • Chip: B101 (10th generation chip) • Weight: 7.9g Acceleration 4G • Size: 21.2×21.2×8.2mm • Frequency: GPS L1, GLONASS G1, BDS B1, • Antenna: ceramic antenna Output frequency: 10Hz AVAILABLE OPTIONS M100 PRO GPS PRODUCT INFORMATION Brand: HGLRC Category: FPV Drone Wholesale Price: US $17.27 - $67.24 ————————————————————————————————————————
Specifications
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Quantity | 1 pcs |
| Wheelbase | Bottom Plate |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| Size | AN |
| Technical parameters | KV1100 |
| Model Number | HGLRC M100 PRO GPS |
| For Vehicle Type | Airplanes |
| Tool Supplies | Assembly Category |
| Four-wheel Drive Attributes | Assemblage |
| Remote Control Peripherals/Devices | Remote Controller |
| Upgrade Parts/Accessories | GPS |
| RC Parts & Accs | GPS |
| Material | Composite Material |
| Brand Name | HawkSpeed |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
Product Details
Features:
Adopting the new 10th generation chip, the number of satellite searches is 50+

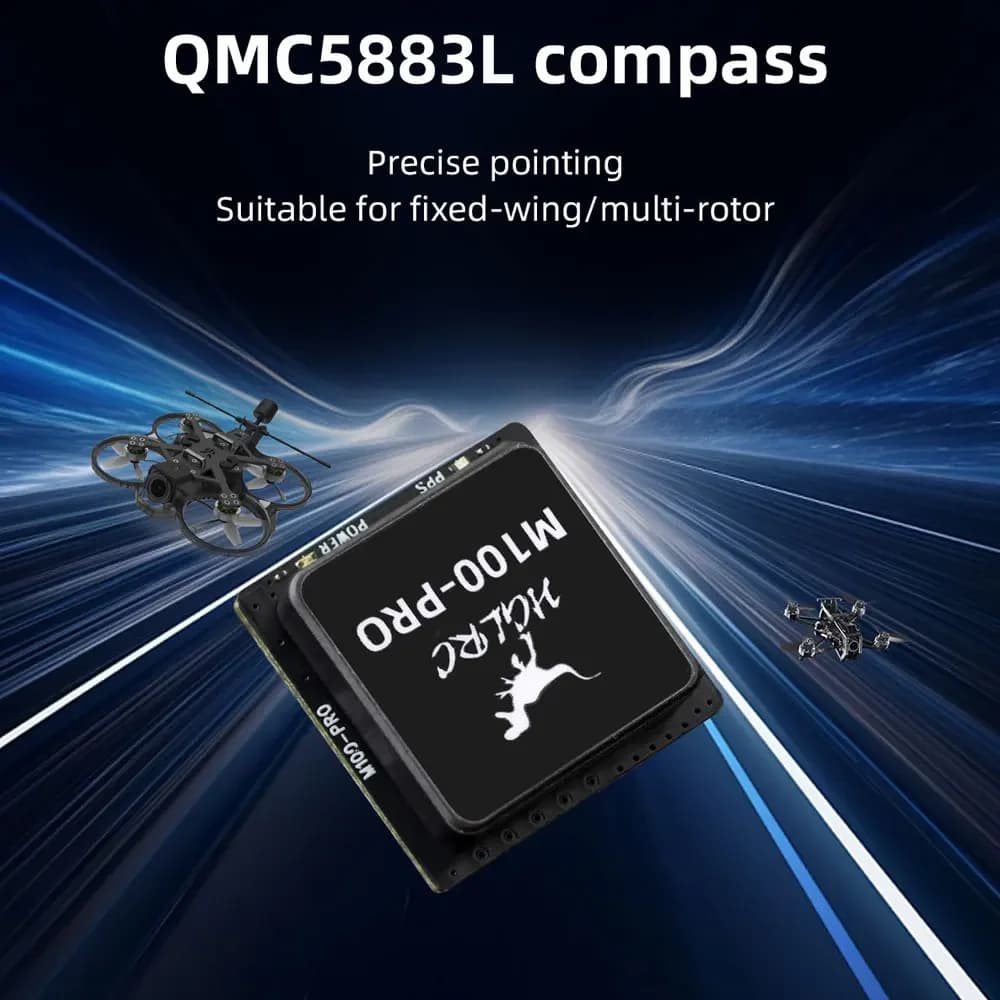

QMC5883L compass, more accurate pointing
The receiving channel is expanded to 120ch, and the satellites can search more and faster into the chip.
Five-mode positioning, strong and stable signal to protect you.
Product parameters:
Chip: B101 (10th generation chip)
Receiving channel: 120
Baud rate: 115200 Protocol: UBX
Antenna: ceramic antenna Output frequency: 10Hz
Frequency: GPS L1, GLONASS G1, BDS B1,
GALILEO E1, QZSS L1, SBAS L1, IRNSS
Power input: 3.6-5.5V
Weight: 7.9g Acceleration 4G
Speed: 500m/s
Size: 21.2×21.2×8.2mm
Operating temperature: -40℃~+85℃
Storage temperature: -40℃~+105℃
Product List
HGLRC M100 PRO GPS x 1
Heat shrink tube (φ18mm x 25mm) x 1
HGLRC sticker x 1
HGLRC manual x 1
SH1.0-6pin cable x 1
