Беспроводная антенна Maple 11dbi 5,8 ГГц SMA с круговой поляризацией FPV антенна комплект Fatshark SKYZONE монитор RC FPV очки оригинальные
From US $50.61 - 66.98
Est. US $50.61 - 66.98 / unit (1-9 pcs)
$47 @ 10+ pcs$44 @ 100+ pcs
Description
Features:
Designed for FPV Goggles or FPV Monitor.
High gain for long range fly.
Ergonomic design to fit diversity modules on goggles.
Description:
Brand: Maple Wireless
Model: Owl Set
Frequency range: 5600-5900 Mhz; 5600-5925 Mhz
Gain: 11dBi; 2dBi
Connector: RP-SMA Male/SMA Male
Input impedance (Ω): 50
Standing wave ratio coefficient: <1.5
Half power beam: 75°H-plane 40°E-plane
Front to back ratio (dB): >10
Power capacity (W): 10
Polarization mode: RHCP
Ambient temperature (°C): -40~+60
Package size: 160*115*45mm
Package weight: about 97g
Packing: Original brand box package
Вариант
Выбранная ценаUSD 19.42
Specifications
| Option | Values |
|---|---|
| High-concerned chemical |
|
| Is Electric |
|
| Quantity |
|
| Wheelbase |
|
| Is it battery/power supply |
|
| Is it charger/adapter |
|
| Is Batteries Included |
|
| Size |
|
| Technical parameters |
|
| Model Number |
|
| For Vehicle Type |
|
| Tool Supplies |
|
| Four-wheel Drive Attributes |
|
| Upgrade Parts/Accessories |
|
| RC Parts & Accs |
|
| Material |
|
| Origin |
|
| Recommend Age |
|
| Use |
|
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Quantity | 1 pcs |
| Wheelbase | Screws |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| Size | as description |
| Technical parameters | value 2 |
| Model Number | Maple Leaf |
| For Vehicle Type | Airplanes |
| Tool Supplies | Assembly Category |
| Four-wheel Drive Attributes | Assemblage |
| Upgrade Parts/Accessories | Adapter |
| RC Parts & Accs | Connectors/Wiring |
| Material | Composite Material |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
Product Details
Maple Wireless 5.8GHz 11dBi FPV Antenna SMA/RP-SMA Circular Polarized Antenna Kit for Fatshark SKYZONE EV300D Goggles RC Monitor
Features:
Designed for FPV Goggles or FPV Monitor.
High gain for long range fly.
Ergonomic design to fit diversity modules on goggles.
Description:
Brand: Maple Wireless
Model: Owl Set
Frequency range: 5600-5900 Mhz; 5600-5925 Mhz
Gain: 11dBi; 2dBi
Connector: RP-SMA Male/SMA Male
Input impedance (Ω): 50
Standing wave ratio coefficient: <1.5
Half power beam: 75°H-plane 40°E-plane
Front to back ratio (dB): >10
Power capacity (W): 10
Polarization mode: RHCP
Ambient temperature (°C): -40~+60
Package size: 160*115*45mm
Package weight: about 97g
Packing: Original brand box package

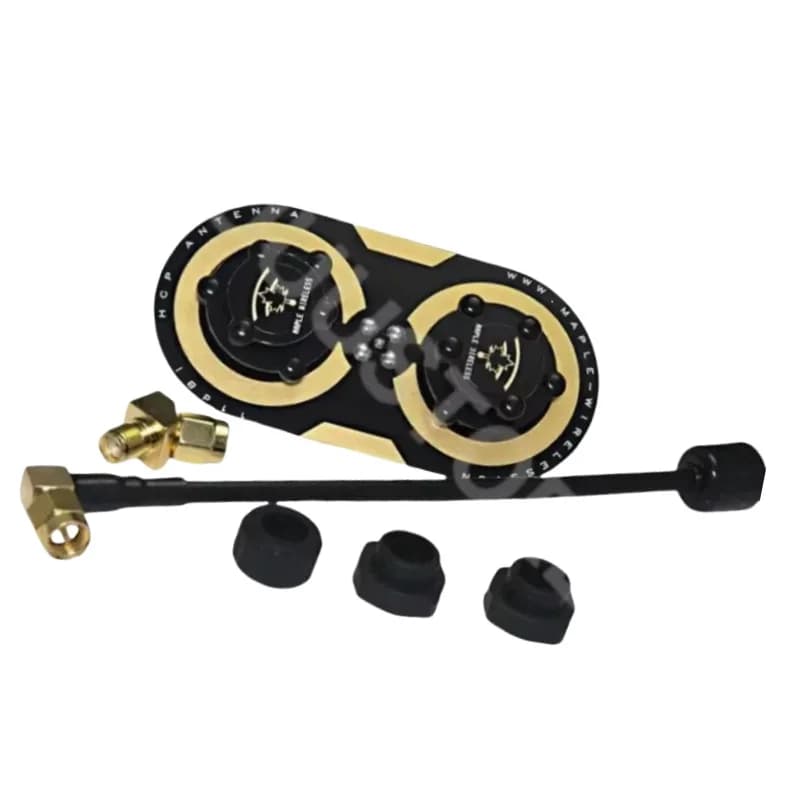

Package Included:
1 x Maple Wireless Antenna Kit (optional)
