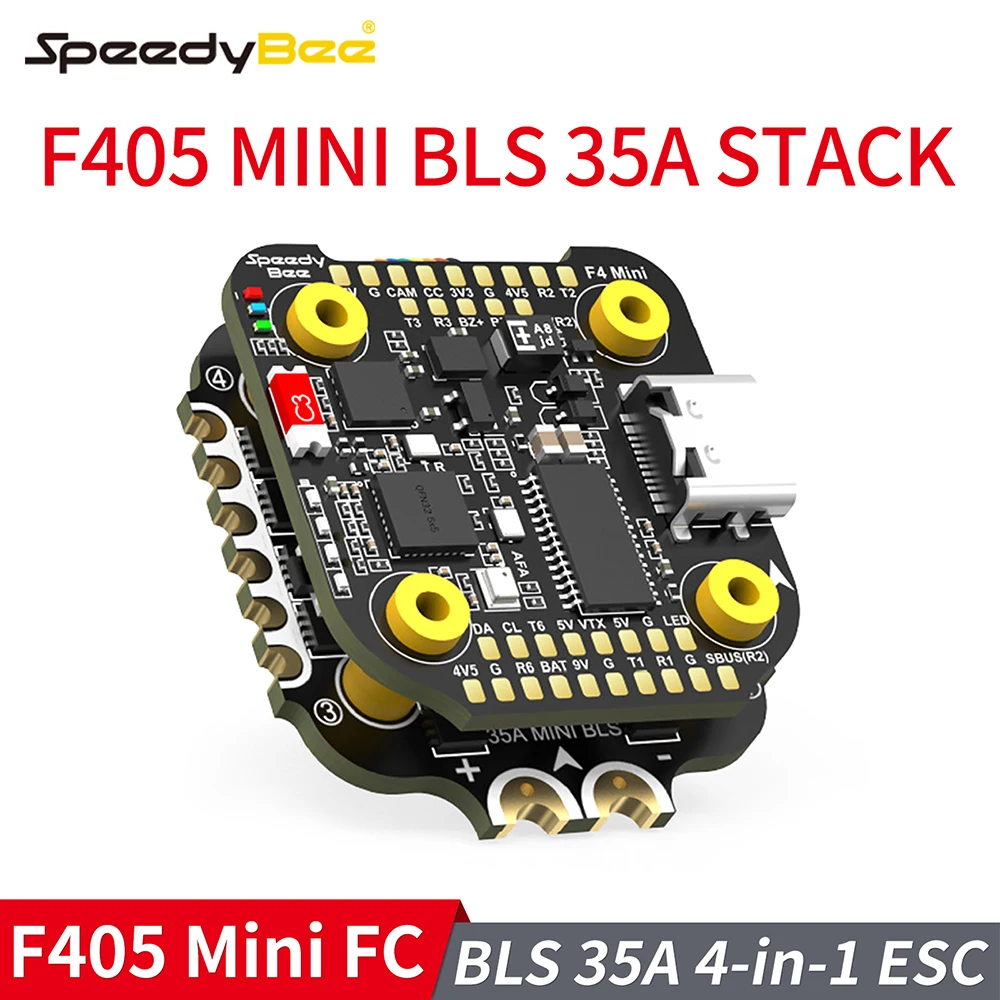

SpeedyBee F405 Mini Stack Flight Controller FC BLS 35A V2 3-6S 20x20 4-in-1 ESC Dual BECs for RC FPV Racing Drone
Description
SpeedyBee F405 Mini Stack Flight Controller FC BLS 35A V2 3-6S 20x20 4-in-1 ESC Dual BECs for RC FPV Racing Drone ============================================================ SpeedyBee F405 Mini Stack Flight Controller FC BLS 35A V2 3-6S 20x20 4-in-1 ESC Dual BECs for RC FPV Racing Drone Features: 1. Built-in Barometer 2. 5V 2A&9V 3A dual BECs 3. Sufficient 4 x UARTs available 4. Onboard 8MB blackbox storage 5. Support DJI Air Unit O3/Link/Vista 6. Change motor directions wirelessly 7. Onboard 4-level battery life indicators 8. 470uF Rubycon High-frequency Low-ESR capacitor 9. Wireless FC & ESC full configuration via SpeedyBee app Specifications: SpeedyBee F405 Min Barometer: Built-in BLE Bluetooth: Supported. WiFi: Not supported Power Input: 3-6S Lipo Mounting: 20x20mm 3.5mm hole size, ( Compatible with M2 and M3 screws/silicone grommets) Dimension: 32mm(L)x 35mm(W)x 14.2mm(H) Weight: 13.5g SpeedyBee 35A BLHeli_S Mini V2 4-in-1 ESC Firmware: BLHeli_S J-H-40 Continuous Current:35A*4 ESC Protocol:DSHOT300/600 Power Input:3-6S LiPo Mounting:20x20mm φ3.5mm hole size, (Compatible with M2 and M3 screws/silicone grommets) Dimension:35*35*5.5mm Weight7.2g Package Included: As you choose Only the above package content, other products are not included. 1.Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures. 2.Due to the manual measurement and different measurement methods, please allow 1-3mm deviation.Thanks! Before purchase: 1.All the goods are ready stock, we will arrange the shipment at once if we receive the order. 2.Please read the item description, if you have any question, do not hesitate to contact us. 3.No warranty,if you receive a defect item,please contact us at once with item picture. 4.Use the vouchers for more saving. After purchase: 1.If you are satisfied,please express your use feeling. 2.Please contact us before you are going to give us bad review. We are helpful and will solve the problems. If you receive a defect item,please contact us at once with item picture or video. TECHNICAL SPECIFICATIONS • Barometer: Built-in • Dimension: 32mm(L)x 35mm(W)x 14.2mm(H) • Weight: 13.5g • Dimension:35*35*5.5mm • Mounting: 20x20mm 3.5mm hole size, ( • Mounting:20x20mm φ3.5mm hole size, (Compatible with M2 and M3 screws/silicone grommets) • Firmware: BLHeli_S J-H-40 AVAILABLE OPTIONS Flight Controller ESC Stack PRODUCT INFORMATION Brand: SpeedyBee Category: FPV Drone Wholesale Price: $49.22 ————————————————————————————————————————
Specifications
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Quantity | 1 pcs |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| Material | Composite Material |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
Product Details
Features:
1. Built-in Barometer
2. 5V 2A&9V 3A dual BECs
3. Sufficient 4 x UARTs available
4. Onboard 8MB blackbox storage
5. Support DJI Air Unit O3/Link/Vista
6. Change motor directions wirelessly
7. Onboard 4-level battery life indicators
8. 470uF Rubycon High-frequency Low-ESR capacitor
9. Wireless FC & ESC full configuration via SpeedyBee app
Specifications:

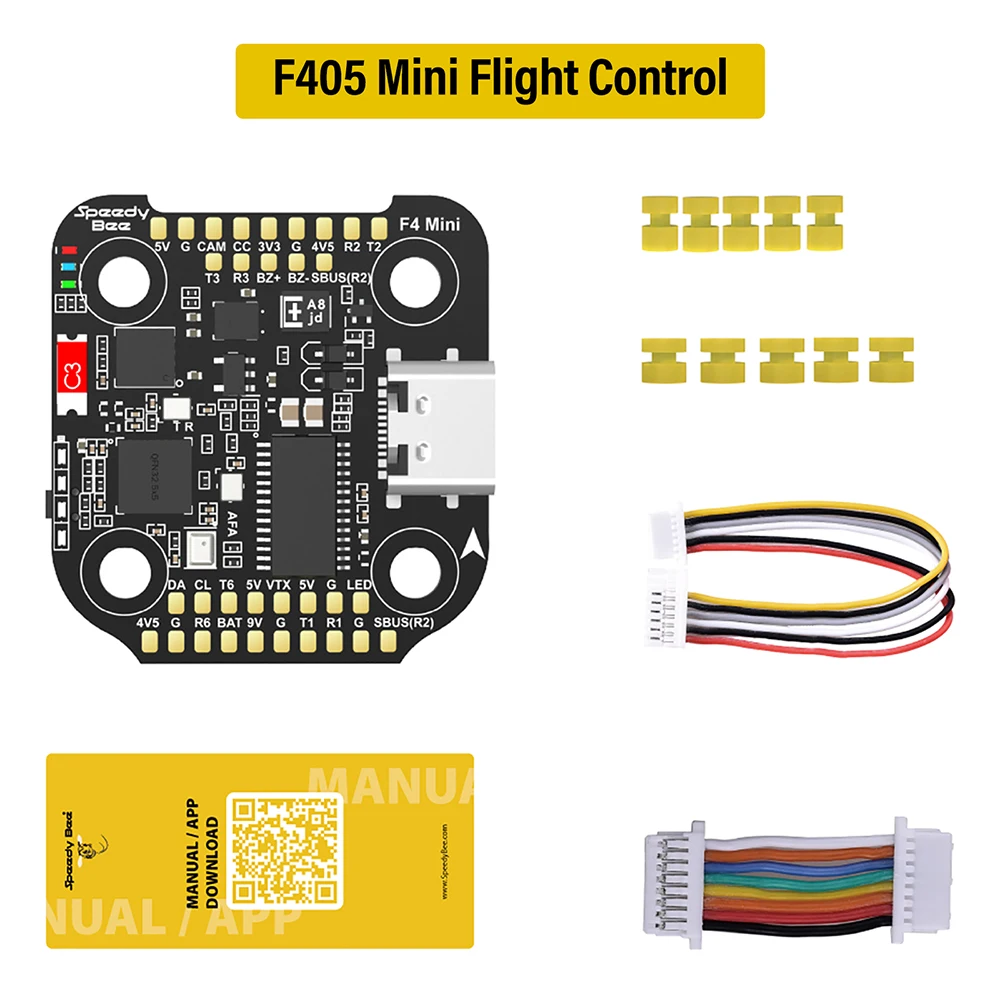

SpeedyBee F405 Min
Barometer: Built-in
BLE Bluetooth: Supported.
WiFi: Not supported
Power Input: 3-6S Lipo
Mounting: 20x20mm 3.5mm hole size, (
Compatible with M2 and M3 screws/silicone grommets)
Dimension: 32mm(L)x 35mm(W)x 14.2mm(H)
Weight: 13.5g

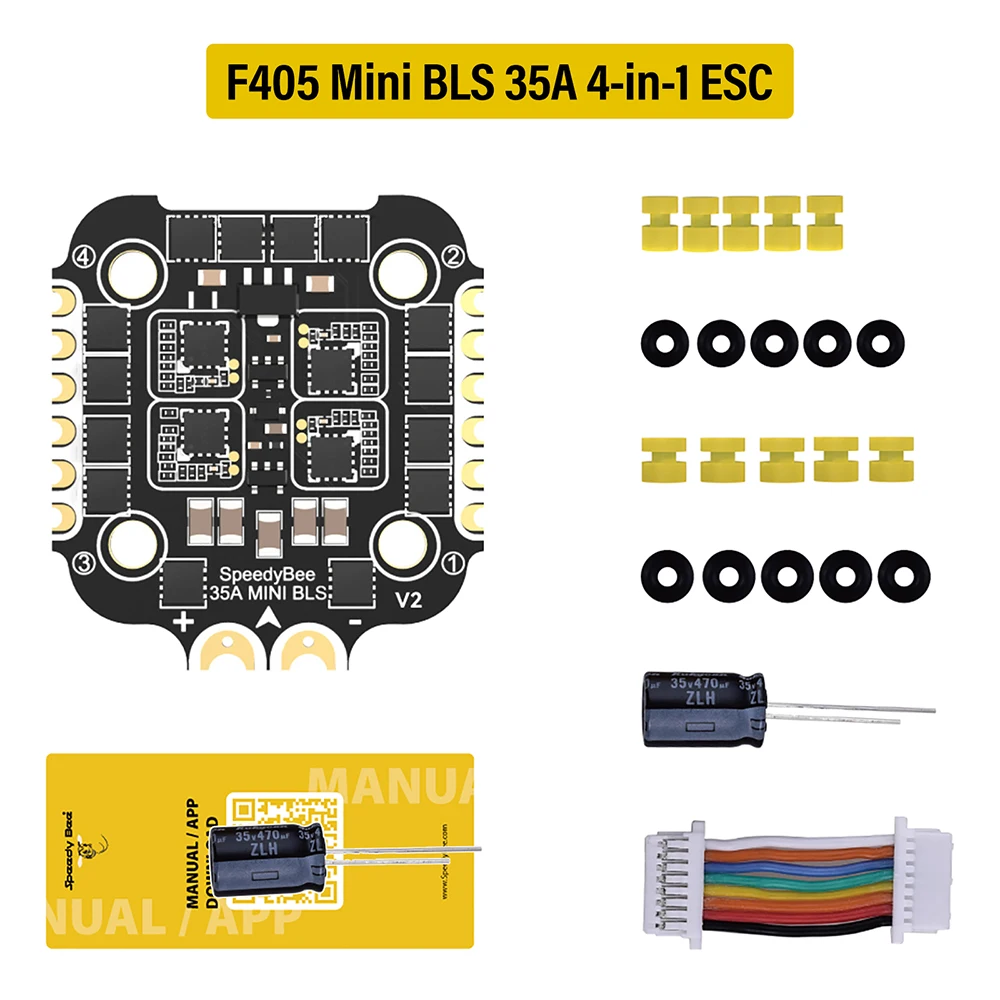

SpeedyBee 35A BLHeli_S Mini V2 4-in-1 ESC
Firmware: BLHeli_S J-H-40
Continuous Current:35A*4
ESC Protocol:DSHOT300/600
Power Input:3-6S LiPo
Mounting:20x20mm φ3.5mm hole size, (Compatible with M2 and M3 screws/silicone grommets)
Dimension:35*35*5.5mm
Weight7.2g

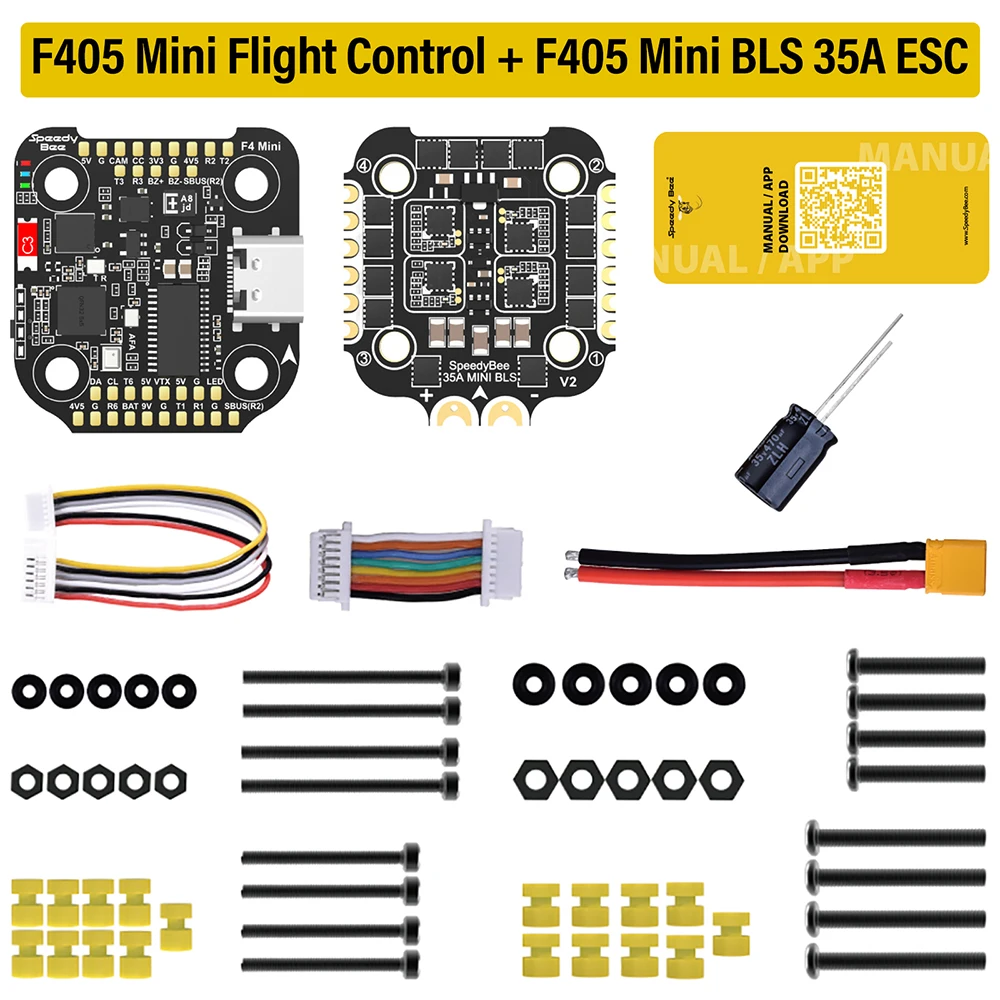

Package Included:
As you choose
Note:
Only the above package content, other products are not included.
