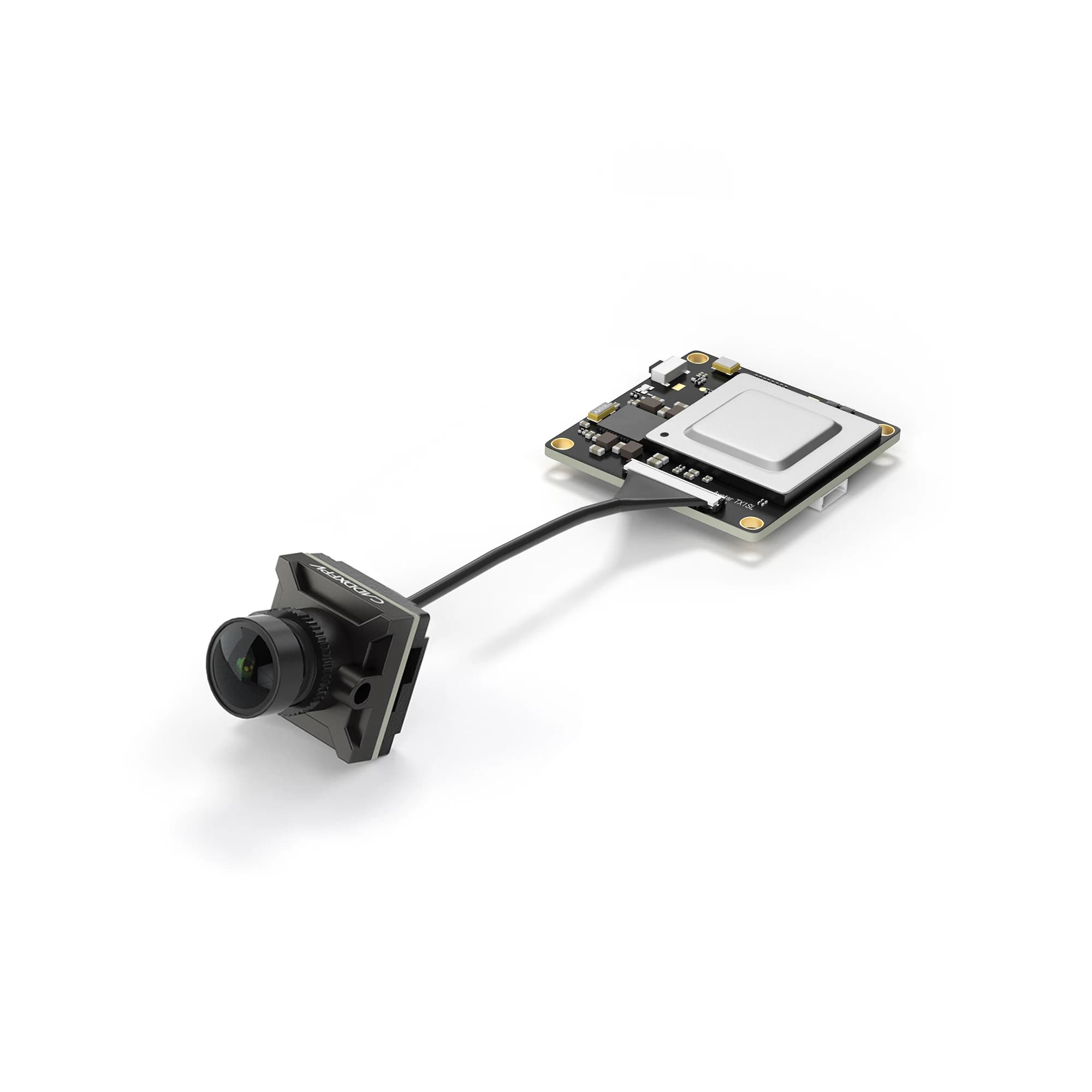

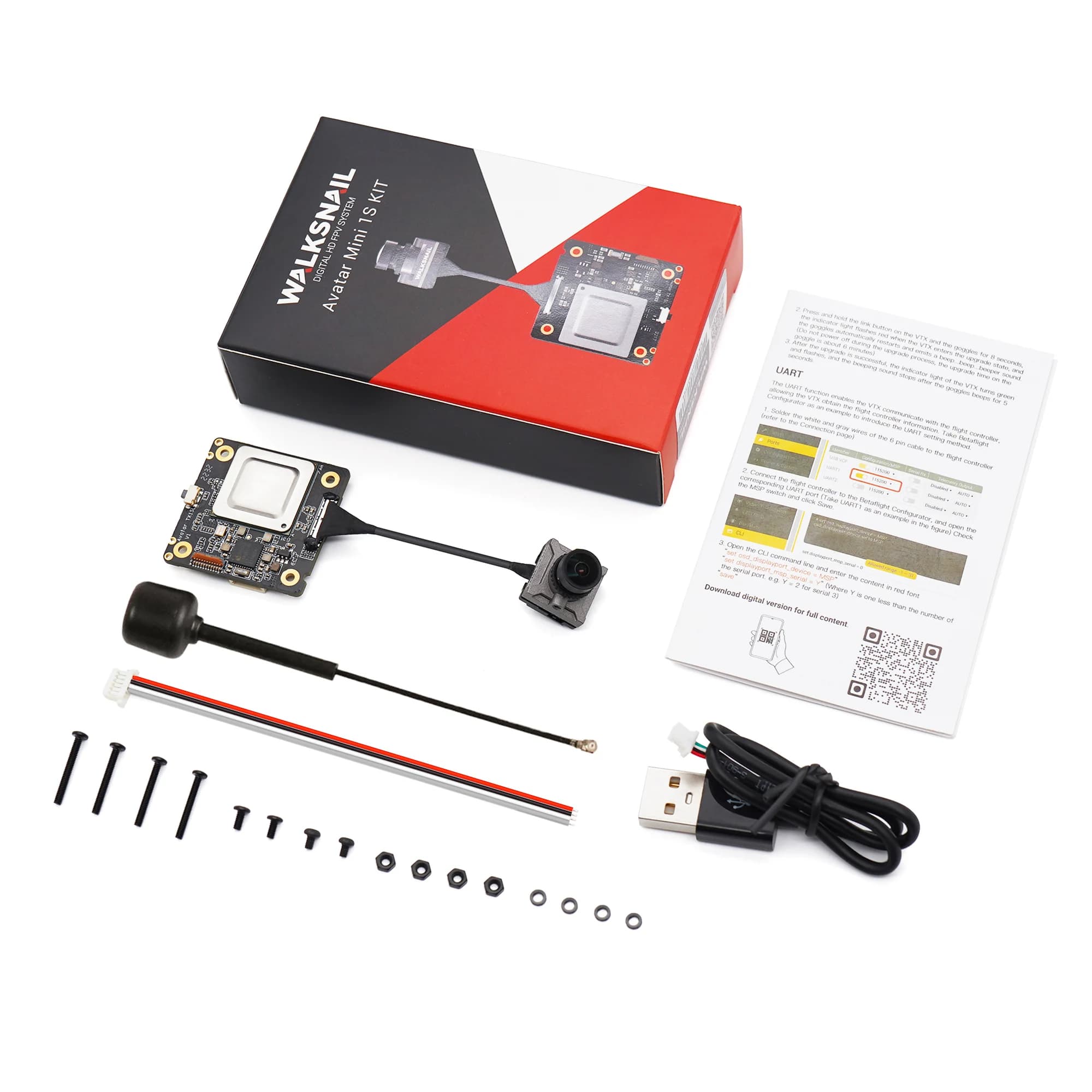

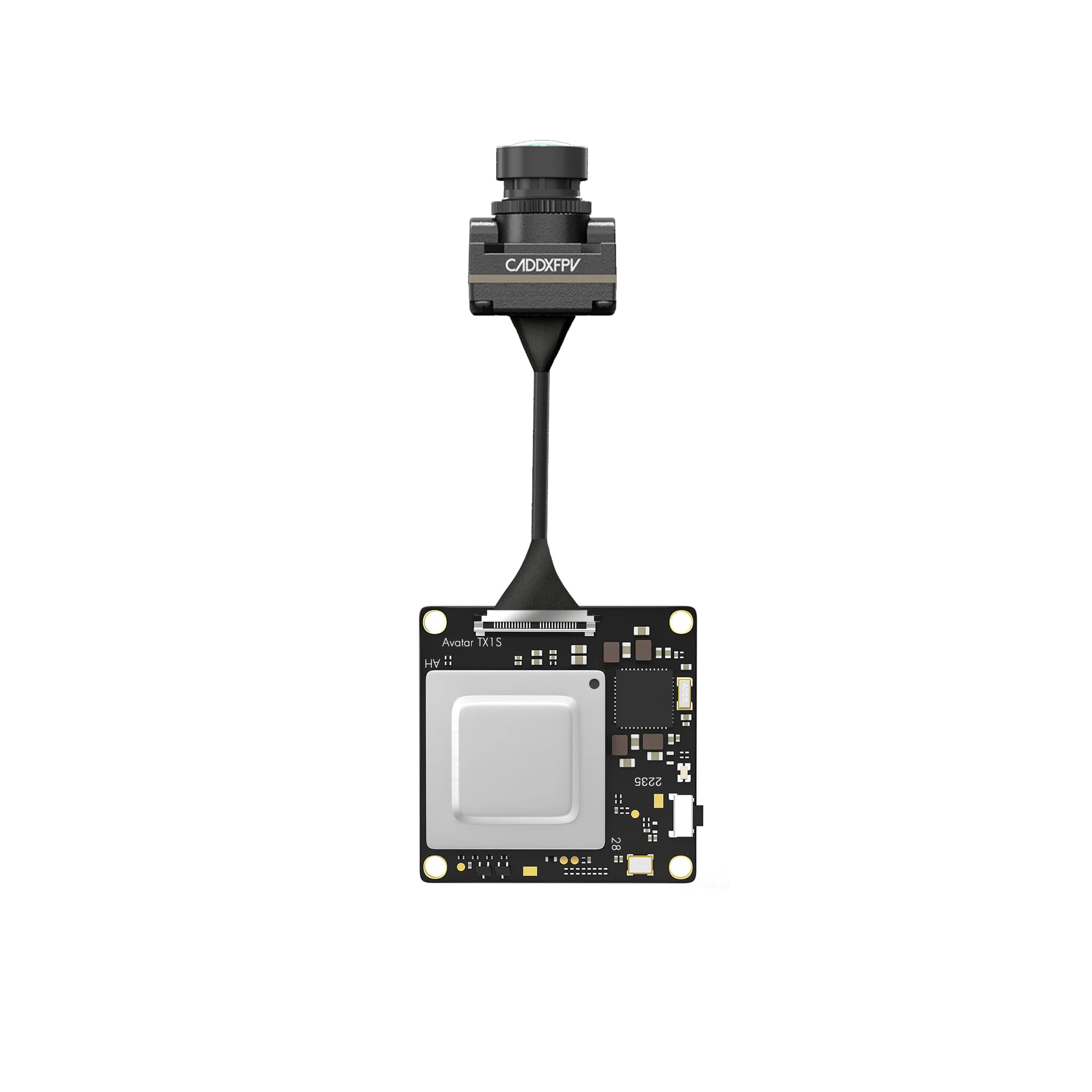

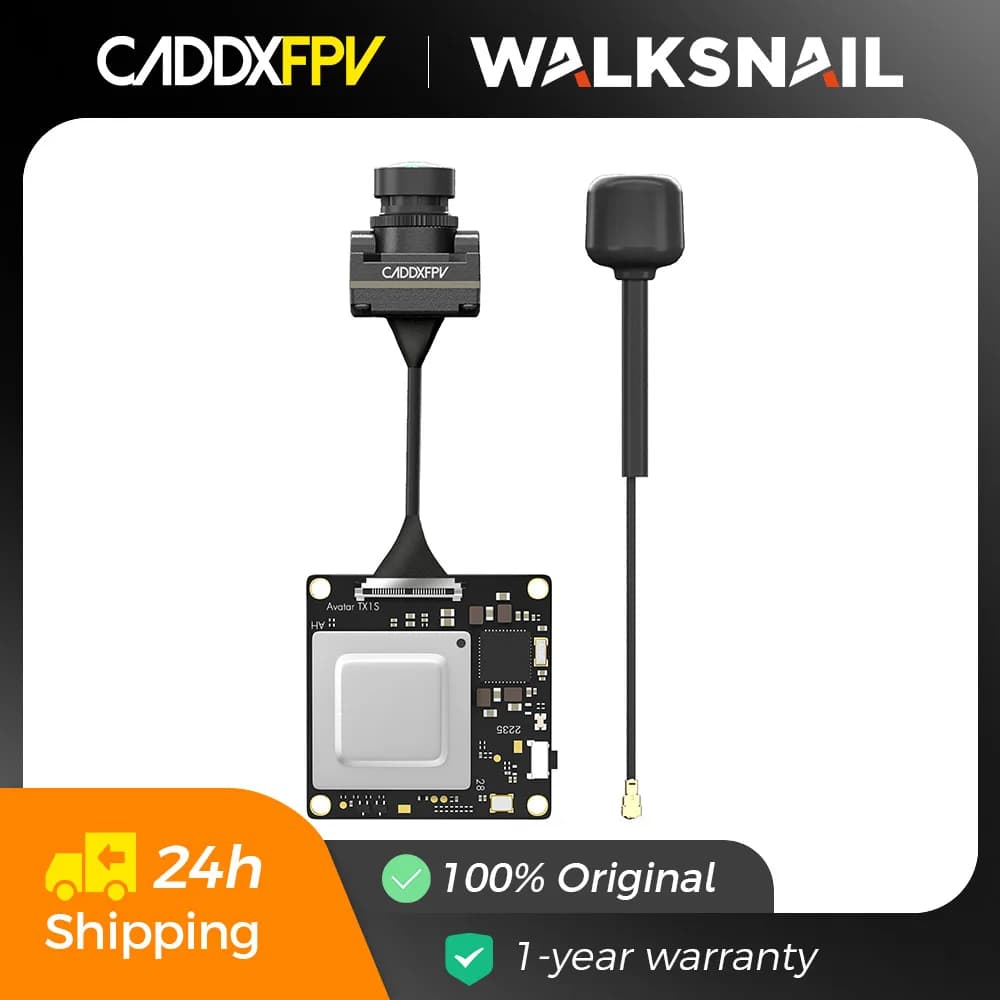

Caddx Walksnail Avatar HD Mini 1s Kit 1080P 60fps nanoCamera V3 VTX 8G Avatar Mini 1s Lite Kit Low Latency for FPV Racing Drone

Description

Caddx Walksnail Avatar HD Mini 1s Kit 1080P 60fps nanoCamera V3 VTX 8G Avatar Mini 1s Lite Kit Low Latency for FPV Racing Drone ============================================================ Walksnail Avatar HD Mini 1s Kit Features: 1080P/60fps 3.1V-13V 22ms low latency Power 500mW Built-in 8G storage 6.8g light weight Bullet Points: 1080P/60FPS,720P/120FPS The Avatar HD system uses H.265 code,an industry-leading technology, to provide 1080p FPV image quality with ultra-low latency. 6.8g light weight board The Avatar mini 1S VTX weights only 6.8g and fits perfectly with the 75X quad. 22ms Low Latency Supports both high frame rate and standard frame rate, in high frame rate,it has an average latency of 22ms. 8G Built-in Storage The Avatar mini 1s vtx comes with 8g built-in storage,it can record 1080p with 60fps or 720p with 100fps/60fps HD flight videos without interference. Specification Camera Avatar nano Image Sensor 1/2.7”1nch Resolution 1080P/60fps,720P/120fps,720P/60fps 16/9  4/3 Aperture Shutter Rolling shutter Min.Illumination 0.001Lux Weight Dimensions 14*14*17mm Coaxial Cable 55mm（default）/90mm Avatar mini 1s module Communication Frequency 5.725-5.850GHz Transmitter Power (EIRP) FCC:<25.5dBm; CE:<14dBm; SRRC:<20dBm; MIC:<25dBm I/O Interface JST1.0*6(Power in)JST0.8*4(USB) Mounting Holes 25.5*25.5mm Dimensions 30*30*6.5mm Storage 8G(v2) /8G(v3) Recording 1080p/720p Weight Operating Temperature -20-40℃ Channels Wide Power Input 3.1V-5V(V2) / 3.1V-13V(V3) Supported FC System Betaflight; Inav; Fettec; Kiss; ArduPliot Canvas mode Bitrate 25mbps 50mbps Latency Average latency 22ms Antenna VTX Antenna Avatar V2 antenna Polarization Bandwidth 5600MHz-6000MHz Average Gain 1.9dBi Line Length Input Impedance Interface IPEX-1 Dimension D15mm*L105mm Weight Packing List Avatar Mini 1S KIT 4 Pin USB Cable 6 Pin Power Cable M2x3/4mm Screws M2x16mm Screws M2 Screw nut 2.1x3.4x1mm Gasket Walksnail Avatar HD Mini 1s Lite Kit Features: 3.1-13V 1080P/60fps HDMI Out Small Antenna Canvas mode 7.8g Light Weight 22ms Low Latency Built-in 8g Storage Bullet Points: New version of VTX Avatar HD mini 1S lite kit comes with the smaller, lighter and stronger new version VTX board, 30*30mm size, 5.1g, which can be installed in smaller drones. Brand new camera Avatar HD lite camera weighs only 1.8g, but with 2.1mm lens and 170°FOV, which can bring you a clearer, more realistic image quality. High quality, low latency Weighing only 7.8g, but avatar mini 1s lite kit supports 1080P/60fps, 720P/100fps high definition FPV image quality with a average 22ms ultral-low latency, bring you a beautiful clear 1080P digital FPV video and an unforgettable flying experience. 8G Built-in Storage The Avatar vtx comes with 8g built-in storage, it can record 1080p or 720p HD and interference-free flight footages without adding an extra SD card and an action camera, reducing the overall weight of the drones and extending the flight time, allowing you to experience a more comfortable flight while recording 1080 HD videos. Canvas Mode Supporting Betaflight, kiss, Inav, Ardu full OSD display and customization, you&#x27;ll be able to customize various OSD fonts, colors and patterns you like and easily adjust the parameters you want via remote control. 3.1-13V input, max 500ms output The avatar mini 1S lite kit is suitable for more types of drones, with 3.1-13V voltage input and 500mw power output, you&#x27;ll be able to fly all kinds of tinywhoops in a amazing video quality and range. Product Size: Specification Camera Avatar lite camera Image Sensor 1/2.7”1nch Resolution 1080P/60fps,720P/120fps,720P/60fps 16/9  4/3 Aperture Shutter Rolling Rolling shutter Min.Illumination 0.001Lux Weight Dimensions 14*14*16mm Avatar mini 1s module Communication Frequency 5.725-5.850GHz Transmitter Power (EIRP) FCC:<27dBm; CE:<14dBm; SRRC:<20dBm; MIC:<25dBm I/O Interface JST1.0*6(Power in)JST0.8*4(USB) Mounting Holes 25.5*25.5mm Dimensions 30*30*6.5mm Storage 8G (V2) / 8G(V3
