1PC/4Pcs Flashhobby A2306.5 2306 1400KV 1900KV 2300KV 2550KV High Torque Outrunner Brushless Motor for FPV Racing Drones
9 orders (reference)
Description
1PC/4Pcs Flashhobby A2306.5 2306 1400KV 1900KV 2300KV 2550KV High Torque Outrunner Brushless Motor for FPV Racing Drones ============================================================ 4Pcs/Lot FLASHHOBBY A2306.5 1400KV 1900KV 2300KV 2550KV High Torque Outrunner Brushless Motor for FPV Racing Drones Item Name:A2306.5 Weight: 36.5g (including the cables) Motor Size:28.8 x 17.5mm Stator Diameter: 23mm Stator Height: 6.5mm Shaft Diameter: 4mm Propeller Shaft Size: M5 Mounting Screw Pattern: 16x16mm(M3*4) Configuration: 12N14P Motor Cable: 20AWG 145mm KV Value: 1400KV, 1900KV, 2300KV, 2550KV or customed KV Recommend: 5~7 inch prop application Feature: Working Temperature Range:-0℃~+80℃ Control Method:Use ESC And Adjust PWM signal For Control,PWM Adjustment Range 900- 2100US Motor Type: Outrunner Brushless Motor,Three-phase Motor A2306.5-1400KV Motor Specification Max pull:1741g(6S/GF7056 3R) Input Voltage:DC7.4-24V(2-6S) Current: 35.16A Suggested ESC: 30A~50A Maximum Power:843W Suggested Prop: 6~7 inch prop A2306.5-1900KV Motor Specification Max pull:1961g(6S/GF6042 2R) Input Voltage:DC7.4-24V(2-6S) Current: 51.32A Suggested ESC: 30A~60A Maximum Power:1231W Suggested Prop: 5~6 inch prop A2306.5-2300KV Motor Specification Max pull:1472g(4S/GF6042 2R) Input Voltage:DC7.4-16V(2-4S) Current: 42.96A Suggested ESC: 30A~60A Maximum Power:687W Suggested Prop: 5~6 inch prop A2306.5-2550KV Motor Specification Max pull:1718g(4S/HQ6045) Input Voltage:DC7.4-16V(2-4S) Current: 47.34A Suggested ESC: 30A~60A Maximum Power:757W Suggested Prop: 5~6 inch prop TECHNICAL SPECIFICATIONS • Weight: 36.5g (including the cables) • Current: 35.16A • Current: 51.32A • Current: 42.96A • Current: 47.34A • Motor Type: Outrunner Brushless Motor,Three-phase Motor AVAILABLE OPTIONS 1PC 1400kv 1PC 1900kv 1PC 2300kv 4PCS 1400KV 1PC 2550kv 4PCS 1900KV 4PCS 2300KV 4PCS 2550KV PRODUCT INFORMATION Brand: FlashHobby Category: Brushless Motor Wholesale Price: US $24.96 ————————————————————————————————————————
Specifications
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Wheelbase | Screws |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| Model Number | A2306.5 |
| For Vehicle Type | Airplanes |
| Tool Supplies | Battery |
| Four-wheel Drive Attributes | Assemblage |
| Remote Control Peripherals/Devices | ESC |
| Upgrade Parts/Accessories | Frame |
| RC Parts & Accs | engines |
| Material | Metal |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
| Brand Name | FLASHHOBBY |
Product Details

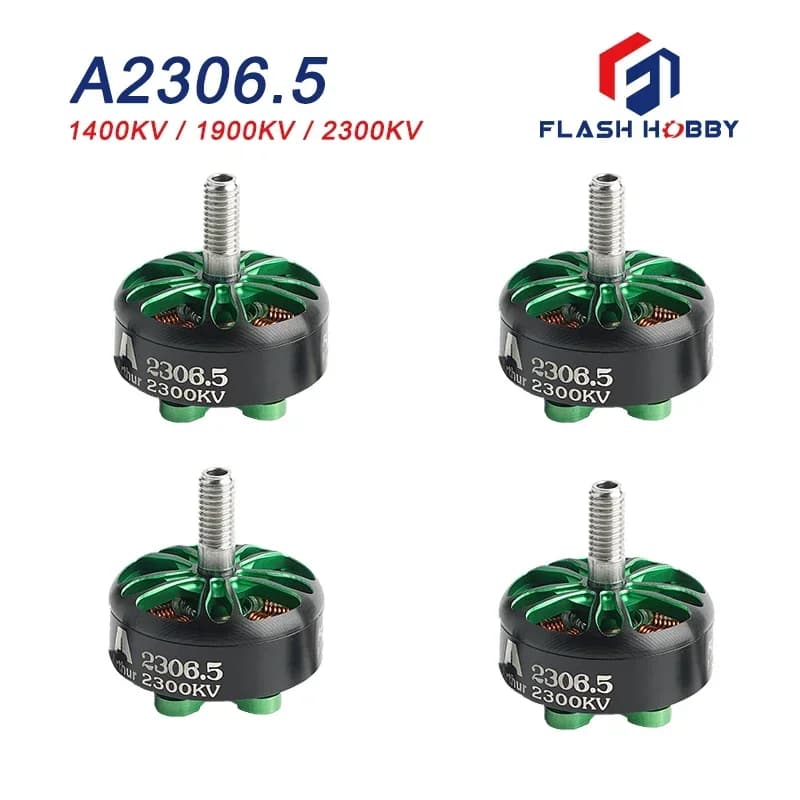

4Pcs/Lot FLASHHOBBY A2306.5 1400KV 1900KV 2300KV 2550KV High Torque Outrunner Brushless Motor for FPV Racing Drones
Item Name:A2306.5

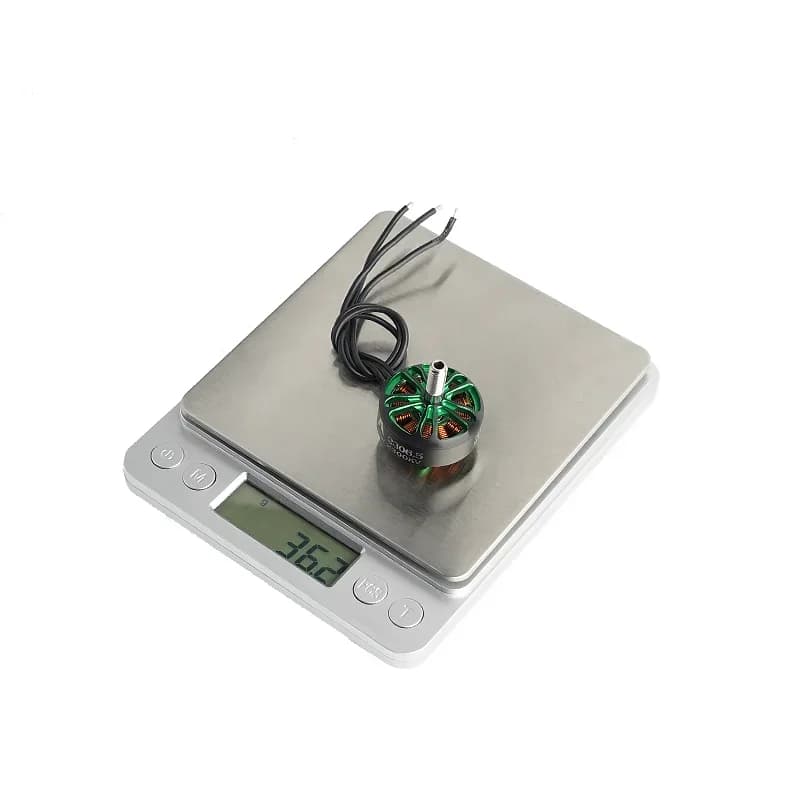

Weight: 36.5g (including the cables)
Motor Size:28.8 x 17.5mm
Stator Diameter: 23mm
Stator Height: 6.5mm
Shaft Diameter: 4mm
Propeller Shaft Size: M5
Mounting Screw Pattern: 16x16mm(M3*4)
Configuration: 12N14P
Motor Cable: 20AWG 145mm
KV Value: 1400KV, 1900KV, 2300KV, 2550KV or customed KV
Recommend: 5~7 inch prop application
Feature:
Working Temperature Range:-0℃~+80℃
Control Method:Use ESC And Adjust PWM signal For Control,PWM Adjustment Range 900- 2100US
Motor Type: Outrunner Brushless Motor,Three-phase Motor
A2306.5-1400KV Motor Specification
Max pull:1741g(6S/GF7056 3R)
Input Voltage:DC7.4-24V(2-6S)
Current: 35.16A
Suggested ESC: 30A~50A
Maximum Power:843W
Suggested Prop: 6~7 inch prop
A2306.5-1900KV Motor Specification
Max pull:1961g(6S/GF6042 2R)
Input Voltage:DC7.4-24V(2-6S)
Current: 51.32A
Suggested ESC: 30A~60A
Maximum Power:1231W
Suggested Prop: 5~6 inch prop
A2306.5-2300KV Motor Specification
Max pull:1472g(4S/GF6042 2R)
Input Voltage:DC7.4-16V(2-4S)
Current: 42.96A
Suggested ESC: 30A~60A
Maximum Power:687W
Suggested Prop: 5~6 inch prop
A2306.5-2550KV Motor Specification
Max pull:1718g(4S/HQ6045)
Input Voltage:DC7.4-16V(2-4S)
Current: 47.34A
Suggested ESC: 30A~60A
Maximum Power:757W
Suggested Prop: 5~6 inch prop
