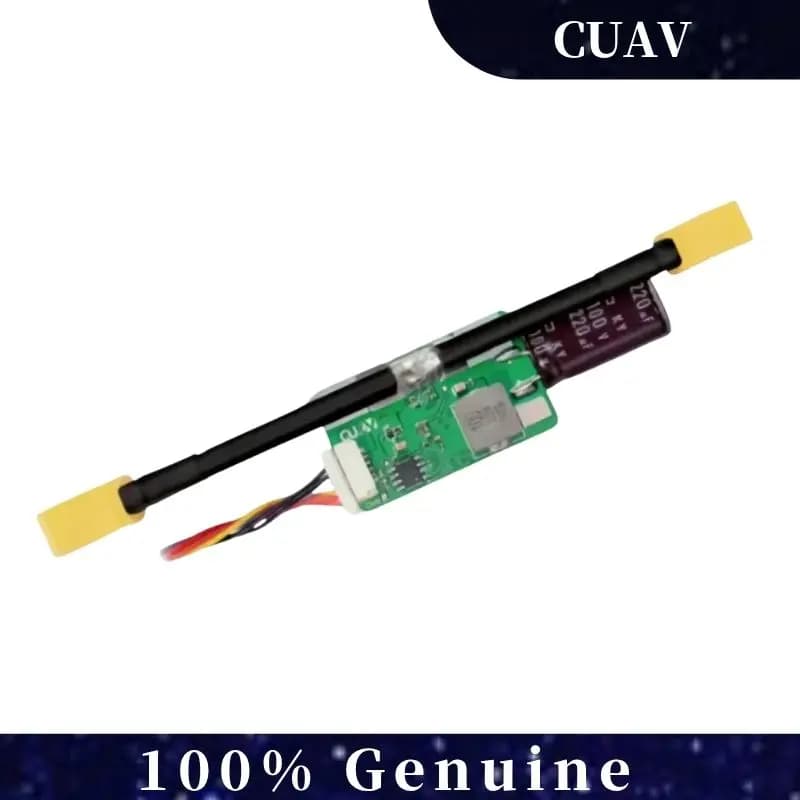

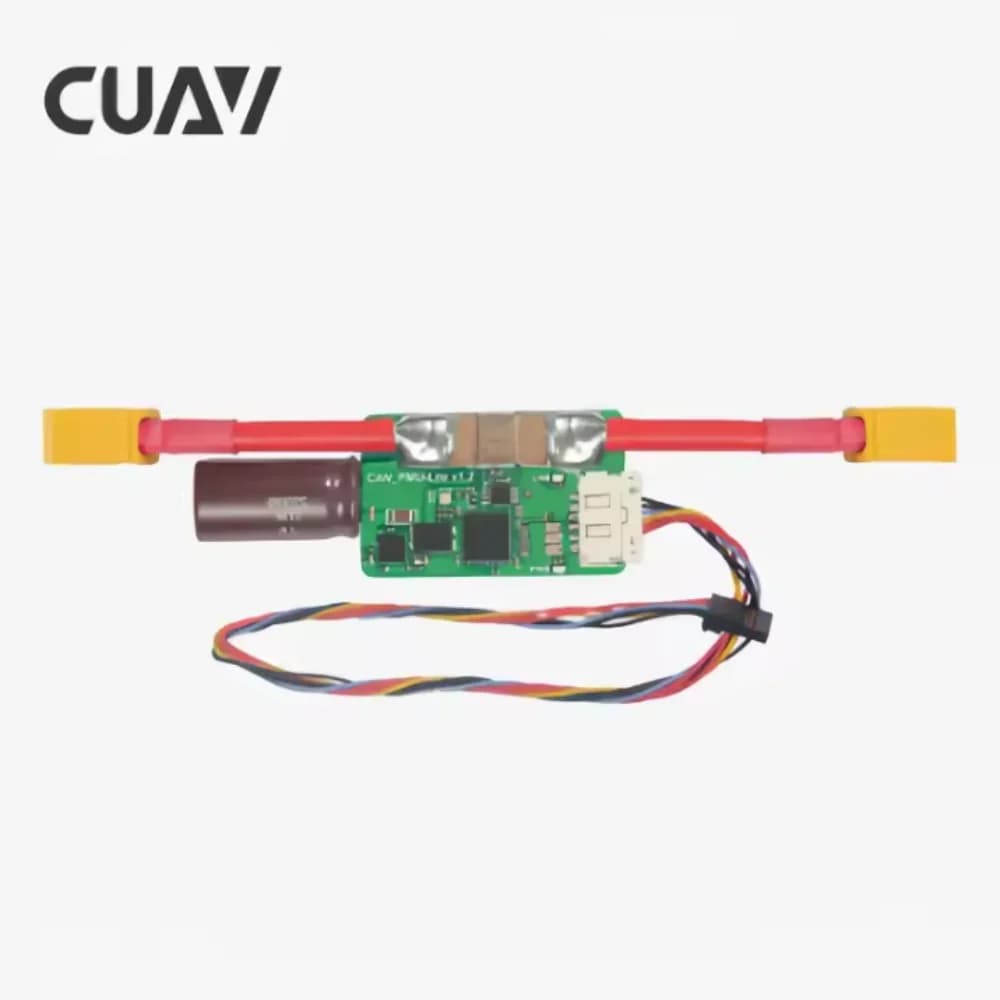

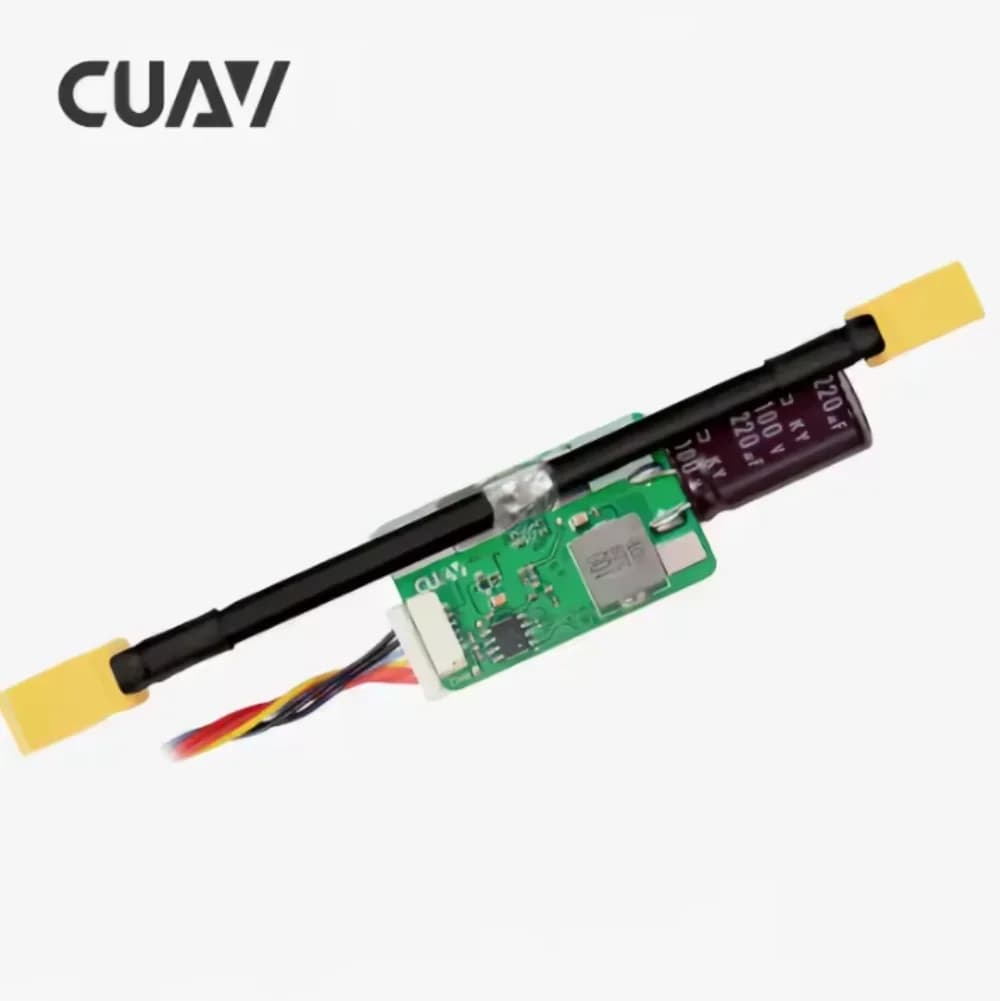

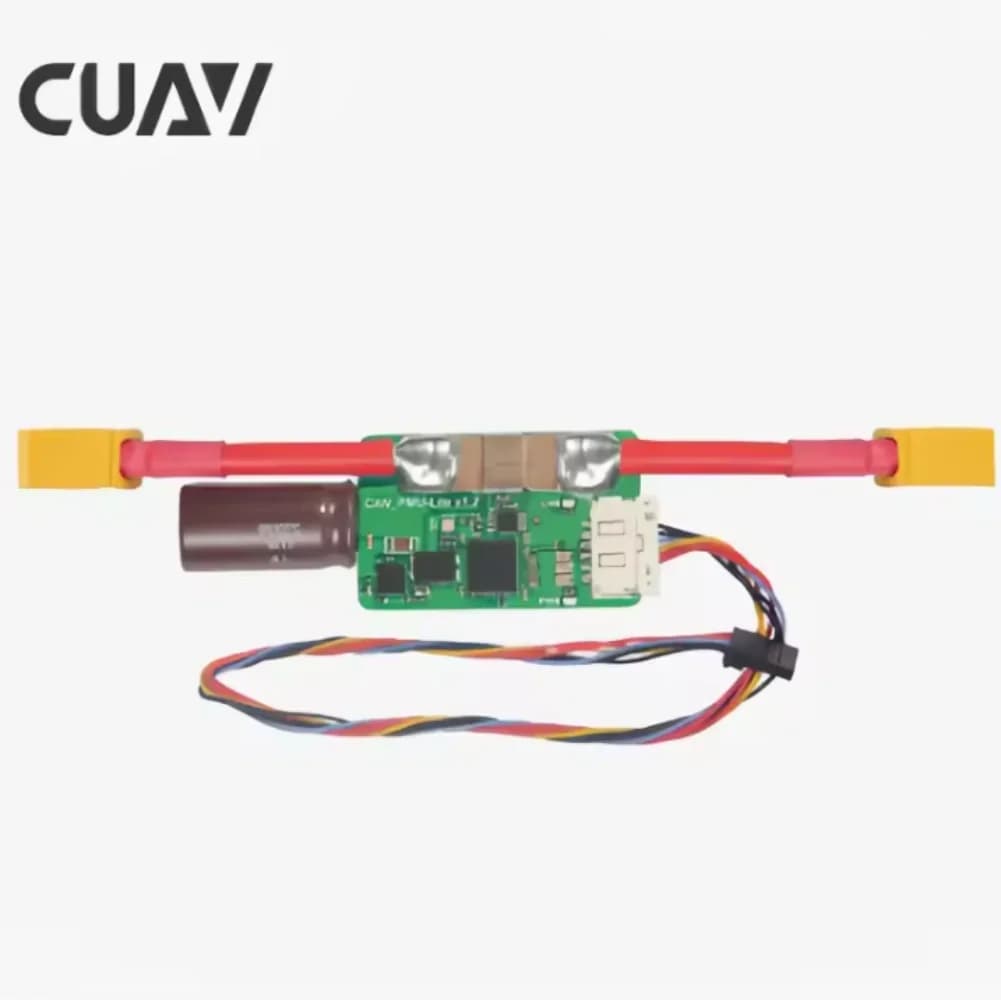

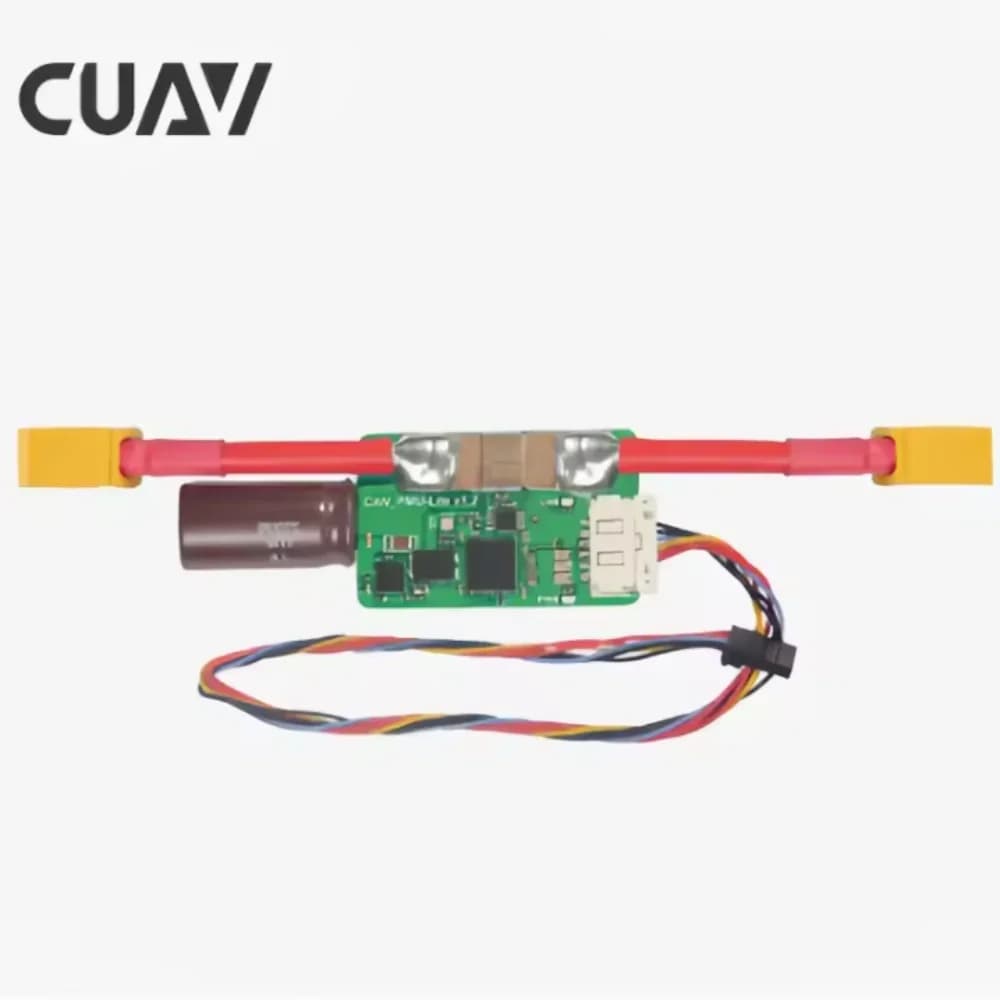

CUAV CAN PMU Lite Power Supply Precision High-voltage Flight-control Flight Galvanometer for X7 Series Flight Control
Description
CUAV CAN PMU Lite Power Supply Precision High-voltage Flight-control Flight Galvanometer for X7 Series Flight Control ============================================================ 1 --Support 10 ~ 62V voltage input. 2 --Maximum measuring current: maximum 90A. 3 --Accuracy voltage and current detection: current accuracy within 80A is 0.2, voltage accuracy is 0.15V. 4 --Regulated output: can provide up to 21 W 5.2V / 4A power output for peripherals. 5 --Power indicator LED : visually indicate Lipo voltage status. Processor: STM32F103CEU6 Input voltage: 10-62V (2-15S Lipo) Maximum current: 90A Voltage accuracy: ±0.15V Current accuracy: ±0.2A Resolution: 0.01A/V Maximum output power: 4200W/90S Maximum stable output power: 3600W 5V regulated output: maximum 5A, stable 4A Communication protocol: UAVCAN Working temperature: -20~+100°C Firmware upgrade: support Interface type: IN/ OUT: XT60-M/XT60-F Power/CAN: 502585-0670 Other:SMO6B-CHS-TB Product size: 140mm (length) * 25mm (width) * 13mm (height) APM firmware supports: 1.Rover 3.5.1 and above are available 2.Copter 3.7 and above are available 3.Plane 3.10 and above are available 4.Heli3.7 and above are available Copter3.6 firmware users need to flash the 3.7 version firmware and then flash back to the 3.6 version PX4 firmware support: PX4 Pro V1.10.1 or higher Product Brief CAN PMU lite is a CUAV standard version of the power management module, built-in STM32F412 processor, supports 10~62V voltage input and 5.4V/4A regulated output. Compared with HV_PM, it uses advanced CAN bus communication and supports standard UAVCAN protocol. PMU lite has built-in ITT temperature compensation algorithm and performs factory calibration to ensure the consistency of measurement results at different temperatures. TECHNICAL SPECIFICATIONS • Processor: STM32F103CEU6 • Resolution: 0.01A/V AVAILABLE OPTIONS CAN PMU Lite Module PRODUCT INFORMATION Brand: CUAV Category: FPV Drone Wholesale Price: US $67.73 ————————————————————————————————————————
Product Details
1 --Support 10 ~ 62V voltage input.
2 --Maximum measuring current: maximum 90A.
3 --Accuracy voltage and current detection: current accuracy within 80A is 0.2, voltage accuracy is 0.15V.
4 --Regulated output: can provide up to 21 W 5.2V / 4A power output for peripherals.
5 --Power indicator LED : visually indicate Lipo voltage status.
Processor: STM32F103CEU6
Input voltage: 10-62V (2-15S Lipo)
Maximum current: 90A
Voltage accuracy: ±0.15V
Current accuracy: ±0.2A
Resolution: 0.01A/V
Maximum output power: 4200W/90S
Maximum stable output power: 3600W
5V regulated output: maximum 5A, stable 4A
Communication protocol: UAVCAN
Working temperature: -20~+100°C
Firmware upgrade: support

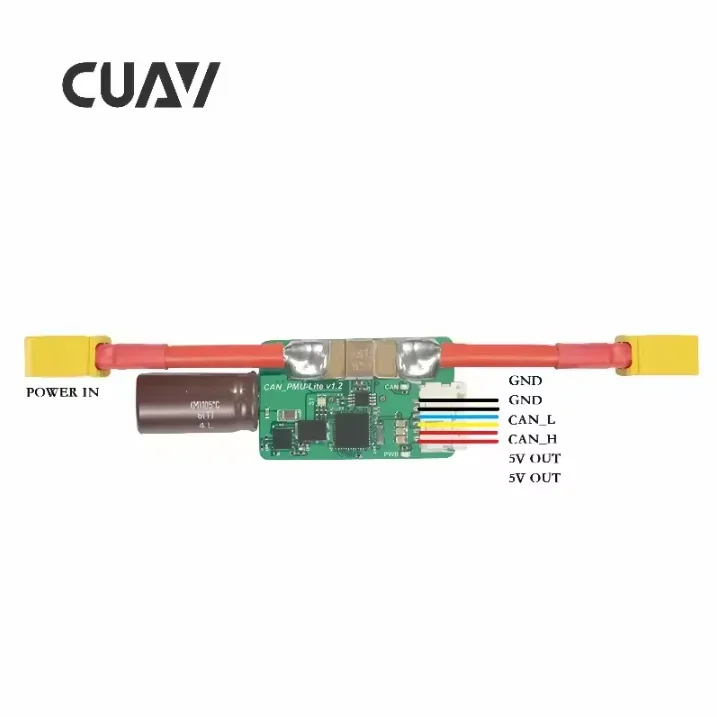

Interface type: IN/ OUT: XT60-M/XT60-F
Power/CAN: 502585-0670
Other:SMO6B-CHS-TB
Product size: 140mm (length) * 25mm (width) * 13mm (height)
APM firmware supports:
1.Rover 3.5.1 and above are available
2.Copter 3.7 and above are available
3.Plane 3.10 and above are available
4.Heli3.7 and above are available
Copter3.6 firmware users need to flash the 3.7 version firmware and then flash back to the 3.6 version
PX4 firmware support: PX4 Pro V1.10.1 or higher
Product Brief
CAN PMU lite is a CUAV standard version of the power management module, built-in STM32F412 processor, supports 10~62V voltage input and 5.4V/4A regulated output.
Compared with HV_PM, it uses advanced CAN bus communication and supports standard UAVCAN protocol. PMU lite has built-in ITT temperature compensation algorithm and performs factory calibration to ensure the consistency of measurement results at different temperatures.
