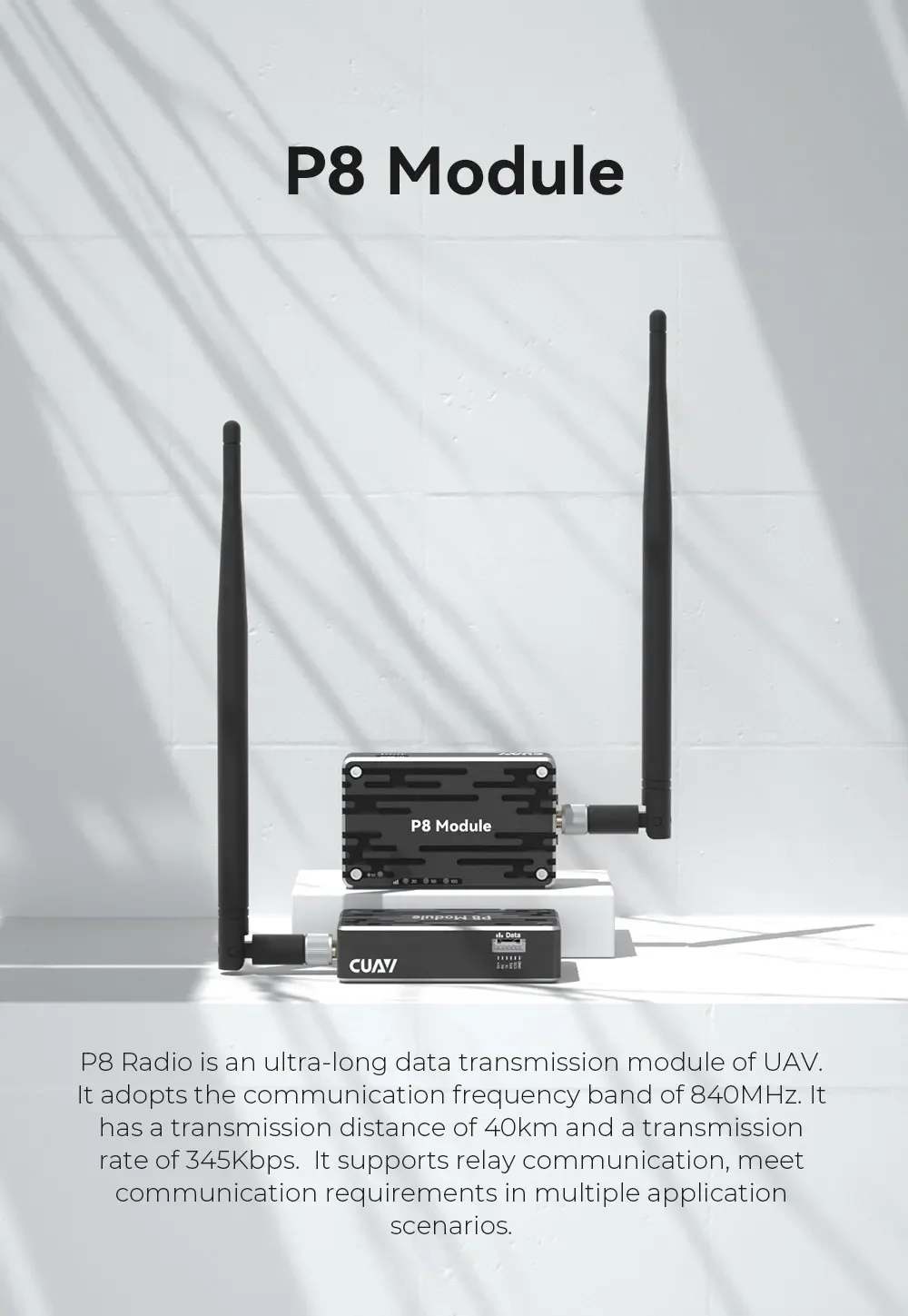

CUAV P8 Radio Telemetry Module Set 900MHz UAV Long Range Data Link for PX4 Pixhawk Flight Controller Ground Station Sky Air Unit

Description

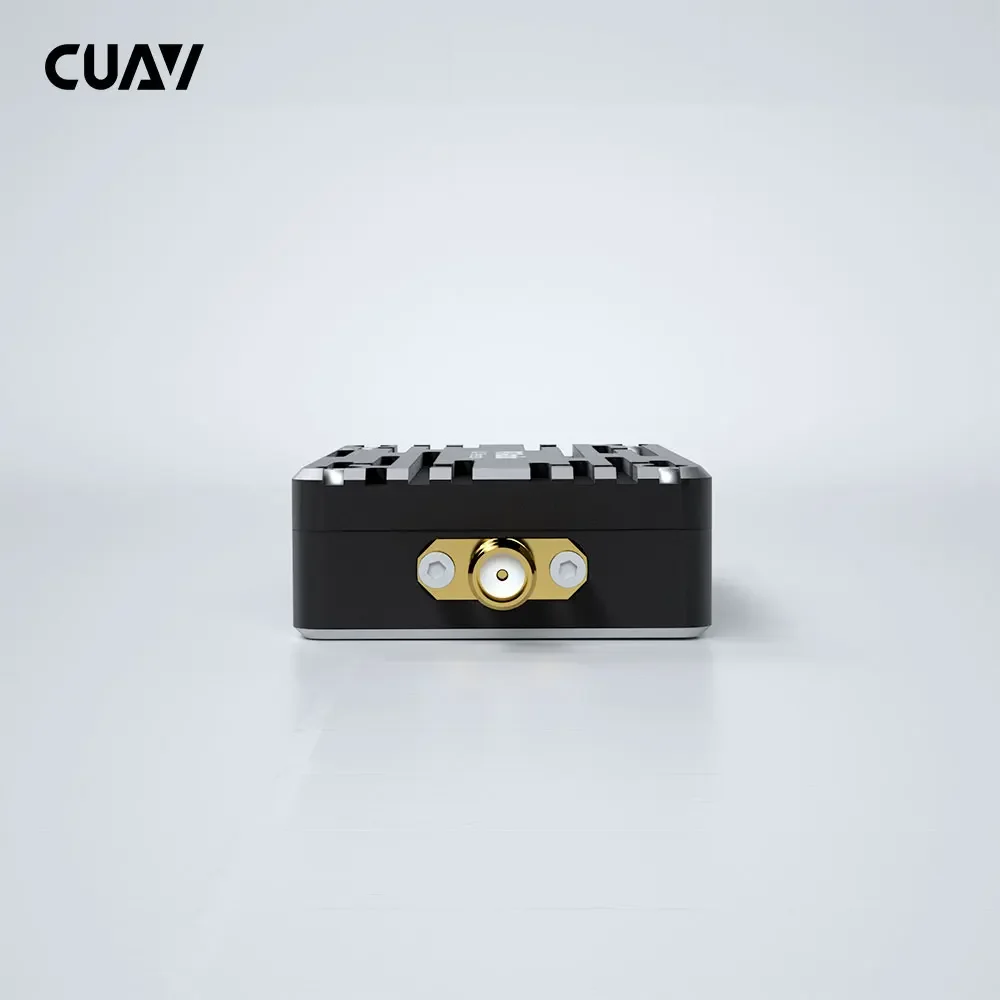

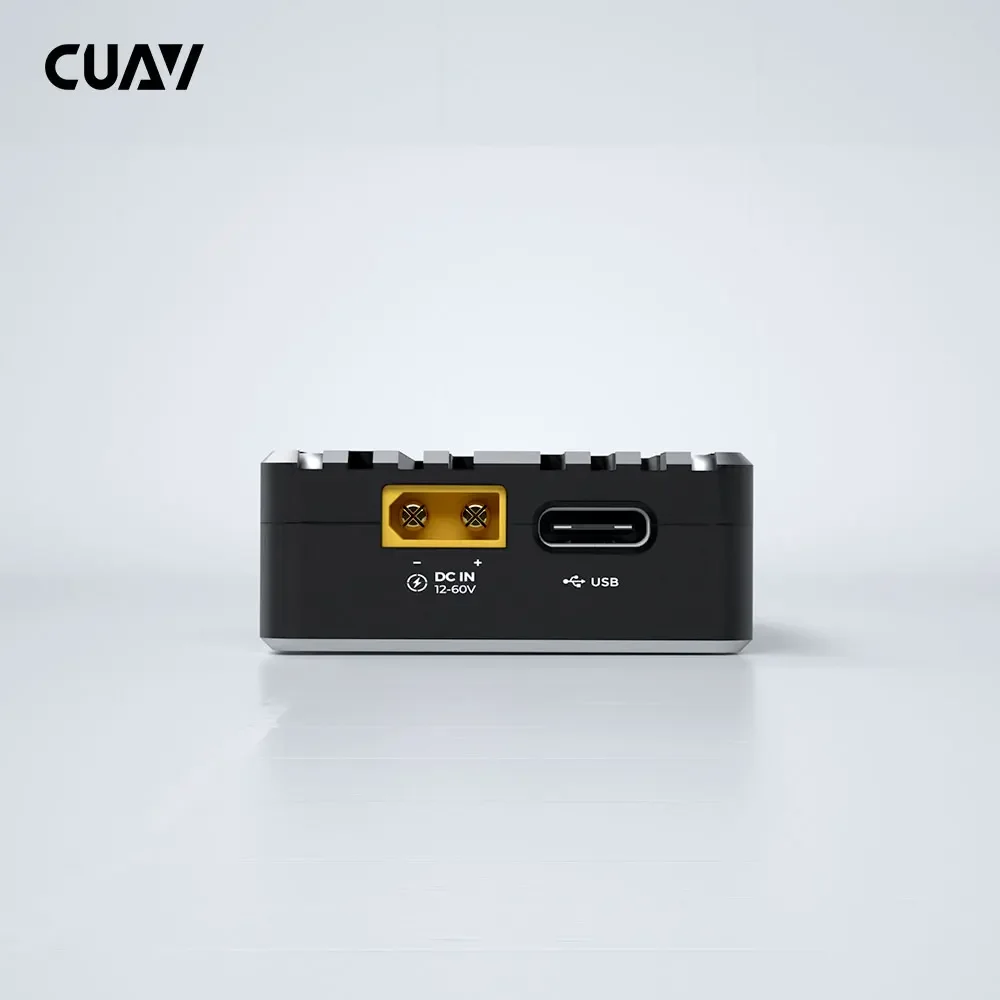

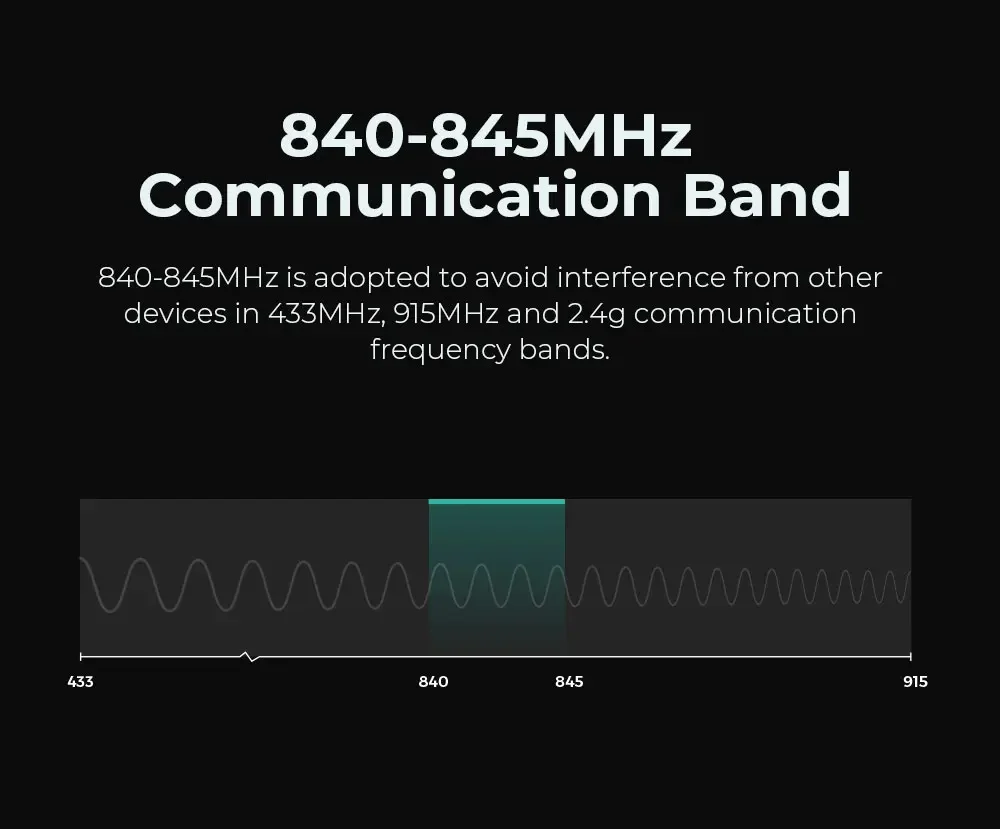

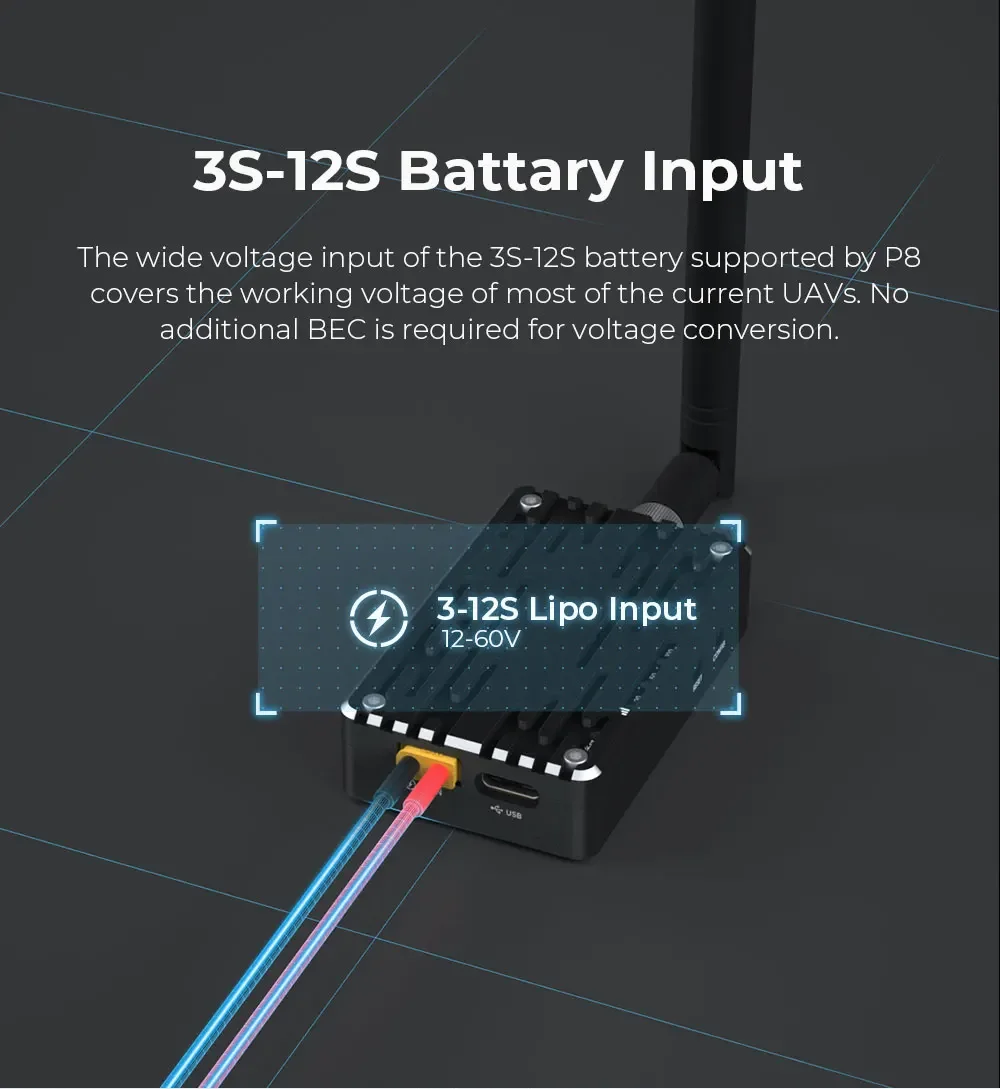

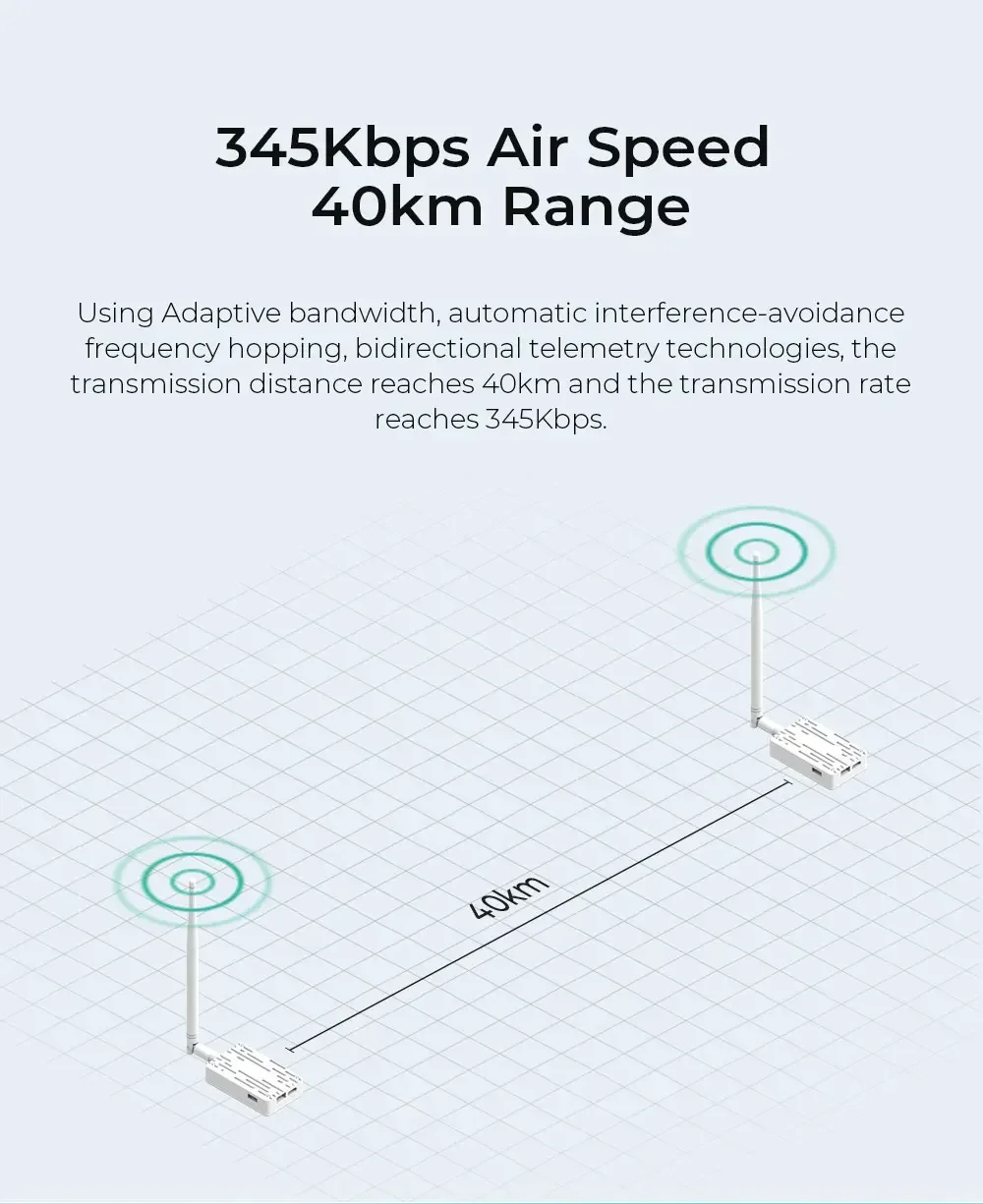

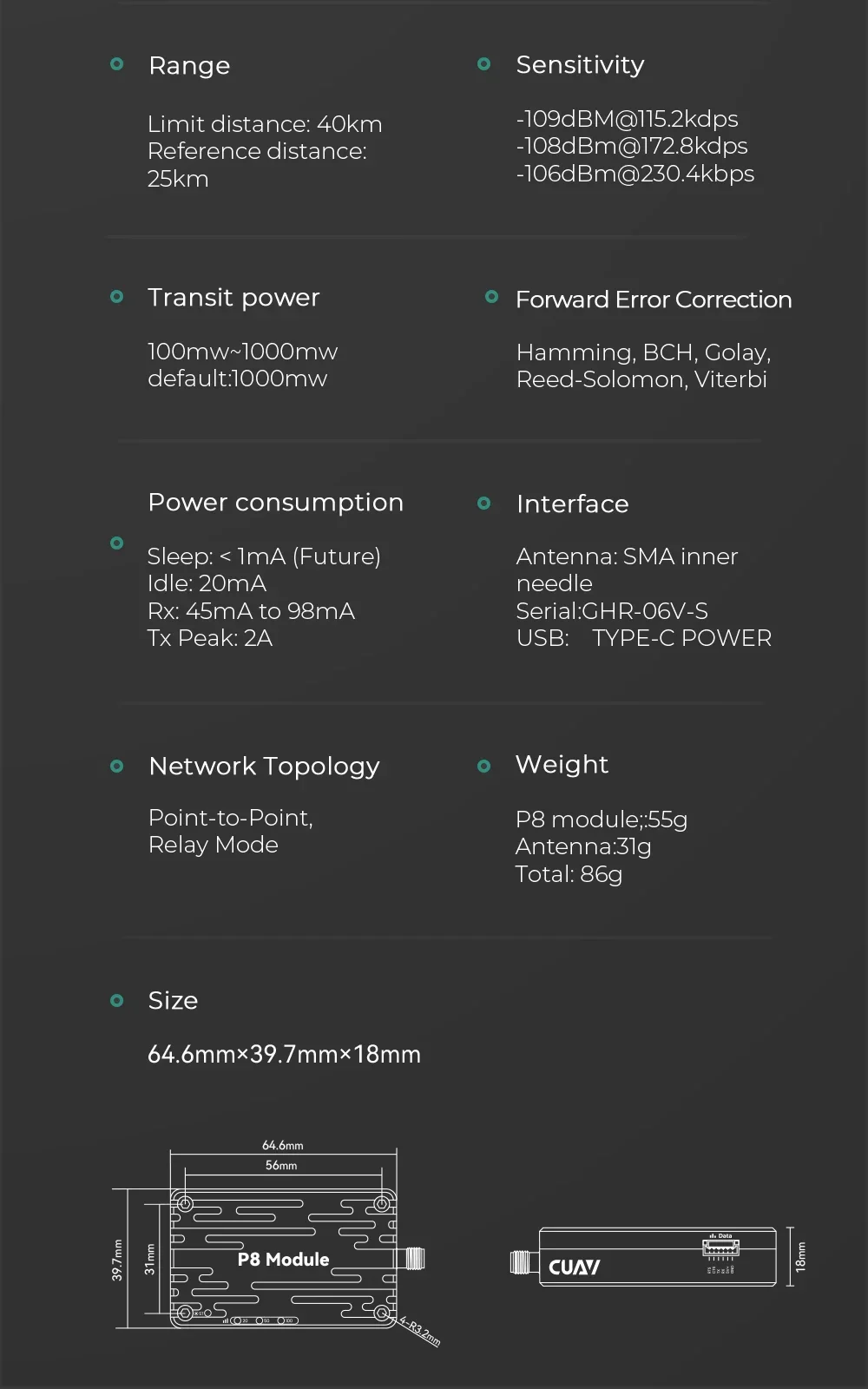

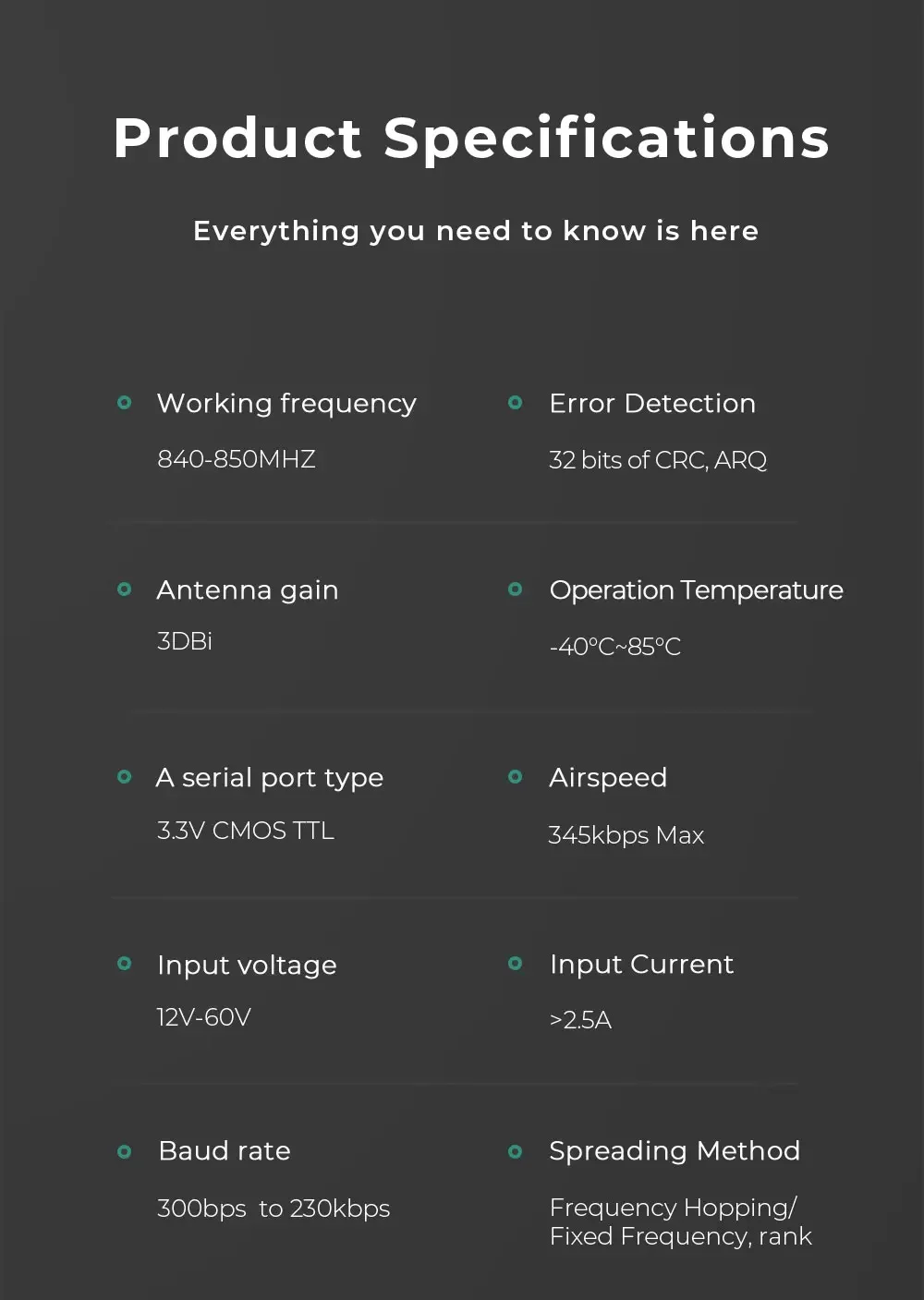

CUAV P8 Radio Telemetry Module Set 900MHz UAV Long Range Data Link for PX4 Pixhawk Flight Controller Ground Station Sky Air Unit ============================================================ Features CUAV P8 Radio UAV Telemetry Ultra-Long Data Transmission Ground And Sky Unit Module Set Product Details Working frequency: 840-850MHZ Error Detection: 32 bits of CRC , ARQ Antenna gain: 3DBi Operation Temperature: -40°C-85°C A serial port type: 3.3V CMOS TTL Airspeed: 345kbps Max Input voltage: 12V-60V Input Current: >2.5A Baud rate: 300bps to 230kbps Spreading Method:Frequency Hopping /Fixed Frequency, rank - Limit distance: 60km + - Reference distance: 25km Sensitivity - 109dBM@115.2kdps - 108dBm@172.8kdps - 106dBm@230.4kbps Transit power: 100mw-1000mw(default 1000mw) Forward Error Correction: Hamming, BCH, Golay,Reed-Solomon, Viterbi Power consumption - Sleep: <1mA (Future) - Idle : 20mA - Rx: 45mA to 98mA - Tx Peak: 2A Interface - Antenna: SMA inner needle - Serial: GHR-O6V-S - USB: TYPE-C POWER Network Topology: Point-to-point,Point -to-Multipoint, Relay Mode Weight: P8 module 55g, Antenna 31g, Total 86g Size: 65mmx40mmx16.5mm TECHNICAL SPECIFICATIONS • Weight: P8 module 55g, Antenna 31g, Total 86g • Size: 65mmx40mmx16.5mm AVAILABLE OPTIONS P8 One Set Sky Unit Ground Unit PRODUCT INFORMATION Brand: CUAV Category: FPV Drone Wholesale Price: US $319.01 ————————————————————————————————————————
