Product Details

Pixhawk6X飞控概述及配置参数

Overview

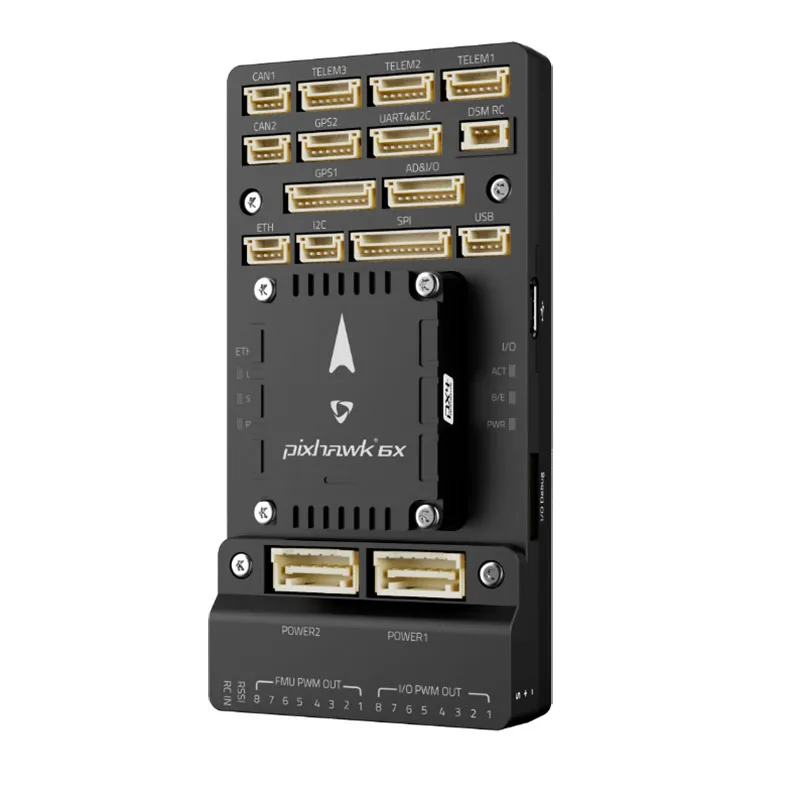

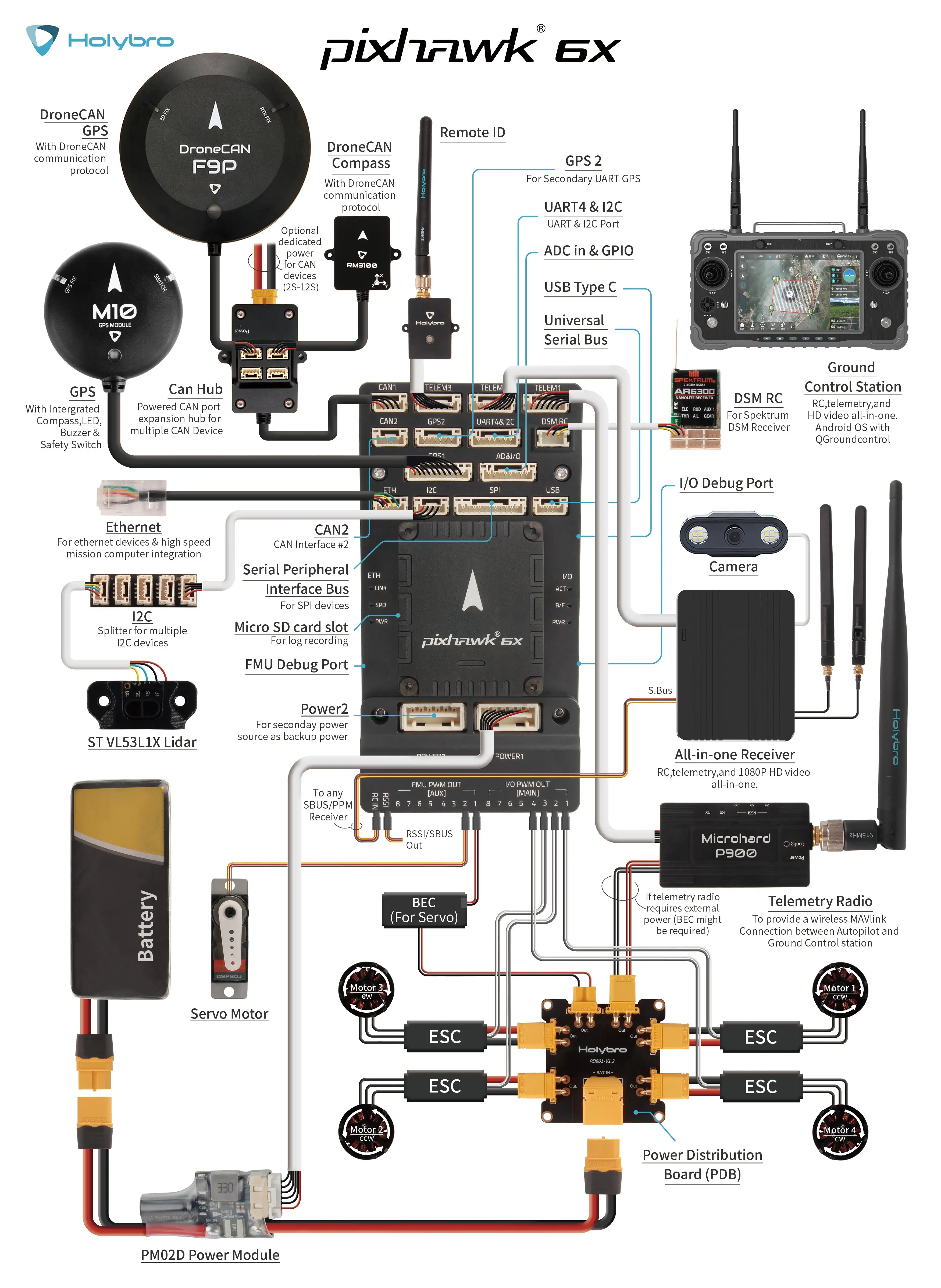

The Pixhawk® 6X is the latest update to the successful family of Pixhawk® flight controllers, based on the Pixhawk® FMUv6X Open Standard and the Pixhawk® Autopilot Bus Standard. It comes with PX4 Autopilot® pre-installed. Inside the Pixhawk® 6X, you can find an STMicroelectronics® based STM32H753, paired with sensor technology from Bosch®, InvenSense®, giving you flexibility and reliability for controlling any autonomous vehicle, suitable for both academic and commercial applications.

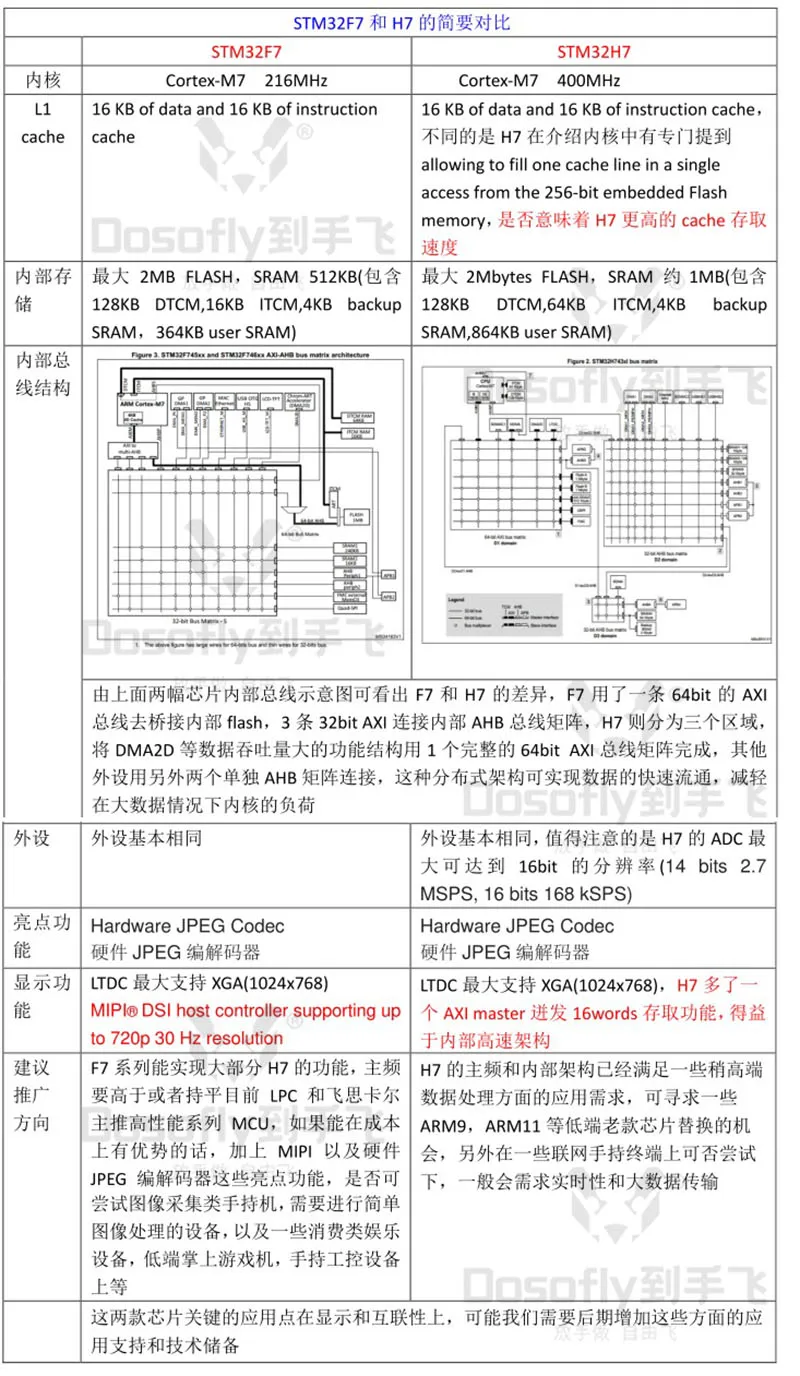

The Pixhawk® 6X’s H7 microcontroller contain the Arm® Cortex®-M7 core running up to 480 MHz, has 2MB flash memory and 1MB RAM. Thanks to the updated processing power, developers can be more productive and efficient with their development work, allowing for complex algorithms and models.

The FMUv6X open standard includes high-performance, low-noise IMUs on board, designed for better stabilization. Triple redundant IMU & double redundant barometer on separate buses. When the PX4 Autopilot detects a sensor failure, the system seamlessly switches to another to maintain flight control reliability. An independent LDO powers every sensor set with independent power control. A vibration isolation System to filter out high-frequency vibration and reduce noise to ensure accurate readings, allowing vehicles to reach better overall flight performances. External sensor bus (SPI5) has two chip select lines and data-ready signals for additional sensors and payload with SPI-interface, and with an integrated Microchip Ethernet PHY, high-speed communication with mission computers via ethernet is now possible.

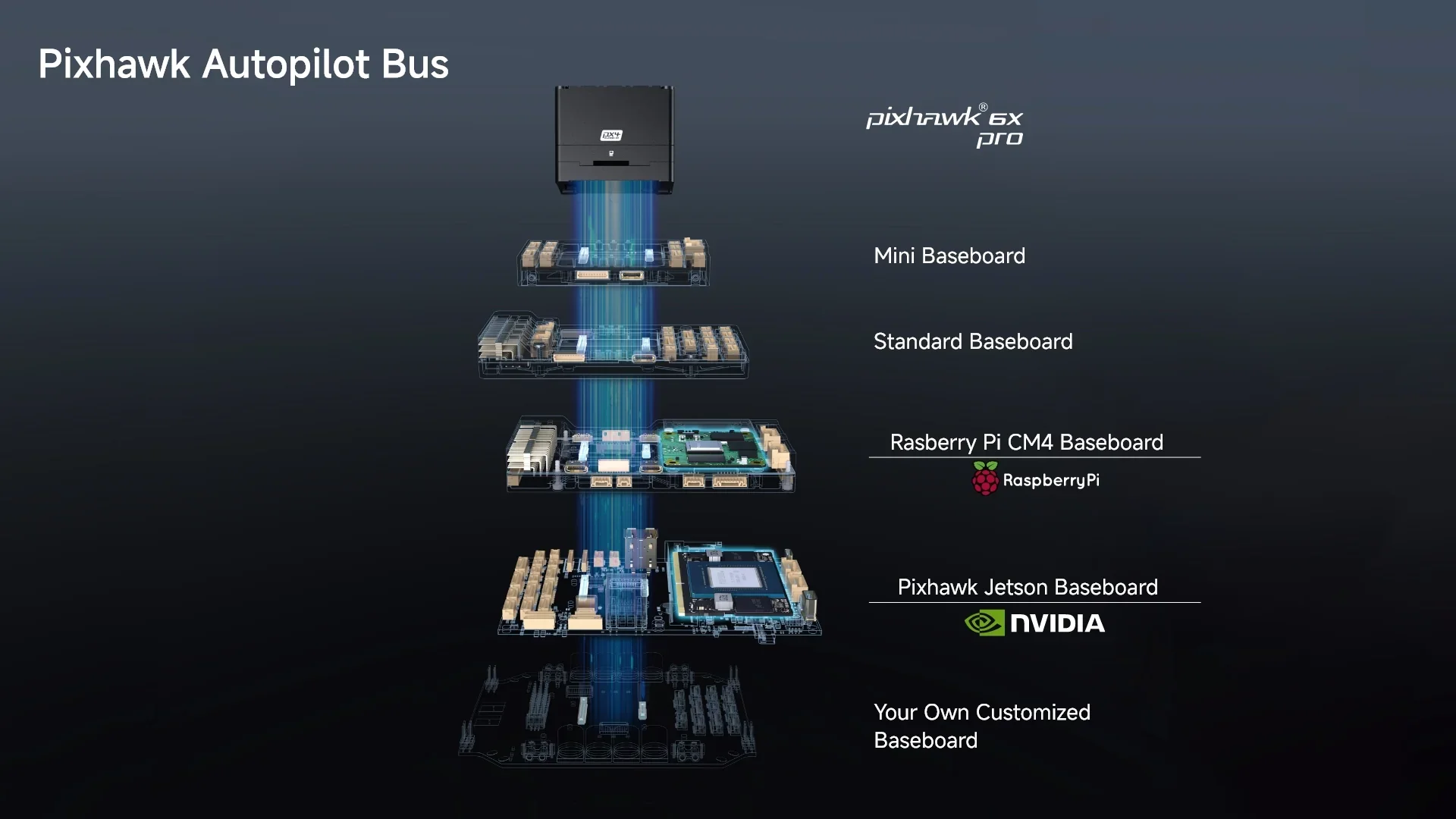

The Pixhawk® 6X is perfect for developers at corporate research labs, startups, academics (research, professors, students), and commercial application. Holybro offers the Pixhawk Baseboard and the Pixhawk Mini-Baseboard, each with different form factor and interfaces.

Key Design Points

High performance STM32H753 Processor with clock speed up to 480 MHz

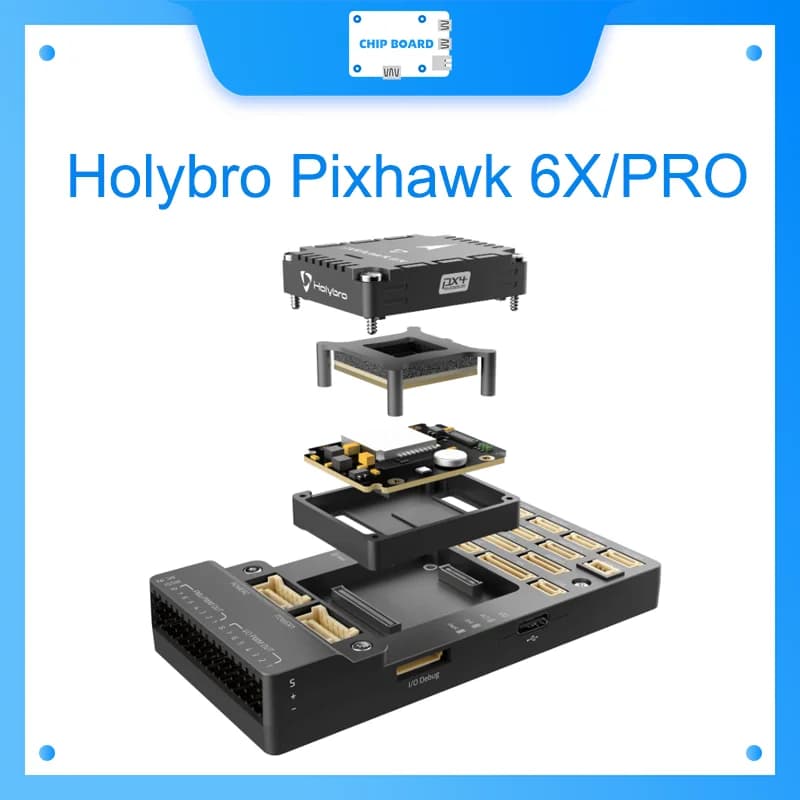

Modular flight controller: separated IMU, FMU, and Base system connected by a 100-pin & a 50-pin Pixhawk® Autopilot Bus connector.
Redundancy: 3x IMU sensors & 2x Barometer sensors on separate buses
Triple redundancy domains: Completely isolated sensor domains with separate buses and separate power control
Newly designed vibration isolation system to filter out high frequency vibration and reduce noise to ensure accurate readings
Ethernet interface for high-speed mission computer integration
IMUs are temperature-controlled by onboard heating resistors, allowing optimum working temperature of IMUs

Specification

Processors & Sensors

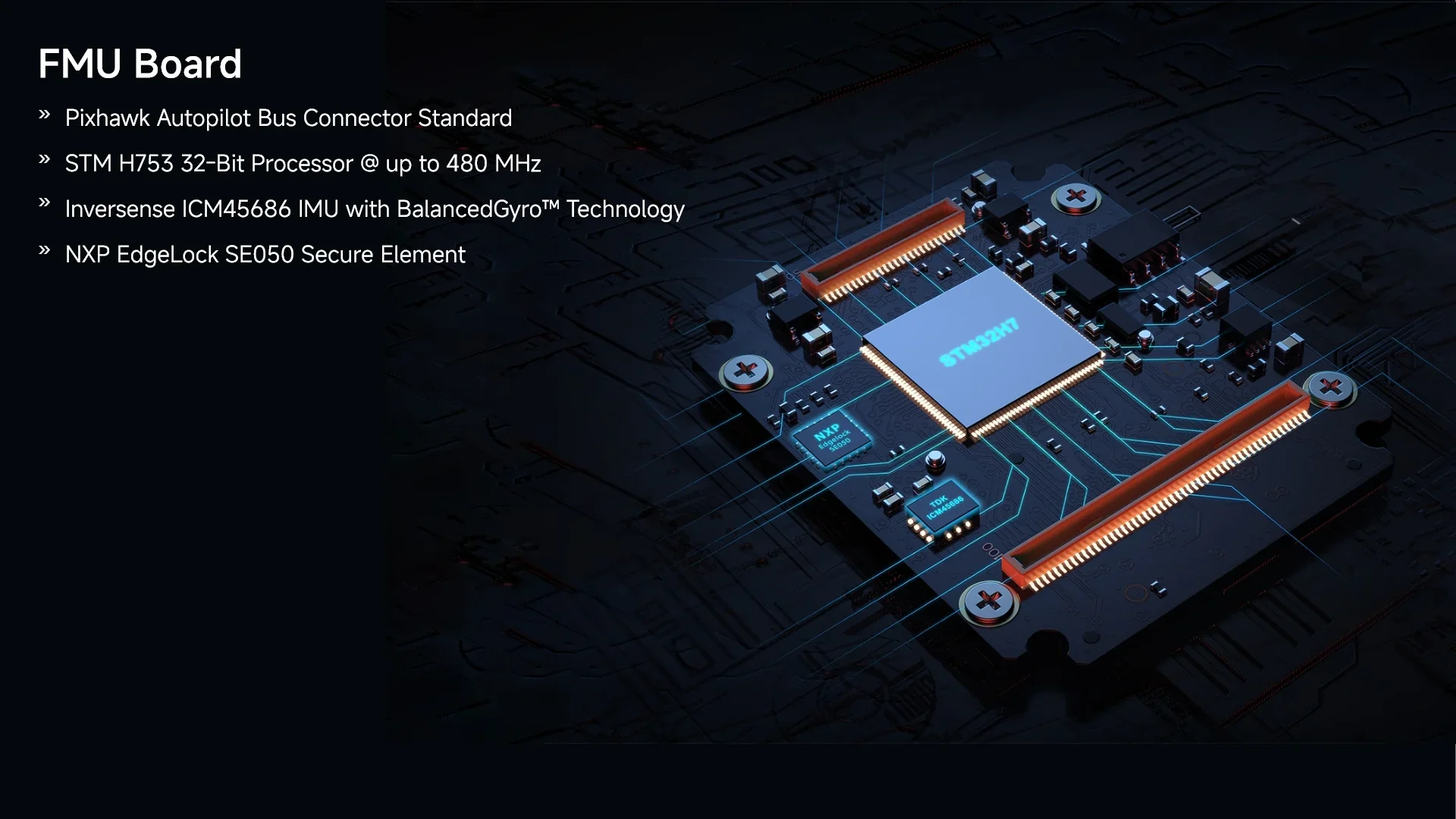

FMU Processor: STM32H753
- 32 Bit Arm® Cortex®-M7, 480MHz, 2MB flash memory, 1MB RAM
IO Processor: STM32F103
- 32 Bit Arm® Cortex®-M3, 72MHz, 64KB SRAM
On-board sensors
- Accel/Gyro: ICM-45686 with BalancedGyro™ Technology x3
- Barometer: ICP20100
- Barometer: BMP388
- Mag: BMM150

Electrical data

Voltage Ratings:
- Max input voltage: 6V
- USB Power Input: 4.75~5.25V
- Servo Rail Input: 0~36V
Current Ratings:
- Telem1 output current limiter: 1.5A
- All other port combined output current limiter: 1.5A

Mechanical data

Dimensions

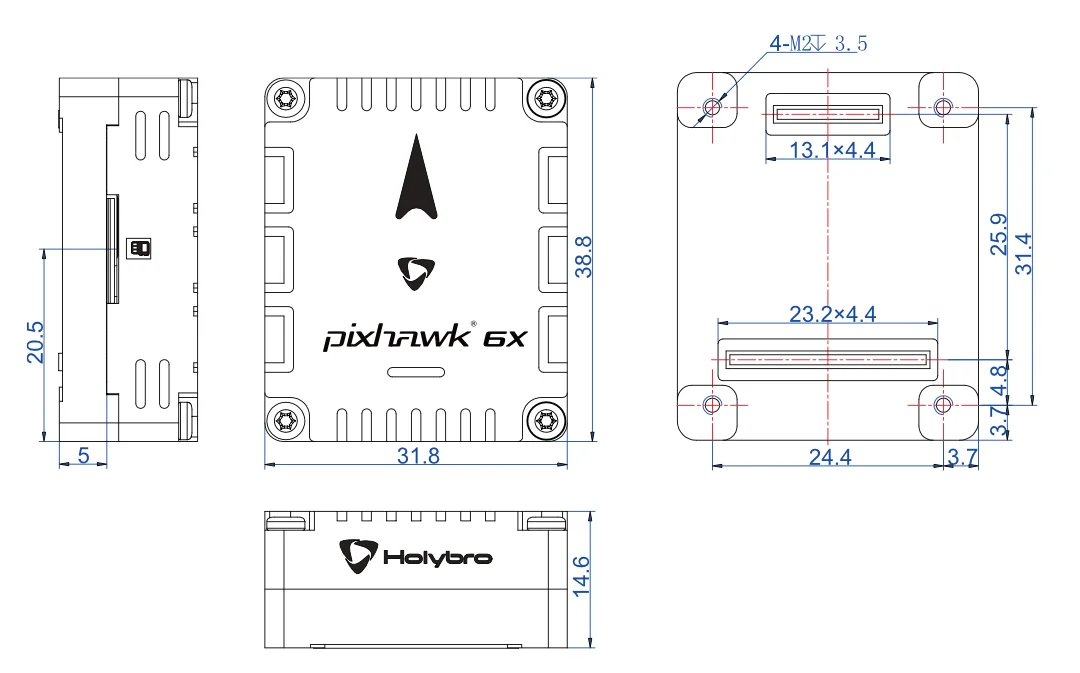

- Flight Controller Module: 38.8 x 31.8 x 16.8mm

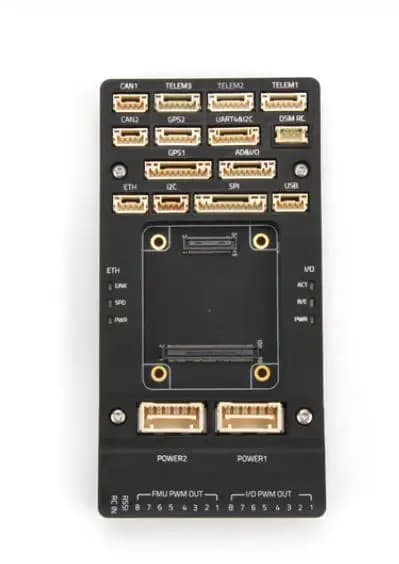

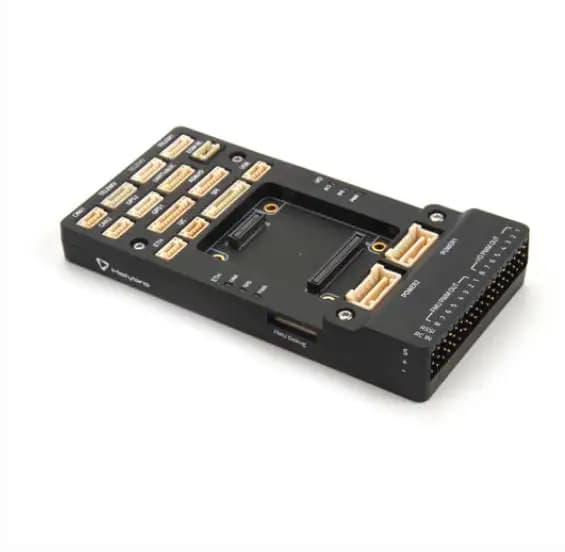

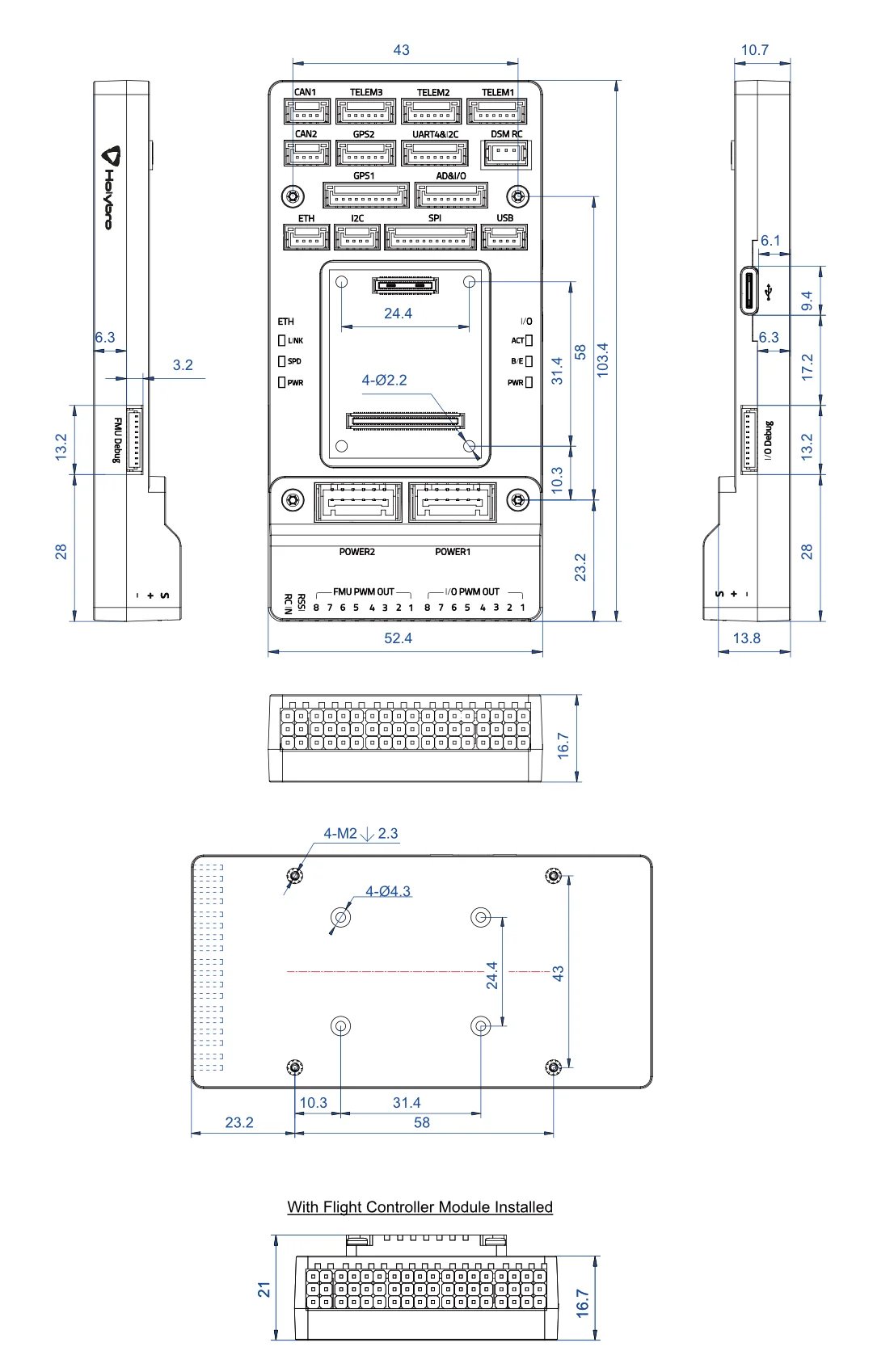

- Standard Baseboard: 52.4 x 102 x 16.7mm (Aluminum)

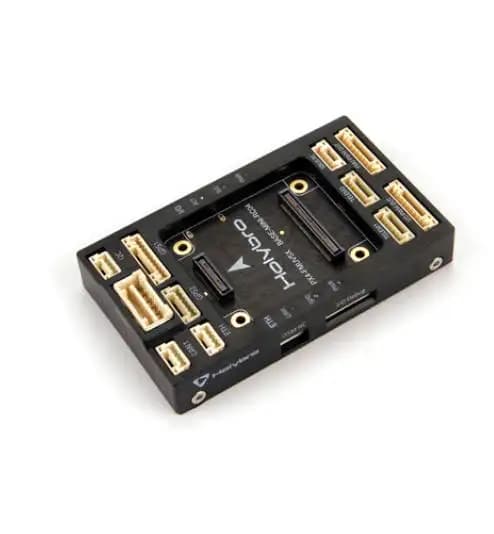

- Mini Baseboard: 43.4 x 72.8 x 14.2 mm
Weight
- Flight Controller Module: 31.3g
- Standard Baseboard: 72.5g (Aluminum)
- Mini Baseboard: 26.5g

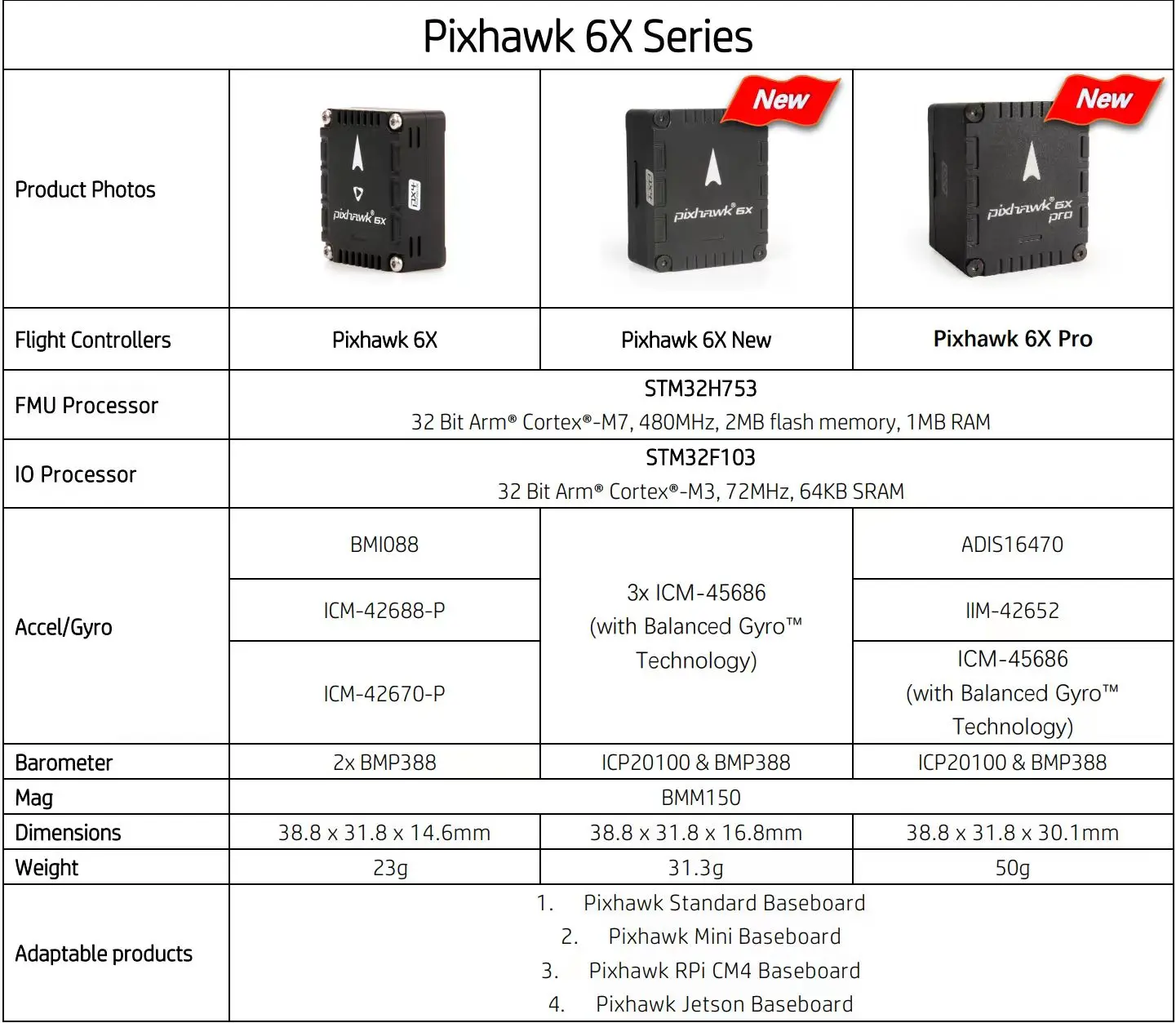

Pixhawk6X PRO飞控概述及配置参数

Key Design Point

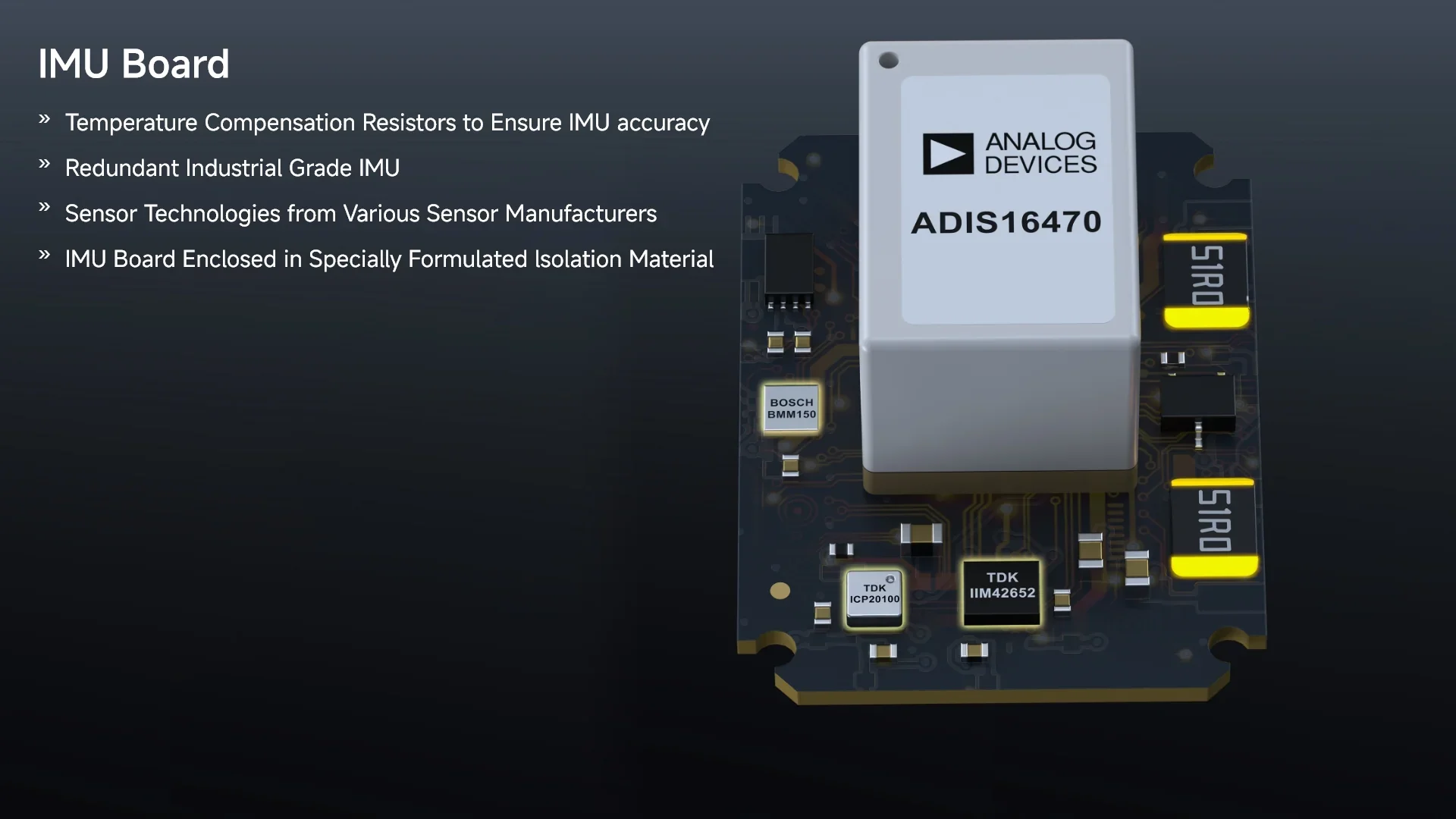

High-performance ADIS16470 Industrial IMU with high accelerometer dynamic range (±40 g), perfect foraccurate motion sensing in demanding UAV applications
All New advanced durable vibration isolation material with resonance frequency in the higher spectrum, ideal for industrial and commercial drone applications

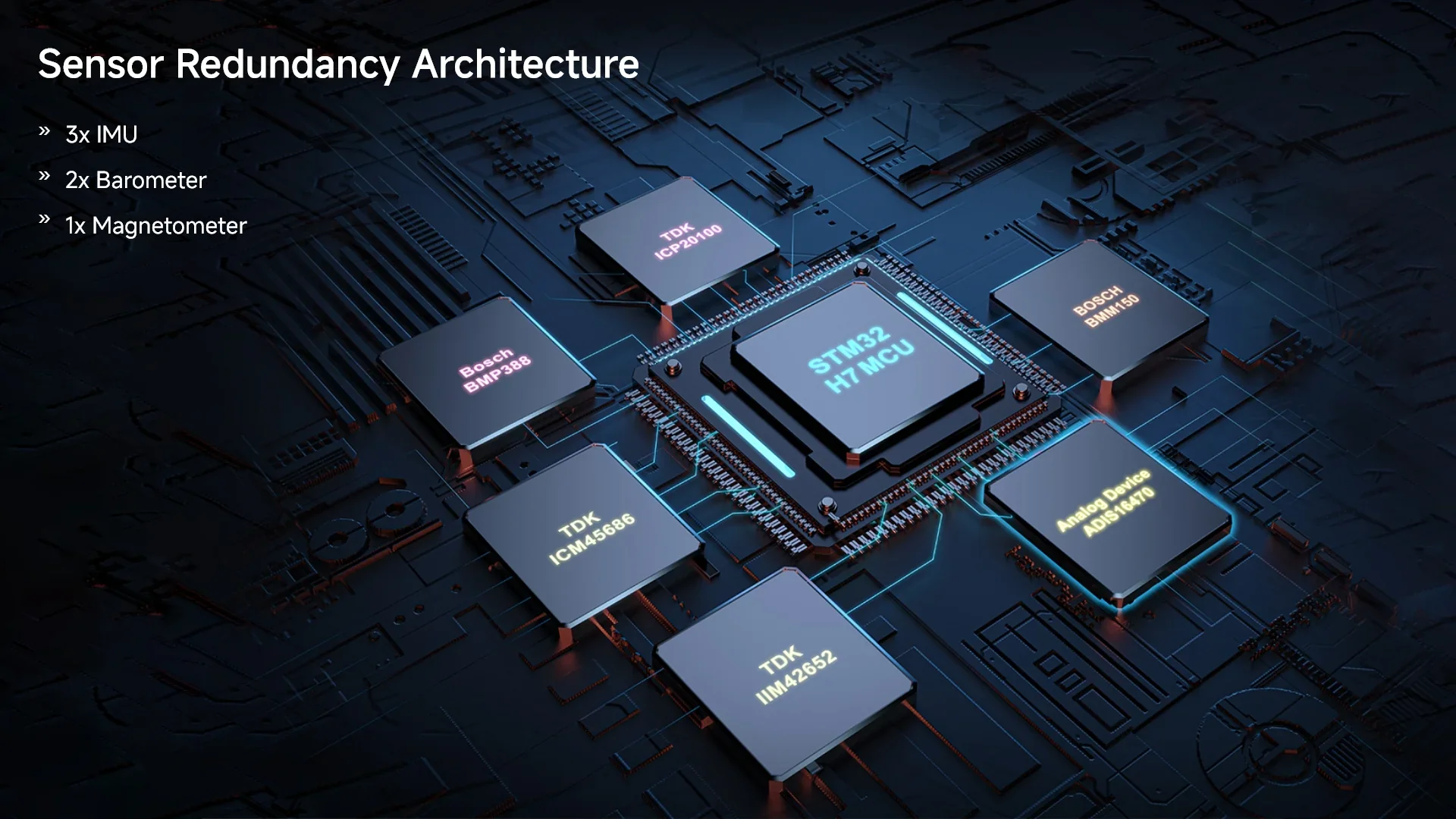

Triple redundant IMU & double redundant barometer on separate buses
High performance STM32H753 Processor

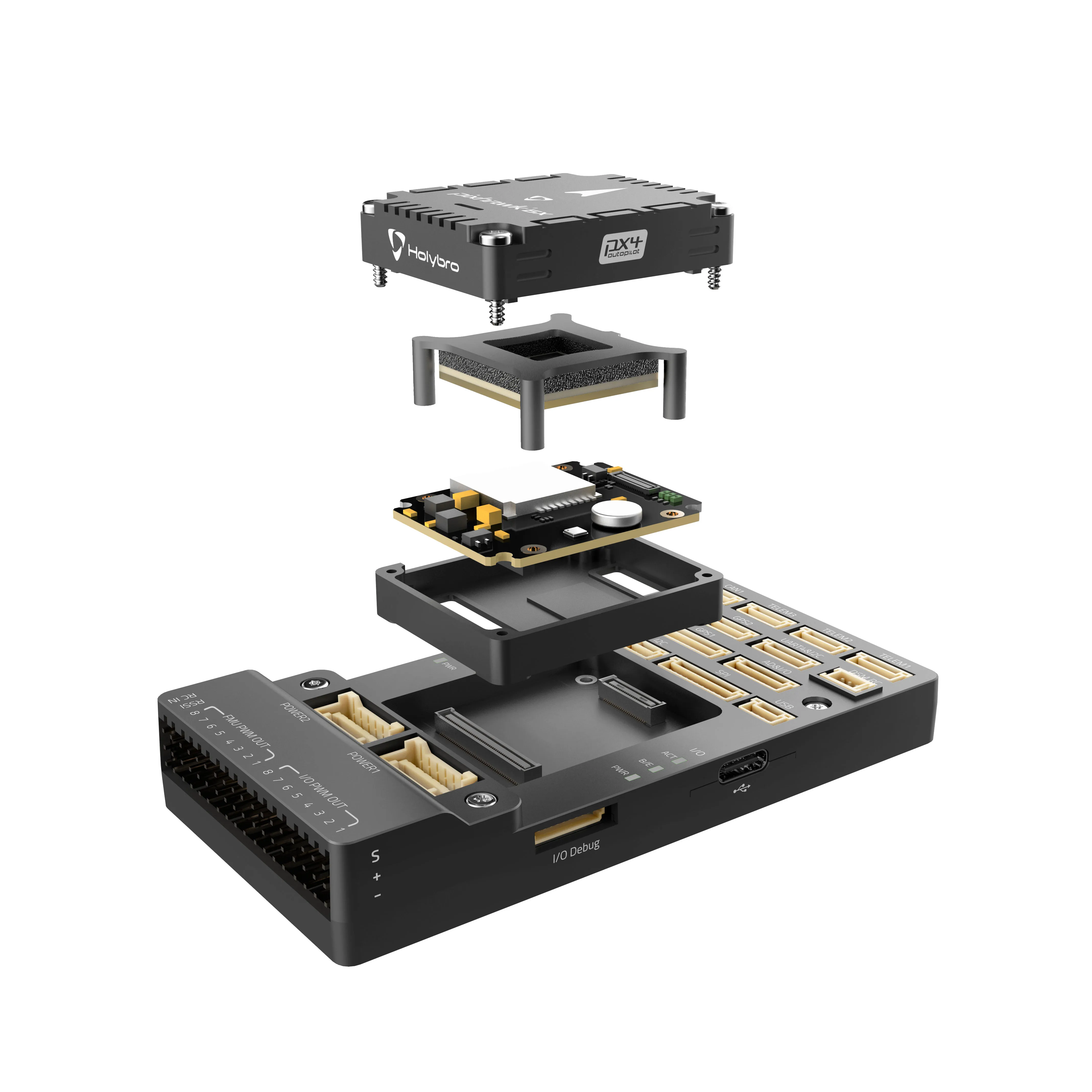

Modular flight controller: separated IMU, FMU, and Base system
Safety-driven design incorporates sensors from different manufacturers and model lineups
Independent LDO powers every sensor set with independent power control.
Ethernet interface for high-speed mission computer integration
Temperature-controlled IMU board, allowing optimum working temperature of IMUs

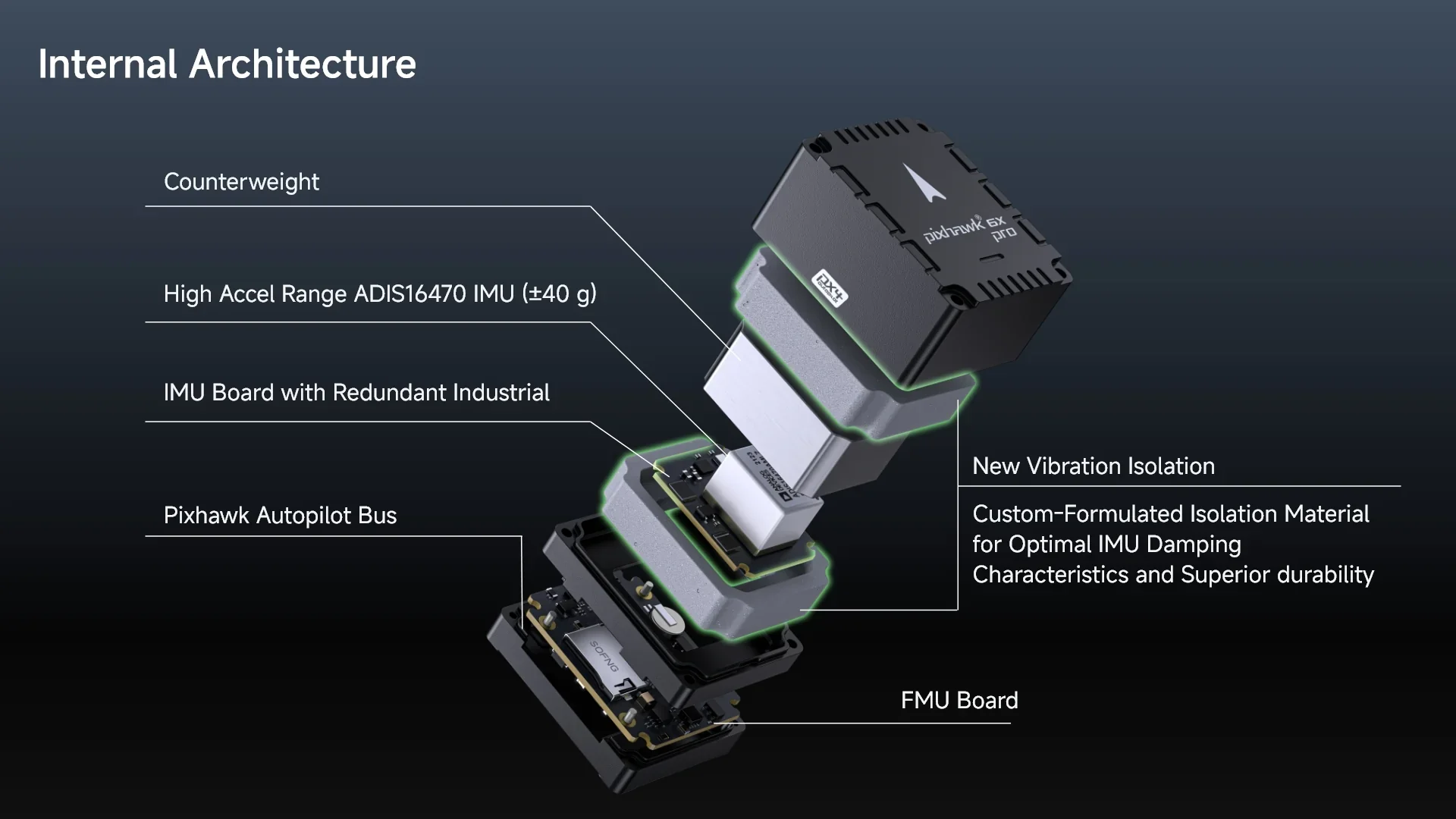

All new Vibration Isolation Design

This new vibration isolation design uses a custom-formulated durabile silicone-based isolation material in place of the traditional foam design. Backed byextensive R&D and testing, it offers optimal IMU damping characteristics with resonance frequency in the higher spectrum, perfect for industrial and commercial drone

Note:

FC Module + a baseboard is required for this product to function. A FC Module or a Baseboard by itself will not function.
