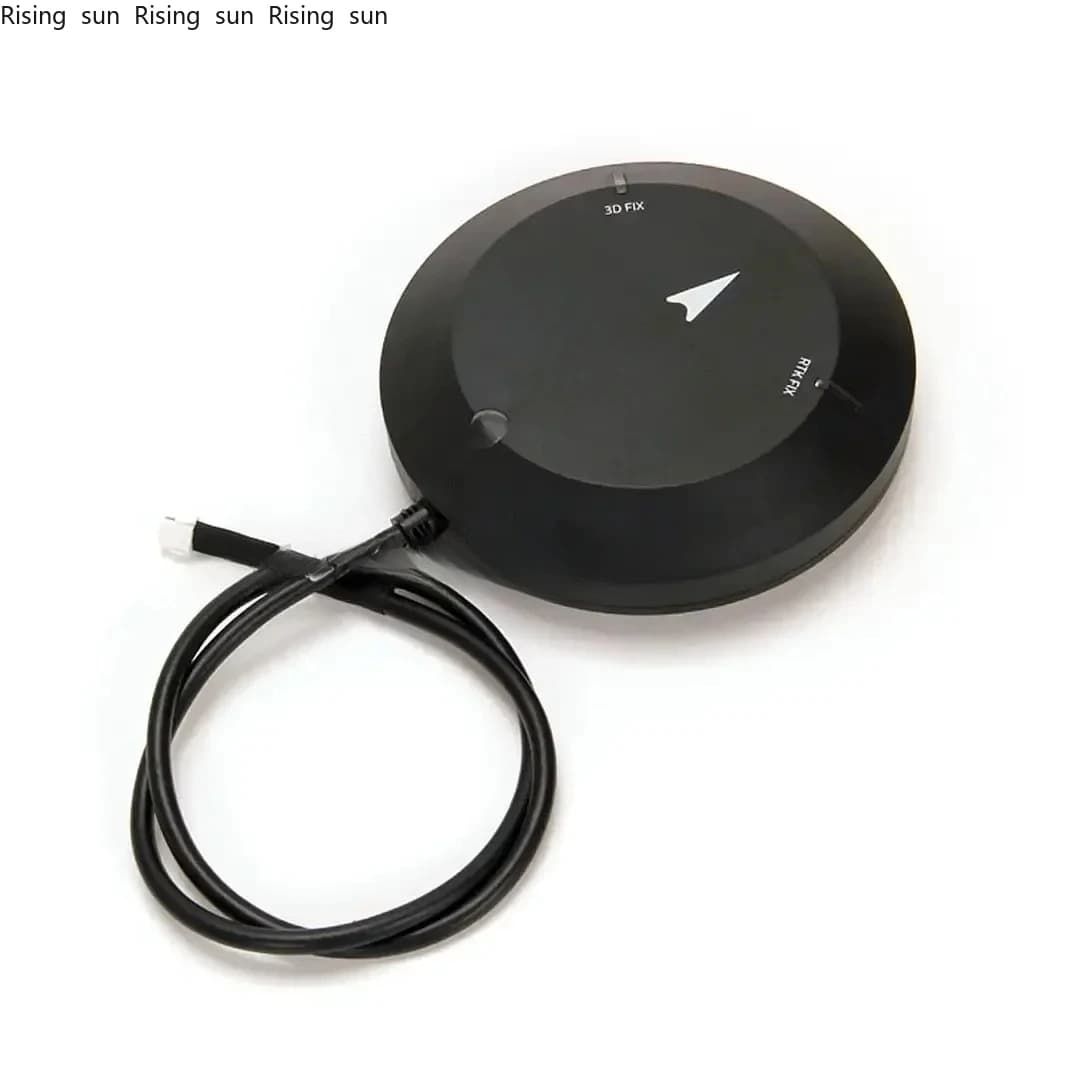

HolyBro DroneCAN H-RTK F9P Rover / Helical High-Precision GNSS Positioning System $689.17$725.44 -5%4 × $172.29 with no interestExtra 5% off with coinsSee previewSimilar items

Description

HolyBro DroneCAN H-RTK F9P Rover / Helical High-Precision GNSS Positioning System $689.17$725.44 -5%4 $172.29 with no interestExtra 5% off with coinsSee previewSimilar items ============================================================ Overview The DroneCAN H-RTK F9P is the latest differential high-precision GNSS positioning system from Holybro. It has adopted the DroneCAN protocol for communication. It provides multi-band RTK with fast convergence times and reliable performance, concurrent reception of GPS, GLONASS, Galileo and BeiDou, and a fast update rate for highly dynamic and high volume applications with centimeter-accuracy. With the adoption of the DroneCAN Protocol, it has up to an 8 Hz navigation update rate, upgradeability, noise immunity, real-time features, and is more robust than UART due to its increased resistance to electromagnetic interference. It does not occupy any serial port of the flight controller, and multiple CAN devices can be connected to the same CAN bus via a hub. The DroneCAN-F9P uses a ubx F9P module, a BMM150 compass, and a tri-colored LED indicator, and is equipped with the STM32G4 processor running at 170 MHz with 512 KByte Flash and 96KByte RAM. It supports DroneCAN firmware upgrade via the DroneCAN GUI Tool. It is compatible with the open source Pixhawk series flight controller. Features We have designed two models of DroneCAN H-RTK F9P for you to choose, each with different size and antenna design to meet different customer needs. DroneCAN F9P Rover The Rover model has a flatter profile and stronger water resistance. It uses a dual band patch antenna and comes with an integrated cable to connect to the CAN bus. It excels in spaces where there are few obstructions. DroneCAN F9P Helical This model uses a helical antenna, which has slightly better performance in space with obstructions than the Rover version. The antenna of this module can either be attached to the module directly or connected via a SMA cable, giving you the ultimate flexibility. It also has a UART2 port exposed, allowing you to do YAW/Heading (aka moving baseline). This model can be used either on the rover (aircraft) or as a base station. However, when used as Base Station, RTK communicate with the Ground Control Station via USB, so the DroneCAN protocol is not used. Specification & comparison DroneCAN H-RTK F9P Rover DroneCAN H-RTK F9P Helical Intended Application Rover (aircraft) only Rover (aircraft) or Base station GNSS Receiver Ubx ZED-F9P high precision GNSS module Ubx ZED-F9P high precision GNSS module Antenna Ceramic Patch Antenna with 20dB LNA Helical Antenna with 36dB LNA Processor STM32G473 STM32G473 Magnetometer BMM150 BMM150 BeiDou, Galileo, GLONASS, GPS / QZSS BeiDou, Galileo, GLONASS, GPS / QZSS GNSS Band B1I, B2I, E1B/C, E5b, L1C/A, L1OF, L2C, L2OF B1I, B2I, E1B/C, E5b, L1C/A, L1OF, L2C, L2OF Positioning accuracy 3D FIX: 1.5 m / RTK: 0.01 m 3D FIX: 1.5 m / RTK: 0.01 m Communication Protocol DroneCAN 1Mbit/s DroneCAN 1Mbit/s Antennas Peak Gain (MAX) L1: 4.0dBi L2:1.0 dBi L1: 2dBi L2: 2dBi Time-TO-First Fix Cold start: ≤29s Hot start: ≤1s Cold start: ≤25s Hot start: ≤1s Navigation Update Rate RAW: 20Hz Max RTK: 8Hz Max <div data-doc AVAILABLE OPTIONS F9P 27CM Rover F9P 42CM Rover F9P Helical PRODUCT INFORMATION Brand: Holybro Category: FPV Drone Wholesale Price: US $689.17 ————————————————————————————————————————
