Holybro X650 ARF Model Aircraft Drone Set Pixhawk Flight Control Assembly Development Kit PX4 Firmware
Description
Holybro X650 ARF Model Aircraft Drone Set Pixhawk Flight Control Assembly Development Kit PX4 Firmware ============================================================ Dear! This set is the original Holybro X650 set, excluding remote control and receiver, battery, charger and other equipment. If necessary, you can contact customer service to recommend it to you! X650 Development Kit is an easy to assemble and affordable robust carbon fiber professional development drone kit with the latest Holybro Pixhawk 6C or Pixhawk 6X Autopilot Flight Controller , M10 GPS , plug & play SiK Telemetry Radio , in the all new X650 Frame. It is quick and easy to assemble without the need of soldering, so you can spend more time flying and developing instead. It includes the X650 Frame Kit, along with flight controller, GPS, Telemetry, motors, ESCs, power distribution boards, propellers, and LEDs on each arm. The Drone Arms are pre-installed with Motors, ESCs, and LED. They can be plugged right into the power distribution board without the need of soldering. The Frame ( X650 ) is made with full carbon fiber twill, with carbon fiber tube arms supported by the aluminum foldable arm connector. It is easy and straightforward to assemble. The landing gear consists of 16mm & 10mm diameter carbon fiber tubes with connectors that has been thickened and strengthened. There is a large upper mounting plate and a large battery mounting plate for mounting various accessories and battery. The platform board has mounting holes for GPS & popular companion computers. The optional Depth Camera Mount (purchase separately) can be use with various depth cameras such as the Intel RealSense series & Structure Core Depth Cameras. The rail mounting system is ready to take a whole host of camera mounts and gimbals for various applications. All tools for installation are provided in the package. Note: The Pixhawk Flight controller is compatible with both PX4 & Ardupilot. It is shipped with PX4 but Ardupilot can be flashed via Mission Planner or QGroundControl. The X650 Development Kit is a rugged carbon fiber professional development drone kit that is easy to assemble and affordable. It is equipped with the latest Holybro Pixhawk 6C or Pixhawk 6X Autopilot flight controller in the brand new X650 frame, M10 GPS, plug and play SiK telemetry radio. It is quickly and easily assembled without soldering, so you can spend more time flying and developing. It includes the X650 frame kit, as well as flight controllers, GPS, telemetry, motors, ESC, switchboard, propellers and LEDs on each arm. The drone arm comes pre-installed with motors, ESC and LEDs. They can be plugged directly into the switchboard without soldering. The frame (X650) is made of all-carbon fiber twill, and the carbon fiber tube arms are supported by aluminum collapsible arm connectors. Assembly is simple and straightforward. The landing gear consists of carbon fiber tubes with diameters of 16mm and 10mm, with thickened and reinforced connectors. There is a large upper mounting board and a large battery mounting board for mounting various accessories and batteries. The platform board has mounting holes for mounting GPS and commonly used companion computers. The optional depth camera mount (purchased separately) can be used with a variety of depth cameras, such as the Intel RealSense series and Structure Core depth cameras. The track mount system is ready to provide a range of camera mounts and gimbals for a variety of applications. All mounting tools are provided in the package. Note: The Pixhawk Flight Controller is compatible with the PX4 and Ardupilot. It ships with the PX4, but the Ardupilot can flash via Mission Planner or QGroundControl. Feature All new Pixhawk 6C or Pixhawk 6X Flight Controller with M10 GPS and Plug & play SiK Telemetry Radio Carbon Fiber frame with foldable aluminum arm connector New frame design with minimal assembly time, no soldering required Easy & straightforward install
Product Details
Dear! This set is the original Holybro X650 set, excluding remote control and receiver, battery, charger and other equipment. If necessary, you can contact customer service to recommend it to you!

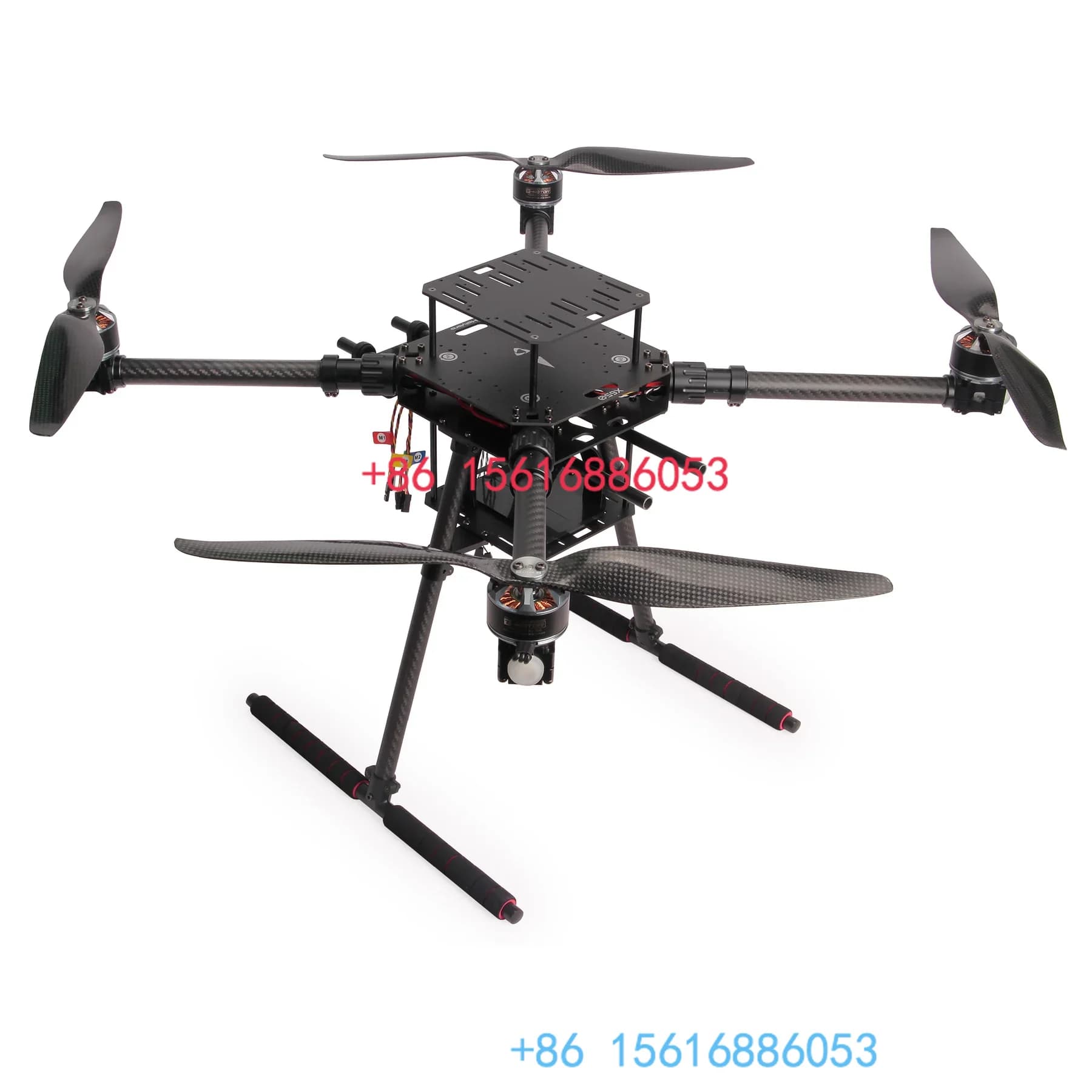

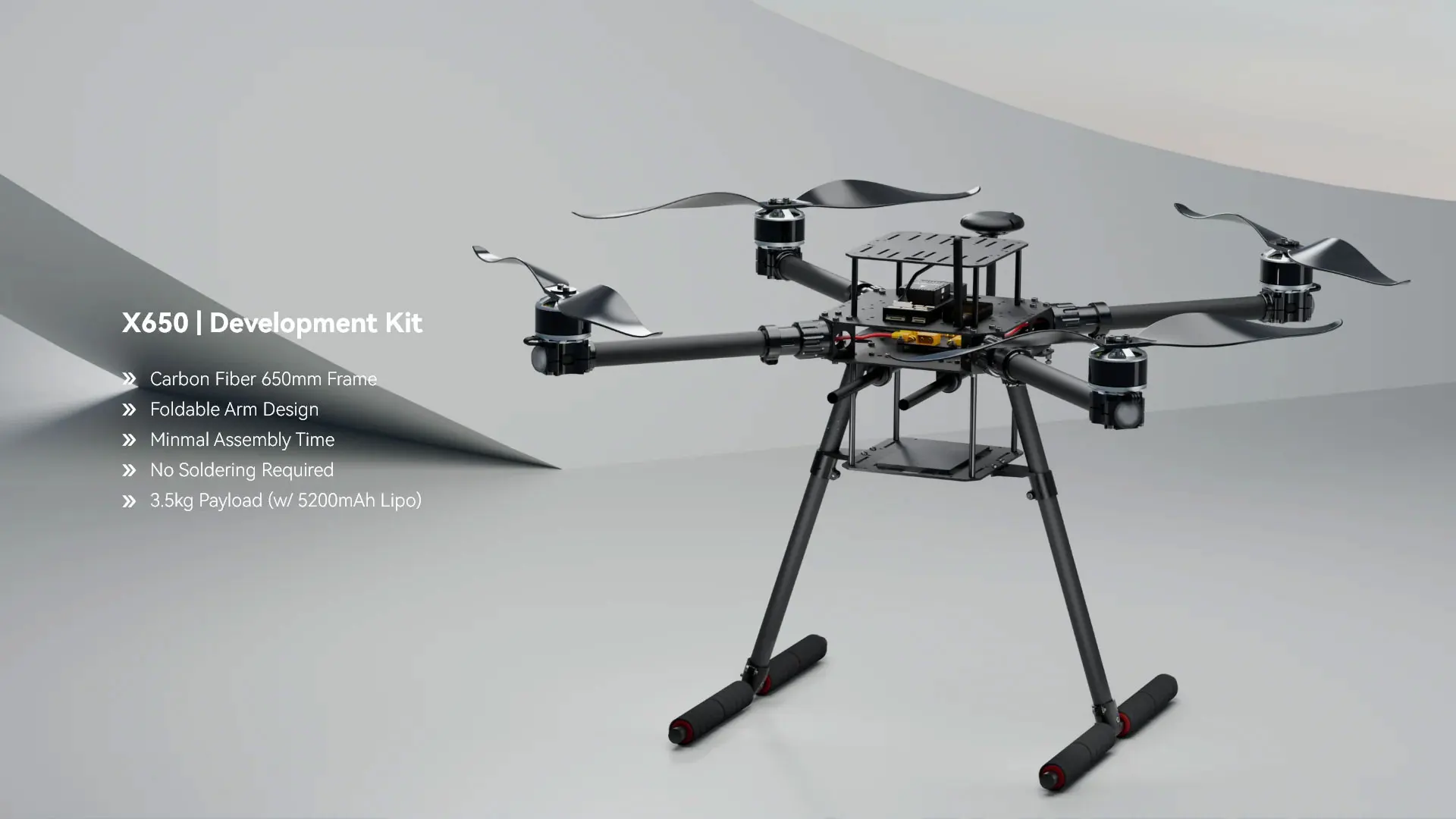

X650 Development Kit is an easy to assemble and affordable robust carbon fiber professional development drone kit with the latest Holybro Pixhawk 6C or Pixhawk 6X Autopilot Flight Controller , M10 GPS , plug & play SiK Telemetry Radio, in the all new X650 Frame. It is quick and easy to assemble without the need of soldering, so you can spend more time flying and developing instead.
It includes the X650 Frame Kit, along with flight controller, GPS, Telemetry, motors, ESCs, power distribution boards, propellers, and LEDs on each arm. The Drone Arms are pre-installed with Motors, ESCs, and LED. They can be plugged right into the power distribution board without the need of soldering.
The Frame (X650) is made with full carbon fiber twill, with carbon fiber tube arms supported by the aluminum foldable arm connector. It is easy and straightforward to assemble. The landing gear consists of 16mm & 10mm diameter carbon fiber tubes with connectors that has been thickened and strengthened.
There is a large upper mounting plate and a large battery mounting plate for mounting various accessories and battery. The platform board has mounting holes for GPS & popular companion computers. The optional Depth Camera Mount (purchase separately) can be use with various depth cameras such as the Intel RealSense series & Structure Core Depth Cameras. The rail mounting system is ready to take a whole host of camera mounts and gimbals for various applications. All tools for installation are provided in the package.
Note: The Pixhawk Flight controller is compatible with both PX4 & Ardupilot. It is shipped with PX4 but Ardupilot can be flashed via Mission Planner or QGroundControl.
The X650 Development Kit is a rugged carbon fiber professional development drone kit that is easy to assemble and affordable. It is equipped with the latest Holybro Pixhawk 6C or Pixhawk 6X Autopilot flight controller in the brand new X650 frame, M10 GPS, plug and play SiK telemetry radio. It is quickly and easily assembled without soldering, so you can spend more time flying and developing.
It includes the X650 frame kit, as well as flight controllers, GPS, telemetry, motors, ESC, switchboard, propellers and LEDs on each arm. The drone arm comes pre-installed with motors, ESC and LEDs. They can be plugged directly into the switchboard without soldering.
The frame (X650) is made of all-carbon fiber twill, and the carbon fiber tube arms are supported by aluminum collapsible arm connectors. Assembly is simple and straightforward. The landing gear consists of carbon fiber tubes with diameters of 16mm and 10mm, with thickened and reinforced connectors.
There is a large upper mounting board and a large battery mounting board for mounting various accessories and batteries. The platform board has mounting holes for mounting GPS and commonly used companion computers. The optional depth camera mount (purchased separately) can be used with a variety of depth cameras, such as the Intel RealSense series and Structure Core depth cameras. The track mount system is ready to provide a range of camera mounts and gimbals for a variety of applications. All mounting tools are provided in the package.
Note: The Pixhawk Flight Controller is compatible with the PX4 and Ardupilot. It ships with the PX4, but the Ardupilot can flash via Mission Planner or QGroundControl.
Feature

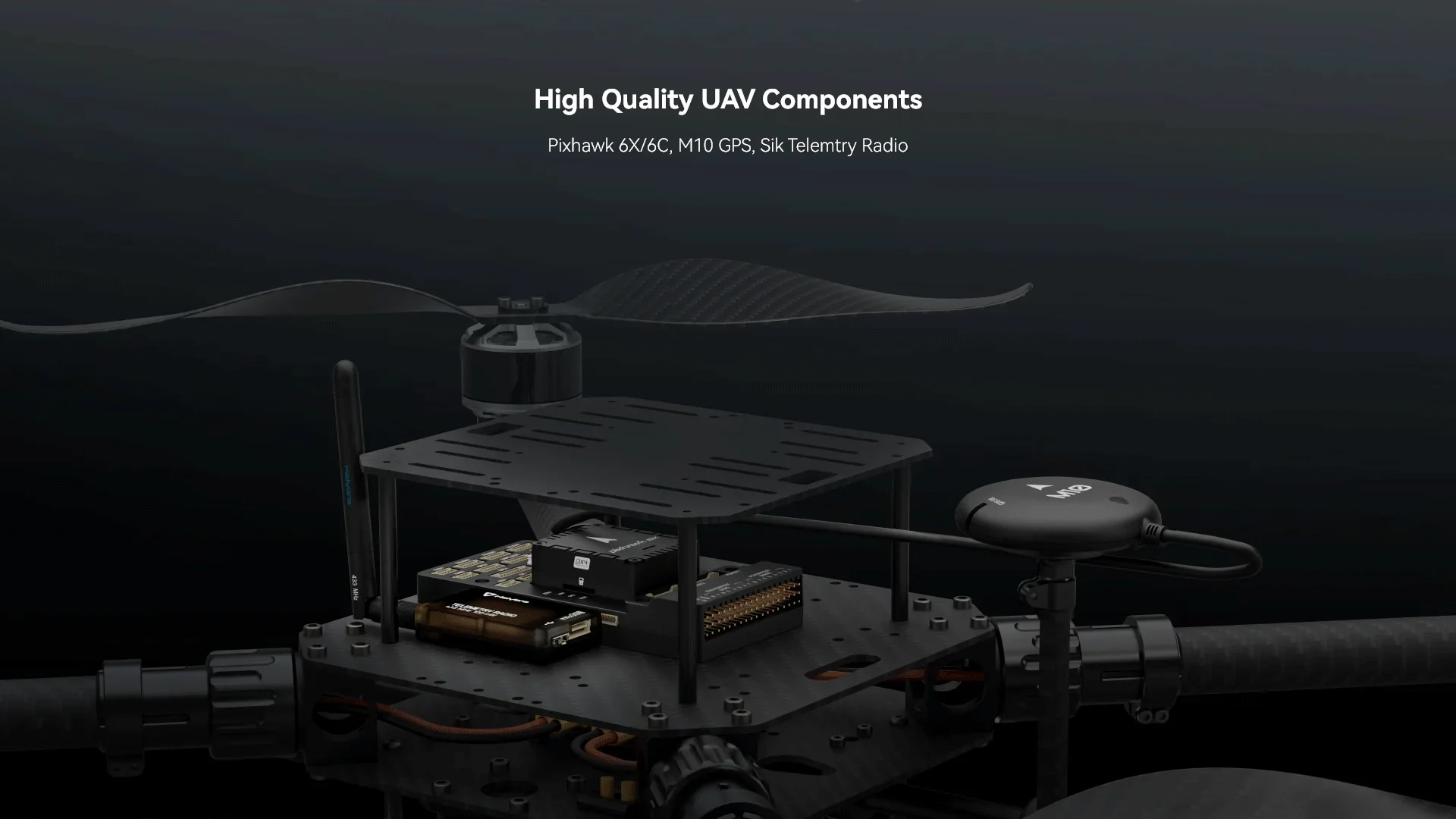

- All new Pixhawk 6C or Pixhawk 6X Flight Controller with M10 GPS and Plug & play SiK Telemetry Radio

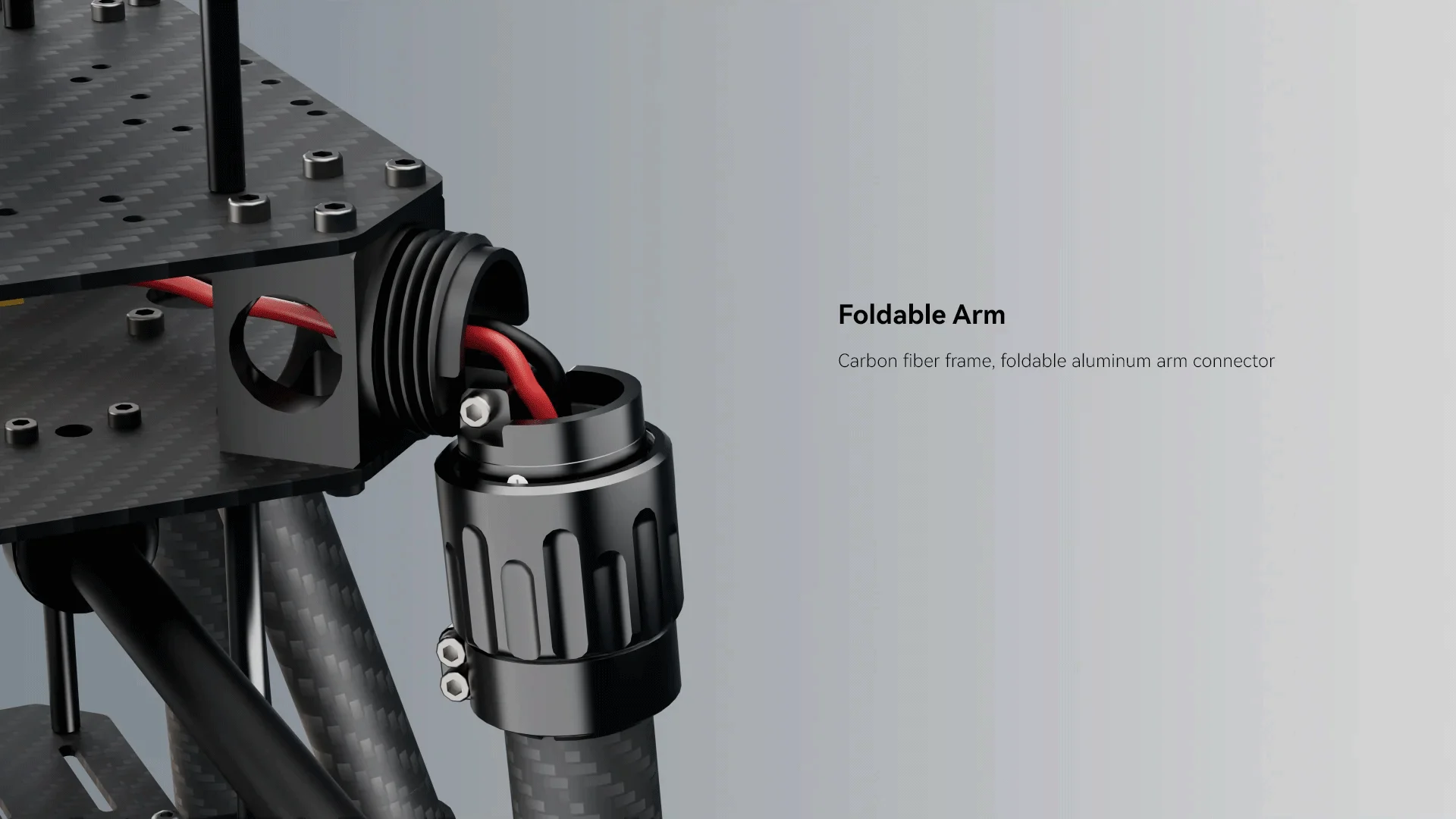

- Carbon Fiber frame with foldable aluminum arm connector

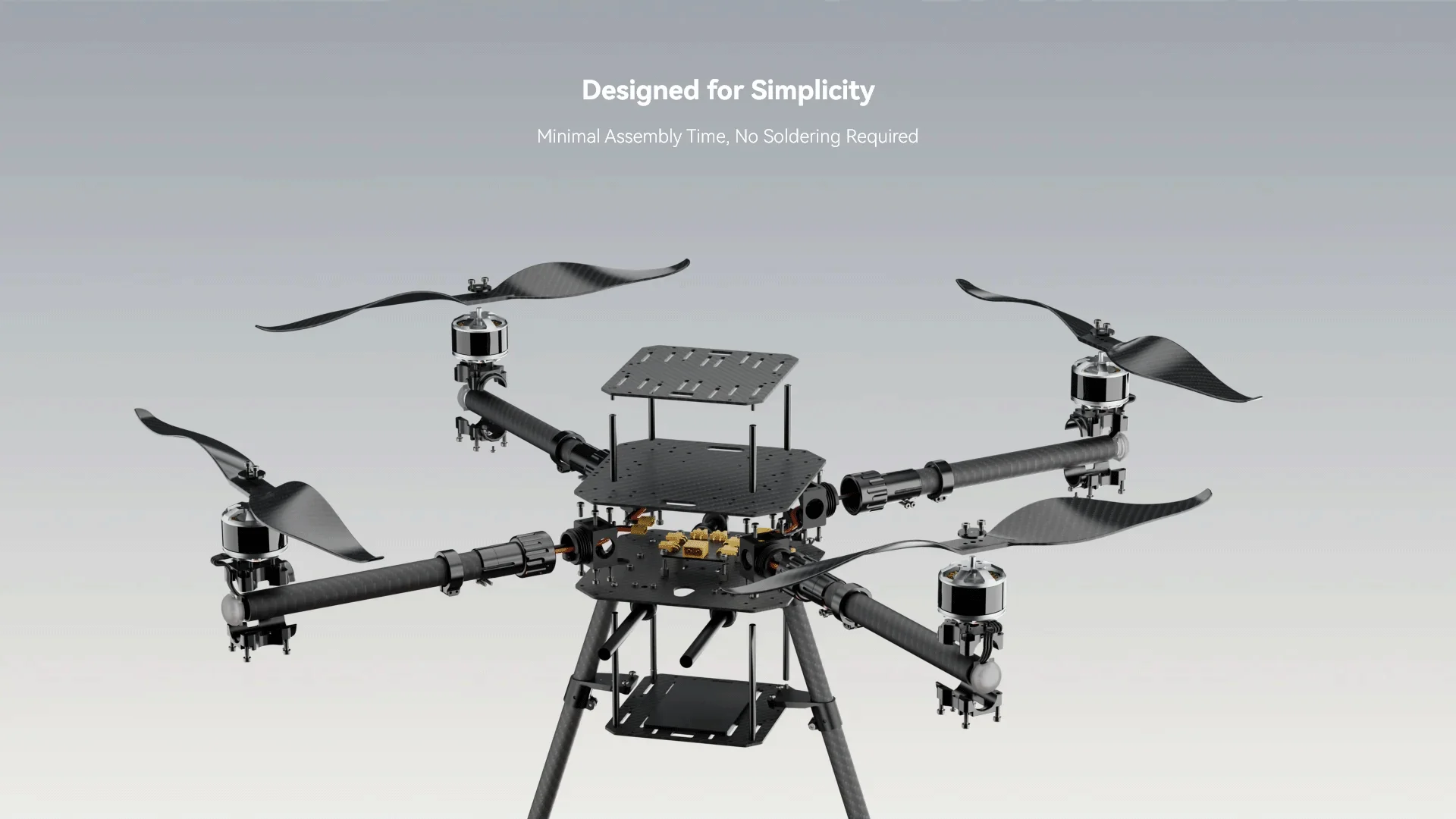

- New frame design with minimal assembly time, no soldering required
- Easy & straightforward installation

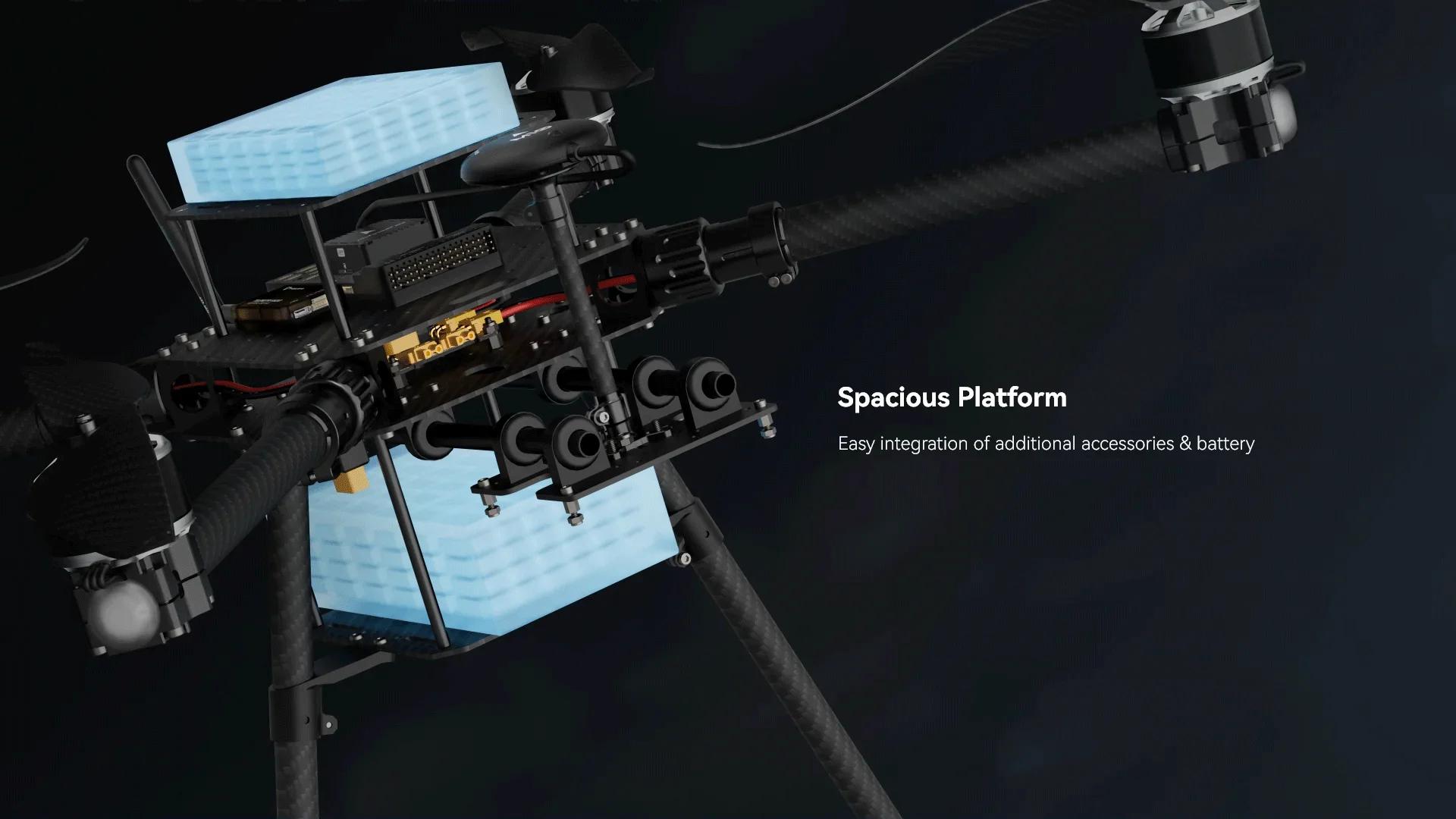

- Spacious platform for easy integration of additional accessories & battery

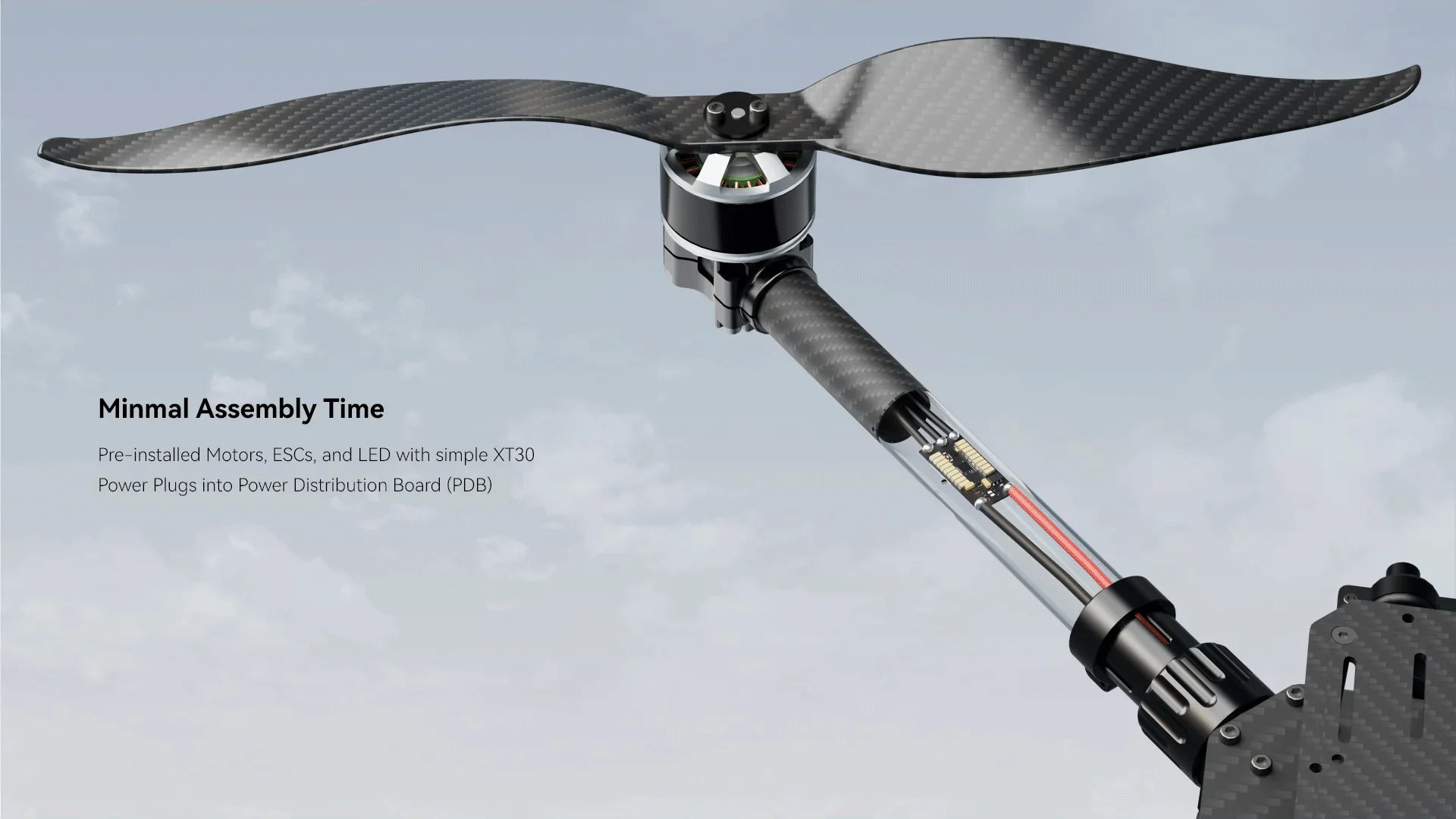

- Pre-installed motors, ESCs, and LED with simple XT30 power plugs for PDB
- Power distribution board (PDB) with XT60 & XT30 plugs
- Optional depth camera mount for Intel RealSense depth camera
New Pixhawk 6C or Pixhawk 6X flight controller with M10 GPS and plug-and-play SiK telemetry radio
Carbon Fiber Frame with Foldable Aluminum Arm Connectors
New frame design, minimal assembly time, no welding required
Simple and clear installation
The spacious platform makes it easy to integrate other accessories and batteries
Pre-installed motor, ESC and LED, with simple XT30 power plug for PDB
Distribution board (PDB) with XT60 and XT30 plugs
Optional depth camera mount for Intel RealSense depth cameras

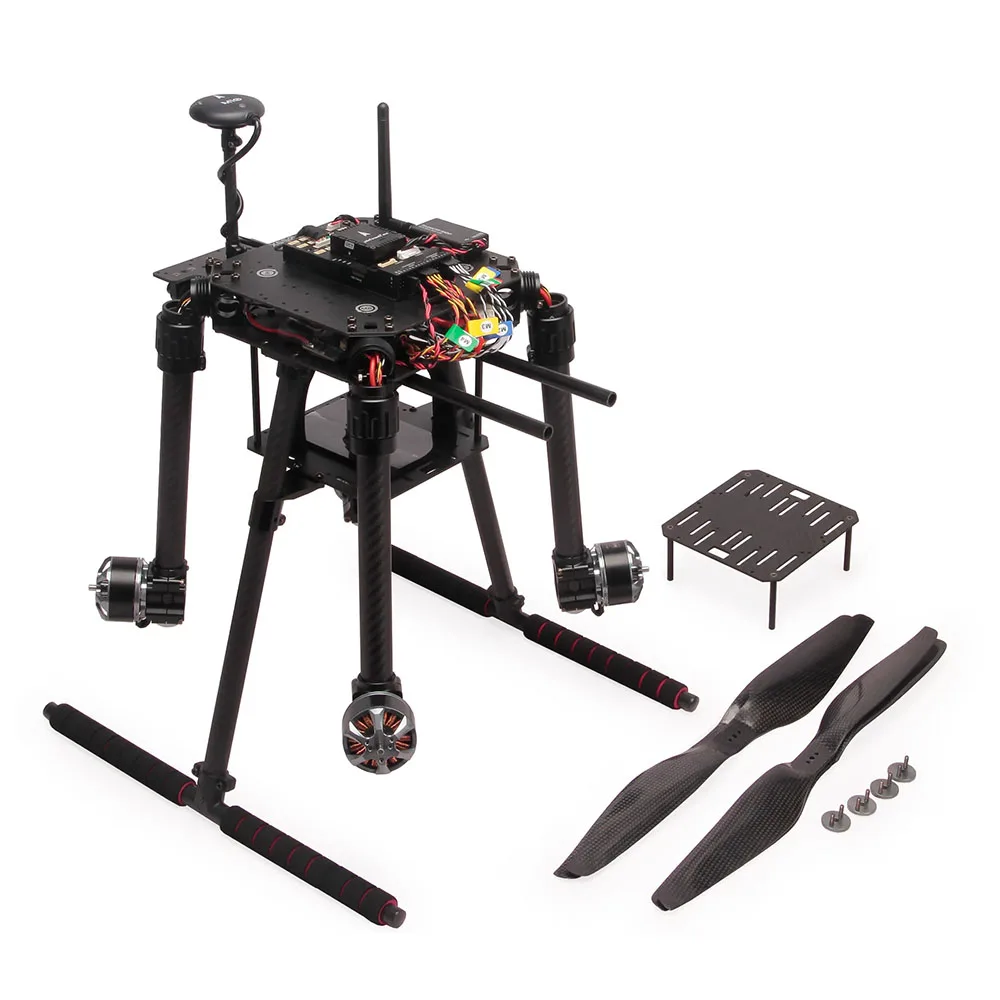

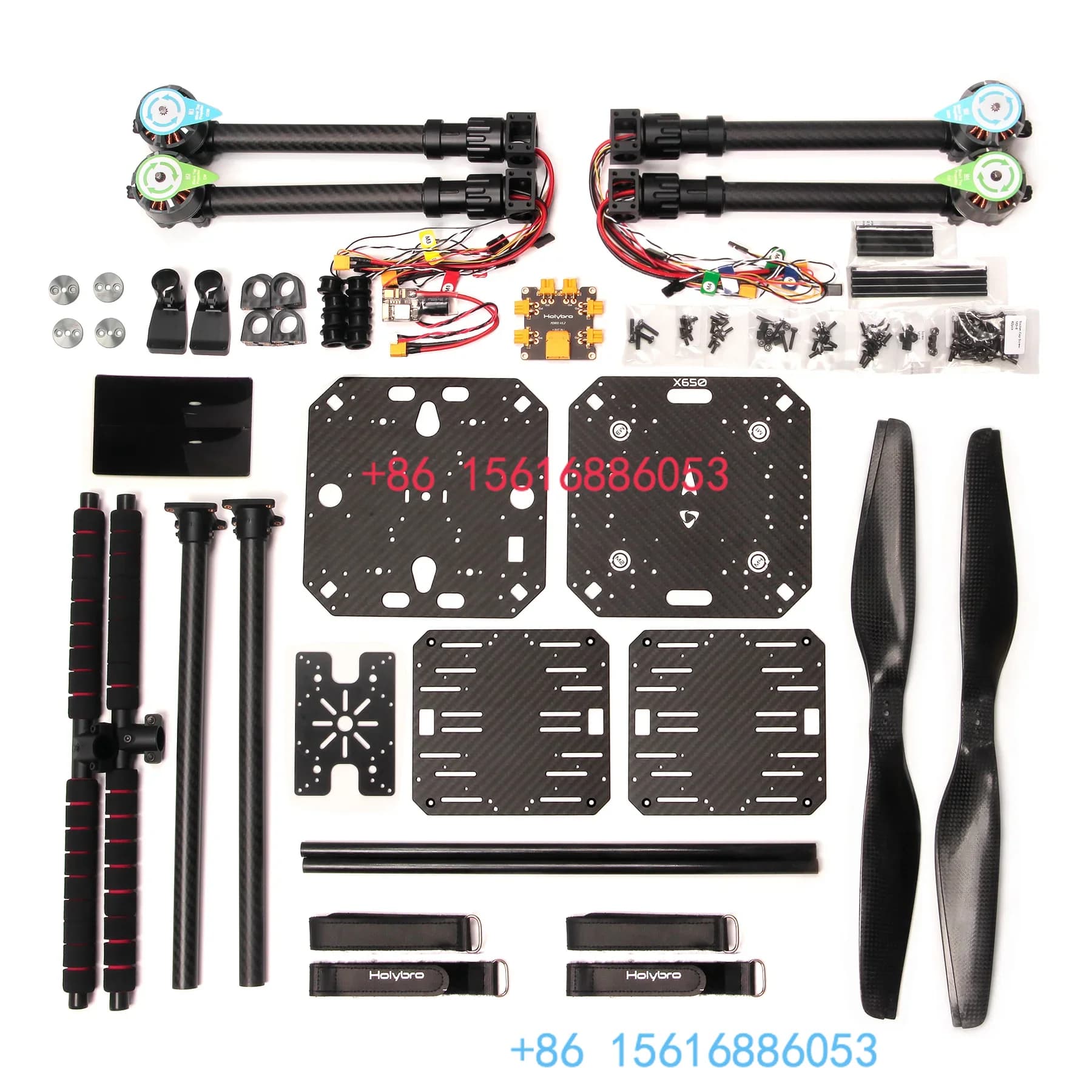

X650 Development Kit Includes:
- Autopilot Flight controller: Pixhawk 6C (Plastic Case) & PM02 V3 or Pixhawk 6X& PM02D
- GPS: M10 GPS Module
- Telemetry Radio: SiK Telemetry Radio V3 433/915MHz
- X650 V2 Frame Kit
- Preinstalled Items:
- 4 Motors - Tmotor MN4014 KV330 Motor with XT30 Plug
- 4 LED - NeoPixel WS2812 LED (Setup Instruction)
- 4 ESCs - Tekko32 F4 45A ESC with XT30 Plugs
- Gemfan 1555 Carbon Fiber Propellers (4 pcs)

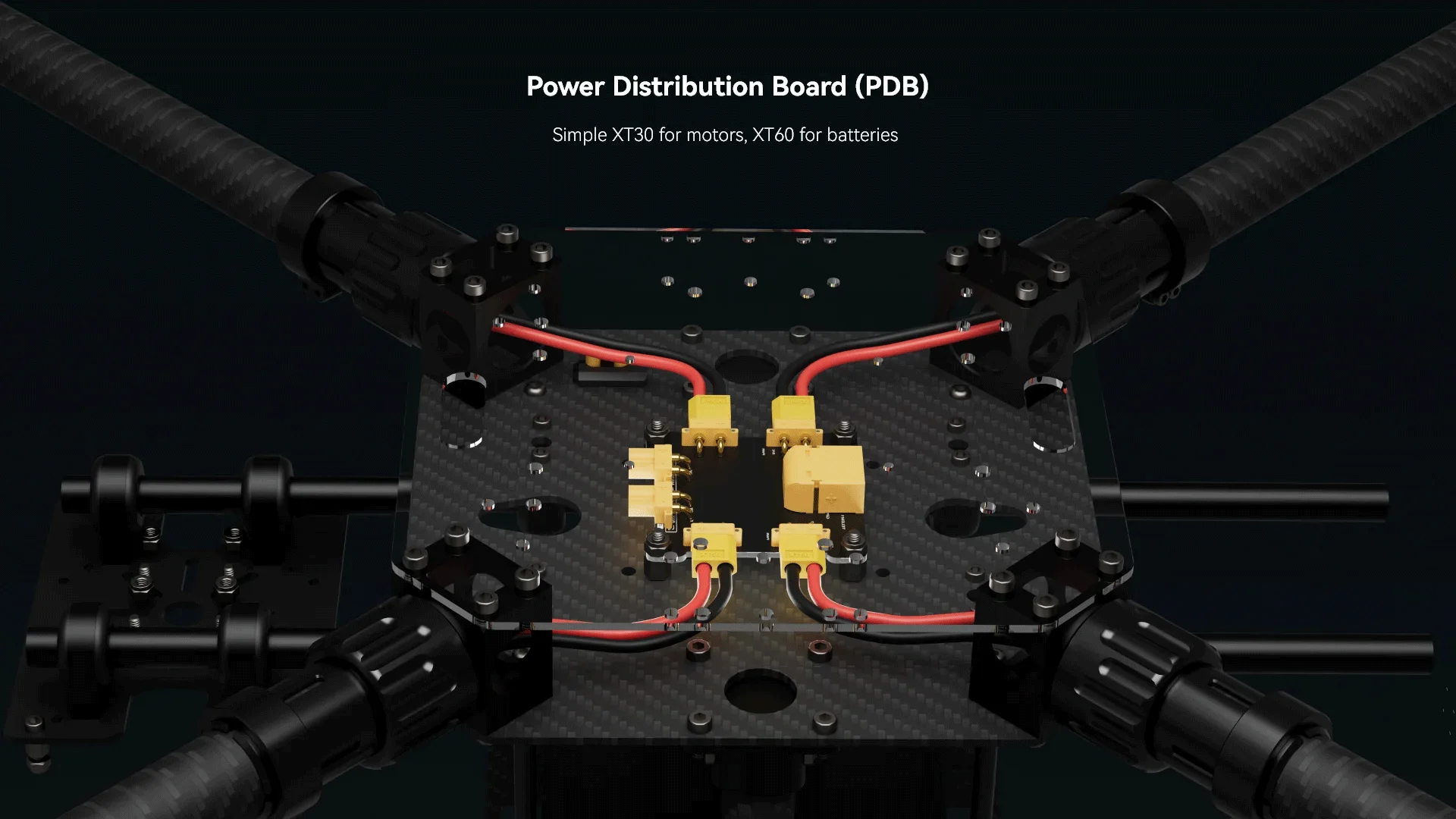

- Power Distribution Board (XT60 plug for battery & XT30 plug for ESCs & peripherals)
- Other Optional Items (Sold Seperately)

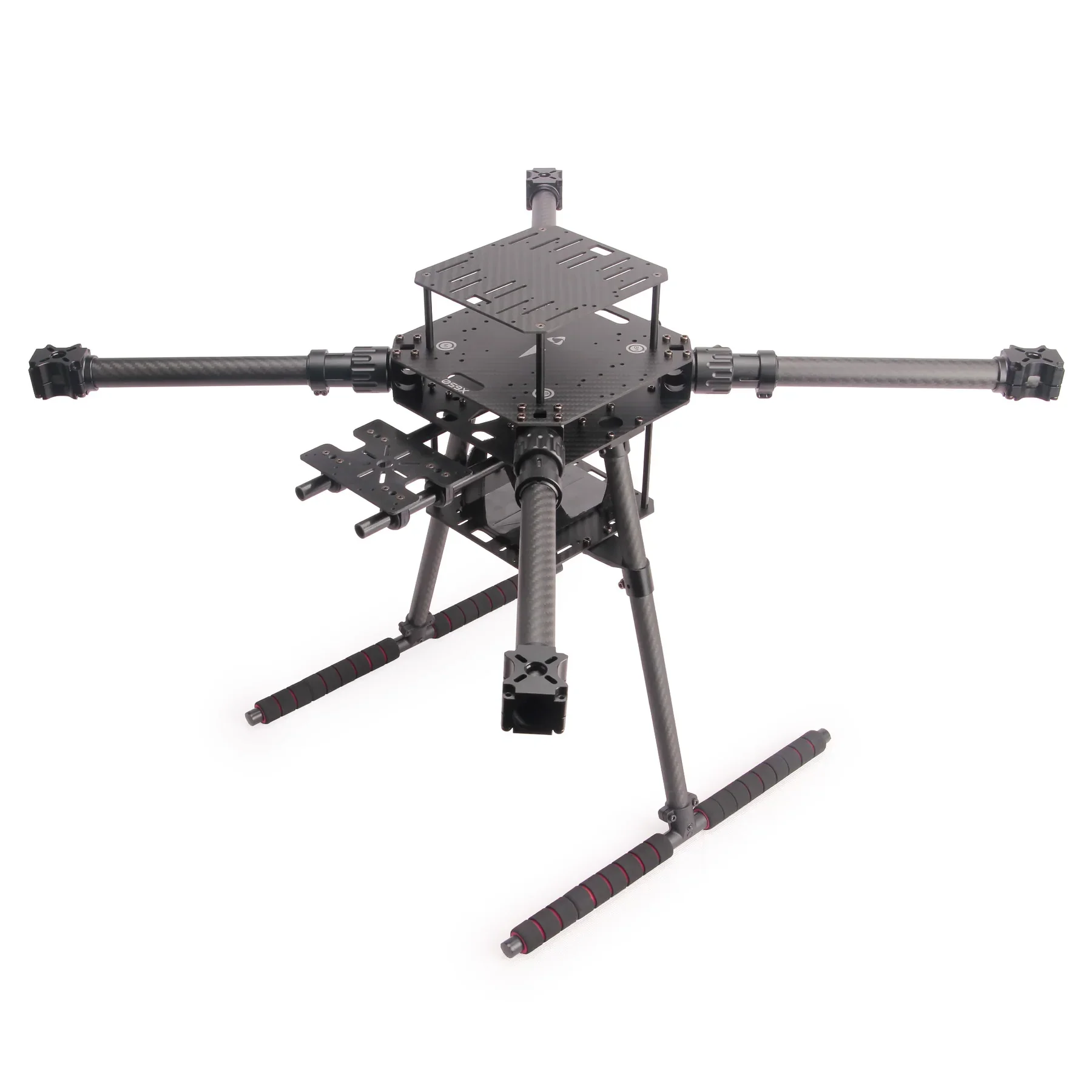

X650 Frame Kit Details
- Wheelbase: 650mm
- Motor mount pattern: 16-25mm Pattern
- Body - Full Carbon Fiber Top & Bottom plate (160 x 160mm, 2mm thick)

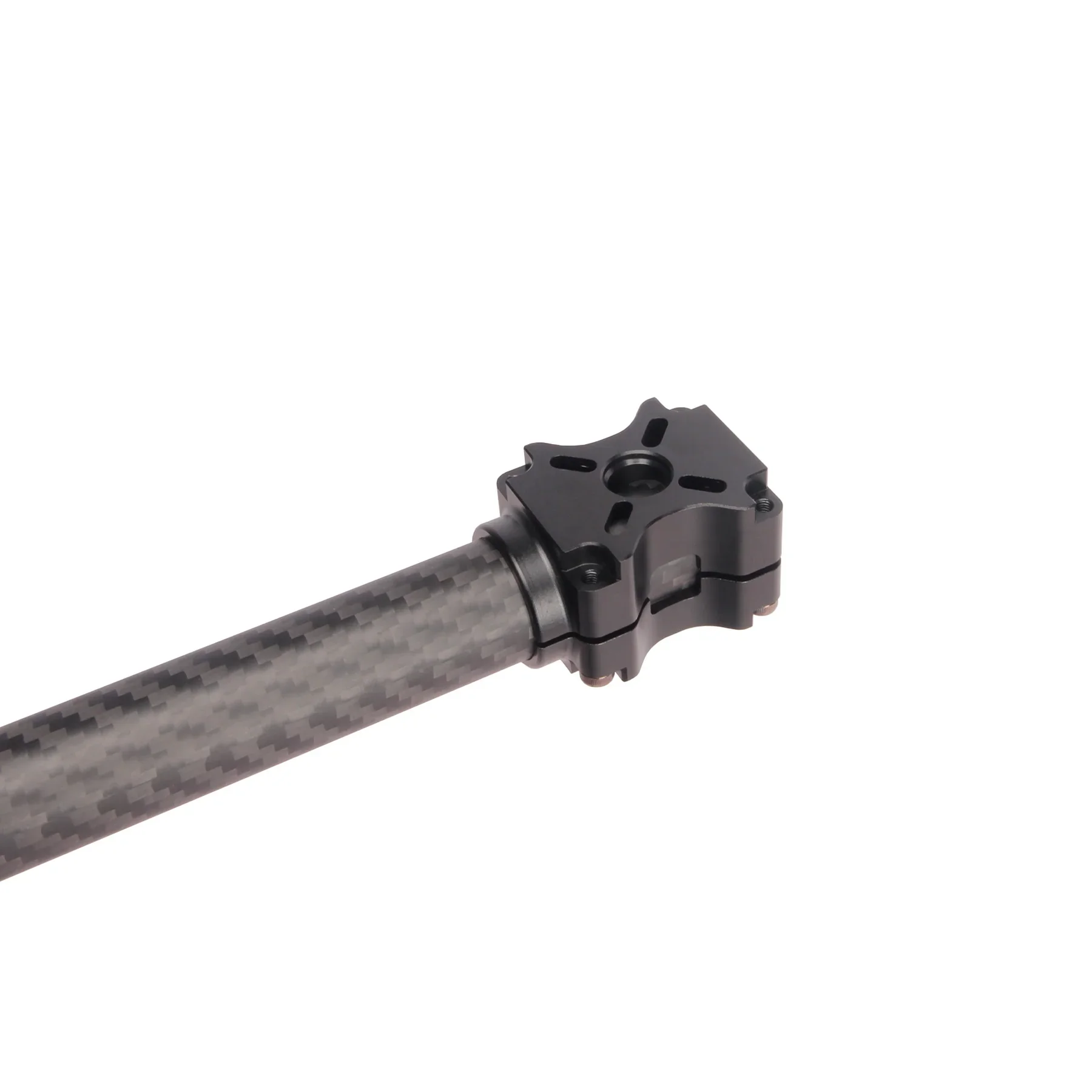

- Arm - High strength & ultra-lightweight 20mm carbon fiber tubes with newly designed aluminum foldable arm mount
- Landing gear - 16mm & 10mm diameter carbon fiber tubes with strengthened & improved plastic tee connectors.
- Upper & Battery Plate - 120mm x 128mm carbon fiber plate for various payload, accessories, or battery.
- Platform board - With mounting holes for GPS & popular companion computer such as the Raspberry Pi 4 & Jetson Nano

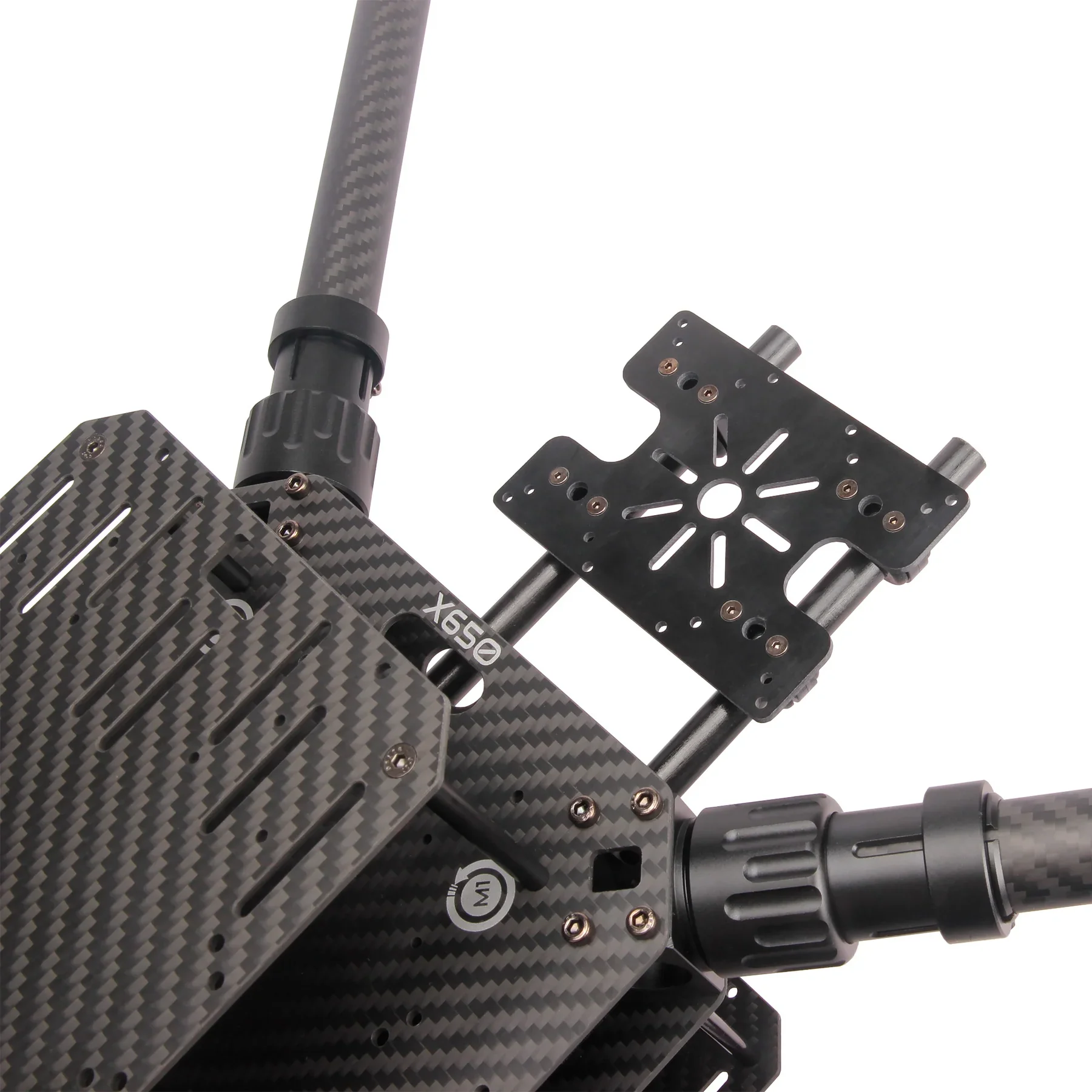

- Dual 10mm Ø rod x 320 mm long rail mounting system
- Two pads & battery Straps
- Hand tools for installation
Flight Time and Payload
- Flight time: 30 min (Hover with 6S 10000 mAh Battery, no additional payload)
- Full Kit Weight: 2000g (without battery)
- Payload:
- 4.3kg (without battery)
- 3.5kg (with 5200mAh 750 gram battery)
- 3.1kg (with 10000mAh 1200 gram battery)
- Takeoff Weight Limit: 6300g (70% throttle)
- Battery Recommendation: 6S 5000-12000mAh Lipo Battery with XT60 (Not Included)

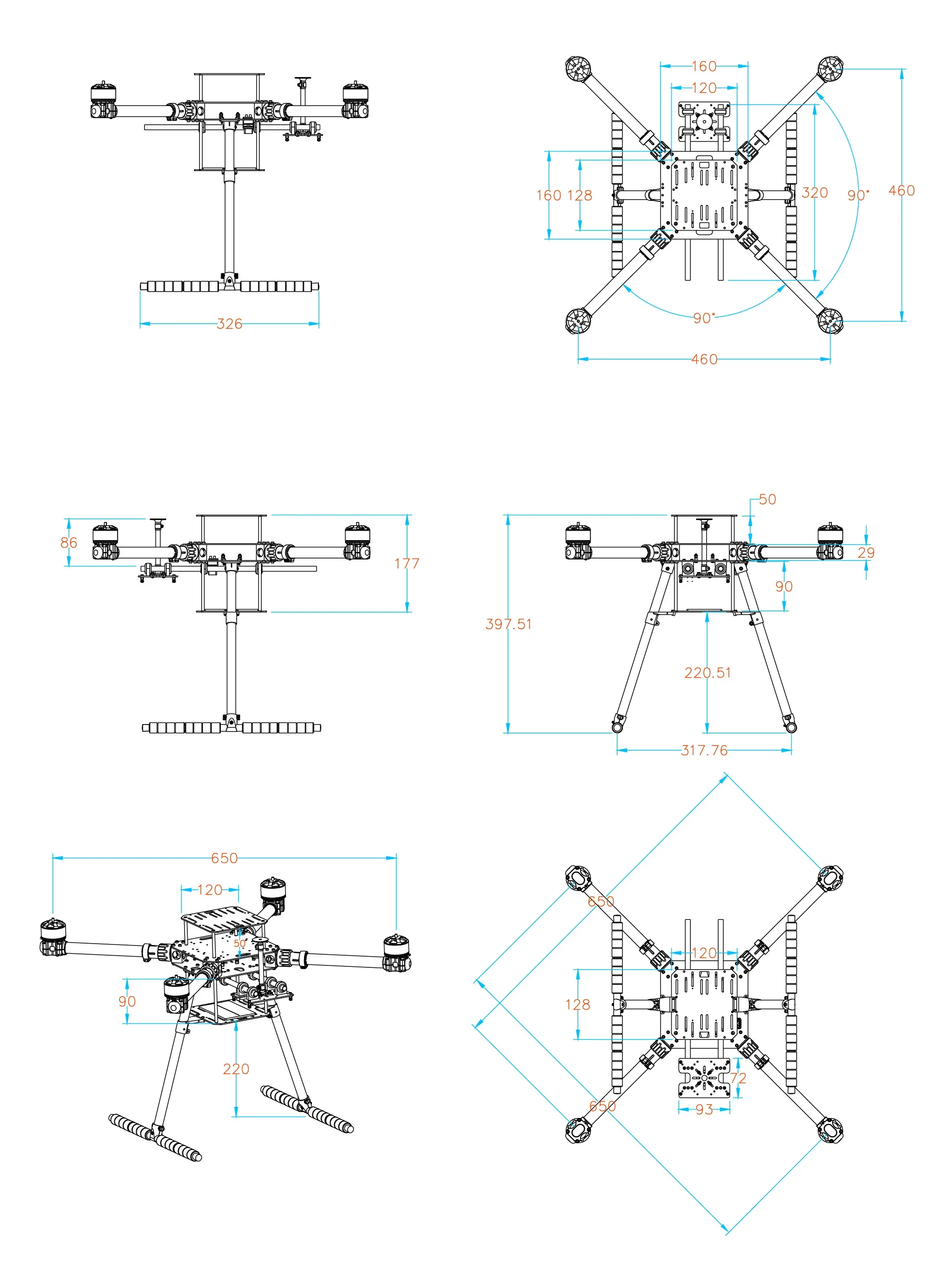

Dimension
