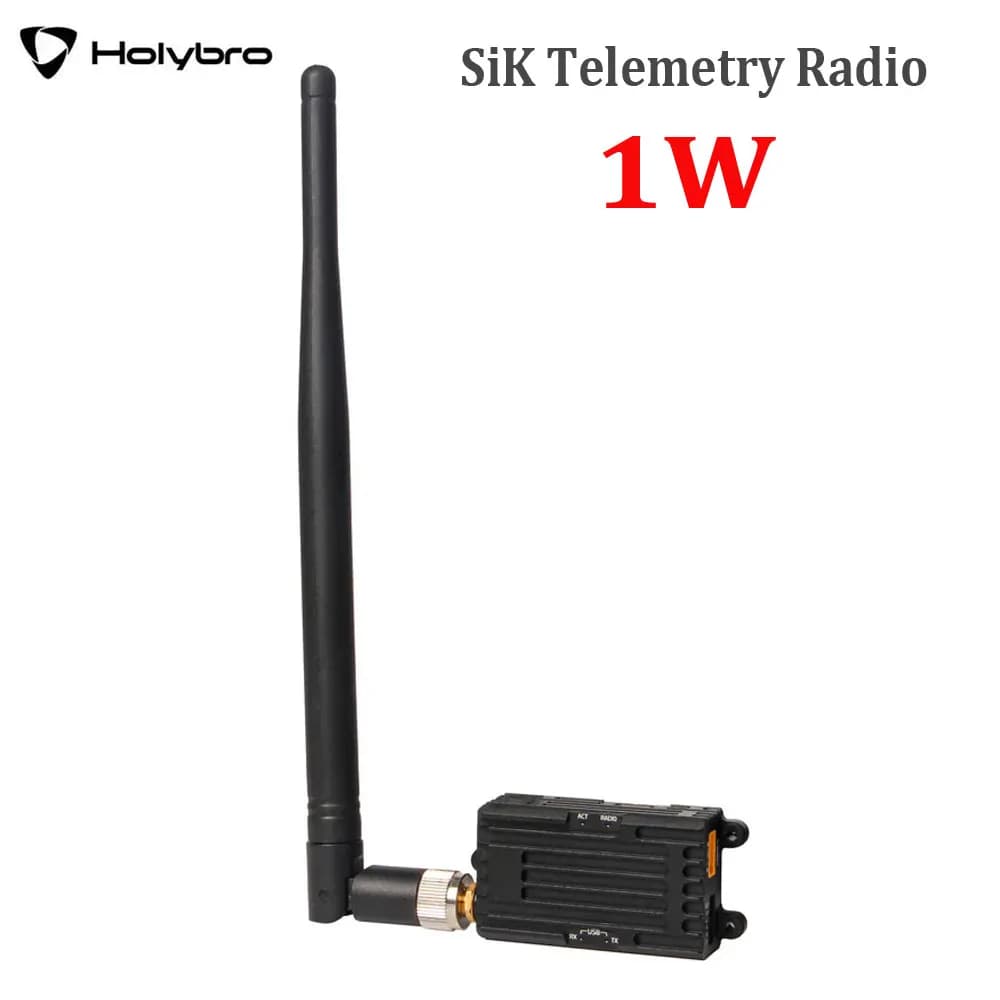

Holybro Sik Telemetry Radio 1w 915mhz Open-source Sik Firmware Plug-n-play For Pixhawk Standard Flight Controllers

Description

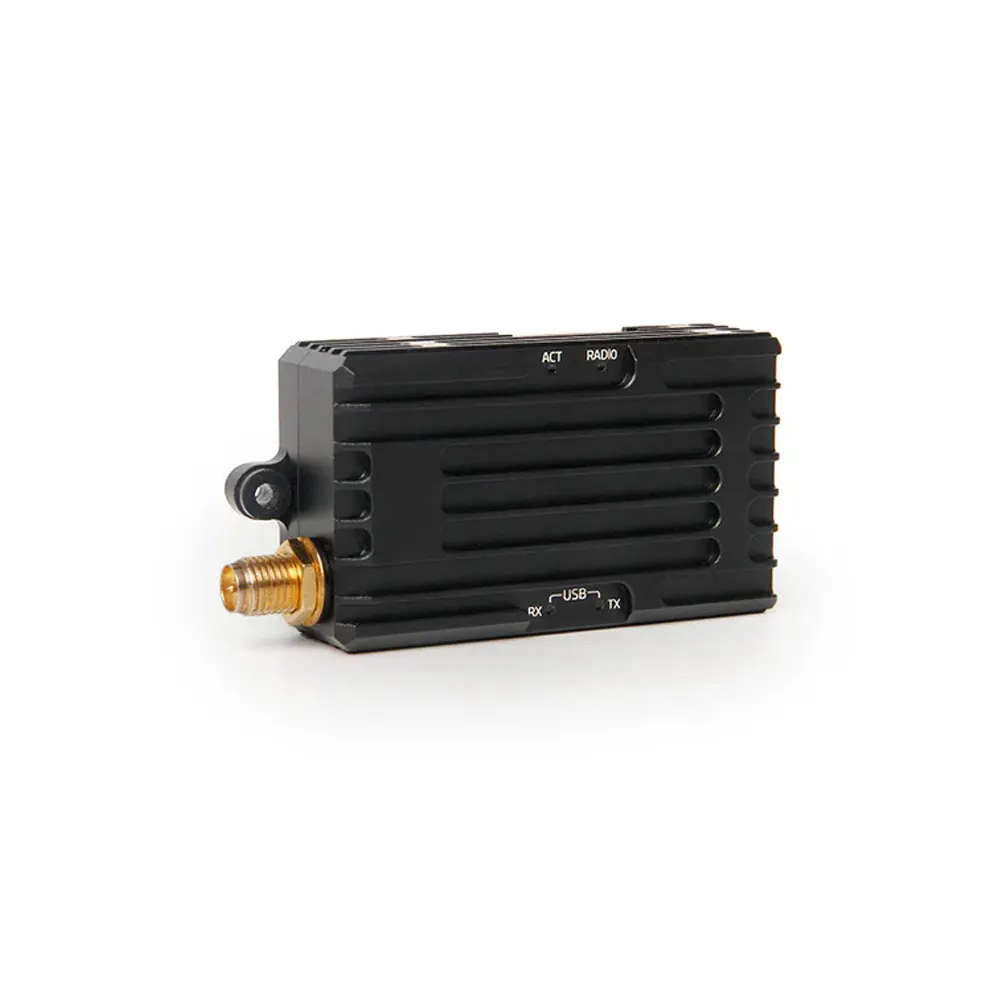

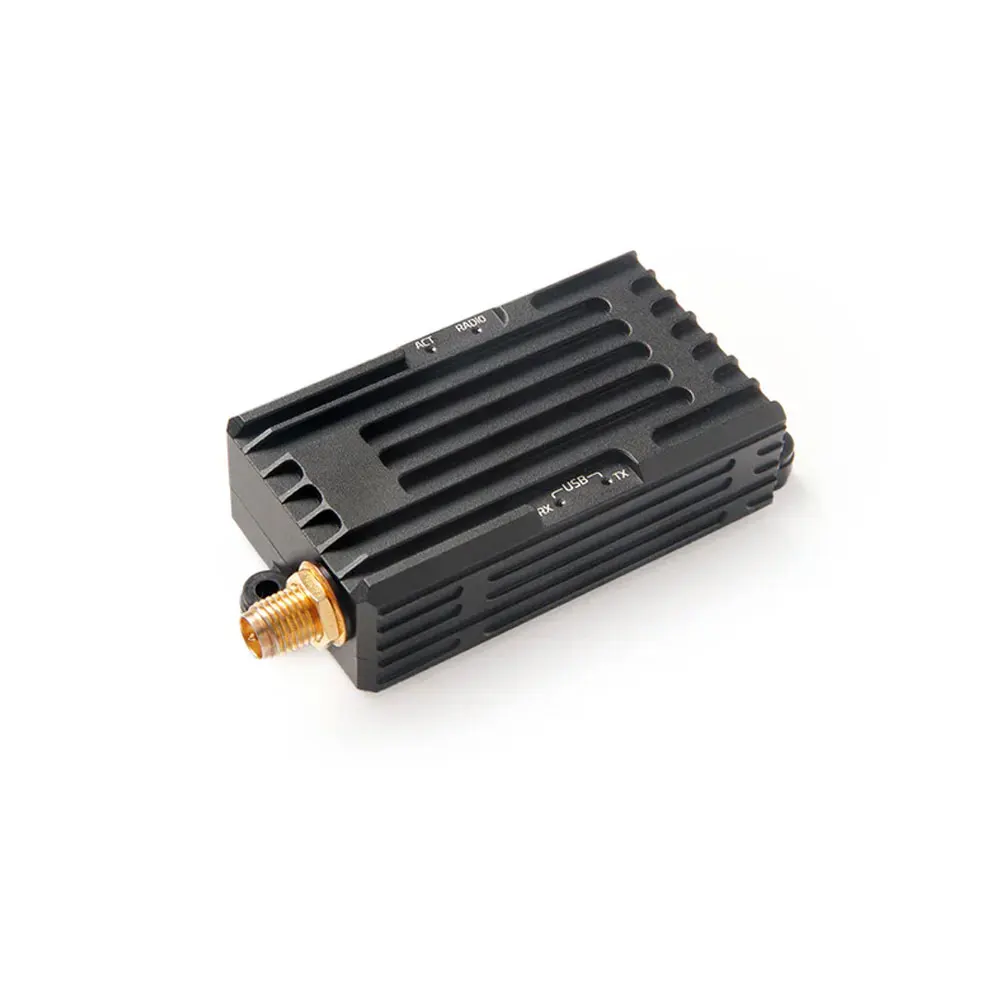

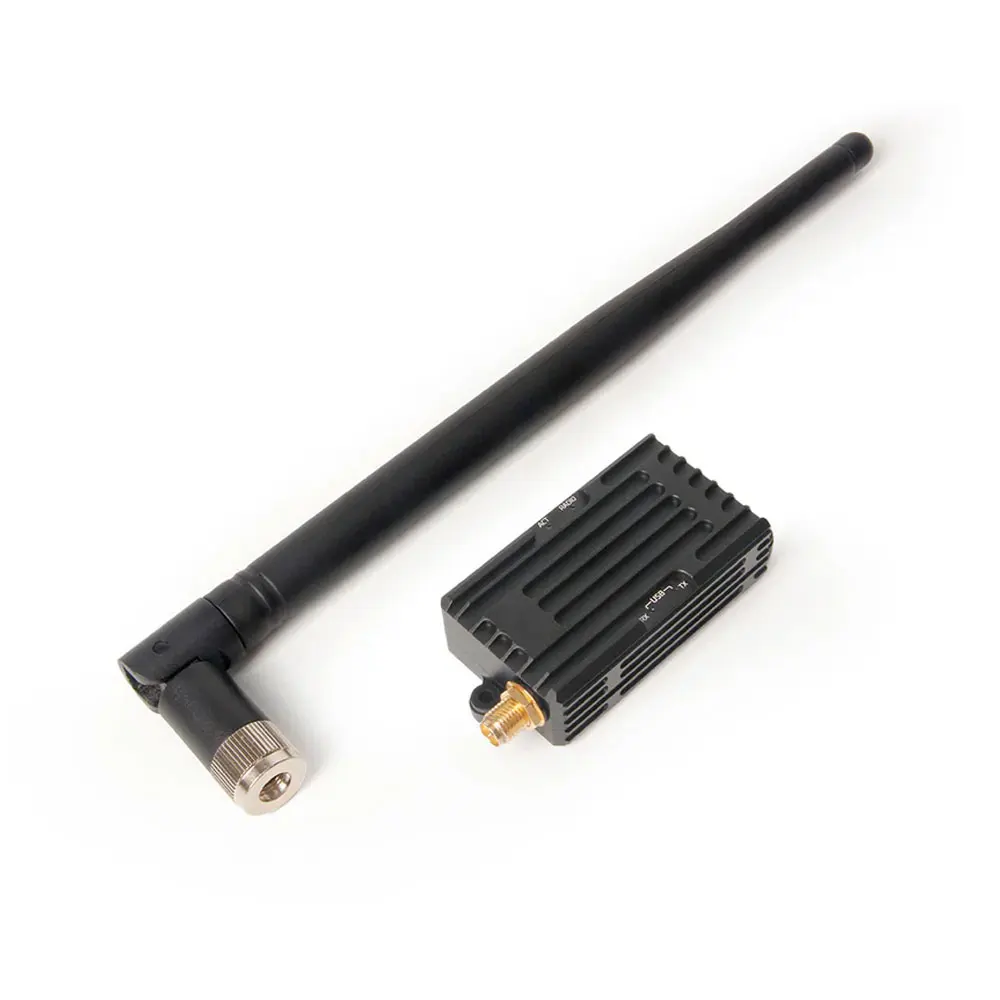

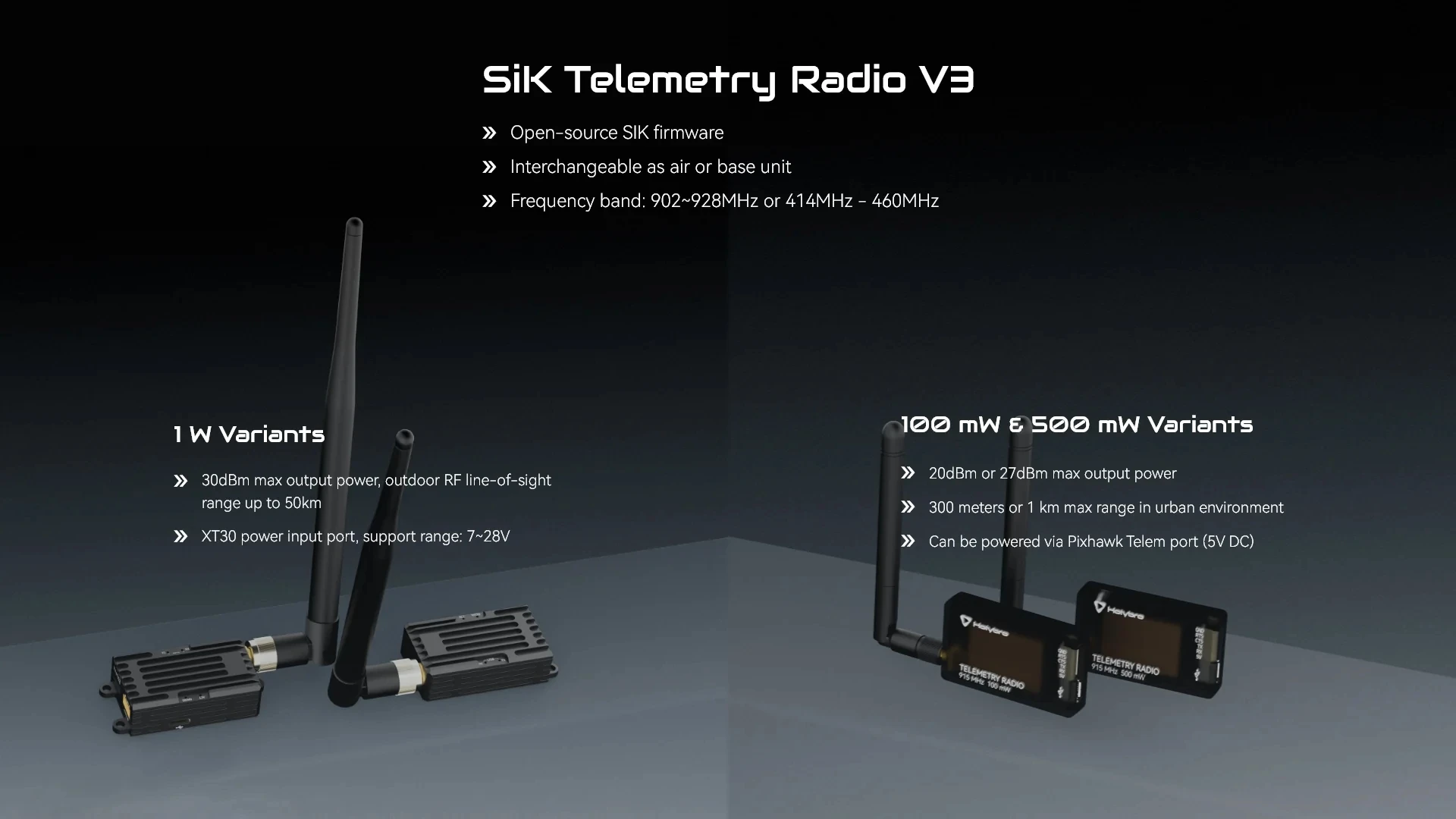

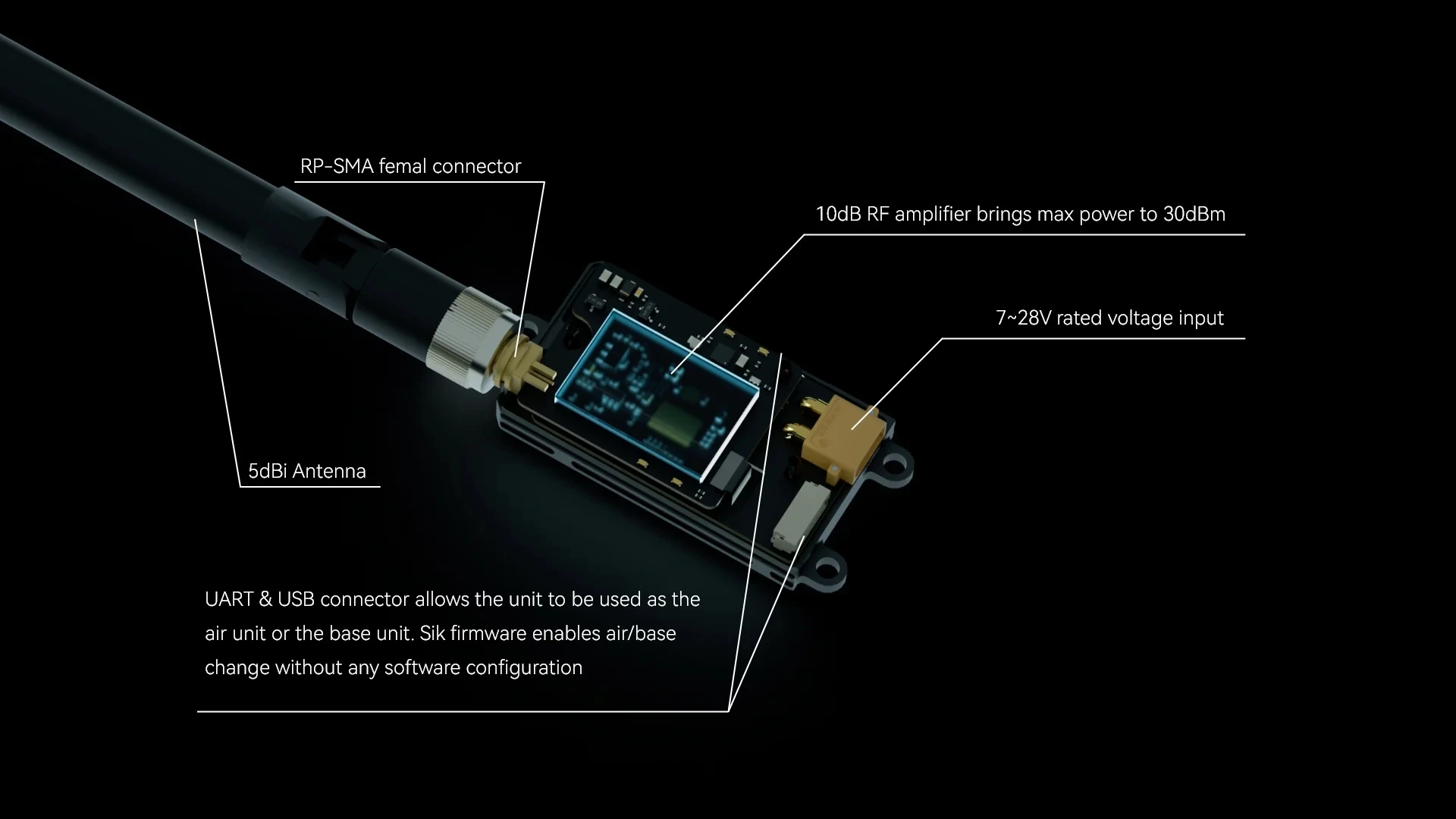

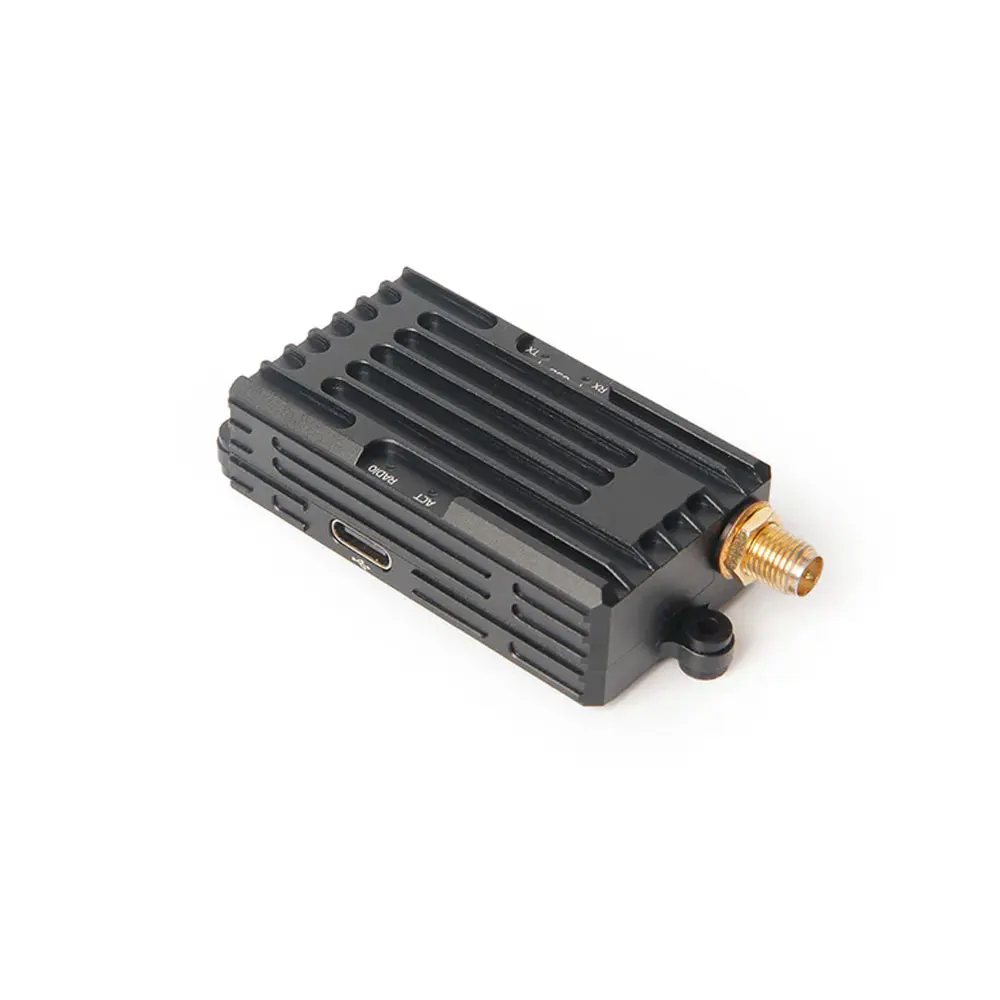

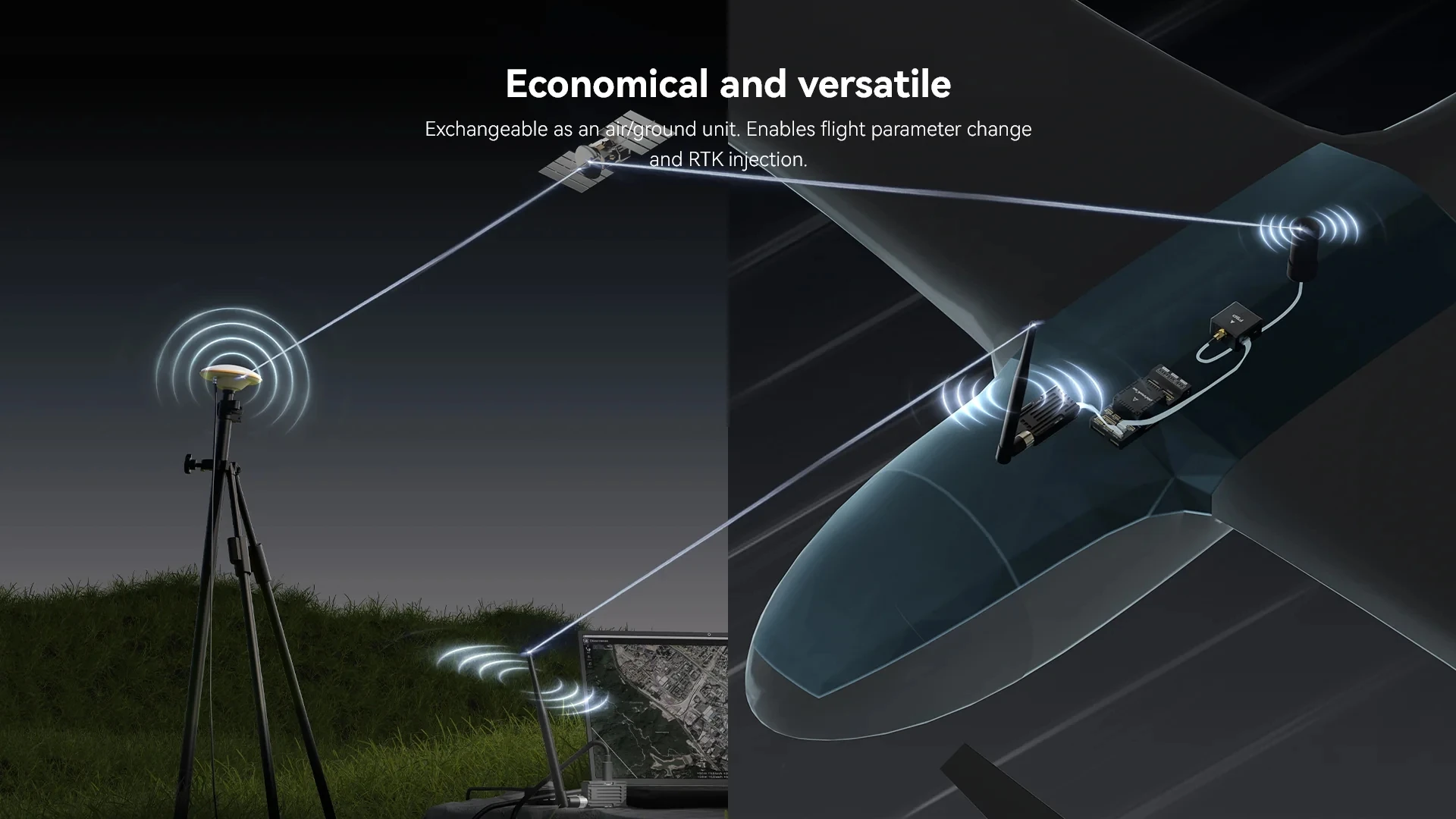

Holybro Sik Telemetry Radio 1w 915mhz Open-source Sik Firmware Plug-n-play For Pixhawk Standard Flight Controllers ============================================================ Overview This Holybro SiK 1W Telemetry Radio is a small, light, and inexpensive open-source radio platform with a maximum 50 kilometres range (outdoors, line-of-sight range). This radio is plug-and-play, ready for all Pixhawk Standard and other similar flight controllers, providing the easiest way to set up a telemetry connection between your Autopilot and a ground station. It uses open-source firmware that has been specially designed to work well with MAVLink packets and to be integrated with the Mission Planner, Ardupilot, QGroundControl, and PX4 Autopilot. The radios are available in 915 MHz or 433 MHz versions. Please purchase the model that is appropriate for your country/region. Features Open-source SIK firmware Plug-n-play for Pixhawk Standard Flight Controllers 1W maximum RF output The Easiest way to connect your Autopilot and Ground Station Interchangeable air and ground radio 6-position JST-GH connector Specifications SiK Telemetry Radio 100mW SiK Telemetry Radio 500mW SiK Telemetry Radio 1W Max RF Power 20 dBm 27 dBm 30 dBm Receive sensitivity -121 dbm @2kbps RF Data Rate, -105 dbm @64kbps RF Data Rate Line-of-sight range 300~500m (2dBi Antenna) ~ 1km (2dBi Antenna) ~ 50km (5dBi Antenna) Antenna Gain RF Data Rates 2, 4, 8, 16, 32, 64(default), 96, 128, 192, 250 kbps Serial Interface Data Rate 1.2, 2.4, 4.8, 9.6, 19.2, 38.4, 57.6(default), 115.2 kbps Frequency Band 902MHz - 928MHz or 414MHz - 460MHz Interference Immunity Frequency Hopping Spread Spectrum (FHSS) Configurable duty cycle Address Options Network ID: 0 –255 Channels Up to 50 Frequency Hopping Channels Supported Network Topologies Point-to-point Configuration Method MissionPlanner or AT Commands Data Framing Standard or MAVLink protocol framing Error correction Corrects up to 25% of bit errors with open-source SIK firmware Serial Data Connector & Interface 6-pin JST-GH connector, 3.3V-TTL Micro-USB Type-C SMA Connector RP-SMA female Power Connector Operating Temperature 40~85°C Dimension 28 x 53 x 10.7mm (without antenna) 66.5 x 32 x 16.5mm (without antenna) Weight 23.5g w/ antenna 67g w/ antenna Input Voltage (DC) 2-way full-duplex communication through adaptive TDM UART interface Transparent serial link MAVLink protocol framing Built in FT230X/FT231 USB to BASIC UART conversion IC Electrical Data Supply voltage: 7~28V DC via XT30 Transmit current: 12V/400mA at 30 dBm Receive current: 12V/30mA Serial interface: 3.3 V UART Package Included Single 1W 1W Radio modules with antennas *1 High-gain omnidirectional antenna *1 Male Type-C to male Type-C USB cable *1 Male XT30 to female XT30 adapter cable *1 Male XT30 to female XT60 adapter cable *1 JST-GH-6P to JST-GH-6P cable *1 (for Pixhawk Standard FC) Rubber damping grommet *3 Pair 1W 1W Radio modules with antennas *2 High-gain omnidirectional antenna *2 Male Type-C to male Type-C USB cable *1 Male XT30 to female XT30 adapter cable *1 Male XT30 to female XT60 adapter cable *1 JST-GH-6P to JST-GH-6P cable *1 (for Pixhawk Standard FC) Rubber damping grommet *3 AVAILABLE OPTIONS 1W 915MHz Single 1W 915MHz Pair PRODUCT INFORMATION Brand: Holybro Category: FPV Drone Wholesale Price: US $155.49 ————————————————————————————————————————
