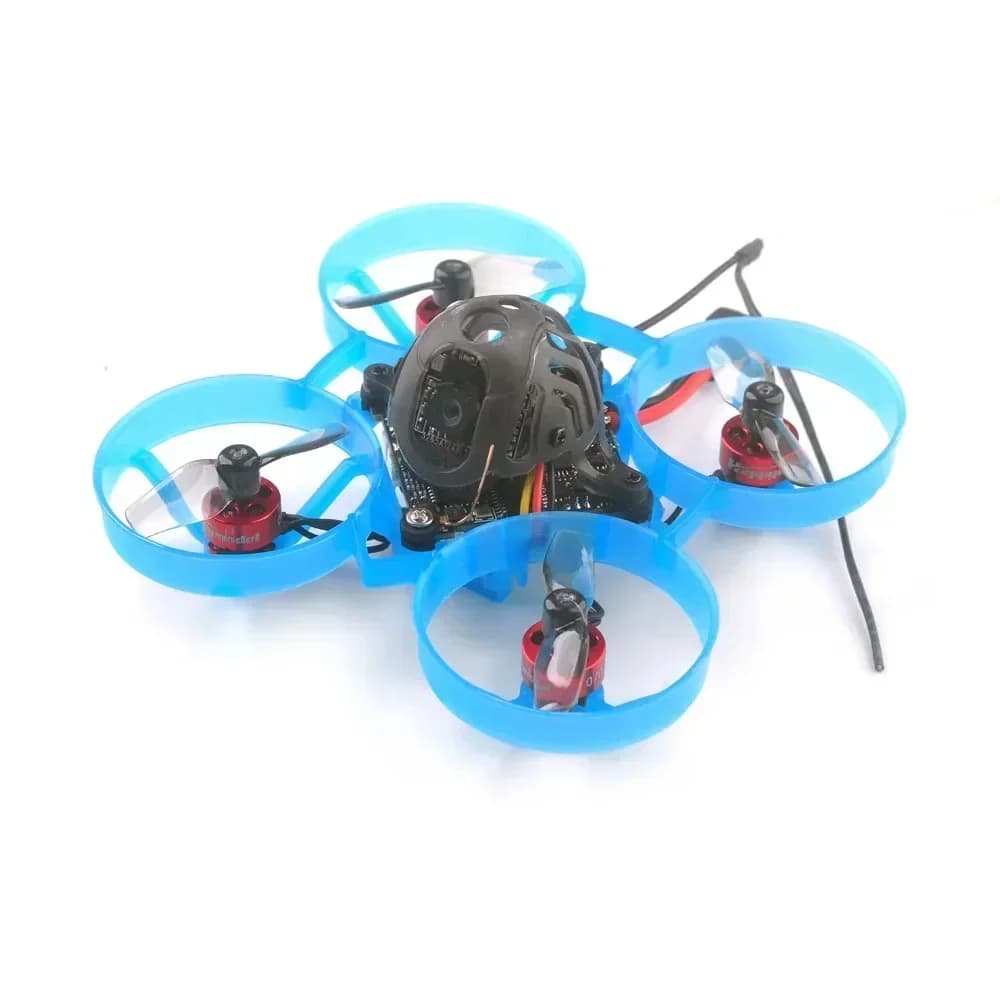

HappyModel Mobula6 ELRS - 65mm TinyWhoop Quadcopter FPV Drone ELRS F4 2G4 Runcam Nano3 200mW 0702 26000KV 1S

Description

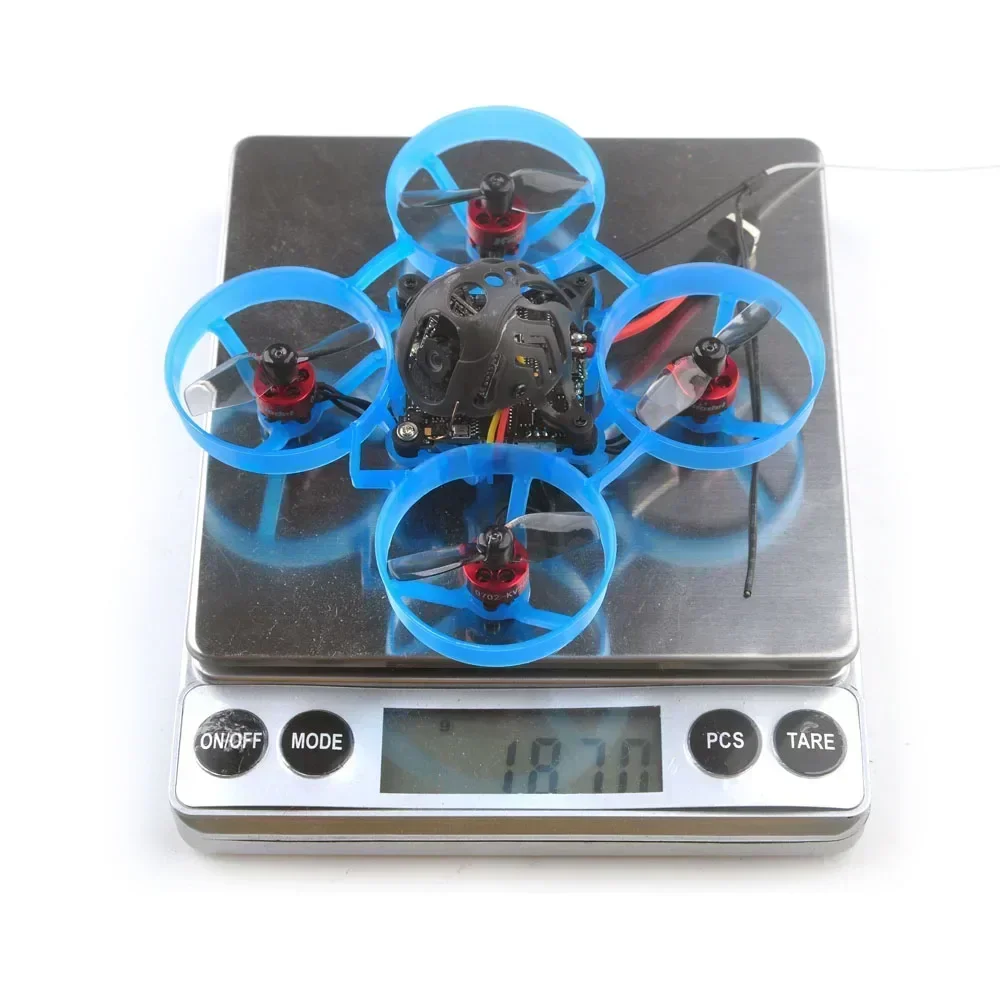

HappyModel Mobula6 ELRS - 65mm TinyWhoop Quadcopter FPV Drone ELRS F4 2G4 Runcam Nano3 200mW 0702 26000KV 1S ============================================================ Update log: Mobula6 ELRS 2.4Ghz version comes with Updated ELRSF4 2G4 V3.1 flight controller since 25th Feb V3.1 Version flight controller Updated MPU6000 changed to ICM20689 because of MPU6000 discontinued Onboard VTX changed to OPENVTX support 0mw~400mw Pre-install Betaflight firmware which support ELRS V2.0 TX firmware ExpressLRS is currently the most popular remote control link system. It has the characteristics of low latency and high packet rate, and its link quality is very reliable. Now we are about to release Mobula6 equipped with ExpressLRS RC link system, the new Mobula6 elrs would coming out with a new 0702 brushless motor, that would be the lightest brushless motors all over the world. We're sure this would be a good option for you in the Tiny Whoop Season. Features: AIO Flight controller with ELRS Receiver and 5.8G VTX Super light 1S 65mm Brushless whoop only 18.7g Equipment with the lightest brushless motors-SE0702 only 1.46gram Runcam Nano3 The lightest 1/3 CMOS 800TVL Camera Smooth and powerful Compatible for 1S Lipo/LIHV Specifications: Brand Name: Happymodel Item Name: Mobula6 ELRS 1S 65mm Brushless whoop drone BNF version Wheelbase: 65mm Size: 80mm*80mm*37mm Weight: 18.7g Receiver option: 2.4GHz ExpressLRS SPI receiver 915MHz ExpressLRS Serial-based receiver 868MHz ExpressLRS Serial-based receiver Mobula6 ELRS 2.4G Mobula6 ELRS 915MHz Mobula6 ELRS 868MHz Flight controller ELRS F4 2G4 CrazyF4 ELRS CrazyF4 ELRS Firmware target CRAZYBEEF4SX1280 CRAZYBEEF4DX CRAZYBEEF4DX Built-in ExpressLRS receiver SPI 2.4GHz Serial-base 915MHz Serial-base 868MHz Built-in Dshot ESC Receiver antenna plug SMD ceramic antenna IPEX MHF3 IPEX MHF3 Onboard VTX power 25mw~200mw 25mw~200mw 25mw~200mw Brushless Motor 0702 KV26000 0702 KV26000 0702 KV26000 Propeller HQPROP 31mm Bi-blade HQPROP 31mm Bi-blade HQPROP 31mm Bi-blade Battery 1s 300mah Lipo battery 1s 300mah Lipo battery 1s 300mah Lipo battery Package includes: Item Name Mobula6 1S 65mm whoop Drone Frame ELRS F4 2G4 flight controller built-in SPI expresslrs 2.4G receiver CrazyF4 ELRS flight controller built-in 915MHz expresslrs receiver CrazyF4 ELRS flight controller built-in 868MHz expresslrs receiver SE0702 KV26000 brushless motor HQPROP 31mm bi-blade propellers(4cw+4ccw) Runcam Nano3 1/3 CMOS 800TVL camera Onboard 5.8G 25mw~200mw VTX 1S 300mah 30C LiHV Battery 1S Lipo/LIHV USB Charger Propeller disassemble tool Spare parts specifications: Mode: SE0702 KV26000 Configu-ration:9N12P Stator Diamter:7mm Stator Length:2mm Shaft Diameter:Φ1mm Motor Dimension(Dia.*Len):Φ9.5mm*14mm Weight(g):1.46g No.of Cells(Lipo):1S only Propellers HQprop31mmx2 Center Thickness:5mm Prop Disk Diameter:31mm Center Hole Inner diameter:1.0mm Weight:0.2g Flight controller ELRS F4 2G4 flight controller built-in SPI expresslrs 2.4G receiver CrazyF4 ELRS flight controller built-in 915MHz expresslrs receiver CrazyF4 ELRS flight controller built-in 868MHz expresslrs receiver MCU:STM32F411CEU6 (100MHZ, 512K FLASH) Sensor: MPU-6000(SPI connection) Board size: 28.5 * 28.5MM Power supply: 1S battery input (DC 2.9V-4.35V) Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready Built-in Betaflight OSD(SPI Control) Built-in 5.8G VTX Built-in ExpressLRS 2.4G/915MHz/868MHz receiver Built-in 5V 1A BEC Built-in voltage detection Onboard 4in1 ESC MCU upgraded to EFM8BB21 Power supply: 1S LiPo/LiPo HV Current: 5A continuous peak 6A (3 seconds) Support BLHeliSuite programmable Factory firmware: O_H_5_REV16_7.HEX Default protocol: DSHOT600 Onboard SPI ExpressLRS 2.4GHz Receiver Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz RF Frequency: 2.4GHz Antenna : SMD antenna Telemetry output Power: <12dBm Receiver protocol: SPI ExpressLRS Could bind with Happymodel ES24TX , ES24TX Lite, ES24TX Slim and DIY 2.4GHz ELRS TX module ExpressLRS version 1.0
