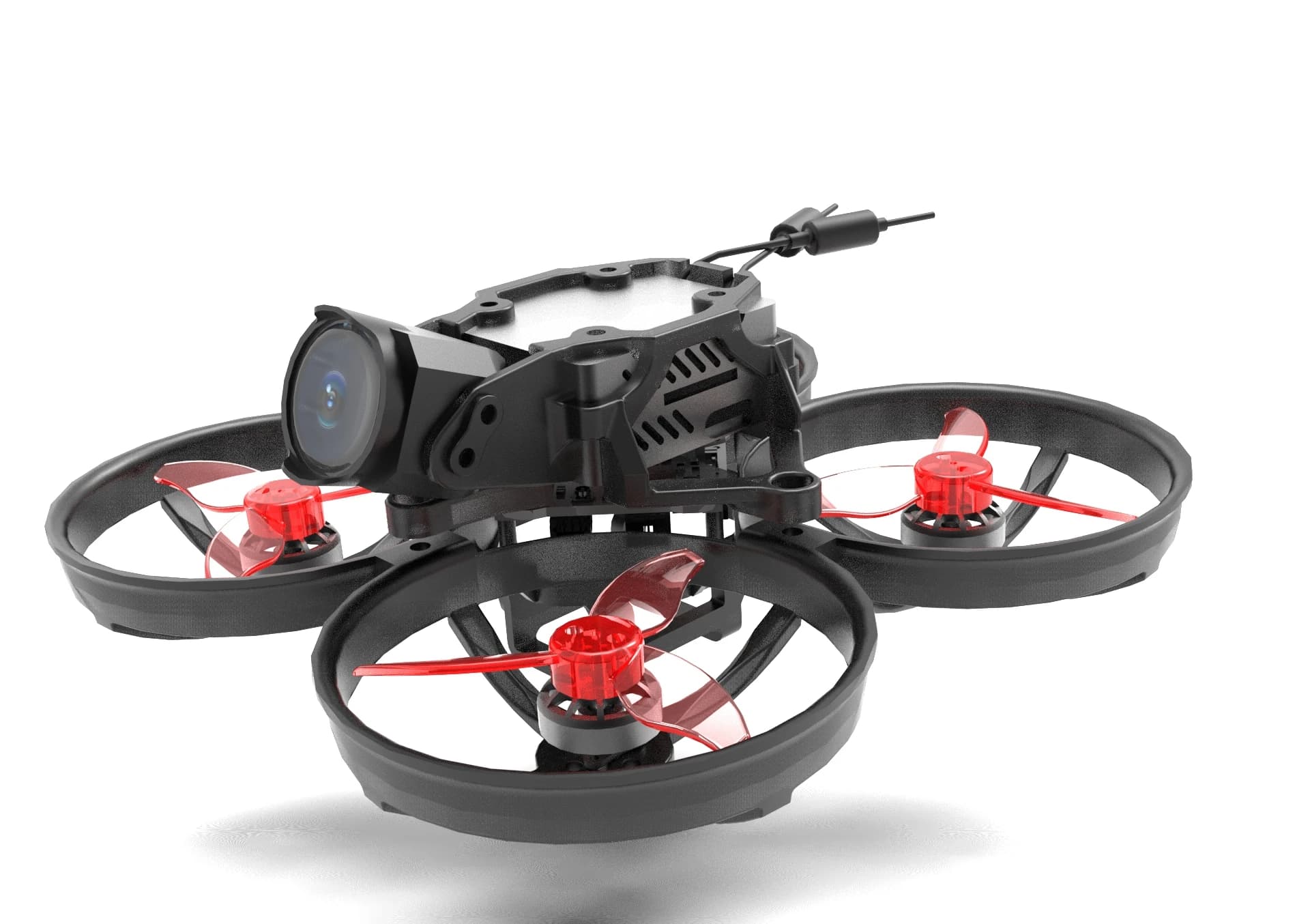

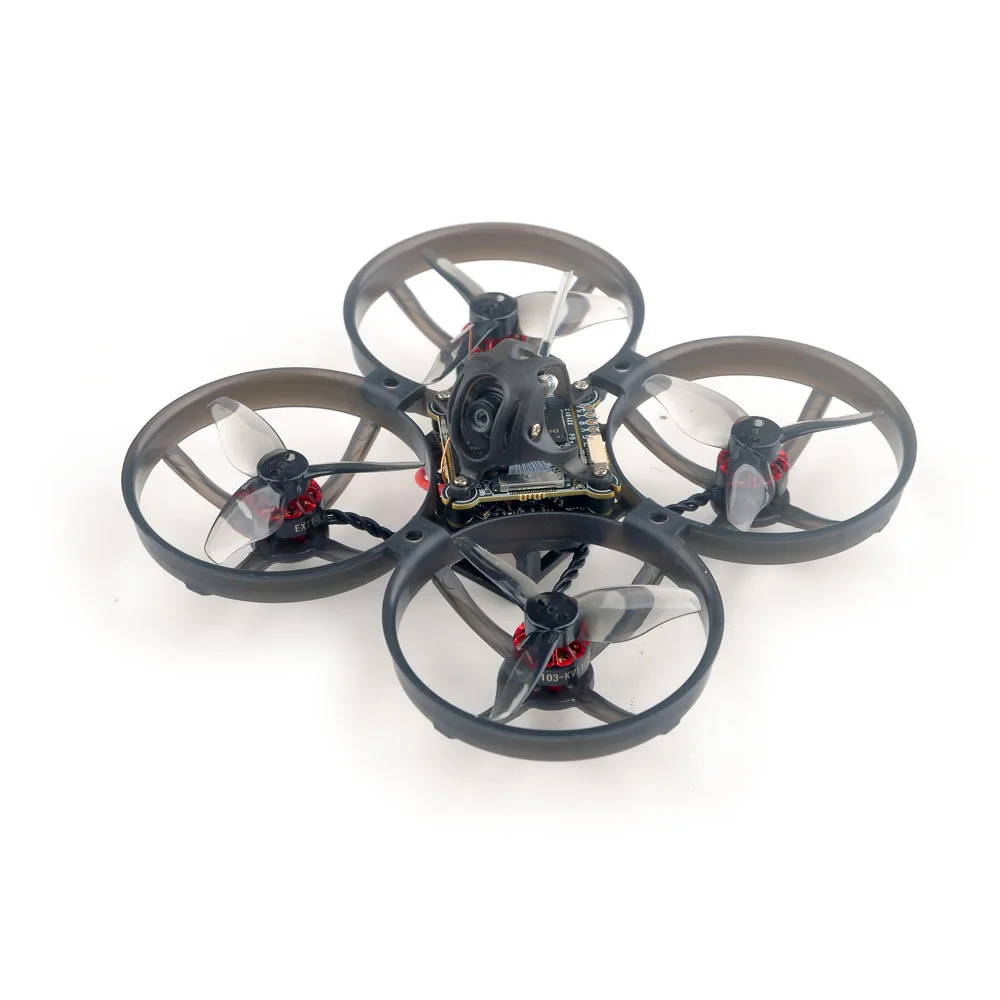

HappyModel Mobula8 HD 2S 85mm Digital Micro FPV Whoop Drone Walksnail / HDZERO / O3 CrazyF405 ELRS EX1103 KV11000 UART 2.4G RX

Description

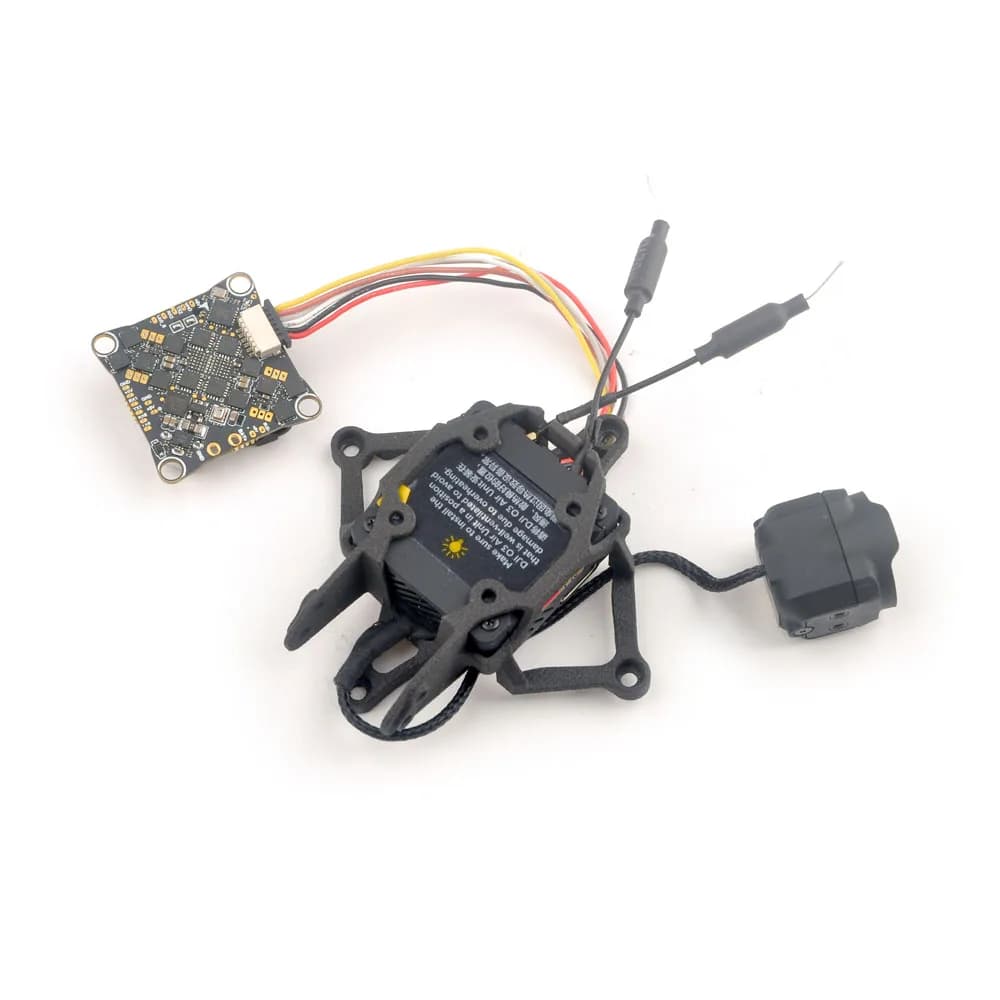

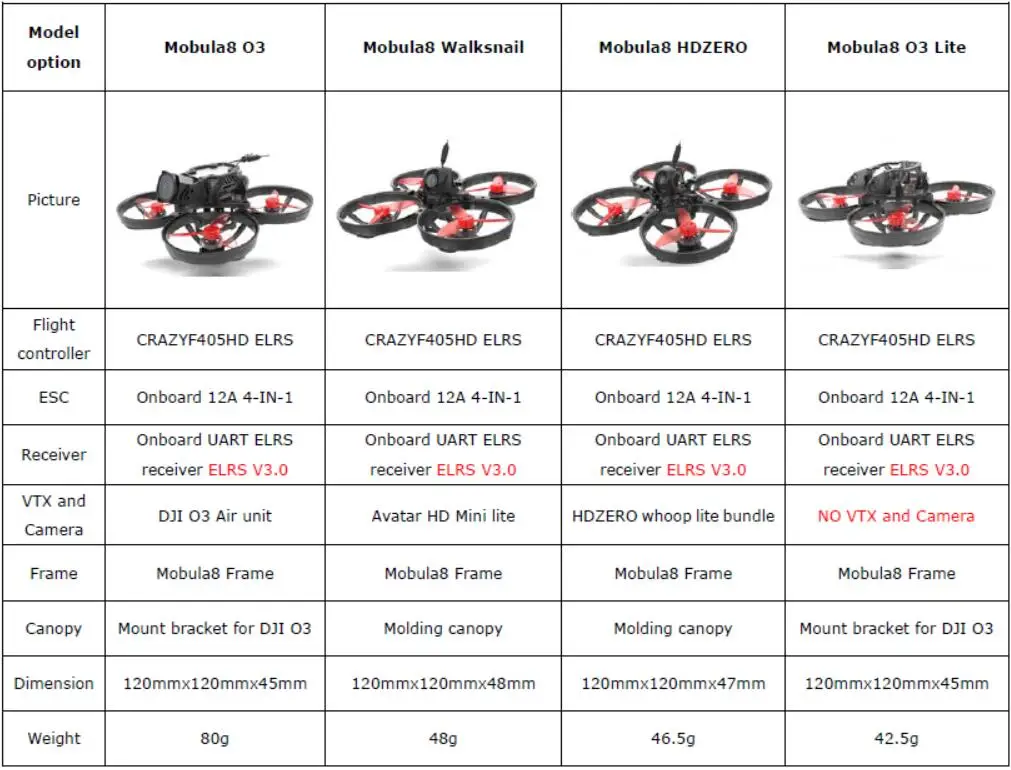

HappyModel Mobula8 HD 2S 85mm Digital Micro FPV Whoop Drone Walksnail / HDZERO / O3 CrazyF405 ELRS EX1103 KV11000 UART 2.4G RX ============================================================ Notice: O3 air unit warranty service is undertaken by DJI according to their warranty policy, please noted. If you purchase this product you agree to this policy. (Mobula8 O3 lite): without DJI O3 Air unit Features: Digital HD FPV experience New CrazyF405 ELRS HD flight controller Powerful and Smooth UART ExpressLRS receiver Built-in blackbox for Gyroflow and PID Tune Package includes: Item Name Mobula8 Frame CrazyF4HD ELRS flight controller firmware target:BETAFLIGHTF4 EX1103 KV11000 brushless motor Gemfan Hurricane 2023 tri-blade propellers(4cw+4ccw) Option1: O3 Air unit Option2: Walksnail avatar HD Mini 1S lite kit Option3: HDZERO Whoop Lite bundle Option4: No VTX and camera version Canopy(O3/Walksnail/HDZERO optional) Screw driver Spare parts specifications: Mode: EX1103 KV11000 Configu-ration:9N12P Stator Diamter:11mm Stator Length:3mm Shaft Diameter:Φ1.5mm Motor Dimension(Dia.*Len):Φ13.5mm*15.5mm Weight(g):3.8g No.of Cells(Lipo):1-2S Propellers Weight:0.88g Material: PC Pitch:2.3inch Props Dia:52.17mm Center Thickness:5mm Center Hole Dia:1.5mm Flight controller MCU: STM32F405RGT6 (168MHZ, 1Mbyte FLASH) GYRO Sensor: BMI270 (SPI connection) Mount hole size: 25.5mm*25.5mm Power supply: 1-2S battery input (DC 2.9V-8.7V) Built-in 12A(each) Blheli_S 4in1 ESC Built-in Serial ExpressLRS 2.4G Built-in BMP280 Barometer Built-in 8MBp blackbox Built-in voltage meter sensor , voltage meter scale 110 Built-in current meter sensor , current meter scale 470 Onboard 4in1 ESC Power supply: 1-2S LiPo/LiPo HV Current: 12A continuous peak 15A (3 seconds) Support BLHeli_S Bluejay firmware Factory firmware: Bluejay ESC V0.19 Firmware target: Z-H-30 Default protocol: DSHOT300 When use 1s battery and high KV 0702/0802 motors, should set startup power to 1100/1200 Onboard UART ExpressLRS 2.4GHz Receiver Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz RF Frequency: 2.4GHz Antenna: enameled copper wire 31mm length Telemetry output Power: <12dBm Default firmware version: ExpressLRS V3.0.1 Firmware target: HappyModel EP 2400 RX Could update firmware via ExpressLRS configurator O3 Air Unit Works with DJI FPV Goggles V2, DJI Goggles 2, and DJI FPV Remote Controller 2 D-Cinelike mode for Vivid Colors Flagship O3+ Video Streaming Customizable Canvas Mode 155° Super-Wide FOV 1/1.7-Inch Sensor Compact in Size Walksnail version Camera Model Avatar lite camera Image Sensor 1/2.7''1nch Resolution 1080P/60fps,720P/120fps,720P/60fps Ratio 16/9 4/3 Lens 2.1mm FOV 170° Aperture F2.0 Shutter Rolling Rolling shutter Min.Illumination 0.001Lux Weight 1.8g Dimensions 14*14*16mm Model Avatar mini 1s module Communication Frequency 5.725-5.850GHz Transmitter Power (EIRP) FCC:<25.5dBm;CE:<14dBm;SRRC:<20dBm; MIC:<25dBm I/O Interface JST1.0*6(Power in)JST0.8*4(USB) Mounting Holes 25.5*25.5mm Dimensions 30*30*6.5mm Storage 8G Recording 1080p/720p Weight 5.1g Operating Temperature -20-40℃ Channels 8 Wide Power Input 3.1V-5V Supported FC System Betaflight OSD Canvas mode Bitrate 25mbps 50mbps Latency Average delay 22ms Antenna IPEX HDZERO Version HDZero Nano Lite Camera 14x16x11 mm 1.5gram 0.5 inch, up to 10650 mV/Lux-sec ultra-high sensitive CMos sensor Excellent low light performance 4:3: D:130° H:108° v:84° 16:9:D:122° H:108° V:65° HDZero Whoop Lite VTX 1-3S Input 25mW/200mW RF Output-SmartAudio Support 25.5×25.5 M2 Soft Mounting- Antenna Retention Removable Shielding Box- 32.5×32.5mm(29x29mm inner) 4.5grams/4mm Thickness (without shielding) TECHNICAL SPECIFICATIONS • MCU: STM32F405RGT6 (168MHZ, 1Mbyte FLASH) • Weight:0.88g • Current: 12A continuous peak 15A (3 seconds) • Material: PC • Antenna: enameled copper wire 31mm length • Package includes: AVAILABLE OPTIONS Walksnail Version O3 LITE Version HDZERO Version PRODUCT INFORMATION Brand: HappyMode
