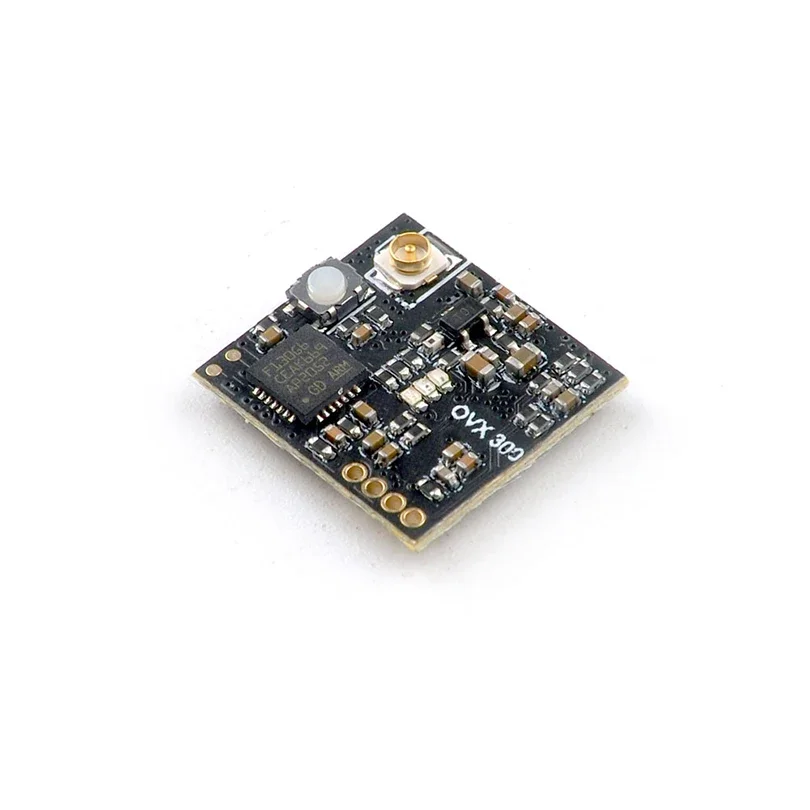

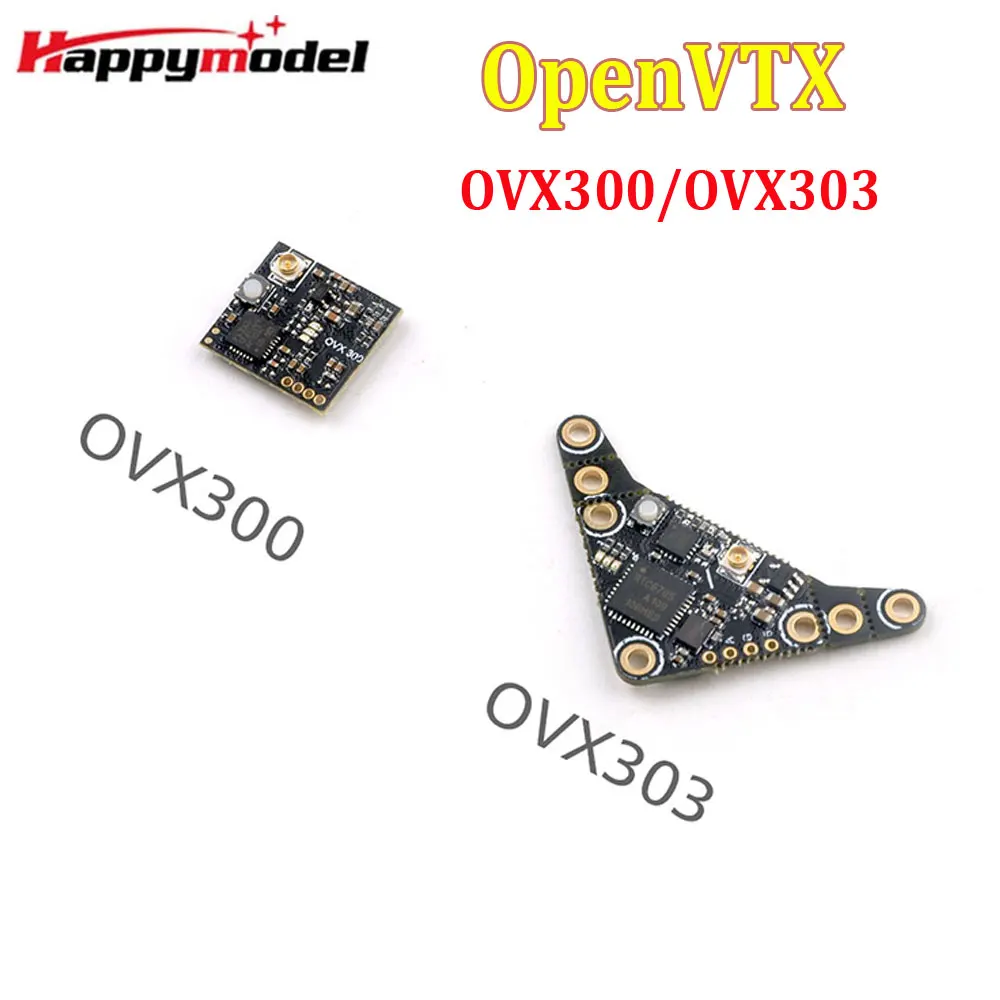

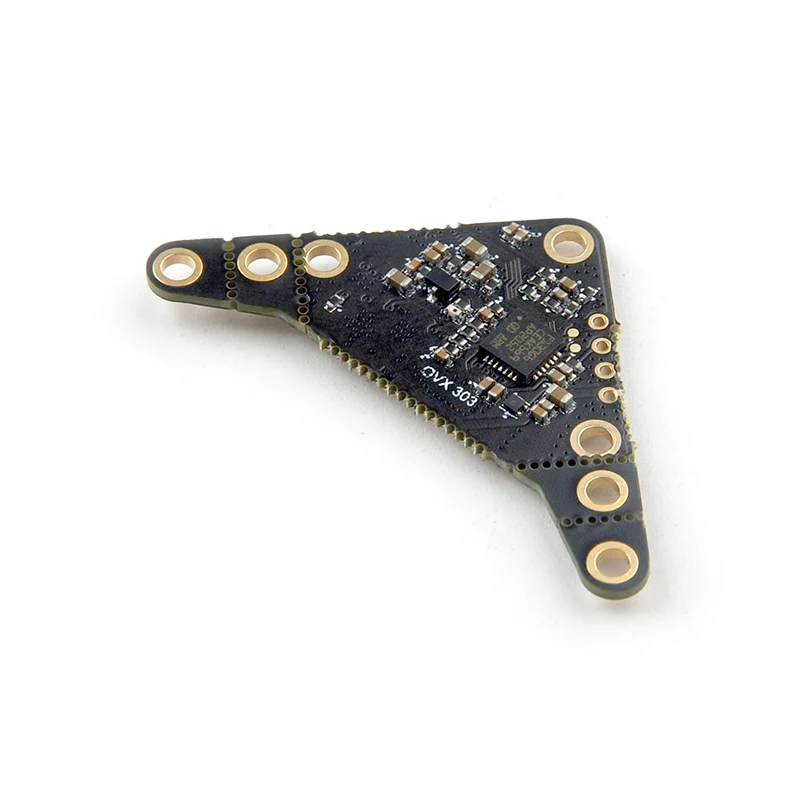

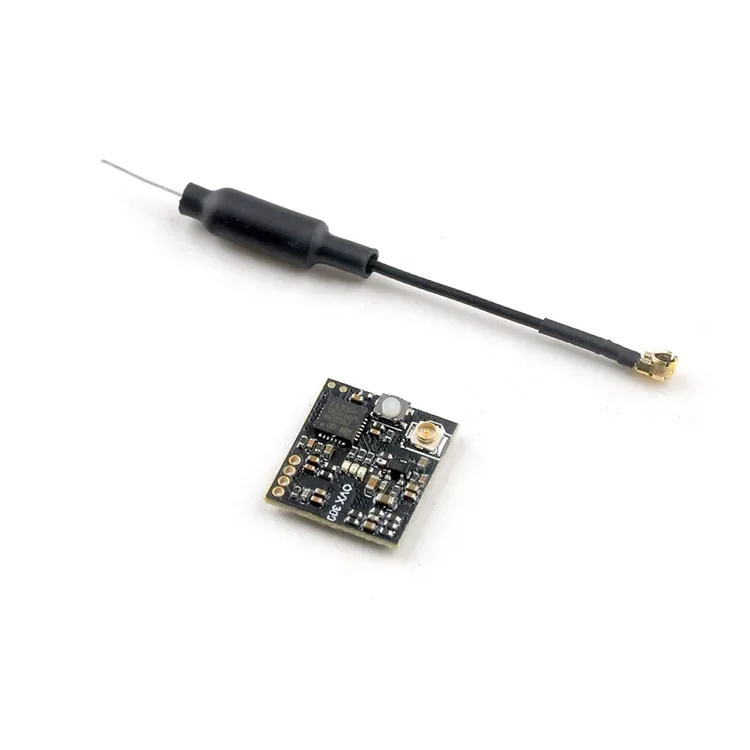

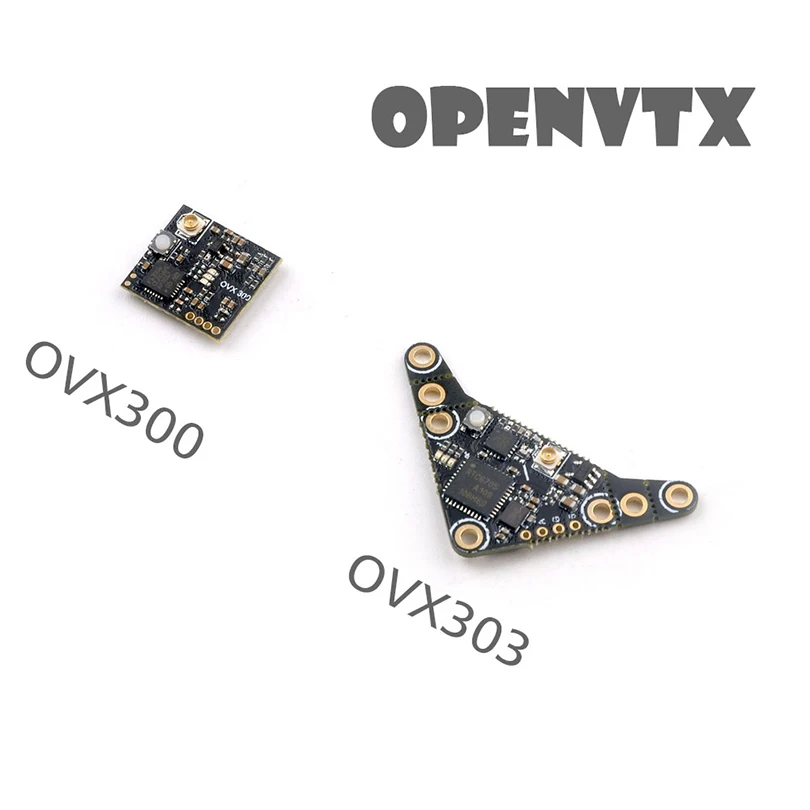

HappyModel OVX300 OVX303 5.8G 40CH 300mW Adjustable OpenVTX Video Micro Transmitter for RC FPV Tinywhoop Nano Micro Long Range

Description

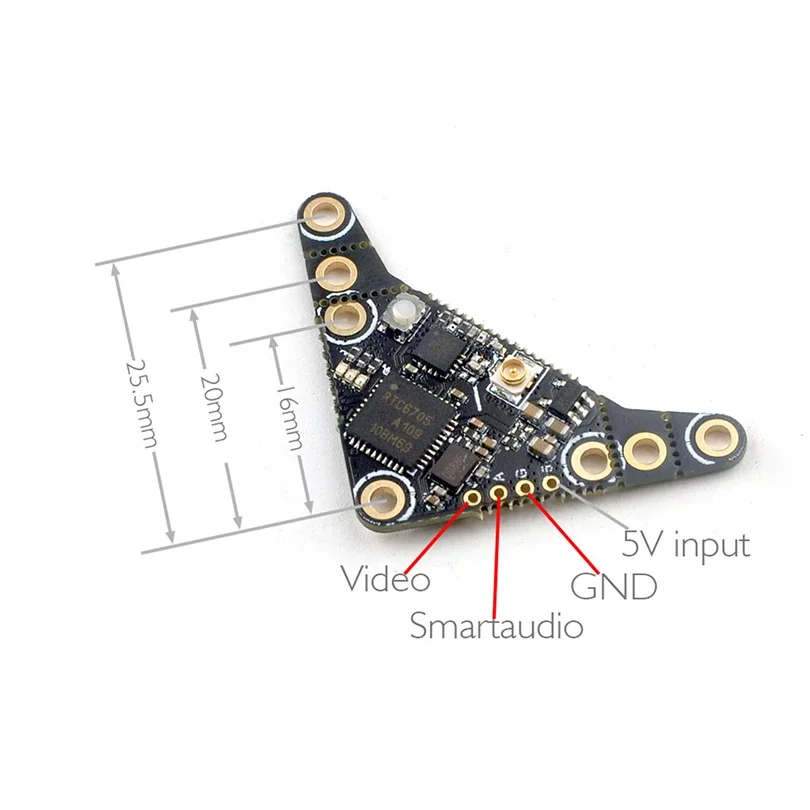

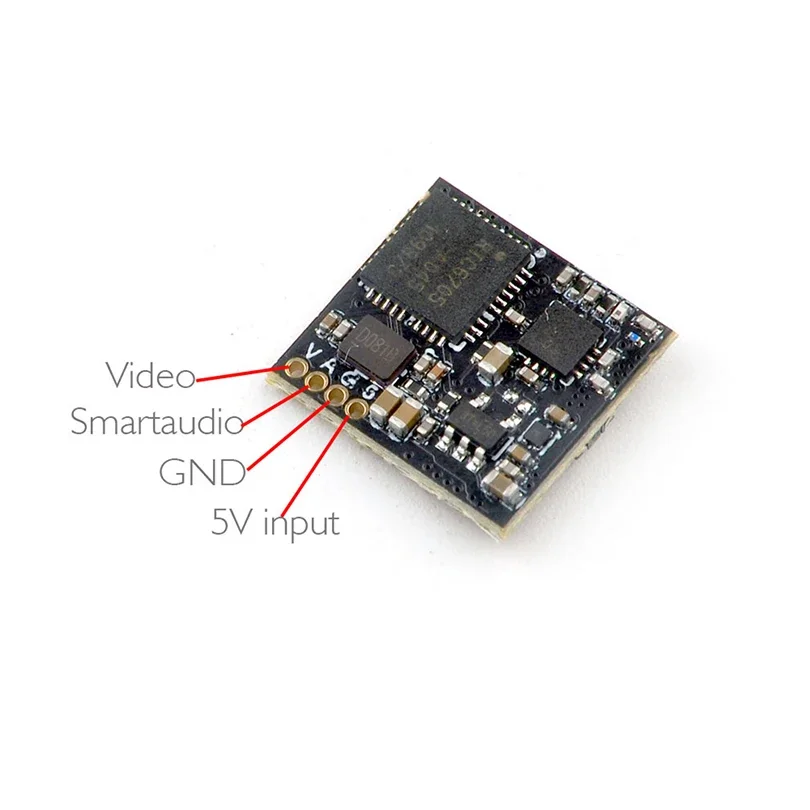

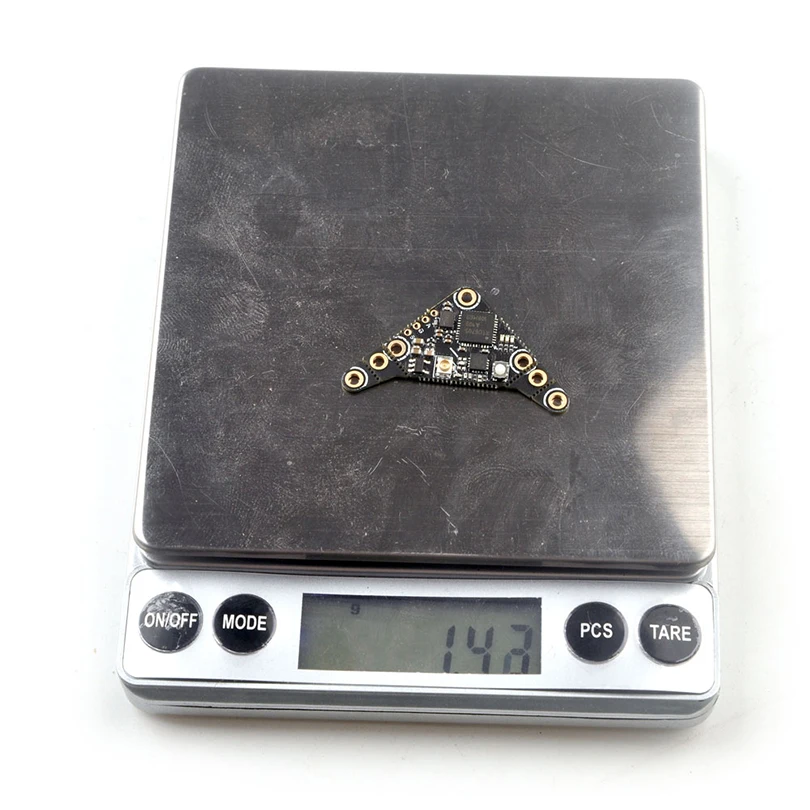

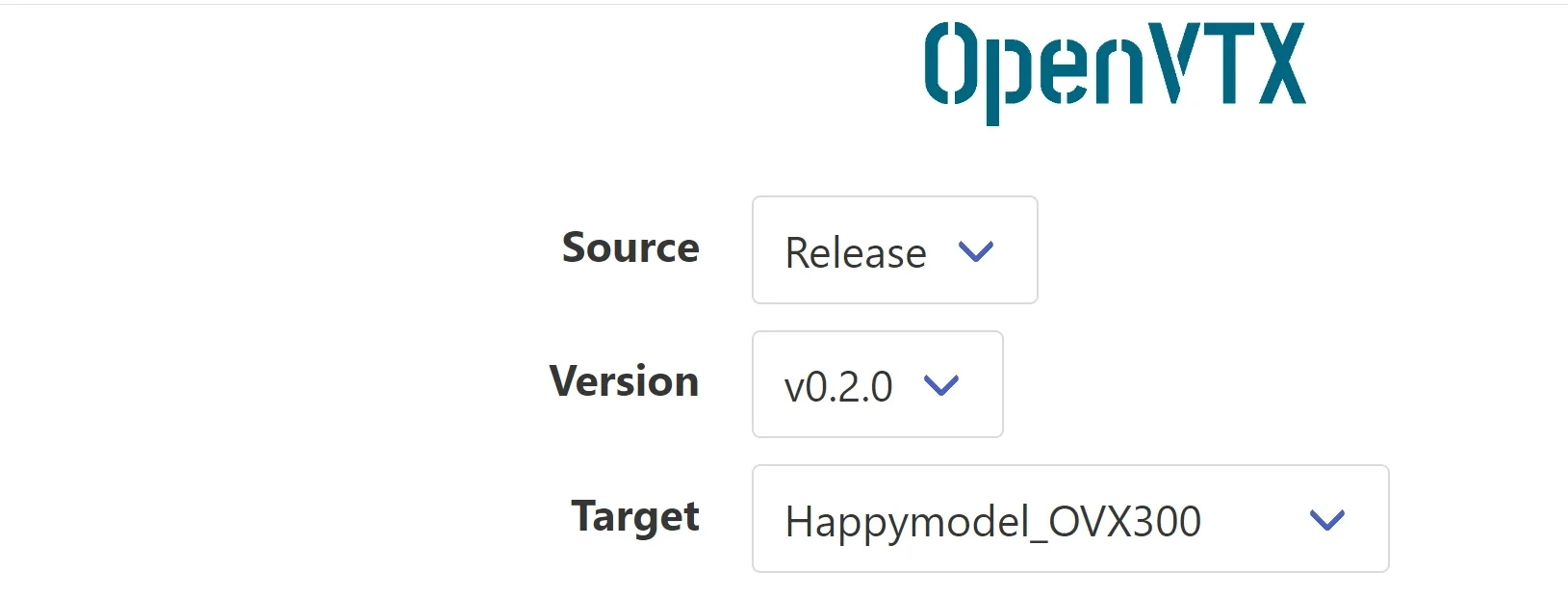

HappyModel OVX300 OVX303 5.8G 40CH 300mW Adjustable OpenVTX Video Micro Transmitter for RC FPV Tinywhoop Nano Micro Long Range ============================================================ Happymodel OVX300 5.8G 40ch 300mw VTX OpenVTX Happymodel OVX300 VTX is based on the Open source project OpenVTX powered by JyeSmith (EpxressLRS team) OpenVTx aims to provide firmware with both the SmartAudio and Tramp protocols. Either protocol can be used on the flight controller and on VTx power up the protocol used is automatically detected by OpenVTx. Main Features OpenVTX firmware preload Smartaudio ready Nano size and stable power output OVX300 Specifications Model: OVX300 Frequency: 5.8G 40CH Transmitting Power: 0/RCE/25mw/100mw/300mw Power supply: DC5V Current (5v): <650ma (300mw) Weight: 0.9gram without antenna Standard size: 14*15*3mm OVX300 Firmware flash link : https://openvtx.org/ Copy and paste your choice of protocol VTx table into the Betaflights CLI. # SMARTAUDIO # vtxtable vtxtable bands 6 vtxtable channels 8 vtxtable band 1 BOSCAM_A A FACTORY 5865 5845 5825 5805 5785 5765 5745 5725 vtxtable band 2 BOSCAM_B B FACTORY 5733 5752 5771 5790 5809 5828 5847 5866 vtxtable band 3 BOSCAM_E E FACTORY 5705 5685 5665 0 5885 5905 0 0 vtxtable band 4 FATSHARK F FACTORY 5740 5760 5780 5800 5820 5840 5860 5880 vtxtable band 5 RACEBAND R FACTORY 5658 5695 5732 5769 5806 5843 5880 5917 vtxtable band 6 LOWRACE L FACTORY 5333 5373 5413 5453 5493 5533 5573 5613 vtxtable powerlevels 5 vtxtable powervalues 1 2 14 20 26 vtxtable powerlabels 0 RCE 25 100 400 # TRAMP # vtxtable vtxtable bands 7 vtxtable channels 8 vtxtable band 1 BOSCAM_A A CUSTOM 5865 5845 5825 5805 5785 5765 5745 5725 vtxtable band 2 BOSCAM_B B CUSTOM 5733 5752 5771 5790 5809 5828 5847 5866 vtxtable band 3 BOSCAM_E E FACTORY 5705 5685 5665 0 5885 5905 0 0 vtxtable band 4 FATSHARK F CUSTOM 5740 5760 5780 5800 5820 5840 5860 5880 vtxtable band 5 RACEBAND R CUSTOM 5658 5695 5732 5769 5806 5843 5880 5917 vtxtable band 6 LOWRACE L CUSTOM 5333 5373 5413 5453 5493 5533 5573 5613 vtxtable band 7 IMD6 I CUSTOM 5732 5765 5828 5840 5866 5740 0 0 vtxtable powerlevels 5 vtxtable powervalues 1 2 25 100 400 vtxtable powerlabels 0 RCE 25 100 400 OVX303 Specifications Model: OVX303 Frequency: 5.8G 40CH Transmitting Power: 0/RCE/25mw/100mw/300mw Power supply: DC 5V Current (5v):<650ma (300mw) Weight: 1.5gram without antenna Center distance of mounting holes: 16mmx16mm 20mmx20mm 25.5mmx25.5mm TECHNICAL SPECIFICATIONS • Model: OVX300 • Model: OVX303 • Weight: 0.9gram without antenna • Weight: 1.5gram without antenna • Frequency: 5.8G 40CH AVAILABLE OPTIONS 1PCS OVX300 1PCS OVX303 PRODUCT INFORMATION Brand: HappyModel Category: FPV Drone Wholesale Price: US $27.77 ————————————————————————————————————————
