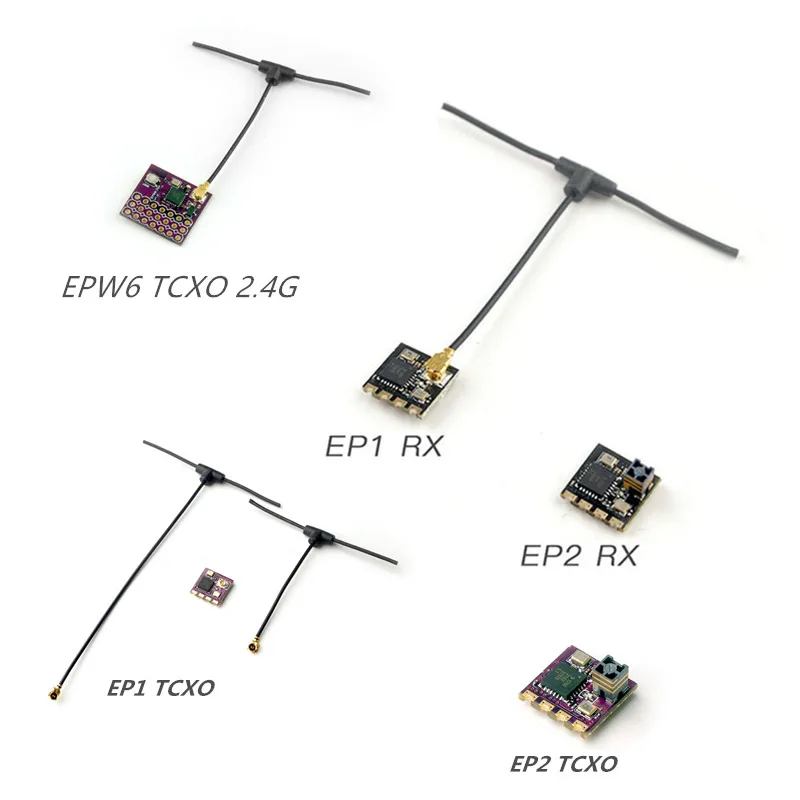

HappyModel EP1 / EP1 TCXO / EP2 / EP2 TCXO / EPW6 TCXO / EP1 DUAL TXCO 2.4G ELRS Nano Long Range RX
Description
HappyModel EP1 / EP1 TCXO / EP2 / EP2 TCXO / EPW6 TCXO / EP1 DUAL TXCO 2.4G ELRS Nano Long Range RX ============================================================ EP1 TCXO Receiver Type: ISM2.4GHz ESP8285 MCU SX1280(SX1281)IMLTRT RF Module Omni directional antenna Frequency Range: 2400 MHz to 2500 MHz Receive refresh rate: 25HZ~500Hz Working voltage: 5v Weight: 0.41 gram(without antenna) Dimension: 10mm*10mm*6mm Peak gain: 2.23dB Default Firmware out of factory: HappyModel_EP_2400_RX V2.2 version Built-in a TCXO (temperature compensated crystal oscillator) EP2 TCXO Receiver Type: ISM2.4GHz ESP8285 MCU SX1280(SX1281)IMLTRT RF Module SMD Ceramic antenna Frequency Range: 2400 MHz to 2500 MHz Receive refresh rate: 25HZ~500Hz Working voltage: 5v Weight: 0.44 gram Dimension: 10mm*10mm*6mm Peak gain: 3.7dB Default Firmware out of factory: HappyModel_EP_2400_RX V2.2 version Built-in a TCXO (temperature compensated crystal oscillator) Notes: Since the Official Perfect version of ELRS firmware has not been released yet, currently our PP_RX, EP1/EP2 RX and ES24TX pre-loaded firmware are all beta versions, you can upgrade the official firmware when Official perfect target available. More details: https://github.com/ExpressLRS/ExpressLRS The Happymodel 2.4GHz ELRS nano series receiver is an open source program based on ExpressLRS, we have 3 types rx module released. The PP RX is designed by @Jye Smith from ExpressLRS development team. Its main hardware architecture is STM32L432KBU6 MCU and SX1280 RF chip. It has a built-in ceramic antenna, which is super light and small in size. On the basis of PP RX, we have developed the Nano 2.4GHz rx of ESP8285 version named EP1 and EP2. The RF module of EP1/EP2 is the same like PP RX and use ESP8285 MCU . So you can upgrade firmware by WIFI , that's too simple . Due to the low-latency and high-refresh-rate RF module, they are very comfortable for FPV race and Long Range FPV. And very suitable for Tiny whoop because of the ultra light and Nano size. Specifications: EP1_RX Type: ISM ESP8285 MCU SX1280IMLTRT RF Module Omnidirectional antenna Frequency Range: 2400 MHz to 2500 MHz Maximum receive refresh rate: 500Hz Minimum receiver refresh rate: 25Hz Working voltage: 5v Weight: 0.42gram(without antenna) Dimension: 10mm*10mm*6mm Peak gain: 2.23dB EP2_RX Specifications: Type: ISM ESP8285 MCU SX1280IMLTRT RF Module SMD Ceramic antenna Frequency Range: 2400 MHz to 2500 MHz Maximum receive refresh rate: 500Hz Minimum receiver refresh rate: 25Hz Working voltage: 5v Weight: 0.44gram Dimension: 10mm*10mm*6mm Peak gain: 3.7dB Bind procedure: 1. Supply power to the PP/EP1/EP2 rx, wait until the LED on the RX is off, immediately turn off the power, and then repeat again the above steps. When the RX is powered on for the third time, the LED light will start to double-flash, which means that the RX enters the binding mode 2. Insert the ES24TX module or other DIY 2.4G ELRS TX to Radio transmitter, and choose External RF mode to CRSF protocol, then you can find ELRS menu from the Radio systems(Need to copy the ELRS.LUA file to the SD-Card tools first), Enter into ELRS and press [Bind], the LED on the RX module will getting to be solid if bind successfully. 3. Receiver LED status meanings: PP RX: LED solid means bind successful or Connection established; LED double-flash means in bind mode; LED flash slowly means no signal connection from the TX module EP1/EP2 RX: LED solid means bind successful or Connection established; LED double-flash means in bind mode; LED flash slowly means no signal connection from the TX module; LED flash fast means in WIFI hotspot mode, you can connect the WIFI of the RX and upgrade firmware of the RX via visit 10.0.0.1(password:expresslrs) EPW6 2.4G Upgrade for EPW5 receiver Item: ELRS EPW6 TCXO 2.4GHz 6CH PWM RC receiver For Fixed-wing Specifications : Item: Happymodel EPW6 TCXO 2.4GHz pwm receiver ESP8285, SX1280/1281 Antenna connector: IPEX MHF 1 /U.FL 6 x PWM outputs RF Fre
Product Details
EP1 TCXO Receiver
Type: ISM2.4GHz
ESP8285 MCU
SX1280(SX1281)IMLTRT RF Module
Omni directional antenna
Frequency Range: 2400 MHz to 2500 MHz
Receive refresh rate: 25HZ~500Hz
Working voltage: 5v
Weight: 0.41 gram(without antenna)
Dimension: 10mm*10mm*6mm
Peak gain: 2.23dB
Default Firmware out of factory: HappyModel_EP_2400_RX V2.2 version
Built-in a TCXO (temperature compensated crystal oscillator)
EP2 TCXO Receiver
Type: ISM2.4GHz
ESP8285 MCU
SX1280(SX1281)IMLTRT RF Module
SMD Ceramic antenna
Frequency Range: 2400 MHz to 2500 MHz
Receive refresh rate: 25HZ~500Hz
Working voltage: 5v
Weight: 0.44 gram
Dimension: 10mm*10mm*6mm
Peak gain: 3.7dB
Default Firmware out of factory: HappyModel_EP_2400_RX V2.2 version
Built-in a TCXO (temperature compensated crystal oscillator)
Notes:
Since the Official Perfect version of ELRS firmware has not been released yet, currently our PP_RX, EP1/EP2 RX and ES24TX pre-loaded firmware are all beta versions, you can upgrade the official firmware when Official perfect target available.
More details: https://github.com/ExpressLRS/ExpressLRS
The Happymodel 2.4GHz ELRS nano series receiver is an open source program based on ExpressLRS, we have 3 types rx module released.

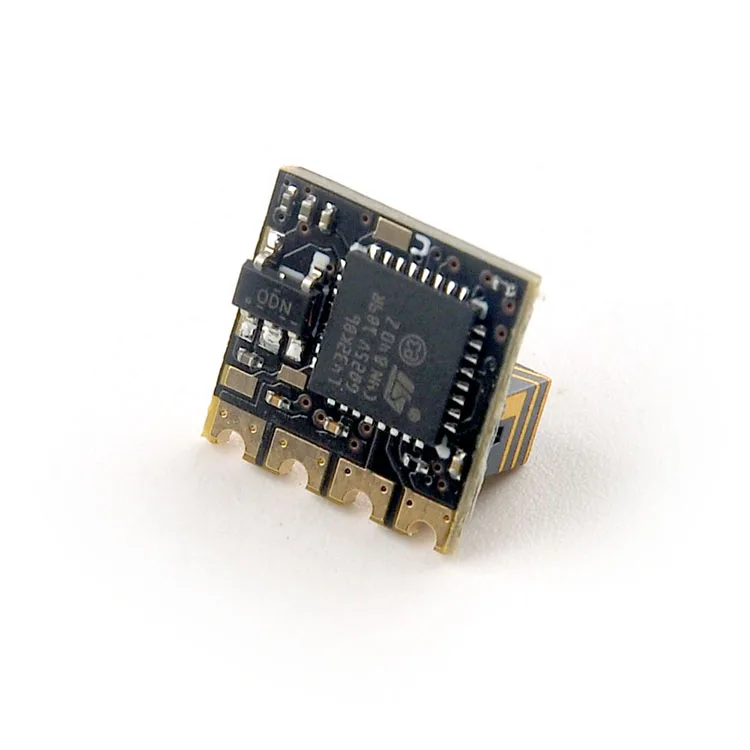

The PP RX is designed by @Jye Smith from ExpressLRS development team. Its main hardware architecture is STM32L432KBU6 MCU and SX1280 RF chip. It has a built-in ceramic antenna, which is super light and small in size.
On the basis of PP RX, we have developed the Nano 2.4GHz rx of ESP8285 version named EP1 and EP2. The RF module of EP1/EP2 is the same like PP RX and use ESP8285 MCU . So you can upgrade firmware by WIFI , that's too simple .
Due to the low-latency and high-refresh-rate RF module, they are very comfortable for FPV race and Long Range FPV. And very suitable for Tiny whoop because of the ultra light and Nano size.

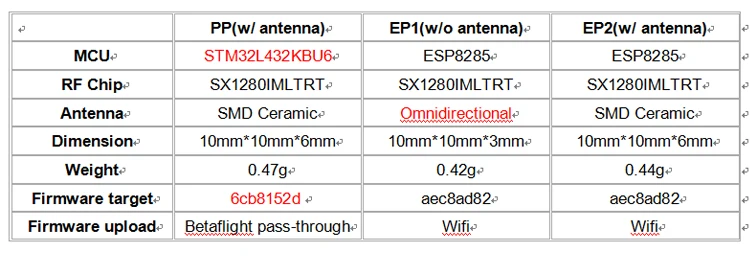

Specifications:

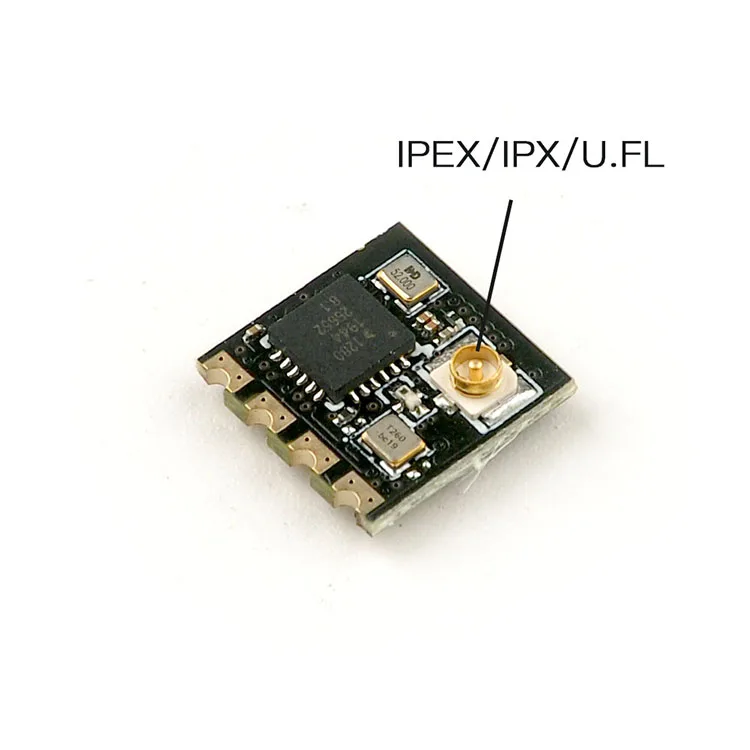

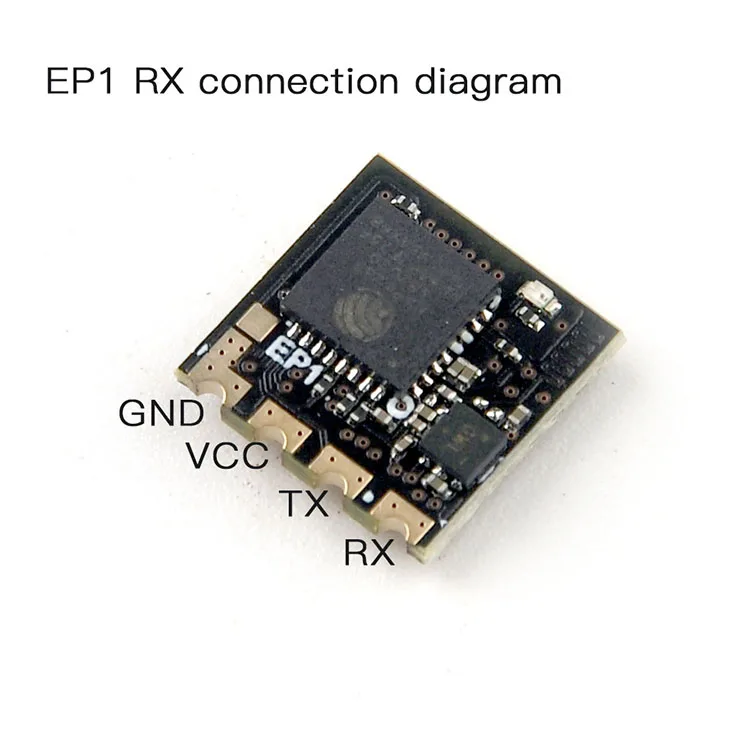

EP1_RX
Type: ISM
ESP8285 MCU
SX1280IMLTRT RF Module
Omnidirectional antenna
Frequency Range: 2400 MHz to 2500 MHz
Maximum receive refresh rate: 500Hz
Minimum receiver refresh rate: 25Hz
Working voltage: 5v

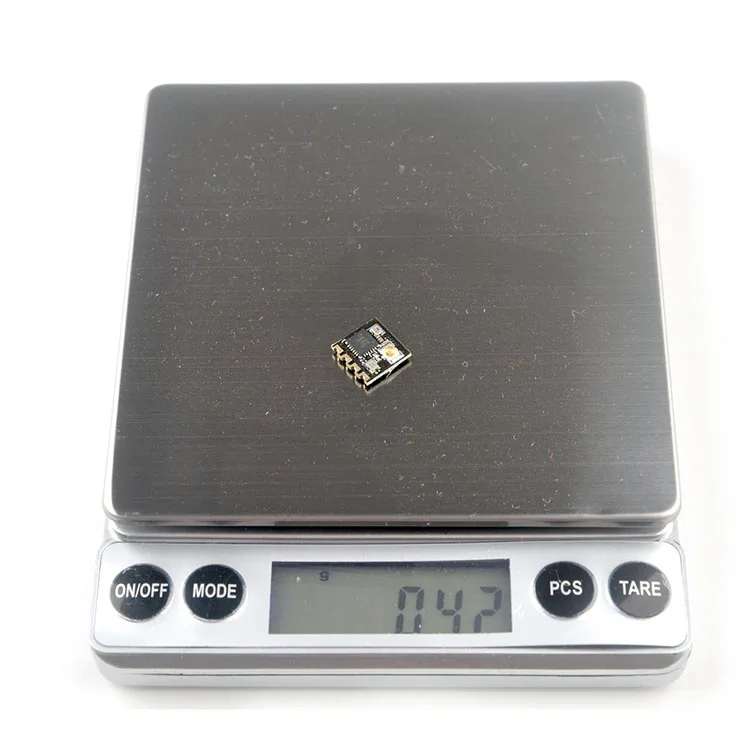

Weight: 0.42gram(without antenna)
Dimension: 10mm*10mm*6mm
Peak gain: 2.23dB

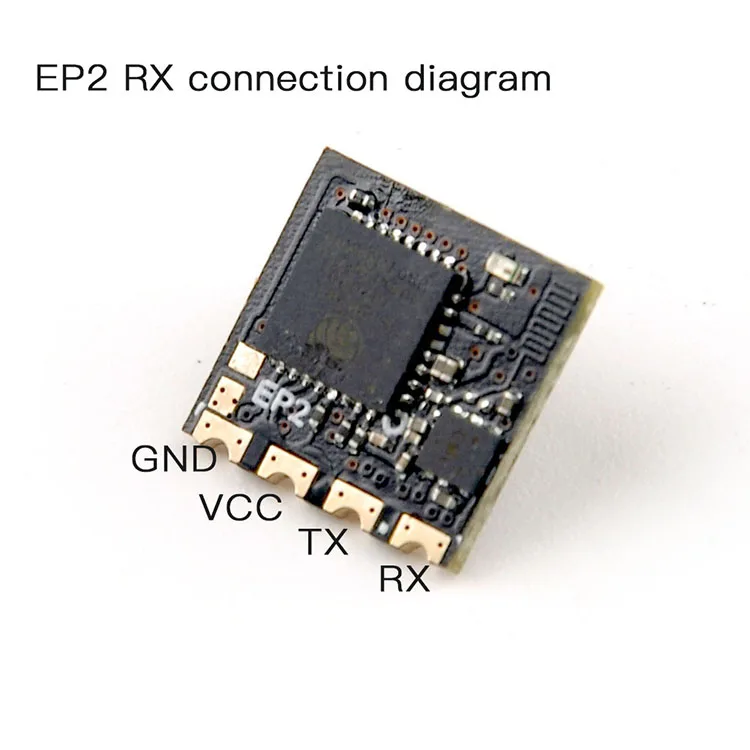

EP2_RX
Specifications:
Type: ISM
ESP8285 MCU
SX1280IMLTRT RF Module
SMD Ceramic antenna
Frequency Range: 2400 MHz to 2500 MHz
Maximum receive refresh rate: 500Hz
Minimum receiver refresh rate: 25Hz
Working voltage: 5v

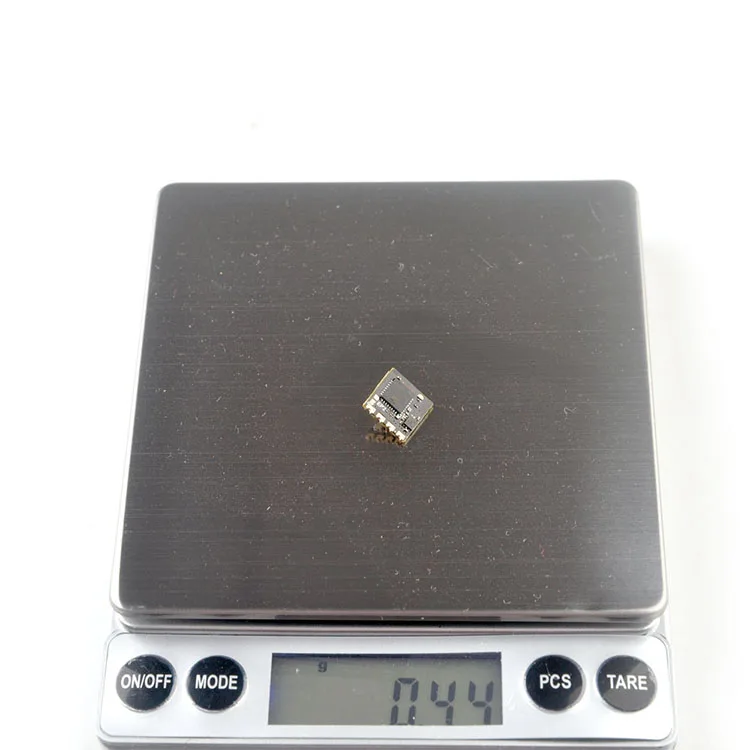

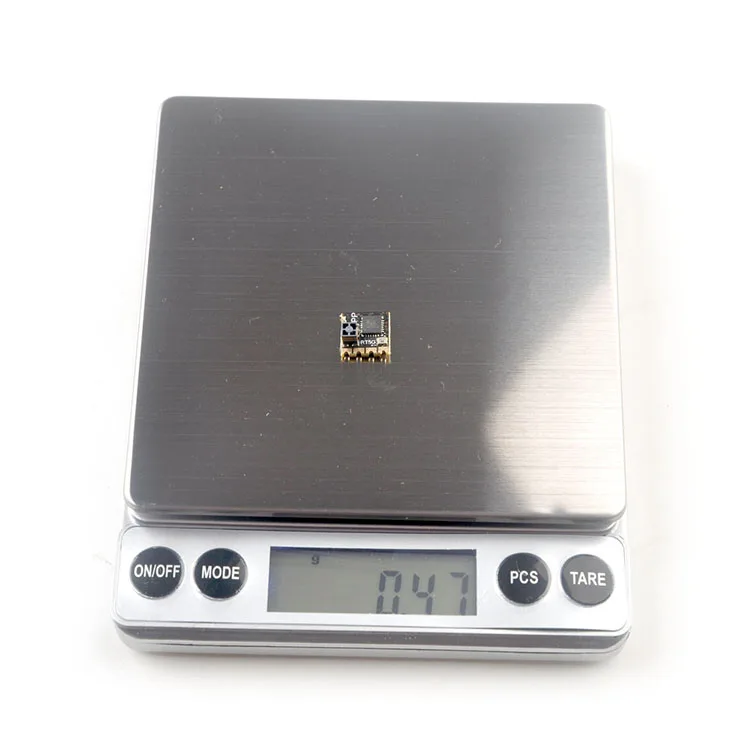

Weight: 0.44gram
Dimension: 10mm*10mm*6mm
Peak gain: 3.7dB
Bind procedure:
1. Supply power to the PP/EP1/EP2 rx, wait until the LED on the RX is off, immediately turn off the power, and then repeat again the above steps. When the RX is powered on for the third time, the LED light will start to double-flash, which means that the RX enters the binding mode
2. Insert the ES24TX module or other DIY 2.4G ELRS TX to Radio transmitter, and choose External RF mode to CRSF protocol, then you can find ELRS menu from the Radio systems(Need to copy the ELRS.LUA file to the SD-Card tools first), Enter into ELRS and press [Bind], the LED on the RX module will getting to be solid if bind successfully.
3. Receiver LED status meanings:
PP RX: LED solid means bind successful or Connection established; LED double-flash means in bind mode; LED flash slowly means no signal connection from the TX module
EP1/EP2 RX: LED solid means bind successful or Connection established; LED double-flash means in bind mode; LED flash slowly means no signal connection from the TX module; LED flash fast means in WIFI hotspot mode, you can connect the WIFI of the RX and upgrade firmware of the RX via visit 10.0.0.1(password:expresslrs)

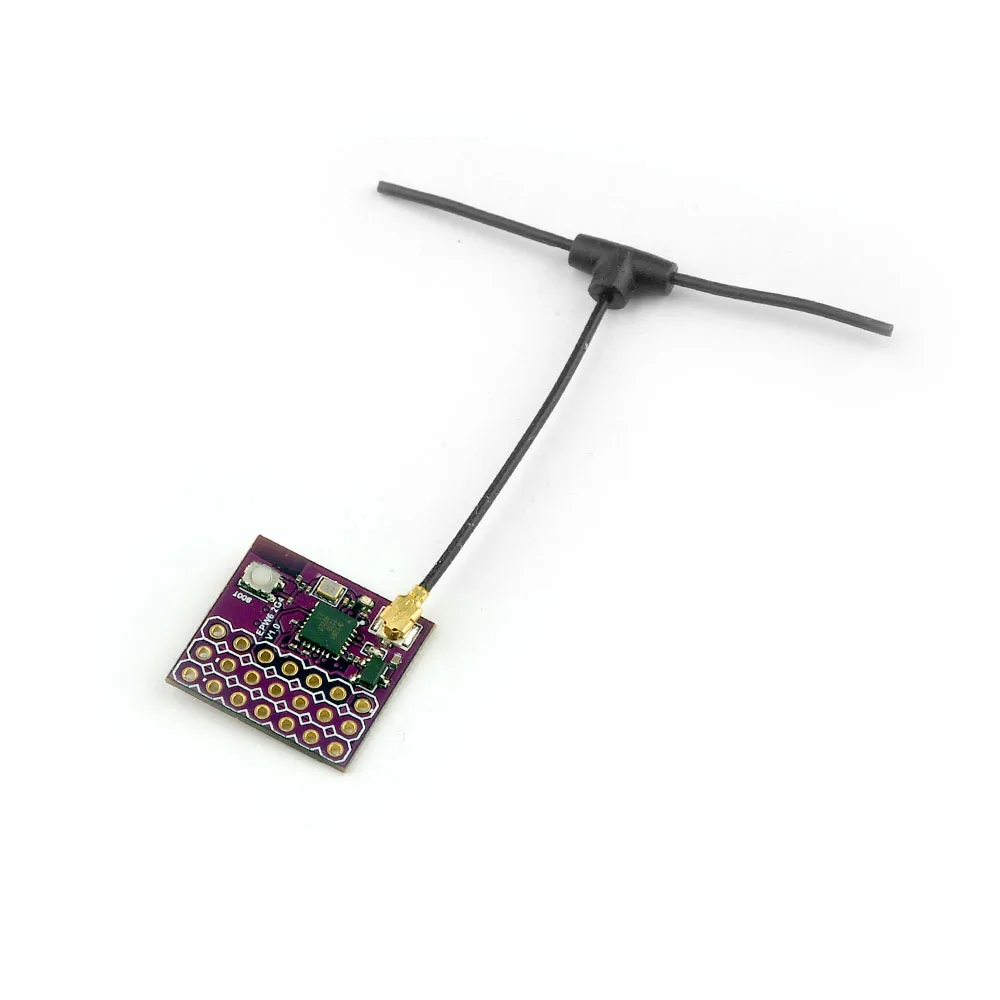

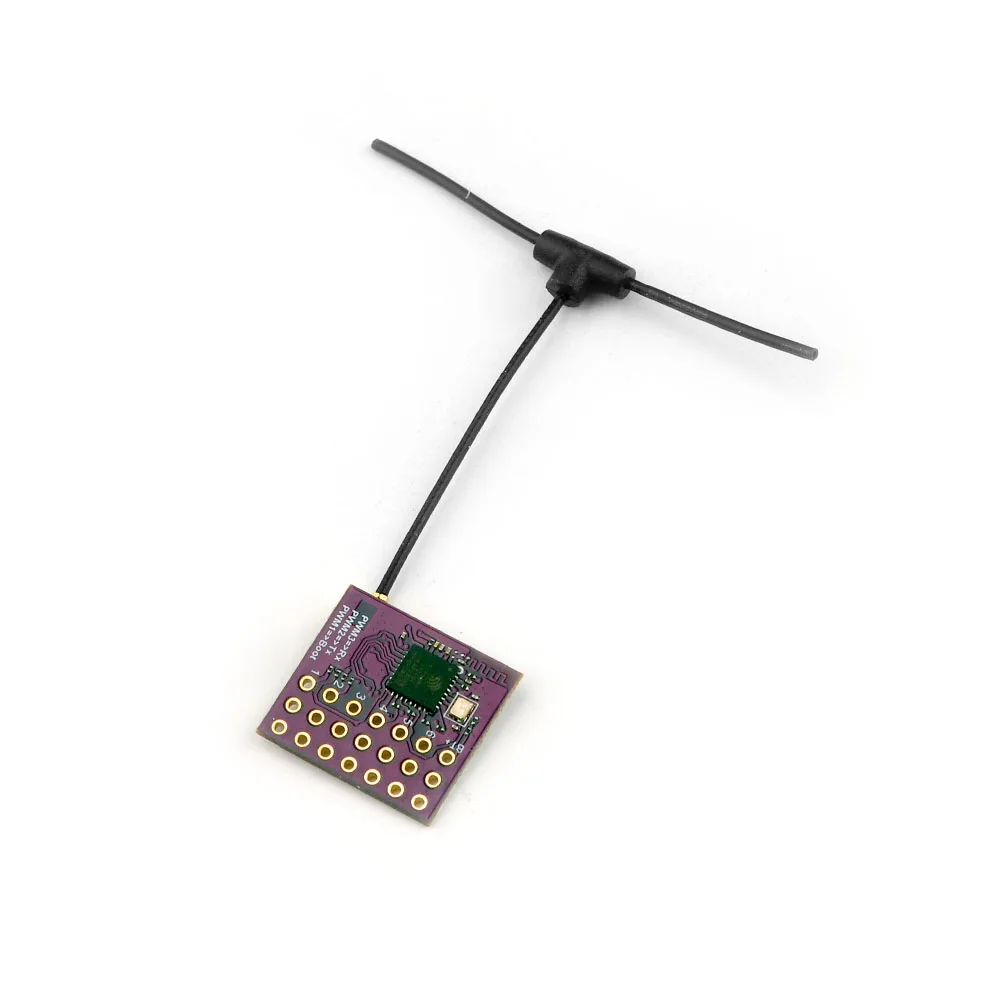

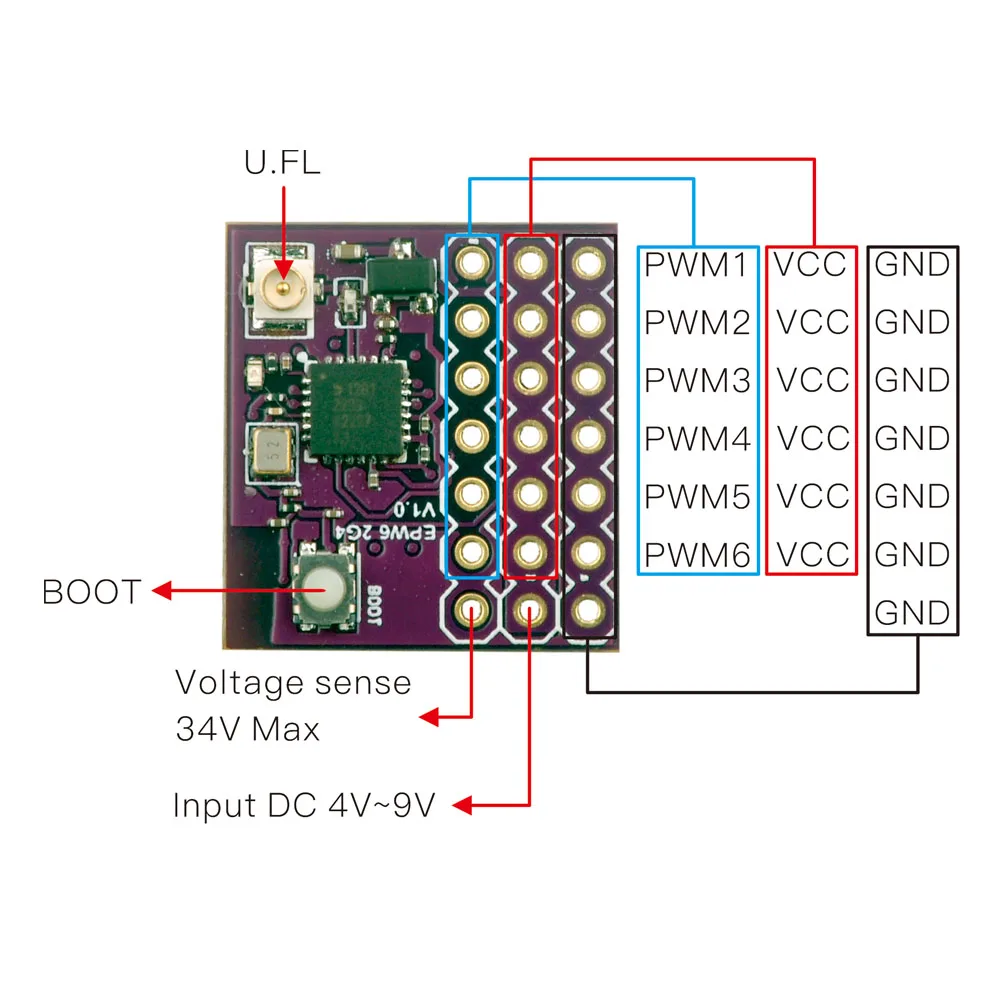

EPW6 2.4G Upgrade for EPW5 receiver
Item: ELRS EPW6 TCXO 2.4GHz 6CH PWM RC receiver For Fixed-wing
Specifications:
Item: Happymodel EPW6 TCXO 2.4GHz pwm receiver
ESP8285, SX1280/1281
Antenna connector: IPEX MHF 1/U.FL
6x PWM outputs
RF Frequency: 2.4GHz (2400~2480MHz)
Telemetry power: 12dbm
Receiver protocol: PWM or CRSF
Input voltage: +5v~8.4v
PCB size: 19mm x 17.5mm
Weight: 1.49g / antenna
Firmware:
Target option1: Generic ESP8285 6xPWM 2.4Ghz RX
PWM receiver via 1~6 PWM outputs
Target option2:HappyModel_EP_2400_RX
CRSF Serial receiver via TX and RX
Firmware update via WIFI
Package Included:
1 x Happymodel EPW6 TCXO 2.4GHz PWM Receiver
2 x 2.4GHz antenna
3 x 7pin 2.54mm
