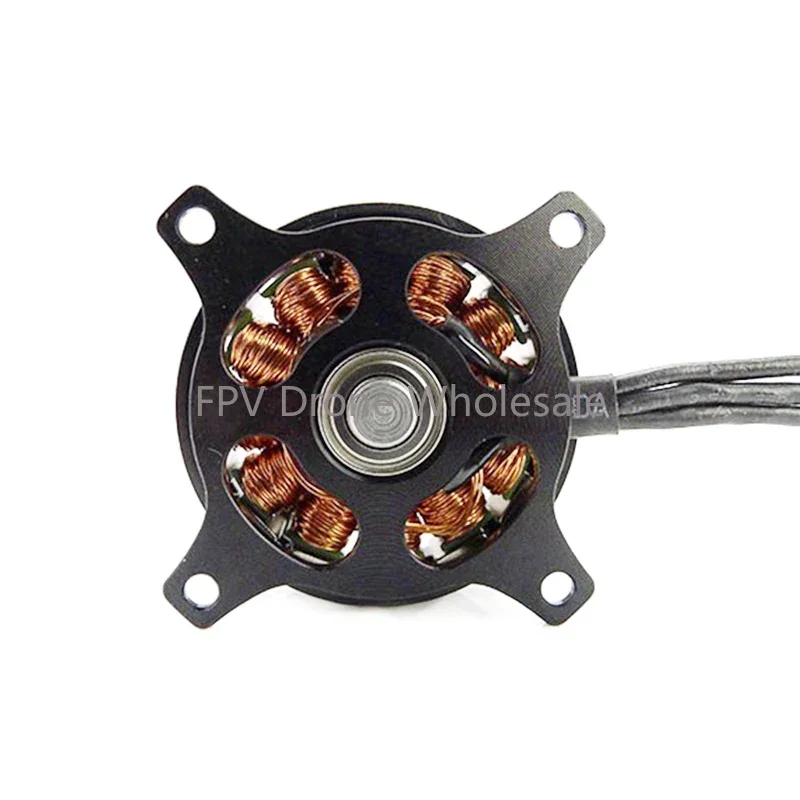

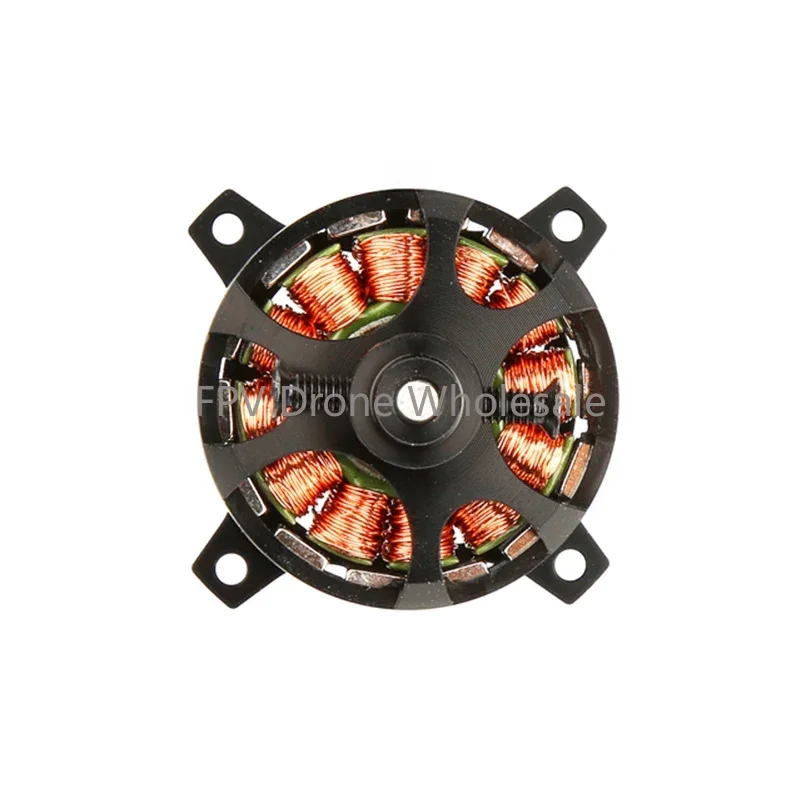

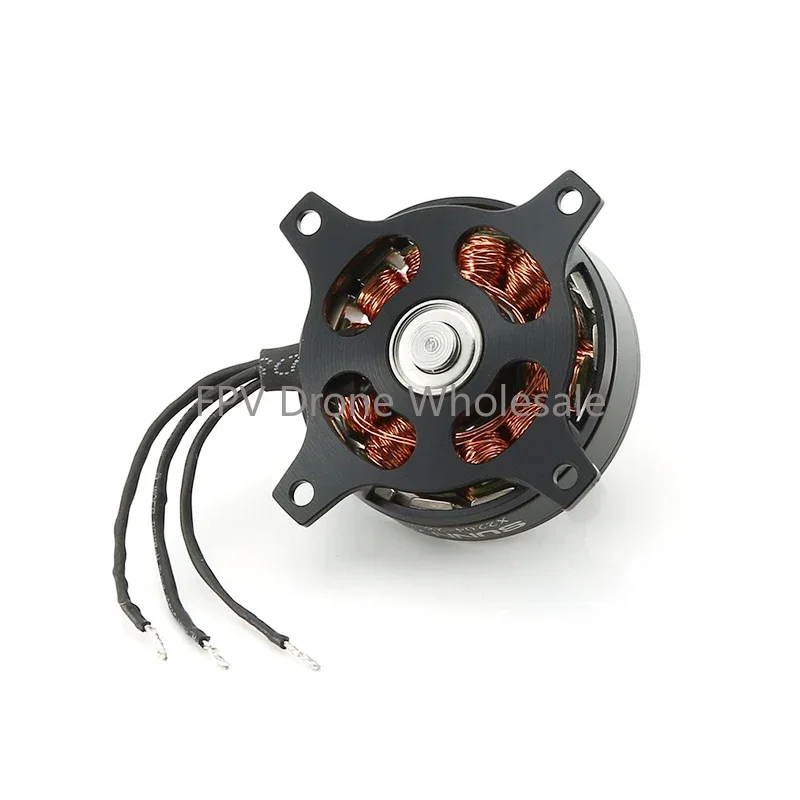

SUNNYSKY X2204 1480KV 1800KV/X2206 1500KV 1900KV Бесщеточный двигатель 2 ~ 3S Lipo 3,0 мм Вал для 3D-дрона с фиксированным крылом и квадрокоптера

Item Name:Sunnysky X2204 X2206 Brushless Motor

Product Parameters:
Material: Copper+Metal
Color: Black
Number of slot poles :12N14P

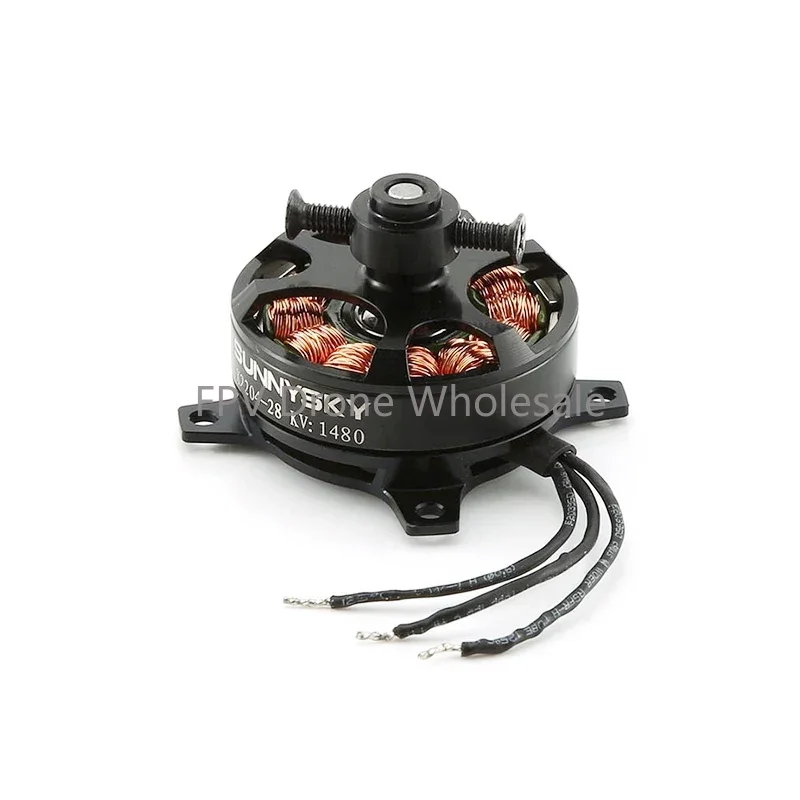

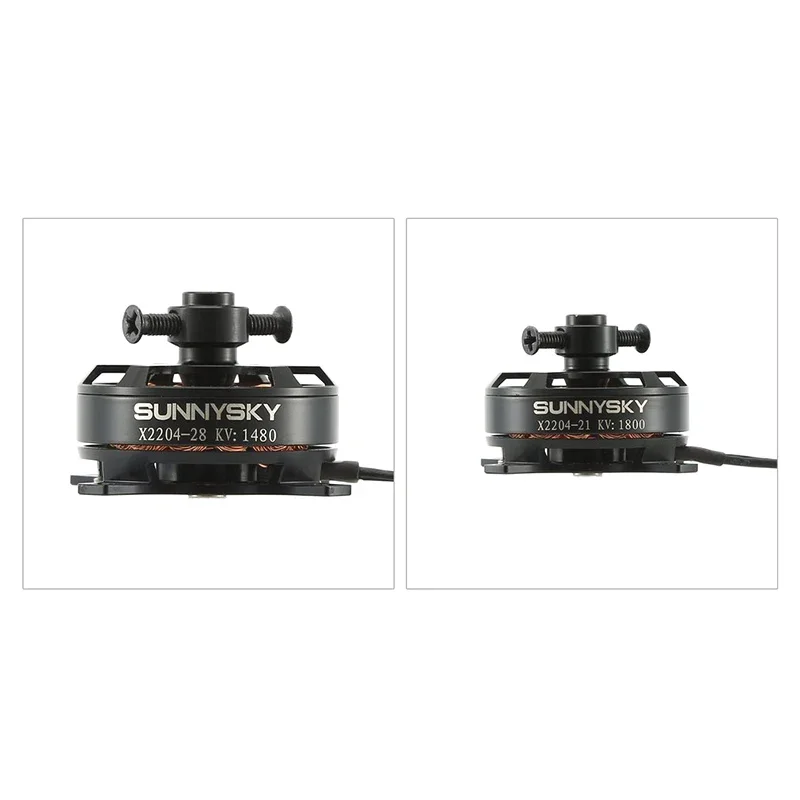

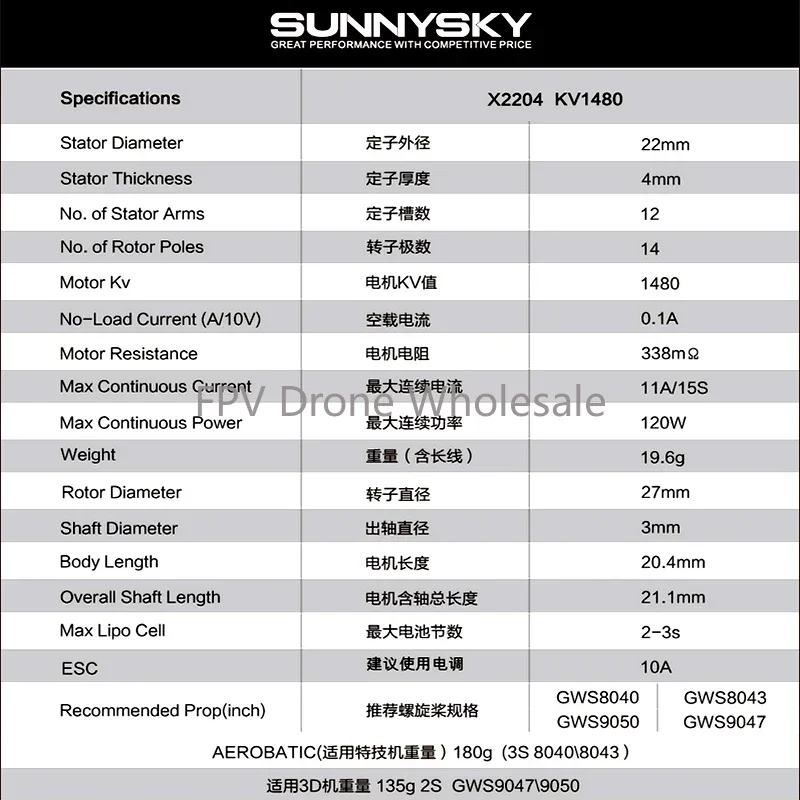

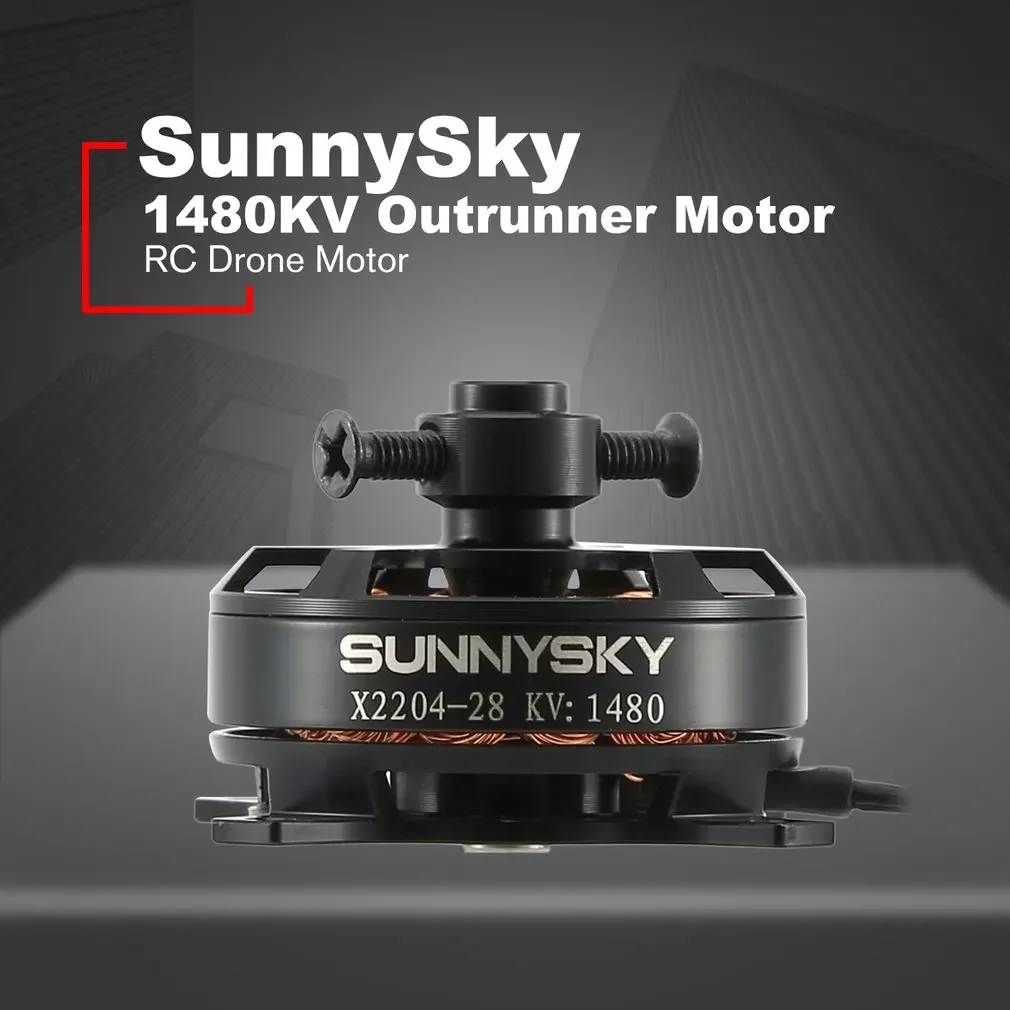

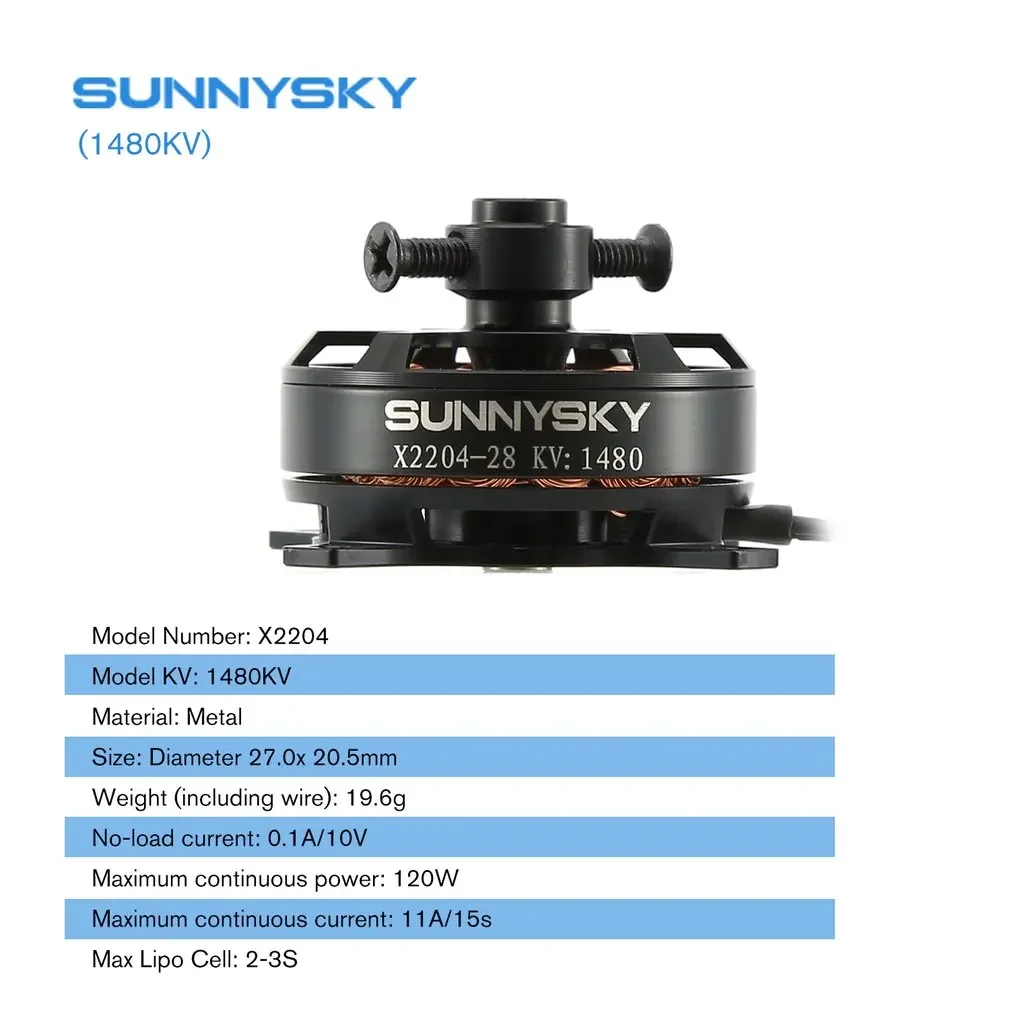

X2204 1480KV
Internal Resistance:338mΩ

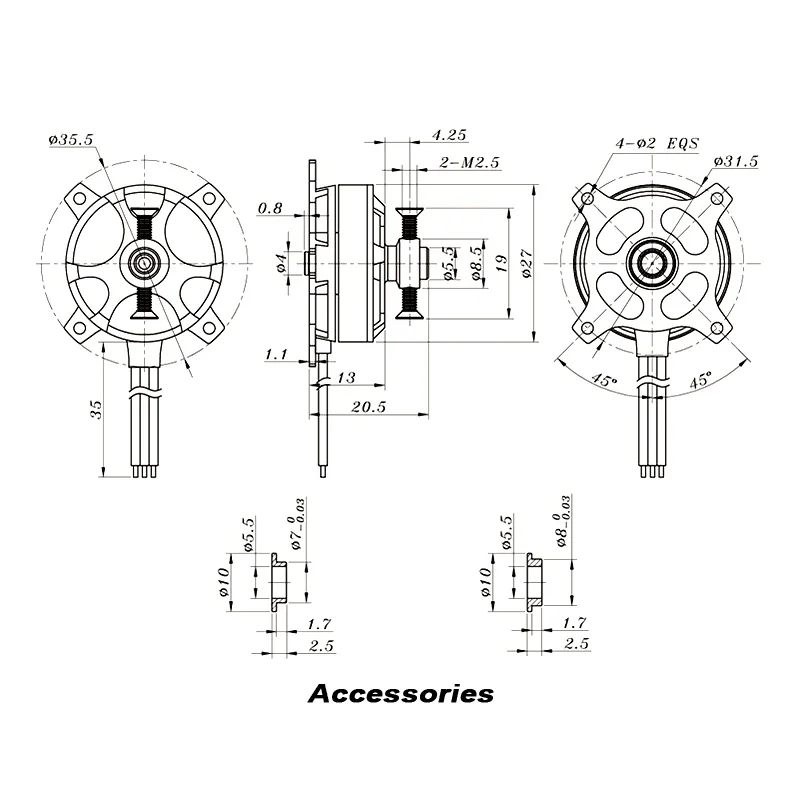

Size :φ27.0*20.5mm
Shaft Diameter:3.0mm
Silicone Line:20AWG#35mm
Weight (including wire): 19.6g
Rated voltage:2-3S(Lipo)
Idle Current:0.1A/10V
Contimous Power:120W
Max Current:11A/15s
Recommended ESC:10A
Recommended Propeller : GWS8043/GWS8040/GWS9050/GWS9047

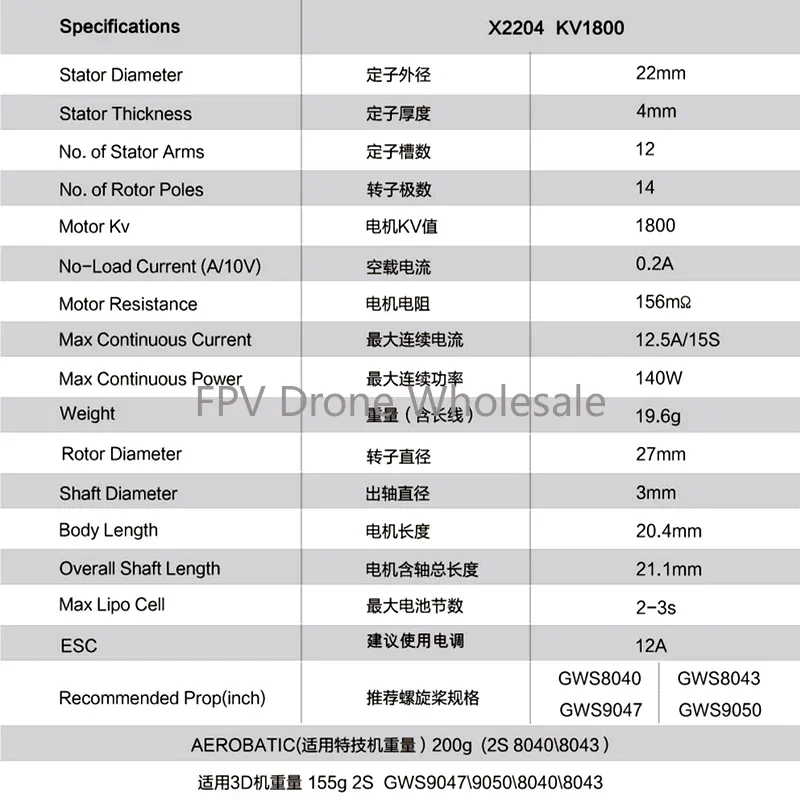

X2204 1800KV
Internal Resistance:156mΩ
Size :φ27.0*20.5mm
Shaft Diameter:3.0mm
Silicone Line:20AWG#35mm
Weight (including wire): 19.6g
Rated voltage:2-3S(Lipo)
Idle Current:0.2A/10V
Contimous Power:140W
Max Current:12.5A/15s
Recommended ESC:12A
Recommended Propeller : GWS8043/GWS8040/GWS9050/GWS9047

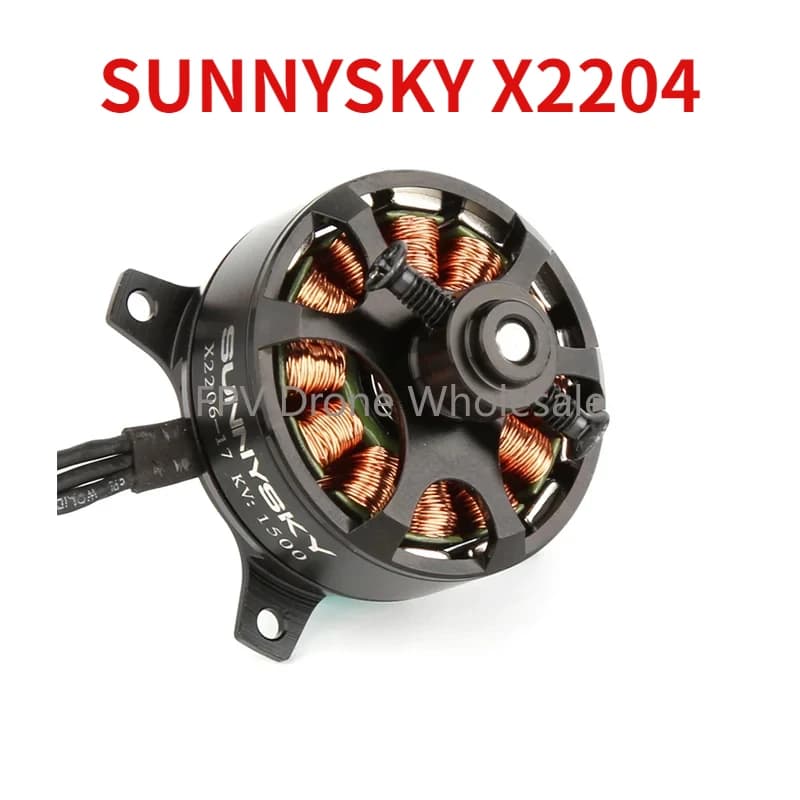

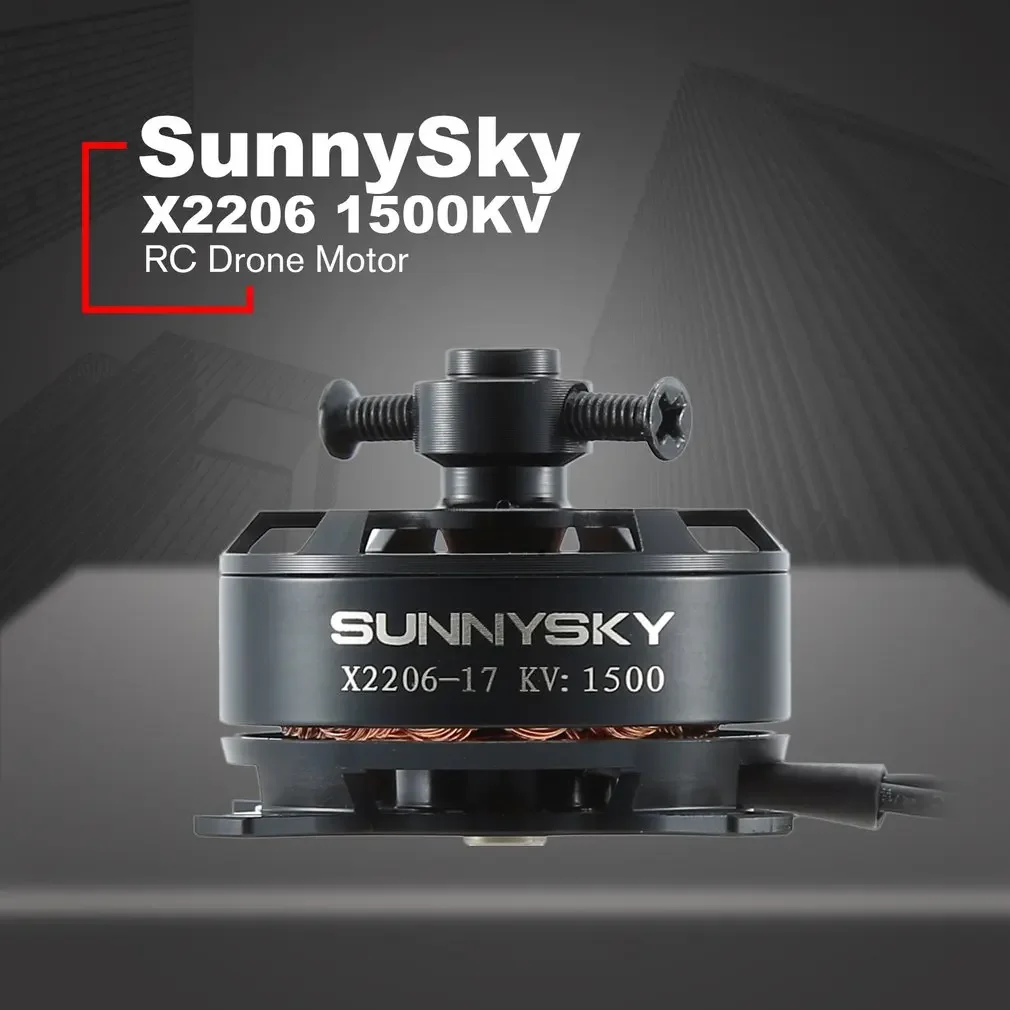

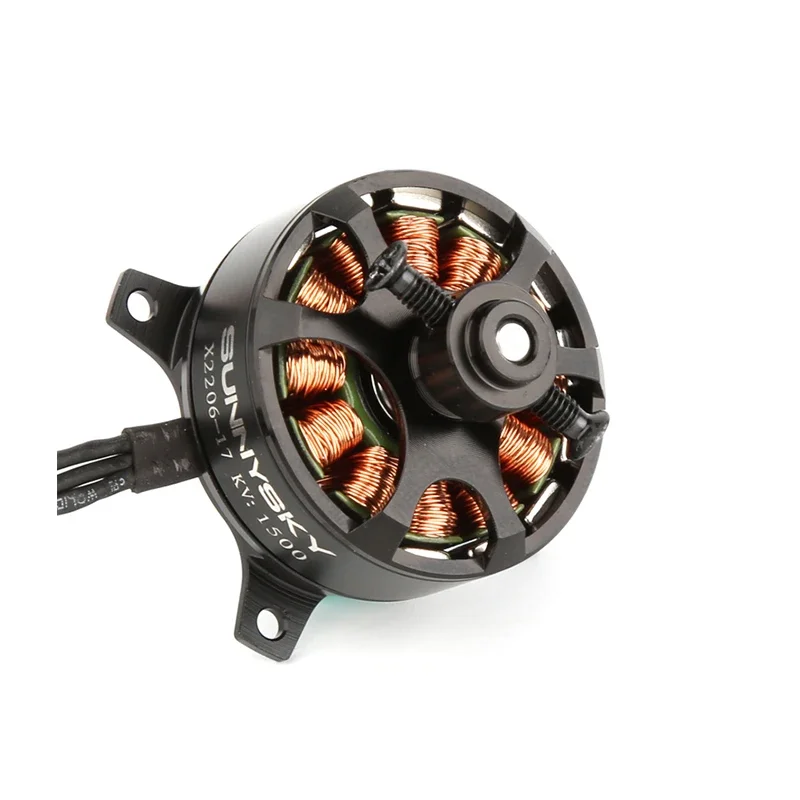

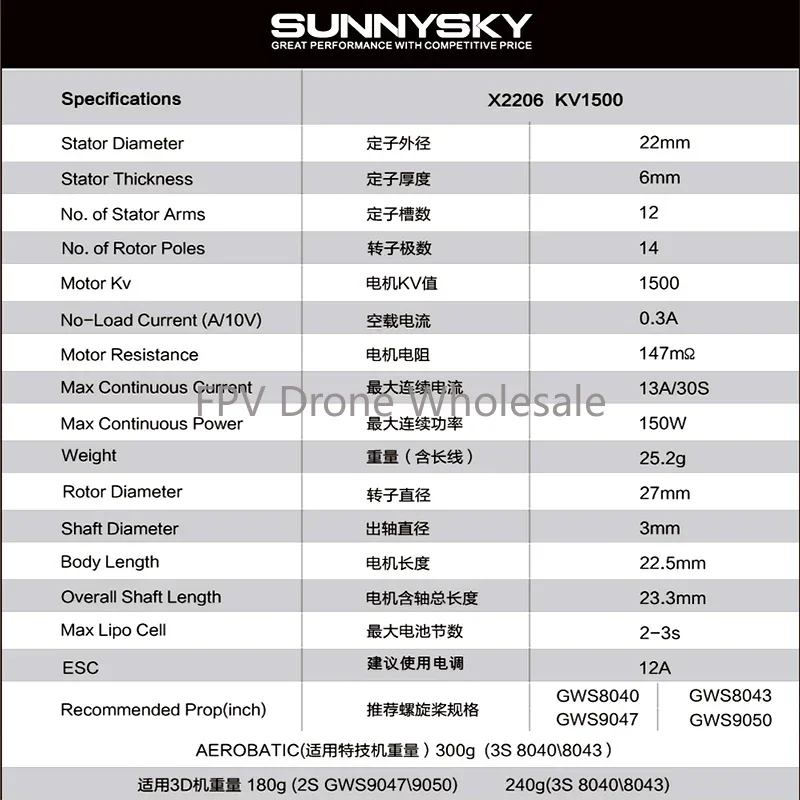

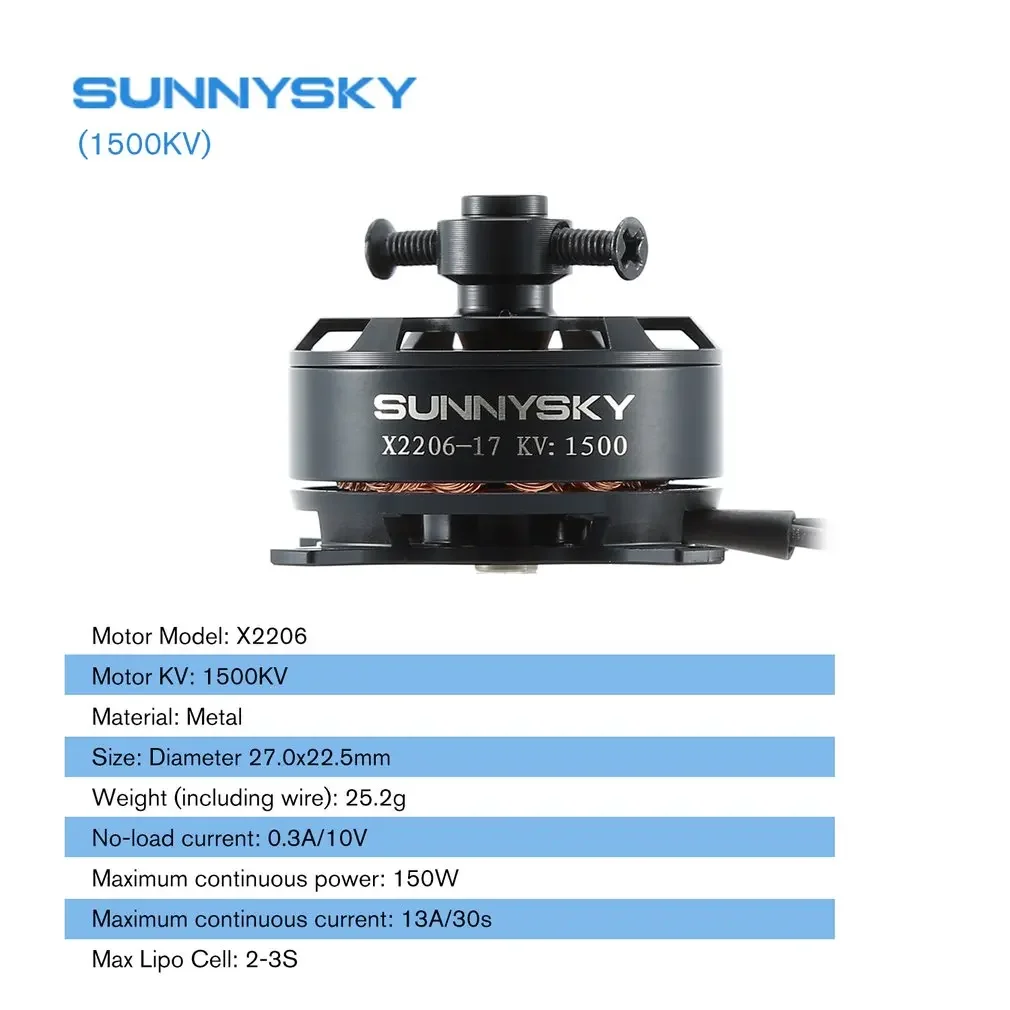

X2206 1500KV
Internal Resistance:147mΩ
Size :φ27.0*22.5mm
Shaft Diameter:3.0mm
Silicone Line:20AWG#35mm
Weight (including wire): 25.2g
Rated voltage:2-3S(Lipo)
Idle Current:0.3A/10V
Contimous Power:150W
Max Current:13A/30s
Recommended ESC:12A
Recommended Propeller : GWS8043/GWS8040/GWS9050/GWS9047

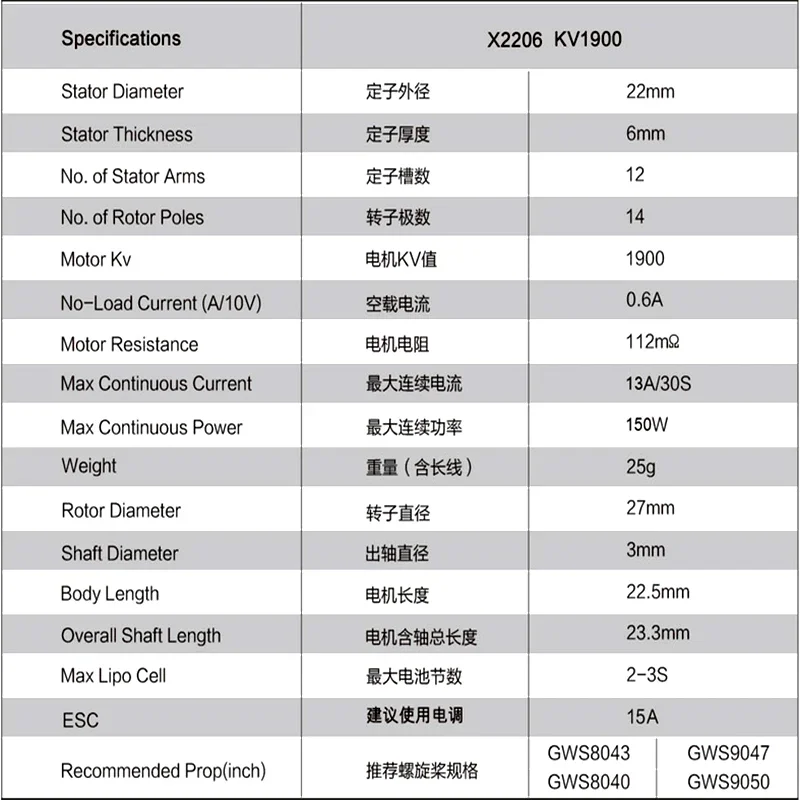

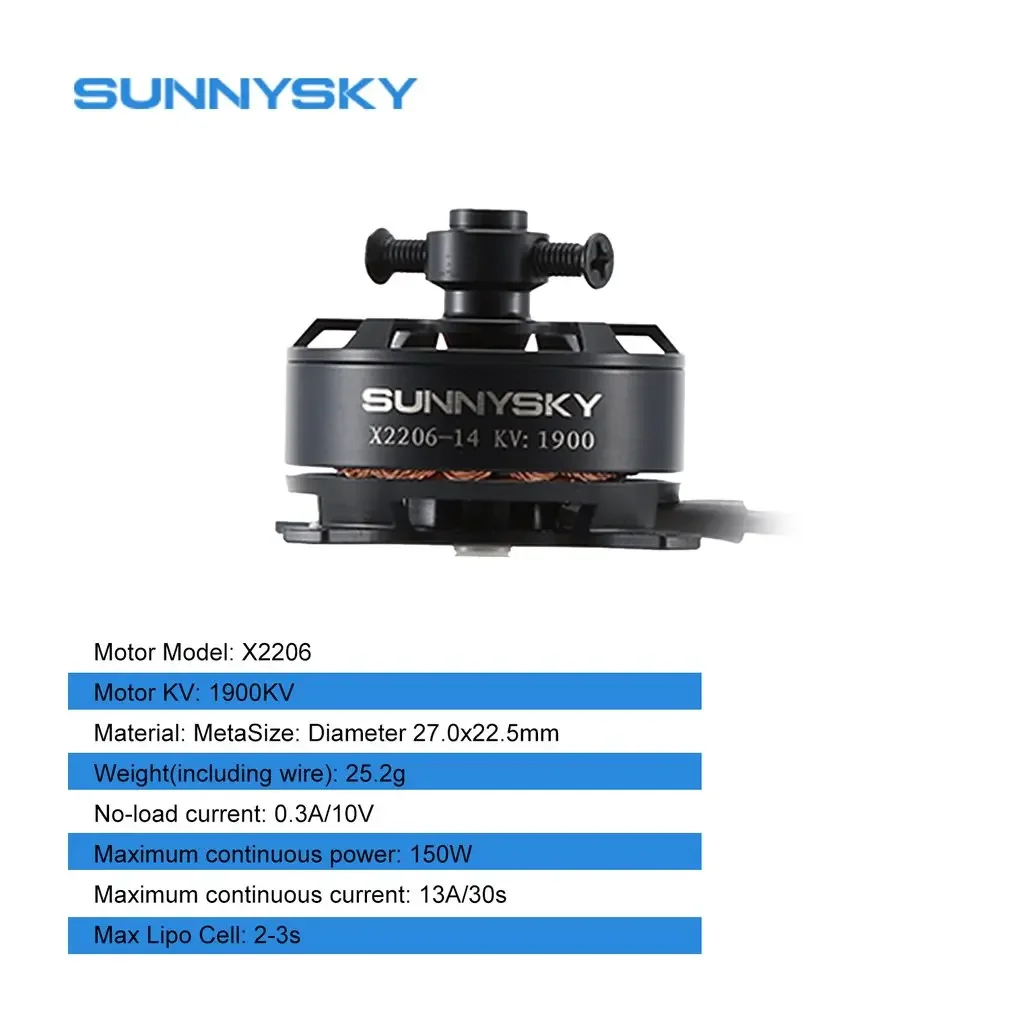

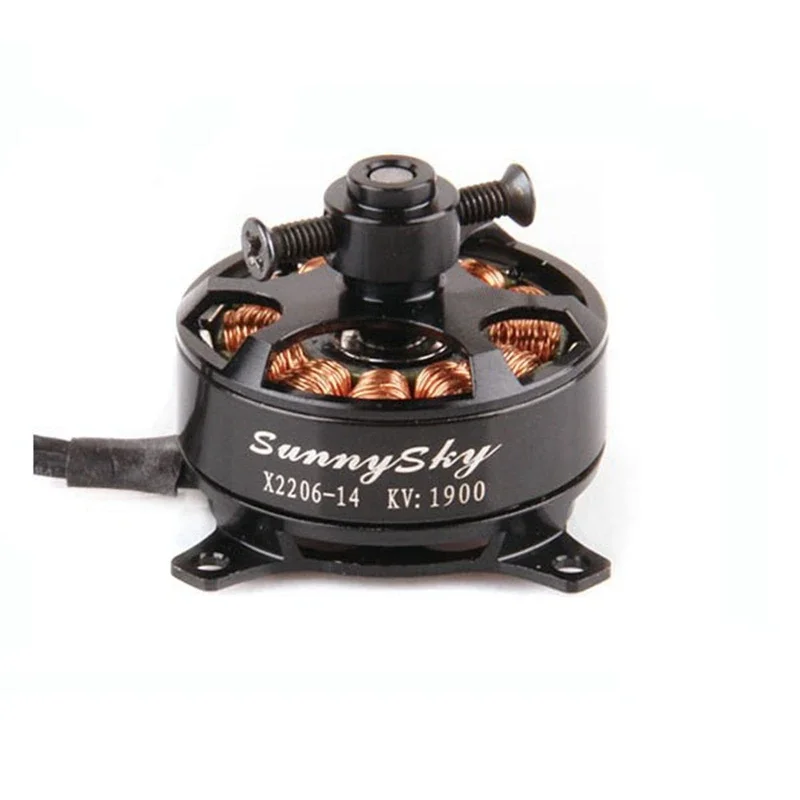

X2206 1900KV
Internal Resistance:112mΩ
Size :φ27.0*22.5mm
Shaft Diameter:3.0mm
Silicone Line:20AWG#35mm
Weight (including wire): 25g
Rated voltage:2-3S(Lipo)
Idle Current:0.3A/10V
Contimous Power:150W
Max Current:13A/30s
Recommended ESC:15A
Recommended Propeller : GWS8043/GWS8040/GWS9050/GWS9047

Features:
Small size high thrust: N52 magnets, 0.15mm air gap, coil with high copper space factor, ultimate power.
Anti-slip: Overlapping curve to increase friction force and prevent propellers from slipping. Light weight, high strength, nice ventilation, low airflow resistance.
Heat resisting OFC: Purely hand winding, neat, artistic, good for heat dissipation. Max temperature tolerance 240°.
Lightness: Cross-shaped stator cap,lighter. Screw loacking design,easy to disassemble.
Stable and smooth: Original NMB bearing,Low noise and friction factor. Prevent motor from over-heating and make it more stable and smooth.

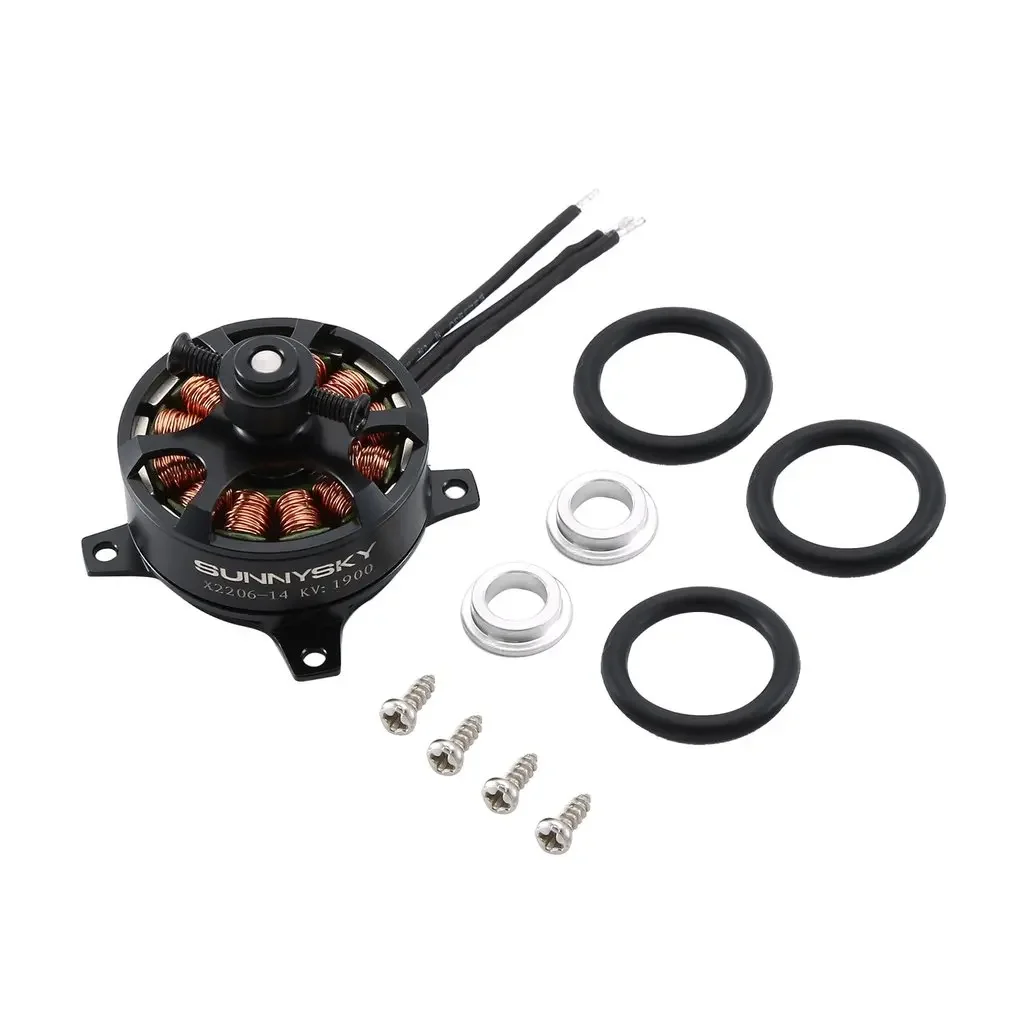

• Package Included:
• Sunnysky X2204 1480KV Brushless Motor x 1
  or
  Sunnysky X2204 1800KV Brushless Motor x 1
  or
  Sunnysky X2206 1500KV Brushless Motor x 1
  or
  Sunnysky X2206 1900KV Brushless Motor x 1
  (Bag of Accessories  x1)
